Page 1

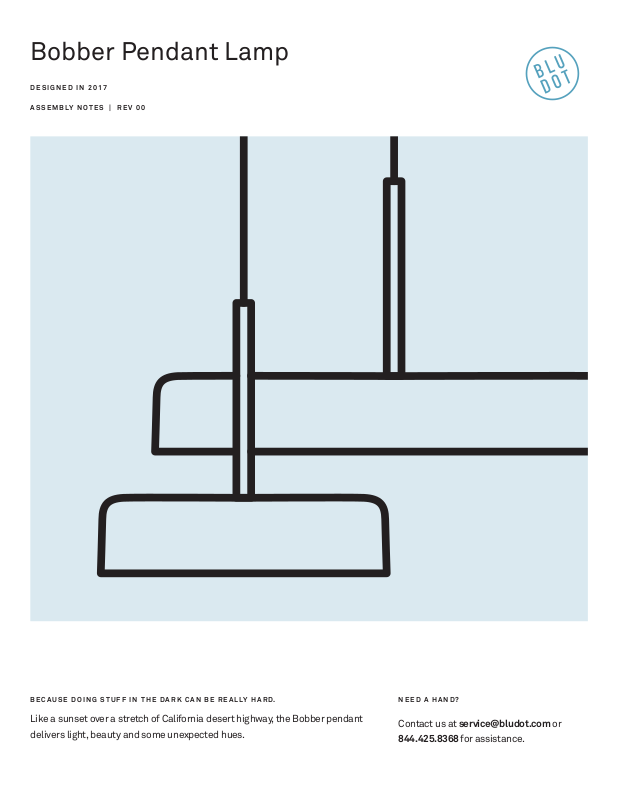

Bobber Pendant Lamp
DESIGNED IN 2017
ASSEMBLY NOTES | REV 00
BECAUSE DOING STUFF IN THE DARK CAN BE REALLY HARD.
Like a sunset over a stretch of California desert highway, the Bobber pendant
delivers light, beauty and some unexpected hues.
NEED A HAND?
844.425.8368 for assistance.
Page 2
Parts & Hardware
PT. 1061
2QTY
PT. 1060
2QTY
3QTY
PT. 8021
1 1QTY QTY
Mounting Bracket Pendant
NOTE: Electricity is dangerous. It is recommended to
hire a professional electrician to install your lamp.
1 | 844. 425.836 8 BOBBER PENDANT
Page 3

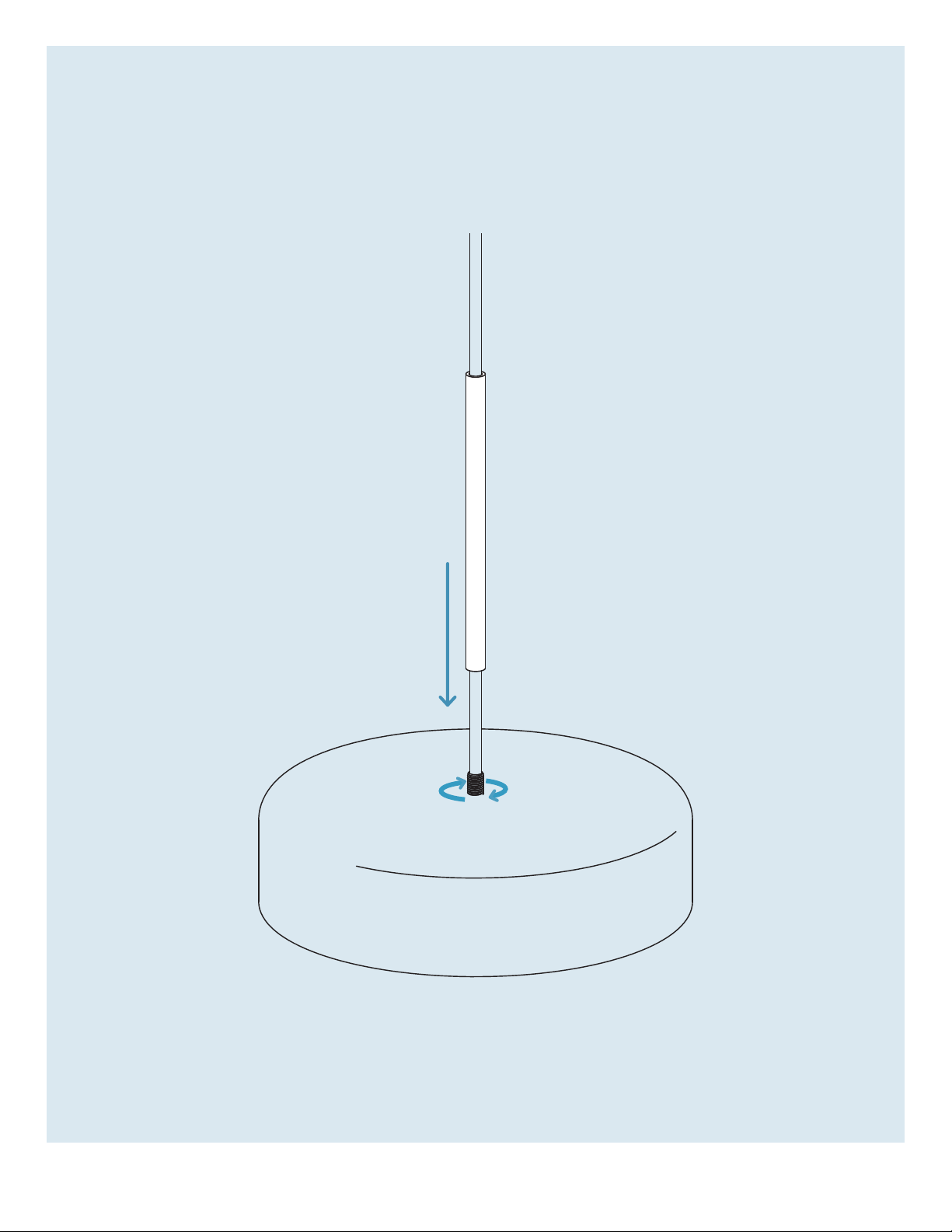

Step 01
ASSEMBLE PENDANT.
Place the pendant shade on a soft
surface and thread the support tube on
as shown.
[email protected] | 2ASSEMBLY NOTES
Page 4

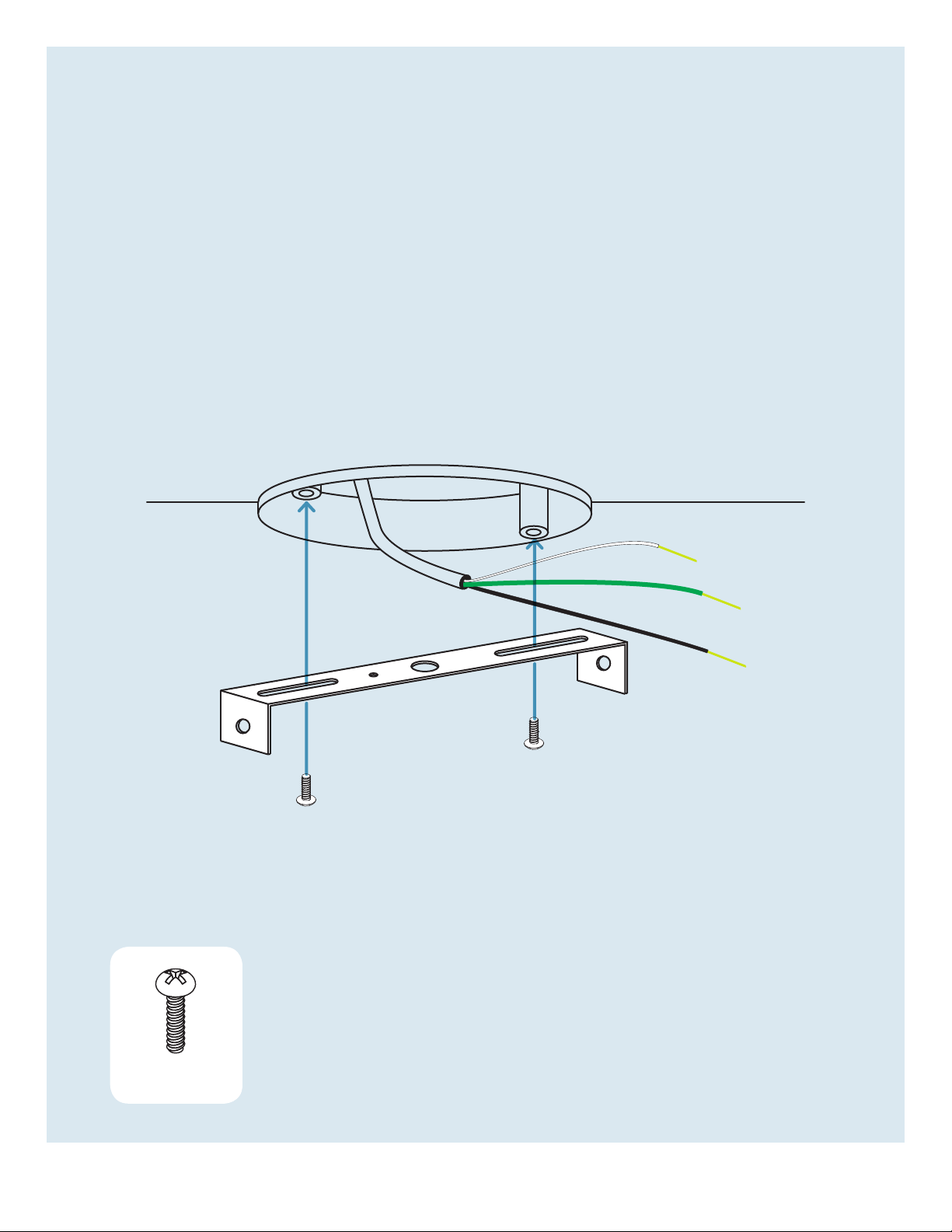

Step 02
ATTACH MOUNTING BRACKET.
1. Disconnect power.
2. Attach mounting bracket to ceiling
electrical box as shown using the
provided hardware.
PT. 1060 x 2
3 | 844. 425.836 8 BOBBER PENDANT
Page 5

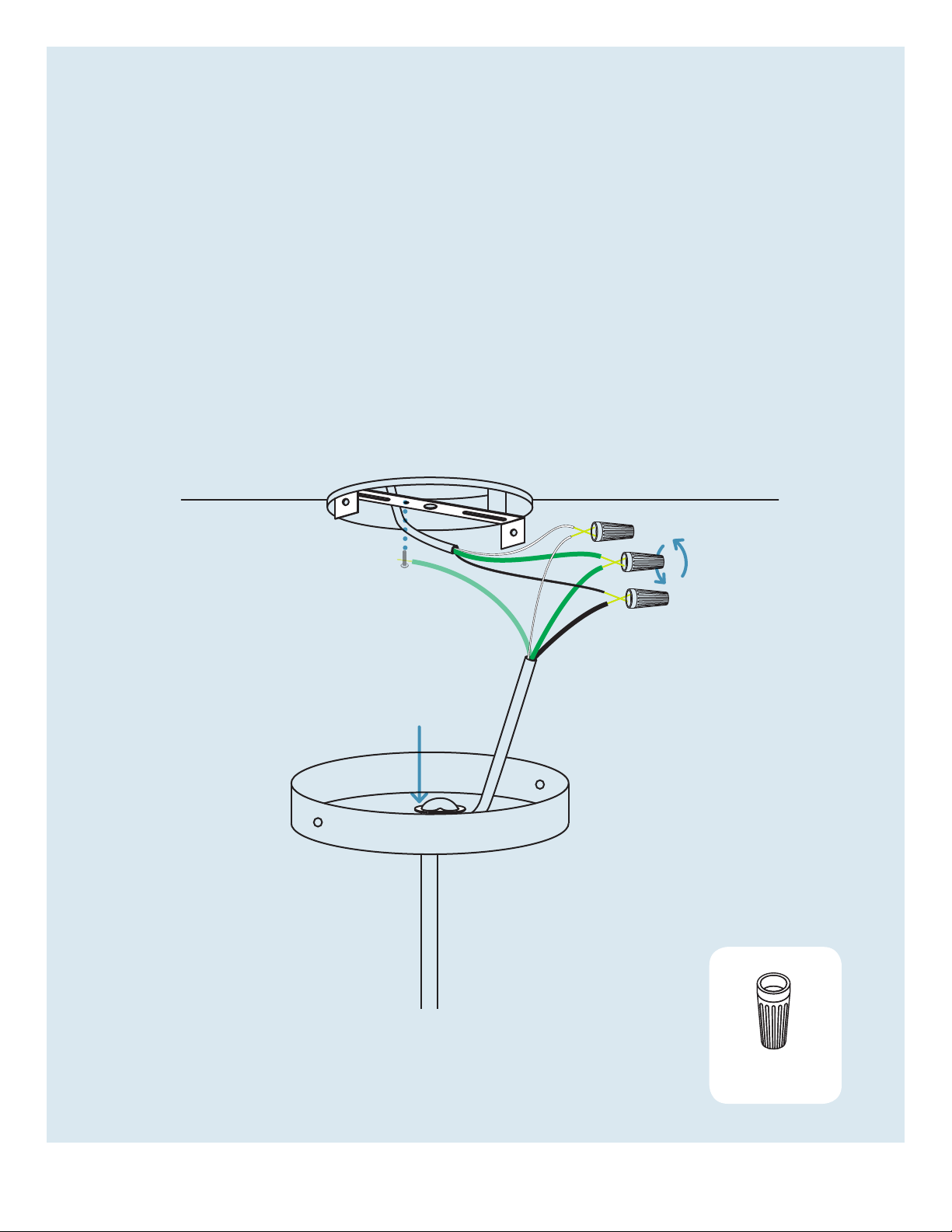

Step 03
HARDWIRE PENDANT.
1. Cut pendant cord to desired length, allow 4” above canopy for wiring.
2. Twist matching copper wires together.
-white to white
-black to black
-green to green
3. If no green wire (ground wire) is present in electrical box, wrap wire around
pre-attached screw on mounting bracket and tighten into place.
strain relief
bracket
PT. 8021 x 3
[email protected] | 4ASSEMBLY NOTES
Page 6

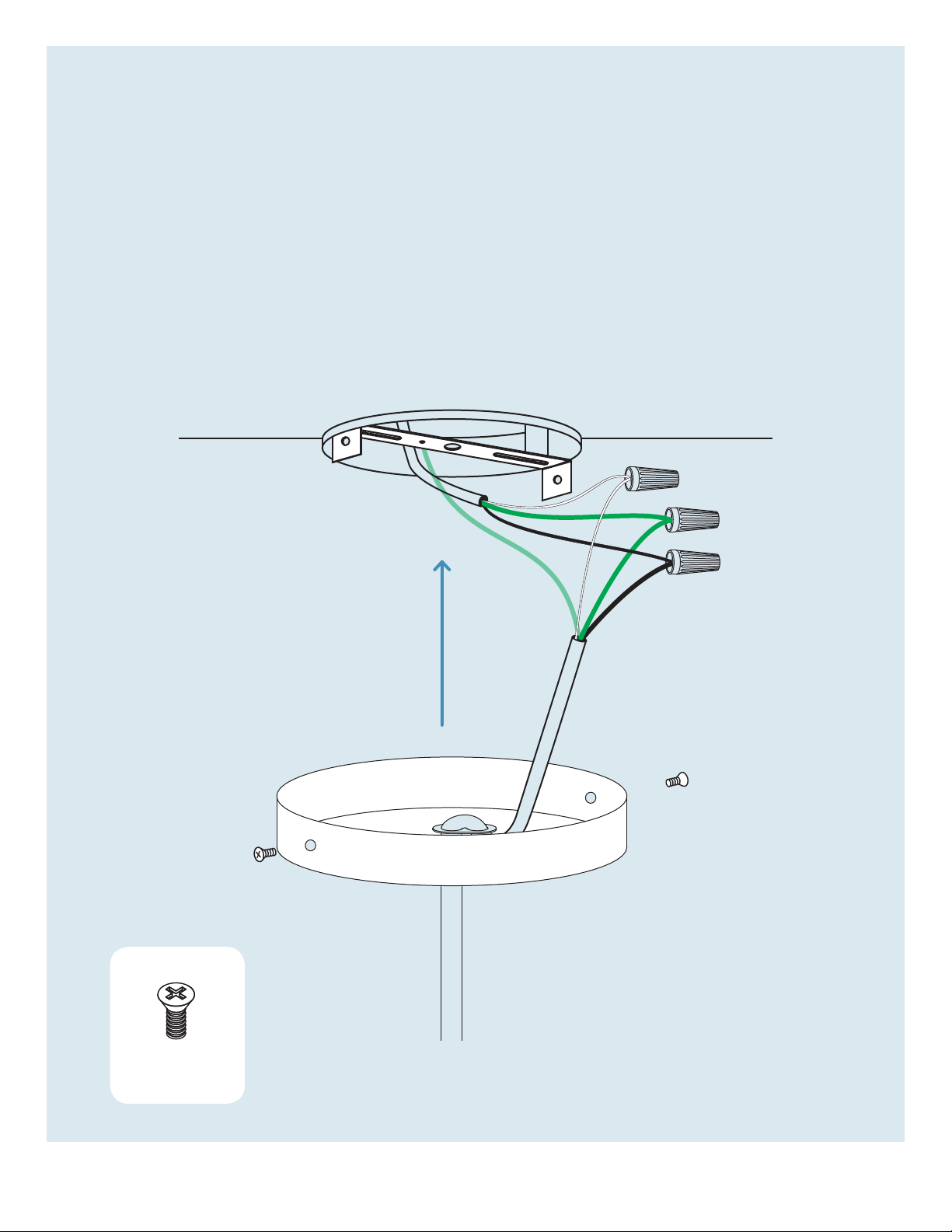

Step 04
ATTACH CANOPY TO BRACKET.
1. Align vertical holes on mounting bracket
with side canopy holes.
2. Attach as shown using the provided
hardware.
3. Re-connect power.
PT. 1061 x 2
5 | 844. 425.836 8 BOBBER PENDANT
Page 7
[email protected] | 6ASSEMBLY NOTES
Page 8
Additional Information
USE
This unit is meant for indoor use in dry locations only.
CLEAN
Clean powder-coated units with a soft cloth or sponge using a mild detergent, such as dish soap, and
warm water. Wipe completely dry with a soft cloth.
REGULATORY
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Caution: changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN
