Mirror Mirror Collection
DESIGNED IN 2008
ASSEMBLY NOTES | REV 01
WICKED WITCHES NEVER HAD IT SO GOOD. POISON APPLES SOLD SEPARATELY.
Wicked witches never had it so good. Walnut pairs solidly with a black anodized
aluminum framed mirror for a subtle, yet striking effect.
NEED A HAND?
Contact us at service@bludot.com or
844.425.8368 for assistance.
8041
Anti-tip Bracket
8042
Anti-tip Strap
Parts & Hardware
Pt. 8041
2QTY
Pt. 8042
QTY 2
1QTY
Pt. 1217
2QTY
Pt. 1218
2QTY
Wall Cleat
1 | 844.425.8368 MIRROR MIRROR COLLECTION
Mirror
1QTY
Step 01
ATTACH WALL CLEATS.
Determine your desired mirror orientation. Attach x2 cleats for a
horizontal mirror, x1 for a vertical mirror. Use the outermost holes
first, then distribute the other screws based on the wall studs.
* Position the top of the wall cleat(s) 2” lower than your desired
height of the mirror.
Desired Height
2 in. lower
*
* It is recommended that you consult with a professional to determine
the method and hardware required for installation.
*
*
*
*
SERVICE@BLUDOT.COM | 2ASSEMBLY NOTES
Step 02
HANGING THE MIRROR VERTICALLY.
Place mirror against the wall above the wall
cleat. Carefully slide mirror down along the wall
until it engages with the wall cleat as shown.
REAR VIEW SIDE VIEW
3 | 844.425.8368 MIRROR MIRROR COLLECTION
Step 03
HANGING THE MIRROR HORIZONTALLY.
Place mirror against the wall above the wall
cleat. Carefully slide mirror down along the wall
until it engages with the wall cleat as shown.
REAR VIEW SIDE VIEW
SERVICE@BLUDOT.COM | 4ASSEMBLY NOTES
8041
Anti-tip Bracket

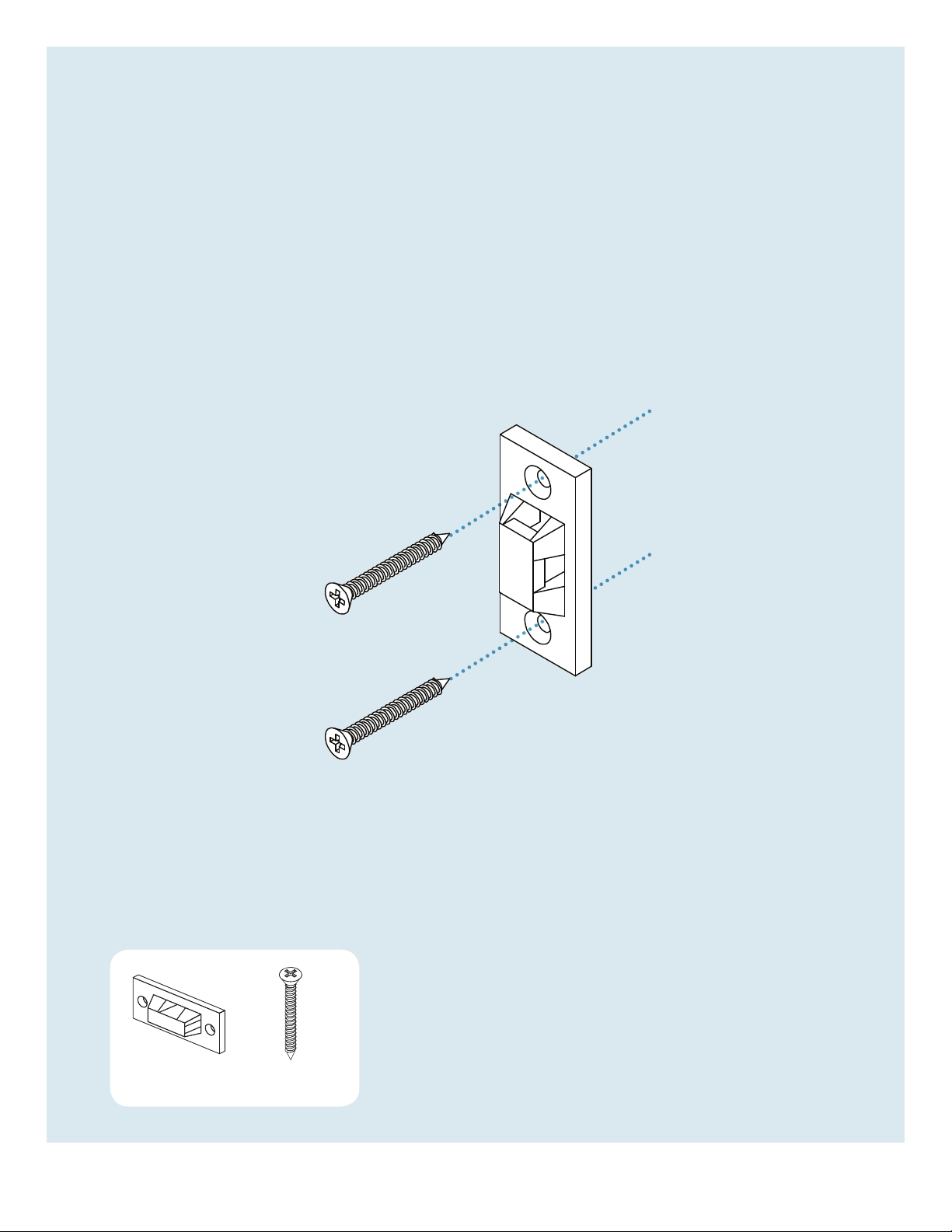

Step 04
ATTACH ANTI-TIP BRACKET TO THE WALL.
If leaning Mirror Mirror against a wall an anti-tip kit
is required. Install anti-tip bracket to wall stud 1”
below mirror height.
Wall
PT. 8041 x 1 PT. 1218 x 2
5 | 844.425.8368 MIRROR MIRROR COLLECTION
8041
Anti-tip Bracket

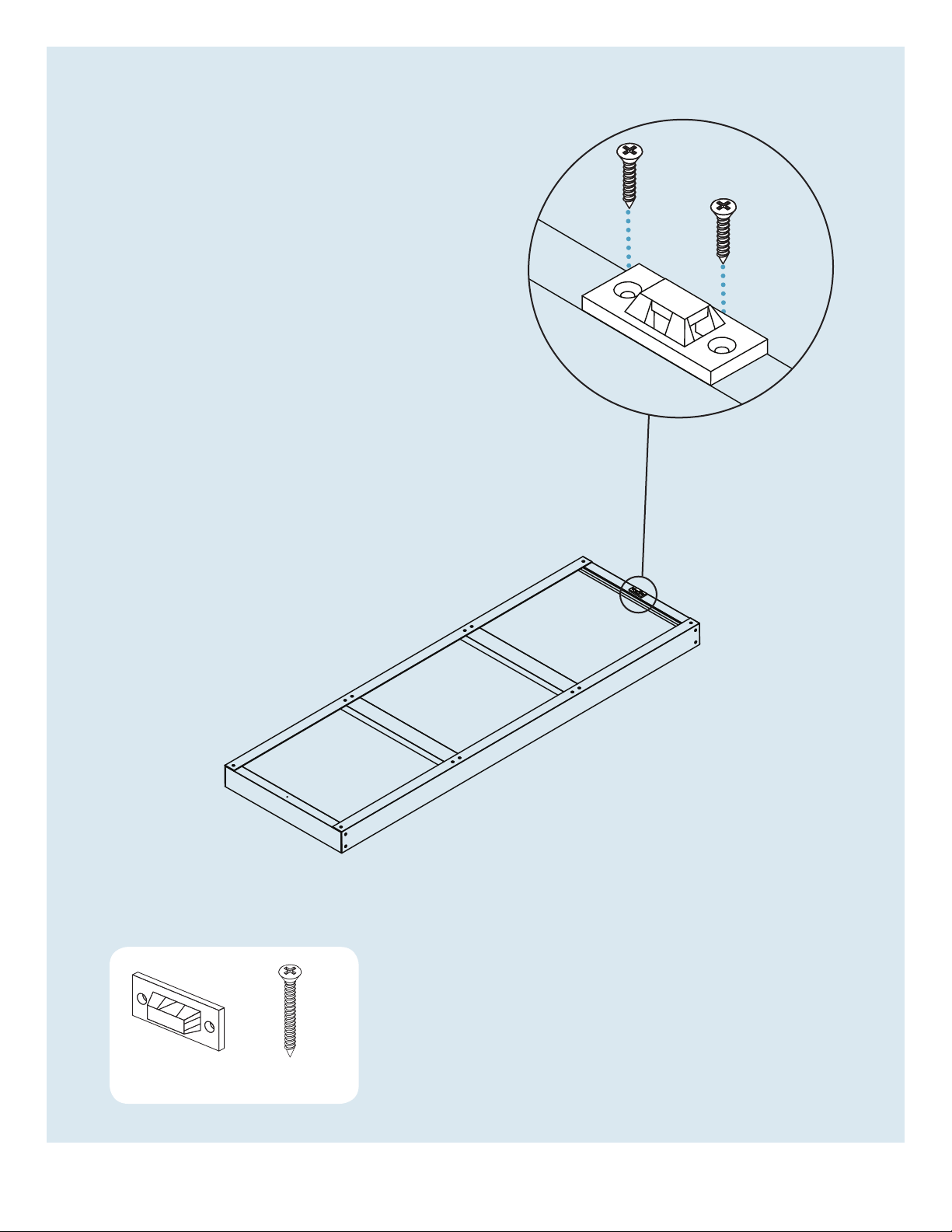

Step 05
INSTALL ANTI-TIP BRACKET TO MIRROR.
Bracket must be installed to wood rail. In order
to prevent damage, it is recommended that
3/32” pilot holes be drilled prior to installation.
PT. 8041 x 1 PT. 1218 x 2
SERVICE@BLUDOT.COM | 6ASSEMBLY NOTES
8042
Anti-tip Strap

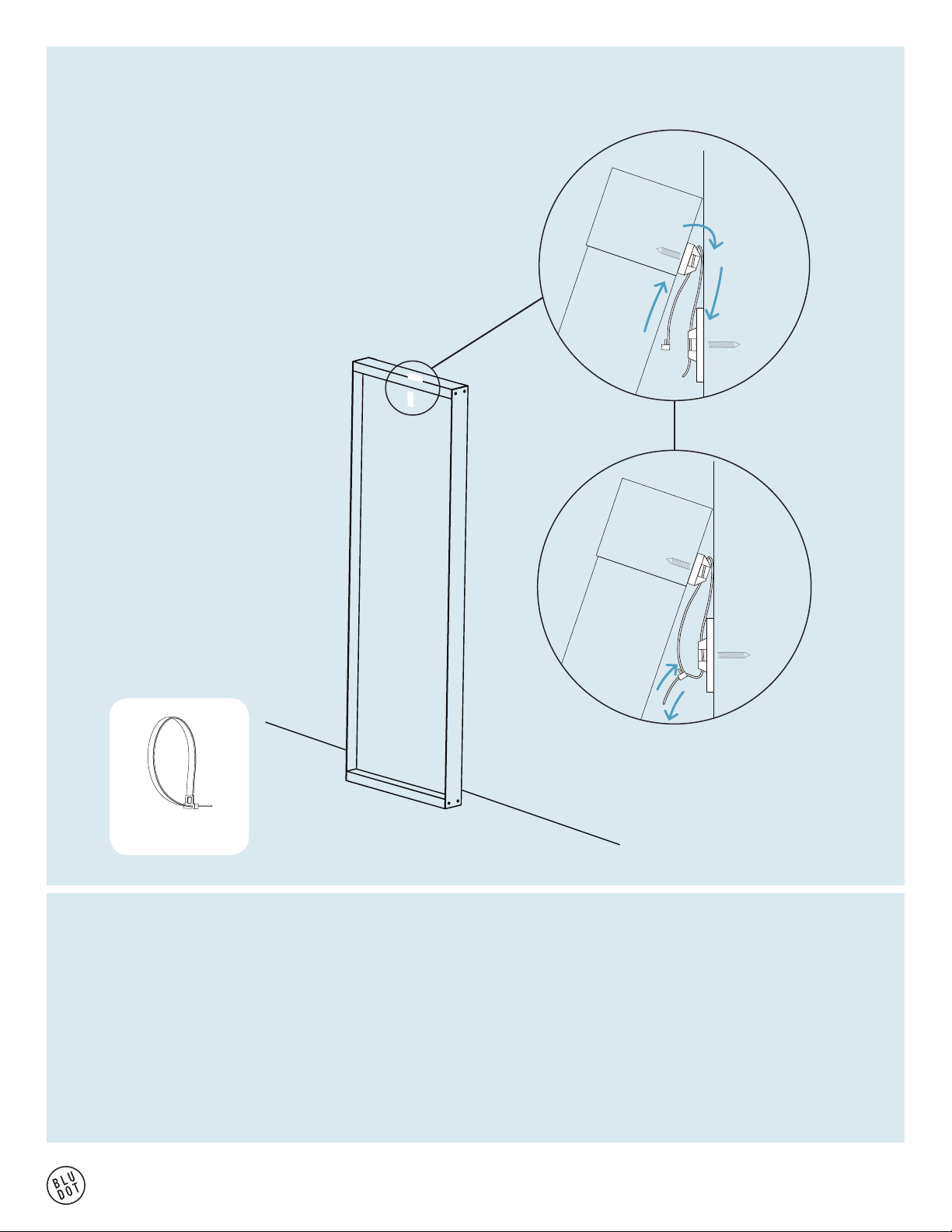

Step 06
SECURE THE MIRROR.
Install and tighten the strap prior to using the
product.
PT. 8042 x 1
Additional Information
CLEAN
Clean with a slightly damp, soft cloth. To remove dirt
and fingerprints, use a quality cleaner formulate for
wood furniture. Wipe completely dry with a soft cloth
in the direction of the wood grain.
BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN
