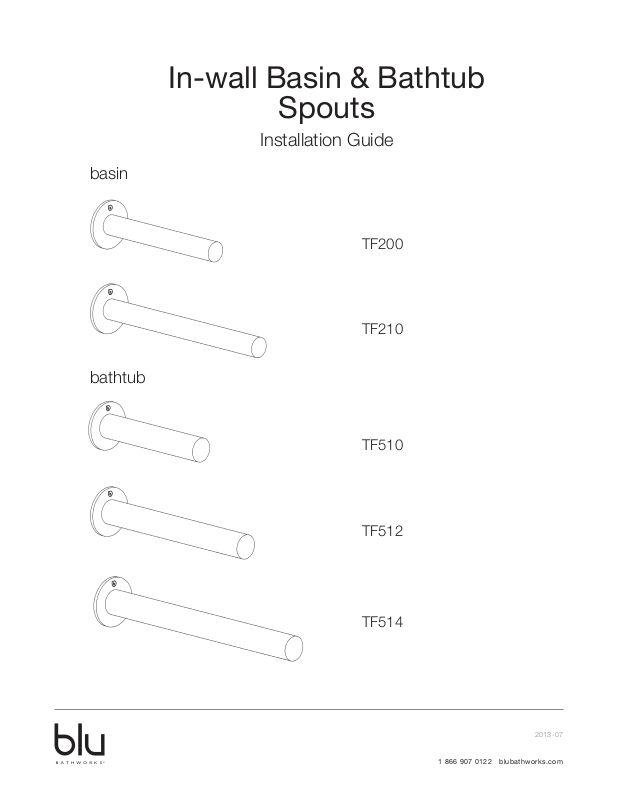

Page 1
basin
In-wall Basin & Bathtub
Spouts
Installation Guide

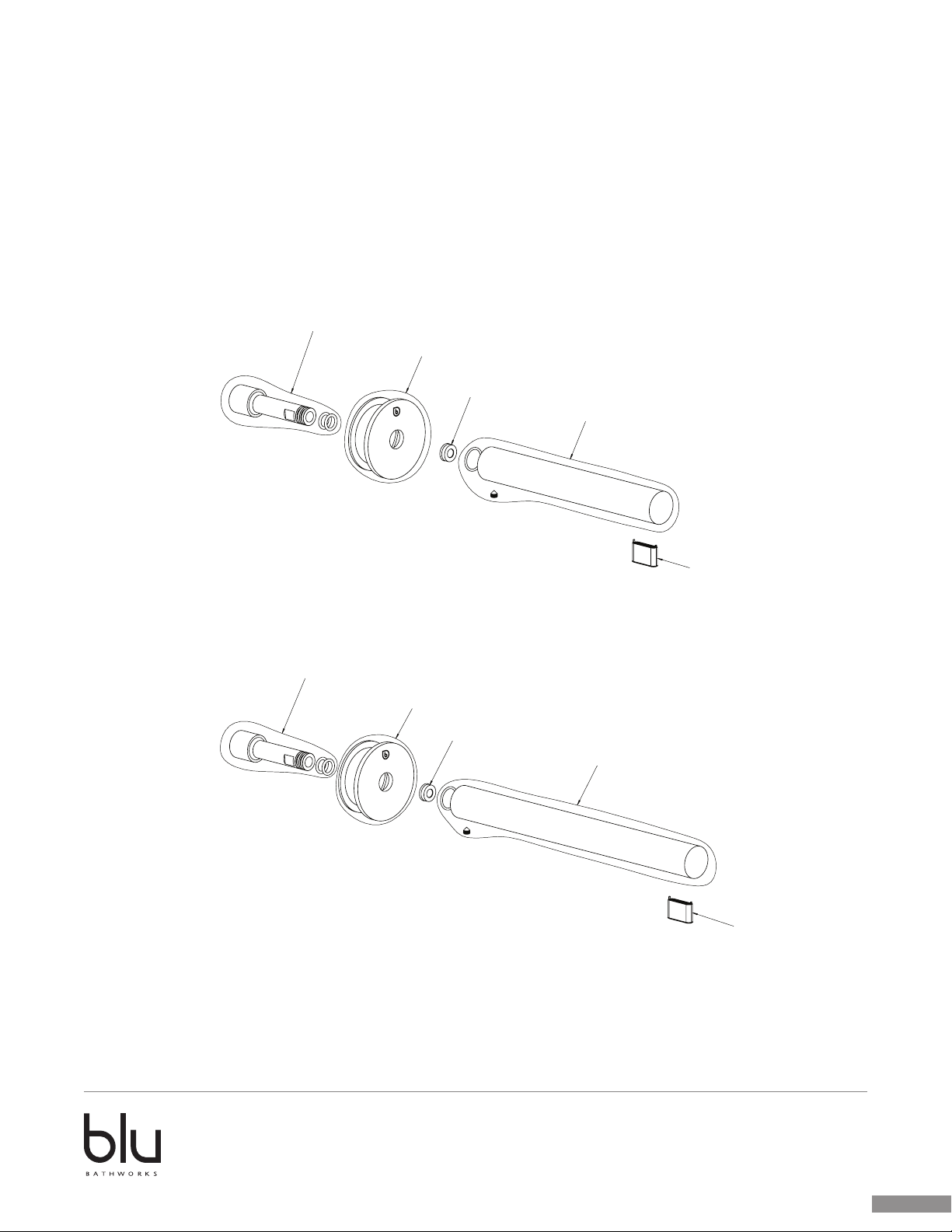

TF200
TF210
bathtub
TF510
TF512
TF514
2013-07
®
1 866 907 0122 blubathworks.com
Page 2
Attention – Before Installation
1. Inspect this product to ensure you have all parts as shown that are required for proper installation.
2. The valve cartridge has been factory tested and adjusted – DO NOT TAKE THE CARTRIDGE APART. Taking the
cartridge apart will void the warranty.
3. Ensure that both hot and cold water feeds are properly connected to the marked lav connecting.
4. This product must be installed by a professional contractor.
5. Refer to the specification and assembly drawings attached for installation directions.
6. Flow Pressure –Min. 25 PSI, Max. 80 PSI. Recommended pressure – 50 to 60 PSI.
Installation Requirements
Please read the instructions carefully so as to avoid any damage to the fixture.
1. To ensure this product is installed properly, you must read and follow these guidelines.
2. The owner/user of the faucet must keep this information for future reference.
3. Be sure your installation conforms to local codes.
4. Refer to the specification and assembly drawings attached. Faucet is sold partially assembled but shown fully
disassembled for illustrative and service purposes only.
5. Inspect this product to ensure you have all parts required for proper installation.
6. Use only a strap wrench or protected/smooth-jaw wrench on any finished surface.
7. If possible, install the faucet assembly on the sink or mounting surface before setting.
8. Do NOT use putty during this installation.
Cleaners For Fittings And Accessories
To avoid damaging the surface and working components of the fittings, certain precautions must be taken in terms of usage and subsequent cleaning as many cleaning agents contain acids for general cleaning and removing calcium deposits. When caring for your fittings and accessories, please note the following:
- Only apply cleaners which are expressly intended for the use
- Never use any cleaner containing hydrochloric acid, formic acid or acetic acid on or near the fitting, as they can
cause considerable damage
- Do not use cleaners containing phosphoric acid
- Do not use cleaners containing chlorine bleach solutions
- Never mix or combine cleaning agents
- Abrasive cleaners and unsuitable scouring agents such as scouring pads
Technical Support Assistance
If further assistance is required, please contact:
Product support at 1.866.907.0122 (09:00 - 17:00hrs PST) or email
North America
Blu Bathworks Inc.
188 Smithe Street, Vancouver BC, Canada, V6B 6A9
T+1.604.299.0122 F+1.604.299.0125
®
2013-07
1 866 907 0122 blubathworks.com
1
Page 3
BASIN - STEP 1
• Screw the rod (1) on the pipe (2).
• Place the foam gasket (3) on the back part of the plate(4).
• Place the plate (4) on the finished wall.
BASIN - STEP 2
• Place the O-ring (5) on the spout (7).
• Place the flow restrictor (6) in the seal inside the spout (7).
• Place the spout (7) on the rod and fix it with the grub screw (8).
2013-07
®
1 866 907 0122 blubathworks.com
2
Page 4

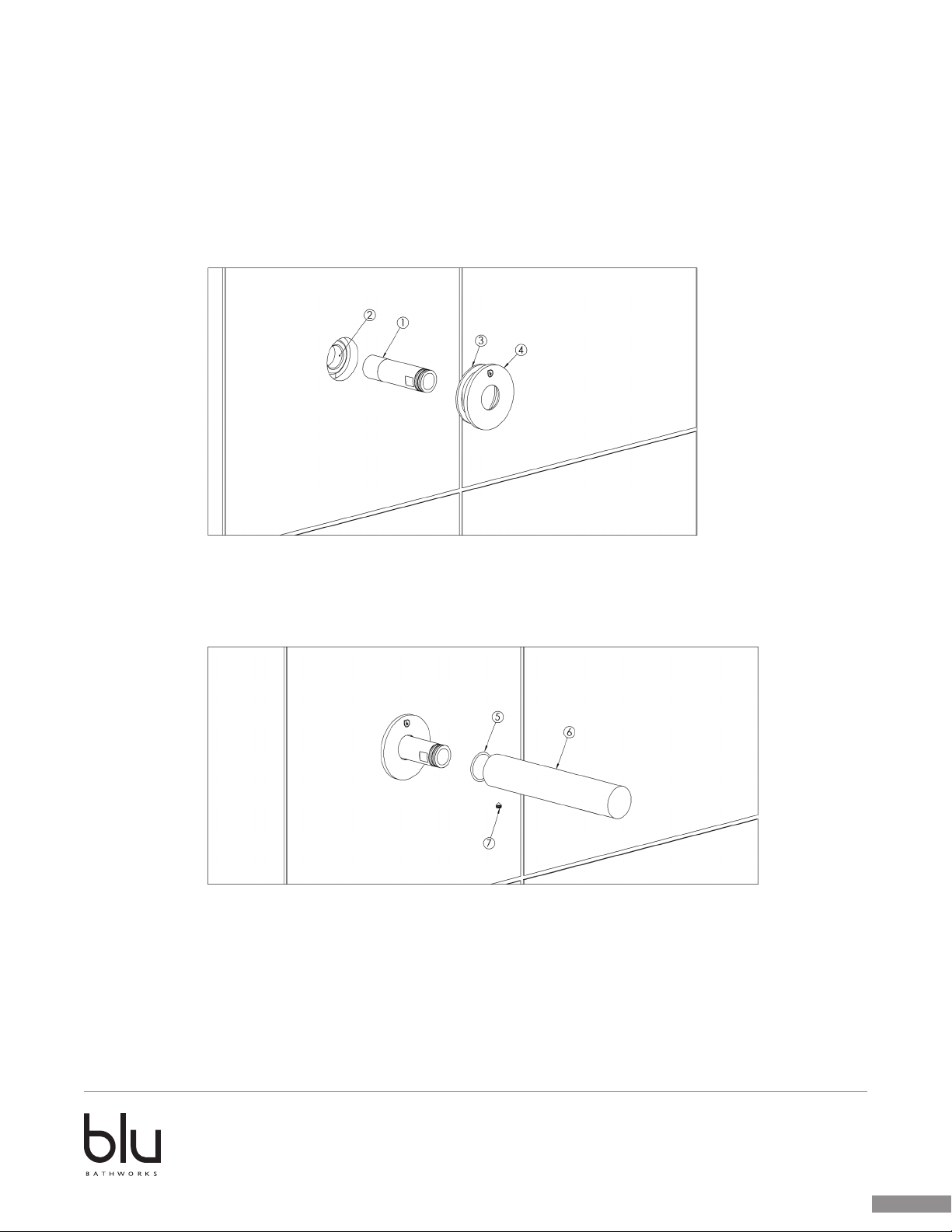

BATHTUB - STEP 1
• Screw the rod (1) on the pipe (2).
• Place the foam gasket (3) on the back part of the plate(4).
• Place the plate (4) on the finished wall.
BATHTUB - STEP 2
• Place the O-ring (5) on the spout (6).
• Place the spout (6) on the rod and fix it with the grub screw (7).
2013-07
®
1 866 907 0122 blubathworks.com
3
Page 5

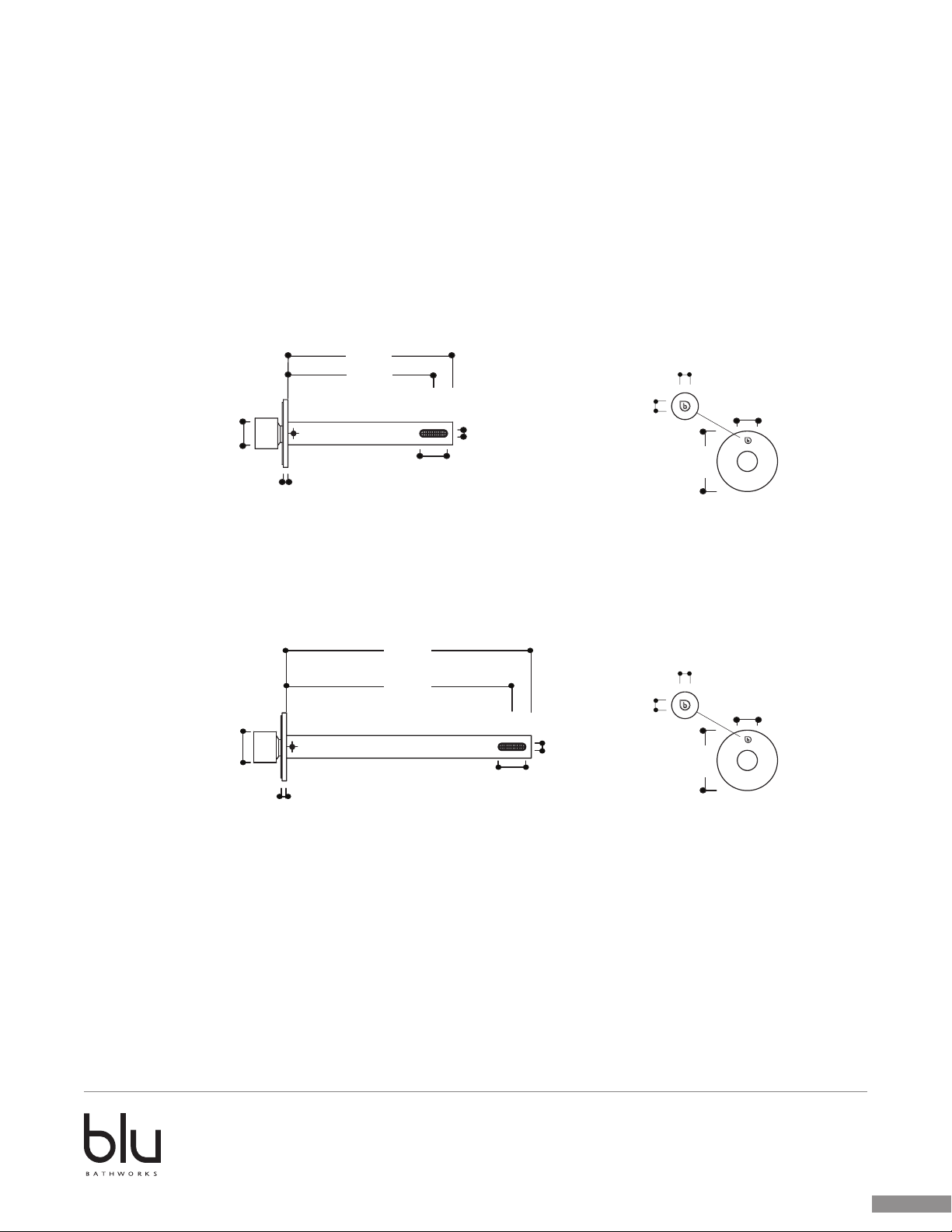

NPT ½"
TF200
¼"
[4]
TF210
7"
[180]
6½"
[163]
BASIN SPOUTS
¼"
[6]
1"
[24]
¼"
[7]
¼"
[7]
Ø2½"
[60]
Ø1"
[25]
NPT ½"
¼"
10"
[250]
9¼"
[233]
¼"
[6]
1"
[24]
[4]
¼"
[7]
¼"
[7]
Ø2½"
[60]
Ø1"
[25]
2013-07
®
1 866 907 0122 blubathworks.com
4
Page 6

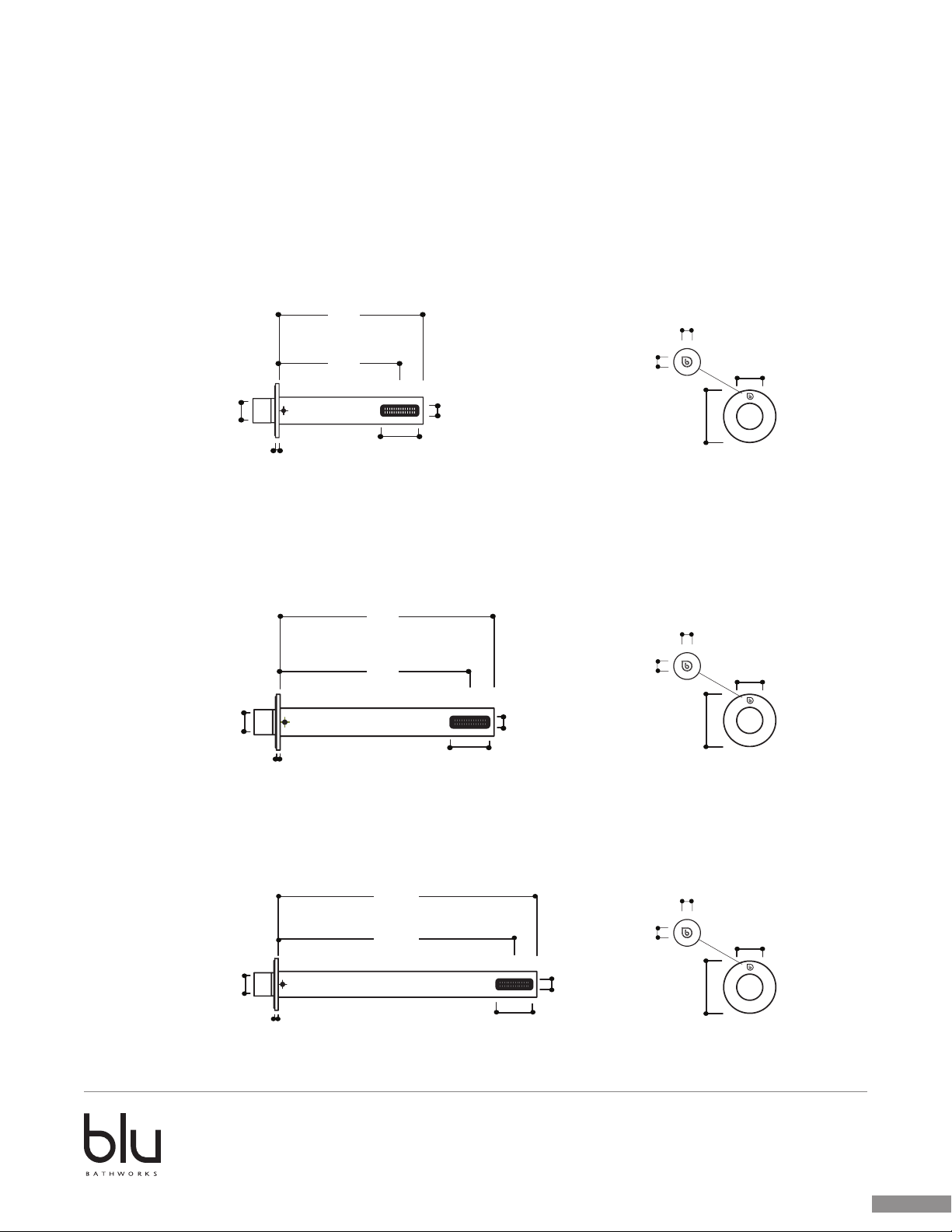

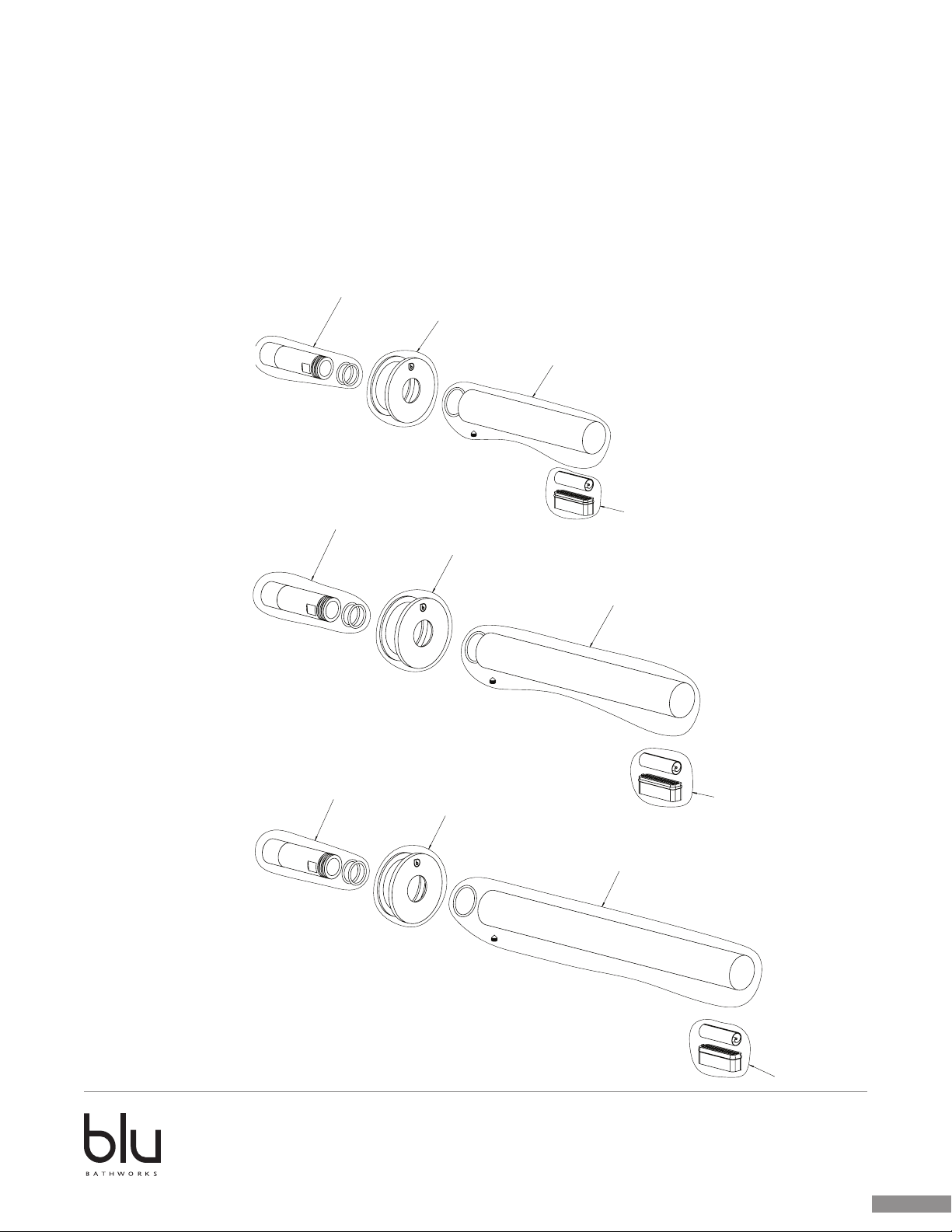

TF510
BATHTUB SPOUTS
NPT ½"
NPT ½"
¼"
[4]
TF512
6¼"
[160]
5¼"
[134]
9"
[230]
8"
[204]
1½"
[42]
½"
[12]
½"
[12]
¼"
[7]
Ø1¼"
¼"
[7]
Ø2½"
[60]
¼"
[7]
¼"
[7]
Ø2½"
[60]
[30]
Ø1¼"
[30]
1½"
¼"
[4]
[42]
TF514
11¾"
[300]
10¾"
[274]
NPT ½" ½"
¼"
[4]
®
1½"
[42]
[12]
¼"
[7]
Ø1¼"
¼"
[7]
Ø2½"
[60]
[30]
1 866 907 0122 blubathworks.com
2013-07
5
Page 7
TF200
TF210
BASIN SPOUTS
P0000000500
P1293000032
P0000000513
P1293000033
P0000000501
P0000000500
P1293000032
P0000000513
P1293000034
P0000000501
2013-07
®
1 866 907 0122 blubathworks.com
6
Page 8
TF510
BATHTUB SPOUTS
P0000000327
P1293000024
P1293000025
TF512
TF514
P0000000327
P0000000327
P0000000498
P1293000024
P1293000026
P0000000498
P1293000024
P1293000027
P0000000498
2013-07
®
1 866 907 0122 blubathworks.com
7
Page 9
wher e w a t er meets modern
®
®
wher e w a t er meets modern
®
®
warranty
®
LIMITED FURNITURE RESIDENTIAL WARRANTY
Blu Bathworks
residential use for a period of five (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED CERAMICS RESIDENTIAL WARRANTY
Blu Bathworks
residential use for a period of one (1) year from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED blu·stone™ RESIDENTIAL WARRANTY
Blu Bathworks
residential use for a period of five (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty. Blu Bathworks
temperature regulations of 150°F/65°C, respectively. Exceeding stated temperatures could result in damage to blu.stone basins and bathtubs.
LIMITED ACRYLIC BATHTUBS RESIDENTIAL WARRANTY
Blu Bathworks
residential use for a period of five (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED TAPWARE RESIDENTIAL WARRANTY
Blu Bathworks
during normal residential use for as long as the original purchaser owns his or her home. Blu will, at its election, repair, provide a replacement part or product, or
make appropriate adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED ELECTRONICA TAPWARE RESIDENTIAL WARRANTY
Blu Bathworks
residential use for a period of five (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED COMMERCIAL WARRANTY
Blu Bathworks
of one (1) year from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate adjustment, subject to the
terms and conditions set forth in this warranty.
®
(“Blu”) furniture products are warranted to the original purchaser to be free from defects in all material and workmanship during normal
®
("Blu") ceramic products are warranted to the original purchaser to be free from defects in all material and workmanship during normal
®
("Blu") blu·stone™ products are warranted to the original purchaser to be free from defects in all material and workmanship during normal
®
("Blu") acrylic bathtubs are warranted to the original purchaser to be free from defects in all material and workmanship during normal
®
(“Blu”) tapware products are warranted to the original purchaser to be free from defects in all mechanical parts and polished chrome finishes
®
(“Blu”) electronica tapware products are warranted to the original purchaser to be free from defects in all electronic parts during normal
®
("Blu") products are warranted to the original purchaser to be free from defects in all material and workmanship during normal usage for a period
®
does not recommend exceeding US/Canada maximum hot water
terms and conditions
This warranty applies only to Blu Bathworks
This warranty is non-transferable and is for the exclusive benefit of the original purchaser of a Blu product. This warranty may be exercised by the original
purchaser of a unit in a new residential development. Blu recommends using a professional plumber for all installation and repair. This warranty does not apply
to products that have been installed in any manner other than as set out in Blu’s printed instructions, or to products that have been altered in any way.
For further clarity, the above stated warranty does not cover or apply to damage attributable to:
(a) neglect, misuse, abuse, accident or negligence;
(b) normal wear and tear;
(c) dirt or lime scale, or the use of inappropriate cleaners (such as those containing abrasives, ammonia, acids, waxes, bleaches, solvents, alcohol, or any
product not recommended for chrome); and
(d) damage caused by transportation, or improper storage.
This is the only warranty of Blu, which makes no other warranty of any kind. Blu disclaims any liability for special, incidental or consequential damages. In no
event shall the liability of Blu under this warranty exceed the purchase price of the product.
PROCEDURE FOR WARRANTY SERVICE
Refer to blubathworks.com for policy and procedures relating to requests for service under the terms of this warranty.
Original proof of purchase is required. Blu is not responsible for removal or installation costs, or the costs of shipping and handling associated with any service.
Repaired or replaced products or parts are warranted only for the period remaining under the initial warranty.
®
®
("Blu") products distributed in North America.
