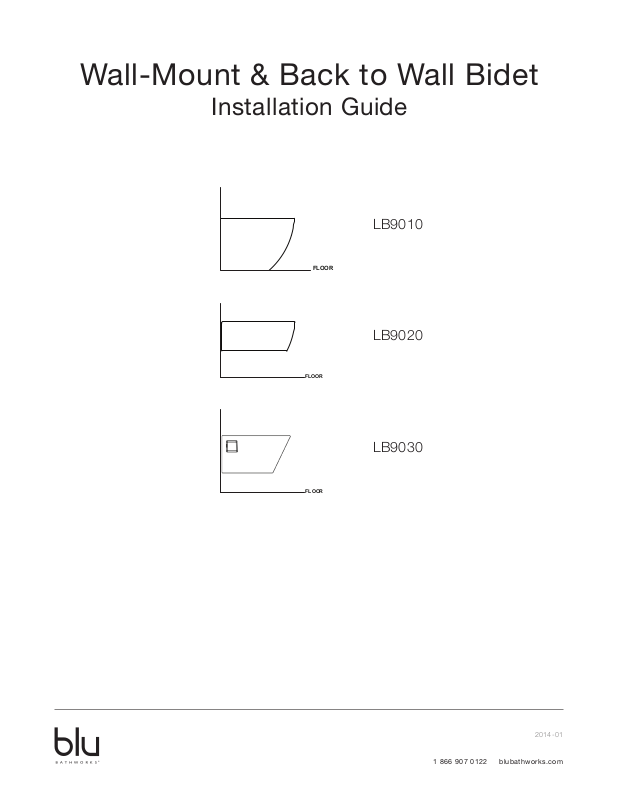

Wall-Mount & Back to Wall Bidet

Installation Guide

LB9010

FLOOR

LB9020

FLOOR

LB9030

2014-01

1 866 907 0122 blubathworks.com

Page 2

Attention — Before Installation

If you are installing this product in a new construction or remodel, please make sure you are following all local plumbing and building codes. Carefully unpack and examine your new ﬁxture for damage. To help insure that the installation process will proceed smoothly and correctly, please read these instructions carefully before you begin.

• We recommend that the installation be done by a minimum of 2 people as a security precaution. Also make sure to adopt the proper posture when lifting the basin.

• Adhere to all local building and plumbing codes. The diagrams in this guide are not construction plans. They are visual aids.

• Inspect this product to ensure you have all parts as shown that are required for proper installation. Blu recommends that the installer refer to the Geberit concealed installation systems instructions.

Note: The bidet faucet, drain and wall carrier for wall-hung bidets need to be purchased separately.

Installation Requirements

Please read the instructions carefully so as to avoid any damage to the ﬁxture.

1. To ensure this product is installed properly, you must read and follow these guidelines.

2. The owner/user of the product must keep this information for future reference.

3. Consult local building codes to make sure the installation complies with standards.

4. Remove the unit from its packaging. Before disposing of it, inspect the unit to make sure its in good shape. Should

inspection reveal any damage or defect in the ﬁnish, contact your distributor. The warranty does not cover damages or defects in the ﬁnish once it has been installed. Blu Bathworks’ responsibility for shipping damages ceases upon delivery of the product in good order to the carrier. All complaints regarding damage due to transport must be made directly to the carrier.

5. Place the unit in the bathroom before you start working. Conserve all nuts and bolts.

6. To protect the unit during installation, we recommend that you lay a piece of cardboard between the bidet and its

resting surface.

7. If the unit is covered with polyethylene protective ﬁlm, do not remove until installation is complete to grant maximum

protection. However, remove ﬁlm where any two surfaces will be in permanent contact.

8. Verify that all dimensions on the plan are the same as the ones of the unit.

Installation Notes

Important! Install this product according to the installation guide. Our products must be installed by certiﬁed professionals only and according to our installation guide as well as federal, provincial / state and local building codes and regulations.

Technical Support Assistance

If further assistance is required, please contact:

Product Support at 1.866.907.0122 (09:00 – 17:00hrs PST) or email [email protected]

North America

Blu Bathworks Inc.

188 Smithe Street,Vancouver, BC, Canada, V6B 6A9

T +1.604.299.0122 F +1.604.299.0125

2014-01

1 866 907 0122 blubathworks.com

Page 3

Cleaners for Fittings and Accessories

To avoid damaging the surface and working components of the ﬁttings, certain precautions must be taken in terms of usage and subsequent cleaning as many cleaning agents contain acids for general cleaning and removing calcium deposits. When caring for your ﬁttings and accessories, please note the following:

- Only apply cleaners which are expressly intended for the use

- Never use any cleaner containing hydrochloric acid, formic acid or acetic acid on or near the ﬁtting, as they can

cause considerable damage even with just one application

- Do not use cleaners containing phosphoric acid

- Do not use cleaners containing chlorine bleach solutions

- Never mix or combine cleaning agents

- Abrasive cleaners and unsuitable scouring agents such as scouring pads.

2014-01

1 866 907 0122 blubathworks.com

Page 4

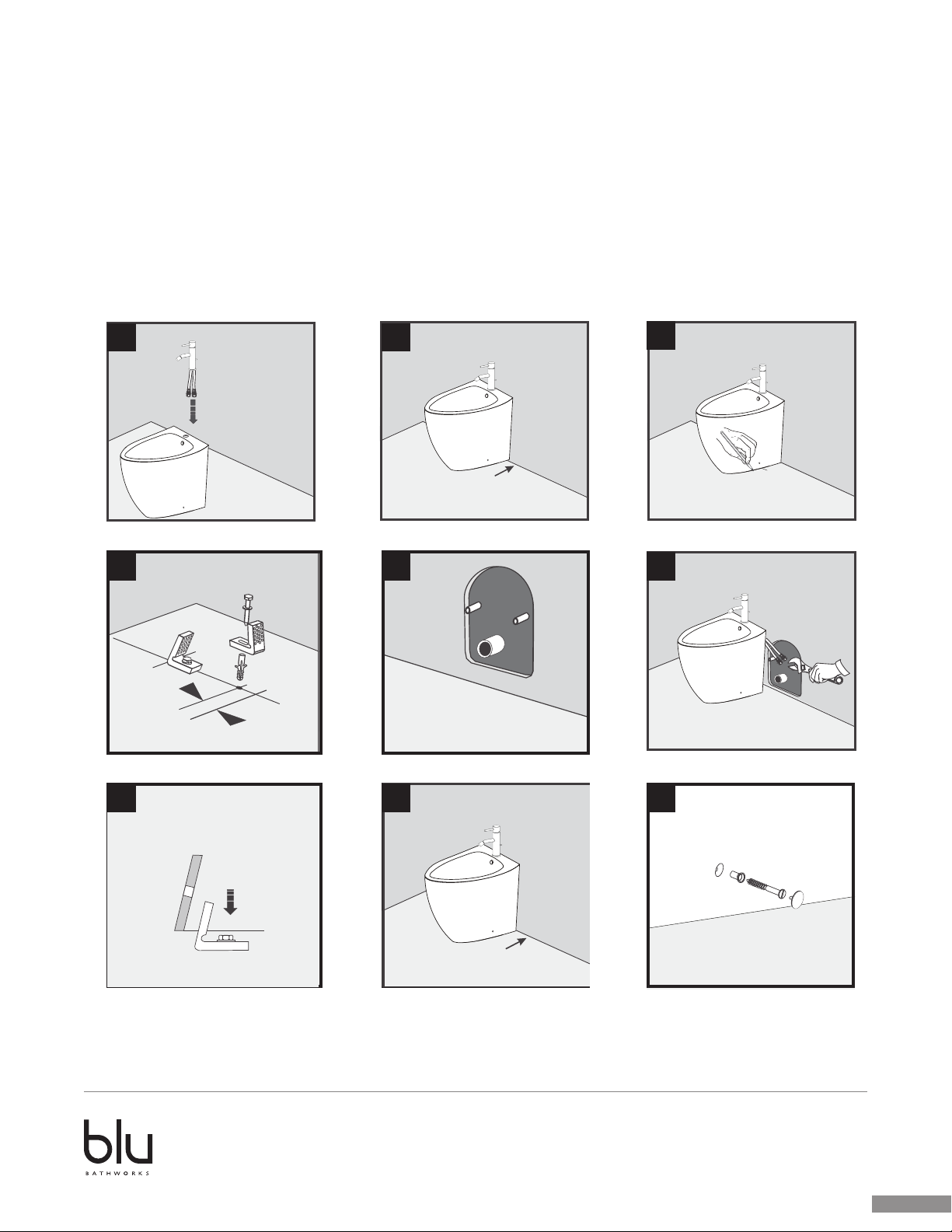

Installation Instructions for Back to Wall Bidet

1½" [40]

LB9010

PREPARATION

• Turn-off water supply and if necessary remove old bidet.

• Install or relocate the supply tubing and waste pipe to the speciﬁed rough-in dimension.

• It is recommended that the faucet and waste be assembled and installed prior to the installation of the bidet.

Refer to Illustrations below.

1½" [40]

8 9

FINISHING

• Install the faucet and drain per manufacturer’s instructions.

• Turn-on the water supply and check entire installation for leaks.

2014-01

1 866 907 0122 blubathworks.com

Page 5

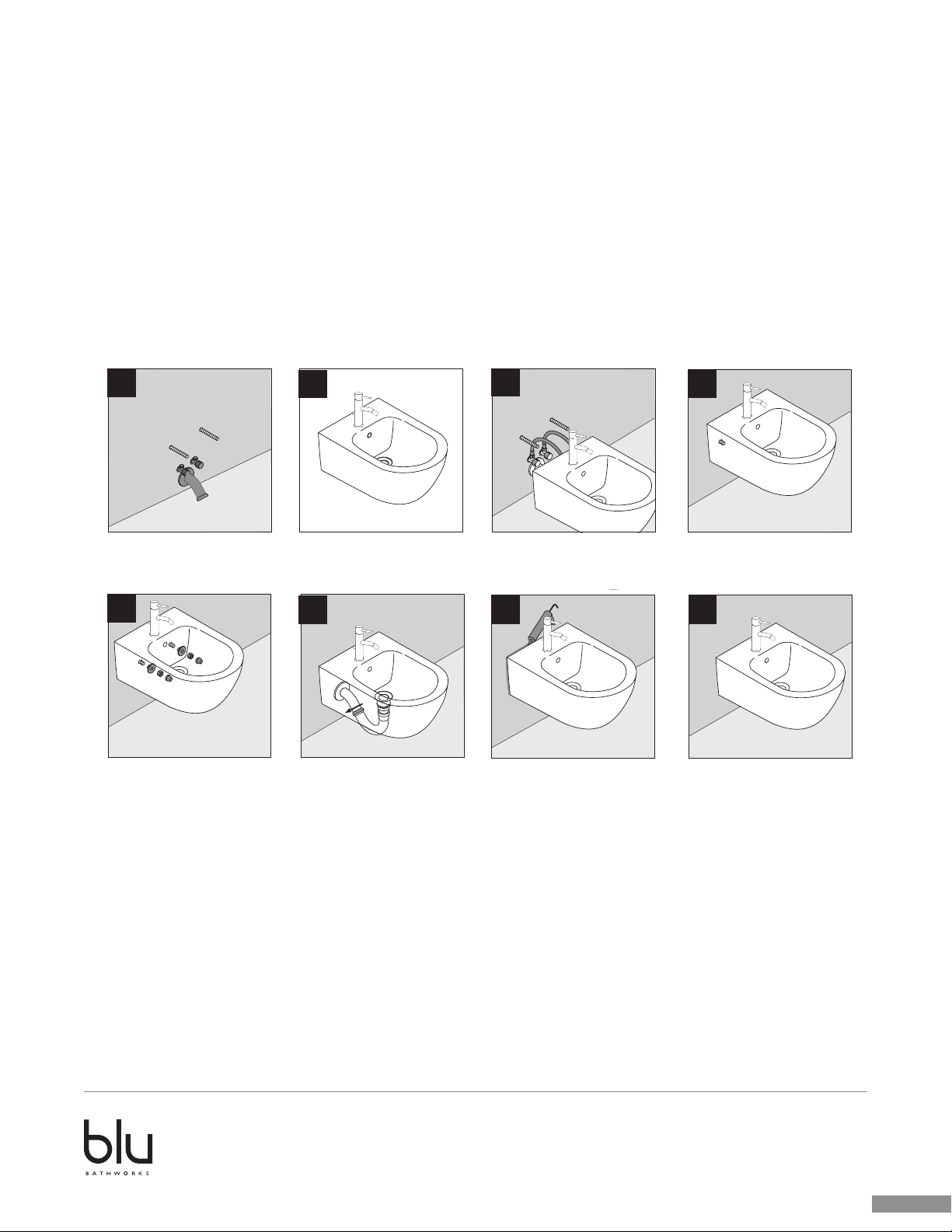

Installation Instructions for Wall-mount Bidet LB9020 · LB9030

PREPARATION

• Turn-off water supply and if necessary remove old bidet.

• Install or relocate the supply tubing and waste pipe to the speciﬁed rough-in dimension.

• It is recommended that the faucet and waste be assembled and installed prior to the installation of the bidet.

Refer to the Geberit carrier installation and maintenance instructions prior to the installation of these products.

Refer to Illustrations below.

FINISHING

• Install the faucet and drain per manufacturer’s instructions.

• Turn-on the water supply and check entire installation for leaks.

2014-01

1 866 907 0122 blubathworks.com

Page 6

wher e w a t er meets modern

warranty

LIMITED FURNITURE RESIDENTIAL WARRANTY

LIMITED CERAMICS RESIDENTIAL WARRANTY

Blu Bathworks residential use for a period of one (1) year from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate adjustment, subject to the terms and conditions set forth in this warranty.

LIMITED blu·stone™ RESIDENTIAL WARRANTY

Blu Bathworks residential use for a period of ﬁve (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate adjustment, subject to the terms and conditions set forth in this warranty. Blu Bathworks temperature regulations of 150°F/65°C, respectively. Exceeding stated temperatures could result in damage to blu.stone basins and bathtubs.

LIMITED ACRYLIC BATHTUBS RESIDENTIAL WARRANTY

LIMITED TAPWARE RESIDENTIAL WARRANTY

Blu Bathworks during normal residential use for as long as the original purchaser owns his or her home. Blu will, at its election, repair, provide a replacement part or product, or make appropriate adjustment, subject to the terms and conditions set forth in this warranty.

LIMITED ELECTRONICA TAPWARE RESIDENTIAL WARRANTY

LIMITED COMMERCIAL WARRANTY

Blu Bathworks of one (1) year from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate adjustment, subject to the

terms and conditions set forth in this warranty.

(“Blu”) furniture products are warranted to the original purchaser to be free from defects in all material and workmanship during normal

("Blu") ceramic products are warranted to the original purchaser to be free from defects in all material and workmanship during normal

("Blu") blu·stone™ products are warranted to the original purchaser to be free from defects in all material and workmanship during normal

("Blu") acrylic bathtubs are warranted to the original purchaser to be free from defects in all material and workmanship during normal

(“Blu”) tapware products are warranted to the original purchaser to be free from defects in all mechanical parts and polished chrome ﬁnishes

(“Blu”) electronica tapware products are warranted to the original purchaser to be free from defects in all electronic parts during normal

("Blu") products are warranted to the original purchaser to be free from defects in all material and workmanship during normal usage for a period

does not recommend exceeding US/Canada maximum hot water

terms and conditions

This warranty applies only to Blu Bathworks

This warranty is non-transferable and is for the exclusive beneﬁt of the original purchaser of a Blu product. This warranty may be exercised by the original purchaser of a unit in a new residential development. Blu recommends using a professional plumber for all installation and repair. This warranty does not apply to products that have been installed in any manner other than as set out in Blu’s printed instructions, or to products that have been altered in any way.

For further clarity, the above stated warranty does not cover or apply to damage attributable to:

(a) neglect, misuse, abuse, accident or negligence; (b) normal wear and tear; (c) dirt or lime scale, or the use of inappropriate cleaners (such as those containing abrasives, ammonia, acids, waxes, bleaches, solvents, alcohol, or any

product not recommended for chrome); and

(d) damage caused by transportation, or improper storage.

This is the only warranty of Blu, which makes no other warranty of any kind. Blu disclaims any liability for special, incidental or consequential damages. In no event shall the liability of Blu under this warranty exceed the purchase price of the product.

PROCEDURE FOR WARRANTY SERVICE

Refer to blubathworks.com for policy and procedures relating to requests for service under the terms of this warranty.

Original proof of purchase is required. Blu is not responsible for removal or installation costs, or the costs of shipping and handling associated with any service. Repaired or replaced products or parts are warranted only for the period remaining under the initial warranty.

("Blu") products distributed in North America.

2014-01
