Fixed Function Key Legend
Fixed Function Key Legend
Superkey - Voicemail
Hold - Hold
Transfer/Conf - Transfer
Cancel - Starts a 3 way conference
Redial - Scroll Up
Speaker - Scroll Down
Message - Speaker
Microphone - Mute
Make a call
1. Lift the Handset, or press a Line Appearance memory key, or
press the speaker function key.
2. Dial the number from the key pad. - or - Press a speed dial
memory key.
Place a call on Hold
While on a call press the Hold function key.
Retrieve a call from Hold
Press the flashing Line Appearance memory key.
Make a call using Redial
1. Press the REDIAL soft key.
2. Choose the number by scrolling through the list with the Scroll
Up/Down function keys.
3. Press the Dial soft key.
Transfer a call
1. Press the Transfer function key.
2. Dial the number.
3. Press the Transfer function key and hang up. - or Announce the call, press the Transfer function key and hang up.
Make a call using the Directory
1. Press the MENU soft key.
2. Press the DIR soft key.
3. Enter the first letter of the name using the keypad.
4. Use the Scroll Up/Down function keys to find the name.
5. Press the Dial soft key.
Make a three-way call
While on a call:
1. Press the 3-way Call function key.
2. Dial the second number.
3. Announce the call.
4. Press the 3-way Call function key to join the parties.
Mute a call
While on a call press the Mute function key to toggle between turning
off and on the microphone.
Retrieve a message
1. Press the Message function key.
2. Follow the voice instructions.

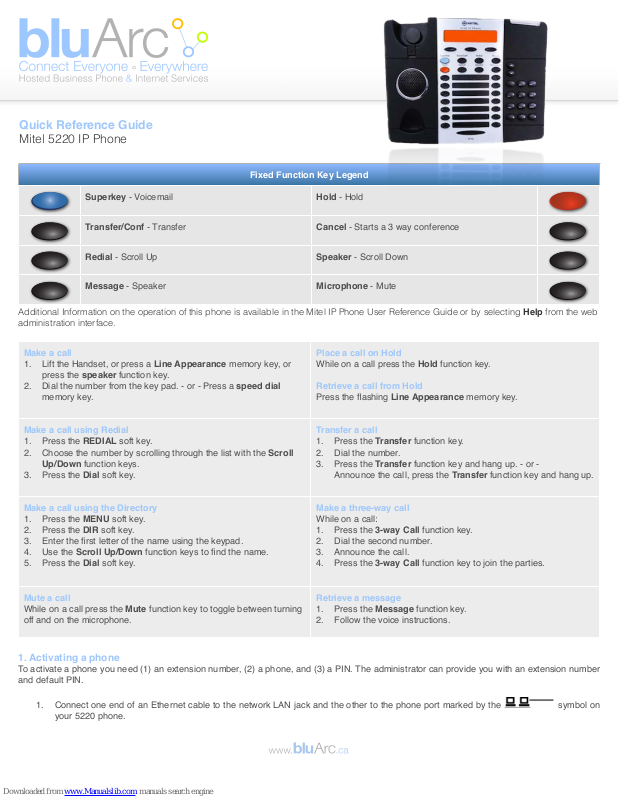

Quick Reference Guide
Mitel 5220 IP Phone
Additional Information on the operation of this phone is available in the Mitel IP Phone User Reference Guide or by selecting Help from the web
administration interface.
1. Activating a phone
To activate a phone you need (1) an extension number, (2) a phone, and (3) a PIN. The administrator can provide you with an extension number
and default PIN.
!
1. Connect one end of an Ethernet cable to the network LAN jack and the other to the phone port marked by the symbol on
your 5220 phone.
2. If you also need to connect your computer to the LAN, connect an Ethernet cable from your
Logged&Out
Activate
Extension:
***********QUIT
PIN:
ENTER((((((QUIT
Extension:*xxx
REDIAL*CALLS*MENU
computer's network port to the phone port marked PC.
3. Connect the phone power pack into a power outlet.
4. Wait for the phone to display the following (this may take 30 seconds or more):
5. Press the ACTIVATE soft key. The display will show:
6. Enter your extension. If you have login/logout privileges, the display will show:
7. Enter your PIN
8. Press the ENTER key. The display will show: where xxx is the extension of your phone. You
have now successfully activated the phone and are ready to make calls.
2. Logging in to the web administration interface
To log in to the web administration interface, follow these steps:
1. Open your web browser (Internet Explorer 6.0 or higher or
Mozilla Firefox 1.5.0.4 or higher).
2. Enter the URL for telephone users (provided by your
administrator). The Login screen appears.
3. En t er yo u r ex t ensio n and PIN ( p rovid e d by your
administrator). Your personal Home Page will appear.
For assistance on performing any of the functions on this page, select
Help or refer to the Mitel IP Phone User Reference Guide.
4. Setting up your call coverage
Call coverage allows you to specify where calls you do not answer
should be directed. Call coverage options include voice mail, an auto
attendant, a co-workerʼs extension, or another phone number such as
your home number or cell phone. To configure your call coverage,
follow these steps:
3. Programming memory keys
To customize your phone features, follow these steps:
1. Log in to the web administration interface.
2. Select My Phone in the left-hand menu.
3. Select Mitel 5220 IP Phone from the Phone Model drop-
down list if this is not already displayed.
NOTE—The phone that you are currently logged into will
be marked with an *.
4. Select the memory key that you want to program.
5. Enter the information in the fields displayed in the
Program Memory Details window.
6. Select Save to save your changes or Close Window to
cancel your changes.
7. Select the Print Key Labels button.
5. Recording your name announcement
Callers hear your recorded name announcement as confirmation
when they use the auto attendant name directory to contact you.
NOTE—The recorded announcement is for the auto attendant. It is
not your voice mail greeting. To record, or re-record your name
announcement, follow these steps:
1. Log in to the web administration interface.
2. Select Personal Details in the left menu.
3. Select the Record button on the Personal Details page.
4. When a Record Prompt pop-up window is displayed,
follow the instructions.
1. Log in to the web administration interface
2. Select My Settings in the left menu.
3. From the menu appearing in the main frame, select View
and edit call coverage options. The main frame will display
the call coverage options. Follow the on-screen instructions.
4. Select the Save button to save your changes.
