BLU HERO User Manual

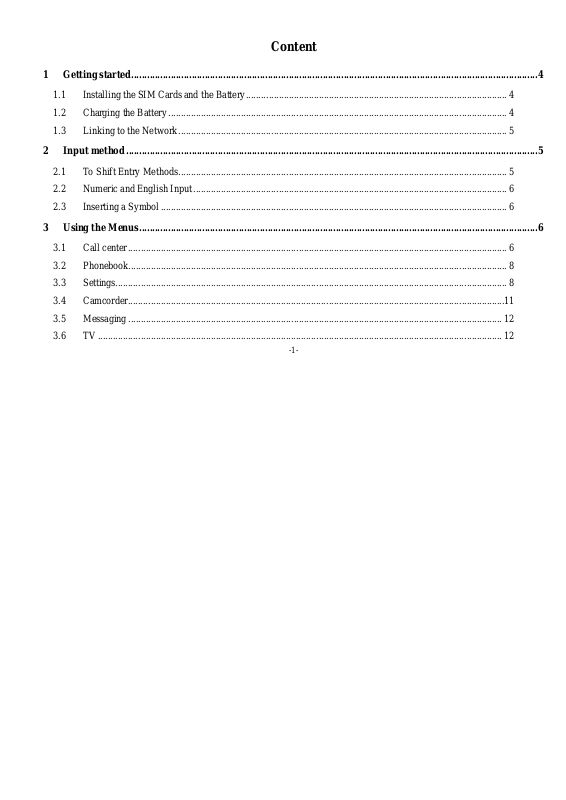

Content

1 Getting started ........................................................................................................................................................... 4

1.1 Installing the SIM Cards and the Battery ........................................................................................................ 4

1.2 Charging the Battery ....................................................................................................................................... 4

1.3 Linking to the Network ................................................................................................................................... 5

2 Input method ............................................................................................................................................................. 5

2.1 To Shift Entry Methods ................................................................................................................................... 5

2.2 Numeric and English Input ............................................................................................................................. 6

2.3 Inserting a Symbol .......................................................................................................................................... 6

3 Using the Menus ........................................................................................................................................................ 6

3.1 Call center ....................................................................................................................................................... 6

3.2 Phonebook....................................................................................................................................................... 8

3.3 Settings ............................................................................................................................................................ 8

3.4 Camcorder ...................................................................................................................................................... 11

3.5 Messaging ..................................................................................................................................................... 12

3.6 TV ................................................................................................................................................................. 12

-1-

3.7 Calendar ........................................................................................................................................................ 13

3.8 Organizer ....................................................................................................................................................... 13

3.9 Alarm ............................................................................................................................................................ 14

3.10 User profiles .................................................................................................................................................. 14

3.11 File manager .................................................................................................................................................. 14

3.12 Image viewer ................................................................................................................................................. 14

3.13 Sound recorder .............................................................................................................................................. 15

3.14 FM Radio ...................................................................................................................................................... 15

3.15 Video player .................................................................................................................................................. 15

3.16 Audio player .................................................................................................................................................. 15

3.17 BLU Club ...................................................................................................................................................... 15

3.18 Web ............................................................................................................................................................... 16

-2-

Phone Specifications
Dimensions (W×D×H): 104*57*13.1mm
Weight: 93g (with battery), 73g (without battery)
Camera: 0.3 Mpixel
Cable: Mini USB, shielded cable with cores.
Lithium battery
Rated capacity: 3.7V 950mAh
Continuous standby duration: (Relates to network status) 152 hours
Continuous conversation duration: (Relates to network status) 491 min
Please refer to their labels for other data related to the battery and the charger.

-3-

1 Getting started

1.1 Installing the SIM Cards and the Battery

An SIM card carries useful information, including your mobile phone number, PIN (Personal
Identification Number), PUK (PIN Unlocking Key), IMSI (International Mobile Subscriber Identity),
network information, contacts data, and short messages data.

1.2 Charging the Battery

The lithium battery delivered with the mobile phone can be put into use immediately after being
unpacked. Your mobile phone can monitor and display the battery state.

 Normally the remaining energy of the battery is indicated by the battery level icon at the upper right

corner of the display screen.

 When the battery energy is insufficient, the mobile phone prompts "Battery low". If you have set an

alert tone, an alert tone will be given off when the battery level is too low.

 A charging animation appears when the battery is being charged. When the charging is complete, the

animation disappears.

 It is normal of the battery to become hot during the charging period.
 The battery icon does no longer flicker when the charging process ends.
 Use only the battery provided by the vendor. Otherwise, damages or even injuries could be caused

during the charging.

 Power off the mobile phone before removing the battery.

-4-

 The charging process lasts a longer time for a new battery or a battery not in use for long. If the battery

voltage is too low to enable the mobile phone to be powered on, charge the battery for a longer time.

 During the charging, ensure the battery is placed in a room temperature environment or in an

environment close to room temperature.
Immediately stop using the battery if the battery produces odor, overheats, cracks, distorts or has other
damage, or if the electrolyte leaks.
 The battery wears out with use. A longer charging time is required as the battery is put into use for a

long time.

1.3 Linking to the Network

After the SIM card and the mobile phone are successfully unlocked, the mobile phone automatically searches
for an available network.

2 Input method

This mobile phone provides multiple input methods, including English input in both upper and lower

case, Es, Portuguese and numeric input method.

2.1 To Shift Entry Methods

In any mode, tap abc to switch between input methods. When writing text message/multimedia message, you
can tap “Option” to choose the input method as well.

-5-

2.2 Numeric and English Input

You can input numbers with the numeric input method. Tap a number key to input the corresponding number.

2.3 Inserting a Symbol

Tap the @! icon to enter the Select symbol interface and select a symbol you want. When writing text
message/multimedia message, you can tap “Option” to choose “Insert symbol” as well.

3 Using the Menus

3.1 Call center

Call history

3.1.1.1 Missed Calls / Dialed Calls/ Received Calls

You can view a list of the above.

3.1.1.2 Call Timers

Choose call timers to view the last call time, the total time of all dialed calls and the total time of all received
calls, and/or to reset all the time.
