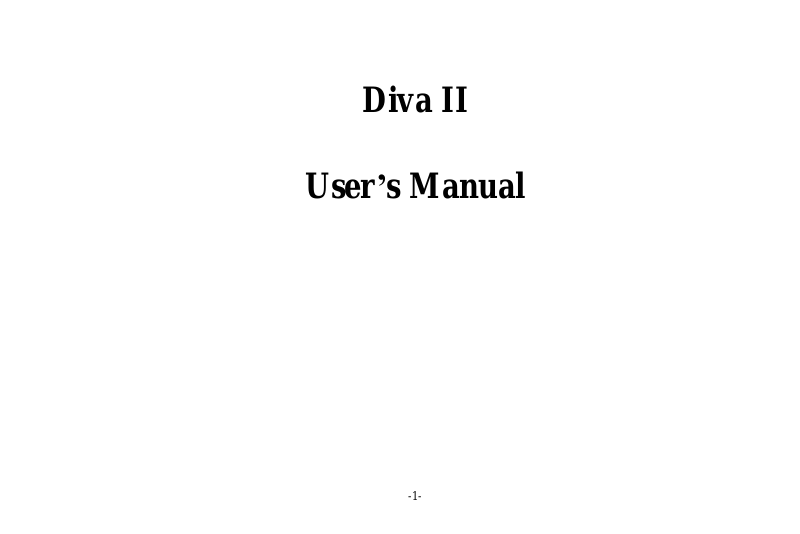

BLU DIVA II User Manual

Diva II

User’s Manual

-1-

Table of Contents

Key Functions ................................................................................................................................................................... 4

Getting Started .................................................................................................................................................................. 5

Installing the SIM Card, SD Card and Battery ....................................................................................................................... 5

Menu Guide ....................................................................................................................................................................... 7

Messaging ............................................................................................................................................................................... 7

Contact .................................................................................................................................................................................... 7

BLU Club ................................................................................................................................................................................ 8

Multimedia .............................................................................................................................................................................. 8

Settings.................................................................................................................................................................................... 9

Call History ............................................................................................................................................................................. 9

Organizer................................................................................................................................................................................. 9

Mobile TV ............................................................................................................................................................................. 10

-2-

Soft Keys

Power On/Off & End Key

OK/Selection Key

Dial Key

Direction Key

Dial Pad

Phone Overview

Dimensions: (H x W x D): 120.4 x 51.2 x 11.4mm
Camera: VGA
Cable: Micro USB
Battery: Lithium-Ion
Rated Capacity: 820 mAh
Continuous Standby Duration: (Relates to network status)

-3-

Please refer to their labels for other data related to the battery and the charger

Key Functions

 Dial key

Press to place a call by entering a number or by selecting a contact from the phonebook; or press it to receive an
incoming call; or press it in standby state to show the latest call records

 End & Power On/Off key

Press it to end a call being dialed or end an ongoing call; or press it to exit the menu and return to the standby state;
or hold it for two or three seconds to power on or off the mobile phone.

 Left and right soft key

The bottom line on the screen displays the functions of the Left and Right soft key which display menu and
submenu options.

 Direction key

Press to scroll the options when browsing a function list. In edit state, press direction keys to navigate.

 OK/Selection key

Press to confirm selection.

 Number and Letters

Press number keys 1 through 9 to input numbers and characters. Press letter keys A through Z to input letters and
characters. For added convenience, you may also press the * to select symbols. You may also press the # key to
change between different input methods.

-4-
