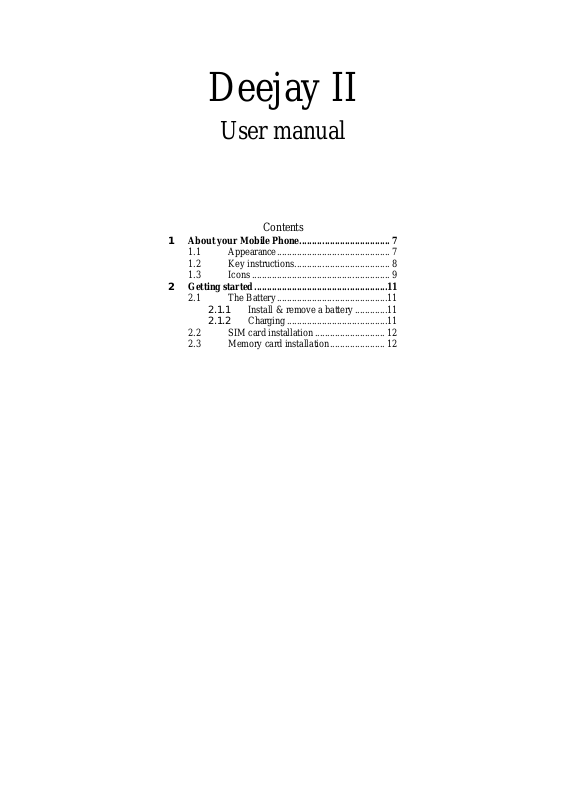

BLU Deejay II User Manual
Deejay II
User manual
Contents
1 About your Mobile Phone .................................... 7
1.1 Appearance ............................................. 7
1.2 Key instructions ...................................... 8
1.3 Icons ....................................................... 9
2 Getting started ..................................................... 11
2.1 The Battery ............................................ 11
2.1.1 Install & remove a battery ............. 11
2.1.2 Charging ........................................ 11
2.2 SIM card installation ............................ 12
2.3 Memory card installation ...................... 12
2.4 Storage Management ............................ 13
2.5 Power on and off .................................. 14
3 Call functions ...................................................... 14
3.1 Make a call ........................................... 14
3.1.1 Make a domestic call .................... 14
3.1.2 Make an extension call ................. 14
3.1.3 Make an international call ............ 15
3.1.4 Make a call from Mobile Phone
book 15
3.1.5 Redial a call by recent call lists .... 15
3.2 Answer a call ........................................ 15
3.3 Reject a call .......................................... 16
3.4 Call options ........................................... 16
4 Menu functions ................................................... 16
4.1 Messages .............................................. 16
4.1.1 SMS .............................................. 16
4.1.2 MMS ............................................. 19
4.1.3 Broadcast Message ....................... 21
4.2 Multimedia ........................................... 22
4.2.1 Camera .......................................... 22
4.2.2 Image Viewer ................................ 22
4.2.3 Video Recorder ............................. 22
4.2.4 Video Player ................................. 23
4.2.5 Audio Player ................................. 23
4.2.6 Sound Recorder ............................ 24
4.2.7 FM Radio ...................................... 24
4.3 Applications ............. 错误!未定义书签。
4.3.1 Calendar ........................................ 25
2
4.3.2 Alarm ............... 错误!未定义书签。
4.3.3 World Clock .................................. 25
4.3.4 MSN ............................................. 25
4.4 Settings ................................................. 26
4.4.1 Dual SIM Switch .......................... 26
4.4.2 Dual SIM Setting .......................... 26
4.4.3 Phone Setup .................................. 26
4.4.4 Network Setting ............................ 27
4.4.5 Security Setup ............................... 27
4.4.6 Connectivity ................................. 29
4.4.7 Restore Factory settings................ 29
4.5 User profiles ......................................... 29
4.6 Services ................................................ 30
4.7 Shortcuts ............................................... 30
4.8 File Manager ......................................... 30
4.9 Phonebook ............................................ 30
4.9.1 Quick Search ................................ 31
4.9.2 Search Entry ................................. 31
4.9.3 Add new contact ........................... 31
4.9.4 Copy All ....................................... 32
4.9.5 Delete ALL ................................... 32
4.9.6 Caller group .................................. 33
4.9.7 Extra Number ............................... 33
4.9.8 Settings ......................................... 33
4.9.9
Caller Picture ................................ 34
4.9.10 Call Ring Tone .............................. 34
4.10 Call center ............................................. 34
4.10.1 Call history ................................... 34
3
4.10.2 General call settings ..................... 34
5 Battery information ............................................ 36
6 Safety information .............................................. 37
6.1 Operating environment ......................... 37
6.2 Electronic devices ................................. 37
6.2.1 Pacemaker .................................... 37
6.2.2 Hearing aids .................................. 38
6.2.3 Other medical devices .................. 38
6.2.4 Vehicles ........................................ 38
6.3 Potentially dangerous situations ........... 39
7 Care and maintenance ....................................... 39
4
Preface
Thank you very much for your choice of this product designed by
our company!
Our Mobile Phone complies with the Telecommunication
industries standards of both the People's Republic of China and
Europe.
The product described in this guide is approved for use on the
GSM networks, and has the GPRS functions.
GSM network is a global cellular communications system of
international standards.
Allow you to receive an international telephone call used as in
your homeland.
However, before using these advanced network functions, you
must firstly apply for these required services.
In order to better use your mobile phone, we suggest you to
carefully read this statement to know all the functions well.
Note: Due to the cellular network settings and the services
provided, some functions may be unavailable, please query local
service providers.
For your safety
Read these simple guidelines. Breaking the rules may be
dangerous or illegal. Further detailed information is given in this
manual.
ROAD SAFETY
Always keep your hands free to operate the vehicle while driving.
Park the vehicle before using your Mobile Phone.
SWITCH OFF IN AIRCRAFT
Using of wireless telephones in aircraft may disrupt the operation
5
of the aircraft. It is dangerous and illegal. Insure switching off the
Mobile Phone before going aboard.
SWITCH OFF IN HOSPITALS
Follow any restrictions or rules. Switch off the Mobile Phone near
medical equipment.
SWITCH OFF WHEN REFUELING
Switch off the Mobile Phone at a refueling point or any fuel or
chemicals places.
SWITCH OFF NEAR BLASTING POINT
Don’t use the Mobile Phone where blasting is in progress.
Observe restrictions, and follow any regulations or rules.
INTERFERENCE
All wireless Mobile Phones may be susceptible to interference,
which could affect the performance.
USE NORMALLY
Use in the normal position explained in the product documentation.
Don't touch the antenna unnecessarily.
ENHANCEMENTS AND BATTERIES
Use only the approved enhancements and batteries. Do not
connect incompatible products.
EMERGENCY CALLS
Ensure the Mobile Phone is switched on and in service. Enter the
emergency number, and then press the
location. Do not end the call until the permission.
key. It will give your
6
1 About your Mobile Phone
1.1 Appearance
7
ging
Model Deejay II
Size 106mm*58mm*14.7mm
Weight 70g(battery included)
BATTERY Type Lithium battery
Standard Voltage 3.7 V
Restrictions on
Char
Rated capacity 750 mAH
CHARGER Model K2053
Input 100-240V
Output 5.0V
Earphone cable Specification Stereo earphone
voltage
4.2 V
1.2 Key instructions
Keypad name Keypad Function Introduce
Left-soft-key
Right-soft-key
Direction key
Use the left soft key to execute to functions indicated at
the left bottom corner of the screen
Enter the phone book
up
down
It’s used to choose the all function
8
Dial Key
Electric-key
Left
right
OK The shortcut key of Torch
Received the incoming call
Dial the telephone number
Short Press: end the call and
refuse the call
Long Press : Turn on or Turn off
the mobile phone
User can type the numeric when
0, ~9
*
#
the mobile is standby
Short press~ Dials the telephone
number by the host card way~
and enter #
Long press~ cut the realization
quiet/normal mode
1.3 Icons
ICONS Detail
9
Icon Description
Signal Intensity
Battery Capacity
Connected to the GSM/GPRS networks
Unread SMS
Has been set up and activated the alarm
Prompted calls will be set to signal
mode.( General pattern)
Prompted calls set to vibration mode.
（Conference mode）
Prompted calls for the setting rings and
vibration mode.（Outdoor model）
Prompted calls after the signal is set to
vibration mode
Headset status
Missed call records
Keypad lock
10
2 Getting started
2.1 The Battery
The lithium battery can be charged and discharged hundreds of
times. Please use the approved batteries, and only use the battery
charger approved by the Mobile Phone producer to charge your
battery.
2.1.1 Install & remove a battery
Remove:
(1)Slide forward the bottom off the back cover to remove.
(2) Lift the battery from its slot and take it out.
Install:
(1) Place the battery into the battery slot.
(2) Slide the back cover toward the top of the Mobile Phone to
lock the cover into its place.
Warning:
(1) There may be the risk of explosion if the battery is replaced
by the wrong type.
(2)Dispose of used batteries according to the guidelines.
2.1.2 Charging
To plug in the power charger, the charger cable plug at the bottom
of the Mobile Phone
Note:
11
1. It is beneficial to the battery to charge it until full at the first
three times.
2. When charging, don’t remove or take out off the battery to
avoid the battery circuit to burn out.
3. While charging, it is normal that the Mobile Phone and
charger will become hot.
4. If the battery is completely empty, it may take a period of time
before the charging icon appears on the display.
Warning: Provides charging temperature range -5 ℃
to 55 , over thi℃ s range, please do not use the
charging equipment. And be sure to use the charger
provided by the supplier. Use of an unapproved
charger may be dangerous and breach of warranty of
the equipment approval and terms.
Notice:
The socket-outlet shall be installed near the equipment
and shall be easily accessible。
2.2 SIM card installation
Turn off the Mobile Phone, and take out the battery.
Keep the gold color side of the SIM card downward, and slide it
gently to the right place.
2.3 Memory card installation
Power off the Mobile Phone, and take out the battery or any other
electrical supply.
Keep the golden color side of the Memory card downward, and
12
push it gently to the right place.
Before take out off the memory card, be sure to Power off the
Mobile Phone and remove the battery first.
2.4 Storage Management
Manage the memory card storage space.
1. The computer and synchronize
Note: This Mobile Phone supports USB boot function; all
operations are on the computer need to use the card reader.
You can enter after the discovery has a number of preset folders,
for normal use, set the relevant documents were deposited with the
corresponding directory, that is, which corresponds to MP3 folder
My music, photos corresponding album Folder, corresponding
folders, pictures corresponding Images folder. Sound recording,
self-Tone Audio corresponding folder.
2. Format
If you format the memory card, all files saved in it will be lost. By
two ways you can format your Memory card:
Format by Mobile Phone: enter File Manager—>select Memory
card —>select Format.
Format by computer: Please complete the format work as
following steps:
(1) Right-click "My Computer" and choose "management", after
entering the option "store" -> "Disk Management";
(2) In the memory card on the disk where the right-click and
choose "format";
13
2.5 Power on and off
Press and hold key to turn on/off the Mobile Phone.
And if you have set PIN or Mobile Phone code, input it correctly.
3 Call functions
3.1 Make a call
When the network supplier's symbol appears when the display
monitors, you might dial or answer the mobile phone. Under
readiness for action, display monitor top left-hand corner
information strip demonstration network signal strength (when has
4 information strip expressed signal is strongest).After the user
inserts SIM cards, may realize the double caliper also to wait for
an opportunity.
3.1.1 Make a domestic call
Enter the Mobile Phone number including the area code. Press
Key to make a call.
3.1.2 Make an extension call
When making an extension call, press and hold 0 key to get “P”
that is a prefix of extension numbers. It will dial automatically in
14
Loading...
