OPERATOR’S MANUAL
WHEEL FELLER
BUNCHER
OPERATOR’S MANUAL 2470 2570 2670
WHEEL FELLER BUNCHER
2570C - 2670C
Part No. SEBU8705
February 2015
Rev. 05
F1B 1-Up
W57 1-Up
B3E1-Up
W67 1-Up
Part No. 30009235
Rev. No. 0503, 0904
©Blount Inc. 2006. All Rights Reserved.
Page 2
i02653977
Important Safety Information
Most accidents that involve product operation, maintenance and repair are caused by failure to observe
basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous
situations before an accident occurs. A person must be alert to potential hazards. This person should also
have the necessary training , skills and tools to pe rform these functions properly.
Improper operation, lubrication, maintenance or repair of this product can be dangerous and
could result in injury or death.
Do not operate or perform any lubrication, maintenance or repair on this product, until you have
read and understood the operation, lubrication, maintenance and repair information.
Safety precautions and warnings are provided in this manual and on the product. If these hazard warnings
are not heeded, bodily injury or death could occur to you or to other persons.
The hazards are identified by the “Safety Alert Symbol” and followed by a “Signal Word” such as
“DANGER”, “WARNING” or “CAUTION”. The Safety Alert “WARNING” label is shown below.
The meaning of this safety alert symbol is as follows:
Attention! Become Alert! Your Safety is Involved.
The message that appears under the warning explains the hazard and can be either written or pictorially
presented.
Operations that may cause product damage are identified by “NO TICE” labe ls on the product and in
this publication.
Prentice cannot anticipate every possible circumstance that might involve a potential hazard. The
warnings in this publication and on the product are, therefore, not all inclusive. If a tool, procedure,
work method or operating technique that is not specifically recommended by Prentice is used,
you must satisfy yourself that it is safe for you and for others. You should also ensure that the
product will not be damaged or be made unsafe by the operation, lubrication, maintenance or
repair procedures that you choose.
The information, specifications, and illustrations in this publication are on th e basis of information that
was available at the time that the publication was written. The specifications, torques, pressures,
measurements, adjustments, illustrations, and other ite ms can change at any time. These changes can
affect the service that is given to the product. Obtain the complete and most current information before you
start any job. Prentice dealers have the most current information available.
When replacement parts are required for this
product Prentice recommends using Prentice
replacement parts or parts with equivalent specifications including, but not limited to, physical
dimensions, type, strength and material.
Failure to heed this warning can lead to premature failures, product damage, personal injury or
death.
Page 3
SEBU8705 3
Table of Contents
Table of Contents
Foreword.............................. ............................. 4
Safety Section
Safety Messages (WFB-Type Tractor) ....... ...... 6
Additional Messages ................... ................... 15
General Hazard Information .............. ............. 19
Crushing Prevention and Cutting Prevention . 22
Burn Prevention....................... ....................... 22
Fire Prevention and Explosion Prevention ... .. 23
Fire Extinguisher Location ............... ............... 27
Tire Information........................ ....................... 27
Electrical Storm Injury Prevention ......... ......... 28
Guards (Operator Protection) ............. ............ 34
Product Information Section
General Information.................... .................... 35
Identification Information ................ ................ 37
Operation Section
Before Operation ...................... ...................... 38
Machine Operation ..................... .................... 41
Engine Starting ........................ ....................... 65
Parking ............................. .............................. 67
Transportation Information............... ............... 69
Towing Information .................... ..................... 74
Engine Starting (Alternate Methods) ....... ....... 76
Before Starting Engine ................. .................. 28
Visibility Information.................... .................... 28
Engine Starting ........................ ....................... 29
Before Operation ...................... ...................... 29
Operation............................ ............................ 29
Engine Stopping ....................... ...................... 31
Work Tools........................... ........................... 31
Parking ............................. .............................. 31
Slope Operation....................... ....................... 32
Equipment Lowering with Engine Stopped... .. 33
Sound Information and Vibration Information. 33
Sound Information and Vibration Information
(Sound Level Information - European Union
(EU) Countries & Countries that adopt the "EU
Directives").......................... .......................... 33
Maintenance Section
Tire Inflation Information................. ................ 77
Lubricant Viscosities and Refill Capacities ... .. 79
Maintenance Support ................... .................. 87
Maintenance Interval Schedule ........... ........... 88
Reference Information Section
Reference Materials .................. ................... 137
Index Section
Index............................... .............................. 139
Operator Station ....................... ...................... 34
Page 4
4
Foreword
SEBU8705
Foreword
Literature Information
This manual should be stored in the operator's
compartment in the literature holder or seat back
literature storage area.
This manual contains safety information, operation
instructions, transportation information, lubrication
information and maintenance information.
Some photographs or illustrations in this publication
show details or attachments that can be different from
your machine. Guards and covers might have been
removed for illustrative purposes.
Continuing improvement and advancement of
product design might have caused changes to your
machine which are not included in this publication.
Read, study and keep this manual with the machine.
Whenever a question arises regarding your machine,
or this publication, please consult your Cat dealer for
the latest available information.
Safety
The safety section lists basic safety precautions. In
addition, this section identifies the text and locations
of warning signs and labels used on the machine.
Read and understand the basic precautions listed in
the safety section before operating or performing
lubrication, maintenance and repair on this machine.
Operation
The operation section is a reference for the new
operator and a refresher for the experienced operator.
This section includes a discussion of gauges,
switches, machine controls, attachment controls,
transportation and towing information.
Photographs and illustrations guide the operator
through correct procedures of checking, starting,
operating and stopping the machine.
Operating techniques outlined in this publication are
basic. Skill and techniques develop as the operator
gains knowledge of the machine and its capabilities.
Maintenance Intervals
Use the service hour meter to determine servicing
intervals. Calendar intervals shown (daily, weekly,
monthly, etc.) can be used instead of service hour
meter intervals if they provide more convenient
servicing schedules and approximate the indicated
service hour meter reading. Recommended service
should always be performed at the interval that
occurs first.
Under extremely severe, dusty or wet operating
conditions, more frequent lubrication than is specified
in the maintenance intervals chart might be
necessary.
Perform service on items at multiples of the original
requirement. For example, at every 500 service hours
or 3 months, also service those items listed under
every 250 service hours or monthly and every 10
service hours or daily.
California Proposition 65 Warning
Diesel engine exhaust and some of its constituents
are known to the State of California to cause cancer,
birth defects, and other reproductive harm.
Battery posts, terminals and related accessories
contain lead and lead compounds. Wash hands after
handling.
Certified Engine Maintenance
Proper maintenance and repair is essential to keep
the engine and machine systems operating correctly.
As the heavy duty off-road diesel engine owner, you
are responsible for the performance of the required
maintenance listed in the Owner Manual, Operation
and Maintenance Manual, and Service Manual.
It is prohibited for any person engaged in the
business of repairing, servicing, selling, leasing, or
trading engines or machines to remove, alter, or
render inoperative any emission related device or
element of design installed on or in an engine or
machine that is in compliance with the regulations (40
CFR Part 89). Certain elements of the machine and
engine such as the exhaust system, fuel system,
electrical system, intake air system and cooling
system may be emission related and should not be
altered unless approved by Caterpillar.
Maintenance
The maintenance section is a guide to equipment
care. The Maintenance Interval Schedule (MIS) lists
the items to be maintained at a specific service
interval. Items without specific intervals are listed
under the "When Required" service interval. The
Maintenance Interval Schedule lists the page number
for the step-by-step instructions required to
accomplish the scheduled maintenance. Use the
Maintenance Interval Schedule as an index or "one
safe source" for all maintenance procedures.
Machine Capacity
Additional attachments or modifications may exceed
machine design capacity which can adversely affect
performance characteristics. Included would be
stability and system certifications such as brakes,
steering, and rollover protective structures (ROPS).
Contact your Cat dealer for further information.
Page 5
SEBU8705
Cat Product Identification Number
Effective First Quarter 2001 the Cat Product
Identification Number (PIN) has changed from 8 to 17
characters. In an effort to provide uniform equipment
identification, Caterpillar and other construction
equipment manufacturers are moving to comply with
the latest version of the product identification
numbering standard. Non-road machine PINs are
defined by ISO 10261. The new PIN format will apply
to all Cat machines and generator sets. The PIN
plates and frame marking will display the 17 character
PIN. The new format will look like the following:
5
Foreword

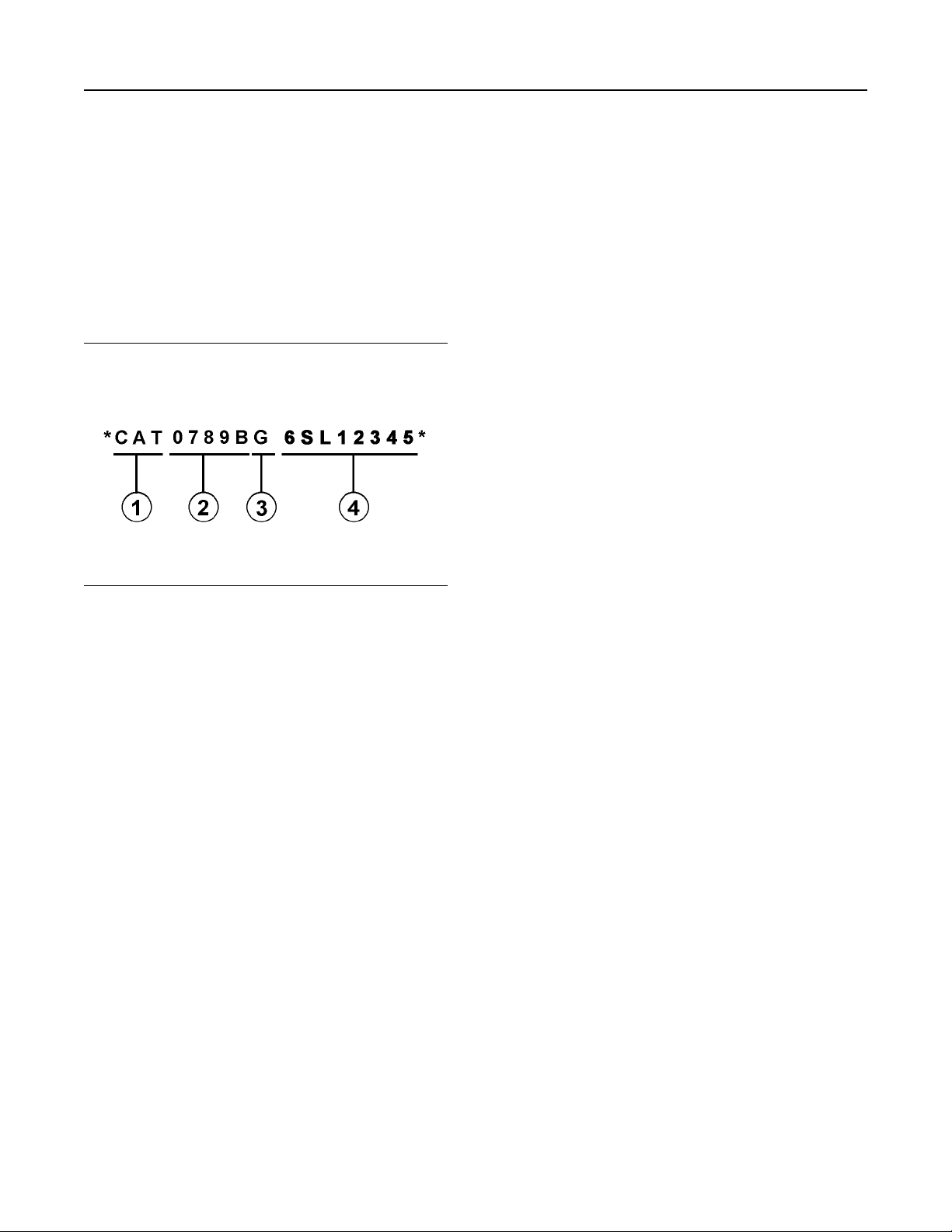

Illustration 1 g00751314
Where:
1. Caterpillar's World Manufacturing Code (characters
1-3)
2. Machine Descriptor (characters 4-8)
3. Check Character (character 9)
4. Machine Indicator Section (MIS) or Product
Sequence Number (characters 10-17). These were
previously referred to as the Serial Number.
Machines and generator sets produced before First
Quarter 2001 will maintain their 8 character PIN
format.
Components such as engines, transmissions, axles,
etc. and work tools will continue to use an 8 character
Serial Number (S/N).
Page 6
6 SEBU8705
Safety Section
Safety Messages
Safety Section
i05248984
Safety Messages
(WFB-Type Tractor )
SMCS Code: 7000
Page 7
SEBU8705
7
Safety Section
Safety Messages

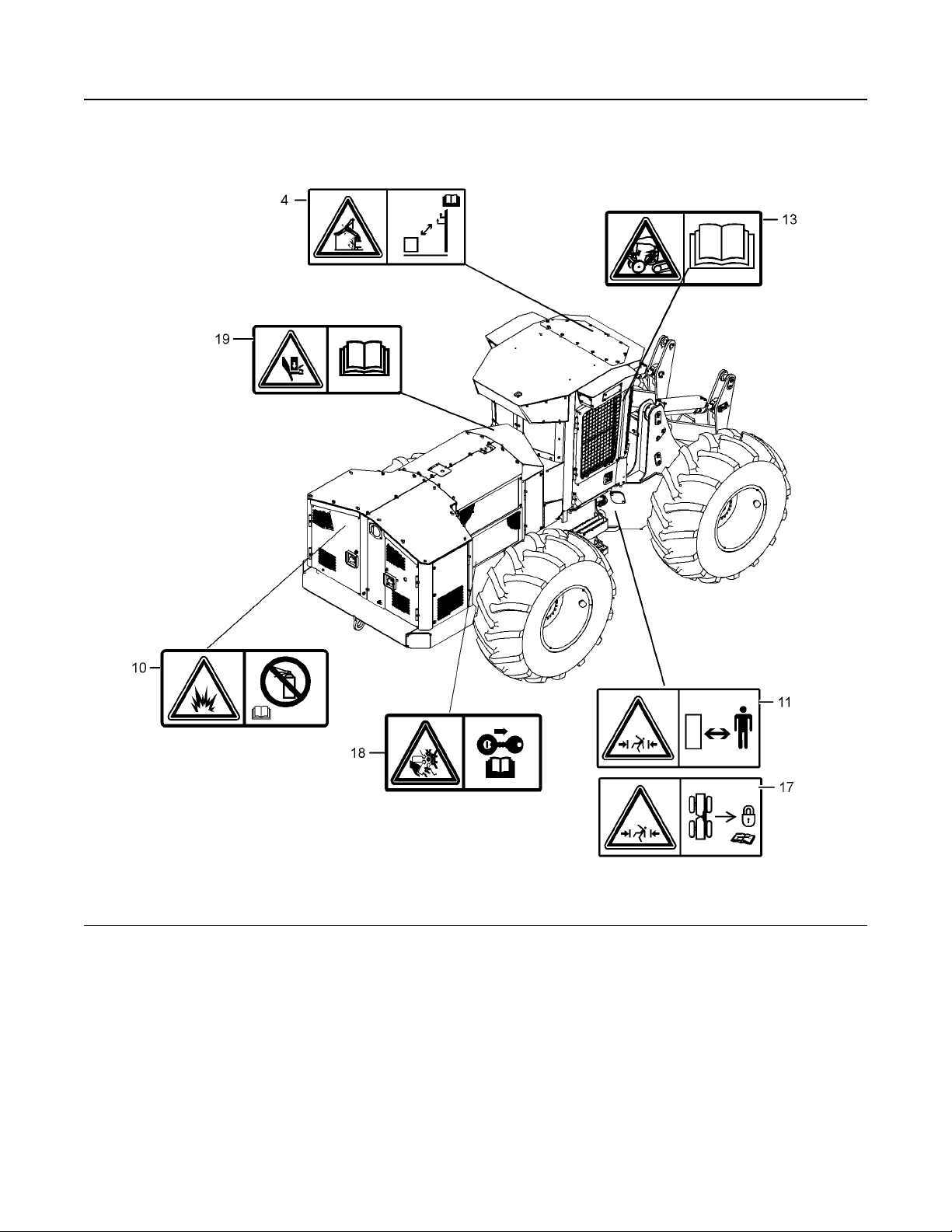

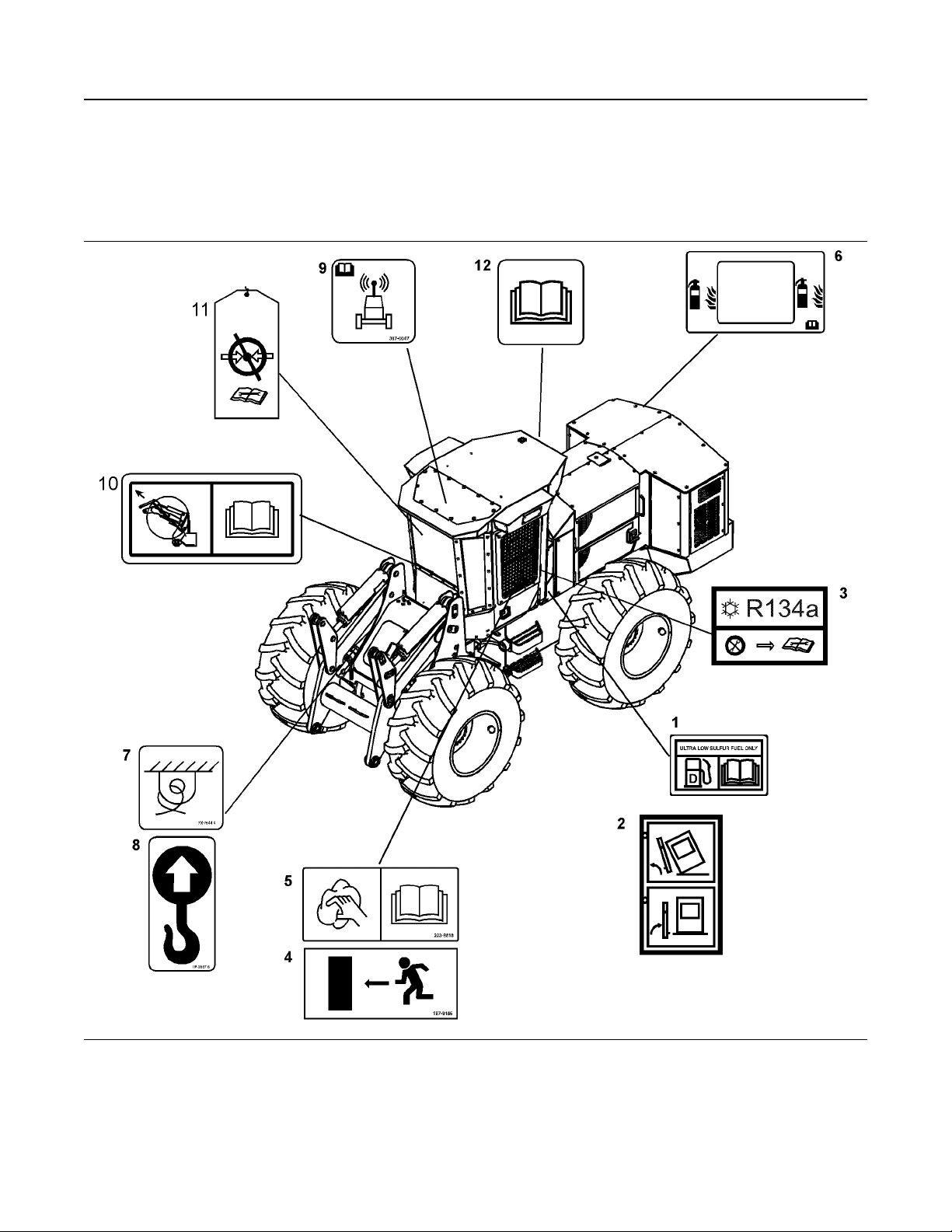

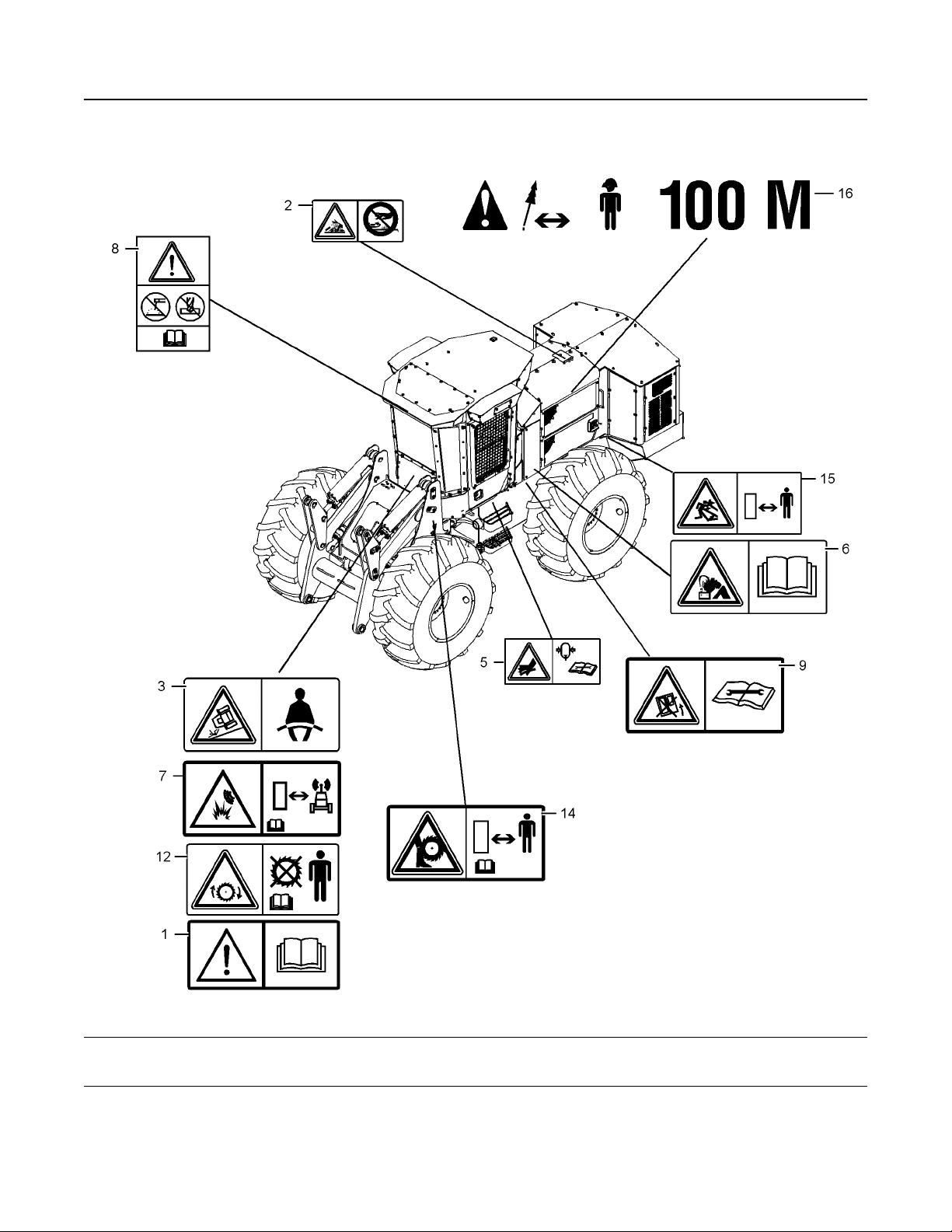

Illustration 2 g03005978
Page 8
8 SEBU8705
Safety Section
Safety Messages
Illustration 3 g03005979
Page 9
SEBU8705 9
Safety Section
Safety Messages
There are several specific safety messages on this
machine. The exact location of the hazards and the
description of the hazards are reviewed in this
section. Become familiarized with all safety
messages.
Make sure that all of the safety messages are legible.
Clean the safety messages or replace the safety
messages if you cannot read the words. Replace the
illustrations if the illustrations are not visible. When
you clean the safety messages, use a cloth, water,
and soap. Do not use solvent, gasoline, or other
harsh chemicals to clean the safety messages.
Solvents, gasoline, or harsh chemicals could loosen
the adhesive that secures the safety message. Loose
adhesive will allow the safety message to fall.
Replace any safety message that is damaged or
missing. If a safety message is attached to a part of
the machine that is replaced, install a safety message
on the replacement part. Any Prentice dealer can
provide new safety messages.

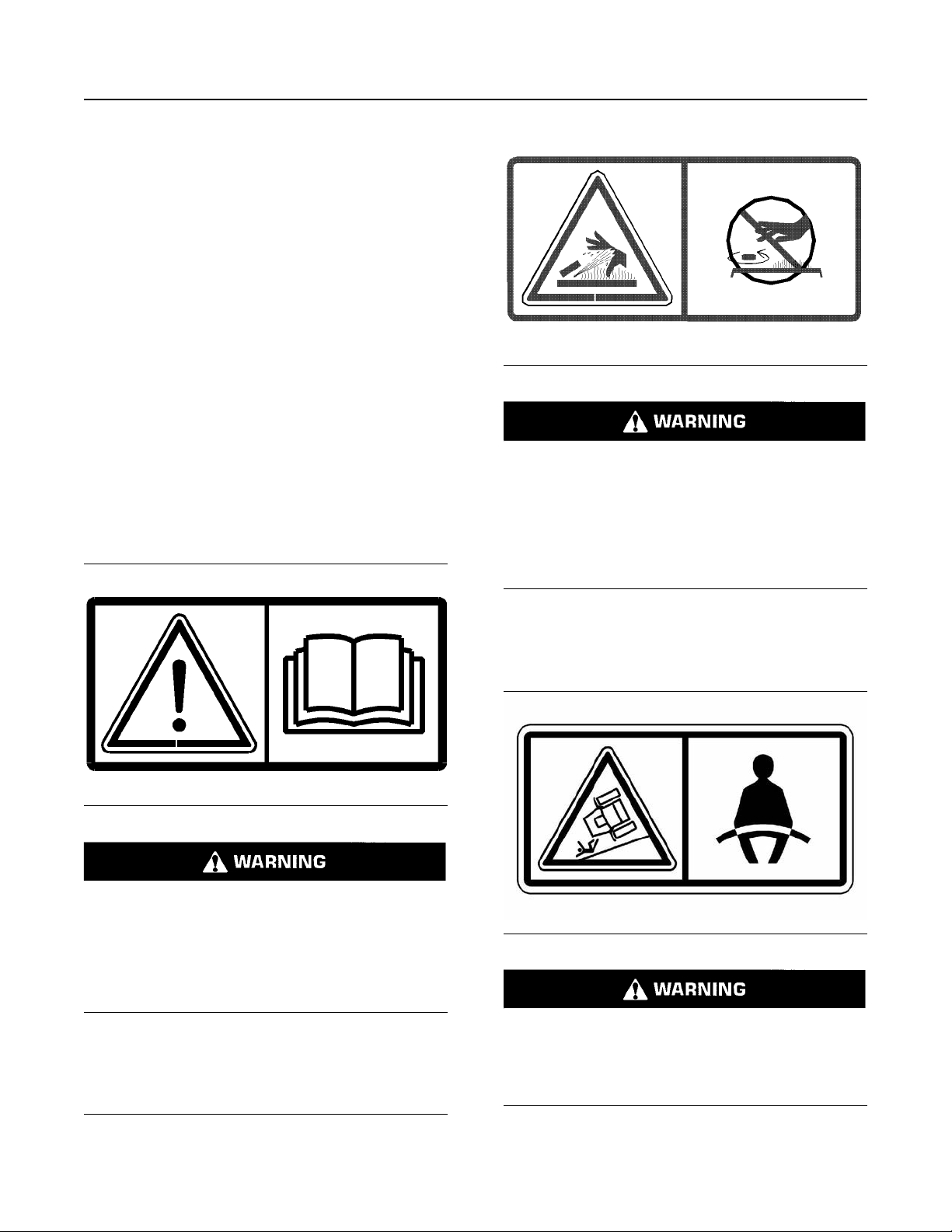

Do Not Operate (1)
Safety Message (1) is located in the cab on the front
console of the machine.
Illustration 5 g01053324
Pressurized system! Hot coolant can cause serious burns, injury or death. To open the cooling
system filler cap, stop the engine and wait until
the cooling system components are cool. Loosen
the cooling system pressure cap slowly in order
to relieve the pressure. Read and understand the
Operation and Maintenance Manual before performing any cooling system maintenance.
Illustration 4 g01055734
Do not operate or work on this equipment unless
you have read and understand the instructions
and warnings in the Operation and Maintenance
Manual. Failure to follow the instructions or heed
the warnings could result in injury or death. Contact any Cat dealer for replacement manuals.
Proper care is your responsibility.
Hot Fluid Under Pressure (2)
Safety Message (2) is located on the inside of the
radiator access cover.
Seat Belt (3)
Safety Message (3) is located on the front console of
the machine.
Illustration 6 g01370908
A seat belt should be worn at all times during machine operation to prevent serious injury or death
in the event of an accident or machine overturn.
Failure to wear a seat belt during machine operation may result in serious injury or death.
Page 10
10 SEBU8705
Safety Section
Safety Messages

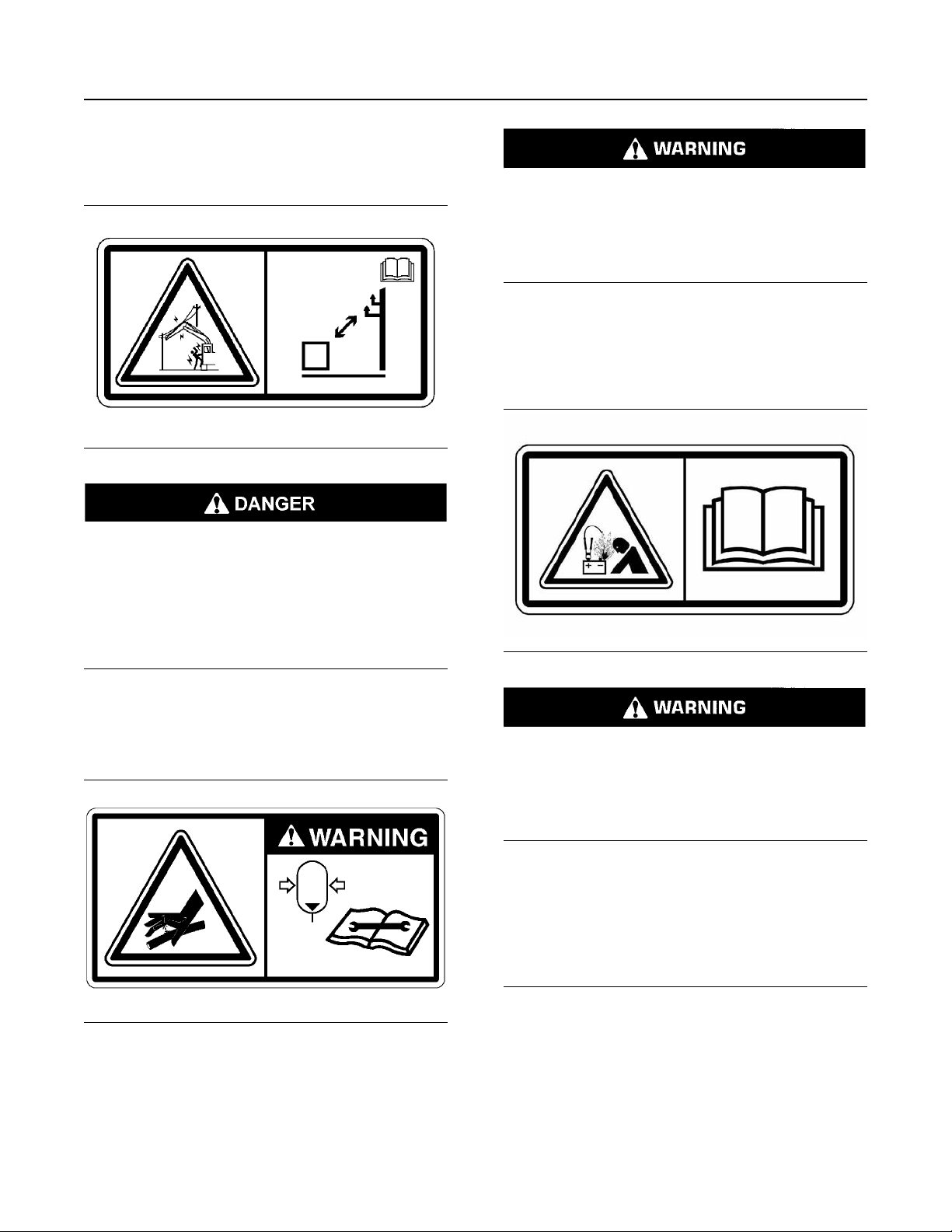

Electrocution (4)
This safety message (4) is located inside the cab on
the right side next to the fuse panel.
Illustration 7 g01506733
Electrocution Hazard! Keep the machine and
attachments a safe distance from electrical
power. Stay clear 3 m (10 ft) plus twice the line
insulator length. Read and understand the
instructions and warnings in the Operation and
Maintenance Manual. Failure to follow the
instructions and warnings will cause serious
injury or death
Hydraulic accumulator contains gas and oil under
high pressure. Improper removal or repair procedures could cause severe injury. To remove or repair, instructions in the service manual must be
followed. Special equipment is required for testing and charging.
Improper Connections for Jump
Start Cables (6)
Safety Message (6) is located on the inside of the
battery compartment cover.
Illustration 9 g01370909
Accumulator Under High Pressure
(5)
Safety message (5) is located on the accumulator.
Illustration 8 g01223282
Explosion Hazard! Improper jumper cable connections can cause an explosion resulting in serious injury or death. Batteries may be located in
separate compartments. Refer to the Operation
and Maintenance Manual for the correct jump
starting procedure.
Refer to Operation and Maintenance Manual, “Engine
Staring with Jump Start Cables”.
Product Link (7)
Safety Message (7) is located in the cab on the front
console.
Page 11
SEBU8705 11
Safety Section
Safety Messages

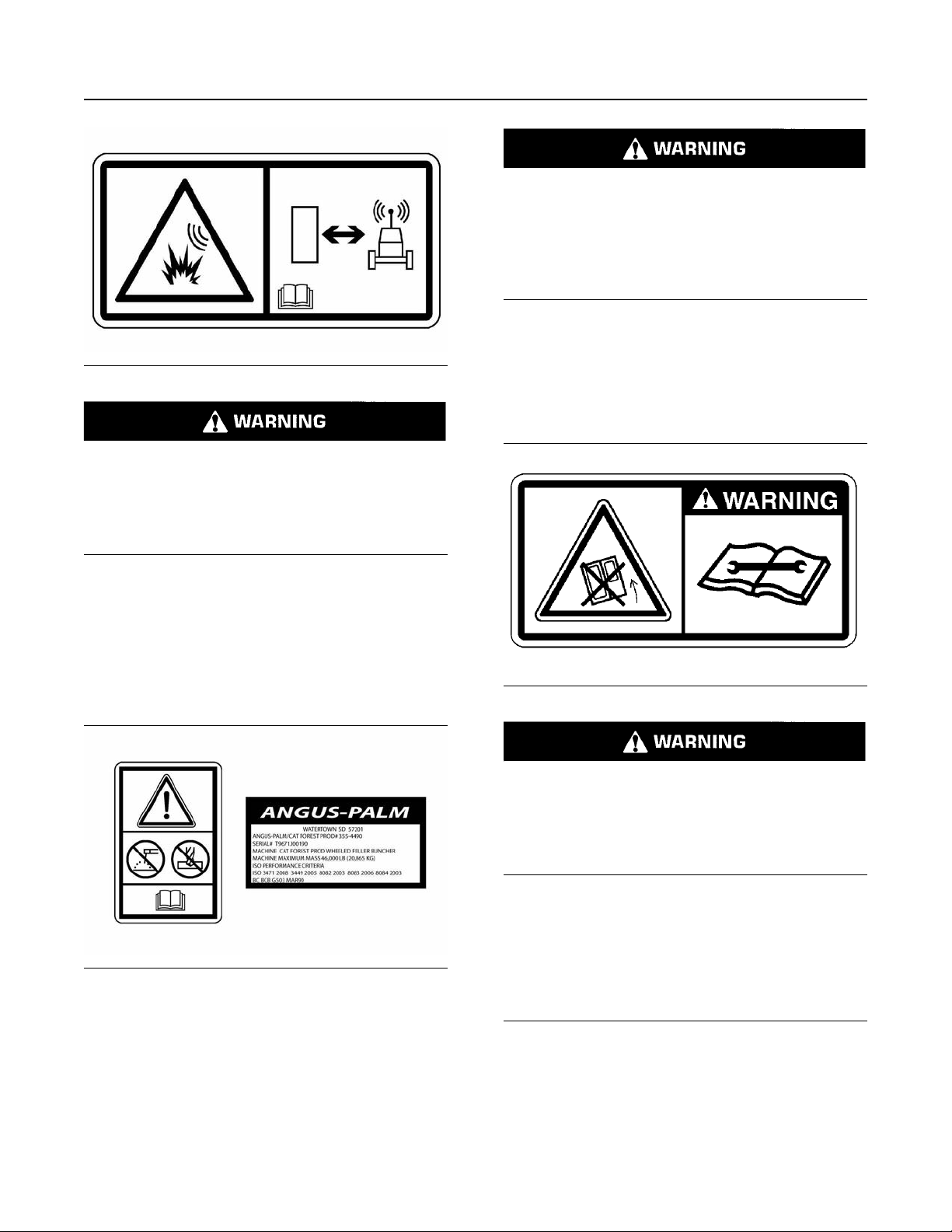

Structural damage, an overturn, modification, alteration, or improper repair can impair the structural protection capability thereby voiding this
certification. Do not weld on or drill holes in the
structure. Consult a Cat dealer to determine the
structural limitations without voiding required
safety certification.
This machine has been certified to the standards that
are listed on the certification plate.
Illustration 10 g01370917
This machine is equipped with a Caterpillar Product Link communication device which should be
deactivated in or near a blast site in compliance
with applicable legal requirements. Failure to do
so could cause interference with blasting operations resulting in serious injury or death.
Refer to Special Instruction, REHS1642, “Operation
of the Product Link System” for additional information.
Do Not Weld On The ROPS/FOPS
(8)
Safety message (8) is located on the inside headliner
of the cab.
Cab Tilting (9)
This safety message (9) is located inside the fuel fill
access door.
Illustration 12 g01115087
Do not tilt the cab when occupied. Before tilting
the cab remove all loose articles from the cab, secure all windows and emergency exits, and then
close the cab and cab riser doors. Failure to do so
can result in personal injury or damage to the
machine.
Illustration 11 g02944777
Refer to Operation and Maintenance Manual, “Cab
Tilting” for further information.
Aerosol Starting Aid (10)
This safety message (10) is located on the air cleaner
cover, inside the left-hand engine compartment.
Page 12
12 SEBU8705
Safety Section
Safety Messages

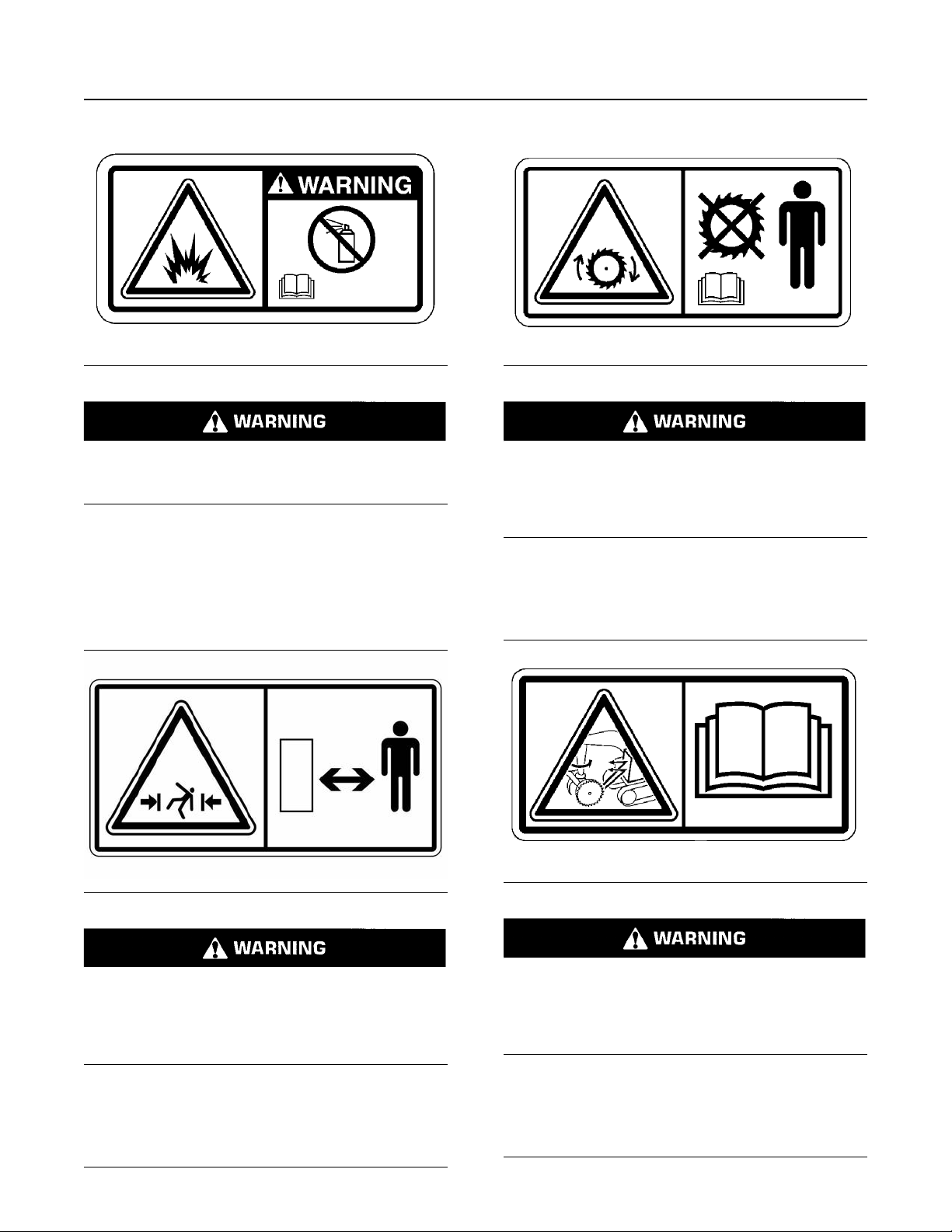

Illustration 13 g01067463
Do not use aerosol types of starting aids such as
ether. Such use could result in an explosion and
personal injury.
Refer to Operation and Maintenance Manual, “Engine
Starting” for further information.

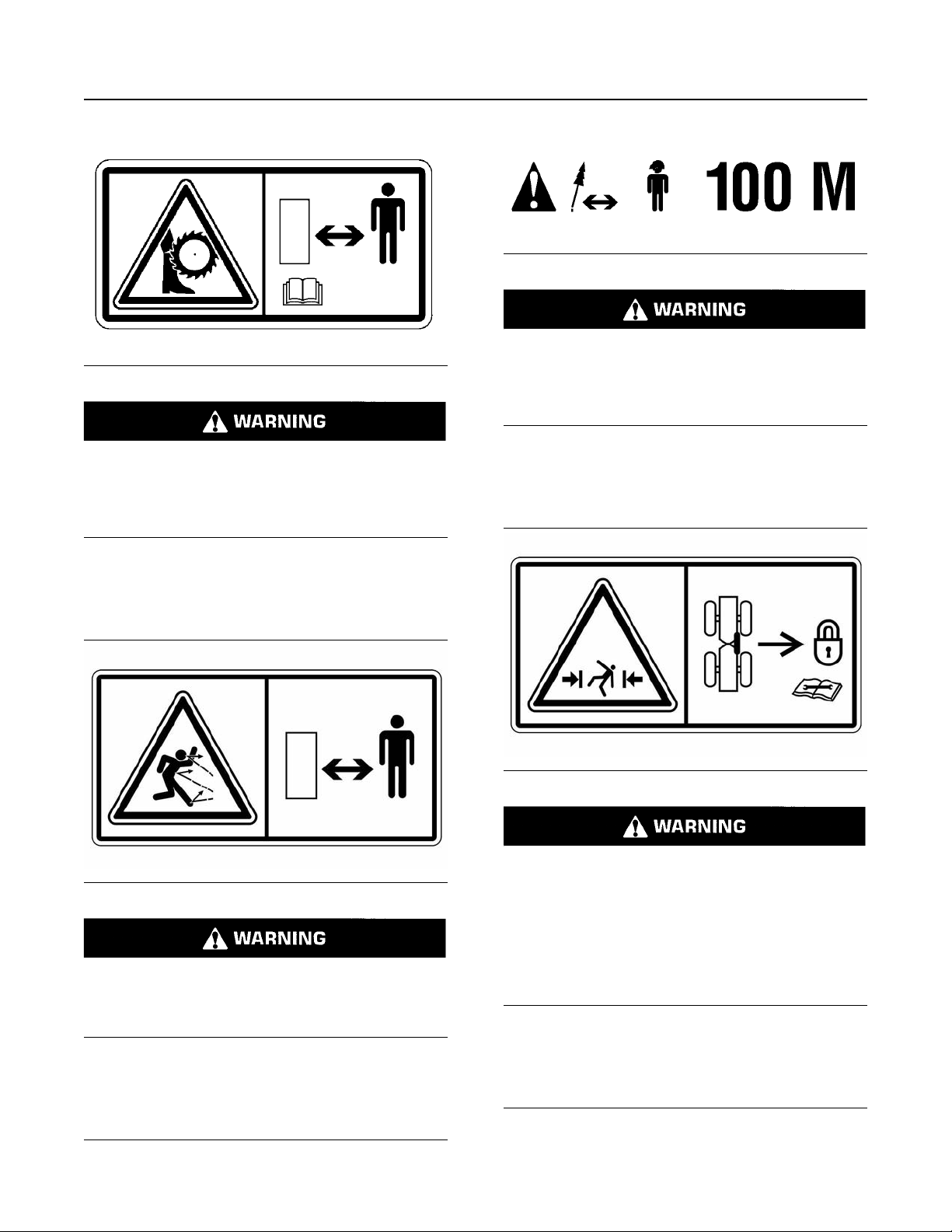

No Clearance (11)
This safety message (10) is located on both sides of
the front frame near the articulation lock.
Illustration 15 g01506693
Do not operate the saw near other personnel.
Serious injury or death can occur by contacting
the moving blade or from flying objects. Read and
understand the instructions and warnings in the
Operation and Maintenance Manual.
Flying Debris (13)
This safety message (13) is located on the lower lefthand rear frame near the right-hand door.
Illustration 14 g01371644
Watch for falling trees when the machine is in operation. Personal injury or death can occur from
being struck by falling trees. Keep all personnel
100 M (300 FT) from the machine when the machine is in operation
Do Not Operate Saw (12)
This safety message (12) is located inside the cab on
the front console.
Illustration 16 g01506755
Flying Debris Hazard! Do not position saw with
discharge directed towards cab. Flying objects
from the rotating saw will cause serious injury
and/or death. Read and follow the instructions in
the Operation and Maintenance Manual.
Stay Back From Saw (14)
This safety message (14) is located on the front
console of the machine.
Page 13
SEBU8705 13
Safety Section
Safety Messages
Illustration 19 g02672426
Watch for falling trees when the harvester is in operation. Personal injury or death can occur from
Illustration 17 g01505753
being struck by falling trees. Keep all personnel
300 feet from the harvester when the harvester is
in operation
Saw Blade Hazard. Do not operate the saw near
other personnel. Serious injury or death can occur from contacting a moving saw blade. Read
and follow the instructions in the Operation and
Maintenance Manual.
Flying Debris (15)
This safety message (15) is located on each side of
the stick close to the attachment.
Illustration 18 g01404266
Crush hazard (17)
This safety message (17 ) is located on the front
frame near the articulation lock.
Illustration 20 g01371647
Crushing Hazard. There is no clearance for a person in this area when the machine turns. Severe
injury or death from crushing could occur. Connect the steering frame lock between front and
rear frames before lifting, transporting, or servicing the machine in the articulation area.
Operation of the machine attachment can cause
flying debris. The flying debris can cause serious
injury or death. Stay clear of the machine and attachment while the attachment is in operation.
Warning Distance (16)
This safety message (16 ) is located on the left-hand
rear frame near the right-hand access door.
Disconnect the steering lock and secure before
resuming operation.
Reversing Fan (Severing Hand) (18)
Safety Message (18) is located on the left-hand hood
and on the side door.
Page 14
14 SEBU8705
Safety Section
Safety Messages
There is no room for a person in this area when
tilting or lowering the machine cab. Stay clear of
area when tilting or lowering the cab. Severe personal injury or death from crushing could occur.
Cab tilting could cause serious injury or death. Turn
off key to shut down machine. Read the Operator
manual for further instruction.
Before raising or lowering cab, verify that all
personnel are clear of the area. Do not tilt cab unless

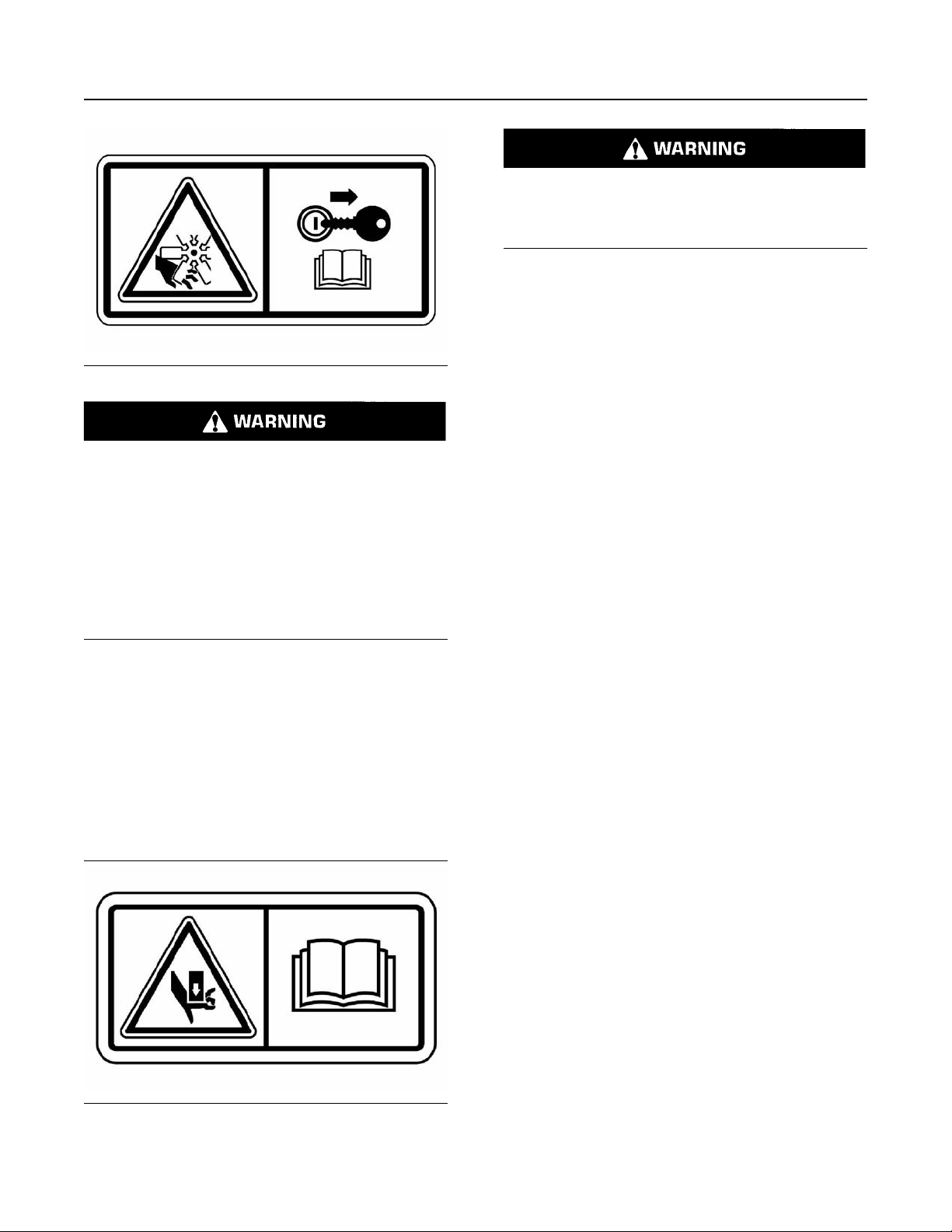

Illustration 21 g01460652
you have read and understand the correct tilting
procedure in the Operation and Maintenance Manual,
“Cab Tilt Procedure”.
Rotating fan blades can result in personal injury
or death.
Stop the engine and allow the fan to come to a
complete stop before making any test or
adjustment.
Before starting the engine, make sure all of the
finger guards are installed and the guard door is
closed. Do not allow any tools or test equipment
to protrude or vibrate into the path of the rotating
fan blades.
Rotating fan could cause serious injury or death. Turn
off key to shut down machine. Read the Operator
manual for further instruction.
Rotating serpentine belt and alternator fan could
cause serious injury or death. Turn off key to shut
down machine.
Crush Point (Severing Hand) (19)
Safety Message (19) is located on the outside lefthand goal post of the cab.
Illustration 22 g01803414
Page 15
SEBU8705 15
Safety Section
Additional Messages
i06095852
Additional Messages
SMCS Code: 7000
Illustration 23 g03807717
Page 16
16 SEBU8705
Safety Section
Additional Messages
There are several specific messages on this
machine. The location of the messages and the
description of the messages are reviewed in this
section. Become familiarized with all messages.
Make sure that all of the messages are legible. Clean
the messages or replace the messages if you cannot
read the words. Replace the illustrations if the
illustrations are not legible. When you clean the
messages, use a cloth, water, and soap. Do not use
solvent, gasoline, or other harsh chemicals to clean
the messages. Solvents, gasoline, or harsh
chemicals could loosen the adhesive that secures the
messages. Loose adhesive will allow the messages
to fall.
Replace any message that is damaged, or missing. If
a message is attached to a part that is replaced,
install a message on the replacement part. Any
Prentice dealer can provide new messages.

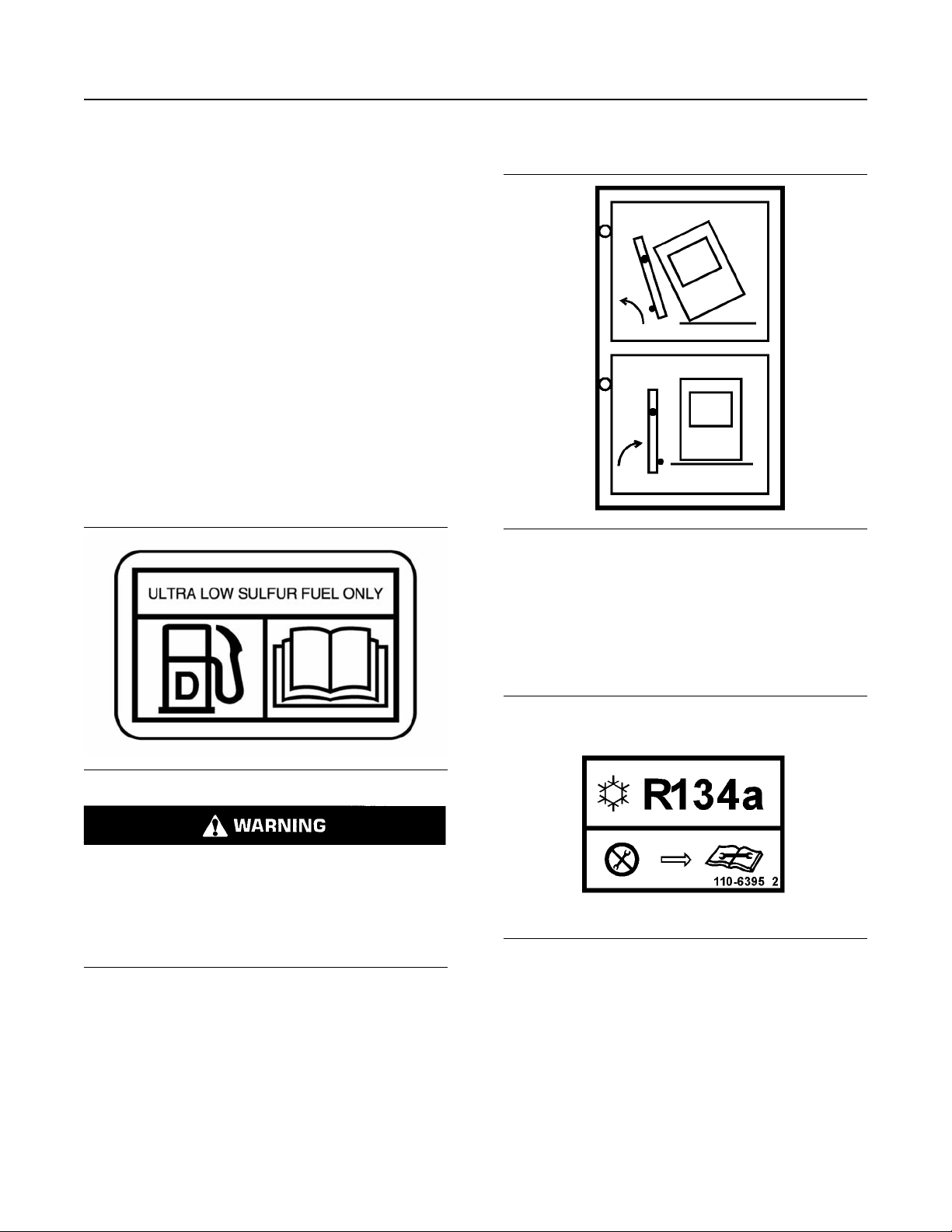

Diesel Fuel Requirements (1)
This message is located next to the fuel filler cap in
the fuel fill access compartment.
Your machine is equipped with a cab tilt pump, this
additional message is located inside the fuel fill door.
Illustration 25 g03005159
The cab tilt pump is installed to aide in tilting the cab
when maintenance or repair needs to be performed
on components underneath the cab.
Illustration 24 g02157153
Mixing alcohol or gasoline with diesel fuel can
produce an explosive mixture in the engine crankcase or fuel tank.
Personal injury and damage to the engine may result. Caterpillar recommends against this
practice.
There are many different types of fuel additives that
are available to use. Caterpillar does not generally
recommend the use of fuel additives.
Refer to Operation and Maintenance Manual,
SEBU6250, “Caterpillar Machine Fluids
Recommendations” for the use of fuel additives and
fuel conditioners.
Cab Tilt Pump (2)
Air Conditioner (3)
This message is located on the left side of the front
instrument panel.
Illustration 26 g02665985
This message for the air conditioner has the
appropriate information for the following services: the
air conditioner lubricant, the refrigerant charge and
the refrigerant capacity.
Follow instruction in order to avoid engine damage.
Reference: See Operation and Maintenance
Manual, “Maintenance Interval Schedule” for all
maintenance recommendations.
Alternate Exit (4)
Page 17
SEBU8705 17
Safety Section
Additional Messages
Two messages are located on both side windows of
the cab.

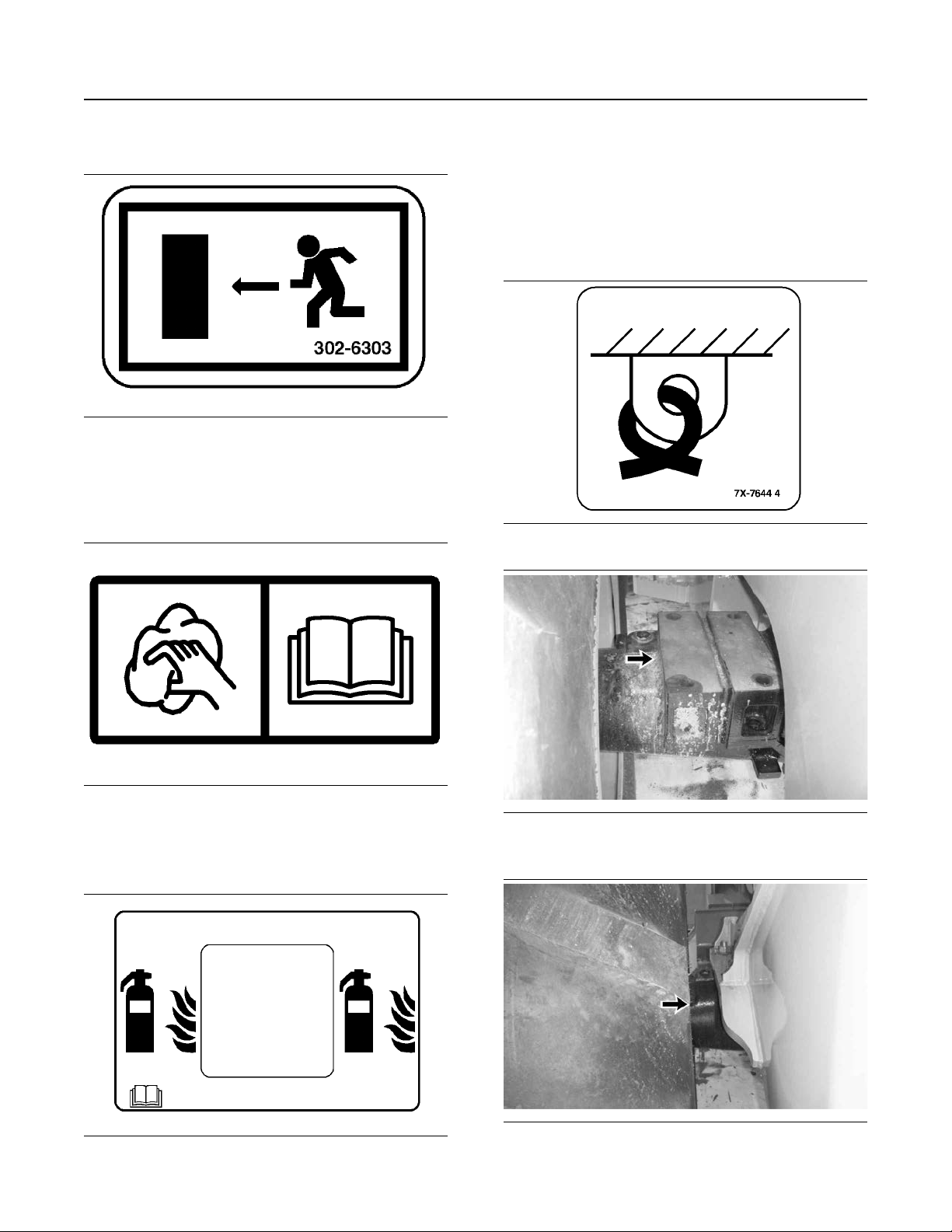

Illustration 27 g01422244
Alternate exit
Window Cleaning (5)
Two messages are located on both side windows of
the cab.
This message describes the fire points that are
available on the engine compartments. Use the
apertures in order to suppress fire hazards in the
engine compartment.
Do not use an unsafe method in order to suppress fire
hazards in the engine compartment.
Tie-Downs (7)
Illustration 30 g02666217
Illustration 28 g00930685
Reference: For more information, refer to Operation
and Maintenance Manual, “Windows - Clean”.
Fire Points (Engine)(6)
Illustration 29 g02095974
Illustration 31 g02666219
Rear Frame Tie Down Area
Illustration 32 g02666225
Front Frame Tie Down Area

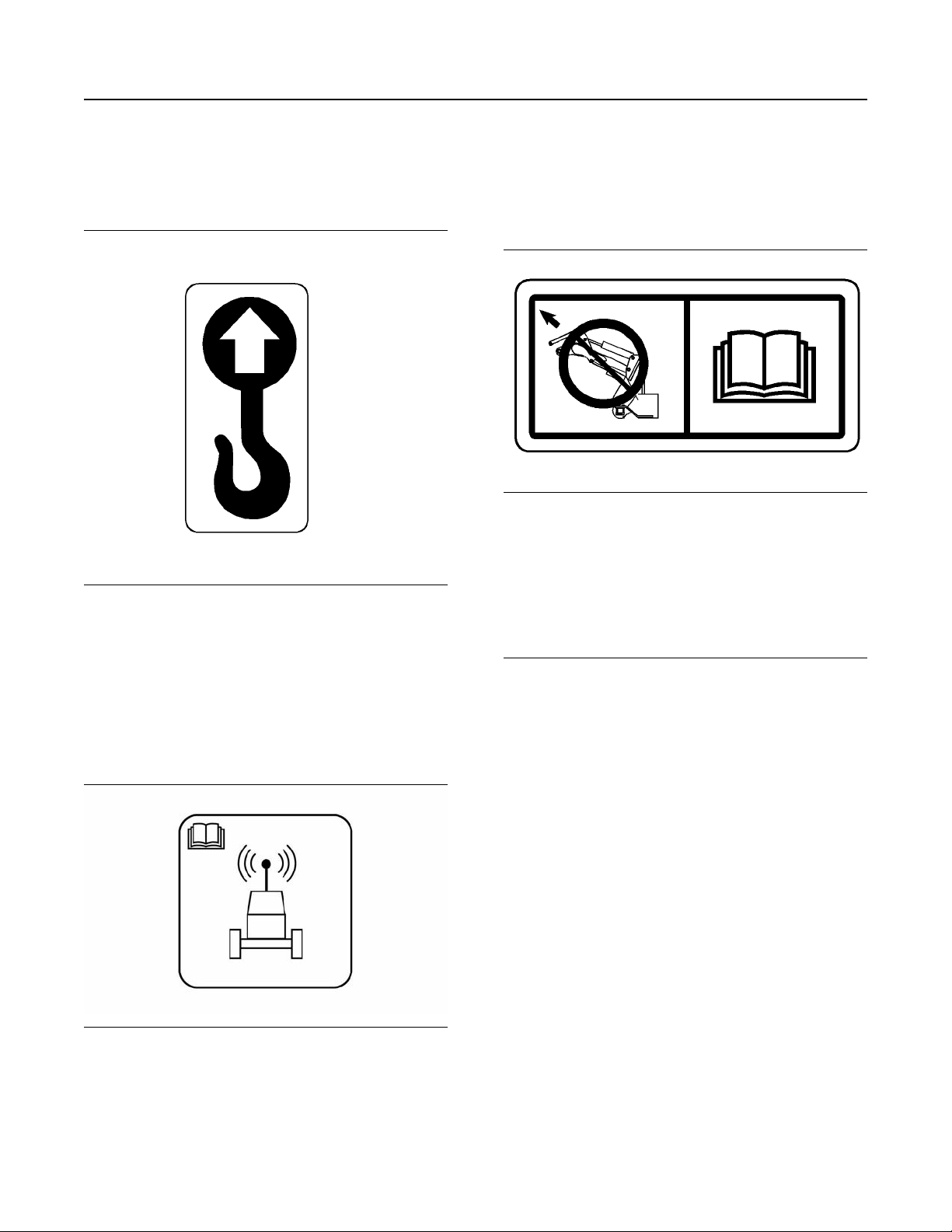

Page 18
18 SEBU8705
Safety Section
Additional Messages
Also, two locations on each of the front and rear axles
are for tying down the machine or towing the
machine. Do not use these tie-downs to lift the
machine.

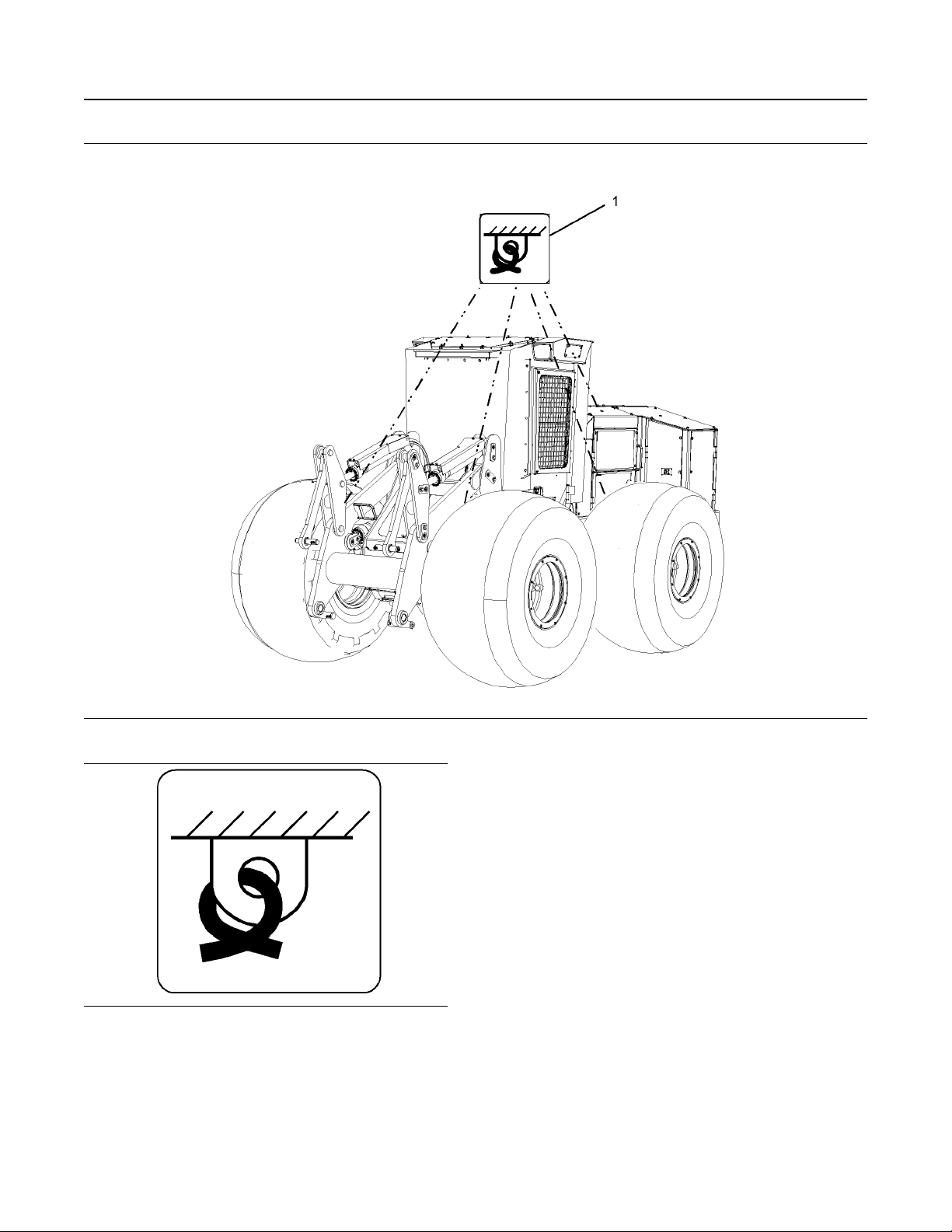

Lifting Points(8)
Illustration 33 g02666221
Lift Area Film
Read “Towing the Machine” and “Lifting and Tying
Down the Machine” in this manual for more
information.
Product Link System. The information is used to
improve Caterpillar products and Caterpillar services.
Cylinder Bending (10)
This message is located on the front window of the
machine.
Illustration 35 g03110399
Install a work tool on the machine before extending lift
arm or Y-link to prevent machine damage.
ConsultCaterpillar or Cat dealers before extending lift
arm or Y-link.
Do Not Change Pressures (11)
This message is located on the seat joystick.
Product Link (9)
If your machine is equipped with the Product Link
System, this additional message is located in the cab
on the right-hand counsel.
Illustration 34 g01418953
The Product Link System is a satellite or cellular
communication device that transmits information
regarding the machine back to Prentice and Prentice
dealers and customers. All logged events and
diagnostic codes that are available to the Cat
Electronic Technician (ET) can be sent to satellite or
cellular tower. Information can also be sent to the
Page 19
SEBU8705 19
Safety Section
General Hazard Information
i05740940
General Hazard Information
SMCS Code: 7000
Illustration 38 g00104545
Illustration 36 g03110496
Do not change pressure settings. Consult your Cat
dealer before increasing or decreasing factory set
pressures.
Operation and Maintenance Manual (12)

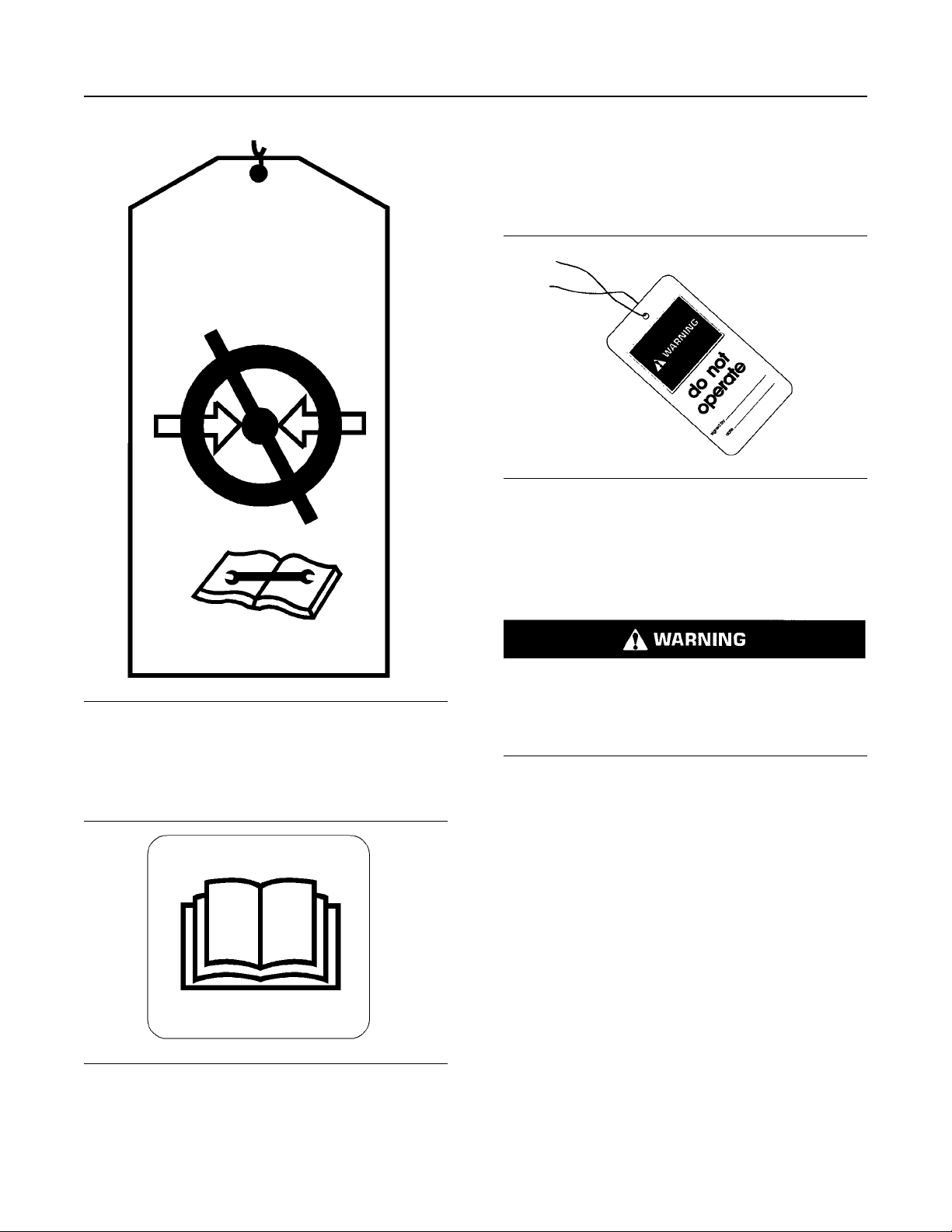

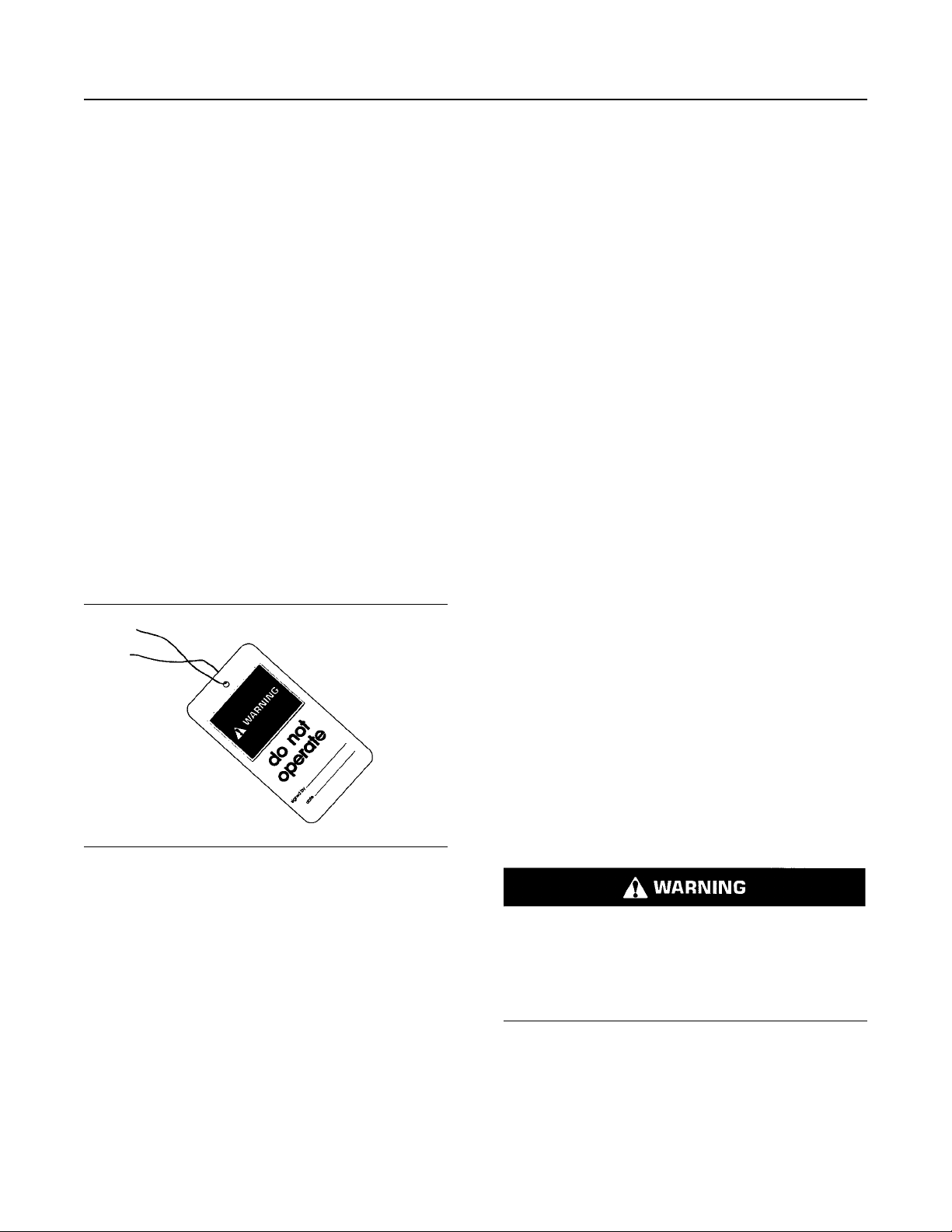

Attach a “Do Not Operate” warning tag or a similar
warning tag to the start switch or to the controls
before you service the equipment or before you repair
the equipment. These warning tags (Special
Instruction, SEHS7332) are available from your
Prentice dealer.
Operating the machine while distracted can result
in the loss of machine control. Use extreme caution when using any device while operating the
machine. Operating the machine while distracted
can result in personal injury or death.
Know the width of your equipment in order to maintain
proper clearance when you operate the equipment
near fences or near boundary obstacles.
Be aware of high voltage power lines and power
cables that are buried. If the machine comes in
contact with these hazards, serious injury or death
may occur from electrocution.
Illustration 37 g03005116
Location of the Operation and Maintenance Manual
film is on the rear center post.
Location of the Operation and Maintenance Manual is
behind the seat.
Page 20
20 SEBU8705
Safety Section
General Hazard Information
When maintenance is performed above ground level,
use appropriate devices such as ladders or man lift
machines. If Equipped, use the machine anchorage
points and use approved fall arrest harnesses and
lanyards.
Pressure Air and Water
Pressurized air and/or water can cause debris and/or
hot water to be blown out. The debris and/or hot
water could result in personal injury.
When pressurized air and/or pressurized water is
used for cleaning, wear protective clothing, protective
shoes, and eye protection. Eye protection includes
goggles or a protective face shield.
Illustration 39 g00702020
Wear a hard hat, protective glasses, and other
protective equipment, as required.
Do not wear loose clothing or jewelry that can snag
on controls or on other parts of the equipment.
Make sure that all protective guards and all covers
are secured in place on the equipment.
Keep the equipment free from foreign material.
Remove debris, oil, tools, and other items from the
deck, from walkways, and from steps.
The maximum air pressure for cleaning purposes
must be reduced to 448 kPa (65 psi) when the nozzle
is deadheaded and the nozzle is used with an
effective chip deflector and personal protective
equipment. The maximum water pressure for
cleaning purposes must be below 448n kPa (65 psi).
Avoid direct spraying of water on electrical
connectors, connections, and components. When
using air for cleaning, allow the machine to cool to
reduce the possibility of fine debris igniting when redeposited on hot surfaces.
Trapped Pressure
Secure all loose items such as lunch boxes, tools,
and other items that are not a part of the equipment.
Know the appropriate work site hand signals and the
personnel that are authorized to give the hand
signals. Accept hand signals from one person only.
Do not smoke when you service an air conditioner.
Also, do not smoke if refrigerant gas may be present.
Inhaling the fumes that are released from a flame that
contacts air conditioner refrigerant can cause bodily
harm or death. Inhaling gas from air conditioner
refrigerant through a lighted cigarette can cause
bodily harm or death.
Never put maintenance fluids into glass containers.
Drain all liquids into a suitable container.
Obey all local regulations for the disposal of liquids.
Use all cleaning solutions with care. Report all
necessary repairs.
Do not allow unauthorized personnel on the
equipment.
Unless you are instructed otherwise, perform
maintenance with the equipment in the servicing
position. Refer to Operation and Maintenance Manual
for the procedure for placing the equipment in the
servicing position.
Pressure can be trapped in a hydraulic system.
Accumulators in a hydraulic system will store
pressure. Allow a sufficient amount of time for the
pressure that is stored in the accumulators to be
released. Releasing trapped pressure can cause
sudden machine movement or attachment
movement. Use caution if you disconnect hydraulic
lines or fittings. High-pressure oil that is released can
cause a hose to whip. High-pressure oil that is
released can cause oil to spray. Fluid penetration can
cause serious injury and possible death.
Fluid Penetration
Pressure can be trapped in the hydraulic circuit long
after the engine has been stopped. The pressure can
cause hydraulic fluid or items such as pipe plugs to
escape rapidly if the pressure is not relieved correctly.
Do not remove any hydraulic components or parts
until pressure has been relieved or personal injury
may occur. Do not disassemble any hydraulic
components or parts until pressure has been relieved
or personal injury may occur. Refer to the Service
Manual for any procedures that are required to relieve
the hydraulic pressure.
Page 21
SEBU8705 21
Safety Section
General Hazard Information
Inhalation

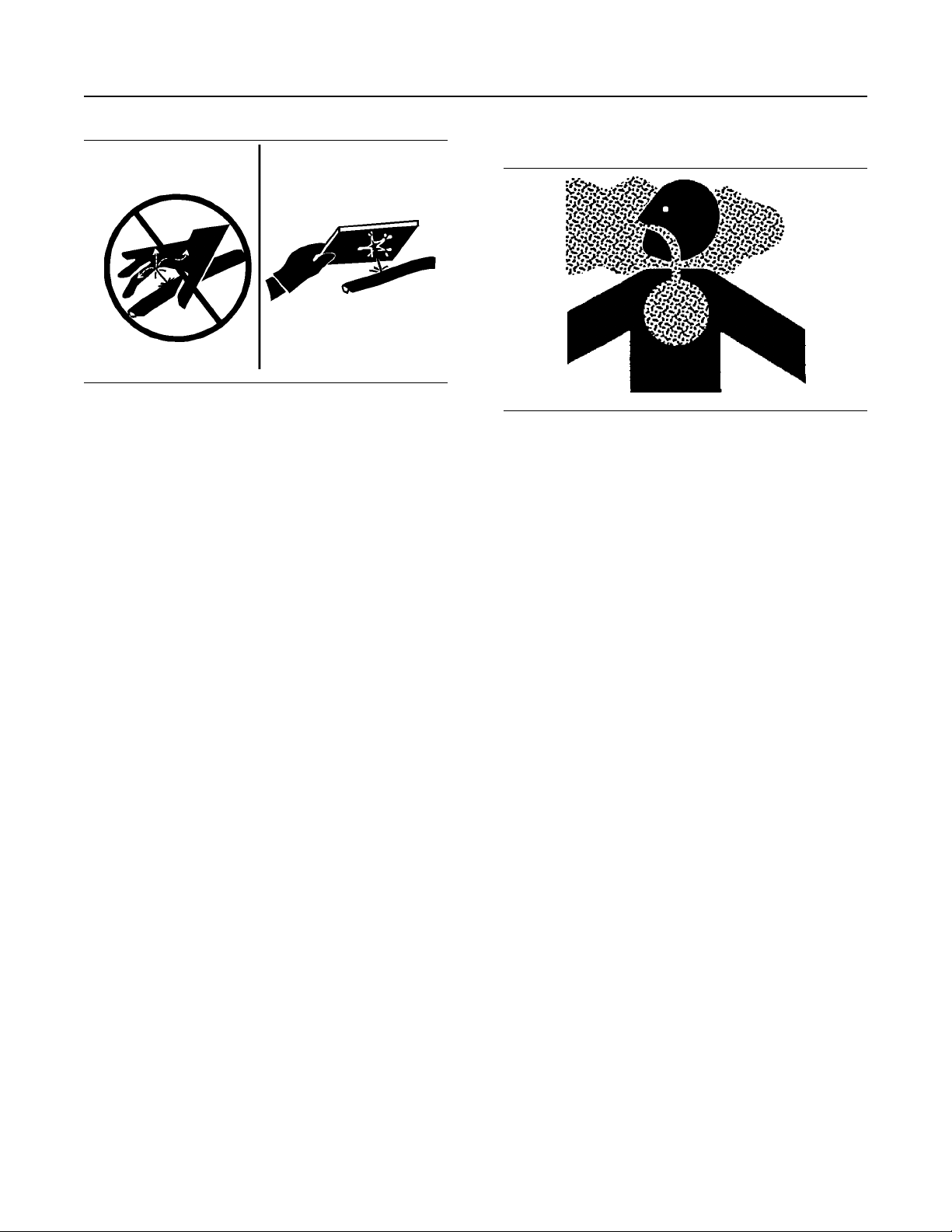

Illustration 40 g00687600

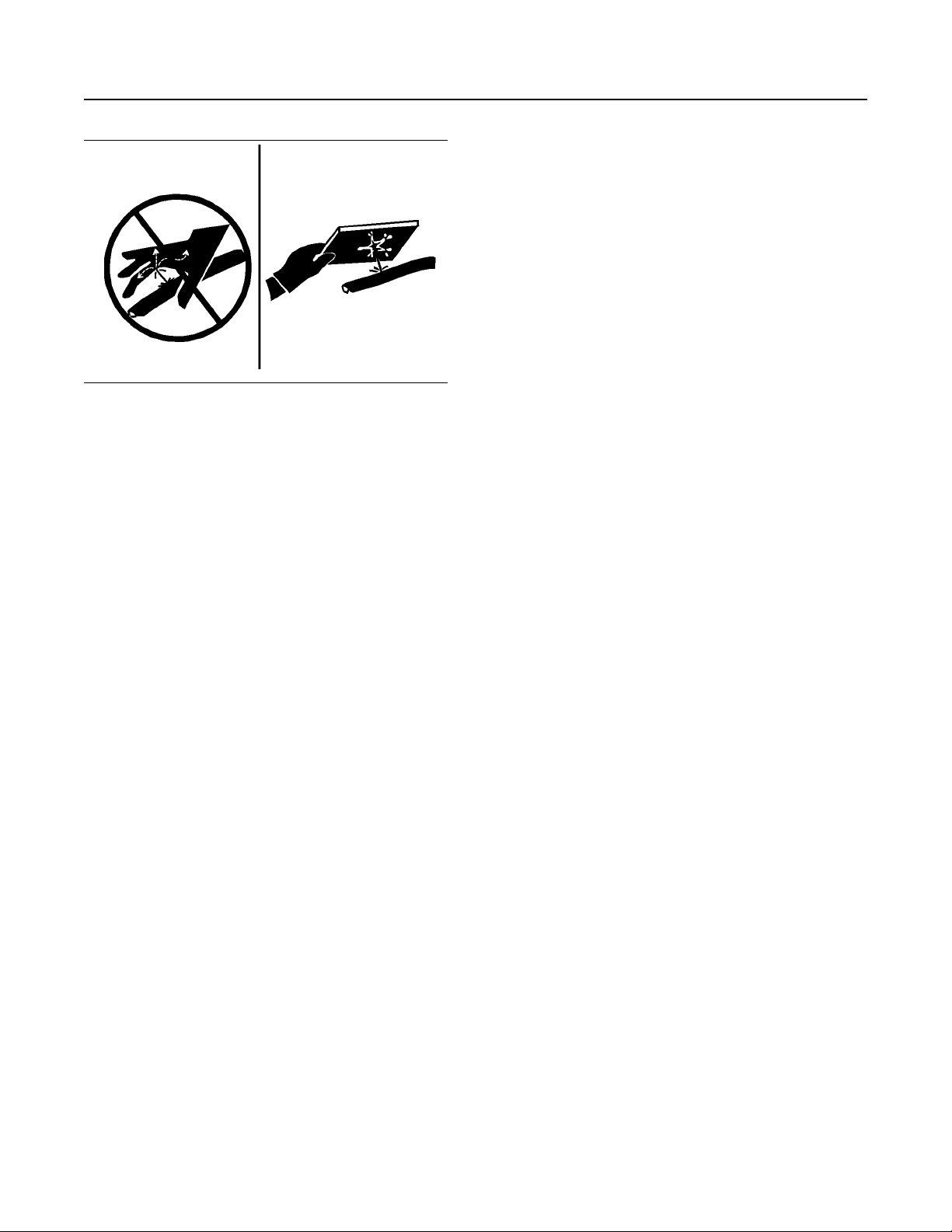

Always use a board or cardboard when you check for
a leak. Leaking fluid that is under pressure can
penetrate body tissue. Fluid penetration can cause
serious injury and possible death. A pin hole leak can
cause severe injury. If fluid is injected into your skin,
you must get treatment immediately. Seek treatment
from a doctor that is familiar with this type of injury.
Containing Fluid Spillage
Care must be taken in order to ensure that fluids are
contained during performance of inspection,
maintenance, testing, adjusting, and repair of the
equipment. Prepare to collect the fluid with suitable
containers before opening any compartment or
disassembling any component containing fluids.
Refer to Special Publication, NENG2500, “Tools and
Shop Products Guide” for the following items:
• Tools that are suitable for collecting fluids and
equipment that is suitable for collecting fluids
• Tools that are suitable for containing fluids and
equipment that is suitable for containing fluids
Obey all local regulations for the disposal of liquids.
Illustration 41 g02159053
Exhaust
Use caution. Exhaust fumes can be hazardous to
your health. If you operate the machine in an
enclosed area, adequate ventilation is necessary.
Asbestos Information
Prentice equipment and replacement parts that are
shipped from Caterpillar are asbestos free. Prentice
recommends the use of only genuine Prentice
replacement parts. Use the following guidelines when
you handle any replacement parts that contain
asbestos or when you handle asbestos debris.
Use caution. Avoid inhaling dust that might be
generated when you handle components that contain
asbestos fibers. Inhaling this dust can be hazardous
to your health. The components that may contain
asbestos fibers are brake pads, brake bands, lining
material, clutch plates, and some gaskets. The
asbestos that is used in these components is usually
bound in a resin or sealed in some way. Normal
handling is not hazardous unless airborne dust that
contains asbestos is generated.
If dust that may contain asbestos is present, there are
several guidelines that should be followed:
Page 22
22 SEBU8705
Safety Section
Crushing Prevention and Cutting Prevention
• Never use compressed air for cleaning.
• Avoid brushing materials that contain asbestos.
• Avoid grinding materials that contain asbestos.
• Use a wet method in order to clean up asbestos
materials.
• A vacuum cleaner that is equipped with a high
efficiency particulate air filter (HEPA) can also be
used.
• Use exhaust ventilation on permanent machining
jobs.
• Wear an approved respirator if there is no other
way to control the dust.
• Comply with applicable rules and regulations for
the work place. In the United States, use
Occupational Safety and Health Administration
(OSHA) requirements. These OSHA requirements
can be found in “29 CFR 1910.1001”.
• Obey environmental regulations for the disposal of
asbestos.
• Stay away from areas that might have asbestos
particles in the air.
Dispose of Waste Properly
i01359664
Crushing Prevention and
Cutting Prevention
SMCS Code: 7000
Support the equipment properly before you perform
any work or maintenance beneath that equipment. Do
not depend on the hydraulic cylinders to hold up the
equipment. Equipment can fall if a control is moved,
or if a hydraulic line breaks.
Do not work beneath the cab of the machine unless
the cab is properly supported.
Unless you are instructed otherwise, never attempt
adjustments while the machine is moving or while the
engine is running.
Never jump across the starter solenoid terminals in
order to start the engine. Unexpected machine
movement could result.
Whenever there are equipment control linkages the
clearance in the linkage area will change with the
movement of the equipment or the machine. Stay
clear of areas that may have a sudden change in
clearance with machine movement or equipment
movement.
Stay clear of all rotating and moving parts.
If it is necessary to remove guards in order to perform
maintenance, always install the guards after the
maintenance is performed.
Illustration 42 g00706404
Improperly disposing of waste can threaten the
environment. Potentially harmful fluids should be
disposed of according to local regulations.
Always use leakproof containers when you drain
fluids. Do not pour waste onto the ground, down a
drain, or into any source of water.
Keep objects away from moving fan blades. The fan
blade will throw objects or cut objects.
Do not use a kinked wire cable or a frayed wire cable.
Wear gloves when you handle wire cable.
When you strike a retainer pin with force, the retainer
pin can fly out. The loose retainer pin can injure
personnel. Make sure that the area is clear of people
when you strike a retainer pin. To avoid injury to your
eyes, wear protective glasses when you strike a
retainer pin.
Chips or other debris can fly off an object when you
strike the object. Make sure that no one can be
injured by flying debris before striking any object.
i04760300
Burn Prevention
SMCS Code: 7000
Do not touch any part of an operating engine. Allow
the engine to cool before any maintenance is
performed on the engine. Relieve all pressure in the
air system, in the oil system, in the lubrication system,
in the fuel system, or in the cooling system before any
lines, fittings, or related items are disconnected.
Page 23
SEBU8705 23
Safety Section
Fire Prevention and Explosion Prevention
Coolant
When the engine is at operating temperature, the
engine coolant is hot. The coolant is also under
pressure. The radiator and all lines to the heaters or
to the engine contain hot coolant.
Any contact with hot coolant or with steam can cause
severe burns. Allow cooling system components to
cool before the cooling system is drained.
Check the coolant level only after the engine has
been stopped.
Ensure that the filler cap is cool before removing the
filler cap. The filler cap must be cool enough to touch
with a bare hand. Remove the filler cap slowly in
order to relieve pressure.
Cooling system conditioner contains alkali. Alkali can
cause personal injury. Do not allow alkali to contact
the skin, the eyes, or the mouth.
Oils
Hot oil and hot components can cause personal
injury. Do not allow hot oil to contact the skin. Also, do
not allow hot components to contact the skin.
Remove the hydraulic tank filler cap only after the
engine has been stopped. The filler cap must be cool
enough to touch with a bare hand. Follow the
standard procedure in this manual in order to remove
the hydraulic tank filler cap.
Batteries
The liquid in a battery is an electrolyte. Electrolyte is
an acid that can cause personal injury. Do not allow
electrolyte to contact the skin or the eyes.
Do not smoke while checking the battery electrolyte
levels. Batteries give off flammable fumes which can
explode.
Always wear protective glasses when you work with
batteries. Wash hands after touching batteries. The
use of gloves is recommended.
i04882989
Fire Prevention and Explosion
Prevention
SMCS Code: 7000
Illustration 43 g00704000
General
Much of the material found in forestry operations in
highly flammable, including limbs, bark, leaves, saw
dust, small wood chips and pine needles Safety.cat.
com. When forestry debris is soaked with fuel or
lubricants, the risk of fire is greatly increased. Refer to
Operation and Maintenance Manual, SEBD1901.
Doing daily inspections before every shift, or more
often based on the work activity and build-up of
debris, is the best way to prevent a machine fire.
Frequent inspections and thorough machine cleaning
are critical when engaged in forestry operations.
Even minor leaks or electrical malfunctions should be
repaired as soon as possibleOperation and
Maintenance Manual, SEBD1901.
All fuels, most lubricants, and some coolant mixtures
are flammable.
To minimize the risk of fire or explosion, Prentice
recommends the following actions.
Always perform a Walk-Around Inspection, which
may help you identify a fire hazard. Do not operate a
machine when a fire hazard exists. Contact your
Prentice dealer for service.
Understand the use of the primary exit and alternative
exit on the machine. Refer to Operation and
Maintenance Manual, “Alternative Exit”.
Do not operate a machine with a fluid leak. Repair
leaks and clean up fluids before resuming machine
operation. Fluids that are leaking or spilled onto hot
surfaces or onto electrical components can cause a
fire. A fire may cause personal injury or death.
Page 24
24 SEBU8705
Safety Section
Fire Prevention and Explosion Prevention
Remove flammable material such as leaves, twigs,
papers, trash, and so on. These items may
accumulate in the engine compartment or around
other hot areas and hot parts on the machine.
Keep the access doors to major machine
compartments closed and access doors in working
condition in order to permit the use of fire suppression
equipment, in case a fire should occur.
Clean all accumulations of flammable materials such
as fuel, oil, and debris from the machine. Highly
flammable debris such as leaves , twigs, saw dust,
small wood chips and pine needles can collect on
and in equipment used in forestry operations. If
allowed to accumulate, the debris can rapidly become
fuel the fuel component of a machine fire. Clean all
accumulations of forest debris in the engine
compartment or around other hot areas and hot parts
upon completion of each work shift. Clean more
frequently when working conditions where large
amounts of debris are present.
Do not operate the machine near any flame.
Keep shields in place. Exhaust shields (if equipped)
protect hot exhaust components from oil spray or fuel
spray in case of a break in a line, in a hose, or in a
seal. Exhaust shields must be installed correctly.
Do not weld or flame cut on tanks or lines that contain
flammable fluids or flammable material. Empty and
purge the lines and tanks. Then clean the lines and
tanks with a nonflammable solvent prior to welding or
flame cutting. Ensure that the components are
properly grounded in order to avoid unwanted arcs.
Dust that is generated from repairing nonmetallic
hoods or fenders may be flammable and/or explosive.
Repair such components in a well ventilated area
away from open flames or sparks. Use suitable
Personal Protection Equipment (PPE).
Inspect all lines and hoses for wear or deterioration.
Replace damaged lines and hoses. The lines and the
hoses should have adequate support and secure
clamps. Tighten all connections to the recommended
torque. Damage to the protective cover or insulation
may provide fuel for fires.
Store fuels and lubricants in properly marked
containers away from unauthorized personnel. Store
oily rags and flammable materials in protective
containers. Do not smoke in areas that are used for
storing flammable materials.

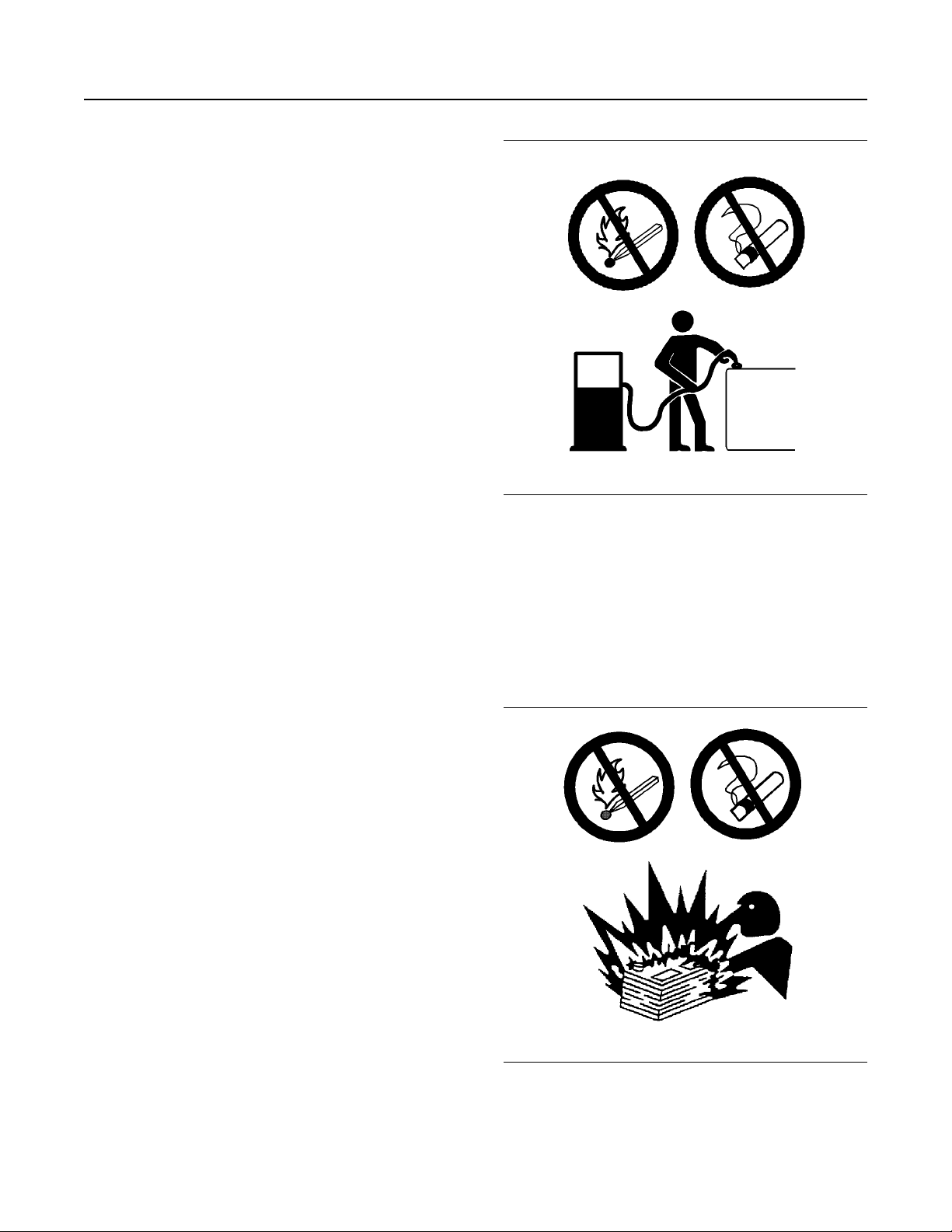

Illustration 44 g00704059
Use caution when you are fueling a machine. Do not
smoke while you are fueling a machine. Do not fuel a
machine near open flames or sparks. Always stop the
engine before fueling. Fill the fuel tank outdoors.
Properly clean areas of spillage.
Never store flammable fluids in the operator
compartment of the machine.
Battery and Battery Cables
Illustration 45 g02298225
Prentice recommends the following in order to
minimize the risk of fire or an explosion related to the
battery.
Page 25
SEBU8705 25
Safety Section
Fire Prevention and Explosion Prevention
Do not operate a machine if battery cables or related
parts show signs of wear or damage. Contact your
Prentice dealer for service.
Follow safe procedures for engine starting with jumpstart cables. Improper jumper cable connections can
cause an explosion that may result in injury. Refer to
Operation and Maintenance Manual, “Engine Starting
with Jump Start Cables” for specific instructions.
Do not charge a frozen battery. Explosions may
occur.
Gases from a battery can explode. Keep any open
flames or sparks away from the top of a battery. Do
not smoke in battery charging areas.
Never check the battery charge by placing a metal
object across the terminal posts. Use a voltmeter in
order to check the battery charge.
Daily inspect battery cables that are in areas that are
visible. Inspect cables, clips, straps, and other
restraints for damage. Replace any damaged parts.
Check for signs of the following, which can occur over
time due to use and environmental factors:
• Fraying
• Abrasion
• Cracking
• Discoloration
Fire on a machine can result in personal injury or
death. Exposed battery cables that come into contact with a grounded connection can result in
fires. Replace cables and related parts that show
signs of wear or damage. Contact your Prentice
dealer.
Wiring
Check electrical wires daily. If any of the following
conditions exist, replace parts before you operate the
machine.
• Fraying
• Signs of abrasion or wear
• Cracking
• Discoloration
• Cuts on insulation
• Other damage
Make sure that all clamps, guards, clips, and straps
are reinstalled correctly. Doing so will help to prevent
vibration, rubbing against other parts, and excessive
heat during machine operation.
• Cuts on the insulation of the cable
• Fouling
• Corroded terminals, damaged terminals, and loose
terminals
Replace damaged battery cable(s) and replace any
related parts. Eliminate any fouling, which may have
caused insulation failure or related component
damage or wear. Ensure that all components are
reinstalled correctly.
An exposed wire on the battery cable may cause a
short to ground if the exposed area comes into
contact with a grounded surface. A battery cable
short produces heat from the battery current, which
may be a fire hazard.
An exposed wire on the ground cable between the
battery and the disconnect switch may cause the
disconnect switch to be bypassed if the exposed area
comes into contact with a grounded surface. Doing so
may result in an unsafe condition for servicing the
machine. Repair components or replace components
before servicing the machine.
Attaching electrical wiring to hoses and tubes that
contain flammable fluids or combustible fluids should
be avoided.
Consult your Prentice dealer for repair or for
replacement parts.
Keep wiring and electrical connections free of debris.
Lines, Tubes, and Hoses
Do not bend high-pressure lines. Do not strike highpressure lines. Do not install any lines that are bent or
damaged. Use the appropriate backup wrenches in
order to tighten all connections to the recommended
torque.
Page 26
26 SEBU8705
Safety Section
Fire Prevention and Explosion Prevention
Follow the correct cold engine starting procedures.
Refer to the section in the Operation and
Maintenance Manual with the label “Engine Starting”
.
Do not spray ether manually into an engine if the
machine is equipped with a thermal starting aid for
cold weather starting.
Use ether in well ventilated areas. Do not smoke
while you are replacing an ether cylinder or while you
are using an ether spray.
Do not store ether cylinders in living areas or in the
operator compartment of a machine. Do not store
ether cylinders in direct sunlight or in temperatures
Illustration 46 g00687600
above 49° C (120.2° F). Keep ether cylinders away
from open flames or sparks.
Check lines, tubes, and hoses carefully. Wear
Personal Protection Equipment (PPE) in order to
check for leaks. Always use a board or cardboard
when you check for a leak. Leaking fluid that is under
pressure can penetrate body tissue. Fluid penetration
can cause serious injury and possible death. A pin
hole leak can cause severe injury. If fluid is injected
into your skin, you must get treatment immediately.
Seek treatment from a doctor that is familiar with this
type of injury.
Replace the affected parts if any of the following
conditions are present:
• End fittings are damaged or leaking.
• Outer coverings are chafed or cut.
• Wires are exposed.
• Outer coverings are swelling or ballooning.
• Flexible parts of the hoses are kinked.
• Outer covers have exposed embedded armoring.
• End fittings are displaced.
Make sure that all clamps, guards, and heat shields
are installed correctly. During machine operation,
doing so will help to prevent vibration, rubbing against
other parts, excessive heat, and failure of lines,
tubes, and hoses.
Dispose of used ether cylinders properly. Do not
puncture an ether cylinder. Keep ether cylinders away
from unauthorized personnel.
Fire Extinguisher
As an additional safety measure, keep a fire
extinguisher on the machine.
Be familiar with the operation of the fire extinguisher.
Inspect the fire extinguisher and service the fire
extinguisher regularly. Follow the recommendations
on the instruction plate.
Consider installation of an aftermarket Fire
Suppression System, if the application and working
conditions warrant the installation.
Do not operate a machine when a fire hazard exists.
Repair any lines that are corroded, loose, or
damaged. Leaks may provide fuel for fires. Consult
your Prentice dealer for repair or for replacement
parts. Use genuine Prentice parts or the equivalent,
for capabilities of both the pressure limit and
temperature limit.
Ether
Ether (if equipped) is commonly used in cold-weather
applications. Ether is flammable and poisonous.
Page 27
SEBU8705 27
Safety Section
Fire Extinguisher Location
Fire Extinguisher Location
SMCS Code: 7000
i04450434
i04822403
Tire Information
SMCS Code: 7000
Explosions of air inflated tires have resulted from
heat-induced gas combustion inside the tires.
Explosions can be caused by heat that is generated
by welding, by heating rim components, by external
fire, or by excessive use of brakes.
A tire explosion is much more violent than a blowout.
The explosion can propel the tire, the rim
components, and the axle components from the
machine. Stay out of the trajectory path. Both the
force of the explosion and the flying debris can cause
property damage, personal injury, or death.

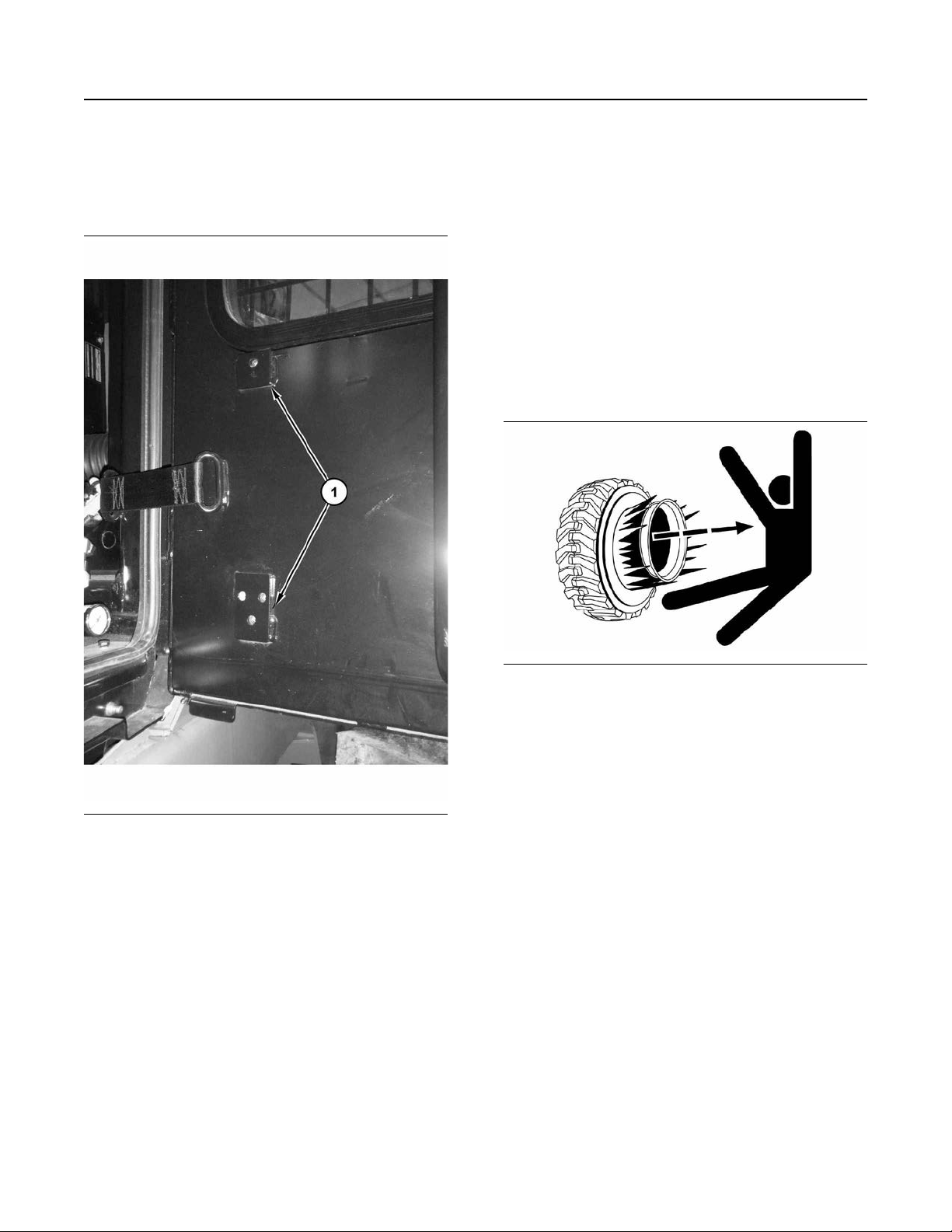

Illustration 47 g02643077
The recommended location for mounting the fire
extinguisher is inside on the left-hand access door
(1).
Make sure that a fire extinguisher is on the machine.
Make sure that you are familiar with the operation of
the fire extinguisher. Inspect the fire extinguisher and
service the fire extinguisher on a regular basis. Obey
the recommendations on the instruction plate.
If the fire extinguisher is mounted on the ROPS, strap
the mounting plate to a leg of the ROPS. If the weight
of the fire extinguisher is more than 4.5 kg (10 lb),
mount the fire extinguisher as low as possible on one
leg. Do not mount the fire extinguisher on the upper
one-third area of the leg.
Note: Do not weld the ROPS in order to install the fire
extinguisher. Also, do not drill holes in the ROPS in
order to mount the fire extinguisher on the ROPS.
Illustration 48 g02166933
Typical example of tire is shown
Do not approach a hot or an apparently damaged tire.
Prentice recommends against using water or
calcium as a ballast for the tires except in machines
designed for this additional mass. For those
applicable machines, the maintenance section will
contain instructions on the correct tire inflation and
filling procedures. Ballast, such as fluid in the tires,
increases overall machine weight and may affect
braking, steering, power train components, or the
certification of the protective structure such as the
ROPS. The use of tire/rim rust preventatives or other
liquid additives is not required.
Dry nitrogen gas is recommended for inflation of
tires. If the tires were originally inflated with air,
nitrogen is still preferred for adjusting the pressure.
Nitrogen mixes properly with air.
Nitrogen inflated tires reduce the potential of a tire
explosion because nitrogen does not aid combustion.
Nitrogen helps to prevent oxidation of the rubber,
deterioration of rubber, and corrosion of rim
components.
Page 28
28 SEBU8705
Safety Section
Electrical Storm Injury Prevention
To avoid overinflation, proper nitrogen inflation
equipment and training in the usage of the equipment
are necessary. A tire blowout or a rim failure can
result from improper equipment or from misused
equipment.
When you inflate a tire, stand behind the tread and
use a self-attaching chuck.
Servicing tires and rims can be dangerous. Only
trained personnel that use proper tools and proper
procedures should perform this maintenance. If
correct procedures are not used for servicing tires
and rims, the assemblies could burst with explosive
force. This explosive force can cause serious
personal injury or death. Carefully obey the specific
instructions from your tire dealer.
i01122596
Electrical Storm Injury
Prevention
SMCS Code: 7000
When lightning is striking in the vicinity of the
machine, the operator should never attempt the
following procedures:
• Mount the machine.
• Dismount the machine.
If you are in the operator's station during an electrical
storm, stay in the operator's station. If you are on the
ground during an electrical storm, stay away from the
vicinity of the machine.
Make sure that the machine is equipped with a
lighting system that is adequate for the job conditions.
Make sure that all lights are working properly.
Before you start the engine or before you move the
machine, make sure that no one is on the machine,
underneath the machine, or around the machine.
Make sure that there are no personnel in the area.
i04862936
Visibility Information
SMCS Code: 7000; 7615
Before you start the machine, perform a walk-around
inspection in order to ensure that there are no
hazards around the machine.
While the machine is in operation, constantly survey
the area around the machine in order to identify
potential hazards as hazards become visible around
the machine.
Your machine may be equipped with visual aids.
Some examples of visual aids are Closed Circuit
Television (CCTV) and mirrors. Before operating the
machine, ensure that the visual aids are in proper
working condition and that the visual aids are clean.
Adjust the visual aids using the procedures that are
located in this Operation and Maintenance Manual. If
equipped, the Work Area Vision System shall be
adjusted according to Operation and Maintenance
Manual, SEBU8157, “Work Area Vision System”. If
equipped, the Cat Detect Object Detection shall be
adjusted according to the Operation and Maintenance
Manual, “Cat Detect Object Detection” for your
machine.
i01643597
Before Starting Engine
SMCS Code: 1000; 7000
The steering frame lock must be in the UNLOCKED
position in order to steer the machine.
Start the engine only from the operator compartment.
Never short across the starter terminals or across the
batteries. Shorting could bypass the engine neutral
start system. Shorting could also damage the
electrical system.
Inspect the condition of the seat belt and the
condition of mounting hardware. Replace any parts
that are worn or damaged. Regardless of the
appearance, replace the seat belt after three years of
use.
Adjust the seat in order to have full pedal travel when
the operator is seated properly.
Adjust the mirror so that the operator has good
rearward visibility.
It may not be possible to provide direct visibility on
large machines to all areas around the machine.
Appropriate job site organization is required in order
to minimize hazards that are caused by restricted
visibility. Job site organization is a collection of rules
and procedures that coordinates machines and
people that work together in the same area.
Examples of job site organization include the
following:
Page 29
SEBU8705 29
Safety Section
Engine Starting
• Safety instructions
• Controlled patterns of machine movement and
vehicle movement
• Workers that direct safe movement of traffic
• Restricted areas
• Operator training
• Warning symbols or warning signs on machines or
on vehicles
• A system of communication
• Communication between workers and operators
prior to approaching the machine
Modifications of the machine configuration by the
user that result in a restriction of visibility shall be
evaluated.
i02112145
Engine Starting
SMCS Code: 1000; 7000
i01484858
Before Operation
SMCS Code: 7000
Clear all personnel from the machine and from the
area. Maintain a distance of 91 m (300 ft) in all
directions prior to operation.
Clear all obstacles from the path of the machine.
Beware of hazards such as wires, ditches, etc.
Make sure that all windows are clean. Secure the
doors in the shut position. Secure the windows in the
shut position.
For the best vision of the area behind the machine,
adjust the rear view mirror.
Make sure that the machine horn, the backup alarm
and all other warning devices are working properly.
Fasten the seat belt securely.
i05252298
Operation
SMCS Code: 7000
Illustration 49 g00104545
If a warning tag is attached to the engine start switch
or to the controls, do not start the engine and do not
move any controls.
Move the hydraulic lockout control into the LOCKED
position before you start the engine.
Engage the parking brake.
Diesel engine exhaust contains products of
combustion which can be harmful to your health.
Always operate the engine in a well ventilated area. If
you are in an enclosed area, vent the exhaust to the
outside.
Machine Operating Temperature
Range
The machine must function satisfactorily in the
anticipated ambient temperature limits that are
encountered during operation. The standard machine
configuration is intended for use within an ambient
temperature range of −18 °C (−0 °F) to 43 °C
(109 °F). Special configurations for different ambient
temperatures may be available. Consult your Prentice
dealer for additional information on special
configurations of your machine.
Machine Operation
Know the maximum height and the maximum
reach of your machine. Serious injury or death by
electrocution can occur if the machine or the work
tools are not kept a safe distance from electrical
power lines. Keep a distance of at least 3 m
(10 feet) .
For safety, one of the following may require a greater
distance:
• Local codes
• State codes
• Requirements of the job site
Page 30
30 SEBU8705
Safety Section
Operation
Only operate the machine while you are sitting in a
seat. The seat belt must be fastened while you
operate the machine. Only operate the controls while
the engine is running.
While you operate the machine slowly in an open
area, check for proper operation of all controls and all
protective devices.
Before you move the machine, make sure that no one
will be endangered.
Do not allow riders on the machine unless the
machine has an additional seat with a seat belt.
Never use the work tool for a work platform.
Note any needed repairs during machine operation.
Report any needed repairs.
Carry work tools at approximately 40 cm (15 inches)
above ground level.
Do not go close to the edge of a cliff, an excavation,
or an overhang.
Avoid operating the machine across the slope. When
possible, operate the machine up the slopes and
down the slopes. If the machine begins to sideslip on
a downgrade, immediately remove the load and turn
the machine downhill.
Feller bunchers are intended to fell standing trees,
not for harvesting fallen or blown over trees.
Do not use feller buncher to cut when the head and
saw disc are tilted forward from the cab more than 20
degrees. Such use may result in high velocity
projectiles, like wood pieces, being thrown with
enough force to penetrate cab window. Projectiles
penetrating the cab windows or entering the cab can
cause serious personal injury or death.
The polycarbonate windows are designed to standard
specification that offer protection under most
conditions of normal operation.
Feller bunchers are not designed to harvest fallen
or blown over trees. doing so can cause serious
personal injury or death.
• Never intentionally let the disc hit a rock
• ONLY fell with the disc horizontal and the bunching
head vertical. DO NOT cut with the feller buncher
head tipped forward.
Operation in Rocky Terrain
Avoid any conditions that can lead to tipping the
machine. The machine can tip when you work on
hills, on banks and on slopes. Also, the machine can
tip when you cross ditches, ridges, or other
unexpected obstructions.
Avoid changing direction of travel on a slope.
Changing the direction of travel on a slope could
result in tipping or side slipping of the machine.
Maintain control of the machine. Do not overload the
machine beyond the machine capacity.
Never straddle a wire cable. Never allow other
personnel to straddle a wire cable.
Know the maximum dimensions of your machine.
Check local regulations, state codes, and/or
directives of the job site for a specific minimum
distance from obstacles.
Before you operate the machine, check with local
utilities for the locations of underground pipes and for
the locations of buried cables.
Dangerous Operation Practices
Flying debris, falling trees, limbs, and tops can
cause severe injury or death. Do not operate saw
within 91 M (300 feet) of personnel or machinery.
Operating feller buncher in rocky conditions is
hazardous and should be avoided. If felling in rocky
conditions cannot be avoided the following
precautions should be taken:
• Use only solid steel teeth. DO NOT use carbide
tipped teeth.
• Make the cut high enough to clear the rocks.
NOTICE
Teeth breaking when hitting a rock can damage the
tooth seat on the saw disc. The more economical option is to use a segmented disc. When broken tooth
damages the tooth seat, replace tooth and the segment instead of a whole disc.
Do not use feller bunchers to harvest trees in a
fallen or blown over condition. Serious personal
injury or death may result from high velocity
projectiles being thrown through the cab window.
Page 31
SEBU8705 31
Safety Section
Engine Stopping
i01523796
Engine Stopping
SMCS Code: 1000; 7000
NOTICE
Stopping the engine immediately after it has been
working under load can result in overheating and accelerated wear of engine components.
Refer to the following procedure to allow the engine to
cool and to prevent excessive temperatures in the turbocharger housing, which could cause oil coking
problems.
1. Stop the machine and run the engine at low idle for
five minutes.
NOTICE
Never turn the battery disconnect switch to the OFF
position while the engine is running. Serious damage
to the electrical system may result.
2. Turn the engine start switch to the OFF position
and remove the engine start switch key.
Keep all windows and doors closed on the host
machine. A polycarbonate shield must be used when
the host machine is not equipped with windows and
when a work tool could throw debris.
Do not exceed the maximum operating weight that is
listed on the ROPS certification.
If your machine is equipped with an extendable stick,
install the transport pin when you are using the
following work tools: hydraulic hammers, augers and
compactors
Always wear protective glasses. Always wear the
protective equipment that is recommended in the
operation manual for the work tool. Wear any other
protective equipment that is required for the operating
environment.
To prevent personnel from being struck by flying
objects, ensure that all personnel are out of the work
area.
While you are performing any maintenance, any
testing, or any adjustments to the work tool stay clear
of the following areas: cutting edges, pinching
surfaces and crushing surfaces.
Never use the work tool for a work platform.
i04562499
i04550350
Work Tools
SMCS Code: 6700
Only use work tools that are recommended by
Prentice for use on Prentice machines.
Use of work tools, including buckets, which are
outside of Prentice's recommendations or
specifications for weight, dimensions, flows,
pressures, and so on. may result in less-than-optimal
vehicle performance, including but not limited to
reductions in production, stability, reliability, and
component durability. Prentice recommends
appropriate work tools forPrentice's machines to
maximize the valuePrentice's customers receive from
Prentice products. Prentice understands that special
circumstances may lead a customer to use tools
outside of Prentice's specifications. Customers must
be aware that such choices can reduce vehicle
performance and will affect their ability to claim
warranty in the event of what a customer may
perceive as a premature failure.
Work tools and work tool control systems, that are
compatible with your Prentice machine, are required
for safe machine operation and/or reliable machine
operation. If you are in doubt about the compatibility
of a particular work tool with your machine, consult
your Prentice dealer.
Parking
SMCS Code: 7000
1. Park the machine on a level surface. If you must
park the machine on a downgrade, block the tires
or chock the tracks of the machine.
2. Apply the service brake in order to stop the
machine. Move the direction control switch to
NEUTRAL.
3. Engage the parking brake.
4. Lower all attachments to the ground. Make sure
that all attachments are in the recommended
servicing position before servicing the machine.
5. Move the hydraulic lockout control to the LOCKED
position. The hydraulic system remains
pressurized if the accumulator is charged. This
condition is true even when the engine is not
running. This pressure should decrease in a short
time (approximately 1 minute). While the hydraulic
system maintains a charge, the machine controls
remain functional.
Make sure that all necessary guarding is in place on
the host machine and on the work tool.

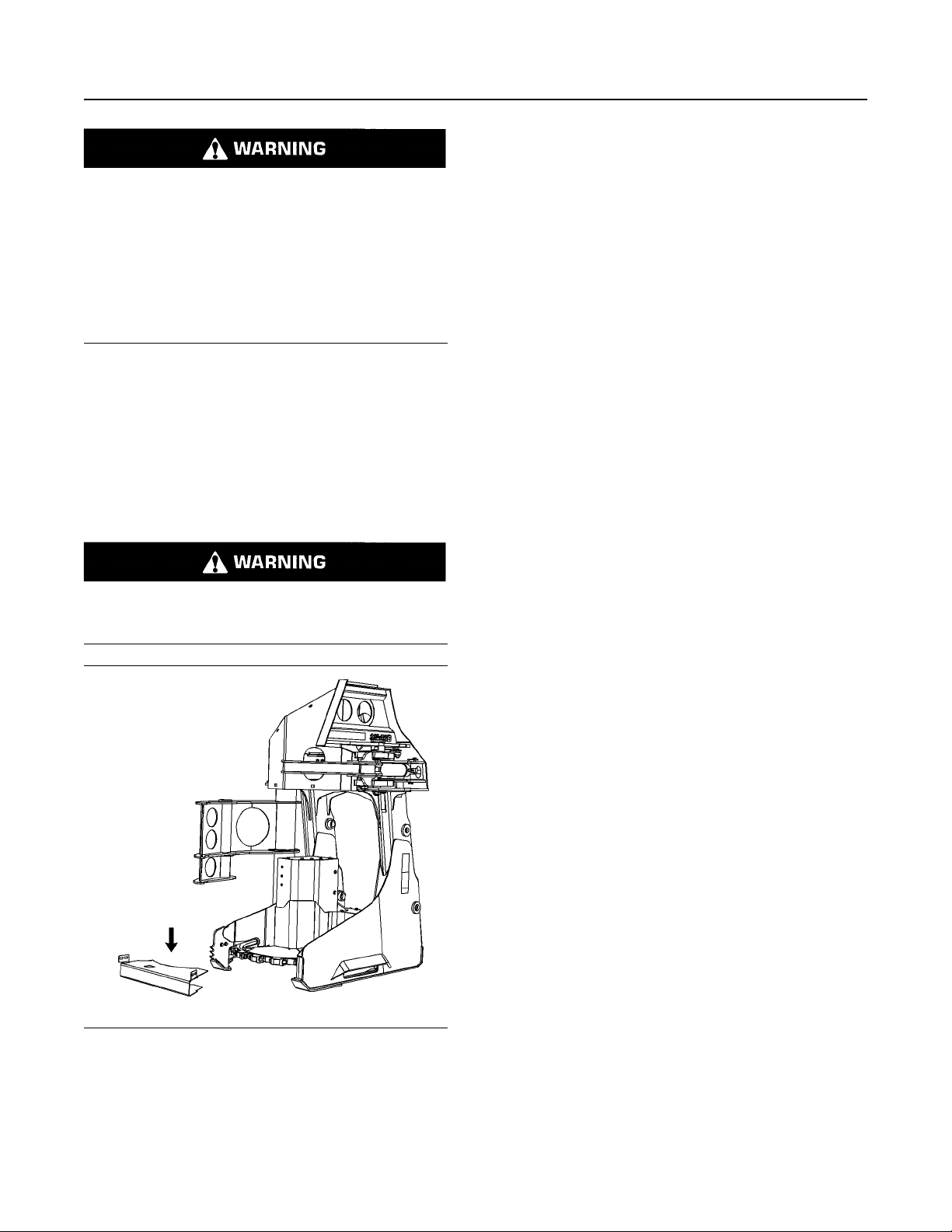

Page 32
32 SEBU8705
Safety Section
Slope Operation
i04562174
Deactivation of the hydraulic controls does not
prevent the blade, boom swing, or auxiliary circuit
functions from moving under gravity or other external forces. Gravity or other external forces can
move the blade, boom swing, or auxiliary circuit
functions suddenly if a hydraulic control lever is
moved.
Personal injury or death may occur from sudden
machine movement.
6. Turn the engine start switch to the OFF position
and remove the key.
7. Turn the battery disconnect switch to the OFF
position. If the machine will not be operated for an
extended time period, remove the key in order to
avoid battery discharge that may be caused by a
battery short circuit, by the current draw via certain
components, or by vandalism.
Stay back until saw blade comes to complete stop
after shutdown. May cause serious injury or
death.
Slope Operation
SMCS Code: 7000; 7615
Machines that are operating safely in various
applications depend on these criteria: the machine
model, configuration, machine maintenance,
operating speed of the machine, conditions of the
terrain, fluid levels and tire inflation pressures. The
most important criteria are the skill and judgment of
the operator.
A trained operator that follows the instructions in the
Operation and Maintenance Manual has the greatest
impact on stability. Operator training provides a
person with the following abilities: observation of
working and environmental conditions, feel for the
machine, identification of potential hazards and
operating the machine safely by making appropriate
decisions.
When you work on side hills and when you work on
slopes, consider the following important points:
Note: Operation of this machine on slopes greater
than 30% (16.7 deg) is not recommended. A 30%
slope can be visualized by a .91 M (3 ft)rise in a 3 M
(10 ft) distance. Local slope conditions may dictate a
lower safe slope than 30% (16.7 deg).
Speed of travel – At higher speeds, forces of inertia
tend to make the machine less stable.
Illustration 50 g02728310
The SC57 is shown in this graphic. Other models are
similar.
8. Install the saw guard on the felling head.
Roughness of terrain or surface – The machine
may be less stable with uneven terrain.
Direction of travel – Avoid operating the machine
across the slope. When possible, operate the
machine up the slopes and operate the machine
down the slopes. Place the heaviest end of the
machine uphill when you are working on an incline.
Mounted equipment – Balance of the machine may
be impeded by the following components: equipment
that is mounted on the machine, machine
configuration, weights and counterweights.
Nature of surface – Ground that has been newly
filled with earth may collapse from the weight of the
machine.
Surface material – Rocks and moisture of the
surface material may drastically affect the machine
traction and stability. Rocky surfaces may promote
side slipping of the machine.
Slippage due to excessive loads – May cause
downhill tracks or downhill tires to dig into the ground,
which will increase the angle of the machine.
Width of tracks or tires – Narrower tracks or
narrower tires further increase the digging into the
ground which causes the machine to be less stable.
Implements attached to the drawbar – May
decrease the weight on the uphill tracks. May also
Page 33
SEBU8705 33
Safety Section
Equipment Lowering with Engine Stopped
decrease the weight on the uphill tires. The
decreased weight will cause the machine to be less
stable.
Height of the working load of the machine – When
the working loads are in higher positions, the stability
of the machine is reduced.
Operated equipment – Be aware of performance
features of the equipment in operation and the effects
on machine stability.
Operating techniques – Keep all attachments or
pulled loads low to the ground for optimum stability.
Machine systems have limitations on slopes –
Slopes can affect the proper function and operation of
the various machine systems. These machine
systems are needed for machine control.
Note: Safe operation on steep slopes may require
special machine maintenance. Excellent skill of the
operator and proper equipment for specific
applications are also required. Consult the Operation
and Maintenance Manual sections for the proper fluid
level requirements and intended machine use.
i01329161
Equipment Lowering with
Engine Stopped
SMCS Code: 7000
Before lowering any equipment with the engine
stopped, clear the area around the equipment of all
personnel. The procedure to use will vary with the
type of equipment to be lowered. Keep in mind most
systems use a high pressure fluid or air to raise or
lower equipment. The procedure will cause high
pressure air, hydraulic, or some other media to be
released in order to lower the equipment. Wear
appropriate personal protective equipment and follow
the established procedure in the Operation and
Maintenance Manual, “Equipment Lowering with
Engine Stopped” in the Operation Section of the
manual.
The operator sound pressure level measured
according to the procedures specified in “ISO 5131”
is __ dB(A). During this test, the machine was in high
idle and the operator fan was in the midrange
position. Measurement is for the cab that is offered by
Prentice , when properly installed, maintained and
tested with the doors and windows closed and with
the machine in middle gear range and moving.
The exterior sound pressure level for the standard
machine measured at a distance of 15 m (49.2 ft)
according to the test procedures specified in “ISO
6393”, with the machine in middle gear range and
moving, is __ dB(A).
i04748725
Sound Information and
Vibration Information
(Sound Level Information European Union (EU) Countries
& Countries that adopt the "EU
Directives")
SMCS Code: 7000
The static operator sound pressure level is ___ dB(A)
when “ISO 6394:1998” is used to measure the value
for an enclosed cab. The cab was properly installed
and maintained. The test was conducted with the cab
doors and the cab windows closed.
The measurement of the sound power level was
made according to the test procedures and conditions
that are specified in “ISO 3744:1995” under the
following operations. (Insert text that lists/describes
operations used) The resulting sound power level is
___ LWA .
The measurement of the sound power level was
made according to the test procedures and conditions
that are specified in “ISO 3744:1995” under the
following operations. (Insert text that lists/describes
operations used) The resulting sound power level is:
Standard machine ___ LWA and Optional sound
suppressed ___ LWA
i04869369
Sound Information and
Vibration Information
SMCS Code: 7000
The operator sound exposure Leq (equivalent sound
pressure level) that is measured according to the
work cycle procedures specified in “ISO 5131” is __
dB(A). Measurement is for the cab that is offered by
Prentice, when the cab is properly installed,
maintained and tested with the doors and windows
closed.
The exterior sound power level is ___ dB(A) when the
value is measured according to the static test
procedures and the conditions that are specified in
“ISO 6393:1998”.
Page 34
34 SEBU8705
Safety Section
Operator Station
i03634321
Operator Station
SMCS Code: 7000
Any modifications to the inside of the operator station
should not project into the operator space or into the
space for the companion seat (if equipped). The
addition of a radio, fire extinguisher, and other
equipment must be installed so that the defined
operator space and the space for the companion seat
(if equipped) is maintained. Any item that is brought
into the cab should not project into the defined
operator space or the space for the companion seat
(if equipped). A lunch box or other loose items must
be secured. Objects must not pose an impact hazard
in rough terrain or in the event of a rollover.
i05265492
Guards
(Operator Protection)
SMCS Code: 6700; 7000; 7150; 7150-MCH; 7325
There are different types of guards that are used to
protect the operator. The machine and the machine
application determine the type of guard that should be
used.
A daily inspection of the guards is required in order to
check for structures that are bent, cracked, or loose.
Never operate a machine with a damaged structure.
The operator becomes exposed to a hazardous
situation if the machine is used improperly or if poor
operating techniques are used. This situation can
occur even though a machine is equipped with an
appropriate protective guard. Follow the established
operating procedures that are recommended for your
machine.
Roll over Protective Structure
(ROPS), Falling Object Protective
Structure (FOPS) or Tip Over
Protection Structure (TOPS)
Do not mount items (fire extinguishers, first aid kits,
work lights, etc.) by welding brackets to or by drilling
holes in the ROPS/FOPS Structure. Welding brackets
or drilling holes in the ROPS/FOPS Structures can
weaken the structures. Consult your Prentice dealer
for mounting guidelines.
The Tip Over Protection Structure (TOPS) is another
type of guard that is used on mini hydraulic
excavators. This structure protects the operator in the
event of a tipover. The same guidelines for the
inspection, the maintenance, and the modification of
the ROPS/FOPS Structure are required for the Tip
Over Protection Structure.
Other Guards (If Equipped)
Protection from flying objects and/or falling objects is
required for special applications. Logging applications
and demolition applications are two examples that
require special protection.
A front guard is required when a work tool that
creates flying objects is used. Front guards that are
approved by Prentice or polycarbonate front guards
that are approved by Prentice are available for
machines with a cab or an open canopy. On
machines that are equipped with cabs, the windows
should also be closed. Safety glasses are
recommended when flying hazards exist for
machines with cabs and machines with open
canopies.
If the work material extends above the cab, top
guards and front guards should be used. Typical
examples of this type of application are listed below:
• Demolition applications
• Rock quarries
• Forestry products
Additional guards may be required for specific
applications or work tools. The Operation and
Maintenance Manual for your machine or your work
tool will provide specific requirements for the guards.
Consult your Prentice dealer for additional
information.
The ROPS/FOPS Structure (if equipped) on your
machine is designed, tested, and certified for that
machine. Any alteration or any modification to the
ROPS/FOPS Structure could weaken the structure.
Placing the operator into an unprotected
environment. Modifications or attachments that cause
the machine to exceed the weight stamped on the
certification plate also place the operator into an
unprotected environment. Excessive weight may
inhibit the brake performance, the steering
performance, and the ROPS. The protection that is
offered by the ROPS/FOPS Structure will be impaired
if the ROPS/FOPS Structure has structural damage.
Damage to the structure can be caused by an
overturn, a falling object, a collision, etc.
Page 35
SEBU8705 35
Product Information Section
Specifications
Product Information
General Information
Section
i05248974
Specifications
SMCS Code: 7000

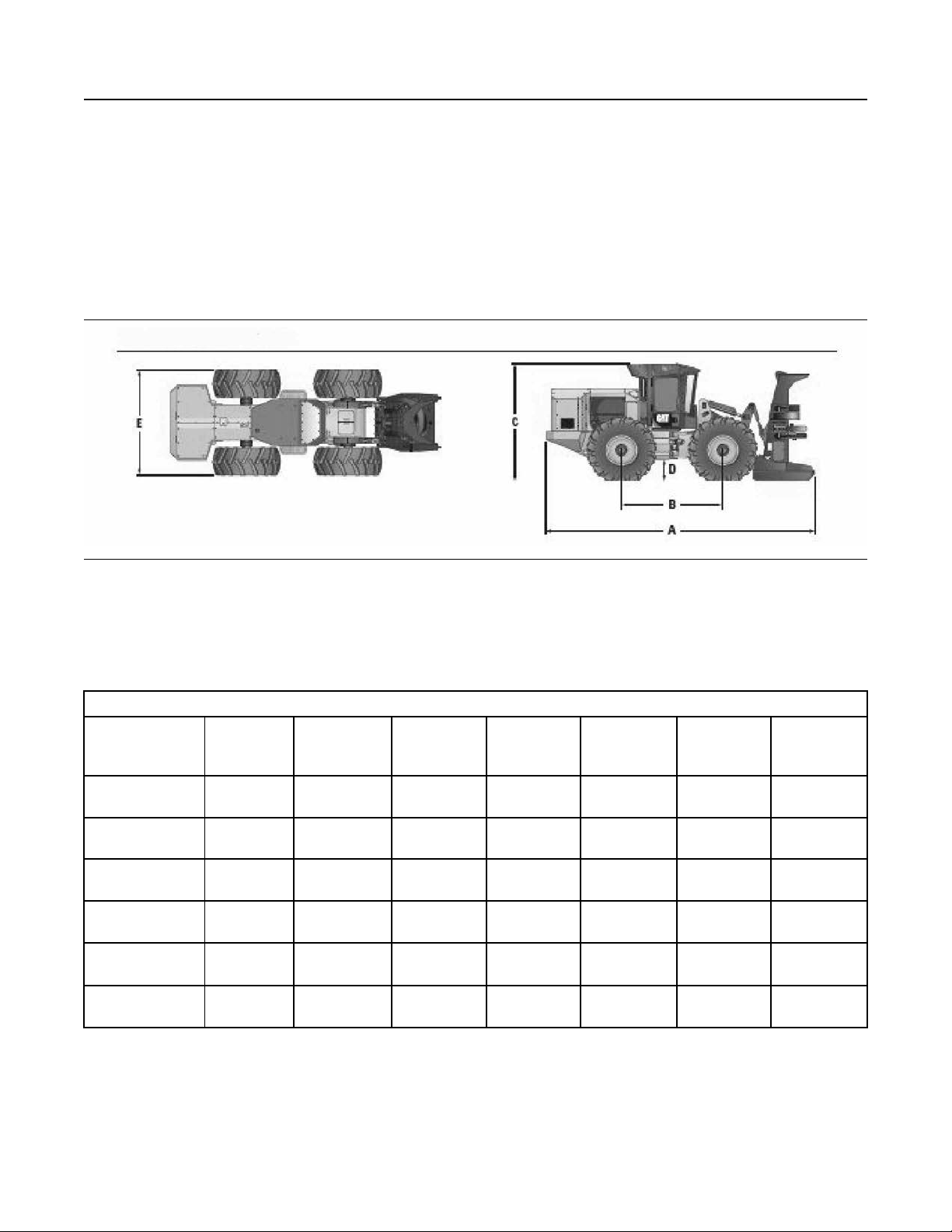

Illustration 51 g03342156
These machines are equipped with a C7.1 Engine.
Basic machine specifications are listed in the
following tables. Estimated operating weights without
attachments based on tire size.
Table 1
2570C Wheel Feller Buncher
Approximate Weight
Overall Length (A)
Wheel Base (B)
Height to top of
ROPS (C)
Ground Clearance
(D)
Width Across Tires
(E)
28L x 26
NOAW Tires
14089 kg
(31060 lb.)
7432 mm
(127 inch)
2794 mm
(110 inch)
3223 mm
(127 inch)
527.2 mm
(21 inch)
2793 mm
(110 inch)
28L x 26Tires 67 x 34Tires
14089 kg
(31060 lb.)
7432 mm
(127 inch)
2794 mm
(110 inch)
3223 mm
(127 inch)
527.2 mm
(21 inch)
2920 mm
(115 inch)
14869 kg
(32780 lb.)
7432 mm
(127 inch.)
2794 mm
(110 inch)
3251 mm
(128 inch)
555.2 mm
(22 inch)
3222 mm
(127 inch)
24.5L x
32NOAW
Tires
14070 kg
(31020 lb.)
7432 mm
(127 inch.)
2794 mm
(110 inch)
3306 mm
(130 inch)
610.2 mm
(24 inch)
2801 mm
(110 inch)
30.5L x 32
NOAW Tires
14869 kg
(32780 lb.)
7432 mm
(127 inch.)
2794 mm
(110 inch)
3324 mm
(131 inch)
628.2 mm
(25 inch)
2980 mm
(117 inch)
30.5L x 32
Tires
14869 kg
(32780 lb.)
7432 mm
(127 inch.)
2794 mm
(110 inch)
3324 mm
(131 inch)
628.2 mm
(25 inch)
3140 mm
(124 inch)
30.5L x 32Dual Inner 2x
Ring Tires
15050 kg
(33180 lb.)
7432 mm
(127 inch.)
2794 mm
(110 inch)
3324 mm
(131 inch)
628.2 mm
(25 inch)
2966 mm
(117 inch)
Page 36
36 SEBU8705
General Information
Specifications
Table 2
2670C Wheel Feller Buncher
30.5L x 32Dual Inner 2x
Ring Tires
15404 kg
(33960 lb.)
7559 mm
(298 inch)
2921 mm
(115 inch)
Approximate Weight
Overall Length (A)
Wheel Base (B)
28L x 26
NOAW Tires
14442 kg
(31840 lb.)
7559 mm
(298 inch)
2921 mm
(115 inch)
28L x 26Tires 67 x 34Tires
14442 kg
(31840 lb.)
7559 mm
(298 inch)
2921 mm
(115 inch)
15223 kg
(33560 lb.)
7559 mm
(298 inch)
2921 mm
(115 inch)
24.5L x
32NOAW
Tires
14424 kg
(31800 lb.)
7559 mm
(298 inch)
2921 mm
(115 inch)
30.5L x 32
NOAW Tires
15223 kg
(33560 lb.)
7559 mm
(298 inch)
2921 mm
(115 inch)
30.5L x 32
Tires
15223 kg
(33560 lb.)
7559 mm
(298 inch)
2921 mm
(115 inch)
Height to top of
ROPS (C)
Ground Clearance
(D)
Width Across Tires
(E)
3223 mm
(127 inch)
527.2 mm
(21 inch)
2793 mm
(110 inch)
3223 mm
(127 inch)
527.2 mm
(21 inch)
2920 mm
(115 inch)
3251 mm
(128 inch)
555.2 mm
(22 inch)
3222 mm
(127 inch)
3306 mm
(130 inch)
610.2 mm
(24 inch)
2801 mm
(110 inch)
3324 mm
(131 inch)
628.2 mm
(25 inch)
2980 mm
(117 inch)
3324 mm
(131 inch)
628.2 mm
(25 inch)
3140 mm
(124 inch)
3324 mm
(131 inch)
628.2 mm
(25 inch)
2966 mm
(117 inch)

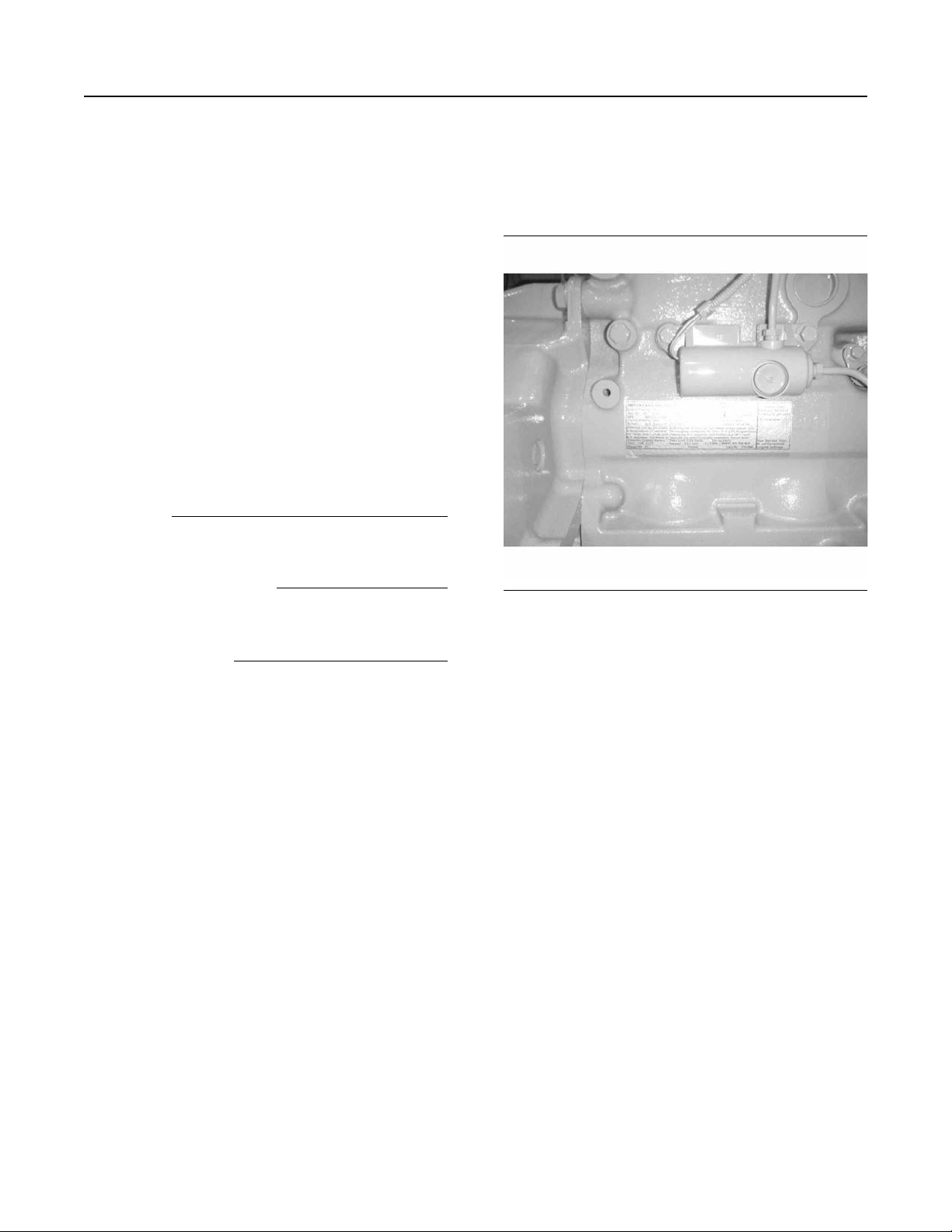

Page 37
SEBU8705 37
Identification Information
Plate Locations and Film Locations
Identification Information
i04551186
Plate Locations and Film
Locations
SMCS Code: 1000; 7000
The Product Identification Number (PIN) will be used
to identify a powered machine that is designed for an
operator to ride.
Prentice products such as engines, transmissions
and major attachments that are not designed for an
operator to ride are identified by Serial Numbers.
For quick reference, record the identification numbers
in the spaces that are provided.
The machine PIN is located on the left side of the
machine on the upper hitch.
Machine PIN
The transmission serial number is located on the
transmission gearbox.
Transmission Serial Number
The engine serial number is located on the top of the
engine.
Engine Serial Number
i04453290
Emissions Certification Film
SMCS Code: 1000; 7000; 7405
Illustration 52 g02646391
The certification label (if equipped) is used to verify an
engine conformance to the emissions requirements of
the EPA.
This label is located on the engine.
Page 38
38 SEBU8705
Operation Section
Mounting and Dismounting
Operation Section
Before Operation
i04407212
Mounting and Dismounting
SMCS Code: 7000

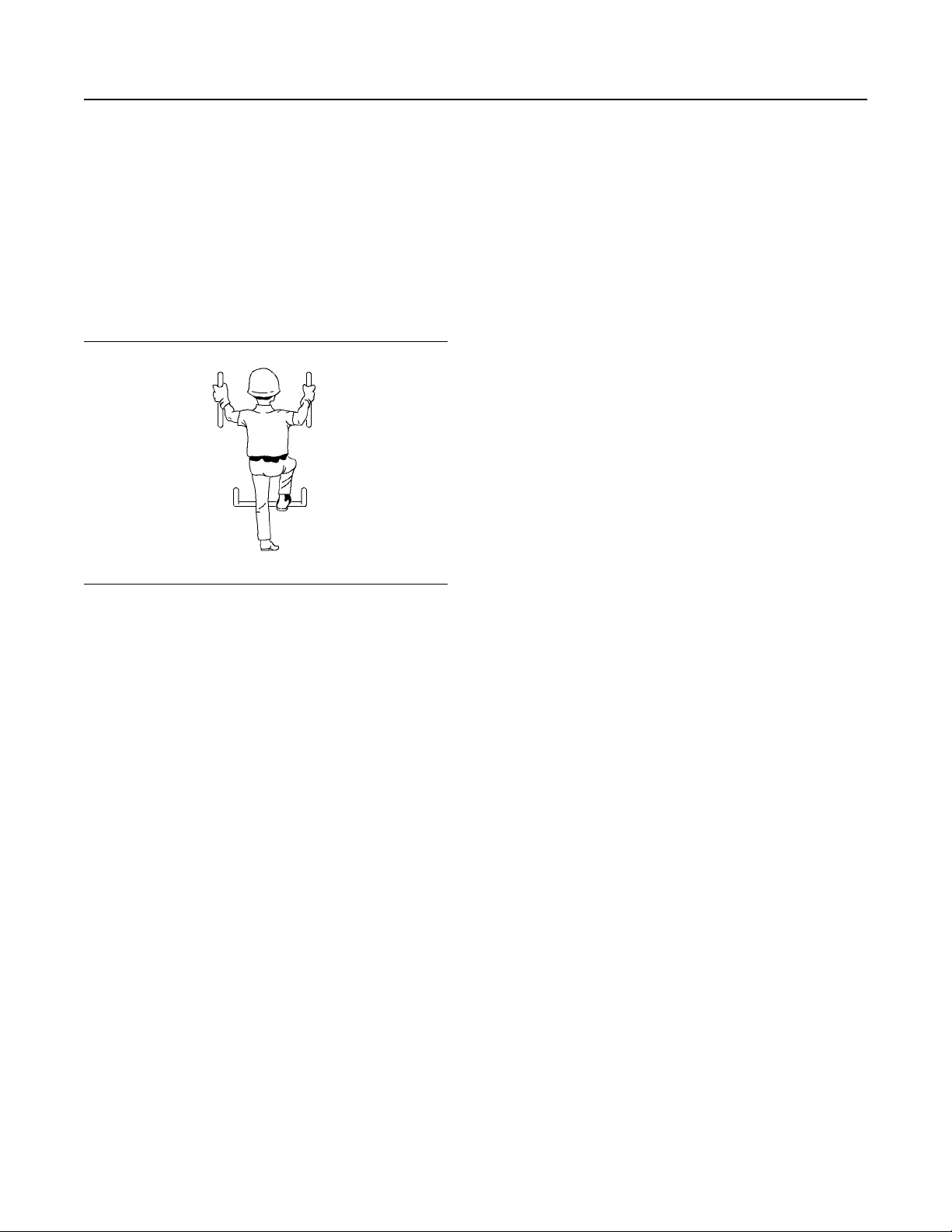

Illustration 53 g00037860
Typical example
Mount the machine and dismount the machine only at
locations that have steps and/or handholds. Before
you mount the machine, clean the steps and the
handholds. Inspect the steps and handholds. Make
all necessary repairs.
Machine Access System
Specifications
The machine access system has been designed to
meet the intent of the technical requirements in “ISO
2867 Earth-moving Machinery – Access Systems”.
The access system provides for operator access to
the operator station and to conduct the maintenance
procedures described in the maintenance section.
Alternate Exit
Machines that are equipped with cabs have alternate
exits. For additional information, see Operation and
Maintenance Manual, “Alternate Exit”.
i02037991
Daily Inspection
SMCS Code: 1000; 7000
For a maximum service life of the machine, complete
a thorough daily inspection before you mount the
machine and before you start the engine.
• Daily, perform the maintenance requirements that
are applicable to your machine.
Reference: For more information on the daily
maintenance requirements, refer to Operation and
Maintenance Manual, “Maintenance Interval
Schedule”.
Face the machine whenever you get on the machine
and whenever you get off the machine.
Maintain a three-point contact with the steps and with
the handholds.
Note: Three-point contact can be 2 feet and one
hand. Three-point contact can also be 1 foot and two
hands.
To access the rear of the machine. Fully raise the
hood and use the handrails under the hood to
maintain three points of contact.
Do not mount a moving machine. Do not dismount a
moving machine. Ensure that the work tool is fully
lowered to the ground, the transmission is in neutral,
and the parking brake is applied. Ensure that the Left
Hand Steering Control (if equipped) is tilted up and
out of the way before you enter or exit the cab. Never
jump off the machine. Do not carry tools or supplies
when you try to mount the machine or when you try to
dismount the machine. Use a hand line to pull
equipment onto the platform. Do not use any controls
as handholds when you enter the operator
compartment or when you exit the operator
compartment.
Page 39
SEBU8705 39
Before Operation
Steering Frame Lock
• Inspect the area around the machine and under
the machine. Look for loose bolts, trash buildup,
oil, fluid leakage, broken parts, or worn parts.
• Watch closely for leaks. If you observe a leak, find
the source of the leak and correct the leak.
Replace hoses, as needed. If you suspect a leak
or you observe a leak, check the fluid levels more
frequently.
• Inspect the engine compartment. Remove any
debris buildup from the engine compartment.
Inspect the engine for any obvious component
damage.
• Inspect the hydraulic system for leaks. Check the
hydraulic tank, all hoses and all tubes. Inspect
plugs, seals, couplings and fittings. Fix any leaks
and replace hoses, as needed.
• Inspect all attachments and the linkages for wear
and for damage.
• Make sure that all access doors, all access covers
and all guards are secured. Inspect the access
doors, the access covers and the guards for
damage.
• Inspect the tires for damage. Replace any missing
valve caps.
• Make all necessary repairs before you operate the
machine.
i04506252
Steering Frame Lock
SMCS Code: 7506
No clearance for person in this area when machine turns. Severe injury or death from crushing
could occur.
Note: To connect the steering frame lock, the
machine must be in the straight ahead position.
The steering frame lock is located in the right-hand
engine compartment at the rear of the machine.
Connect the steering frame lock when the machine is
being lifted and when the machine is being
transported. Also connect the steering frame lock if
you are performing service work near the articulation
joint. Install the steering frame lock between the front
frame and the rear frame.
• Inspect the steps, the walkways and the
handholds. Remove any debris. Repair any
damage or replace any damaged parts.
• Inspect the lights. Replace any broken bulbs and
any broken lenses.
• Inspect the Rollover Protective Structure (ROPS)
for obvious damage. Consult your authorized
dealer for repairs.
• Inspect the operator compartment. Remove any
trash buildup. Keep the operator compartment
clean. Inspect the dash panel for broken gauges
and for broken indicator lights. Replace any broken
parts.
• Inspect the seat belt, the buckle and the mounting
hardware. Replace any components that are worn
or damaged. For more information, refer to
Operation and Maintenance Manual, “Seat Belt Replace”.
• Adjust the mirrors for best visibility.
• Inspect the windows. Make sure that the operator's
vision is not impaired by dust, by mud, or by other
foreign materials. Clean the windows, if necessary.
For more information, refer to Operation and
Maintenance Manual, “Windows - Clean”.

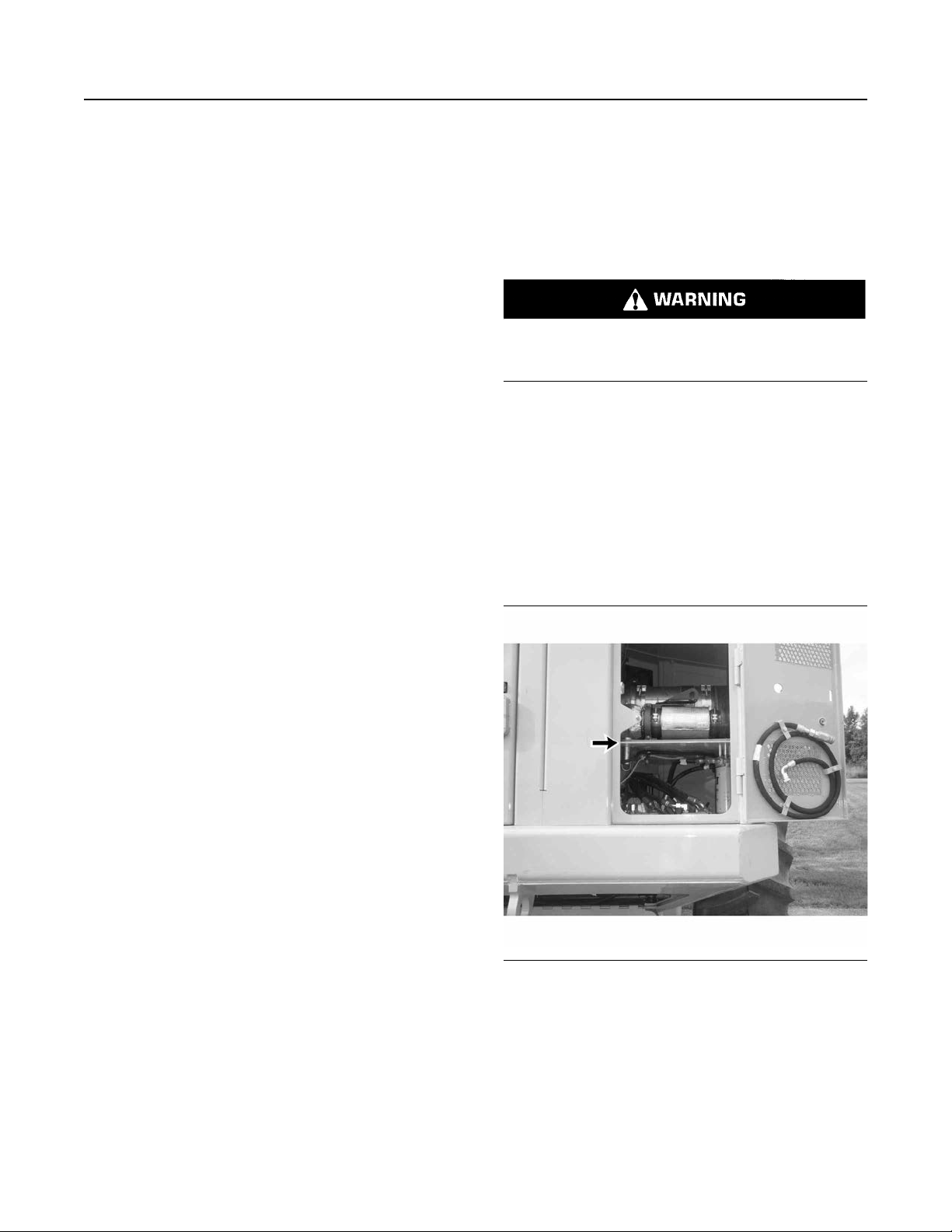

Illustration 54 g02685076
To connect the steering frame lock, install pin (1) and
secure pin (1) with locking pin.
Page 40
40 SEBU8705
Before Operation
Steering Frame Lock

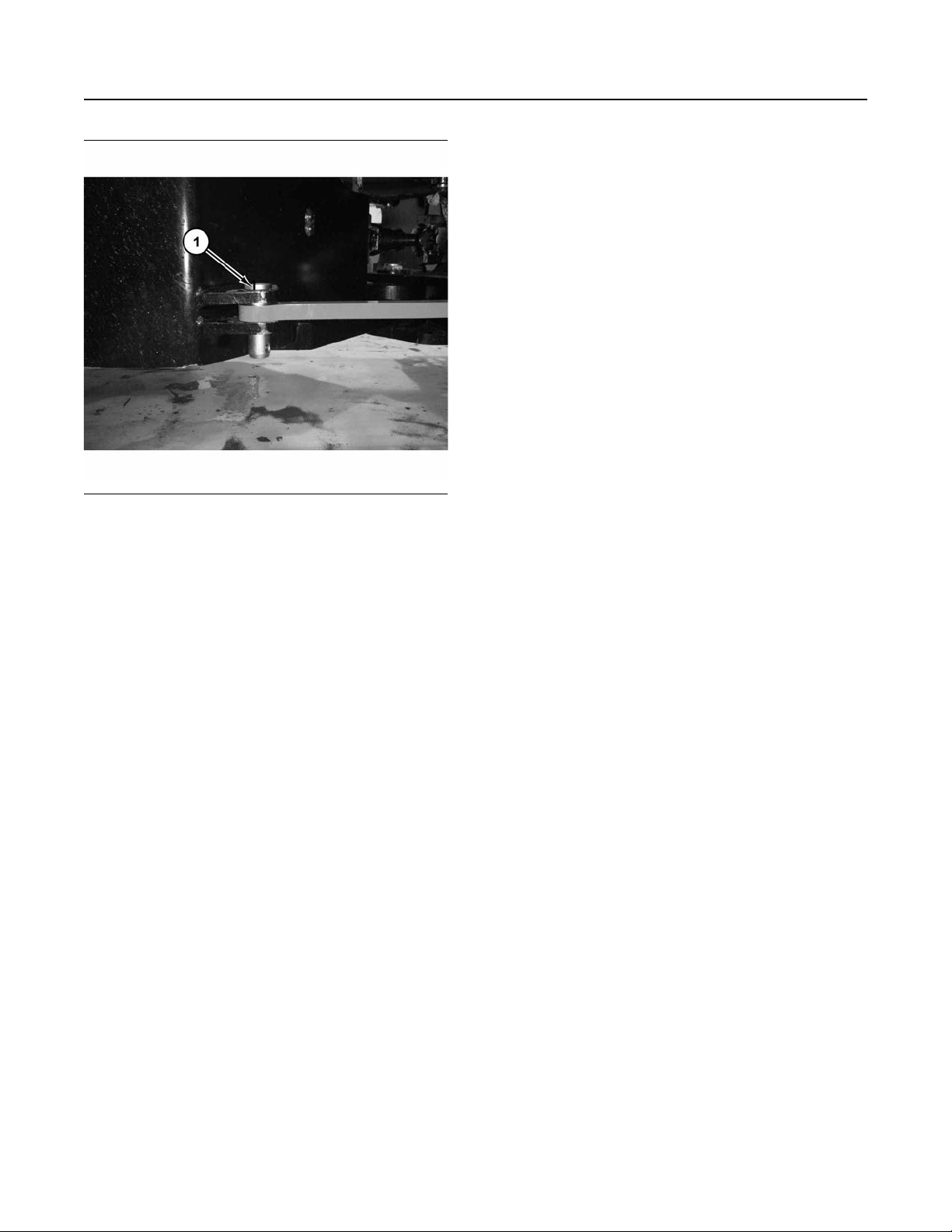

Illustration 55 g02640417
Separate the steering frame lock before the machine
is operated. Remove the pins and the locking pins.
Store the pins and the locking pins in storage
compartment.

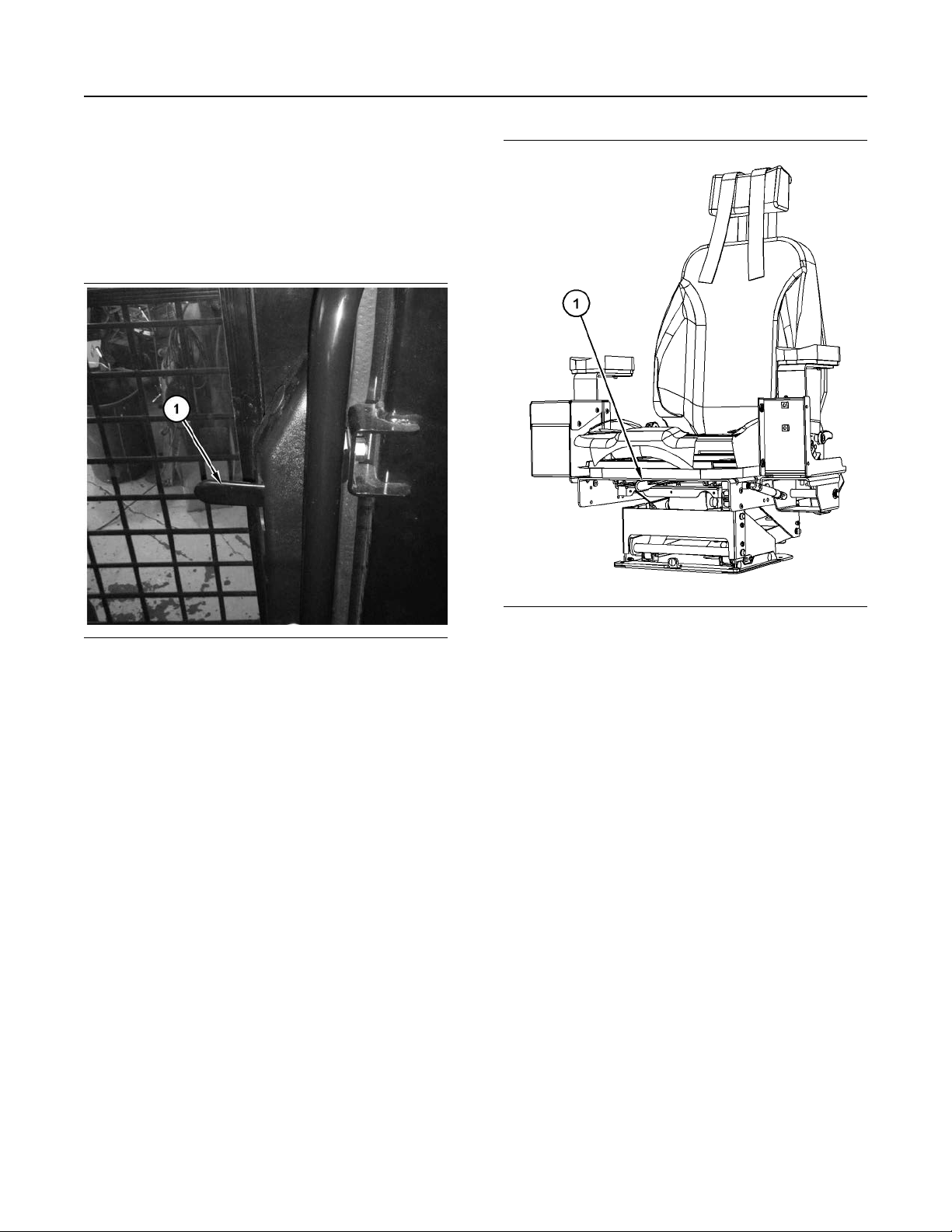

Page 41
SEBU8705 41
Machine Operation
Alternate Exit
Machine Operation
i05738649
Alternate Exit
SMCS Code: 7308; 7310
Illustration 56 g02646096
The alternate exit is located on either side through the
access doors. Use either access door handle (1) as
an emergency exit from the cab. The access doors
can be opened from the inside of the cab or from the
outside of the cab when the doors are UNLOCKED.
i05738659
Seat
SMCS Code: 7312
Put the hydraulic lockout control in the LOCKED
position. For further details on this procedure, refer to
Operation and Maintenance Manual, “Operator
Controls”. Do this procedure before you adjust the
seat and the console. In order to prevent any
possibility of unexpected movement of the machine.
Adjust the seat at the beginning of each work period
and adjust the seat when you change operators.
Always use the seat belt when you operate the
machine. For further details on this procedure, refer to
Operation and Maintenance Manual, “Seat Belt”.
Illustration 57 g03651662
The operator can adjust the seat position forward or
backward. Adjust seat position with knob (1) on front
of seat. The operator may also adjust the seat back
tilt. Select the desired position in order to allow full
pedal travel and full lever travel.
The seat and the consoles can also slide as one unit.
To move the seat, the left console, and the right
console forward or backward as one unit, pull up
lever (1) and hold the lever. Hold the seat in the
desired position. Release the lever in order to lock the
seat, the left console, and the right console.
The seat should be adjusted so that full pedal travel is
allowed.
Page 42
42 SEBU8705
Machine Operation
Seat

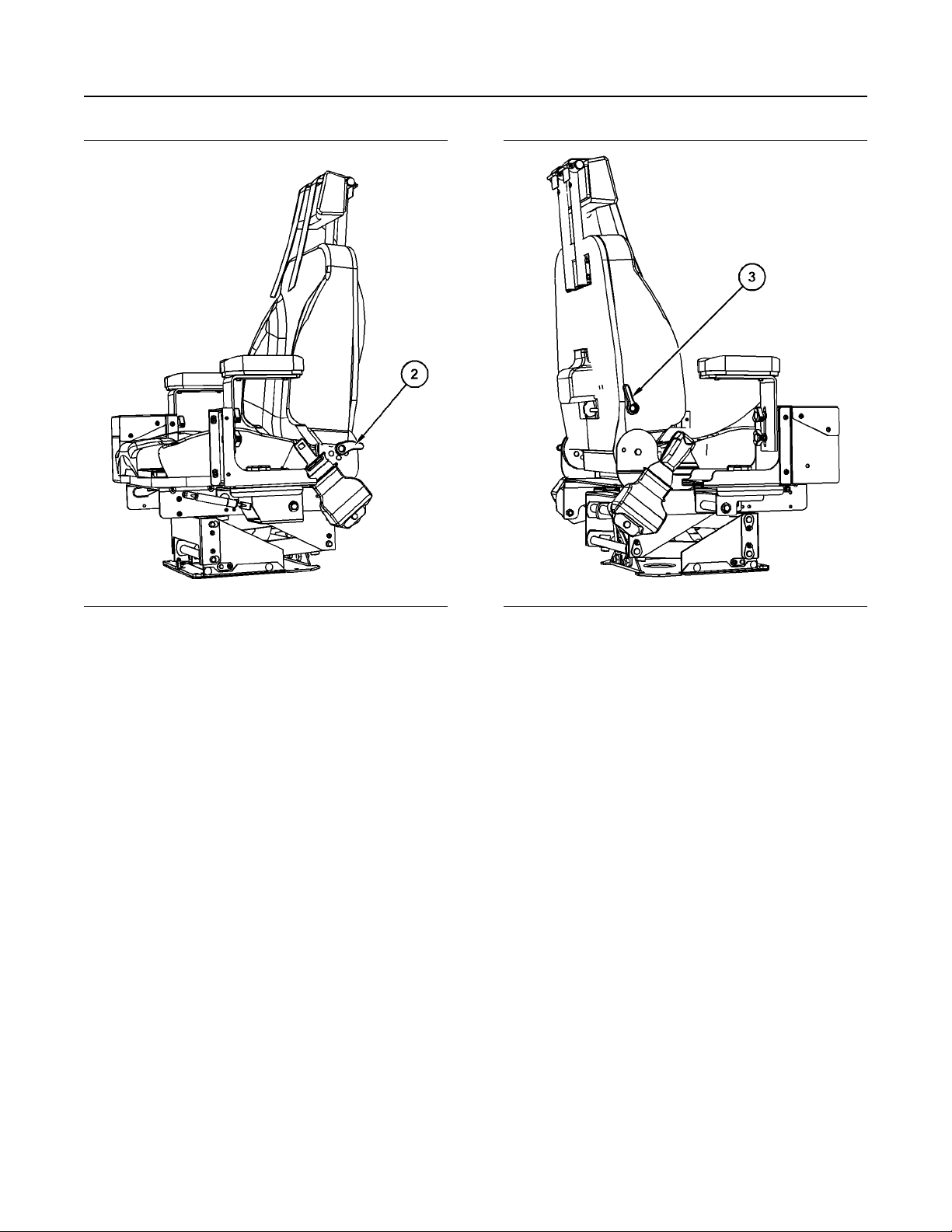

Illustration 58 g03651671
To adjust the seat back tilt, move lever (2) and move
the seat back to the desired position.
Illustration 59 g03651694
Pull up lever (3) in order to change the angle of the
seat. Hold the seat in the desired position. Release
the lever.
Page 43
SEBU8705 43
Machine Operation
Seat

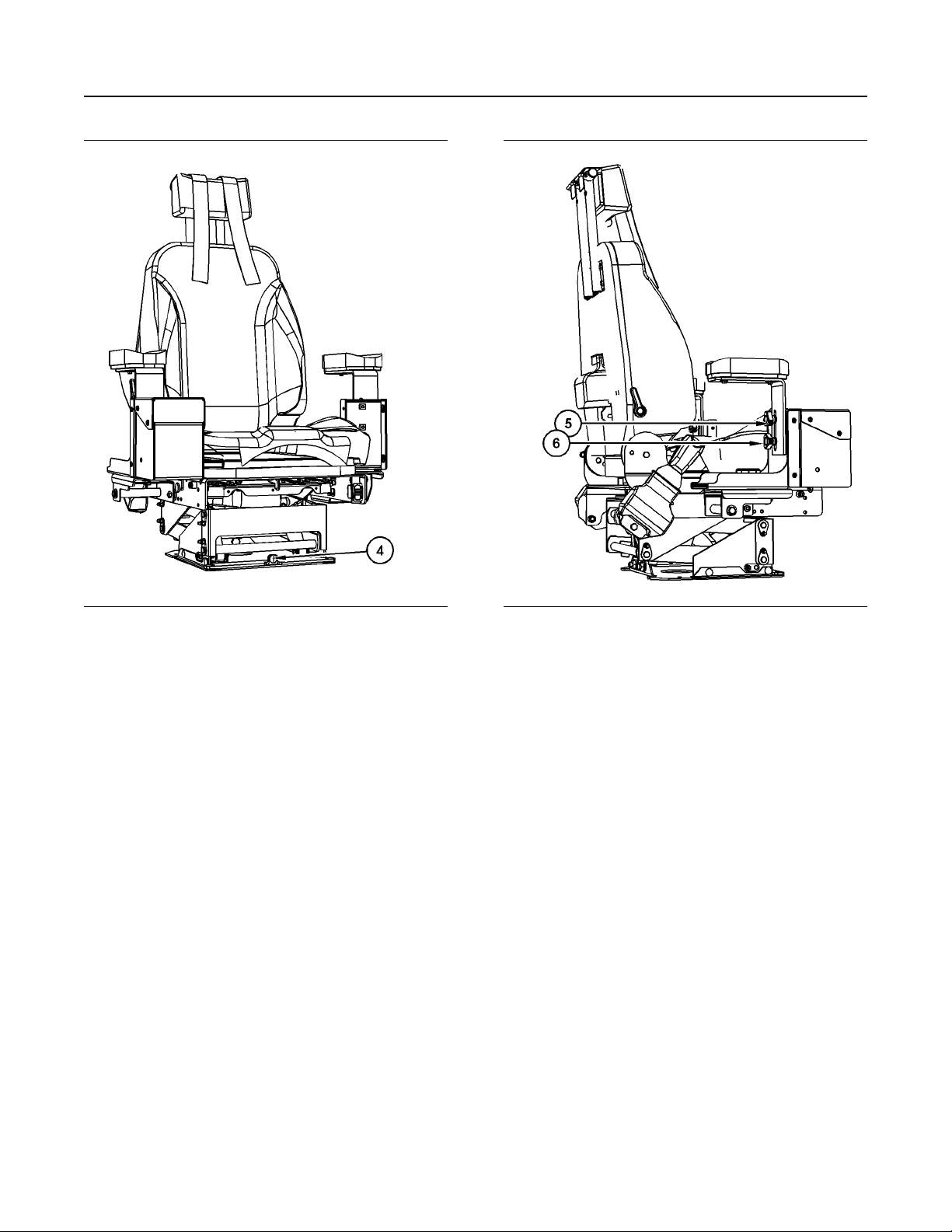

Illustration 60 g03651707
Use air suspension control button (4) in order to
adjust the height of the seat. Depress top of button to
raise seat. Depress bottom of button to lower seat.
Illustration 61 g03651730
To adjust the angle or placement of the armrest,
operate knob (5). Knob is on the back side of each
armrest. Place the left-hand armrest in the upright
position when you exit the machine.
The height of the armrest can be adjusted. Loosen
knob (6) in order to adjust the height of the armrest.
Move the armrest upward or move the armrest
downward. Tighten knob when the armrest is in the
desired position.
Page 44
44
Machine Operation
Seat Belt
SEBU8705
Lengthening the Seat Belt
Illustration 63 g00100709
1. Unfasten the seat belt.

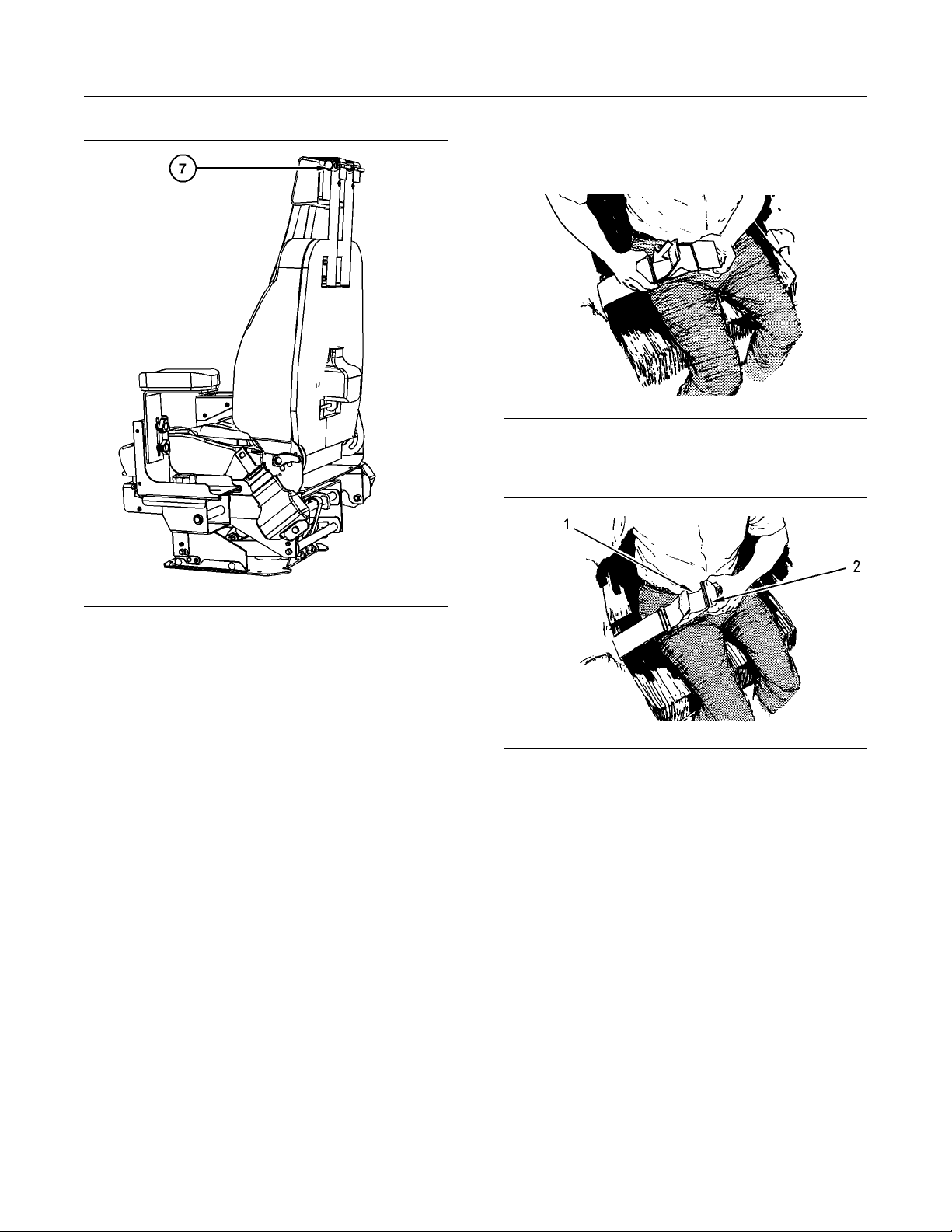

Illustration 62 g03651742
The operator can adjust the height of headrest (7) (if
equipped). To adjust the headrest, hold the headrest
with both hands. Move the headrest up and down.
Release the headrest when the desired position is
attained. The headrest will remain in the desired
position.
i04762830
Seat Belt
SMCS Code: 7327
Note: This machine was equipped with a seat belt
when the machine was shipped from Prentice . At the
time of installation, the seat belt and the instructions
for installation of the seat belt meet the SAE J386 and
ISO 6683 standards. Consult your Prentice dealer
for all replacement parts.
Always check the condition of the seat belt and the
condition of the mounting hardware before you
operate the machine.
Seat Belt Adjustment for NonRetractable Seat Belts
Illustration 64 g00932817
2. To remove the slack in outer loop (1), rotate buckle
(2). This will free the lock bar. This permits the seat
belt to move through the buckle.
3. Remove the slack from the outer belt loop by
pulling on the buckle.
4. Loosen the other half of the seat belt in the same
manner. If the seat belt does not fit snugly with the
buckle in the center, readjust the seat belt.
Adjust both ends of the seat belt. The seat belt should
be snug but comfortable.
Page 45
SEBU8705
45
Machine Operation
Seat Belt
Shortening the Seat Belt

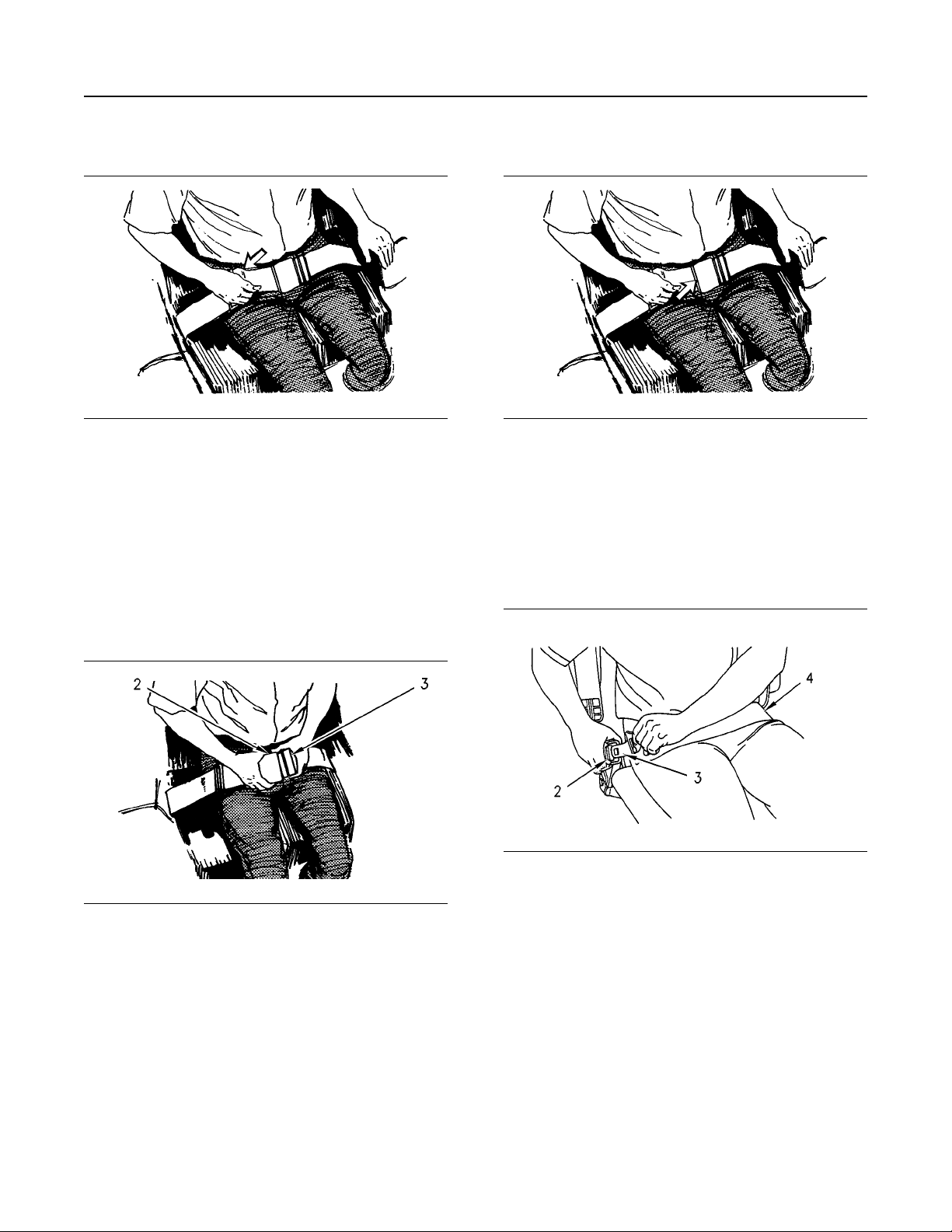

Illustration 65 g00100713
1. Fasten the seat belt. Pull out on the outer belt loop
in order to tighten the seat belt.
2. Adjust the other half of the seat belt in the same
manner.
3. If the seat belt does not fit snugly with the buckle in
the center, readjust the seat belt.
Releasing The Seat Belt
Illustration 67 g00100717
Pull up on the release lever. This will release the seat
belt.
Seat Belt Adjustment for
Retractable Seat Belts
Fastening The Seat Belt
Fastening The Seat Belt
Illustration 66 g00932818
Fasten the seat belt catch (3) into the buckle (2).
Make sure that the seat belt is placed low across the
lap of the operator.
Illustration 68 g00867598
Pull seat belt (4) out of the retractor in a continuous
motion.
Fasten seat belt catch (3) into buckle (2). Make sure
that the seat belt is placed low across the lap of the
operator.
The retractor will adjust the belt length and the
retractor will lock in place. The comfort ride sleeve will
allow the operator to have limited movement.
Page 46
46 SEBU8705
Machine Operation
Operator Controls
Releasing The Seat Belt

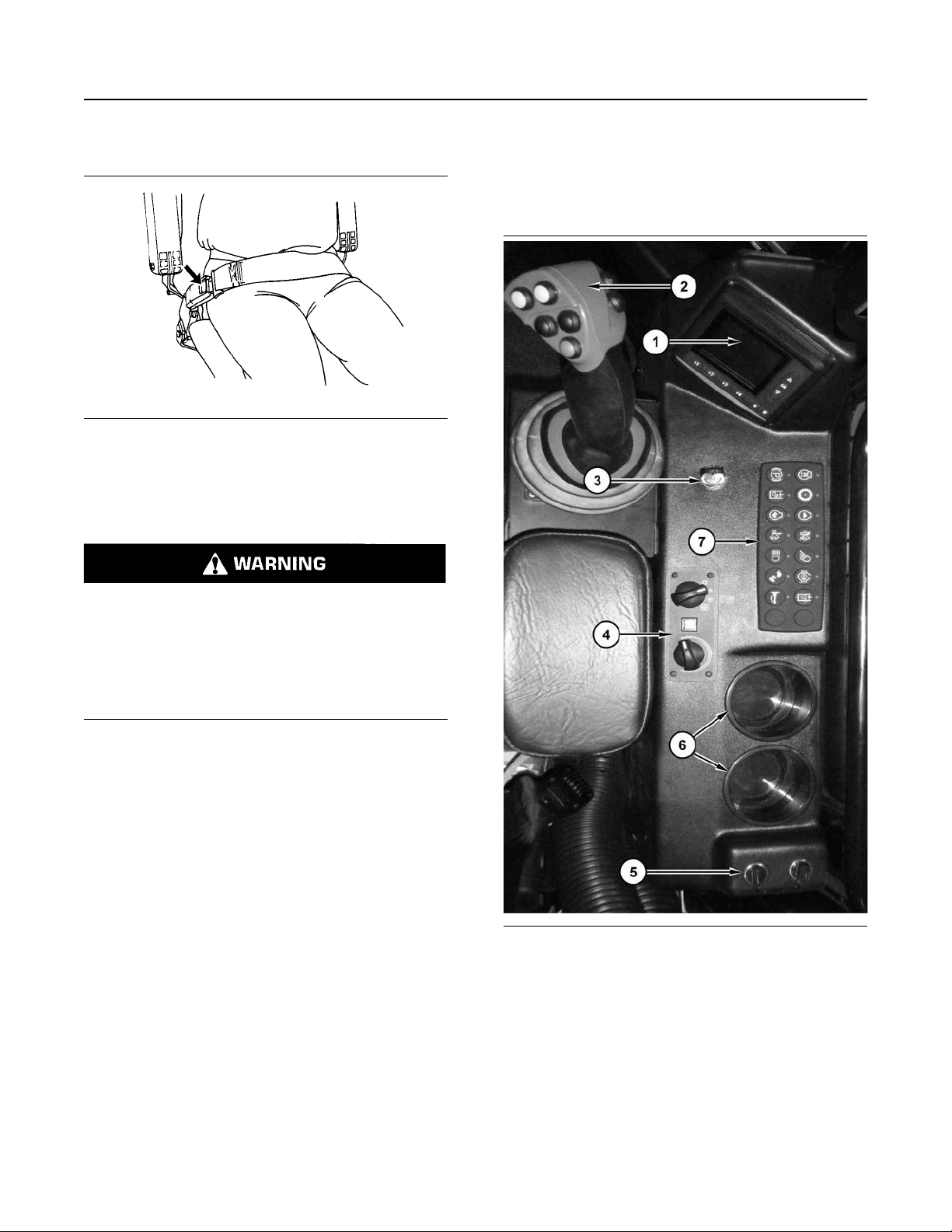

Illustration 69 g00039113
Push the release button on the buckle in order to
release the seat belt. The seat belt will automatically
retract into the retractor.
Extension of the Seat Belt
i04507670
Operator Controls
SMCS Code: 7300; 7301; 7451
When using retractable seat belts, do not use seat
belt extensions, or personal injury or death can
result.
The retractor system may or may not lock up depending on the length of the extension and the
size of the person. If the retractor does not lock
up, the seat belt will not retain the person.
Longer, non-retractable seat belts and extensions for
the non-retractable seat belts are available.
Prentice requires only non-retractable seat belts to be
used with a seat belt extension.
Consult your Prentice dealer for longer seat belts
and for information on extending the seat belts.
Illustration 70 g02647076
Console on the right side of the machine
(1) IQAN-Md3
(2) Right Hand Joystick
(3) Engine Start Switch
(4) Heating and Air Conditioning Controls
(5) 12V Power Receptacles
(6) Cup Holders
(7) Control Panel

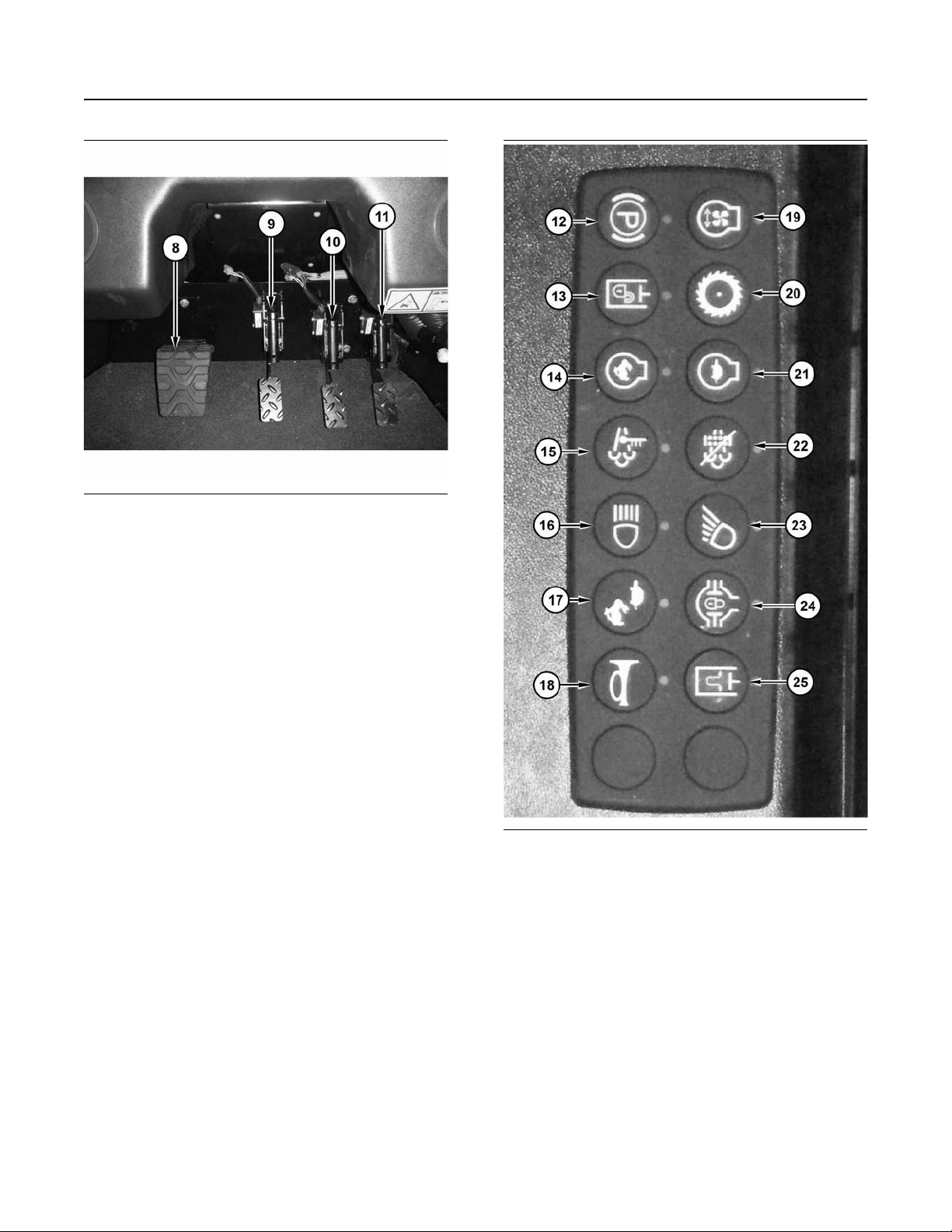

Page 47
SEBU8705
47
Machine Operation
Operator Controls
Illustration 71 g02647097
(8) Foot Rest
(9) Service Brake
(10) Travel Pedal REVERSE
(11) Travel Pedal FORWARD
Illustration 72 g02647273
(12) Parking Brake
(13) Hydraulic Arming Control
(14) Throttle Up Control
(15) Active Regeneration Indicator
(16) Front Floodlight Control
(17) Pump Displacement Switch
(18) Horn Control
(19) Fan Directional Control
(20) Saw Control
(21) Throttle Down Control
(22) Active Regeneration Disable Control
(23) Rear Floodlight Control
(24) Differential Lock Control
(25) Manual Hydraulic Over Ride Control
Page 48
48 SEBU8705
Machine Operation
Operator Controls
IQAN-Md3 Display (1)

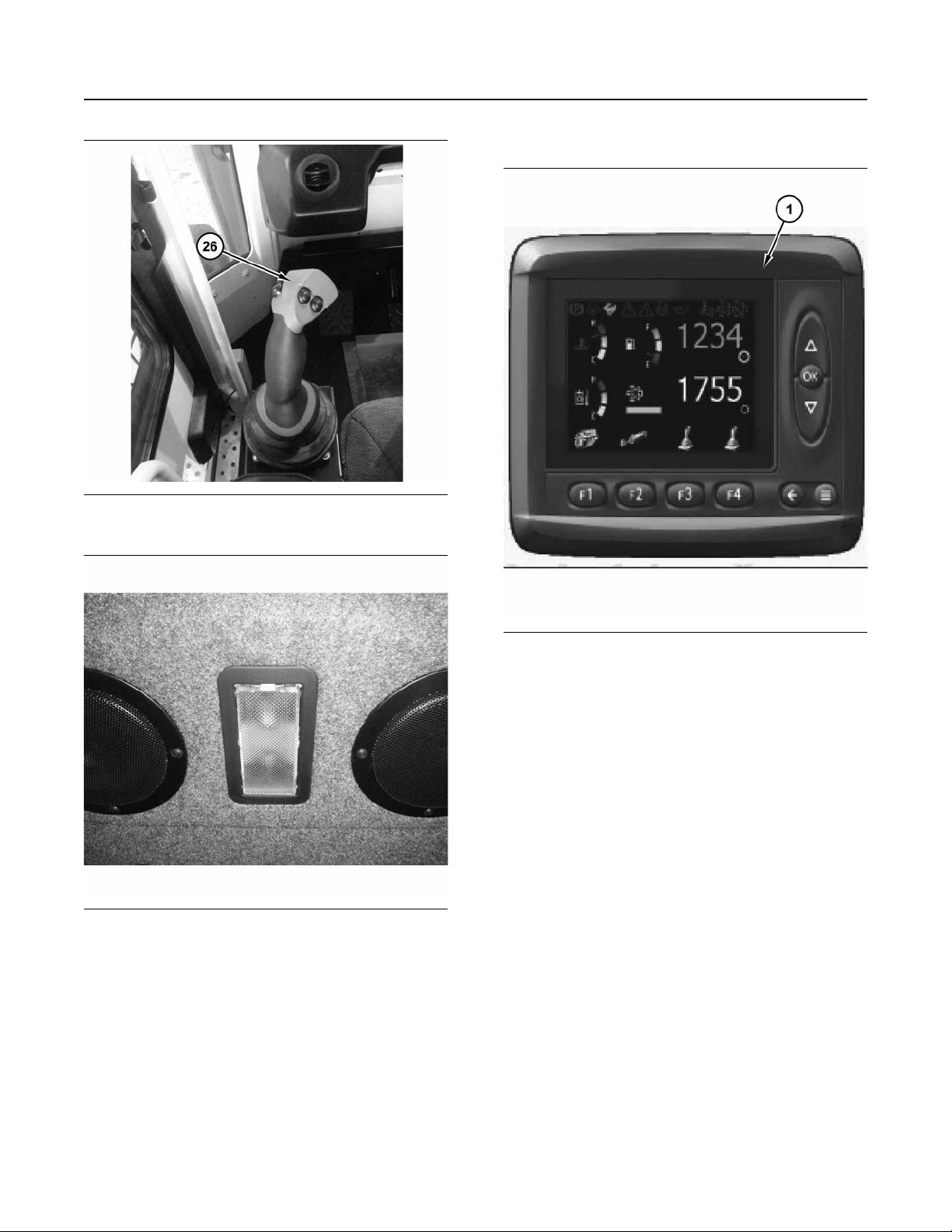

Illustration 73 g02685118
(26 ) Left Hand Joystick .
Illustration 74 g02647268
The cab dome light is located on the ceiling of the cab
above the operator.
Illustration 75 g02647304
IQAN-Md3 Display (1) is located on the right side
console in the cab.
The IQAN-MD3 module consists of a display, nine
buttons. This module is located on the right switch
panel in the front of the cab. The IQAN-MD3 allows
individual functions of the machine to be displayed.
The IQAN-MD3 allows you to adjust several
implement functions. The IQAN-MD3 monitors all of
the input signals and all of the output signals.
The IQAN-MD3 allows the operator to obtain different
machine information. The monitor is also used for
adjusting the hydraulic settings, calibrating machine
controls, testing machine components, and
troubleshooting machine systems.
Note: Most of the troubleshooting of the IQAN
system and machine system can be performed with
the use of the IQAN-MD3 module.
The IQAN-MD3 processes incoming CAN Bus
signals, the digital on/off signals, and the voltage
input signals. Module converts the signals into
functions and the module sends the signals to the
solenoids and the CAN Bus signals to the other
control units.
Page 49
SEBU8705 49
Machine Operation
Operator Controls
Right Hand Joystick (2)

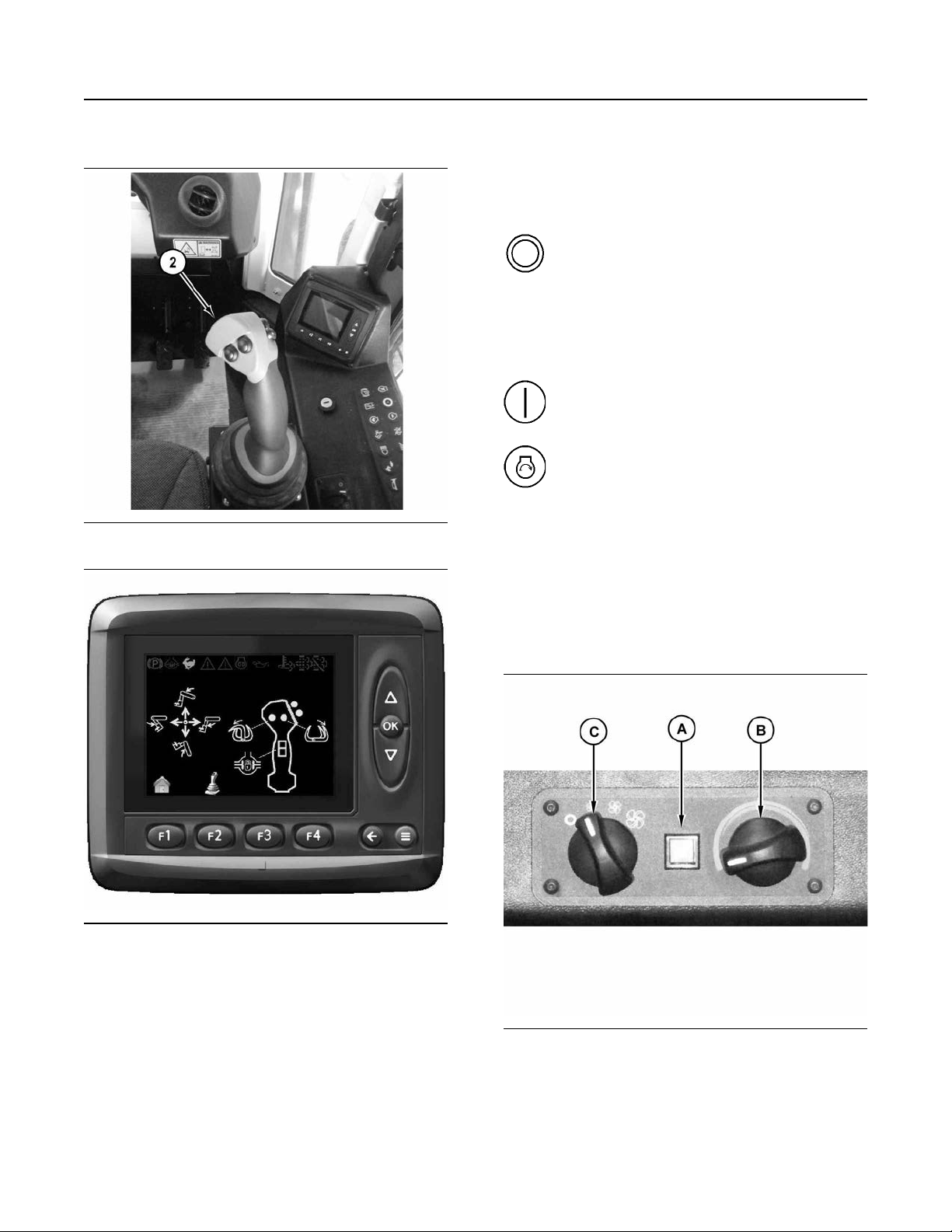

Illustration 76 g02685121
Note: The momentary differential lock switch will only
function if the front differential lock switch and the rear
differential lock switch are in the OFF position.
Engine Start Switch (3)
OFF – When you insert the engine start
switch key and when you remove the
engine start switch key, the engine start
switch must be in the OFF position. To disconnect
the power to the electrical circuits in the cab, turn
the engine start switch to the OFF position. Also,
turn the engine start switch to the OFF position in
order to stop the engine.
ON – To activate the electrical circuits in
the cab, turn the engine start switch key
clockwise to the ON position.
START – To start the engine, turn the
engine start switch clockwise to the
START position. When the engine start
switch key is released, the engine start switch will
return to the ON position.
Note: If the engine fails to start, return the engine
start switch to the OFF position. This must be done
before you attempt to start the engine again.
Illustration 77 g02649084
The right joystick controls the accumulator arms, the
lift and the tilt of the felling head, and the temporary
differential lock. The middle left button on the top of
the right joystick closes the accumulator arms. The
middle right button on the top of the right joystick
opens the accumulator arms.
The lower right button and the top right buttons on the
top of the right joystick have no function.
Heating and Air Conditioning
Controls (4)
Illustration 78 g02647839
The control panel for the heating and air conditioning
system are located on the right side of the cab.
To temporarily engage the front differential lock, hold
the toggle switch on the joystick. To disengage the
front differential lock, release the toggle switch.

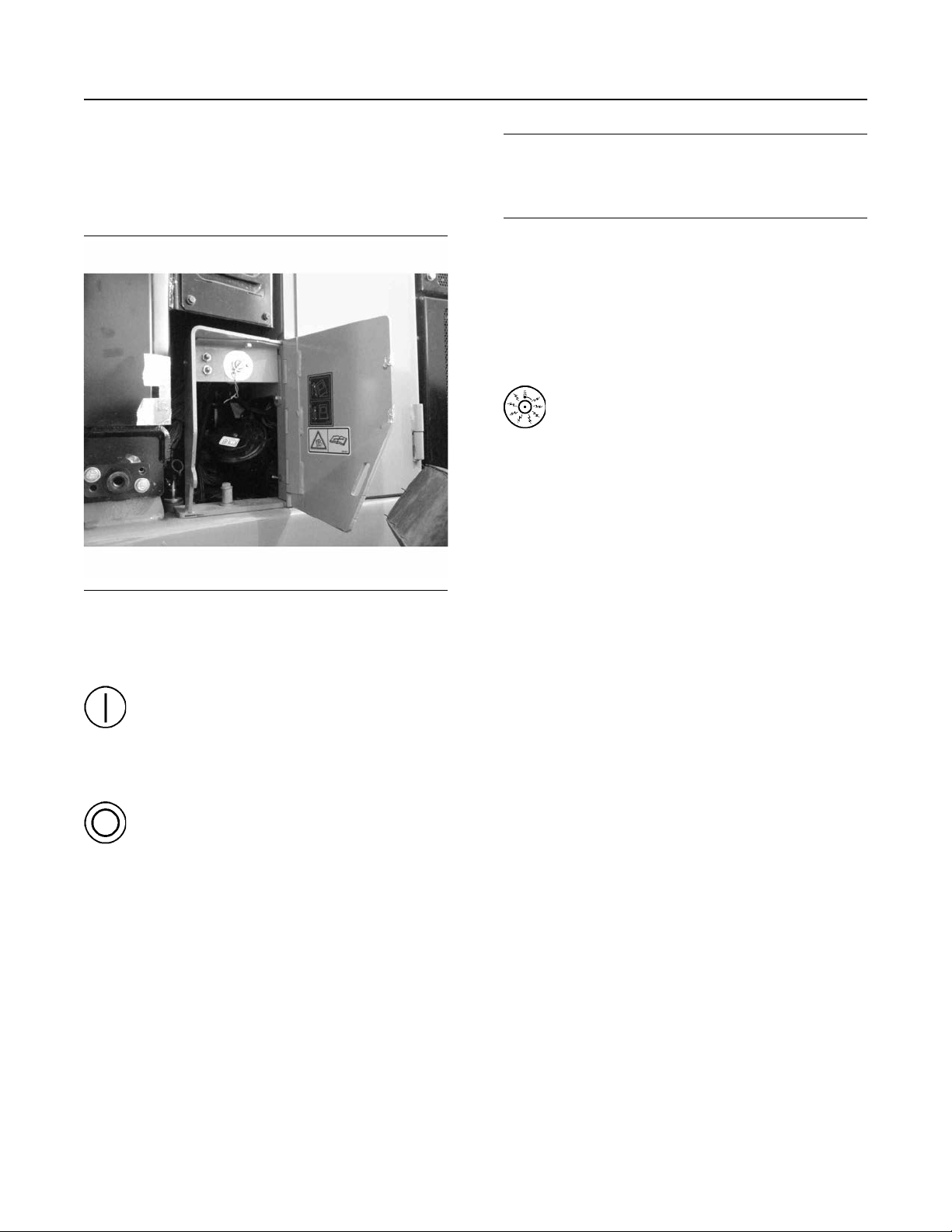

Page 50
50 SEBU8705
Machine Operation
Operator Controls
On Off Switch
On/Off Switch (A) Turns the heater or Air Conditioner
on and off.
Temperature Control
Cooling – Turn knob (B)
counterclockwise in order to decrease
the temperature in the cab.
Heating – Turn knob (B) clockwise in
order to increase the temperature in the
cab.
Fan Switch
Fan Speed Switch – Fan speed switch
(C) controls the speed of the blower fan
motor for the heating and air
conditioning system. Turn the knob clockwise for
more air. Turn the knob counterclockwise for less
air.
Control Panel (7)

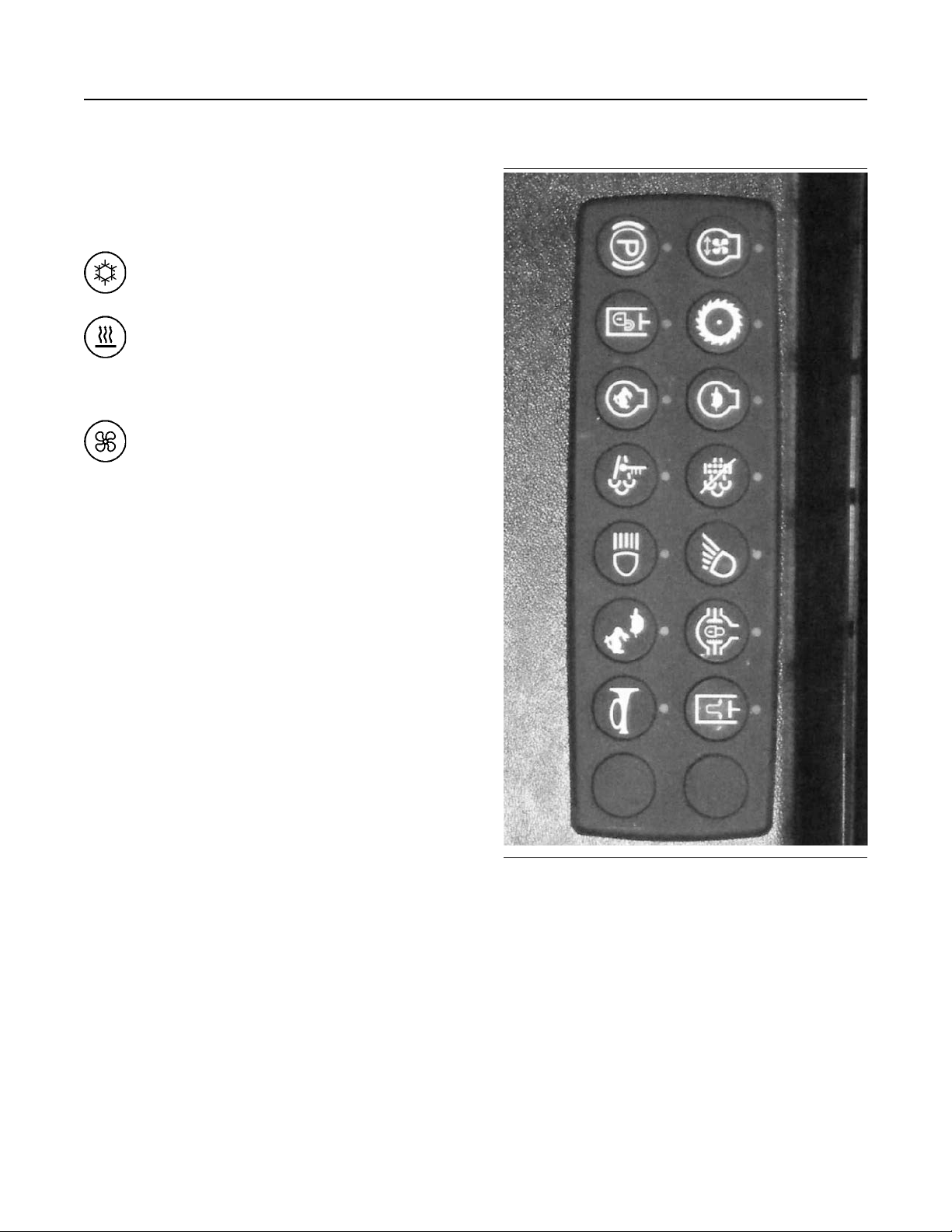

Illustration 79 g02647923
The Control Panel is located on the right side console
in the cab.
Page 51
SEBU8705 51
Machine Operation
Operator Controls
Foot Brake Control (Service) (9)

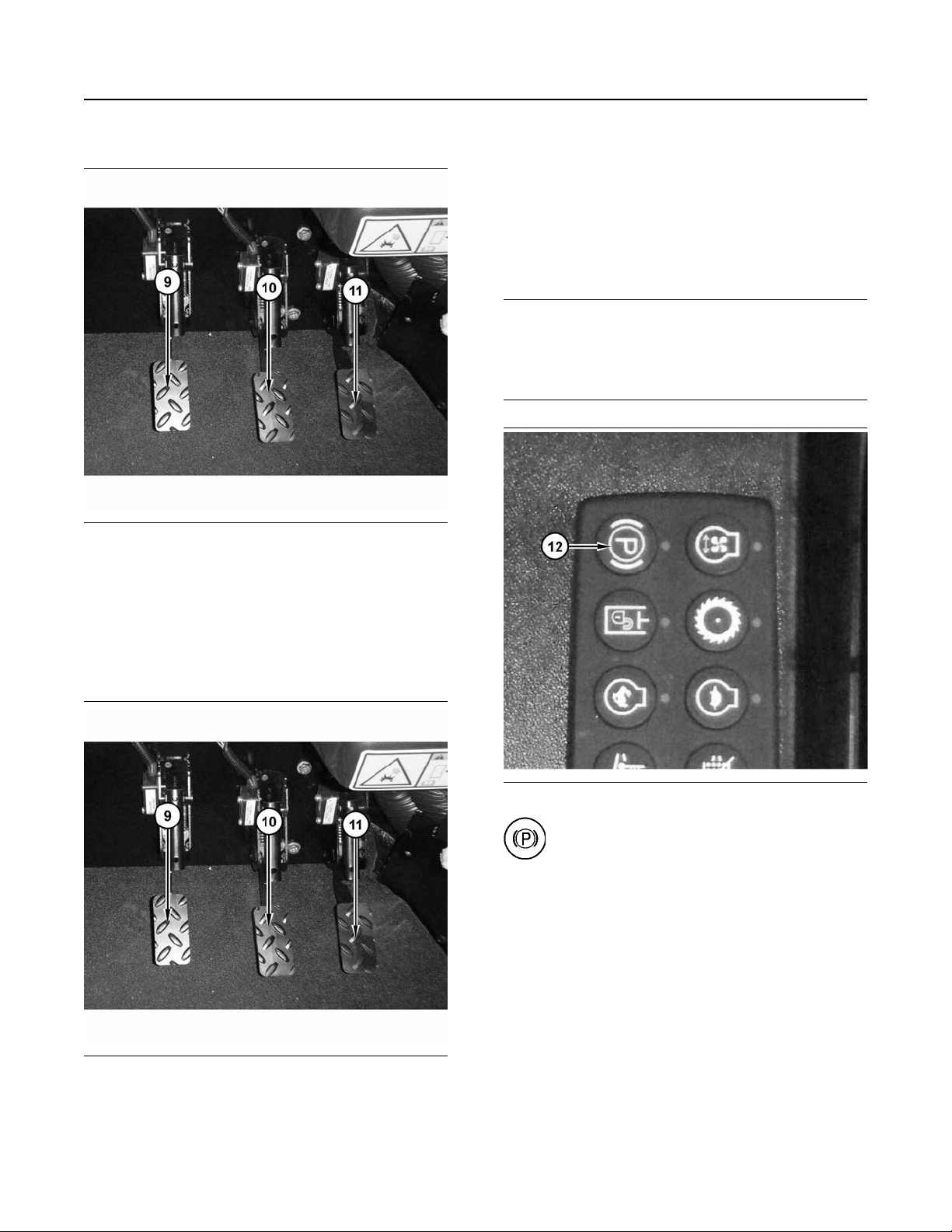

Illustration 80 g02647998
Service brake pedal (9) is the center pedal on the cab
floor.
When you depress travel pedal (11) the machine will
travel in the FORWARD direction.
When both of the travel pedals are released, the
engine speed will slow.
Depress the center brake pedal in order to slow or
stop the machine.
Brake Control (Parking) (12)
NOTICE
Do not engage the parking brake while the machine is
moving unless the service brake fails. The use of the
parking brake as a service brake in regular operation
will cause severe damage to the parking brake.
Depress the service brake pedal in order to slow the
machine's ground speed. Use the service brake
pedal for normal braking.
Travel Pedals(10, 11)
Illustration 82 g02649240
Parking Brake – Parking brake switch
(12) is located on the right side console.
Use the parking brake only after the
machine is stopped.
Depress switch in order to activate the parking brake.
Parking brake switch indicator (12) will be illuminated
when the parking brake is engaged.
Depress switch in order to turn off the parking brake.
Parking brake switch indicator (12) will go off.
Release the switch when the parking brake
deactivates.
Illustration 81 g02647998
The direction of the machine is determined by travel
pedals (10 ) and (11).
When you depress travel pedal (10), the machine will
travel in the REVERSE direction.
Page 52
52 SEBU8705
Machine Operation
Operator Controls
Hydraulic Arming Control (13)

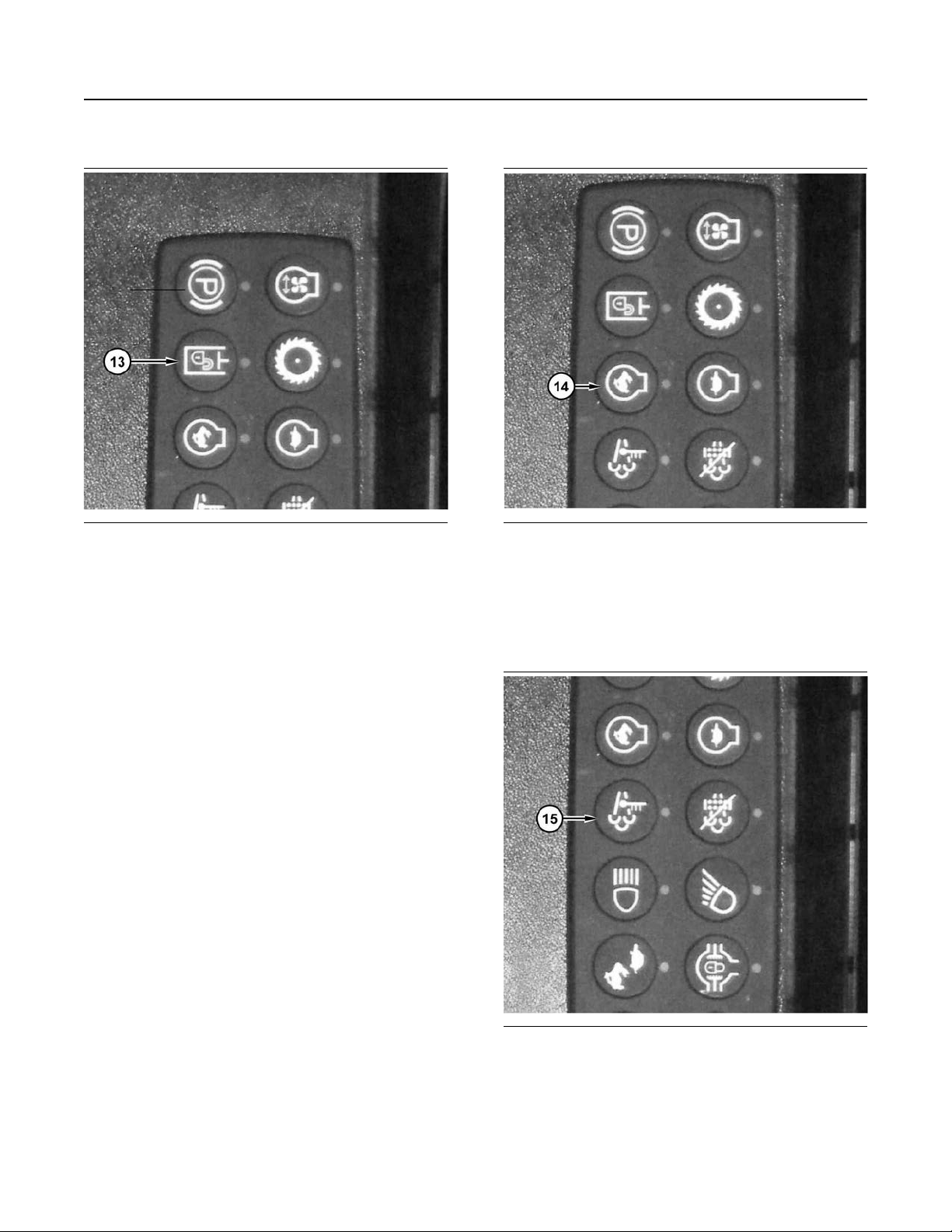

Illustration 83 g02649316
The hydraulic arming control is used to turn the
machine hydraulic system (implement and steering)
on and off. The hydraulic arming control is located on
the right side of the operator seat.
Throttle Up Speed Control (14)
Illustration 84 g02649337
This valve controls the ground speed by regulating
the signal pressure to the propel pump.
Depress switch in order to increase ground speed.
When the hydraulic arming control is in the LOCKED
position, the machine hydraulic system is not on.
When the hydraulic arming control is in the
UNLOCKED position, the machine hydraulic system
is on.
Active Regeneration Control (15)
Illustration 85 g02649343
Depress switch in order to activate regeneration
function (ARD).
Page 53
SEBU8705 53
Machine Operation
Operator Controls
Front Floodlight Switch (16)

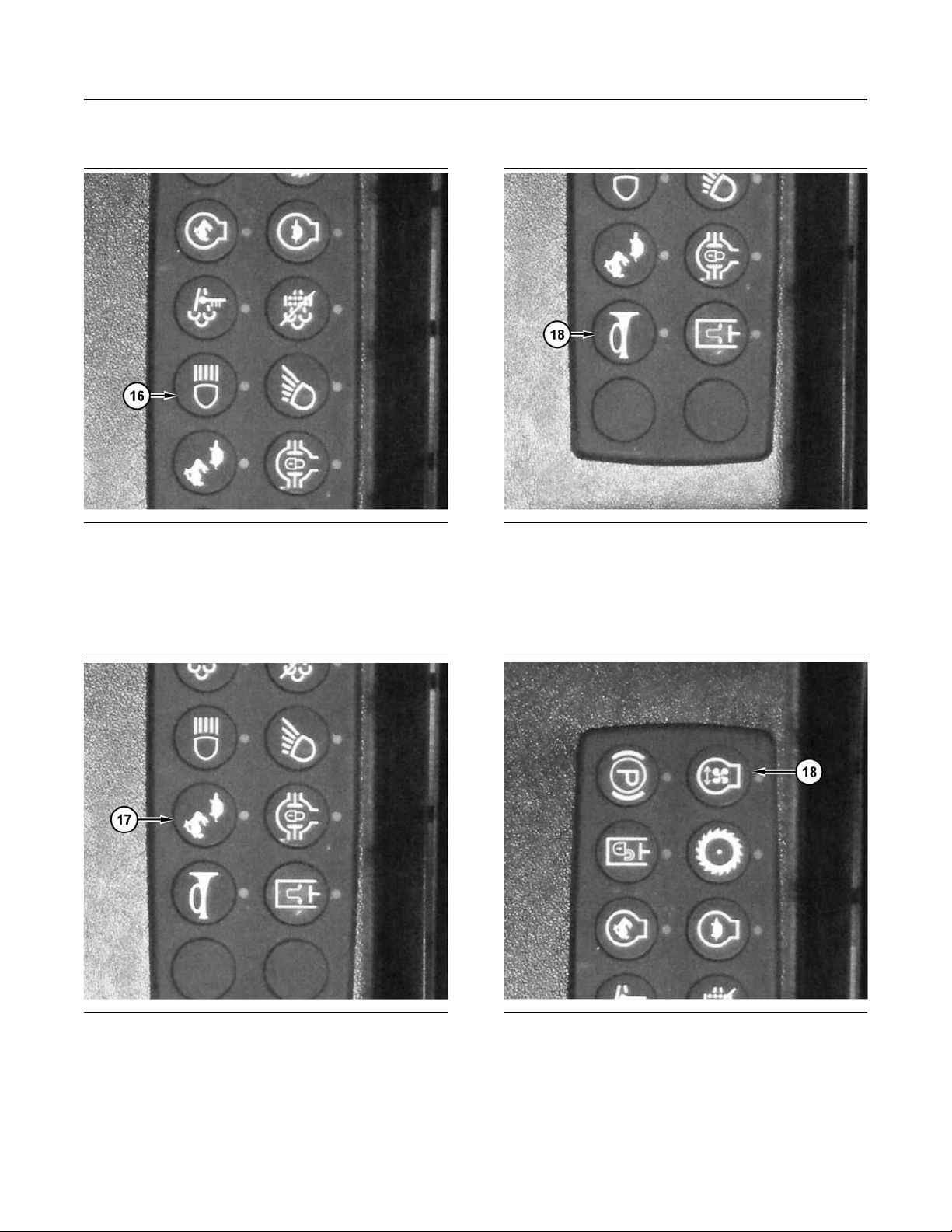

Illustration 86 g02649437
Depress the switch in order to turn the front lights ON.
Depress the switch again in order to turn the front
lights OFF.
Horn Switch (18)
Illustration 88 g02649457
Depress the switch in order to sound the horn.
Repeatedly depress the switch to sound the horn
again.
Pump Displacement Switch (17)
Illustration 87 g02650718
Depress the switch in order to select pump
displacement. Depress the switch to switch between
high and low pump pressure.
Reversible Fan Control (19)
Illustration 89 g02649476
The direction of the fan can be reversed. This will
clear debris from the radiator. The switch is located in
the right side console. Operate the switch in order to
reverse the fan. Release the switch in order to stop
the reverse direction of the fan.
Page 54
54
Machine Operation
Operator Controls
SEBU8705
Saw Switch (20)

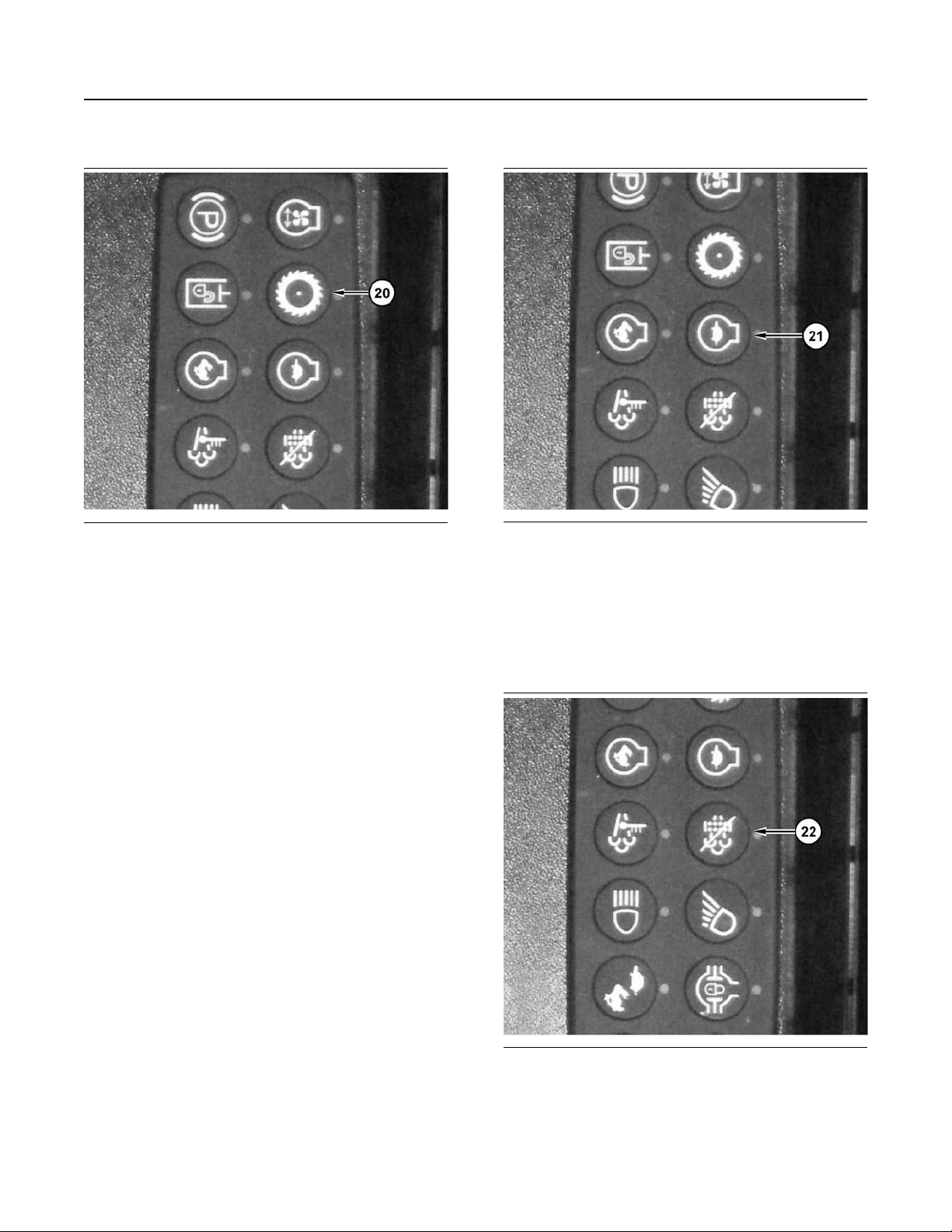

Illustration 90 g02649499
Saw switch (20) is located on the right side console in
the cab.
Throttle Down Speed Control (21)
Illustration 91 g02649502
This valve controls the ground speed by regulating
the signal pressure to the propel pump.
Depress the saw switch in order to activate the saw
blade.
Depress the saw switch again in order to deactivate
the saw blade.
Note: The saw blade will only operate if the hydraulic
lockout control is in the UNLOCKED position.
Note: Disc saw pressure is displayed on the IQAMMd3 main screen. Display indicates the hydraulic oil
pressure to the disc saw. If the pressure is high, the
speed of the disc saw is slow. If the pressure is low,
the speed of the disc saw is high. When the pressure
is high and the saw is slow, you may choose to limit
another function such as the travel, the lift or the steer
in order for the saw to recover faster.
Depress switch in order to decrease ground speed.
Regeneration Disable Control (22)
This function will deactivate the ARD.
Illustration 92 g02649505
Depress switch in order to deactivate regeneration
function.
Page 55
SEBU8705
55
Machine Operation
Operator Controls
Rear Floodlight Switch (23)

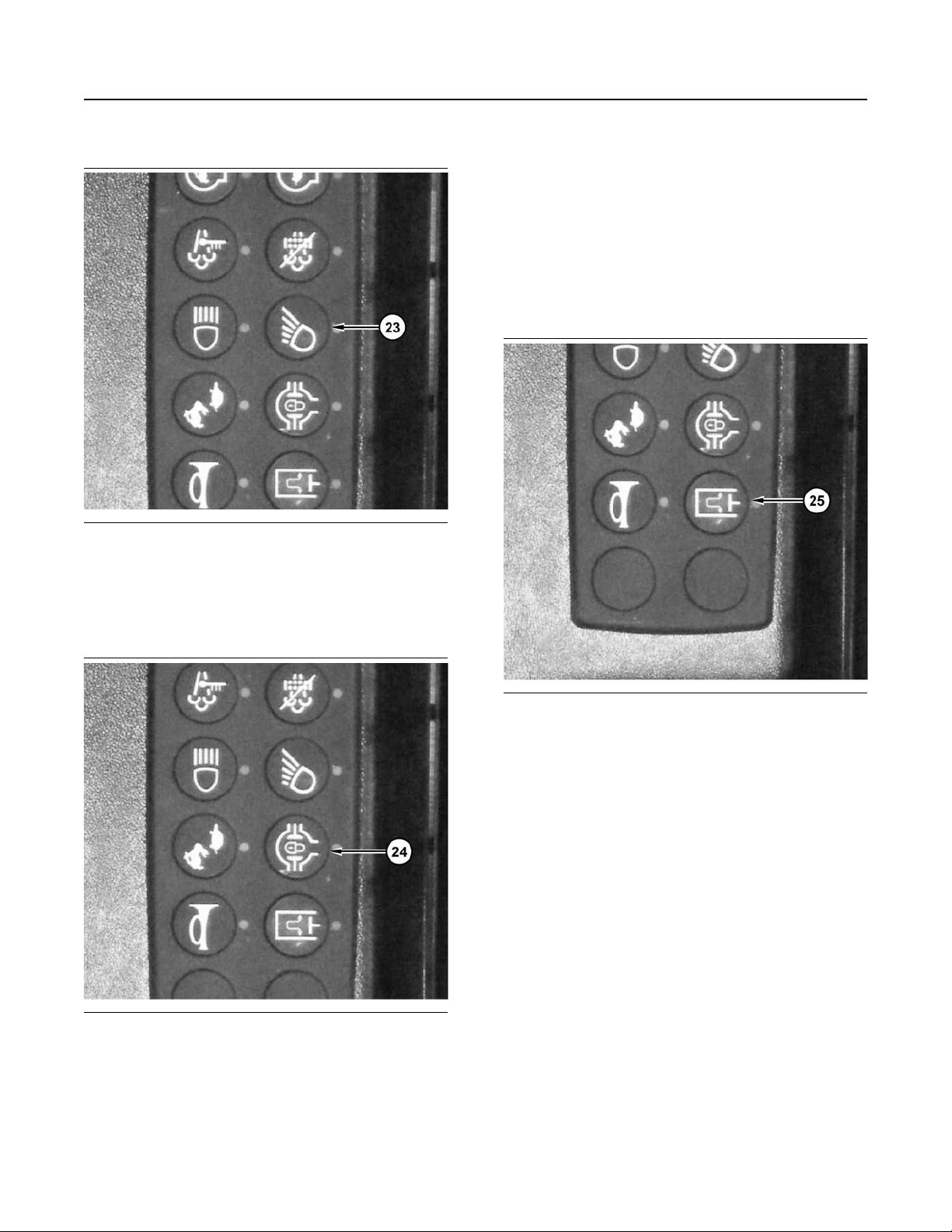

Illustration 93 g02649507
Depress the switch in order to turn the rear lights ON.
Depress the switch again in order to turn the rear
lights OFF.
The momentary differential lock switch is located on
the right joystick. Squeeze the momentary differential
lock switch in order to activate the differential lock.
Release the momentary differential lock switch in
order to deactivate the differential lock.
Note:
Indicator will illuminate on the IQAN-Md3 display
when the differential lock is engaged.
Hydraulic Override Control(25)
Differential Lock Control (24)
Illustration 94 g02649509
The differential lock switch is located on the right side
panel.
Illustration 95 g02649517
The hydraulic override switch is located on the right
side panel.
Press hydraulic override switch to enable the "limp"
home hydraulic functions. Functions that will be
enabled are propel, steer and raise or lower the arm.
Hand Controls (2, 26)
The momentary differential lock switch is located on
the right joystick. Squeeze the momentary differential
lock switch in order to activate the differential lock.
Release the momentary differential lock switch in
order to deactivate the differential lock.
Press differential lock switch (24) in order to engage
the differential lock. When the differential lock is
engaged, both wheels on the axle will turn at the
same speed.
Page 56
56 SEBU8705
Machine Operation
Operator Controls

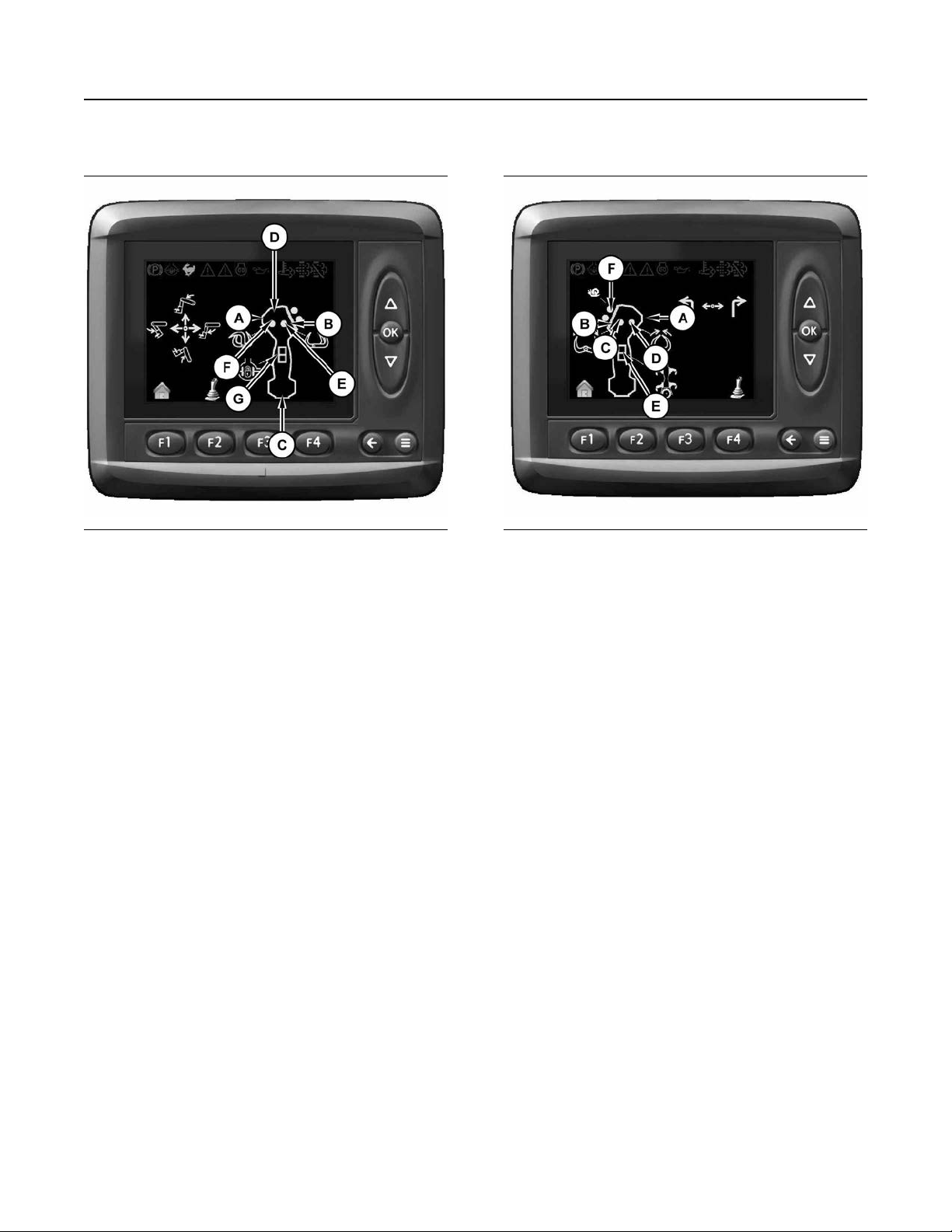

Right Joystick Control (2)
Illustration 96 g02649537
(A) Move the joystick to this position in order to tilt the
felling head downward.
(B) Move the joystick to this position in order to raise
the felling head.
(C) Move the joystick to this position in order to tilt the
felling head upward.
(D) Move the joystick to this position in order to lower
the felling head.
(E) Press the switch in order to open the collector
arms.
(F) Press the switch in order to close collector arms.
(G) Press the switch in order to activate differential
lock function.
Left Joystick Control (26)
Illustration 97 g02649677
The left joystick controls the steering for this machine.
(A) Move the joystick to this position in order to steer
the machine to the right.
(B) Move the joystick to this position in order to steer
the machine to the left.
The joystick will return to the center when the joystick
is released. However, the machine will not straighten
as the joystick returns to the center position. You
must steer the machine in the opposite direction in
order to straighten the machine.
(C) Press the switch in order to open gather arms.
(D) Press the switch in order to close gather arms.
(E) Press the switch in order to open all arms.
(F) Press the switch in order to temorarily slow
machine speed.
Page 57
SEBU8705
57
Machine Operation
Diesel Particulate Filter Regeneration
i05430708
Diesel Particulate Filter
Regeneration
SMCS Code: 108F
Regeneration
Regeneration is the removal of soot from the Diesel
Particulate Filter (DPF). The Aftertreatment
Regeneration Device (ARD) is used to regenerate the
DPF. The DPF traps both soot and ash. The ash is
removed through a manual cleaning process. Refer
to Operation and Maintenance Manual, “Diesel
Particulate Filter - Clean” for more information on the
service of the DPF.
Regeneration Indicators
High Exhaust System Temperature –
This indicator will illuminate in order to
show that the ARD is active. This
indicator will turn off when regeneration is
complete.
DPF – This indicator will illuminate in
order to show that a regeneration is
needed. This indicator will illuminate
when the soot level reaches 90%.
Note: If the engine start switch key is cycled while the
regeneration system is disabled via the disable
regeneration switch, press and hold the disable
regeneration switch for 2 seconds to re-initiate the
disable regeneration.
Soot Level Monitoring
Illustration 98 g02228033
The soot level monitor indicates the level of soot that
has accumulated within the DPF. The five marks on
the monitor represent a percentage of soot within the
DPF. The first mark indicates 0% soot level. The
second mark indicates 25% soot level. The middle
mark indicates 50% soot level. The fourth mark
indicates 75% soot level. The last mark indicates
100% soot level. The soot level monitor can be used
to optimize DPF regenerations based upon the work
cycle of your machine. If machine conditions do not
allow for an automatic regeneration, a forced
regeneration should be performed before the soot
level gauge indicates 100%.
Regeneration Disabled – This indicator
will illuminate in order to show that a
regeneration has been disabled.
Delayed Engine Shutdown (If Equipped)
– This indicator illuminates in order to
show that the delayed engine shutdown
is active.
Regeneration Switch
Note: The MIDDLE position of the regeneration
switch is the default position for automatic
regeneration.
Force Regeneration – Press in the top of
the switch for 2 seconds in order to
begin regeneration.
Disable Regeneration – Press in the
bottom of the switch for 2 seconds in
order to disable regeneration.
Note: To re-enable the regeneration, cycle the engine
start switch key or press and hold down the force
regeneration switch for 2 seconds. If the soot level is
above 15%, an active regeneration will begin if you
are within the low speed automatic regeneration
window.
Note: Some machines will display soot level as a
percentage and will not use a graphical depiction as
displayed above.
Modes of Regeneration
• Automatic: An automatic regeneration is allowed
between approximately 30% and 100% on the
soot level monitor. There are two types of
automatic regeneration, low speed automatic and
high speed automatic.
• Forced: A forced regeneration is initiated by
pressing the force regeneration switch. A forced
regeneration is allowed when the soot level is
equal to or greater than 15%. The machine must
be brought to a low idle speed in order to perform a
forced regeneration.
• Disabled: When the regeneration system is in
disabled mode, automatic regenerations will not be
performed.
Page 58
58 SEBU8705
Machine Operation
Diesel Particulate Filter Regeneration
High speed automatic regenerations are ideal for
situations where interruptions in the work cycle are
not acceptable. In situations where the engine is not
allowed to idle, regenerations will automatically take
place during the normal work cycle of the machine if
the above criteria are met. High speed regenerations
take longer to complete and the aftertreatment
regeneration device consumes more fuel when high
speed regenerations are utilized.
Note: If high speed regenerations are not being
performed, take the engine to low speed regeneration
window before investigating system for issues. There
are other factors not outlined above which need to be
met in order for high speed automatic regenerations
to occur.
High Speed Automatic Regeneration (3)
Engine can be operating between approximately
1000 rpm and 2200 rpm

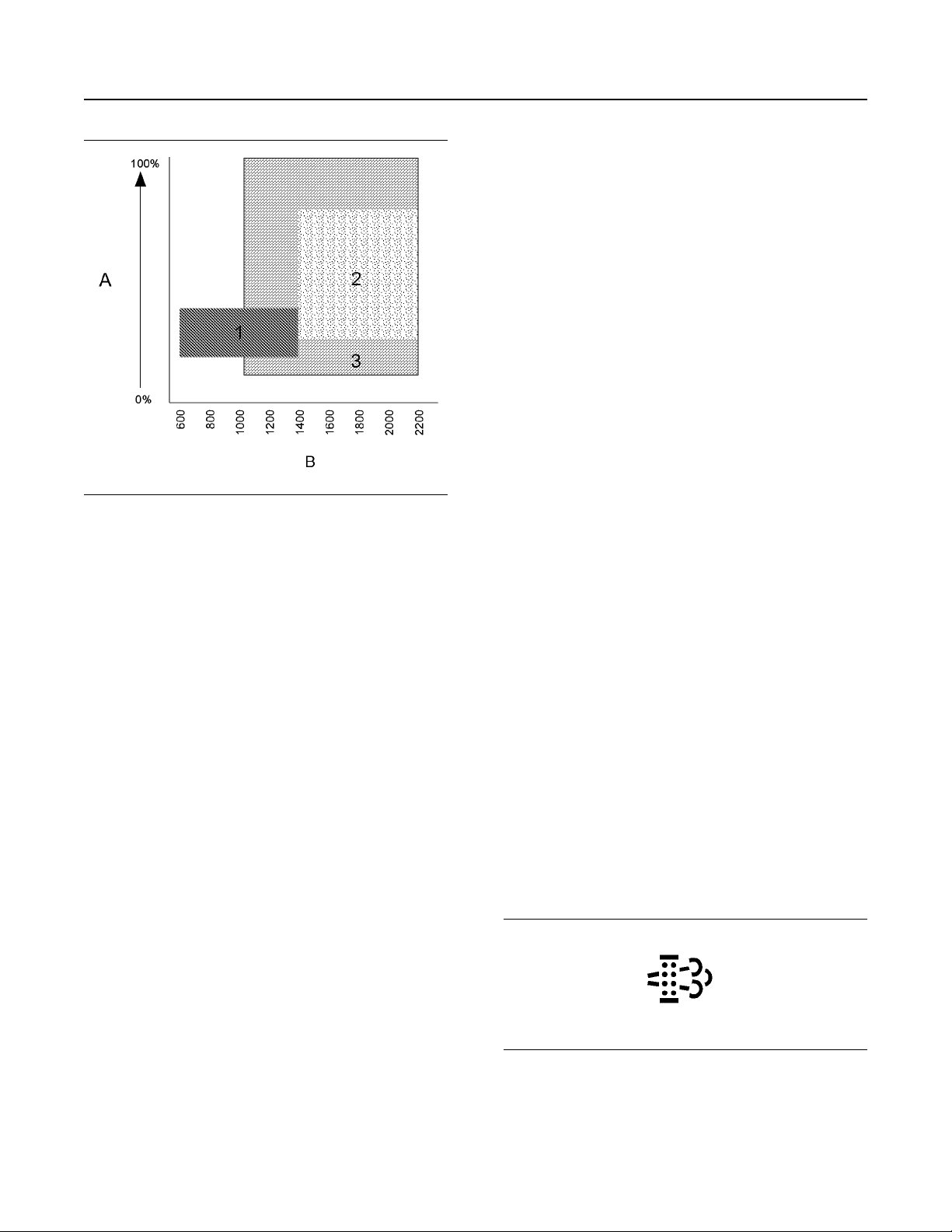

Illustration 99 g02301654
Engine Load Factor (A)
Engine RPM (B)
Low Speed Automatic Regeneration (1)
High Speed Automatic Regeneration (2)
High Speed Automatic Regeneration (3)
Low Speed Automatic Regeneration (1)
the engine must be at a state of low idle, refer to
illustration 99 . Machine should be stationary .
Engaging the parking brake or hydraulic lock will
ensure the quickest start time for regeneration. If low
idle speed is less than 1000 rpm, engine speed will
automatically increase to between 1000 and 1400
rpm to activate regeneration.
Load on engine should be minimal. Soot percentage
must be between 30% and 100% on the soot monitor.
Low speed automatic regenerations are ideal in
environments where interruptions in the work cycle of
the machine are not a problem. By utilizing low speed
regenerations, the duration of the regeneration will be
shortest and less fuel will be consumed by the
aftertreatment regeneration device when low speed
regenerations are used.
Engine load factor can be anywhere between 15%
and 100%
Soot load percentage will be between 75 and 90%
when this type of regeneration is available.
High speed automatic regenerations are ideal for
situations where interruptions in the work cycle are
not acceptable. In situations where the engine is not
allowed to idle, regenerations will automatically take
place during the normal work cycle of the machine if
the above criteria are met. High speed regenerations
take longer to complete and the aftertreatment
regeneration device consumes more fuel when high
speed regenerations are utilized.
Note: If high speed automatic regenerations are not
being performed, take the engine to low speed
regeneration window before investigating system for
issues. There are other factors not outlined above
which need to be met in order for high speed
automatic regenerations to occur.
Regeneration System Warning
Indicators
High Speed Automatic Regeneration (2)
Engine can be operating between approximately
1400 rpm and 2200 rpm
Engine load factor can be anywhere between 30%
and 85%
Soot load percentage will be between 60 and 75%
when this type of regeneration is available.
Illustration 100 g02117258
Indicator will illuminate when DPF soot load is greater
than 90%
Page 59
SEBU8705 59
Machine Operation
Diesel Particulate Filter Regeneration
Regeneration should be performed as soon as
possible. If high speed automatic regenerations
are not activating, take engine to low speed
automatic window or perform a forced
regeneration.
Indicator will turn off once DPF regeneration has
started.
Note: In some situations, the DPF indicator may stay
illuminated when the soot load is below 90%. The
illuminated DPF indicator indicates that a complete
regeneration has not been performed. A complete
regeneration is when the soot level is reduced to 0%.
If the DPF indicator stays illuminated, perform a
regeneration without interruption until the soot level is
reduced to 0%. A complete regeneration will reset the
DPF indicator.
Illustration 101 g02117259
Finally, if engine is still allowed to run through multiple
forced shutdowns, the DPF must be replaced.
Key Off Regeneration (If Equipped)
Note: There may be some local regulations and/or
government regulations that define the requirements
for the operator and/or support personnel to be
present when the engine is running. Obey these
regulations.
Use of the Key Off Regeneration feature or the Delayed Engine Shutdown feature allows the engine
to run for a period with the engine start switch key
removed. Leaving the machine unattended when
the engine is running could result in personal injury or property damage. When using the Key Off
Regeneration feature or the Delayed Engine Shutdown feature, do not leave the machine unattended when the engine is running. Once the
engine has stopped, perform a visual check of the
machine to ensure that the machine is in a safe
state before leaving the machine unattended.
The DPF indicator will illuminate and an action lamp
will illuminate when the engine control module
determines the amount of soot collected in the DPF
has reached a level that a regeneration is required.
The machine should be brought to the NEUTRAL
position immediately. Both forced regeneration and
low speed automatic regeneration are possible.
Engine power will be slightly derated if the machine
continues to operate.
Illustration 102 g02117261
After a certain period, an action alarm will activate.
After 5 minutes with the action alarm active, the
engine will automatically be taken to low idle.
A forced regeneration is required at this time. A
complete regeneration will unlock the forced low idle
speed. Cycling the engine start switch key will unlock
the forced low idle speed.
After a certain amount of time, engine will
automatically shut down. Engine can be restarted but
will only run for 30 seconds before shutting down
again. Once engine enters shutdown strategy,
regeneration is locked out and a Prentice dealer must
be called to perform a service level regeneration.
Note: Safe state (lowering work tools to the ground,
applying brakes, etc.) shall be attained before the
engine start switch is moved to the OFF position.
Confirmation of a safe state should be conducted
after the engine is stopped.
Key off regeneration allows for regeneration when the
engine start switch key has been removed. To begin a
key off regeneration the soot level must be between
15% and 100% on the soot level monitor and/or a
regeneration is in progress. The following steps
outline the procedure of a key off regeneration:
1. Remove the engine start switch key.
2. The engine will continue to run for 15 seconds.
During this 15 second interval, if a regeneration is
desired, press and hold the force regeneration
switch for 2 seconds.
Note: If a regeneration is not desired the machine will
initiate the delayed engine shutdown.
3. The key off regeneration will activate and the key
off regeneration will last for up to 15 minutes.
4. Once the key off regeneration is complete the
machine will initiate the delayed engine shutdown.
5. The delayed engine shutdown can last up to 10
minutes.
6. After the delayed engine shutdown has been
completed the engine will shut down.
Page 60
60 SEBU8705
Machine Operation
Battery Disconnect Switch
i04451209
Battery Disconnect Switch
SMCS Code: 1411
Illustration 103 g02642956
NOTICE
Never move the battery disconnect switch to the OFF
position while the engine is operating. Serious damage to the electrical system could result.
i04451210
Backup Alarm
SMCS Code: 7406
The backup alarm is mounted at the rear of the
machine inside the engine compartment.
Backup Alarm – The alarm will sound
when the reverse travel pedal is
depressed. The backup alarm is used to
alert people behind the machine when the
machine is backing up.
A three-position switch at the rear of the backup
alarm regulates the volume of the alarm (HIGH, LOW,
and MEDIUM).
The alarm is set at the maximum sound level when
the machine is shipped from the factory. The setting
should remain on HIGH unless the job site requires a
lower sound level.
Open the diesel fuel fill access door on the left side of
the machine. The battery disconnect switch is located
in the diesel fuel fill compartment.
Disconnect Switch ON – To activate the
electrical system, insert the key for the
battery disconnect switch and turn the
key clockwise. The battery disconnect switch
must be turned to the ON position before you
start the engine.
Disconnect Switch OFF – To deactivate
the electrical system, turn the key for the
battery disconnect switch
counterclockwise to the OFF position.
The battery disconnect switch and the engine start
switch perform different functions. To disable the
entire electrical system, turn off the battery
disconnect switch. When you only turn off the engine
start switch, the battery remains connected to the
electrical system.
Turn the battery disconnect switch to the OFF
position. Remove the key when you service the
electrical system or any other machine components
and when the machine will not be used for an
extended period of a month or more. This will prevent
drainage of the battery.
i04467639
Monitoring System
SMCS Code: 7451; 7490
The IQAN Monitoring System performs an automatic
internal test when the machine is activated. Turning
the engine start switch from the OFF position to the
ON position will activate the test.
The test verifies proper operation of the outputs
(displays, indicator lamps, and audible alarms).
The internal circuits are automatically checked.
The operator must observe the outputs in order to
determine whether the displays are operating
properly. The length of time for the test is
approximately 3 seconds.
During this test, all alert indicators flash.
The display then goes into the Normal Mode of
operation or the display scrolls through the modes if
the service input and the clear input are grounded or
the operator switch input is grounded.
Reference: For more information, refer to Special
Publication, UENR0714, “How To TakeSystems
Operation Troubleshooting, IQAN Monitoring &
Control System”.
Page 61
SEBU8705 61
Machine Operation
Operation Information
i02043005
Operation Information
SMCS Code: 7000
S/N: W571–Up
S/N: W671–Up
Follow these basic instructions whenever you are
operating the machine:
• To prevent injury, make sure that no one is working
on the machine or near the machine. Always
maintain control of the machine.
• Raise the bucket or the work tool enough to
negotiate any obstacles.
• Before you release the parking brake, depress the
service brake pedal in order to keep the machine
from moving.
• Drive the machine forward for best visibility and for
best control.
• Reduce the engine speed when you maneuver in
tight quarters and when you are going over a hill.
Machine Operating Temperature
Range
The standard machine configuration is intended for
use within an ambient temperature range of −40 °C
(−40 °F) to 43 °C (110 °F). Special configurations for
different ambient temperatures may be available.
Consult your authorized dealer for additional
information on special configurations of your
machine.
Downhill Operation
Maintain a ground speed that is slow enough for the
conditions. Before you operate down a hill, select the
proper range before you start down the grade. The
range should allow the machine to maintain the
appropriate speed on the down grade. The throttle
control should be at high idle and the engine should
not overspeed. In most situations, the range will be
the same range that is required to drive up the grade.
Do not use the reverse travel pedal in order to slow
the machine when you travel forward downhill. Do not
use the forward travel pedal in order to slow the
machine when you travel reverse downhill.
i01510763
Changing Direction and Speed
SMCS Code: 1000; 7000
Speed changes at full engine speed and directional
changes at full engine speed are possible. However,
deceleration and/or braking is recommended when
you change direction. This will maximize operator
comfort and the service life of the transmission
components.
1. Decrease the machine speed by releasing the
travel pedal.
2. To change direction, release one travel pedal and
depress the other travel pedal.
Note: There may be a slight delay in response when
you change direction.
3. Increase the machine speed by depressing the
travel pedal.
Note: The travel pedal on the right will move the
machine forward. The travel pedal on the left will
move the machine in reverse.
4. Press the service brake pedal in order to slow or
stop the machine.
i04551359
Parking Brake Override
SMCS Code: 4250
The parking brake can be released manually. Refer to
Operation and Maintenance Manual, “Parking Brake
Manual Release”.
Contact your local Prentice dealer for service on the
parking brake. Do not operate the machine until the
problem is fixed.
If the machine builds up excessive speed, the engine
can overspeed. Use the service brake or the engine
brake in order to slow the machine until a lower range
can be selected. Select the lower range and proceed
with the throttle control at high idle.
Use the service brakes for stopping the machine.
Using the service brakes in order to control travel
speed of the machine or using the service brakes for
stopping from high speeds can cause the brake axle
oil to overheat. This can result in significant wear and/
or damage to the service brakes.
Page 62
62 SEBU8705
Machine Operation
Parking Brake Manual Release
i05261787
Parking Brake Manual Release
SMCS Code: 3077; 4267; 4284; 4354; 5070; 7000
Personal injury or death could result when towing
a disabled machine incorrectly.
Block the machine to prevent movement before
releasing the brakes. The machine can roll free if
it is not blocked.
Crushing Hazard. There is no clearance for a person in this area when the machine turns. Severe
injury or death from crushing could occur. Connect the steering frame lock between front and
rear frames before lifting, transporting, or servicing the machine in the articulation area.
Disconnect the steering lock and secure before
resuming operation.
Perform the following steps before you tow the
machine.
1. Place transmission in neutral. This disconnects the
wheels from the hydraulic motor.
2. Raise the attachment off the ground. Install the
boom cylinder lift lock.
3. Turn off the machine engine.

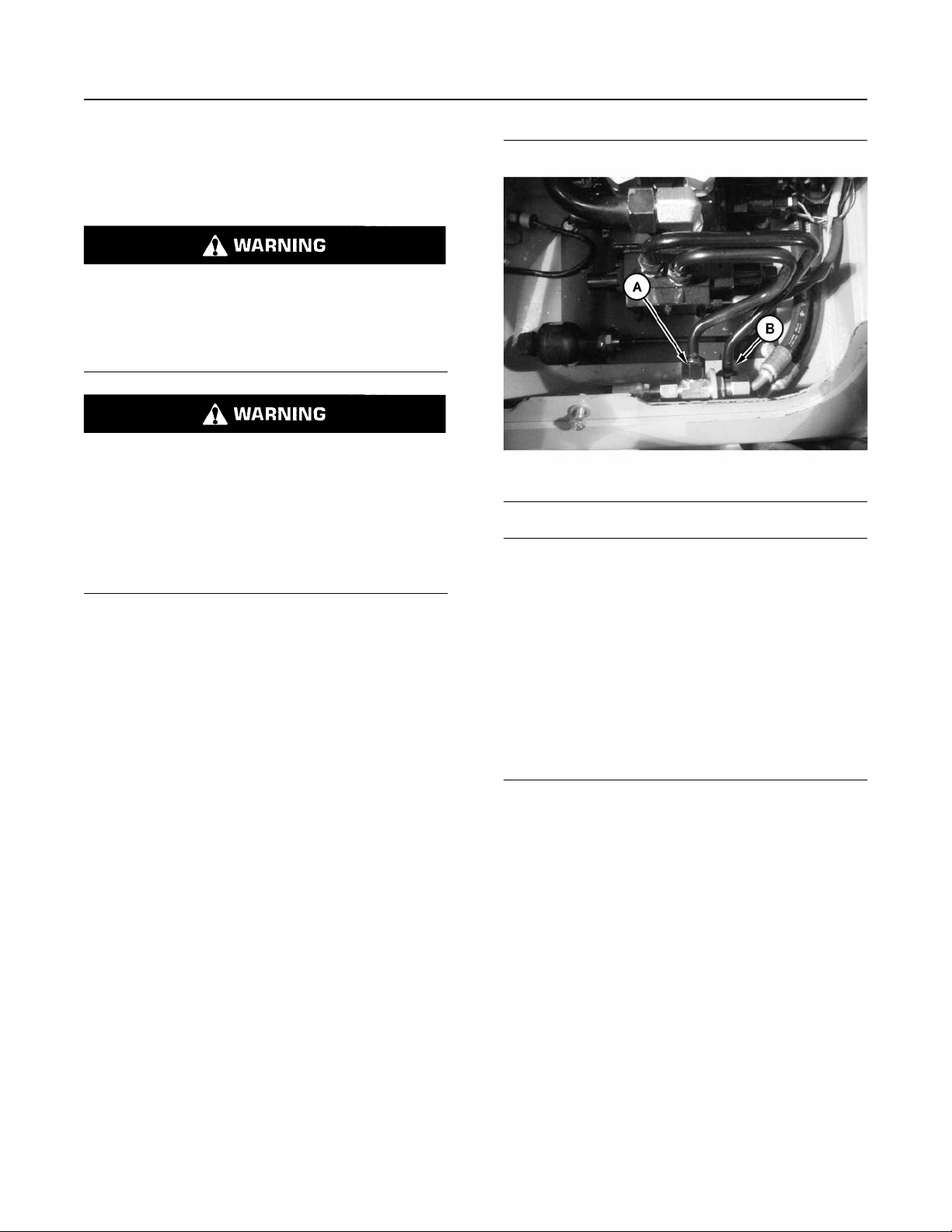

Illustration 104 g02726446
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product.
Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, “Dealer
Service Tool Catalog” for tools and supplies suitable
to collect and contain fluids on Prentice products.
Dispose of all fluids according to local regulations and
mandates.
4. Install steering lock bar.
5. Reverse the hydraulic steering hose connections
(A) and (B) in steering cylinder hydraulic circuit.
This will allow the steering cylinders to move freely.
Note: Make sure that the cylinder hoses are
connected correctly before you operate the machine
again. The steering system will not function if the
hose connections are reversed.
6. To deactivate the parking brake, provide portable
hydraulic pressure Port-A-Power at the parking
brake supply on the pilot manifold.
Page 63
SEBU8705 63
Machine Operation
Transmission Speed Control
Normally, the towing machine should be as large
as the disabled machine. The towing machine
must have enough brake capacity, enough weight,
and enough power for the grade and distance that
is involved.
Note: When going downhill, be sure to use a hold
back vehicle. The machine is now without any
effective braking.
10. When towing is completed, reinstall steering
frame lock.
11. Reconnect steering cylinder hoses in proper
location.
12. Reconnect parking brake hose to port on the pilot
manifold.
Personal injury or death can result from brake

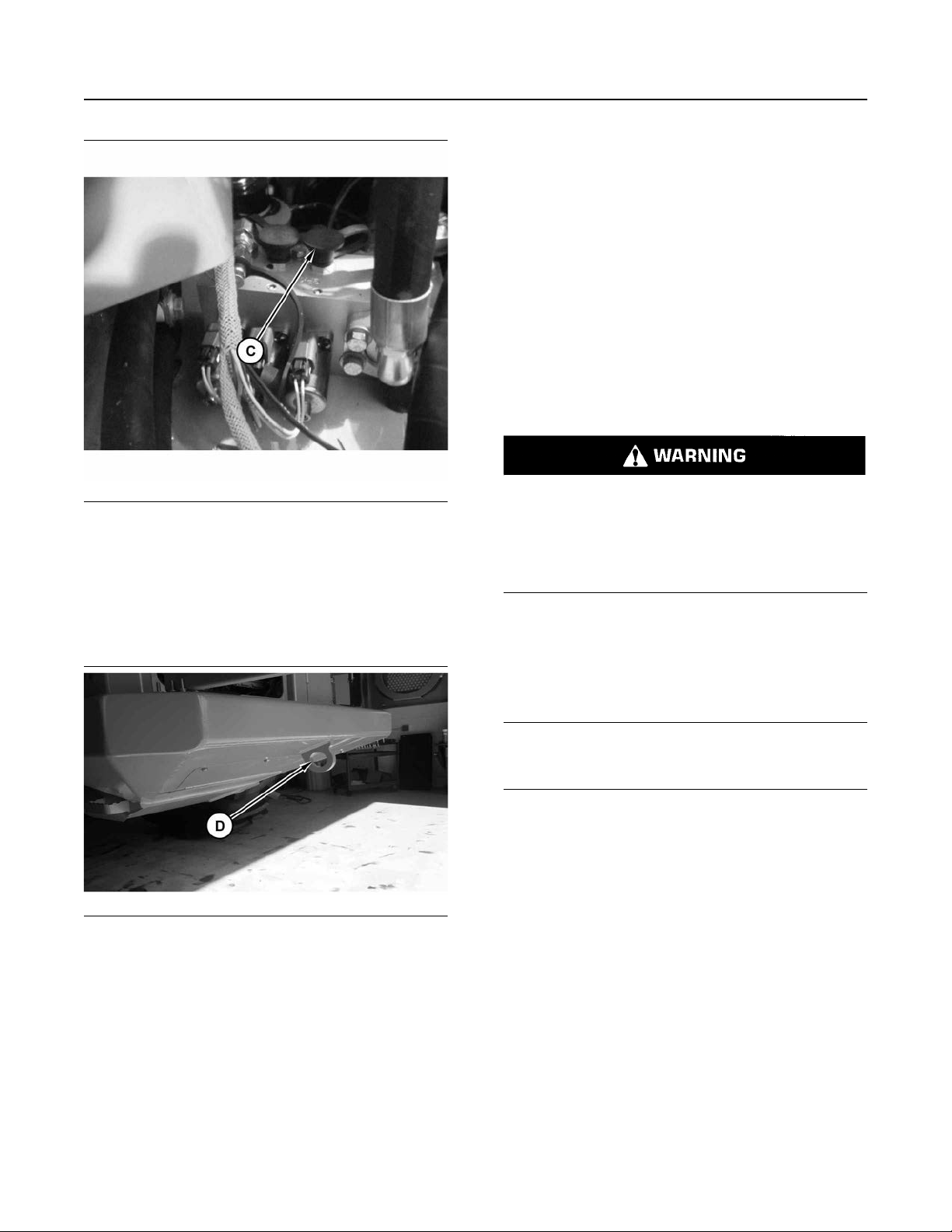

Illustration 105 g02726471
7. Block the wheels. Connect portable hydraulic
pressure Port-A-Power to the brake hose. Plug
port on the manifold. Pressurize to 1896 kpa
malfunction.
Make sure all necessary repairs and adjustments
have been made before a machine that has been
towed to a service area, is put back into
operation.
(275 PSI)minimum, 3447 kpa (500 PSI)maximum.
8. Remove steering lock bar.
Illustration 106 g02726176
9. The machine will be towed from the rear, using the
towing eye (D) located under the rear bumper.
Note: Before you tow the machine, inspect the tow
line or the tow bar. Make sure that the tow line or the
tow bar is sturdy enough for towing the disabled
machine. The tow line or bar must have a strength
that is equal to 1.5 times the gross weight of the
machine that is being towed.
i05740872
Transmission Speed Control
SMCS Code: 3065
NOTICE
Before traveling, verify that there are no people near
machine or attachment.
Speed changes at full engine speed and directional
changes at full engine speed are possible. However,
deceleration and/or braking is recommended when
you change gear. Maximizing operator comfort and
the service life of the transmission components.
Page 64
64 SEBU8705
Machine Operation
Transmission Speed Control

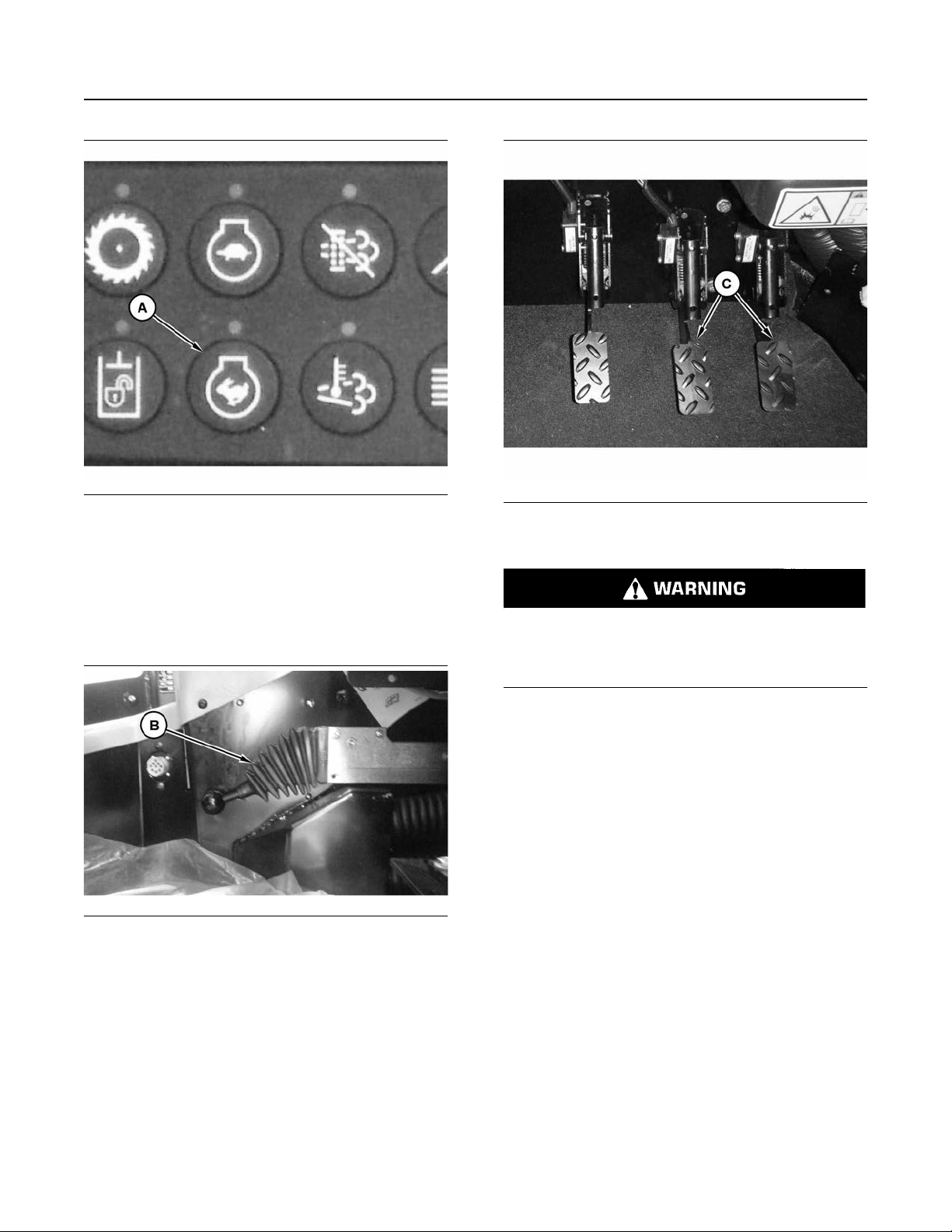

Illustration 107 g02727548
1. Fasten seat belt snugly.
2. With engine and hydraulics warmed up properly,
steer left and right while engaging transmission in
low idle. Depress the throttle button (A) to high idle
position.
Illustration 108 g02727861
Illustration 109 g02727870
6. Use propel pedals (C ) to travel in desired direction.
If machine can be Propeled with parking brake
set, interlock system is not working as intended.
Shut engine down and contact an authorized dealer immediately for system repair.
3. Set transmission shifter (B) to desired position.
Note: Set transmission to LOW speed when
operating implement. Set transmission to HIGH
speed when traveling.
4. Completely release parking brake. Machine will not
move if parking brake is not released.
5. Lift attachment off the ground. Keep attachment as
low as possible without running into obstructions.
Page 65
SEBU8705 65
Engine Starting
Engine Starting
Engine Starting
Engine Starting
SMCS Code: 1000; 7000
Engine Starting with Air Inlet Heater
i04451292

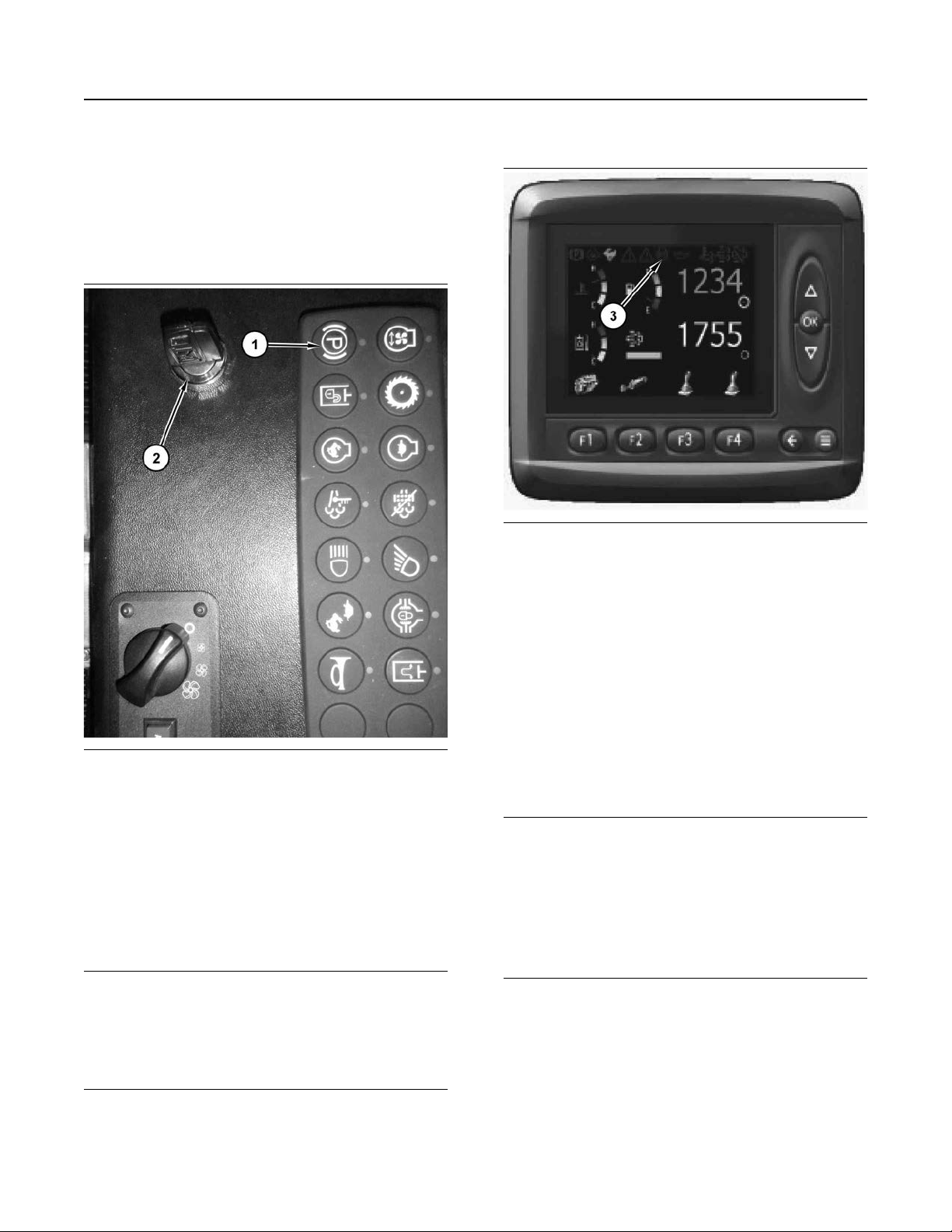

Illustration 111 g02646520
Turn the ignition switch into the ON position. Alert
indicator (3) will be illuminated during the heating
process prior to starting the engine. The machine can
be started after alert indicator (3) turns off.
Illustration 110 g02646165
1. Engage the parking brake (1).
2. Fasten the seat belt.
3. Make sure that the hydraulic lockout control is in
the LOCKED position.
4. Turn the engine start switch (2) to the START
position in order to start the engine. Release the
engine start switch key after the engine starts.
NOTICE
Do not crank the engine for more than 30 seconds. Allow the starter to cool for two minutes before cranking
again. Turbocharger damage can result if the engine
rpm is not kept low until the oil gauge display verifies
that the oil pressure is sufficient.
Release the ignition switch when the engine starts.
Note: The preheat time varies between 10 seconds
and 30 seconds.
i04451309
Engine and Machine Warm-Up
SMCS Code: 1000; 7000
NOTICE
Keep the engine speed low until the engine oil pressure registers (2) or the engine oil indicator light (1)
goes out on the IQAN-Md3.
If engine oil pressure fails to register or the light does
not go out within 10 seconds, stop the engine and investigate the cause before starting again. Failure to
do so, can cause engine damage.
Page 66
66 SEBU8705
Engine Starting
Engine and Machine Warm-Up
1. Allow a cold engine to warm up at LOW IDLE for at
least 5 minutes.
2. Look at the IQAN-Md3 screen and the indicator
lights frequently during operation.
If low engine oil pressure indicator (1) remains
illuminated, inspect the machine for the cause of
the trouble.
If the IQAN-Md3 screen does not display properly,
inspect the machine for the trouble. Repair all
problems before moving the machine.
3. Cycle all controls in order to allow warm oil to
circulate through all of the lines and the cylinders.
Observe the following recommendations during the
warm-up period for the engine:
• In temperatures above 0°C (32°F), the warm-up
period is 15 minutes.

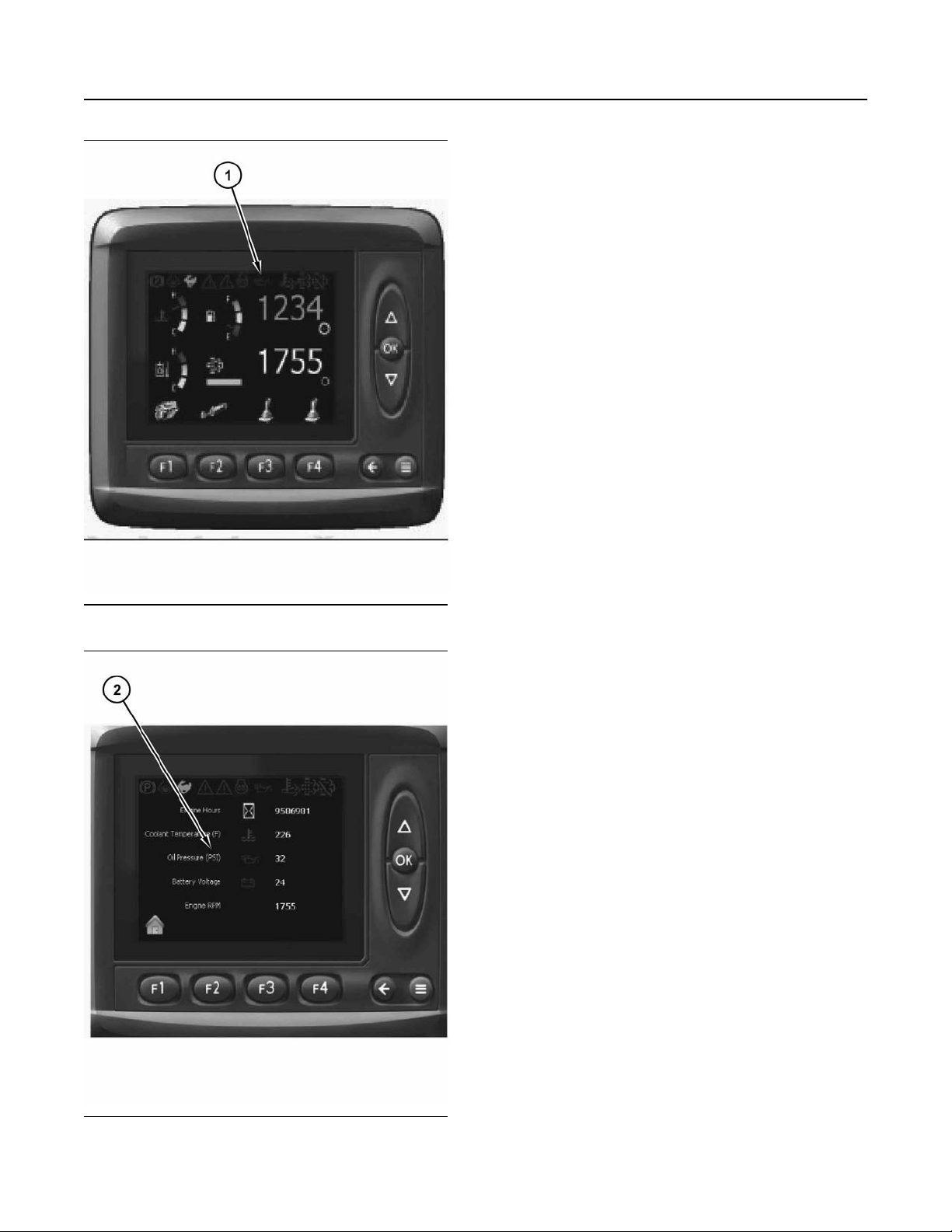

Illustration 112 g02646546
• In temperatures below 0°C (32°F), the warm-up
period is 30 minutes or a longer period of time.
• In temperatures below −18°C (0°F), more time is
required if the hydraulic controls are sluggish.
Illustration 113 g02646582
Page 67
SEBU8705 67
Parking
Stopping the Machine
Parking
i01497764
Stopping the Machine
SMCS Code: 7000
NOTICE
Do not engage the parking brake while the machine is
moving unless the service brake fails. The use of the
parking brake as a service brake in regular operation
will cause severe damage to the parking brake.
1. Apply the service brakes in order to stop the
machine.
2. Park the machine on a level surface. If it is
necessary to park on a grade, block the wheels.
3. Engage the parking brake.
4. Lower the work tool to the ground.
i04778442
Stopping the Engine
SMCS Code: 1000; 7000
NOTICE
Stopping the engine immediately after it has been
working under load, can result in overheating and accelerated wear of the engine components.
See the following stopping procedure, to allow the engine to cool, and to prevent excessive temperatures
in the turbocharger center housing, which could
cause oil coking problems.

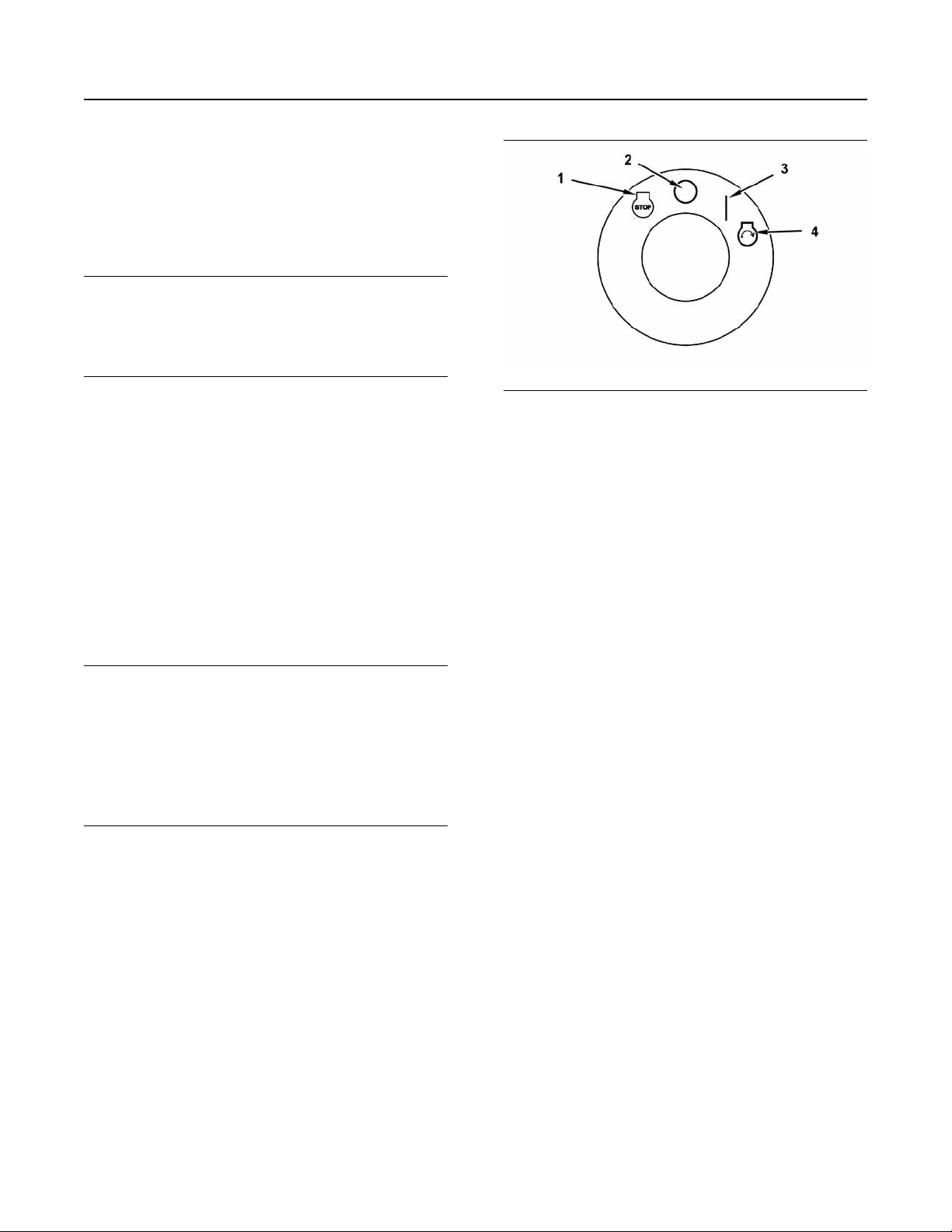

Illustration 114 g02110334
Ignition Keyswitch
(1) Engine Forced Shut down -Stop
(2) Off
(3) On
(4) Start
2. Turn the engine start switch to the OFF position
and remove the key. There are several machine
features that can occur when stopping the engine.
Engine Idle Shutdown (If Enabled)
The engine can shut down if all of the following
conditions exist:
• The machine was warm when started
• The engine is left idling with the transmission in
neutral
• No implement control movement
• No throttle movement
• Engine idle shutdown is enabled in the monitoring
system.
1. While the machine is stopped, run the engine for 5
minutes at low idle. The engine idle allows hot
areas of the engine to cool gradually.
Reference: Refer to the Operation and Maintenance
Manual, “Operator Controls”, “Engine Idle Shut Down”
section for more information.
In order to restart the engine after an engine idle shut
down, the keyswitch must be moved into the OFF
position. Then turn the keyswitch back to the ON or
START position
Key Off Regeneration Cycle (If
Enabled)
When the ignition key switch is turned to the OFF
position, the system will determine if a regeneration is
possible. If the soot level is above 15 percent, the
operator will be prompted to initiate a regeneration, if
desired. If initiated, the cycle will run for 15 minutes.
The cycle may be stopped by pressing the “Disable
Regeneration” button. The normal delayed engine
shutdown will continue.
Page 68
68 SEBU8705
Parking
Stopping the Engine if an Electrical Malfunction Occurs
Delayed Engine Shut Down
Turn the ignition key switch to the OFF position. If a
regeneration is not required or not allowed, the
engine may delay shutdown for 5 minutes for the
engine to cool down.
Force Shut Down

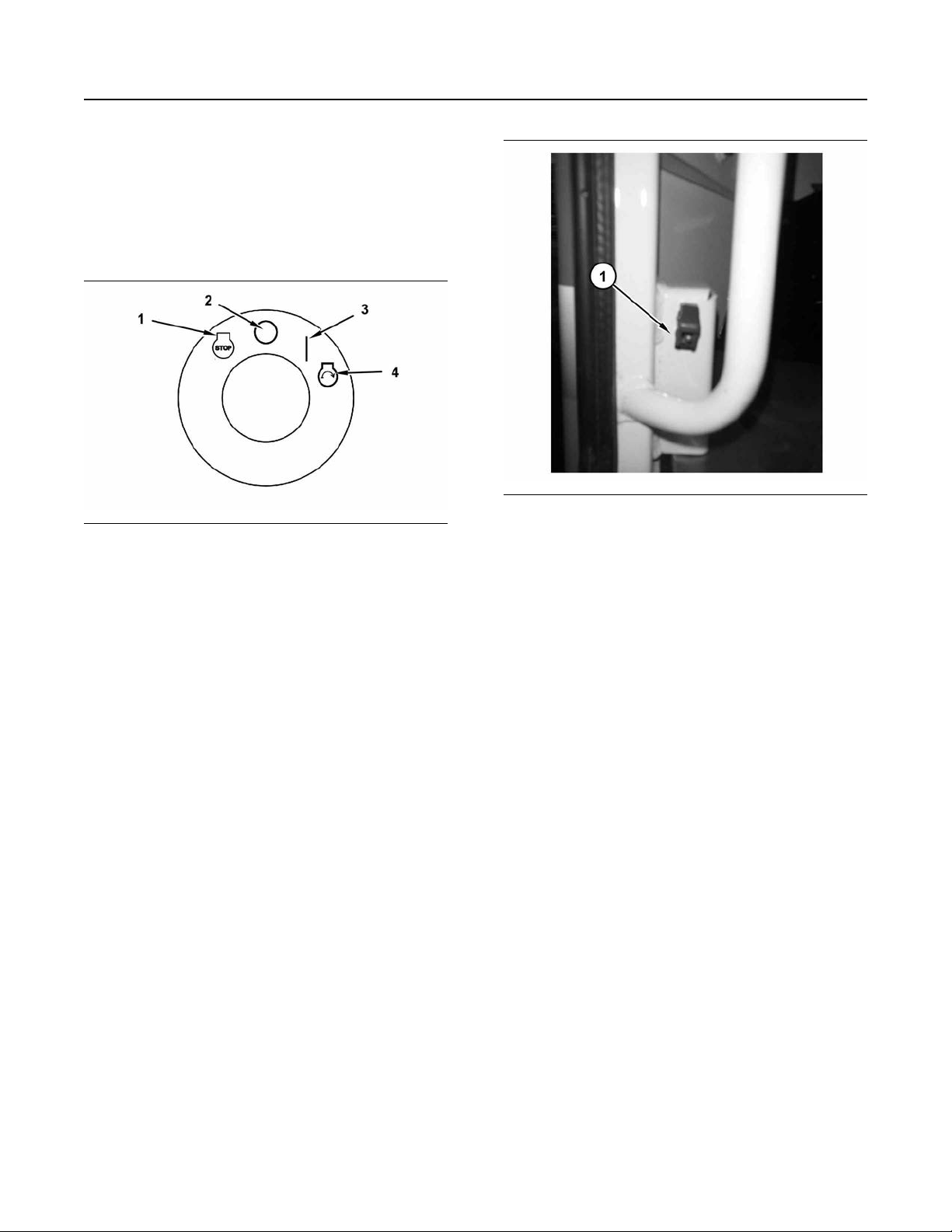

Illustration 115 g02110334
Ignition Keyswitch
(1) Engine Forced Shut down -Stop
(2) Off
(3) On
(4) Start
When the operator determines that an immediate
shutdown is necessary, turn the key switch to the
STOP position (2). Then turn the key switch in the
counter clockwise direction and hold in that position
(1) for 2 seconds.
Note: Damage could occur to the machine if the
engine is not allowed to cool down before shutdown.
Use the forced shutdown only if necessary.
i04778489
Stopping the Engine if an
Electrical Malfunction Occurs
SMCS Code: 1000; 7000
Turn the engine start switch into the STOP position
and hold for 2 seconds. If the engine does not stop,
an electrical malfunction exists.
Illustration 116 g02885077
An emergency shutdown switch (1) is located in the
cab on the left-hand goal post near the floor. Move
the switch upward in order to stop the engine.
i03907860
Leaving the Machine
SMCS Code: 7000
1. Use the steps and the handholds when you get off
the machine. Face the machine and use both
hands. Make sure that the steps are clear of debris
before you dismount.
2. Inspect the engine compartment for debris. Clean
out any debris and paper in order to avoid a fire.
3. Remove all flammable debris in order to reduce a
fire hazard. Dispose of all debris properly.
4. Always turn the battery disconnect switch to the
OFF position before leaving the machine.
5. If the machine will not be operated for a month or
more, remove the battery disconnect switch key.
6. Install all covers and all vandalism protection locks.
Page 69
SEBU8705 69
Transportation Information
Shipping the Machine
Transportation Information
i04451369
Shipping the Machine
SMCS Code: 7000; 7500
Investigate the travel route for overpass clearances.
Make sure that there will be adequate clearance if the
machine that is transported has a ROPS, a cab, or a
canopy.
Remove ice, snow, or other slippery material from the
loading dock and from the transport machine before
you load the machine. This will help to prevent
slippage of the machine. This will also help to prevent
a shift while the machine is moving in transit.
Obey the appropriate laws that govern the
parameters of the load (weight, width, and length).
7. Turn the battery disconnect switch to the OFF
position. Remove the battery disconnect switch
key.
8. Lock the door and the access covers. Attach any
vandalism protection.
9. Secure the machine, any equipment, and any tools
with adequate tie-downs in order to prevent
movement during shipping.
10. Cover the exhaust opening. The turbocharger (if
equipped) should not rotate when the engine is not
operating. Damage to the turbocharger can result.
i01748245
Roading the Machine
SMCS Code: 7000
Before you road a machine, consult your tire dealer
for recommended tire pressures and for speed
limitations.
Turn the saw blade control switch to the OFF position
before you road the machine. Put the hydraulic
controls lockout lever in the LOCKED position before
you road the machine.

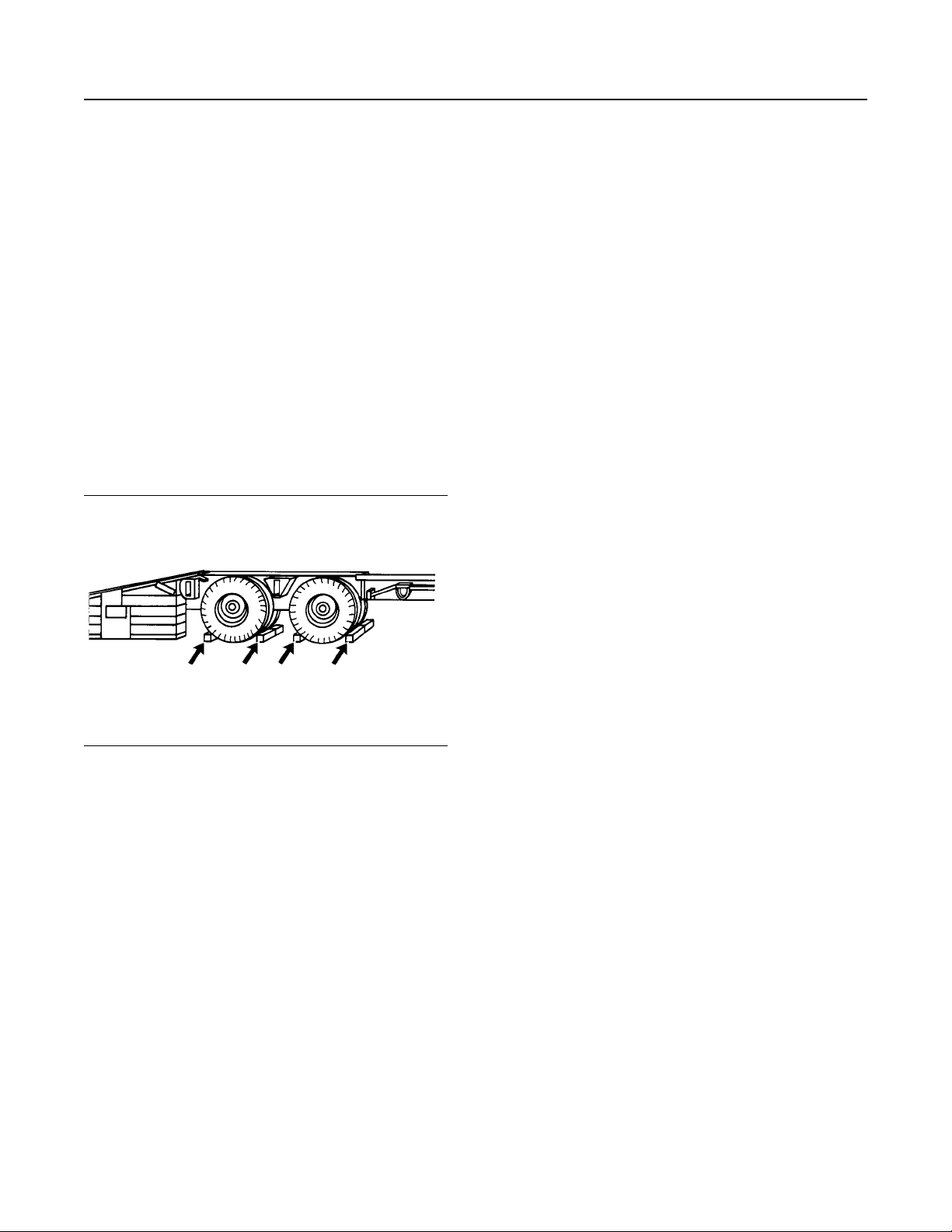

Illustration 117 g00040011
Properly chocked trailer wheels
1. Chock the trailer wheels or the rail car wheels
before you load the machine.
2. After the machine is positioned, connect the
steering frame lock in order to hold the front frame
and the rear frame in place.
3. Lower the work tool to the floor of the transport
vehicle. Make sure all guards are in place on the
work tools prior to transport.
4. Engage the parking brake.
5. Turn the engine start switch to the OFF position.
Remove the engine start switch key.
6. Move all of the control levers in order to relieve any
trapped pressure.
Limitations for TON-kilometer per hour (TON-mile per
hour) must be obeyed. Consult your tire dealer for the
speed limit of the tires that are used.
When you travel for long distances, schedule stops in
order to allow the tires and the components to cool.
Stop for 30 minutes after every 40 km (25 miles) or
after every hour.
Perform a walk-around inspection and measure the
fluid levels in each of the compartments.
Bring the engine coolant, the crankcase oil, and the
transmission oil up to the correct levels.
Inflate the tires to the correct pressure.
Use a self-attaching inflation chuck in order to inflate
the tire. Stand behind the tire tread while you inflate
the tires.
Reference: For more information, refer to Operation
And Maintenance Manual, “Tire Inflation Information”.
Check with the proper officials in order to obtain the
required licenses and other similar items.
Travel at a moderate speed. Observe all speed
limitations when you road the machine. Carry the
work tool as low to the ground as possible.
Page 70
70 SEBU8705
Transportation Information
Lifting and Tying Down the Machine
i04869431
Lifting and Tying Down the
Machine
SMCS Code: 7000; 7500
Improper lifting and improper tie-downs can allow
the load to shift or fail and cause injury or damage. Use only properly rated cables and slings
with lift and tie down points provided.
Follow the instructions in Operation and Maintenance Manual, “Lifting and Tying Down the Machine” for the proper technique for securing the
machine. Refer to Operation and Maintenance
Manual, “Specifications” for specific weight
information.
Page 71
SEBU8705 71
Transportation Information
Lifting and Tying Down the Machine
Illustration 118 g02996562
Illustration 119 g02996560
The lift and tie down film (1) is located on all four
axles.
Page 72
72 SEBU8705
Transportation Information
Lifting and Tying Down the Machine
Lifting the machine

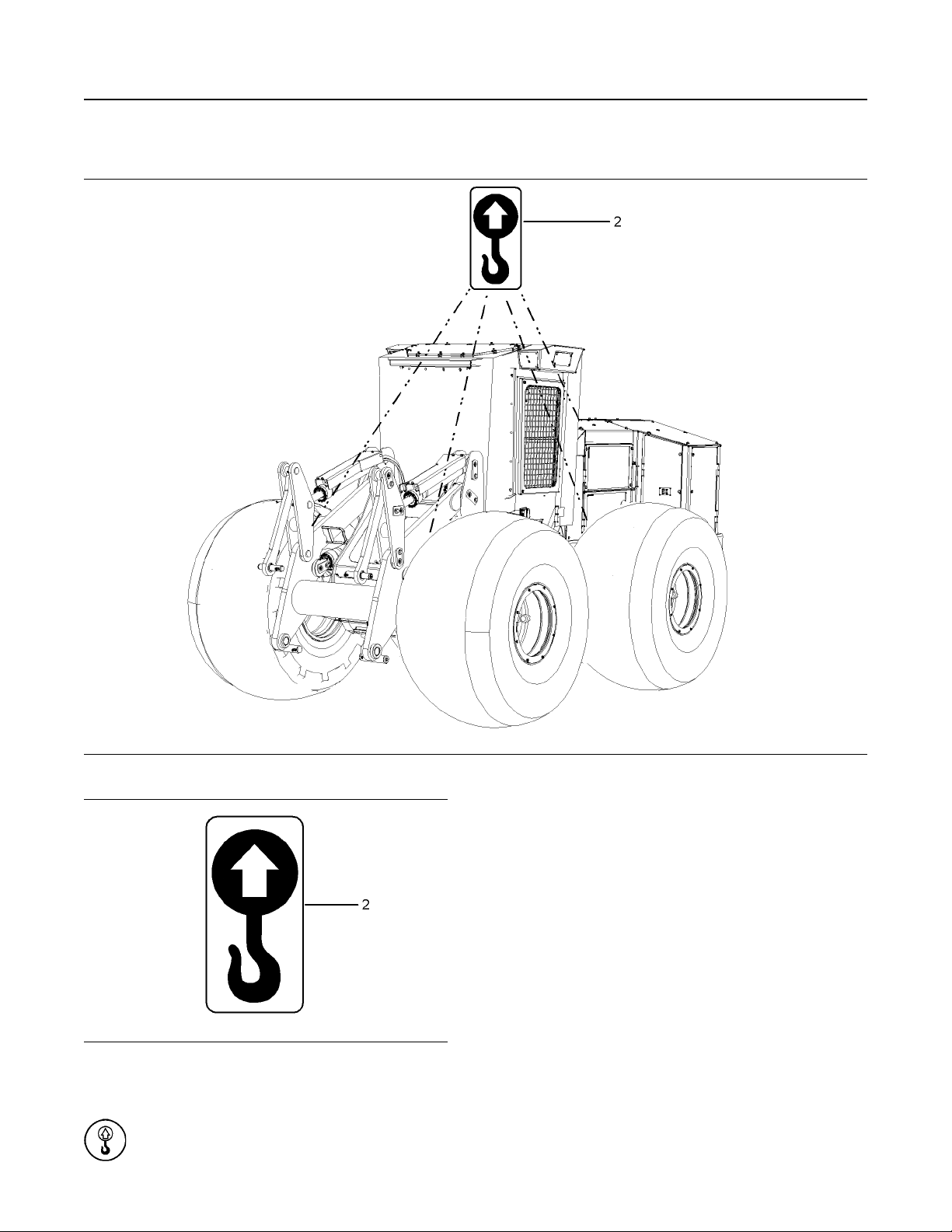

Illustration 120 g02997078
The weight and the instructions that are given herein
describe the machine as the machine is
manufactured by Prentice.
Refer to the Operation and Maintenance,
“Specifications” for specific weight information.
Note: Only lift objects from approved lifting points and
with approved lifting devices
1. Use proper rated cables and slings for lifting. The
crane should be positioned so that the machine is
lifted parallel to the ground.
2. To prevent contact with the machine, lifting cables
Illustration 121 g02997096
The lift and tie down film (2) is located on all four
axles.
Lifting Point – In order to lift the
should have sufficient length.
3. Move the hydraulic lockout control to the LOCKED
position.
4. Install the steering frame lock.
machine, attach the lifting devices to the
lifting points.
5. Thread the cable around each of four axles.
Page 73
SEBU8705 73
Transportation Information
Lifting and Tying Down the Machine
6. Apply the proper protector to prevent machine/wire
damage and slippage.
Tying Down the Machine
There are two methods that can be used to tie down a
machine. Local and/or regional regulations will
determine which method to use.
Note: Obey all local and regional governmental
regulations.
Tie Down Method
In areas where frictional lashing is not allowed, direct
lashing can be used as shown below.

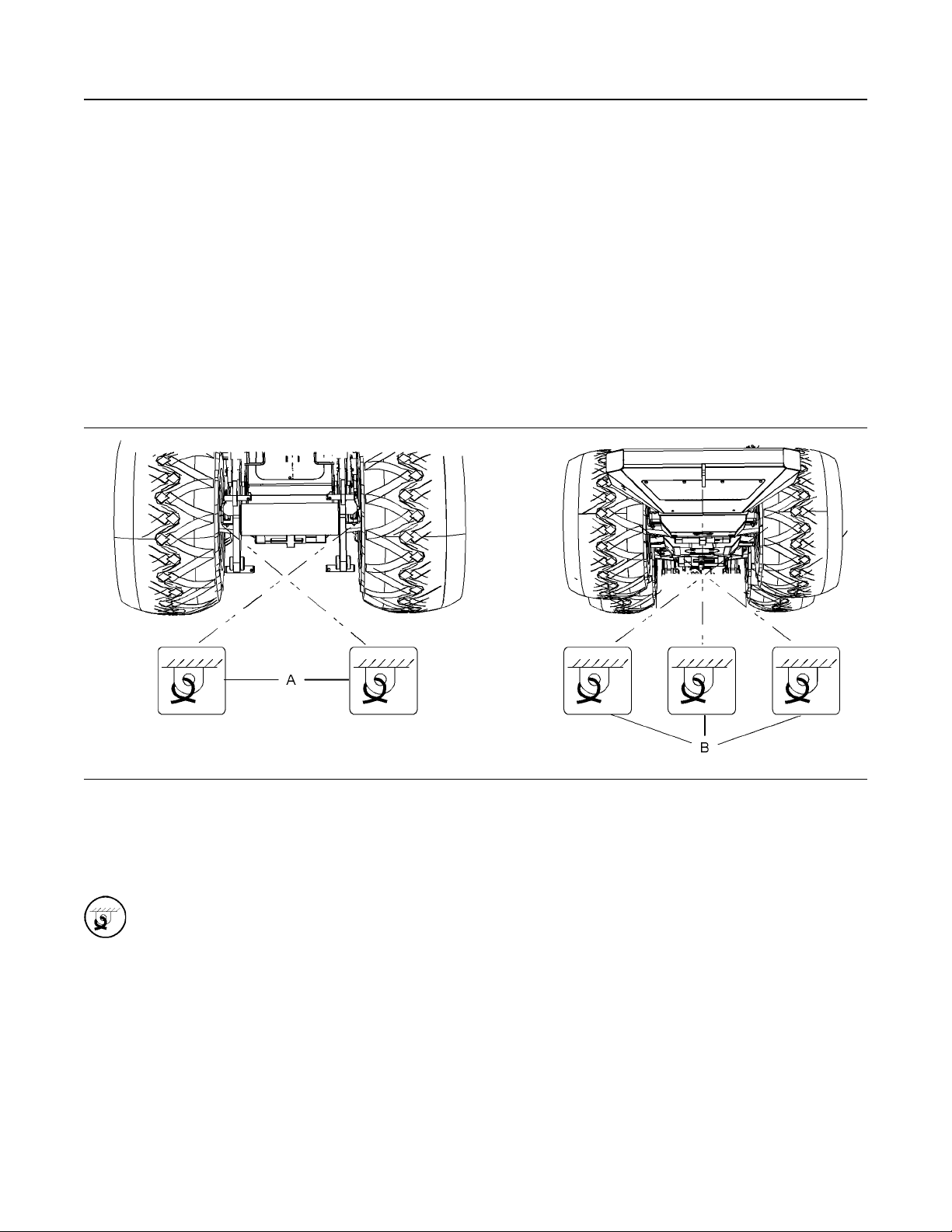

Illustration 122 g02997677
Direct lashing
(A) Front of the machine (B) Rear of the machine
Tying Down the Machine
Tie Down Point – In order to tie down the
machine, attach the tie-downs to the tie
down points.
The weight and the instructions that are given herein
describe the machine as the machine is
manufactured by Prentice.
Refer to the Operation and Maintenance,
“Specifications” for specific weight information.
1. Use proper rated cables and shackles for tying
down the machine.
2. Move the hydraulic lockout control to the LOCKED
position.
3. Install steering frame lock.
4. If there is a requirement of diagonal lashing for
tying down, use the proper tie-down point on the
lower frame. Set the lashing angle which is on the
longitudinal axis of the machine and the cable, at
30 to 50 degrees.
Page 74
74
Towing Information
Towing the Machine
SEBU8705
Towing Information
i05265371
Towing the Machine
SMCS Code: 7000
Personal injury or death could result when towing
a disabled machine incorrectly.
Block the machine to prevent movement before
releasing the brakes. The machine can roll free if
it is not blocked.
To properly perform the towing procedure, use the
following recommendations.
Use these towing instructions for moving a disabled
machine over a short distance of 8 km (5 MI.) or less.
Do not move the machine faster than 3 km/h (2 mph).
Move the machine to a convenient location for repair.
Always haul the machine if long distance moving is
required.
Shielding must be provided on the towing machine in
order to protect the operator in case the tow line or
the tow bar breaks.
It may be necessary to connect a larger machine or
additional machines to the disabled machine in order
to provide sufficient control and sufficient braking.
This will prevent the disabled machine from rolling
away out of control on a downgrade.
The requirements for all different situations cannot be
specified. Minimal towing machine capacity is
required on smooth, level surfaces. Maximum towing
machine capacity is required on inclines or on poor
surface conditions.
Any towed machine with a load must be equipped
with a braking system that can be operated from the
operator compartment.
Consult your Prentice dealer for more information
about towing a disabled machine.
Towing with a Running Engine
If the engine is running, the machine can be towed for
a short distance under certain conditions. The power
train and the steering system must be operable. Tow
the machine for a short distance only. For
example, pull the machine out of mud or to the side of
the road.
The operator on the towed machine must steer the
machine in the direction of the tow line.
Carefully obey all of the instructions that are outlined
in this topic.
Do not allow riders on a machine that is being towed
unless the operator can control the steering and/or
the braking of the towed machine.
Before you tow the machine, inspect the tow line or
the tow bar. Make sure that the tow line or the tow bar
is sturdy enough for towing the disabled machine.
The tow line or tow bar must have a strength that is
equal to 1.5 times the gross weight of the machine
that is being towed.
Do not use a chain for pulling. A chain link may break
and can cause personal injury. Use a wire rope that
has cable loops or end rings. Position an observer at
a safe location. The observer should stop the pulling
procedure if the cable starts to break or the cable
starts to unravel. If the towing machine moves without
the pulled machine, stop the pulling procedure.
Keep the tow line angle to a minimum. Do not exceed
a 30 degree angle from the straight ahead position.
Quick machine movement could overload the tow line
or the tow bar, causing the tow line or the tow bar to
break. Gradual, smooth machine movement works
better.
Normally, the towing machine should be as large as
the disabled machine. The towing machine must
have enough brake capacity, enough weight, and
enough power for the grade and distance that is
involved.
Towing with a Stopped Engine
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product.
Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, “Dealer
Service Tool Catalog” for tools and supplies suitable
to collect and contain fluids on Prentice products.
Dispose of all fluids according to local regulations and
mandates.
Perform the following steps before you tow the
machine.
1. Reverse the hydraulic steering hose connections
on one cylinder only. This will allow the steering
cylinders to move freely.
Note: Make sure that the cylinder hoses are
connected correctly before you operate the machine
again. The steering system will not function if the
hose connections are reversed.
Page 75
SEBU8705
2. If failure of the internal transmission or of the drive
line is suspected, remove the center drive shaft
and the rear drive shaft.
Reference: For the removal procedure for the drive
shafts, refer to the Disassembly and Assembly
manual for your machine's power train or consult your
Prentice dealer.
3. Fasten the tow bar or the tow line between the
disabled machine and the towing machine.
4. Tow the machine slowly. Do not exceed 3 km/h
(2 mph).
Personal injury or death can result from brake
malfunction.
Make sure all necessary repairs and adjustments
have been made before a machine that has been
towed to a service area, is put back into
operation.
75
Towing Information
Towing the Machine
Page 76
76 SEBU8705
Engine Starting (Alternate Methods)
Engine Starting with Auxiliary Start Receptacle
Engine Starting (Alternate
Methods)
i05253337
Engine Starting with Auxiliary
Start Receptacle
(If Equipped)
SMCS Code: 1463
NOTICE
In order to jump start this machine, a jump start receptacle must be used.
Failure to do so could cause damage to the electrical
system of the machine.
2. Engage the parking brake. Lower all work tools to
the ground.
3. Turn the start switch key on the stalled machine to
the OFF position. Turn off all accessories.
4. Turn ON the battery disconnect switch on the
stalled machine.
5. Move the machine that is being used as a power
source close to the stalled machine. The jump-start
cables should reach the batteries on both
machines. DO NOT ALLOW THE MACHINES TO
CONTACT EACH OTHER.
6. Stop the engine on the machine that is being used
as a power source. If you use an auxiliary power
source, turn off the charging system.
7. Connect the appropriate jump-start cable to the
auxiliary starting receptacle on the stalled
machine.
8. Connect the other end of the jump-start cable to
the auxiliary starting receptacle of the machine that
is being used as a power source.

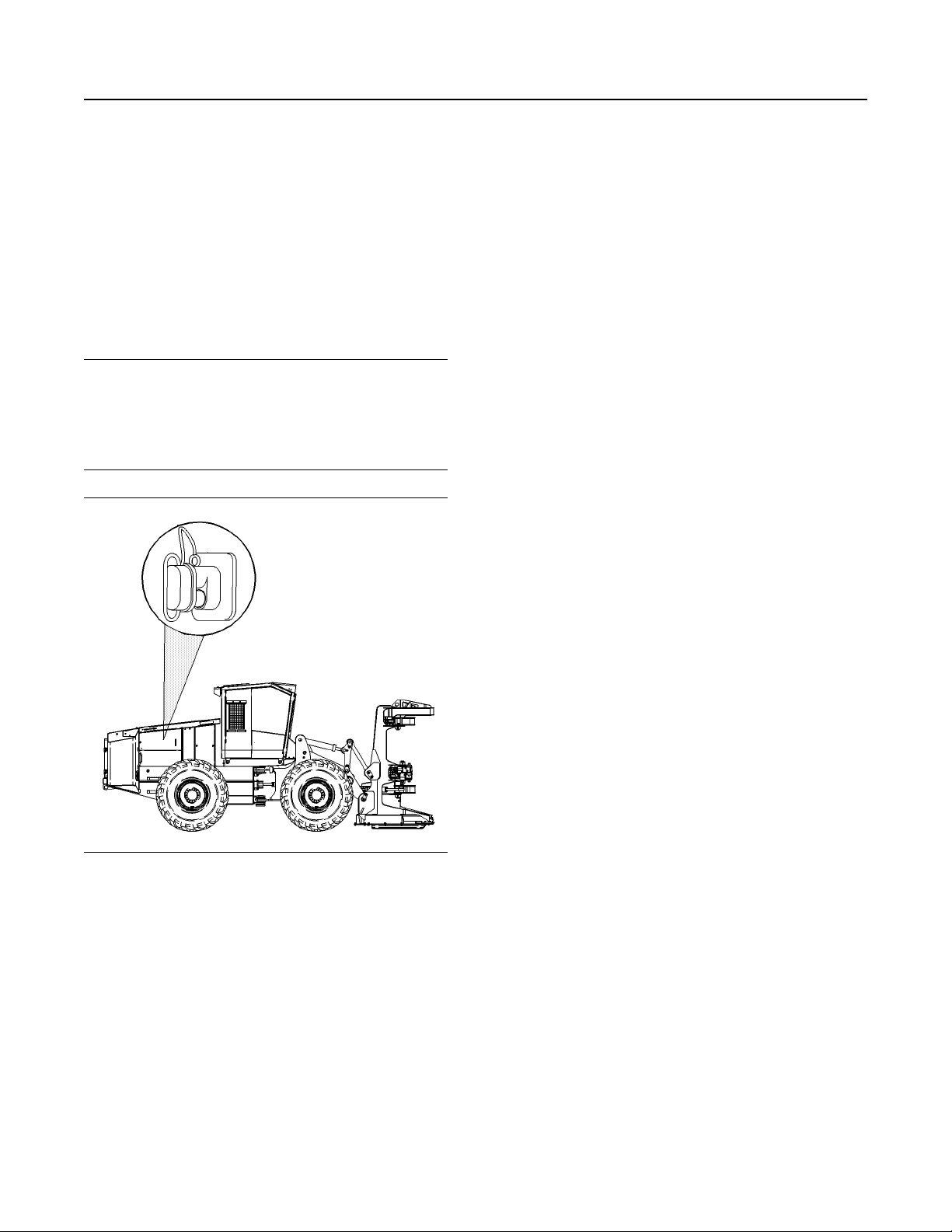

Illustration 123 g00785756
An auxiliary jump-start receptacle must be installed
on this machine prior to jump starting. Installation of
the auxiliary jump-start receptacle must be performed
by a trained technician or your Prentice dealer.
There are two cable assemblies that can be used to
jump-start the stalled machine. You can jump-start
the stalled machine from another machine that is
equipped with an auxiliary starting receptacle or with
an auxiliary power pack. Your Prentice dealer can
provide the correct cable lengths for your application.
9. Start the engine on the machine that is being used
as a power source or energize the charging
system on the auxiliary power source.
10. Allow the machine that is being used as a power
source to charge the batteries for 2 minutes.
11. Attempt to start the stalled engine.
12. Immediately after the stalled engine starts,
disconnect the jump-start cable from the power
source.
13. Disconnect the other end of the jump-start cable
from the stalled machine.
14. Conclude the failure analysis on the starting
charging system of the stalled machine, as
required. Check the machine while the engine is
running and the charging system is in operation.
1. Determine the reason that the engine will not start.
Reference: Refer to Special Instruction, SEHS7768
for more information on using the 6V-2150 Starting/
Charging Analyzer. Use this procedure even if the
machine does not have a diagnostic connector.
Page 77
SEBU8705
77
Maintenance Section
Tire Inflation with Nitrogen
Maintenance Section
Tire Inflation Information
i01676064
Tire Inflation with Nitrogen
SMCS Code: 4203
Dry nitrogen gas can be used for tire inflation and for
tire pressure adjustments. This includes all machines
with rubber tires. Nitrogen is an inert gas that will not
aid combustion inside the tire.
Proper nitrogen inflation equipment, and training
in using the equipment, are necessary to avoid
over inflation. A tire blowout or rim failure can result from improper or misused equipment and
personal injury or death can occur.
A tire blowout and/or rim failure can occur if the
inflation equipment is not used correctly, due to
the fact that a fully charged nitrogen cylinder's
pressure is approximately 15000 kPa (2200 psi).
There are other benefits to using nitrogen in addition
to reducing the risk of an explosion. The use of
nitrogen for tire inflation lessens the slow oxidation of
the rubber. Use of nitrogen also slows gradual tire
deterioration. This is especially important for tires that
are expected to have a long service life of at least
four years. Nitrogen reduces the corrosion of rim
components. Nitrogen also reduces problems that
result from disassembly.
A tire blowout or a rim failure can cause personal
injury.
Use a self-attaching inflation chuck and stand behind the tread when inflating a tire, to prevent personal injury.
Note: Do not set the tire inflation equipment regulator
higher than 140 kPa (20 psi) over the recommended
tire pressure.
Use 6V-4040 Inflation Group or an equivalent
inflation group to inflate tires with a nitrogen gas
cylinder. Refer to Special Instruction, SMHS7867 for
tire inflation instructions.
i04451529
Tire Inflation Pressure
SMCS Code: 4203; 7500
The tire inflation pressures in the following table are
cold inflation pressures.
Table 3
Standard Tires
Ply Rating or
Size
24.5L × 32Firestone
Front tires
24.5L × 32Firestone
Rear tires
28L × 26Firestone
Front tires (NAR)
28L × 26Firestone
Front tires (STD)
28L × 26Firestone
Rear tires (NAR)
28L × 26Firestone
Rear tires (STD)
30.5L × 32Firestone
Front tires
30.5 L × 32Good
Year Front tires
30.5L × 32Firestone
Rear tires
30.5L × 32Good Year
Rear tires
30.5 L × 32Good
Year Rear tires
30.5L × 32Firestone
Rear tires
30.5L × 32Firestone
Front Dual tires
30.5L × 32Firestone
Rear Dual tires
67 × 34Firestone
Front tires
67 × 34Firestone
Rear tires
Strength Index
16
16
14
14
14
14
20
16
20
16
16
20
20
20
14
14
The inflation pressure is based on the weight of a
ready-to-work machine, at a rated payload, and in
average operating conditions. Pressures for each
application may vary. Always obtain the proper
pressures from your tire supplier.
Inflation
Pressure
200 kPa (29 psi)
200 kPa (29 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
170 kPa (25 psi)
275 kPa (40 psi)
275 kPa (40 psi)
For nitrogen inflation, use the same tire pressures
that are used for air inflation. Consult your tire dealer
for operating pressures.
Page 78
78 SEBU8705
Tire Inflation Information
Tire Inflation Pressure Adjustment
i04551593
Tire Inflation Pressure
Adjustment
SMCS Code: 4203
Always obtain the proper tire inflation pressures and
maintenance recommendations for the tires on your
machine from your tire supplier. The tire pressure in a
warm shop area 18° to 21°C (65° to 70°F) will
significantly change when you move the machine into
freezing temperatures. If you inflate the tire to the
correct pressure in a warm shop, the tire will be
underinflated in freezing temperatures. Low pressure
shortens the life of a tire.
Reference: When you operate the machine in
freezing temperatures, refer to Special Publication,
SEBU5898, “Cold Weather Recommendations for All
Prentice Machines” in order to adjust tire inflation
pressures.
Page 79
SEBU8705 79
Lubricant Viscosities and Refill Capacities
Lubricant Viscosities
Lubricant Viscosities and
Refill Capacities
i06035348
Lubricant Viscosities
SMCS Code: 7581
Table 4
Recommended Lubricant Viscosities for Ambient Temperatures
(1)
Oil Type and Performance
Compartment or System
Engine Crankcase
Hydraulic Systems
Differentials and Final Drives TO-4 or TDTO
Transmission and Pump Drive
(1)
When you are operating the machine in temperatures below −20°C (−4°F), refer to Operation and Maintenance Manual, SEBU5898, “Cold
Weather Recommendations”. This reference is available from your Prentice dealer.
(2)
Cat DEO-ULS or oils that meet the CAT ECF-3 specification and the API CJ-4 category are required for use in nonroad Tier 4 certified engines
(USA).
(3)
Cat HYDO Advanced oils have a 50% increase in the standard oil drain interval for machine hydraulic systems (3000 hours versus 2000
hours) over second and third choice oils - when following the maintenance interval schedule for oil filter changes and for oil sampling that is
stated in the Operation and Maintenance Manual for your particular machine.
(4)
Cat HYDO ADVANCED 30
(5)
These special oils that contain synthetic base stocks do not contain polymer viscosity index improvers. The high viscosity index of the “synthetic” oils provide natural multiviscosity properties.
(6)
When the use of gear oil is specified, use Cat GO or Cat Synthetic GO in order to maximize the component life.
Requirements
Cat DEO-ULS
ECF-3, CJ-4
HYDO ADVANCED 10
Cat GO Gear Oil
(2)
Oil Viscosities
SAE 10W-30 −20 +40 −4 +104
SAE 15W-40 -15 +50 +5 +122
(3)
SAE 10W −20 +40 −4 +104
(4)
SAE 30
SAE 5W20 (SPC)
SAE 10W −30 0 −22 +32
SAE 30 −20 +25 −4 +77
SAE 40 −10 +40 +14 +104
SAE 50 0 +50 +32 +122
SAE 80W-90
(5)
(6)
°C °F
Min Max Min Max
+10 +50 +50 +122
−30 0 −22 +32
−20 +40 −4 +104
i04862469
Lubricant Viscosities
(Fluids Recommendations)
SMCS Code: 7581
General Information for Lubricants
When you are operating the machine in temperatures
below −20°C (−4°F), refer to Special Publication,
SEBU5898, “Cold Weather Recommendations”. This
publication is available from your Prentice dealer.
Refer to the “Lubricant Information” section in the
latest revision of the Special Publication, SEBU6250,
“Caterpillar Machine Fluids Recommendations” for a
list of Cat engine oils and for detailed information.
This manual may be found on the Web at Safety.Cat.
com.
The footnotes are a key part of the tables. Read ALL
footnotes that pertain to the machine compartment in
question.
Selecting the Viscosity
In order to select the proper oil for each machine
compartment, refer to the “Lubricant Viscosity for
Ambient Temperature” table. Use the oil type AND oil
viscosity for the specific compartment at the proper
ambient temperature.
Page 80
80 SEBU8705
Lubricant Viscosities and Refill Capacities
Lubricant Viscosities
The proper oil viscosity grade is determined by the
minimum ambient temperature (the air in the
immediate vicinity of the machine). Measure the
temperature when the machine is started and while
the machine is operated. In order to determine the
proper oil viscosity grade, refer to the “Min” column in
the table. This information reflects the coldest
ambient temperature condition for starting a cold
machine and for operating a cold machine. Refer to
the “Max” column in the table for operating the
machine at the highest temperature that is
anticipated. Unless specified otherwise in the
“Lubricant Viscosities for Ambient Temperatures”
tables, use the highest oil viscosity that is allowed for
the ambient temperature.
Machines that are operated continuously should use
oils that have the higher oil viscosity in the final drives
and in the differentials. The oils that have the higher
oil viscosity will maintain the highest possible oil film
thickness. Refer to “General Information for
Lubricants” article, “Lubricant Viscosities” tables, and
any associated footnotes. Consult your Prentice
dealer if additional information is needed.
NOTICE
Not following the recommendations found in this manual can lead to reduced performance and compartment failure.
• Diesel Particulate Filters (DPF)
• Diesel Oxidation Catalysts (DOC)
• Selective Catalytic Reduction (SCR)
• Lean NOx Traps (LNT)
Other systems may apply.
Engine Oil
Cat oils have been developed and tested in order to
provide the full performance and life that has been
designed and built into Cat engines.
Cat DEO-ULS or oils that meet the Cat ECF-3
specification and the API CJ-4 are required for use in
the applications listed below. Cat DEO-ULS and oils
meeting Cat ECF-3 specification and the API CJ-4
and ACEA E9 oil categories have been developed
with limited sulfated ash, phosphorus, and sulfur.
These chemical limits are designed to maintain the
expected aftertreatment devices life, performance,
and service interval. If oils meeting the Cat ECF-3
specification and the API CJ-4 specifications are not
available, oils meeting ACEA E9 may be used. ACEA
E9 oils meet the chemical limits designed to maintain
aftertreatment device life. ACEA E9 oils are validated
using some but not all ECF-3 and API CJ-4 standard
engine performance tests. Consult your oil supplier
when considering use of an oil that is not Cat ECF-3
or API CJ-4 qualified.
Failure to meet the listed requirements will damage
aftertreatment-equipped engines and can negatively
impact the performance of the aftertreatment devices.
The Diesel Particulate Filter (DPF) will plug sooner
and require more frequent DPF ash service intervals.
Typical aftertreatment systems include the following:
Page 81
SEBU8705 81
Lubricant Viscosities and Refill Capacities
Lubricant Viscosities
Table 5
Lubricant Viscosities for Ambient Temperatures
Compartment or System
Engine Crankcase
Oil Type and Performance
Requirements
Cat DEO-ULS Cold Weather SAE 0W-40 −40 40 −40 104
Cat DEO-ULS SYN SAE 5W-40 −30 50 −22 122
Cat DEO-ULS SAE 10W-30 −18 40 0 104
Cat DEO-ULS SAE 15W-40 −9.5 50 15 122
Hydraulic Systems
Refer to the “Lubricant Information” section in the
latest revision of the Special Publication, SEBU6250,
“Caterpillar Machine Fluids Recommendations” for
detailed information. This manual may be found on
the Web at Safety.Cat.com.
The following are the preferred oils for use in most
Prentice machine hydraulic systems:
• Cat HYDO Advanced 10 SAE 10W
• Cat HYDO Advanced 30 SAE 30W
• Cat BIO HYDO Advanced
Cat HYDO Advanced fluids have a 50% increase
in the standard oil drain interval for machine
hydraulic systems (3000 hours versus 2000 hours)
over second and third choice oils when you follow the
maintenance interval schedule for oil filter changes
and for oil sampling that is stated in the Operation
and Maintenance Manual for your particular machine.
6000 hour oil drain intervals are possible when using
S·O·S Services oil analysis. Consult your Prentice
dealer for details. When switching to Cat HYDO
Advanced fluids, cross contamination with the
previous oil should be kept to less than 10%.
Oil Viscosities
°C °F
Min Max Min Max
Second choice oils are listed below.
• Cat MTO
• Cat DEO
• Cat DEO-ULS
• Cat TDTO
• Cat TDTO Cold Weather
• Cat TDTO-TMS
• Cat DEO-ULS SYN
• Cat DEO SYN
• Cat DEO-ULS Cold Weather
Page 82
82 SEBU8705
Lubricant Viscosities and Refill Capacities
Lubricant Viscosities
Table 6
Lubricant Viscosities for Ambient Temperatures
Compartment or System
Hydraulic System
Oil Type and Performance
Requirements
Cat HYDO Advanced 10
Cat TDTO
Cat HYDO Advanced 30
Cat TDTO
Cat BIO HYDO Advanced “ISO 46” Multi-Grade −30 50 −22 122
Cat MTO
Cat DEO-ULS
Cat DEO
Cat DEO-ULS
Cat DEO
Cat TDTO-TMS Multi-Grade −15 50 5 122
Cat DEO-ULS SYN
Cat DEO SYN
Cat DEO-ULS Cold Weather SAE0W-40 −40 40 −40 104
Cat TDTO Cold Weather SAE 0W-20 −40 40 −40 104
Oil Viscosities
SAE 10W −20 50 −4 122
SAE 30 10 50 50 122
SAE10W-30 −20 40 −4 104
SAE15W-40 −15 50 5 122
SAE 5W-40 −30 40 −22 104
°C °F
Min Max Min Max
Page 83
SEBU8705 83
Lubricant Viscosities and Refill Capacities
Lubricant Viscosities
Other Fluid Applications
Table 7
Excavators, Front Shovels, Mass Excavators, Demolition Excavators, and Track Material Handlers
Lubricant Viscosities for Ambient Temperatures
Compartment or
System
Final Drives and
Diferentials
Oil Type and Perform-
ance Requirements
Cat TDTO
Cat TDTO-TMS
Cat TDTO SYN Cold
Weather
commercial TO-4
Oil Viscosity Grade
Special Lubricants
Grease
In order to use a non-Cat grease, the supplier must
certify that the lubricant is compatible with Cat
grease.
Each pin joint should be flushed with the new grease.
Ensure that all old grease is removed. Failure to meet
this requirement may lead to failure of a pin joint.
Table 8
Recommended Grease
Compartment or System GreaseType
Cat Advanced 3Moly
Cat Ultra 5Moly
External Lubrication Points
Cat Arctic Platinum NLGI Grade 0 −50 20 −58 68
Cat Desert Gold NLGI Grade 2 −20 60 −4 140
Cat Multipurpose Grease
°C °F
Min Max Min Max
SAE 80W-90 -20 40 -4 104
SAE 5W-20 (SPC)
SAE 10W −30 0 −22 32
SAE 30 −20 25 −4 77
SAE 40 −10 40 14 104
SAE 50 0 50 32 122
−30 0 −22 32
°C °F
NLGI Grade
Min Max Min Max
NLGI Grade 2 −20 40 −4 104
NLGI Grade 2 −30 50 −22 122
NLGI Grade 1 −35 40 −31 104
NLGI Grade 0 −40 35 −40 95
NLGI Grade 2 −30 40 −22 104
Page 84
84 SEBU8705
Lubricant Viscosities and Refill Capacities
Lubricant Viscosities
Diesel Fuel Recommendations

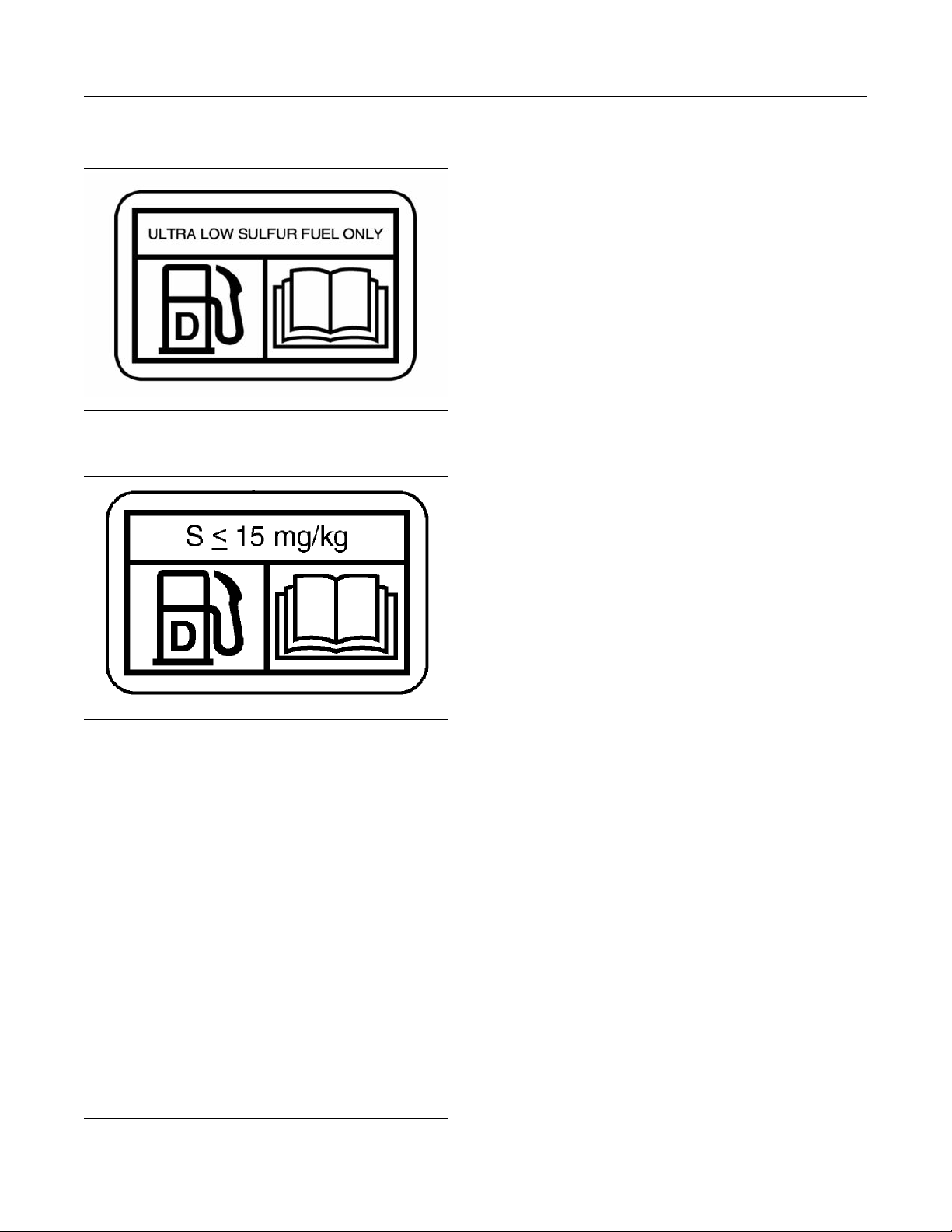

Illustration 124 g02157153
NACD Film
• Shorten the time interval between
aftertreatment device service intervals (cause
the need for more frequent service intervals)
• Adversely impact the performance and life of
aftertreatment devices (cause loss of
performance)
• Reduce regeneration intervals of
aftertreatment devices
• Reduce engine efficiency and durability.
• Increase the wear.
• Increase the corrosion.
• Increase the deposits.
• Lower fuel economy
• Shorten the time period between oil drain intervals
(more frequent oil drain intervals).
• Increase overall operating costs.
Failures that result from the use of improper fuels are
not Prentice factory defects. Therefore the cost of
repairs would not be covered by a Prentice warranty.
Illustration 125 g02052934
EAME Film
Diesel fuel must meet “Caterpillar Specification for
Distillate Fuel” and the latest versions of “ASTM
D975” or “EN 590” in order to ensure optimum
engine performance. Refer to Special Publication,
SEBU6250, “Caterpillar Machine Fluids
Recommendations” for the latest fuel information and
for Cat fuel specification. This manual may be found
on the Web at Safety.Cat.com.
NOTICE
Ultra Low Sulfur Diesel (ULSD) fuel 0.0015 percent
(≤15 ppm (mg/kg)) sulfur is required by regulation for
use in engines certified to nonroad Tier 4 standards
(U.S. EPA Tier 4 certified) and that are equipped with
exhaust aftertreatment systems.
European ULSD 0.0010 percent (≤10ppm (mg/kg))
sulfur fuel is required by regulation for use in engines
certified to European nonroad Stage IIIB and newer
standards and are equipped with exhaust aftertreat-
ment systems.
Misfueling with fuels of higher sulfur level can
have the following negative effects:
Prentice does not require the use of ULSD in off road
and machine applications that are not Tier 4/Stage
IIIB certified engines. ULSD is not required in engines
that are not equipped with after treatment devices.
For Tier 4/Stage IIIB/Stage IV certified engines
always follow operating instructions. Fuel tank inlet
labels are installed in order to ensure that the correct
fuels are used.
Refer to Special Publication, SEBU6250, “Caterpillar
Machine Fluids Recommendations” for more details
about fuels, lubricants, and Tier 4 requirements. This
manual may be found on the Web at Safety.Cat.com.
Fuel Additives
Cat Diesel Fuel Conditioner and Cat Fuel System
Cleaner are available for use when needed. These
products are applicable to diesel and biodiesel fuels.
Consult your Prentice dealer for availability.
Biodiesel
Biodiesel is a fuel that can be made from various
renewable resources that include vegetable oils,
animal fat, and waste cooking oil. Soybean oil and
rapeseed oil are the primary vegetable oil sources. In
order to use any of these oils or fats as fuel, the oils or
fats are chemically processed (esterified). The water
and contaminants are removed.
U.S. distillate diesel fuel specification “ASTM D97509a” includes up to B5 (5 percent) biodiesel.
Currently, any diesel fuel in the U.S. may contain up
to B5 biodiesel fuel.
Page 85
SEBU8705 85
Lubricant Viscosities and Refill Capacities
Capacities (Refill)
European distillate diesel fuel specification “EN 590”
includes up to B5 (5 percent) and in some regions up
to B7 (7 percent) biodiesel. Any diesel fuel in Europe
may contain up to B5 or in some regions up to B7
biodiesel fuel.
Note: The diesel portion used in the biodiesel blend
must be Ultra Low Sulfur Diesel (15 ppm sulfur or
less, per “ASTM D975”). In Europe the diesel fuel
portion used in the biodiesel blend must be sulfur free
diesel (10 ppm sulfur or less, per “EN 590”). The final
blend must have 15 ppm sulfur or less.
Note: Up to B20 biodiesel blend level is acceptable
for use in Excavator engines.
When biodiesel fuel is used, certain guidelines must
be followed. Biodiesel fuel can influence the engine
oil, aftertreatment devices, non-metallic, fuel system
components, and others. Biodiesel fuel has limited
storage life and has limited oxidation stability. Follow
the guidelines and requirements for engines that are
seasonally operated and for standby power
generation engines.
In order to reduce the risks associated with the use of
biodiesel, the final biodiesel blend and the biodiesel
fuel used must meet specific blending requirements.
All the guidelines and requirements are provided in
the latest revision of Special Publication, SEBU6250,
“Caterpillar Machine Fluids Recommendations”. This
manual may be found on the Web at Safety.Cat.com.
Capacities (Refill)
SMCS Code: 7560
Table 9
Approximate Refill Capacities
Component or System Liters US gal
Engine Crankcase
Hydraulic System
Cooling System 45 11.8
Fuel Tank
Fuel Tank
Front Differential 52 13.8
Rear Differential 52 13.8
Parking Brake Reservoir 0.6 0.16
Transmission 6 1.6
Pump Drive 2 .6
Pressurized Water System 26 6.9
(1)
(2)
(3)
(4)
(3)
(4)
This quantity includes changing the oil filter.
This quantity includes the hydraulic tank, the hydraulic lines,
and all hydraulic components.
2570C
2670C
(1)
(2)
17 4.5
227 60
318 84
322 85
i06035632
Coolant Information
The information provided in this “Coolant
Recommendation” section should be used with the
“Lubricants Information” provided in the latest revision
of Special Publication, SEBU6250, “Caterpillar
Machine Fluids Recommendations”. This manual
may be found on the Web at Safety.Cat.com.
The following two types of coolants may be used in
Cat diesel engines:
Preferred – Cat ELC (Extended Life Coolant)
Acceptable – Cat DEAC (Diesel Engine Antifreeze/
Coolant)
NOTICE
Never use water alone as a coolant. Water alone is
corrosive at engine operating temperatures. In addition, water alone does not provide adequate protection against boiling or freezing.
Table 10
Approximate Refill Capacities
Compartment or
System
Air Conditioner 1.0 2.3 R134a
Table 11
kg lb Recommended Type
Caterpillar Extender for ELC
Cooling System Capacity
50 to 64 L (13 to 17 US gal) 1.18 L (40 fl oz)
Recommended Amount of
Extender
Page 86
86 SEBU8705
Lubricant Viscosities and Refill Capacities
S·O·S Information
i04551607
S·O·S Information
SMCS Code: 1348; 1350; 3000; 3080; 3108; 4070;
5050; 7542
S·O·S Services is a highly recommended process for
Prentice customers to use in order to minimize
owning and operating cost. Customers provide oil
samples, coolant samples, and other machine
information. The dealer uses the data in order to
provide the customer with recommendations for
management of the equipment. In addition, S·O·S
Services can help determine the cause of an existing
product problem.
Refer to Special Publication, SEBU6250, “Caterpillar
Machine Fluid Recommendations” for detailed
information concerning S·O·S Services.
Refer to the Operation and Maintenance Manual,
“Maintenance Interval Schedule” for a specific
sampling location and a service hour maintenance
interval.
Consult your Prentice dealer for complete
information and assistance in establishing an S·O·S
program for your equipment.
Page 87
SEBU8705 87
Maintenance Support
Welding on Machines and Engines with Electronic Controls
Maintenance Support
i04551610
Welding on Machines and
Engines with Electronic
Controls
SMCS Code: 1000; 7000
Do not weld on any protective structure. If it is
necessary to repair a protective structure, contact
your Prentice dealer.
Proper welding procedures are necessary in order to
avoid damage to the electronic controls and to the
bearings. When possible, remove the component that
must be welded from the machine or the engine and
then weld the component. If you must weld near an
electronic control on the machine or the engine,
temporarily remove the electronic control in order to
prevent heat-related damage. The following steps
should be followed in order to weld on a machine or
an engine with electronic controls.
1. Turn off the engine. Place the engine start switch in
the OFF position.
• IQAN Module - Located in the cab
• XA2 Module - Located in the front frame
• Product Link Module - Located in the cab
5. Protect any wiring harnesses and components
from the debris and the spatter which is created
from welding.
6. Use standard welding procedures in order to weld
the materials together.
2. Turn the battery disconnect switch to the OFF
position. If there is no battery disconnect switch,
remove the negative battery cable at the battery.
NOTICE
Do NOT use electrical components (ECM or sensors)
or electronic component grounding points for grounding the welder.
3. Clamp the ground cable from the welder to the
component that will be welded. Place the clamp as
close as possible to the weld. Make sure that the
electrical path from the ground cable to the
component does not go through any bearing. Use
this procedure in order to reduce the possibility of
damage to the following components:
• Bearings of the drive train
• Hydraulic components
• Electrical components (Engine ECM, IQAN
Module, XA2 Module and the Product Link
Module.
• Other components of the machine
4. Disconnect power source to or remove the
following components
• ECM Module - Located on the engine
Page 88
88 SEBU8705
Maintenance Support
Maintenance Interval Schedule
i06095840
Maintenance Interval Schedule
SMCS Code: 7000
Ensure that all safety information, warnings, and
instructions are read and understood before any
operation or any maintenance procedures are
performed.
The user is responsible for the performance of
maintenance. All adjustments, the use of proper
lubricants, fluids, filters, and the replacement of
components due to normal wear and aging are
included. Failure to adhere to proper maintenance
intervals and procedures may result in diminished
performance of the product and/or accelerated wear
of components.
Use mileage, fuel consumption, service hours, or
calendar time, WHICH EVER OCCURS FIRST, in
order to determine the maintenance intervals.
Products that operate in severe operating conditions
may require more frequent maintenance. Refer to the
maintenance procedure for any other exceptions that
may change the maintenance intervals.
Note: The aftertreatment system can be expected to
function properly for the useful life of the engine
(emissions durability period), as defined by
regulation. All prescribed maintenance requirements
must be followed.
Note: Before each consecutive interval is performed,
all maintenance from the previous interval must be
performed.
Every 10 Service Hours or Daily
“Cooling System Coolant Level - Check” ................97
“Engine Oil Level - Check”....................................109
“Fuel System Primary Filter (Water Separator) -
Drain” .....................................................................114
“Hydraulic System Oil Level - Check ”..................126
“Pump Drive Oil Level - Check” ............................ 130
“Seat Belt - Inspect” .............................................. 132
“Transmission Gearbox Oil Level - Check”........... 134
Every 50 Service Hours
“Tire Inflation - Check” .......................................... 133
Every 50 Service Hours or Weekly
“Differential and Final Drive Oil Level - Check” .... 101
“Fuel Tank Water and Sediment - Drain” ...............119
“Linkage - Lubricate”............................................. 127
Every 250 Service Hours or Monthly
“Articulation Bearings - Lubricate” ...........................90
“Battery - Clean” ......................................................90
“Belts - Inspect/Adjust/Replace” ..............................92
“Brake Accumulator (Service) - Check” ...................92
When Required
“Battery - Recycle” ...................................................90
“Battery or Battery Cable - Inspect/Replace”...........91
“Cab Air Filter - Clean/Replace” ..............................93
“Circuit Breakers - Reset” ........................................93
“Engine Air Filter Primary Element - Clean/
Replace” ...............................................................103
“Engine Air Filter Secondary Element - Replace”. 106
“Fuel System - Prime”............................................114
“Fuses - Replace” ................................................. 120
“Hydraulic Tank Breaker Relief Valve - Clean” ..... 127
“Oil Filter - Inspect” ............................................... 129
“Water Cleaning System (Pressurized) - Purge” .. 135
“Windows - Clean” ................................................136
“Engine Oil and Filter - Change” ............................110
“Machine Drift on a Slope - Check”....................... 128
“Transmission Gearbox Oil Sample - Obtain”....... 134
“Water Cleaning System (Pressurized) - Test” ..... 136
Every 3 Months
“Hydraulic System Oil Filter - Replace” ................ 125
Initial 500 Hours (for New Systems,
Refilled Systems, and Converted
Systems)
“Cooling System Coolant Sample (Level 2) -
Obtain” .....................................................................99
Every 500 Service Hours
“Differential and Final Drive Oil Sample - Obtain” 102
“Engine Oil Sample - Obtain”.................................110
“Hydraulic System Oil Sample - Obtain”............... 126
Page 89
SEBU8705 89
Maintenance Support
ARD Spark Plug - Replace
“Pump Drive Oil Sample - Obtain” ........................ 130
Every 500 Service Hours or 3
Months
“Cooling System Coolant Sample (Level 1) -
Obtain” .....................................................................98
“Fuel System Primary Filter (Water Separator)
Element - Replace” ................................................115
“Fuel Tank Cap and Strainer - Clean”....................118
“Transmission Gearbox Oil - Change”..................133
Every 500 Service Hours or 1 Year
“Fuel System Secondary Filter - Replace” ............117
Every 1000 Service Hours
“Battery Hold-Down - Tighten”.................................91
“Rollover Protective Structure (ROPS) - Inspect”. 132
Every 1500 Service Hours
“Engine Crankcase Breather Element - Replace” 107
Every 2000 Service Hours or 1 Year
“Brake Discs - Check”..............................................93
“Differential and Final Drive Oil - Change”............ 101
“Hydraulic System Oil - Change”.......................... 121
“Cooling System Water Temperature Regulator -
Replace” ............................................................... 100
Every 12 000 Service Hours or 6
Years
“Cooling System Coolant (ELC) - Change” .............94
i04823262
ARD Spark Plug - Replace
SMCS Code: 1408; 1555-510
Engine hood and engine hood parts can be hot
while engine is running or immediately after engine shutdown. Hot parts or hot components can
cause burns or personal injury. Do not allow these
parts to contact your skin, when engine is running
or immediately after engine shutdown. Use protective clothing or protective equipment to protect
your skin.
NOTICE
If the engine is running or the key is in the ON position
the ARD plug will continue to fire. Turn the key to the
OFF position before servicing the ARD plug.
1. Remove wire harness (1) from spark plug (2).
“Pump Drive Oil - Change” ................................... 129
“Receiver Dryer (Refrigerant) - Replace”.............. 131
Every Year
“Cooling System Coolant Sample (Level 2) -
Obtain” .....................................................................99
Every 3 Years After Date of
Installation or Every 5 Years After
Date of Manufacture
“Seat Belt - Replace” ............................................ 132
Every 5000 Service Hours
“ARD Spark Plug - Replace”....................................89
“Diesel Particulate Filter - Clean/Replace” ........... 100
Every 6000 Service Hours or 3
Years
“Cooling System Coolant Extender (ELC) - Add” ....96
2. Use a deep well socket and a breaker bar to loosen
the spark plug. If necessary, see your Prentice
dealer for the part number of the socket. After the
spark plug has been loosened, use the socket to
remove the spark plug by hand in order to detect
problems with the threads.
3. Use a plug bore brush in order to clean the ground
electrode.
NOTICE
Do not overtighten the spark plug. The shell can be
cracked and the gasket can be deformed. The metal
can deform and the gasket can be damaged. The
shell can be stretched. This will loosen the seal that is
between the shell and the insulator, allowing combustion pressure to blow past the seal. Serious damage
to the engine can occur.
Use the proper torque.
4. Install the spark plug by hand until the spark plug
contacts the ARD. Tighten spark plug (2) to a
torque of 47 ± 4 N·m (35 ± 3 lb ft).
Page 90
90 SEBU8705
Maintenance Support
Articulation Bearings - Lubricate
5. Connect the wiring harness.
6. Close engine hood and latch the engine hood.
i04468430
Articulation Bearings Lubricate
SMCS Code: 7057-086-BD; 7065-086-BD; 7066-
086-BD
i04470910
Battery - Clean
SMCS Code: 1401-070

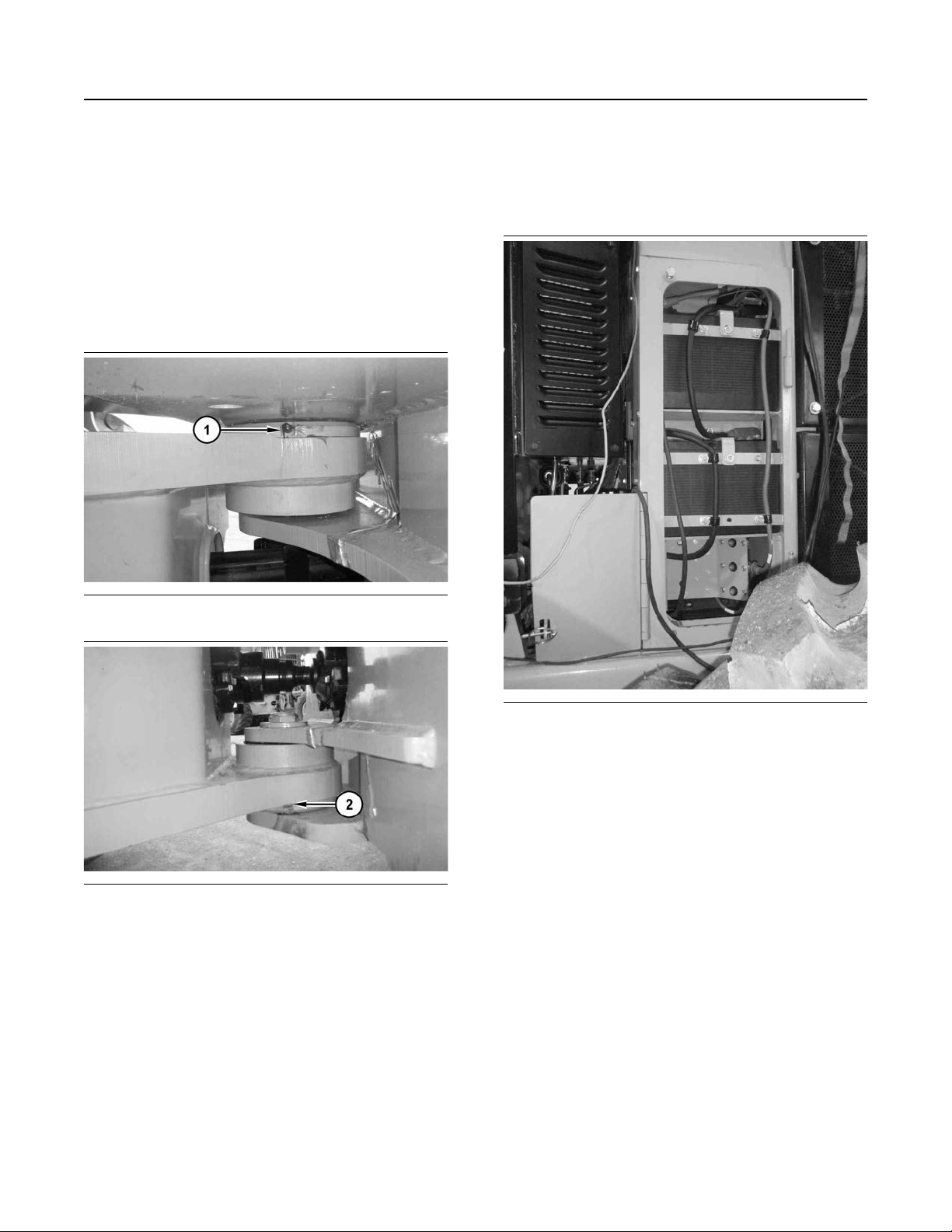

Illustration 126 g02651458
Illustration 127 g02651776
1. Wipe off all fittings before any lubricant is applied.
2. Apply lubricant through one fitting on the upper
hitch(1) and through one fitting on the lower hitch
(2).
Illustration 128 g02652792
Remove two bolts from the battery access door that is
located on the left-hand side of the machine.
Clean the battery terminals and the surfaces of the
batteries with a clean cloth. Make sure that the
battery cables are installed securely.
Carefully replace the two bolts.
i02039199
Battery - Recycle
SMCS Code: 1401-561
Always recycle a battery. Never discard a battery.
Return used batteries to one of the following
locations:
• A battery supplier
• An authorized battery collection facility
• A recycling facility
Page 91
SEBU8705 91
Maintenance Support
Battery Hold-Down - Tighten
i04471071
Battery Hold-Down - Tighten
SMCS Code: 7257-527

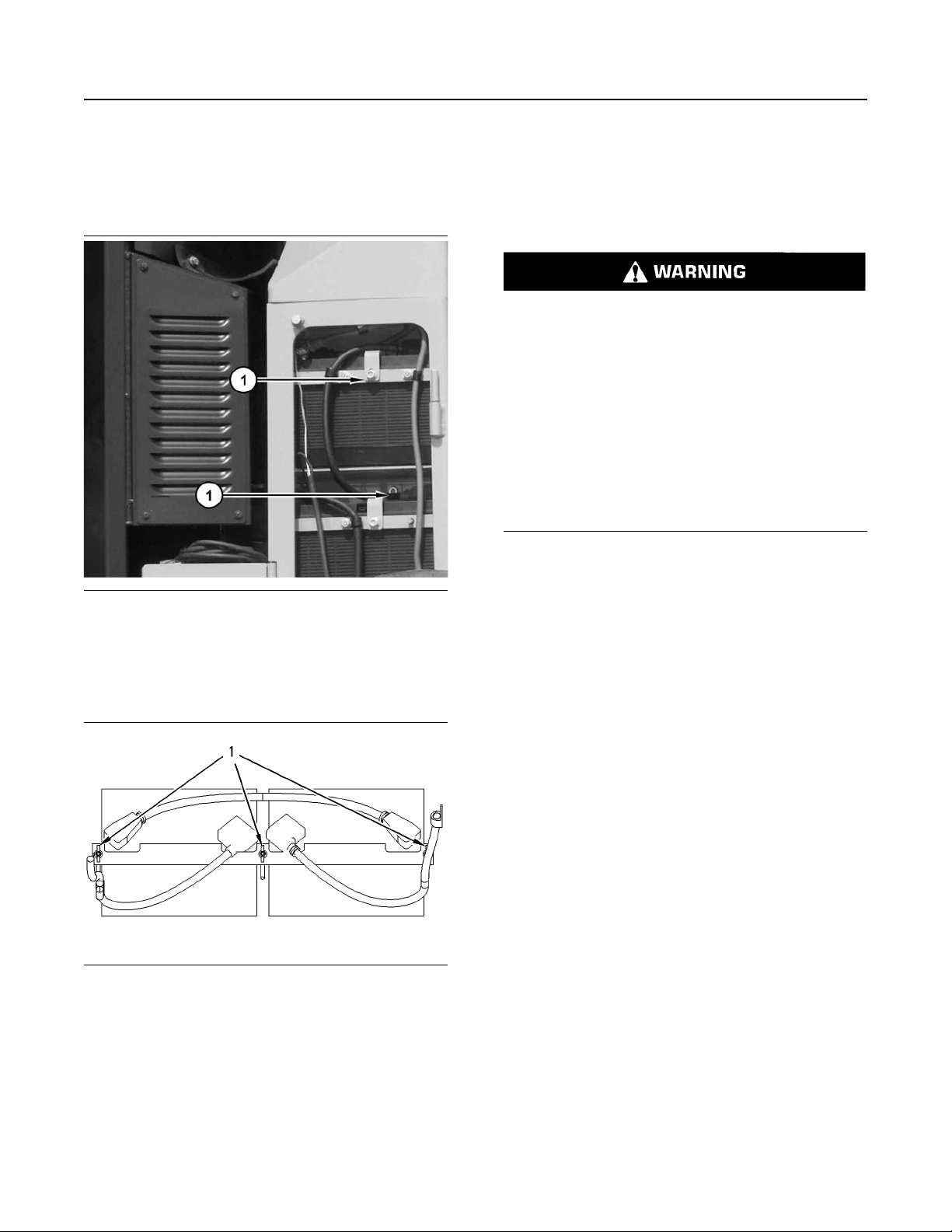

Illustration 129 g02662516
The batteries are located on the left-hand side of the
machine. The access door for the batteries is located
on the left-hand side of the machine.
Remove the two bolts from the battery access door in
order to access the battery compartment.
i03657099
Battery or Battery Cable Inspect/Replace
SMCS Code: 1401-510; 1402-510
Personal injury may occur from failure to properly
service the batteries.
Batteries give off flammable fumes that can explode. Electrolyte is an acid and can cause personal injury if it contacts the skin or eyes.
Prevent sparks near the batteries. Sparks could
cause vapors to explode. Do not allow jumper ca-
ble ends to contact each other or the engine. Improper jumper cable connections can cause an
explosion.
Always wear protective glasses when working
with batteries.
1. Turn the engine start switch key OFF. Turn all of
the switches OFF.
2. Turn the battery disconnect switch OFF. Remove
the key.
3. Disconnect the negative battery cable from the
disconnect switch.
Note: Do not allow the disconnected battery cable to
contact the disconnect switch.
Illustration 130 g00783781
Over time, the vibration of an operating machine can
cause the battery hold-down to loosen. To help
prevent loose batteries and the possibility of loose
cable connections, tighten all fastening hardware (1).
4. Disconnect the negative battery cable at the
battery.
5. Disconnect the positive battery cable at the battery.
6. Inspect the battery terminals for corrosion. Inspect
the battery cables for wear or damage.
7. Make any necessary repairs. If necessary, replace
the battery cables or the battery.
8. Connect the positive battery cable at the battery.
9. Connect the negative battery cable at the battery.
10. Connect the battery cable at the battery
disconnect switch.
11. Install the key and turn the battery disconnect
switch ON.
Recycle the Battery
Always recycle a battery. Never discard a battery.
Page 92
92 SEBU8705
Maintenance Support
Belts - Inspect/Adjust/Replace
Always return used batteries to one of the following
locations:
• A battery supplier
• An authorized battery collection facility
• Recycling facility
i04883270
Belts - Inspect/Adjust/Replace
SMCS Code: 1357-025; 1357-040; 1357-510
Serpentine Belt
i04471710
Brake Accumulator (Service) Check
SMCS Code: 4263-535

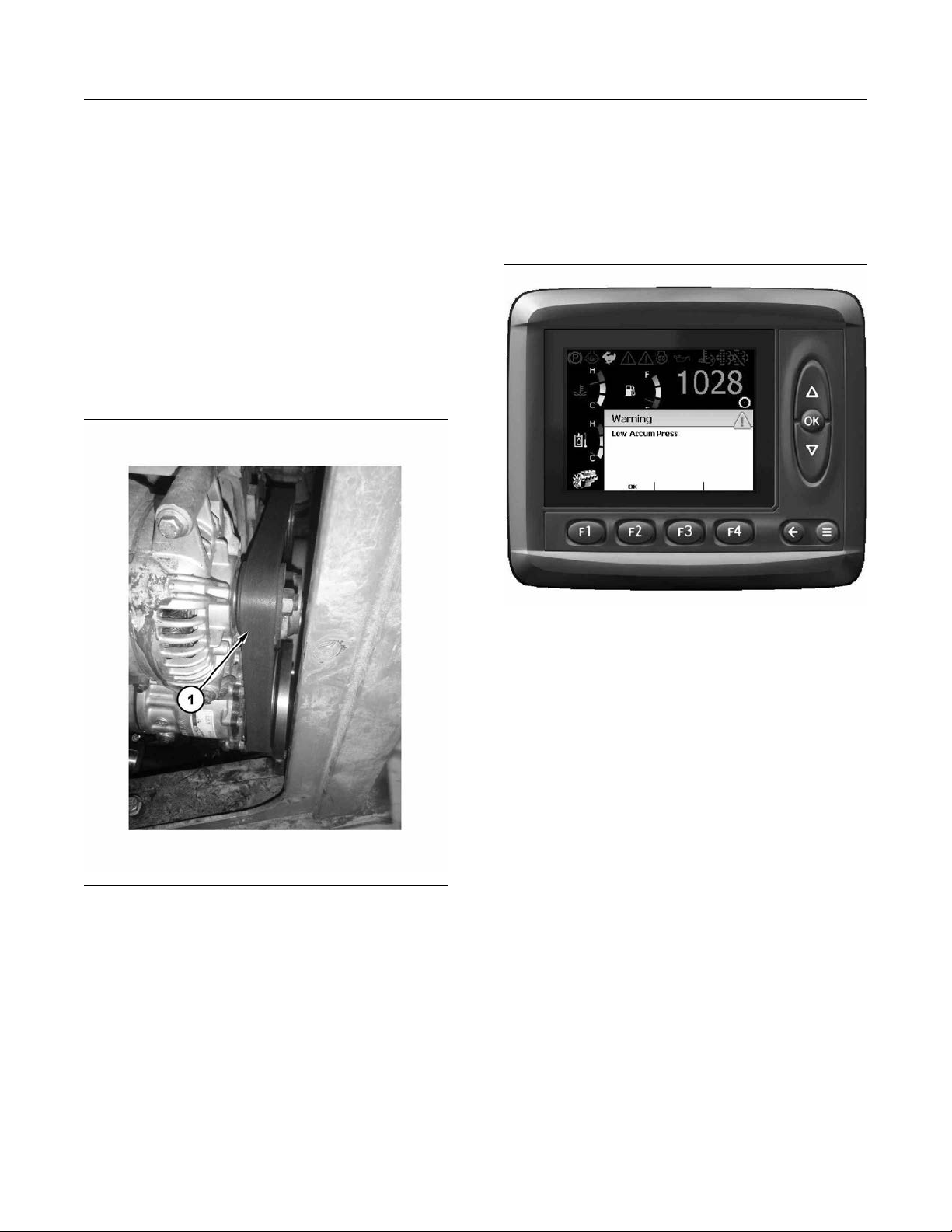

Illustration 131 g02830676
1. Stop the engine. Open the engine access door that
is located on the left rear side of the machine.
2. Inspect the condition of the serpentine belt (1). If
the belt is cracked or frayed, replace the belt.
3. Caterpillar C7.1 engines are equipped with a belt
tensioner. Refer to the Caterpillar C7.1 Engine
OMM, SEBU8600 for maintenance procedures.
Illustration 132 g02653376
1. Turn the engine start switch to the ON position. The
alert message for accumulator pressure should
not at normal operating pressure.
2. Start the engine. Run the engine at half speed for 2
minutes in order to increase the accumulator
pressure. The alert message for accumulator
pressure should go off.
3. Stop the engine. Apply the service brake pedal for
1 second. Then release the service brake pedal for
1 second. Five applications of the service brake
pedal are required in order to reach accumulator
precharge. The alert message should display after
applying the service brake five times.
4. If the alert message displays before five
applications of the brake pedal, measure the
accumulator precharge pressure. Your authorized
dealer can measure the nitrogen gas pressure in
the accumulator. Use only dry nitrogen gas for
recharging.
Page 93
SEBU8705 93
Maintenance Support
Brake Discs - Check
i02039260
Brake Discs - Check
SMCS Code: 4255-535
Inspect wear on the brake discs in order to determine
the remaining life of the brake discs.
Reference: Refer to the Testing and Adjusting,
“Brake Disc Wear - Check” procedure for your
machine.
Note: The differential and the final drive oil must be
drained in order to check the brake discs.
Reference: Refer to Operation and Maintenance
Manual, “Differential and Final Drive Oil - Change” for
the proper procedure.
i04471792
Cab Air Filter - Clean/Replace
SMCS Code: 7342-070; 7342-510
Note: Clean the cab air filters more often if the
machine is being operated in dusty conditions.
Note: If the filter element is damaged, install a new
filter element.
4. Install the filter element. Close the access door.
i04476731
Circuit Breakers - Reset
SMCS Code: 1420-529
Circuit Breaker Reset – Depress the
button in order to reset the circuit
breakers. If the circuit is functioning
properly, the button will remain depressed. If the
button will not remain depressed, check the
appropriate electrical circuit.

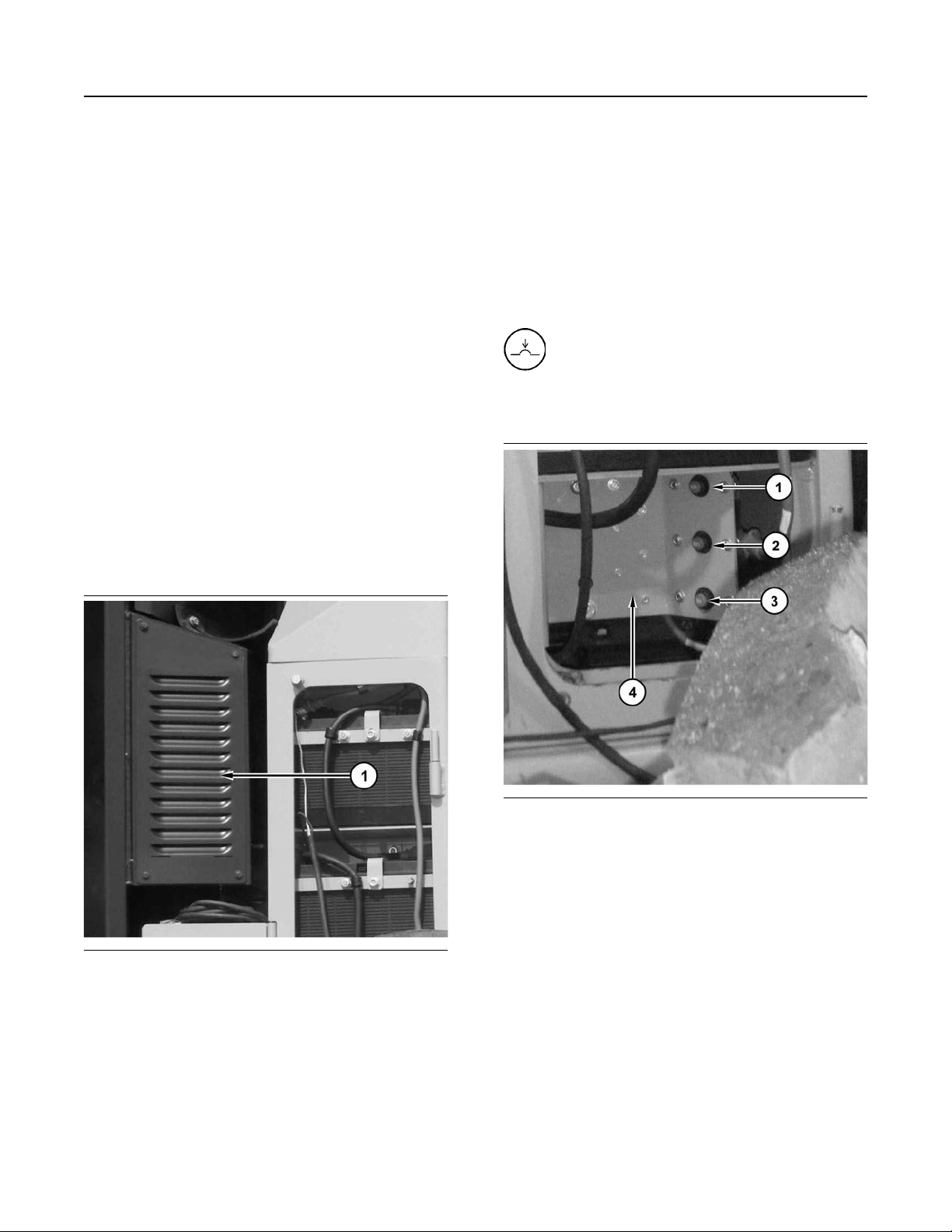

Illustration 133 g02662520
1. Open the access door on the left side of the cab.
Remove the filter element.
2. Clean the filter element with pressure air or wash
the filter element in warm water with a nonsudsing
household detergent.
3. If water and detergent are used to clean the filter
element, rinse the filter element in clean water and
allow the filter element to air dry thoroughly.
Illustration 134 g02657443
(1) Main breaker. (2) Alternator breaker.(3 )Hydraulic
Oil Fill breaker.
ECM, Glow plug) (mounted on rear of bracket).
The circuit breakers are located in the battery
compartment on the left side of the machine. Open
the battery compartment door in order to access the
circuit breakers.
(4) Automatic-reset breakers (CRS,
Page 94
94 SEBU8705
Maintenance Support
Cooling System Coolant (ELC) - Change
i04790844
Cooling System Coolant (ELC)
- Change
SMCS Code: 1350-044
Engine hood and engine hood parts can be hot
while engine is running or immediately after engine shutdown. Hot parts or hot components can
cause burns or personal injury. Do not allow these
parts to contact your skin, when engine is running
or immediately after engine shutdown. Use protective clothing or protective equipment to protect
your skin.
Personal injury can result from hot coolant, steam
and alkali.
At operating temperature, engine coolant is hot
and under pressure. The radiator and all lines to
heaters or the engine contain hot coolant or
steam. Any contact can cause severe burns.
NOTICE
Mixing ELC with other products will reduce the effectiveness of the coolant.
This could result in damage to cooling system
components.
If Caterpillar products are not available and commercial products must be used, make sure they have
passed the Caterpillar EC-1 specification for premixed or concentrate coolants and Caterpillar
Extender.
Note: This machine was filled at the factory with
Caterpillar Extended Life Coolant.
If the coolant in the machine is changed to Extended
Life Coolant from another type of coolant, see Special
Publication, SEBU6250, “Caterpillar Machine Fluids
Recommendations”.
1. Open the cooling system access door.
Remove cooling system pressure cap slowly to
relieve pressure only when engine is stopped and
cooling system pressure cap is cool enough to
touch with your bare hand.
Do not attempt to tighten hose connections when
the coolant is hot, the hose can come off causing
burns.
Cooling System Coolant Additive contains alkali.
Avoid contact with skin and eyes.
NOTICE
Do not change the coolant until you read and understand the cooling system information in Special Publication, SEBU6250, “Caterpillar Machine Fluids
Recommendations”.
Failure to do so could result in damage to the cooling
system components.

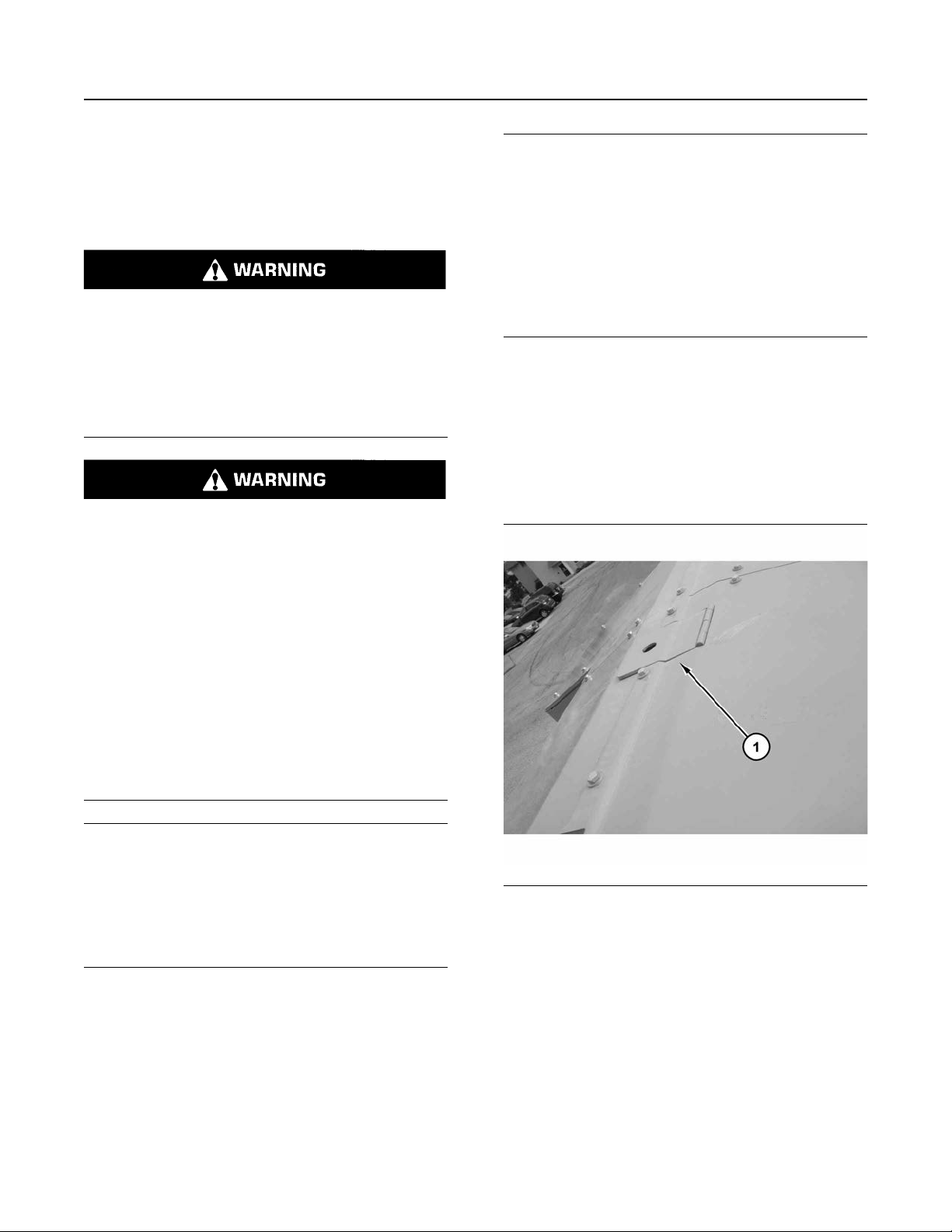

Illustration 135 g02930019
2. Slowly loosen the pressure cap that is on the
coolant reservoir in order to release pressure from
the cooling system.
3. Remove the pressure cap.
4. Inspect the o-ring of the cooling system pressure
cap. If the o-ring is damaged, replace the pressure
cap.
Note: Refer to Operation and Maintenance Manual,
“General Hazard Information” for information that
pertains to containing fluid spillage.
Page 95
SEBU8705 95
Maintenance Support
Cooling System Coolant (ELC) - Change
5. Open the cooling system drain access door on the
under side of the machine.
a. Start the engine without the filler cap.
b. Run the engine at low idle for 10 minutes.
c. Then, increase the engine speed to a high idle
until the water temperature regulator is open
and the coolant level is stabilized.
d. Maintain the coolant at the proper level as the
water temperature regulator opens, and the air
is purged from the system. Refer to Operation
and Maintenance Manual, “Cooling System
Coolant Level - Check”.
11. Install the cooling system pressure cap.
12. Stop the engine.

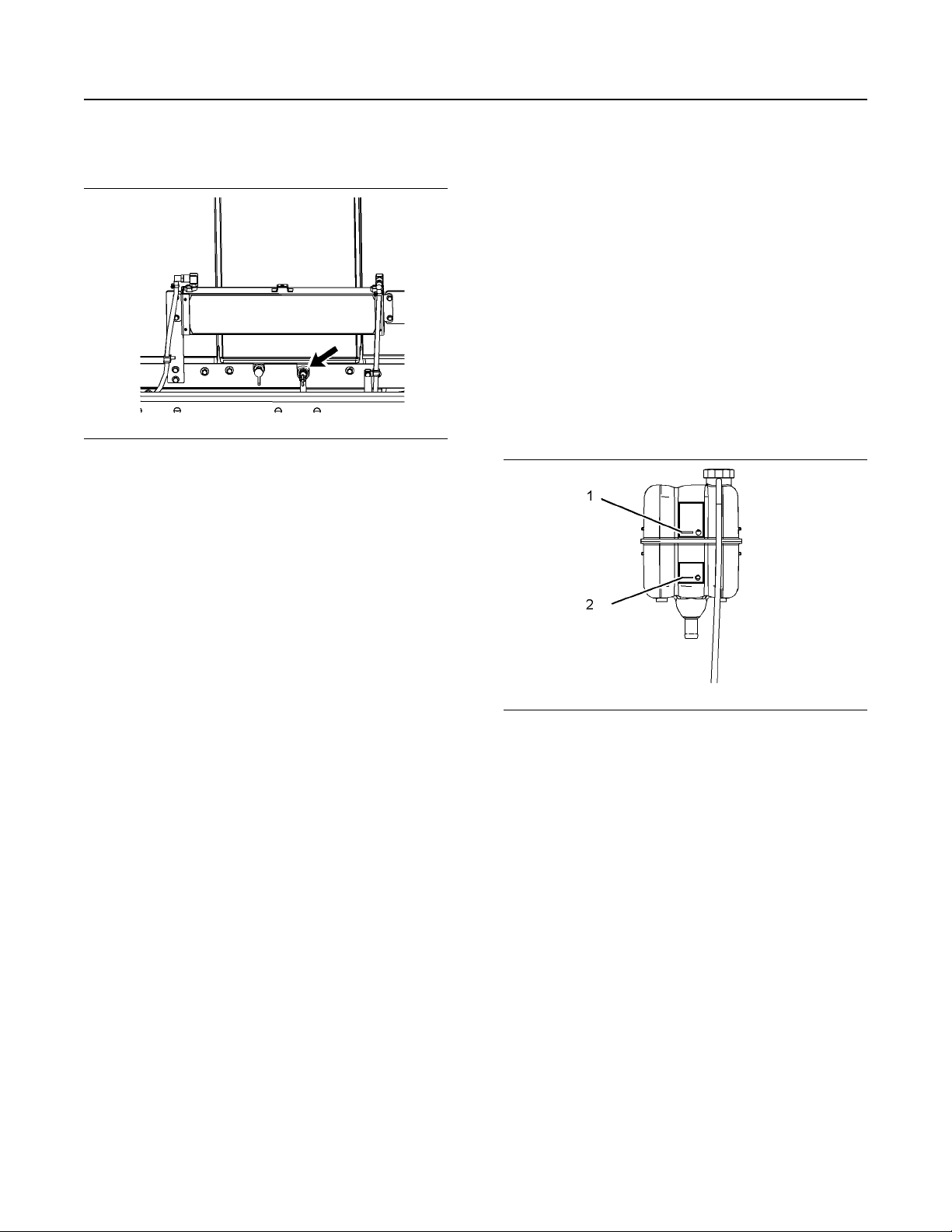

Illustration 136 g02019836
6. Open the draincock valve and allow the coolant to
drain into a suitable container. The draincock valve
is located on the bottom of the radiator.
7. Flush the cooling system. Follow Step 7.a. through
Step 7.h. in order to flush the cooling system.
a. Close the drain valve.
b. Fill the cooling system with clean water.
c. Install the pressure cap.
d. Start the engine and run the engine until the
engine reaches operating temperature.
e. Stop the engine and allow the engine to cool.
f. Loosen the pressure cap slowly in order to
relieve any pressure in the cooling system.
g. Open the drain valve that is on the bottom of
the radiator and allow the coolant to drain into
a suitable container.
h. Flush the radiator with clean water until the
draining water is transparent.
8. Close the drain valve.
9. Add the Extended Life Coolant. Refer to the
following topics:
Illustration 137 g02019838
(1) “FULL”
(2) “LOW”
13. Check the coolant reservoir. Maintain the coolant
level between “FULL” mark (1) and “LOW” mark
(2).
14. If additional coolant is necessary, remove the
pressure cap and add the appropriate coolant
solution.
15. Install the pressure cap.
16. Close the cooling system access door and latch
the cooling system access door.
• Special Publication, SEBU6250, “Caterpillar
Machine Fluids Recommendations”
• Operation and Maintenance Manual,
“Capacities (Refill)”
10. After the cooling system has been filled, perform
the following procedures during initial start-up:
Page 96
96 SEBU8705
Maintenance Support
Cooling System Coolant Extender (ELC) - Add
i05740885
Cooling System Coolant
Extender (ELC) - Add
SMCS Code: 1352-544-NL
Engine hood and engine hood parts can be hot
while engine is running or immediately after engine shutdown. Hot parts or hot components can
cause burns or personal injury. Do not allow these
parts to contact your skin, when engine is running
or immediately after engine shutdown. Use protective clothing or protective equipment to protect
your skin.
Personal injury can result from hot coolant, steam
and alkali.
At operating temperature, engine coolant is hot
and under pressure. The radiator and all lines to
heaters or the engine contain hot coolant or
steam. Any contact can cause severe burns.
Note: This machine was filled at the factory with
Caterpillar Extended Life Coolant.
NOTICE
When performing maintenance above ground level,
always use appropriate devices such as ladders and
man lift machines.
1. Park the machine on level ground.
2. Stop the engine.
3. Unlatch the cooling system access door and raise
the cooling system access door (located on the
rear frame, on the top of the cooling system
enclosure).
Remove cooling system pressure cap slowly to
relieve pressure only when engine is stopped and
cooling system pressure cap is cool enough to
touch with your bare hand.
Do not attempt to tighten hose connections when
the coolant is hot, the hose can come off causing
burns.
Cooling System Coolant Additive contains alkali.
Avoid contact with skin and eyes.
Use Caterpillar Extended Life Coolant (ELC) when
you add coolant to the cooling system. See Special
Publication, SEBU6250, “Caterpillar Machine Fluids
Recommendations” for all cooling system
requirements.
Use a Coolant Conditioner Test Kit in order to check
the concentration of the coolant.
NOTICE
Mixing ELC with other products will reduce the effectiveness of the coolant.
This could result in damage to cooling system
components.
If Caterpillar products are not available and commercial products must be used, make sure they have
passed the Caterpillar EC-1 specification for premixed or concentrate coolants and Caterpillar
Extender.

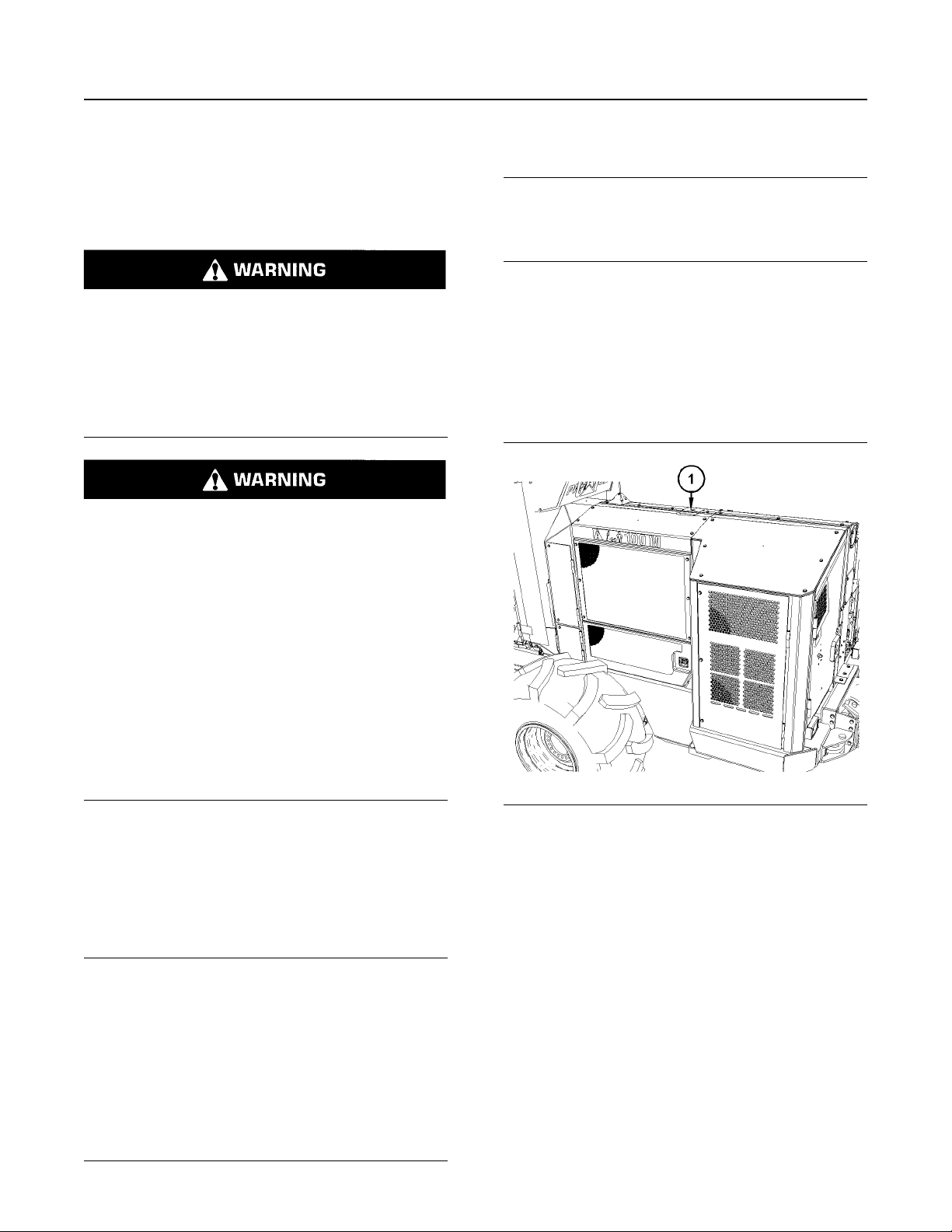

Illustration 138 g03654837
4. Make sure that the cooling system has cooled
down. Loosen the cooling system pressure cap
slowly in order to relieve system pressure. Remove
the pressure cap.
Note: Refer to Operation and Maintenance Manual,
“General Hazard Information” for information on
containing fluid spillage.
5. It may be necessary to drain some coolant from the
radiator so that Caterpillar Extender can be added
to the cooling system.
Note: Always discard drained fluids according to local
regulations.
6. Add Caterpillar Extended Life Coolant (ELC) to the
cooling system. Refer to the following topics for the
proper amount of Caterpillar Extender:
Page 97
SEBU8705 97
Maintenance Support
Cooling System Coolant Level - Check
• Special Publication, SEBU6250, “Caterpillar
Machine Fluids Recommendations”
• Operation and Maintenance Manual,
“Capacities (Refill)”
7. Inspect the o-ring of the cooling system pressure
cap. If the o-ring is damaged, replace the pressure
cap.
8. Install the cooling system pressure cap.
9. Close the cooling system access door and latch
the cooling system access door .
i04790977
Cooling System Coolant Level
- Check
SMCS Code: 1350-535-FLV

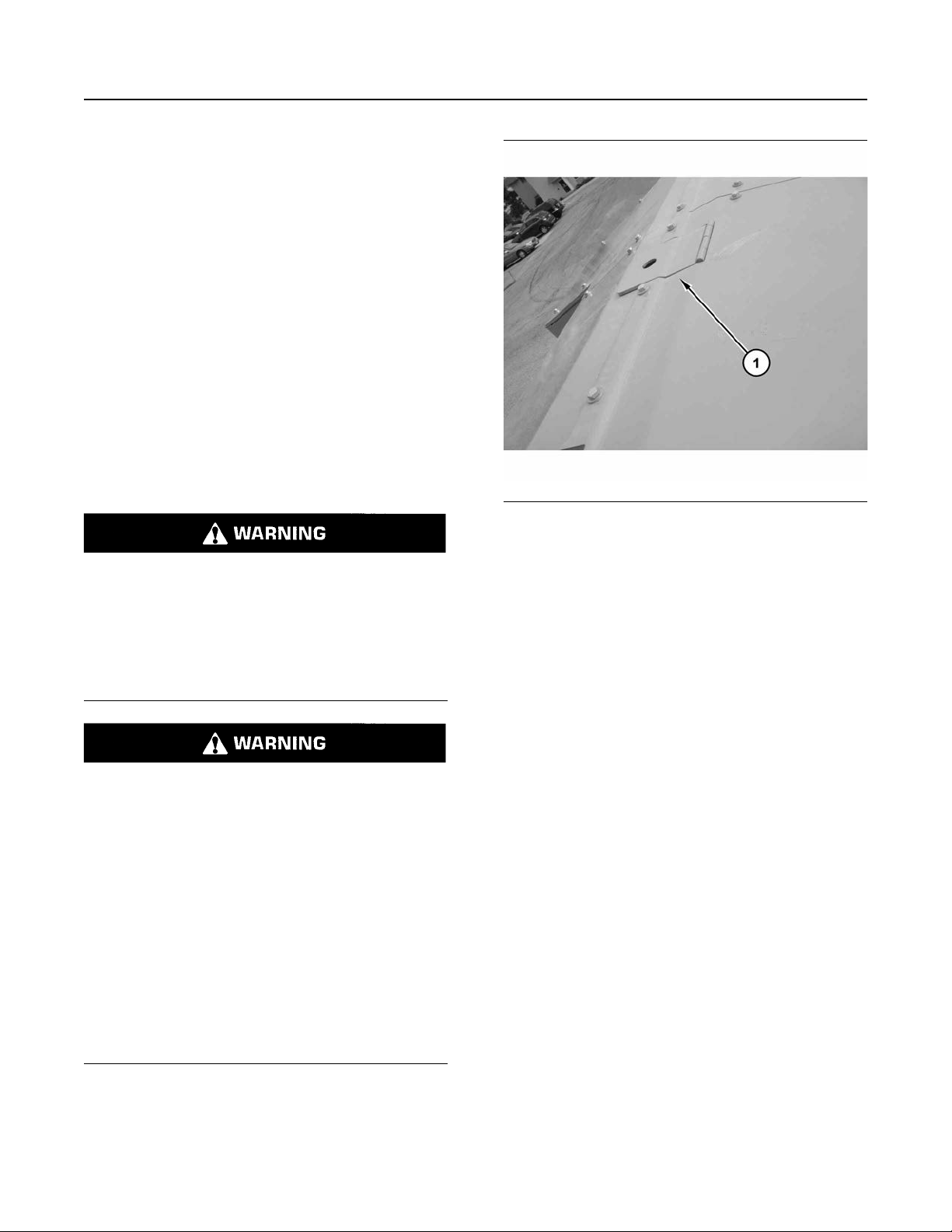

Illustration 139 g02930019
Engine hood and engine hood parts can be hot
while engine is running or immediately after engine shutdown. Hot parts or hot components can
cause burns or personal injury. Do not allow these
parts to contact your skin, when engine is running
or immediately after engine shutdown. Use protective clothing or protective equipment to protect
your skin.
Personal injury can result from hot coolant, steam
and alkali.
At operating temperature, engine coolant is hot
and under pressure. The radiator and all lines to
heaters or the engine contain hot coolant or
steam. Any contact can cause severe burns.
Remove cooling system pressure cap slowly to
relieve pressure only when engine is stopped and
cooling system pressure cap is cool enough to
touch with your bare hand.
Do not attempt to tighten hose connections when
the coolant is hot, the hose can come off causing
burns.
1. Open the cooling system access door (1).
Cooling System Coolant Additive contains alkali.
Avoid contact with skin and eyes.
Page 98
98 SEBU8705
Maintenance Support
Cooling System Coolant Sample (Level 1) - Obtain
e. Install the cooling system pressure cap.
f. Stop the engine.
g. Close the cooling system access door and
latch the cooling system access door.
i04883362
Cooling System Coolant
Sample (Level 1) - Obtain
SMCS Code: 1350-008; 1395-008; 7542
Personal injury can result from hot coolant, steam
and alkali.
At operating temperature, engine coolant is hot
and under pressure. The radiator and all lines to
heaters or the engine contain hot coolant or
steam. Any contact can cause severe burns.

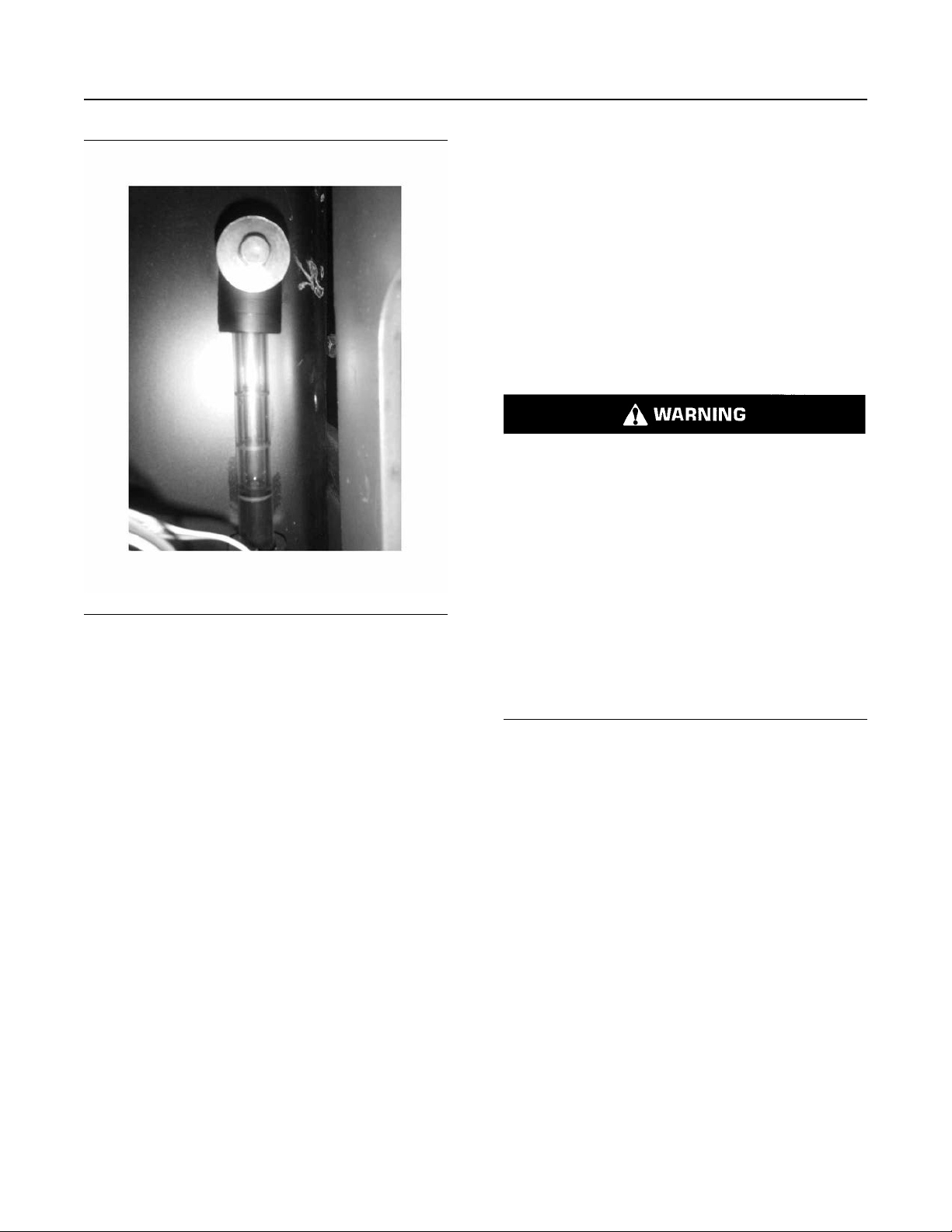

Illustration 140 g02930157
2. Check the coolant level of the coolant reservoir
when the engine is cold. Maintain the coolant level
between the “FULL” mark and the “LOW” mark.
If the coolant reservoir is empty, follow Steps 2.a.
through 2.g..
a. Slowly loosen the cooling system pressure cap
in order to relieve system pressure. Remove
the pressure cap.
Note: Refer to Operation and Maintenance
Manual, “General Hazard Information” for
information on containing fluid spillage.
b. Add the appropriate coolant solution to the
cooling system. Refer to the following topics:
• Special Publication, SEBU6250, “Caterpillar
Machine Fluids Recommendations”
• Operation and Maintenance Manual,
“Capacities (Refill)”
Remove filler cap slowly to relieve pressure only
when engine is stopped and radiator cap is cool
enough to touch with your bare hand.
Do not attempt to tighten hose connections when
the coolant is hot, the hose can come off causing
burns.
Cooling System Conditioner contains alkali.
Avoid contact with skin and eyes.
Note: It is not necessary to obtain a Coolant
Sample (Level 1) if the cooling system is filled
with Cat ELC (Extended Life Coolant).Cooling
systems that are filled with Cat ELC should have a
Coolant Sample (Level 2) that is obtained at the
recommended interval that is stated in the
Maintenance Interval Schedule.
Note: Obtain a Coolant Sample (Level 1) if the
cooling system is filled with any other coolant
instead of Cat ELC .This includes the following
types of coolants.
• Commercial long life coolants that meet the
Caterpillar Engine Coolant Specification -1
(Caterpillar EC-1)
c. Start the engine. Operate the engine without
the cooling system pressure cap until the
water temperature regulator opens and the
coolant level stabilizes.
d. Inspect the condition of the o-ring on the
pressure cap. If the o-ring is damaged, replace
the pressure cap.
• Cat Diesel Engine Antifreeze/Coolant (DEAC)
• Commercial heavy-duty coolant/antifreeze
Page 99
SEBU8705 99
Maintenance Support
Cooling System Coolant Sample (Level 2) - Obtain
NOTICE
Always use a designated pump for oil sampling, and
use a separate designated pump for coolant sampling. Using the same pump for both types of samples
may contaminate the samples that are being drawn.
This contaminate may cause a false analysis and an
incorrect interpretation that could lead to concerns by
both dealers and customers.
NOTICE
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product.
Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.
Refer to Special Publication, NENG2500, “Dealer
Service Tool Catalog” for tools and supplies suitable
to collect and contain fluids on Cat products.
Dispose of all fluids according to local regulations and
mandates.
Note: Level 1 results may indicate a need for
Level 2 Analysis.
Obtain the sample of the coolant as close as possible
to the recommended sampling interval. In order to
receive the full effect of S·O·S analysis, establish a
consistent trend of data. In order to establish a
pertinent history of data, perform consistent
samplings that are evenly spaced. Supplies for
collecting samples can be obtained from your
Prentice dealer.
Use the following guidelines for proper sampling of
the coolant:
• Complete the information on the label for the
sampling bottle before you begin to take the
samples.
• Keep the unused sampling bottles stored in plastic
bags.
• Obtain coolant samples directly from the coolant
sample port. You should not obtain the samples
from any other location.
• Obtain the coolant sample while the engine is
running.
• Obtain the coolant sample while the coolant is at
operating temperature.
• Keep the lids on empty sampling bottles until you
are ready to collect the sample.
• Place the sample in the mailing tube immediately
after obtaining the sample in order to avoid
contamination.
• Never collect samples from expansion bottles.
• Never collect samples from the drain for a system.
Submit the sample for Level 1 analysis.
For additional information about coolant analysis, see
Special Publication, SEBU6250, “Caterpillar Machine
Fluids Recommendations” or consult your Prentice
dealer.
i04471912
Cooling System Coolant
Sample (Level 2) - Obtain
SMCS Code: 1350-008; 1395-008; 7542
NOTICE
Always use a designated pump for oil sampling, and
use a separate designated pump for coolant sampling. Using the same pump for both types of samples
may contaminate the samples that are being drawn.
This contaminate may cause a false analysis and an
incorrect interpretation that could lead to concerns by
both dealers and customers.

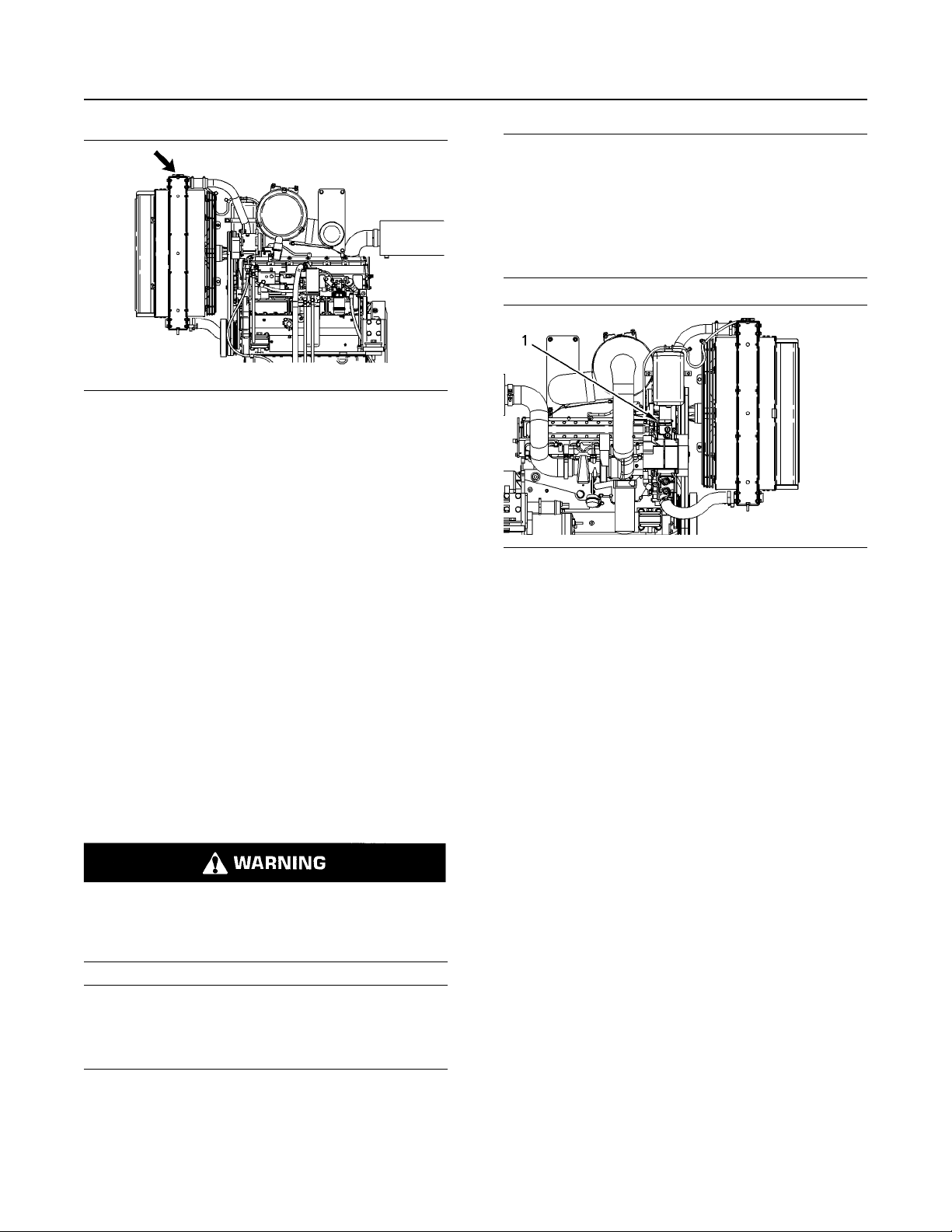

Page 100
100 SEBU8705
Maintenance Support
Cooling System Water Temperature Regulator - Replace
NOTICE
This engine incorporates a shunt design cooling system and requires operating the engine with a thermostat installed.
If the thermostat is installed wrong, it will cause the
engine to overheat. Inspect gaskets before assembly
and replace if worn or damaged.
Illustration 141 g01048817
1. Obtain the sample of the coolant as close as
possible to the recommended sampling interval.
Supplies for collecting samples can be obtained
from your authorized dealer.
Reference: Refer to Operation and Maintenance
Manual, “Cooling System Coolant Sample (Level 1) Obtain” for the guidelines for proper sampling of the
coolant.
2. Submit the sample for Level 2 analysis.
Reference: For additional information about coolant
analysis, refer to Special Publication, SEBU6250,
“Machine Fluids Recommendations”.
i04471932
Cooling System Water
Temperature Regulator Replace
SMCS Code: 1355-510; 1393-010
Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve
the pressure.
NOTICE
Failure to replace the engine's thermostat on a regularly scheduled basis could cause severe engine
damage.
Illustration 142 g00788988
Water temperature regulator (1) is located on the right
side of the machine beneath the overflow tank.
Replace the water temperature regulator in order to
reduce the chance of problems with the cooling
system.
Replace the water temperature regulator. Replace the
seals while the cooling system is completely drained.
Coolant can be drained to a level that is below the
water temperature regulator housing.
Reference: For the procedure, refer to the Engine
Supplement, “Water Temperature Regulator Remove and Install” section for your machine.
Note: If you are only replacing the water temperature
regulator, drain the coolant to a level that is below the
water temperature regulator housing.
i04552369
Diesel Particulate Filter - Clean/
Replace
SMCS Code: 108F-070; 108F-510; 1091-070; 1091-
510
Consult your Prentice dealer when the DPF needs
to be cleaned.
The approved Prentice DPF maintenance procedure
requires that one of the following actions be taken
when the DPF needs to be cleaned:
Loading...
