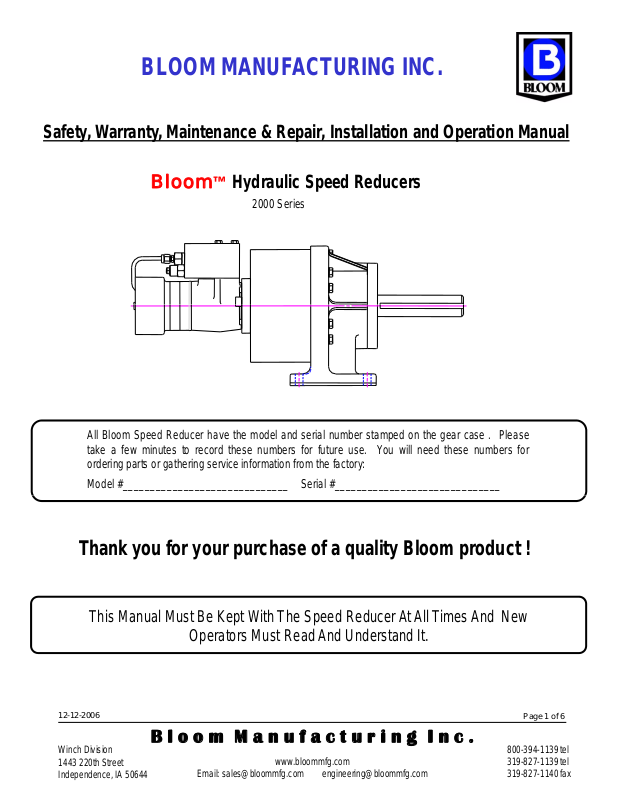

Page 1
BLOOM MANUFACTURING INC.
Safety, Warranty, Maintenance & Repair, Installation and Operation Manual

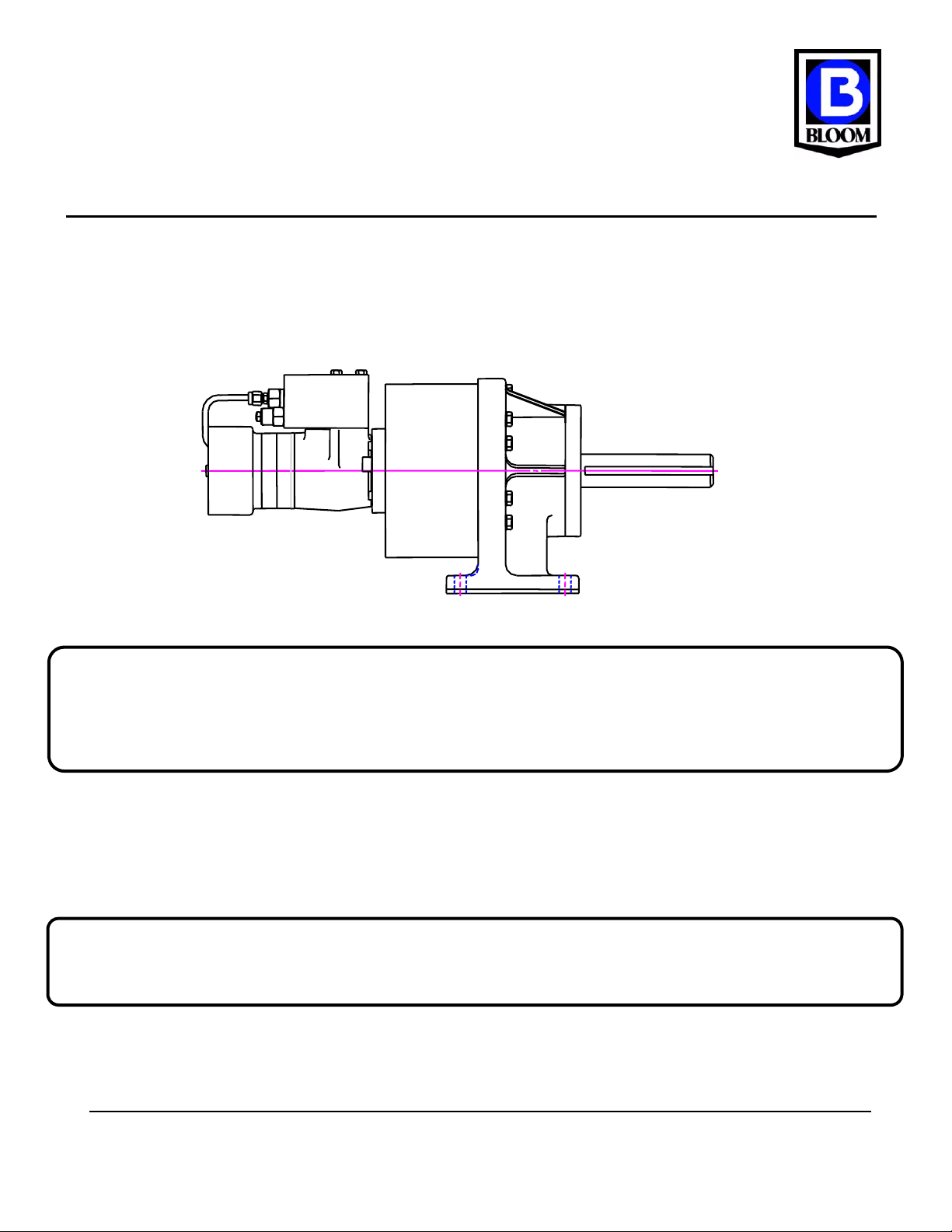

Bloom™ Hydraulic Speed Reducers
2000 Series
All Bloom Speed Reducer have the model and serial number stamped on the gear case . Please
take a few minutes to record these numbers for future use. You will need these numbers for
ordering parts or gathering service information from the factory:
Model #______________________________ Serial #______________________________
Thank you for your purchase of a quality Bloom product !
This Manual Must Be Kept With The Speed Reducer At All T imes And New
Operators Must Read And Understand It.
12-12-2006
Page 1 of 6
Winch Division
1443 220th Street
Independence, IA 50644
B l o o m M a n u f a c t u r i n g I n c .
www.bloommfg.com
800-394-1139 tel
319-827-1139 tel
319-827-1140 fax
Page 2
T A B L E O F C O N T E N T S
(a)
Clean and Inspect
(a)
Automatic Safety Brakes & Adjustment
Section 1
General Safety Requirements
yy
Become Alert!
1. General Safety Requirements 4. Speed Reducer Break In
2. Warranty 5. Speed Reducer Installation
3. Maintenance & Repair 6. Speed Reducer Operation
(b) Oil Change Information
(c) Oil Level
(d) Recommended Gear Oil
(e) Attachments (parts list, assembly)
Merchandise may not be returned without approval from factory. The customer will be charged for placing the returned
goods in salable condition plus a restocking charge of 25%. All returns must be shipped prepaid.
Please note that not all of the above
sections apply to each model purchased
THIS SYMBOL MEANS
•Attention!
•
• Your Safety Is Involved
SIGNAL WORDS: Note the use of the signal words DANGER, WARNING AND CAUTION with the safety messages.
The appropriate signal word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. This
signal word is to be limited to the most extreme situations typically for machine components which, for functional
purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury,
and includes hazards that are exposed when guards are removed. It may also be used to alertagainst unsafe
practice.
Take Note! This Safety Alert Symbol Found Throughout This
Manual Is Used To Call Your Attention To Instructions Involving
Your Personal Safety And The Safety Of Others. Failure To
Follow These Instructions Can Result In Injury Or Death.
CAUTION:
may also be used to alert against unsafe practices.
2
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It
For best results, only use Bloom replacement parts 800-394-1139
Page 2 of 6
Page 3
WARNING
This sample manual is based upon general industry considerations and does not take into account product or manufacturer speci
fic
exposures or
y (90)
y( ) yp p p p p
p
Failure to Heed The Following Warnings
May Result In Serious Injury Or Death
• Bloom Speed Reducers are not to be used to lift, hoist, or move people. If your task involves lifting or moving people,
you must use the proper equipment, not this speed Reducer.
• Bloom products are sold on the strict understanding that all products selection is the full responsibility of the purchaser.
• Bloom accepts no liability for the use, misuse or incorrect application of its products.
• Make sure that all equipment is maintained properly.
• Ensure the correct equipment is obtained and installed for the application
• Ratings shown in Bloom literatur e are applicable only to new products.
• In general, products displayed in Bloom literature are used as parts of a system. As a result, we can only recommend
within the working load limits, or other stated limitations, the use of products for this purpose.
• No equipment should be installed, operated, or maintained by any person who has not carefully read all contents of this
manual. Serious physical injury or property damage can result from failure to read and apply the instructions contained
therein. Therefore, we urge you to read all operating instructions and warnings carefully. If any instruction or warning is
not clear, or if you feel you need additional information, please contact Bloom Mfg Inc. This manual should not be
understood to prepare you for every possible situation. It is the owner’s and user’s responsibility to determine the
suitability of a product for a particular use. Applicable industry, trade association, federal, state, and local regulations
should be reviewed.
•Working load limits or safety factors for each Bloom product may be affected by wear, misuse or environmental
conditions. Regular Inspection must be conducted to ensure the equipment continues to meet the published standards.
If you have questions not answered in this manual or require additional copies or the manual is damaged, please contact Bloom Mfg., Inc.,
1443 220th Street, Independence, Iowa 50644.
needs. This sample manual may not be adopted by a product manufacturer as its manual, but may be used by the manufacturer in the process of
developing its own manual, based upon its specific products and operations, after consulting with its advisor.
Section 2
LIMITED NINETY (90) DAY WARRANTY FOR HYDRAULIC SPEED REDUCERS Effective date January 1, 1999
Bloom Mfg. Inc., Independence, Iowa 50644, provides the following limited ninety (90) day warranty on its product to the
purchaser of this product and to any person to whom such product is transferred during the duration of this warranty. The
warrantor's obligation shall be limited to repairing or replacing at the factory in Independence, Iowa, USA, any part or parts
which shall within the ninet
examination by Bloom Mfg. Inc. shows to have been defective. This warranty shall not apply if:
day period hereinafter specified be returned to it with transportation prepaid and which upon
Warranty
(a) the product has been altered, repaired or modified outside the warrantor's factory in any way that would adversely affect
its operation.
Bloom Mfg Inc. 319-827-1139 319-827-1140 fax www.bloommfg.com
Page 3 of 6
3
Page 4
(b) the product has been subject to careless or negligent misuse, damage or use of improper oil while in the possession of the
particular purpose
t b
th
y,p(gyy
Make sure that the hydraulic hoses have been disconnected
value, and provide safe operation.
ppggpy
purchaser or any person to whom the product was transferred by the purchaser or was installed or operated other than in
accordance with the manufacturer's operating instructions.
(c) the product was used with accessories not recommended by Bloom Mfg. Inc. or for loads in excess of those listed as rated
for the product.
(d) in the case of hydraulic motors, Bloom Mfg. Inc. will not accept responsibility and warranty will be subject to manufacturer's
warranty.
The ninety (90) day limited warranty period shall commence with the date the product is sold to the purchaser by the dealer or
if this date cannot be established, the date the product was sold by Bloom Mfg. Inc. to the dealer.
The implied warranties of merchantability and fitness for particular purpose are limited to the duration of this warranty - ninety
(90) days - after said (90) days, Bloom Mfg. Inc. expressly disclaims any warranty or merchantability or fitness for any
.
Purchase or other acceptance of the product by the claimant shall be on the condition and agreement that Bloom Mfg. Inc.
shall not be liable for incidental or consequential or contingent damage, secondary charges or loss or expense resulting from
any alleged defect, failure of article to operate properly, or for the negligence of others or damages of any kind.
Bloom Mfg. Inc. is not responsible for the cost, of removal of product, damages due to removal or any other expenses
incurred in shipping the product to or from Bloom Mfg. Inc. or the installation of the repaired or replacement product. The
consumer mus
ear
ese expenses.
To make a claim under this warranty, write directly to Bloom Mfg. Inc., Independence, Iowa 50644, identifying the product and
giving its location and follow the company's return instructions which will be provided by the company. Bloom Mfg. Inc. will
make its best efforts to repair or replace the product, if found to be defective within the terms of this warranty, within sixty (60)
days after return of the product to the company.
This warranty is exclusive and in lieu of all other warranties whether written, oral or implied (including any warranty of
merchantability or fitness for a particular purpose.
Section 3 Maintenance & Repair
before servicing unit
CAUTION
A Speed Reducer, like other types of machinery, needs to have regular maintenance if it is to perform properly, give lasting
(a) Clean and Inspect
Thoroughly clean all of the parts in a good grade of cleaning solvent; one that is not flammable, not toxic and will not
cause skin rashes. If necessary, use rubber gloves. Inspect all parts for wear, nicks, scratches and damage that would
render them unusable. If a part is questionable, it is better to replace it rather than take a chance on premature failure
when the Speed Reducer is placed back in service. Always replace O-rings and seals, and it is a good idea to use new
roll pins as well. Sometimes it is permissible to reuse bearings and bushings...it depends on how much use they have
had. The ball bearings should not exhibit any surface irregularities. If the ball bearings show any sign of spalling,
corrosion, discoloration, material displacement or abnormal wear, the bearings should be replaced. If the Speed Reducer
was disassembled only to replace damaged seals after a short period of service, it is not necessary to replace the
bearings.
Page 4 of 6
4
Think S-A-F-E-T-Y First Bloom Mfg Inc. 319-827-1139
Page 5
Experience and common sense, along with a good inspections, will determine if they can be used again. Always coat
hours of
operating time, or every six months, whichever comes first
2000
3 pints
3 pints
(d)
Recommended Gear Oil:
•
The following guidelines should be used in the break in of Bloom Speed Reducers.
O-Rings, bearings, bushings and the rubber parts of seals with oil during assembly. Use a light coat of thread sealing
compound on pipe fittings and plugs.
(b) Oil Change Information:
The Speed Reducer vent/fill and drain plugs are located at the base of the face plate. Oil should be changed every 100
.
OIL CAPACITY CHART
Speed Reducer Series
(c) Oil Level:
To check the oil level, remove the level plug. The oil should be level with the bottom of this opening. If more oil is
needed, use the recommended gear oil listed below.
Use Bloom ULLTRA-LUBE NO. 601 trans-worm gear oil; available from Bloom in pints or quarts. For emergency
situations when Bloom ULLTRA-LUBE NO. 601 is not immediately available, use Phillips 66 Company SAE grade 80W90
superior multi-purpose gear oil (Phillips 80W90 SMP) meeting API classification GL-5 or equivalent brand. Continuous
use of oil other than Bloom ULLTRA-LUBE NO. 601 or Phillips 80W90 SMP oil may shorten the life of the gears. DO
NOT mix Bloom #601 or Phillips 80W90 SMP with more than 50% of any other kind of oil.
Base Mounted
Position
All Other Mounting
Positions
Section 4 Speed Reducer Break In
• Speed Reducers, like any other kind of machinery, require a “break in” to perform well and
to maximize their life.
• Do not run the speed Reducer at high speeds when performing this operation.
• Do not exceed one half rated load for the first thirty minutes of operation. This will ensure
that the worm and gear have an opportunity to wear in properly.
CAUTION
• Periodically, check the gearbox for temperature rises and allow the Speed Reducer to cool
down if necessary.
For best results, only use Bloom replacement parts 800-394-1139
Page 5 of 6
5
Page 6
Section 5
The mount must be flat to ensure proper alignment of the gearbox.
Always make sure that all people are clear of the load before beginning a Speed Reducer operation.
no adjustments to these brakes. They are adjusted only at the factory.
DO NOT
attempt to change any brake
CAUTION
Speed Reducer Installation
• To must make sure that your speed Reducer is securely mounted in order for it to
function properly and to ensure safe operation.
•
• Speed Reducers must never be fastened directly to the frame of a truck. Mounting
brackets should be used.
• With a hydraulically driven Speed Reducer, make sure the hydraulic system is clean
and that all components function properly, especially the relief valve.
Speed Reducer Series
2000
Section 6
Base Mount (steel)
Thickness
Capscrews (Hexhead)
Size
Thread
Grade
Torque / Tightening
(foot pounds)
Speed Reducer Operation
1/2”
1/2”
13 UNC
5
57
• To familiarize yourself with the Speed Reducer, run it for a few minutes to understand the controls and the “feel” of the
Speed Reducer. Pay particular attention to the controls and how they operate.
• Make sure you understand which way the Speed Reducer will rotate when the control lever is moved.
•
• Do Not attempt to defeat the relief valve.
(a) Automatic Safety Brake:
Bloom 2000 series speed reducer are equipped with an automatic hydraulic failsafe brakes ( spring applied
hydraulic release ) to hold suspended loads.
Spring applied hydraulic release brake automatically holds load when hydraulic pressure is released. There are
setting in the field. Double counter balance valve adds additional load holding capability by locking hydraulic oil
in motor.
6
Bloom Mfg Inc. 319-827-1139 319-827-1140 fax www.bloommfg.com
Page 6 of 6
