Bloomfield SDS-2 Operation Manual

BLOOMFIELD INDUSTRIES

2 ERIK CIRCLE, P. O. Box 280

Verdi, NV 89439

telephone: [phone]

fax: [phone] SATELLITE DOCKING STATION

www.wellsbloomfield.com

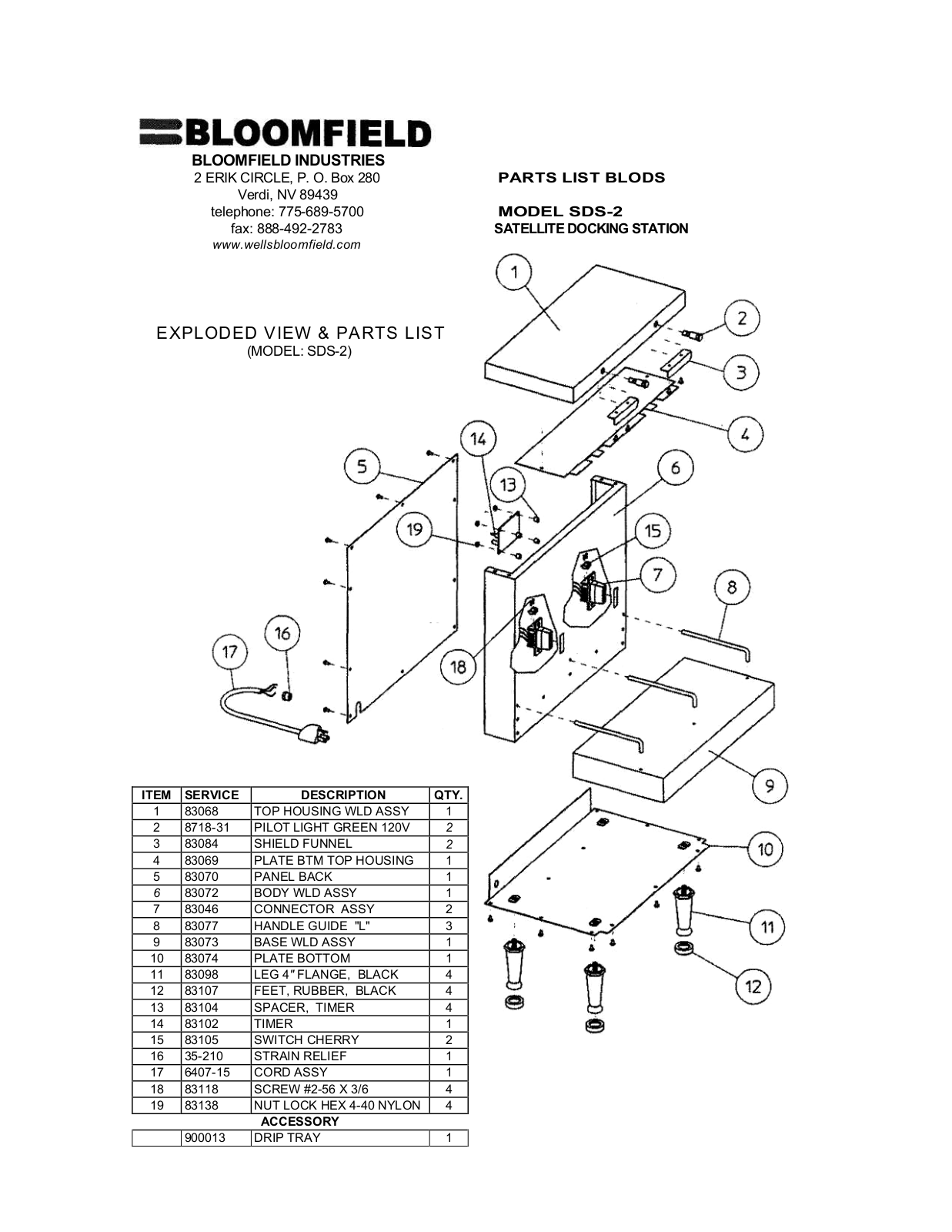

EXPLODED VIEW & PARTS LIST

(MODEL: SDS-2)

PARTS LIST BLODS

MODEL SDS-2

ITEM SERVICE DESCRIPTION QTY.

1 83068 TOP HOUSING WLD ASSY 1
2 8718-31 PILOT LIGHT GREEN 120V
3 83084 SHIELD FUNNEL
4 83069 PLATE BTM TOP HOUSING 1
5 83070 PANEL BACK 1

83072 BODY WLD ASSY 1

6
7 83046 CONNECTOR ASSY 2
8 83077 HANDLE GUIDE "L" 3

9 83073 BASE WLD ASSY 1
10 83074 PLATE BOTTOM 1
11 83098 LEG 4" FLANGE, BLACK 4
12 83107 FEET, RUBBER, BLACK 4
13 83104 SPACER, TIMER 4
14 83102 TIMER 1
15 83105 SWITCH CHERRY 2
16 35-210 STRAIN RELIEF 1
17 6407-15 CORD ASSY 1
18 83118 SCREW #2-56 X 3/6 4
19 83138 NUT LOCK HEX 4-40 NYLON 4

ACCESSORY

900013 DRIP TRAY 1
