10 Sunnen Drive
St. Louis, MO 63143
telephone: 314-678-6336
fax: 314-781-2714
www.wellsbloomfield.com
BLOOMFIELD INDUSTRIES
755
BL755
ICED TEA DISPENSERS
8602
8699
8799
8800BL
8802
CONTENTS
Description page
Faucet Components ……………………………….. 3
Parts List ………………………………………..…… 2
3-5 Gallon Iced Tea Dispenser Components …… 5
p/n BL755 Rev. B 120203
COMPLETE FAUCET W/O
SIGHT GLASS 2U-70580
COMPLETE FAUCET W/10”
SIGHT GLASS WS-8600-14
COMPLETE FAUCET W/13”
SIGHT GLASS DD-71321
1
2
3
4
5
7
8
13
12
11
10
9
8
7
6
19
18
6
9
10
11
12
13
14
15
16
17
IL2037
FAUCET COMPONENTS
BL755 Service Parts List Iced Tea Dispensers
3
BL755 Service Parts List Iced Tea Dispensers
PARTS LIST
FAUCET COMPONENTS
Fig No. Part Number Description Application
1 WS-8600-17 CAP SHIELD VENT HL
2 WS-8700-25J WASHER UPPER TUBE
3
4 WS-8600-21 BRACE BLK SHIELD
5
6
7 2U-71460 SEAT CUP TEA DISP FAUCET
8
9 WS-8600-26 C-RING
10
11 2C-70573 WASHER FLAT NYLON
12
13
14 WS-8705-11G SHIELD BASE
15 WS-8700-25H WAHSER LOWER TUBE
16 DD-71292 WASHER FLAT RUBBER
17 2C-70379 SCREW 8-32X5/16 PH PAN MS
18
19
20 2R-70577 KNOB TEA DISPENSER COVER 3 GALLON
21 2L-70611 COVER 3G TEA DISPENSER (w/KNOB) 3 GALLON
22
23
24 2M-75159 DECAL 3-5G DISP ICE TEA
25 2U-70580 FAUCET W/O SG
26 2M-70592 LABEL DESIGNATION
27 2L-71747 TRAY DRIP AIRPOT RACK
WS-8705-11C TUBE SIGHT-GLASS 10IN
WS-8601-14A SIGHT TUBE 13IN GLASS
WS-8600-20 SHIELD 10IN GUAGE
WS-8601-13 SHIELD GAUGE 13IN
WS-8600-15 FAUCET SPB PLASTIC
WS-85805 FAUCET SS WITH HANDLE
WS-8600-27P NUT WING, PLASTIC THREADS
WS-8600-27 NUT WING, METAL THREADS (OPT)
2P-87740
WS-8800-8 W/OUT SIGHT GLASS
SHANK
CAFERINA
WS-8600-24 SIGHT GLASS
2I-70519 GASKET THERMOSTAT BREWERS
2C-87742 WASHER HARD RUBBER FAUCET CAFERINA, 2U-87737
2C-70575 NUT 3/8-18 SPCL FAUCET BRASS
2C-87743 HEX NUT M17 X 1.5 PLASTIC
WS-8600-14 FAUCET SG 10IN GLASS
2U-71321 FAUCET SIGH-GLASS 13IN
2U-70580 FAUCET W/O SG
2U-87737 FAUCET SVC PART DWG CAGE CAFERINA
2L-76058 COVER 3 GAL TEA DISP MOLDED 3 GALLON
2L-76059 COVER 5 GAL TEA DISPENSER 5 GALLON
WS-8600-14 FAUCET SG 10IN FAUCET 3 GALLON
2U-71321 FAUCET SG 13IN GLASS COMP 5 GALLON
4
IL2038
ICED TEA DISPENSERS
Model: 8602, 8699, 8799, 8800BL, 8802
27
26
25
24
23
22
21
20

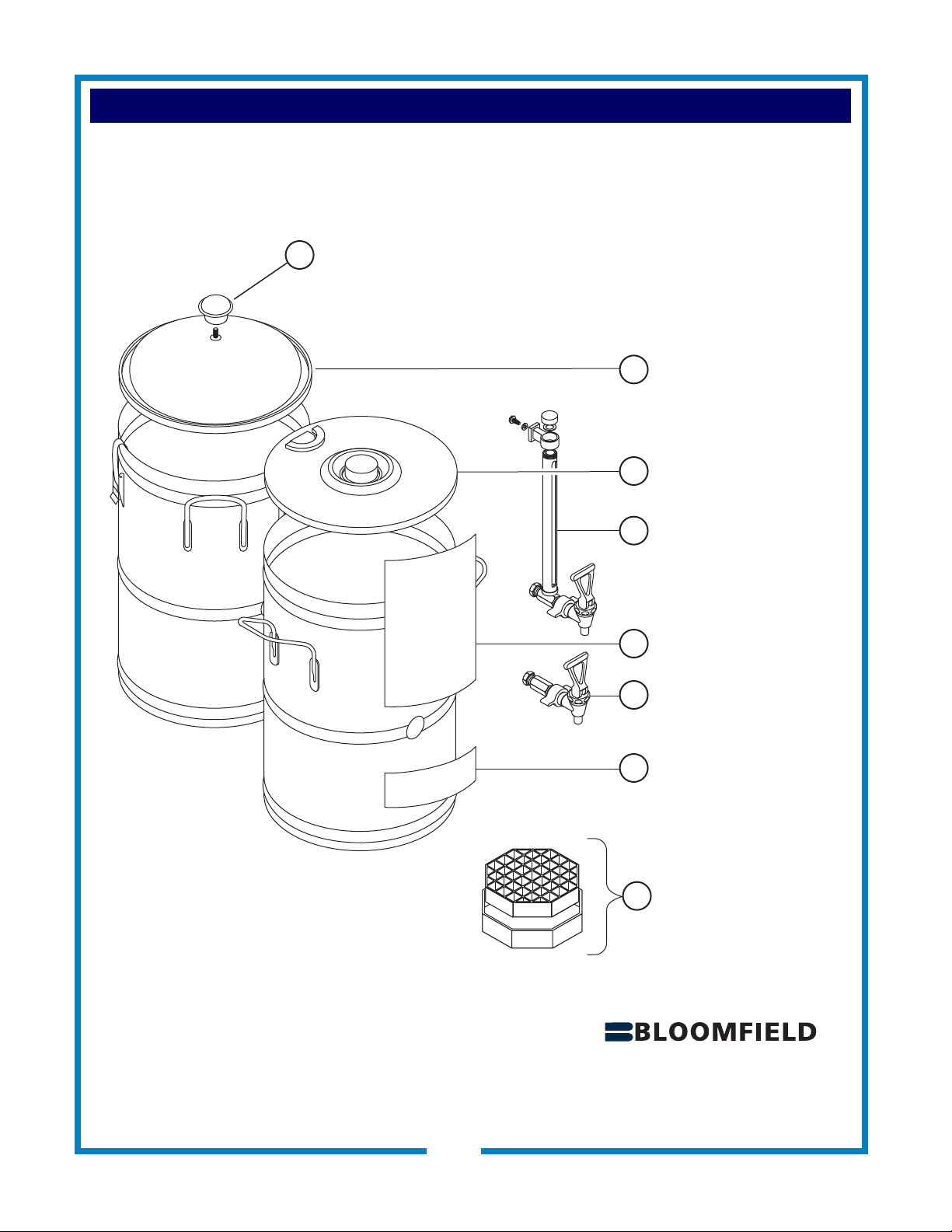

3-GALLON ICED TEA DISPENSER COMPONENTS
BL755 Service Parts List Iced Tea Dispensers
5
B lo om fie ld Ind us tries , In c.
In U S a n d C an ad a
Telepho ne: 888 -356 -536 2
Fax: 314 - 781 - 271 4
w ebs ite: w w w.w ells blo om field.com
B lo omfield Ind ustries pro udly s uppo rts C F E S A
C om m erc ia l Food Equ ipm ent S e rvice A s soc ia tion
