OWNERS MANUAL
for
E. B. C.™
Electronic
Brew
AIRP O T AN D
THERMAL SERVER
COFFEE BREWERS
MODELS
1080
1082 1082XL
1086 1088
Includes:
Installation Use & Care
Servicing Instructions
E.B.C.™ brewers are protected under
Model 1082 Brewer
with optional
7752 Airpot
PRINTED IN UNITED STATES OF AMERICA
p/n 75872 Rev. D ECN-12887 M642 050616 cps
Other U. S. and Canadian patents pending.
U. S. Patent # 5, 704,275
WARRANTY STATEMENT
All electrical equipment manufactured by BLOOMFIELD INDUSTRIES is warranted against defects in materials and workmanship for a period of one year from the date of original installation or eighteen (18) months from the date of shipment from our factory, whichever comes first, and is for the benefit of the original purchaser, except that: a. airpots carry a 30 day parts warranty only. b. dispensers; i.e., tea and coffee carry a 90 days parts warranty only, excludes decanters.
THE FOREGOING OBLIGATION IS EXPRESSLY GIVEN IN LIEU OF ANY OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY EXCLUDED.
BLOOMFIELD INDUSTRIES DIVISION / SPECIALTY EQUIPMENT MANUFACTURING CORPORATION SHALL NOT BE LIABLE FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES FROM ANY CAUSE WHATSOEVER.
This warranty is void if it is determined that upon inspection by an Authorized Service Agency that the equipment has bee n modified, misused, misapplied, improperly installed, or damaged in transit or by fire, flood or act of God.
SERVICE POLICY AND PROCEDURE GUIDE
ADDITIONAL WARRANTY EXCLUSIONS
It also does not apply if the serial nameplate has been removed or unauthorized service personnel perfor m service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies. This service will be provided on customer’s premises for non-portable models. Portable models (a device with a cord and plug) must be taken or shipped to the closest Authorized Service Agency, transportation charges prepaid, for services.
In addition to restrictions contained in this warranty, specific limitations are shown below (Additional W arranty Exclusions). Bloomfield Industries Authorized Service Agencies are located in principal cities.
This warranty is valid in the United States and void elsewhere. Please consult your classified telephone directory or your food service equipment dealer; or, for information and other details concerning warranty, write to:
Phone: (888) 492-2782 Fax: (888) 492-2783
Service Parts Department
Bloomfield Industries
P.O. Box 280
Verdi, NV 89439
1. Resetting of safety thermostats, circuit breakers, overload protectors, or fuse replacements unless warranted conditions are the cause.
2. All problems due to operation at voltages other than specified on equipment nameplates; conversion to correct voltage must be the customer’s responsibility.
3. All problems due to electrical connections not made in accordance with electrical code requirements and wiring diagrams supplied with the equipment.
4. Replacement of items subject to normal wear, to include such items as knobs and light bulbs. Normal maintenance
functions including adjustment of thermostats, microswitches,
and replacement of fuses and indicating lights are not
covered under warranty.
5. All problems due to inadequate water supply, such as
fluctuating, or high or low water pressure.
6. All problems due to mineral/calcium deposits, or
contamination from chlorides/chlorines. De-liming is considered a preventative maintenance function and is not covered by warranty.
SHIPPING DAMAGE CLAIMS PROCEDURE
NOTE: For your protection, please note that equipment in
this shipment was carefully inspected and packaged by skilled personnel before leaving the factory. Upon acceptance of this shipment, the transportation company assumes full responsibility for its safe delivery. IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight bill or express receipt, and that the note of loss or damage is signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY: Regardless of the extent of the damage.
7. Full use, care and maintenance instructions are supplied with each machine. Those miscellaneous adjustments noted are customer responsibility. Proper attention will prolong the life of the machine.
8. Travel mileage is limited to sixty (60) miles from an authorized Service Agency or one of its sub-agencies.
9. All labor shall be performed during normal working hours. Overtime premium shall be charged to the customer.
10. All genuine Bloomfield replacement parts are warranted for ninety (90) days from date of purchase on non­ warranted equipment. Any use of non-genuine Bloomfield parts completely voids any warranty.
11. Installation, labor and job check-out are not considered warranty.
12. Charges incurred by delays, waiting time or operating restrictions that hinder the service technicians ability to perf orm services are not covered by warranty. This includes institutional and correctional facilities.
3. CONCEALED LOSS OR DAMAGE: if damage is unnoticed until the merchandise is unpacked, notify the transportation company or carrier immediately, and file “CONCEALED DAMAGE” claim with them. This must be done within fifteen (15) days from the date the delivery was made to you. Be sure to retain the container for inspection.
Bloomfield Industries cannot assume liability for damage or loss incurred in transit. We will, however, at your request, supply you with the necessary documents to support your claim.
642 75872 Owners Manual E.B.C. Airpot /Thermal
xi
TABLE OF CONTENTS
WARRANTY STATEMENT xi SPECIFICATIONS 1 FEATURES & OPERATING CONTROLS 2 PRECAUTIONS & GENERAL INFORMATION 3 AGENCY LISTING INFORMATION 3 INSTALLATION INSTRUCTIONS 4 OPERATION 6 BREWING COFFEE 10 CLEANING INSTRUCTIONS 11 TROUBLESHOOTING SUGGESTIONS 12 SERVICING INSTRUCTIONS 14 Deliming Instructions 20 EXPLODED VIEWS & PARTS LISTS 22 WIRING DIAGRAMS 26
Thank You for purchasing this Bloomfield Industries appliance.
Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use, care for and maintain or repair the appliance in a manner which will ensure its optimum perf ormance.
SPECIFICATIONS
AMPS POWER SUPPLY MODEL STYLE VOLTS WATTS 1ø CORD
1080 THERMAL 120 1800 15 1082 AIRPOT 120 1800 15 NEMA 5-15P
1082CA 1082XL 120 1800 15
1082XLCA 1086 THERMAL 115/230 3500 15.2
3 WIRE Requires 3 wire + gnd cord not supplied 1088 AIRPOT 115/230 3500 15.2 3 WIRE
k 120 1500 12
k 120 1500 12
k Meets Canadian standards
APPLICABILITY
This manual applies to the following Bloomfield Industries E. B. C.® products:
1080 1080CA 1082 1082ACA 1082CA 1082XL 1082XLCA 1086 1088
642 75872 Owners Manual E.B.C. Airpot /Thermal
1
FEAT U R E S AN D OP E RATING CO N T ROLS
Fig. 1 Features & Operating Controls
642 75872 Owners Manual E.B.C. Airpot /Thermal
2
PRECAUTIONS AND GENERAL INFOR M ATION
WARNING: ELECTRIC SHOCK HAZARD
All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock.
WARNING: INJURY HAZARD All installation procedures must be performed by qualified personnel with full knowledge of all applicable electrical and plumbing codes. Failure could result in property damage and personal injury.
WARNING: ELECTRIC SHOCK HAZARD Brewer must be properly grounded to prevent possible shock hazard. DO NOT assume a plumbing line will provide such a ground. Electrical shock will cause death or serious Injury.
WARNING: BURN HAZARD This appliance dispenses very hot liquid. Serious bodily injury from scalding can occur from contact with dispensed liquids.
This appliance is intended for commercial use only. This appliance is intended for use to brew beverage products for
human consumption. No other use is recommended or authorized by the manufacturer or its agents.
This appliance is intended for use in commercial establishments, where all operators are familiar with the appliance use, limitations and associated hazards. Operating instructions and warnings must be read and unde r s to od by all operators and users.
Except as noted, this piece of equipment is made in the USA and has American sizes on hardware. All metric conversions are approximate and can vary in size.
The following trouble shooting, component views and parts lists are included for general reference, and are intended for use by qualified service personnel.
This manual should be considered a permanent part of this appliance. The manual must remain with the appliance if it is sold or moved to another location.
AGENCY LISTING INFORMATION
This brewer is and
This brewer meets
listed under UL file E9253.
Standard 4 only when installed,
CAUTION: Equipment Electrical Damage
DO NOT plug in or energize this appliance until all Installation Instructions are read and followed. Damage to the brewer will occur if these instructions are not follo wed.
CAUTION: Burn Hazard
Exposed surfaces of the appliance, brew chamber and airpot or server may be HOT to the touch, and can cause serious burns.
E9253
E9253
operated and maintained in accordance with the enclosed
642 75872 Owners Manual E.B.C. Airpot /Thermal
instructions.
3
STD 4
INSTALLATION INSTRUCTIONS
READ THIS CAREFULLY BEFORE STARTING THE INSTALLATION
IMPORTANT:
To enable the installer to make a quality installation and to minimize installation time, the following suggestions and tests should be done before the actual unit installation is started:
CAUTION: Equipment Electrical Damage
DO NOT plug in or energize this appliance until all Installation Instructions are read and followed. Damage to the Brewer will occur if these instructions are not followed.
CAUTION: Unstable Equipment Hazard
It is very important for safety and for proper operation that the brewer is level and stable when standing in its final operating position. Provided adjustable, non-skid legs must be installed at each corner of the unit. Failure to do so will result in movement of the brewer which can cause personal Injury and/ or damage to brewer.
NOTE: Water supply inlet line must mee t cer tain minimu m criteria to insure successful operation of the brewer. Bloomfield recommends 1/4" copper tubing for installation of less than 25 feet and 3/8" for more than 25 feet from a 1/2" water supply line.
Unpack the unit. Inspect all components for completeness and condition. Ensure that all packing materials have been removed from the unit.
Verify that the Spray Head Gasket and Spray Disk are properly installed.
LEVELING THE UNIT
Verify that an adjustable leg is installed at each corner of the brewer.
Set Brewer in its operating location. Level the brewer. A spirit level should be placed on the top of the unit, at the edge, as a guide when making level adjustments.
Level the unit from left to right and front to back by turning the adjustable feet. Be sure all four feet touch the counter to prevent tipping.
PLUMBER’S INSTALLATION INSTRUCTIONS Brewer should be connected to a POTABLE WATER, COLD
WATER line. Flush water line before connecting to Brewer.
DO NOT use a saddle valve with a self-piercing tap for the water line connection. Such a tap can become restricted by waterline debris. For systems that must use a saddle tap, shut off the main water supply and drill a 3/16” (minimum) tap for the saddle connection, in order to insure an ample water supply. Remember to flush the line prior to installing the saddle.
The brewer must be installed on a water line with average pressure between 20 PSI and 90 PSI. If your water pressure exceeds 90 PSI at anytime, a pressure regulator must be installed in the water supply line to limit the pressure to not more than 90 PSI in order to avoid damage to lines and solenoid.
A water shut-off valve should be installed on the incoming water line in a convenient location (Use a low restriction type valve, such as a 1/4-turn ball valve, to avoid loss of water flow thru the valve.
A waterline filter is recommended in areas where water quality may cause taste and/or odor problems.
642 75872 Owners Manual E.B.C. Airpot /Thermal
4
INSTALLATION INSTRUCTIONS (continued)
NSF requires that the brewer be able to be moved for cleaning underneath. A flex line or loops of copper tubing will satisfy this requirement. See Figure 2 below.
Fig. 2 Water Supply Installation
In some areas, local codes require a backflow preventer (check valve) to be installed on the inlet water line. If a backflow preventer is used, you must install a water hammer arrester in the incoming line, between the backflow preventer and the brewer inlet, as far away from the brewer as space will allow. This will relieve the excessive back pressures that can cause faucet leaks and solenoid malfunctions.
ELECTRICIAN’S INSTALLATION INSTRUCTIONS
REFER TO ELECTRICAL SPECIFICATIONS - Page 1 Check the nameplate to determine correct electrical service required for the Brewer to be installed.
IMPORTANT: Before connecting to electricity, make sure automatic brewers are connected to the water supply.
Models 1080 and 1082 are equipped with a cord and plug. They require a 115 - 125 volt 20 amp circuit (50/60 Hz, 2 wire plus ground, with NEMA 5-15R or 5-20R Receptacle).
IMPORTANT: The ground prong of the plug is part of a system designed to protect you from electrical shock in the event of internal damage. Never cut off the gr ou n d pr on g no r twist a blade to fit an existing receptacle. Contact a licensed electrician to install the proper circuit and receptacle.
Models 1086 & 1088 must be wired by an electrician, and require a 115/230V 20A circuit (50/60 Hz, 2 hot legs / 1 neutral leg, plus ground). Remove front pan el to gain access to terminal block. Green terminal must be connected to a suitable building ground. Circuit must be capable of 3500 Watts. See figure 3 at right.
642 75872 Owners Manual E.B.C. Airpot /Thermal
IMPORTANT: Wiring must be installed in approved solid or flexible conduit, and must be secured to the brewer with a strain relief (to be provided by the installer).
NOTE: This equipment must be installed to comply with applicable federal, state and local plumbing codes and ordinances.
WARNING: ELECTRIC SHOCK HAZARD
Brewer must be properly grounded to prevent possible shock hazard. DO NOT assume a plumbing line will provide such a ground. Electrical shock will cause death or serious injury.
IMPORTANT: Do not connect brewer to electrical power until the tank is filled with water. Pour water into the pour-over opening until water flows from the brew head.
IMPORTANT:
Supply power must match nameplate for voltage and phase. Connecting to the wrong voltage will damage the brewer or result in decreased performance. Such damage is not covered by warranty.
Fig. 3 115/230 Volt Terminal Block
5
OPERATION
Fig. 4 Brewer Operation Diagram
IMPORTANT:
Tank must be full of water before connecting brewer to electrical power. Heating elements will be damaged if allowed to operate without being fully submerged in water. Damage caused by operating the brewer without water in the tank is NOT COVERED BY WARRANTY.
A. START-UP
For initial start-up, or if the brewer has not been used for an extended period of time:
Be sure spray disk and brew gasket are properly installed in the brew head.
Be sure the water supply is properly connected and the water supply valve is turned ON.
Be sure the WATER TANK IS FILLED BEFORE plugging the brewer into a receptacle, or otherwise
connecting brewer to electrical power THE WATER TANK MUST BE FILLED. Place an empty decanter under the brew head. Lift the pour-over cover then pour warm tap water into the pour-over opening until water flows from the brew head. When water stops dripping from the brew head, empty the container.
Once the tank is full of water, connect the brewer to electrical power. For Models 1086 & 1088, press power switch to ON. The heating elements will begin heating the water in the tank. When the water has reached the proper temperature, the “HEAT” LED will go out.
642 75872 Owners Manual E.B.C. Airpot /Thermal
6
WATER HEATER
Water temperature is sensed by an electronic water temperature probe inserted into the water tank. This temperature signal is fed to the controller.
The setpoint temperature is adjustable. The controller sends a command signal to the power board based upon a comparison between the setpoint temperature and actual temperature. See page 15.
The power board energizes the heating elements based on the command signal from the controller.
Excessive temperature will trip the hi-limit safety switch. The hi-limit will automatically reset when the brewer cools.
WATER FLOW
POUR-OVER FEATURE
Pouring any amount of water into the pour-over opening and into the basin pan forces an identical amount of heated water out of the tank and through the spray head.
AUTOMATIC OPERATION Pressing the BREW key energizes the solenoid
valve, allowing water from an external water supply to flow into the water tank. The incoming water forces heated water out of the tank to perform the brew.
The solenoid uses a flow control device so that flow is consistent between 20 p.s.i. and 90 p.s.i.
The length of time the solenoid is open is controlled by the time setting of the controller. See page 18.
After the solenoid closes, water will continue to flow to the brew chamber until the water level in the tank falls below the brew pickup, breaking the siphon.
HOT WATER FAUCET The faucet water coil is submerged in the hot water
tank and draws heat from the brew water. Water going to the water coil is not controlled by the solenoid valve.
Hot water is provided at the faucet, at supply water pressure, any time the faucet shut-off valve is
.
OPEN
642 75872 Owners Manual E.B.C. Airpot /Thermal
OPERATION (continued)

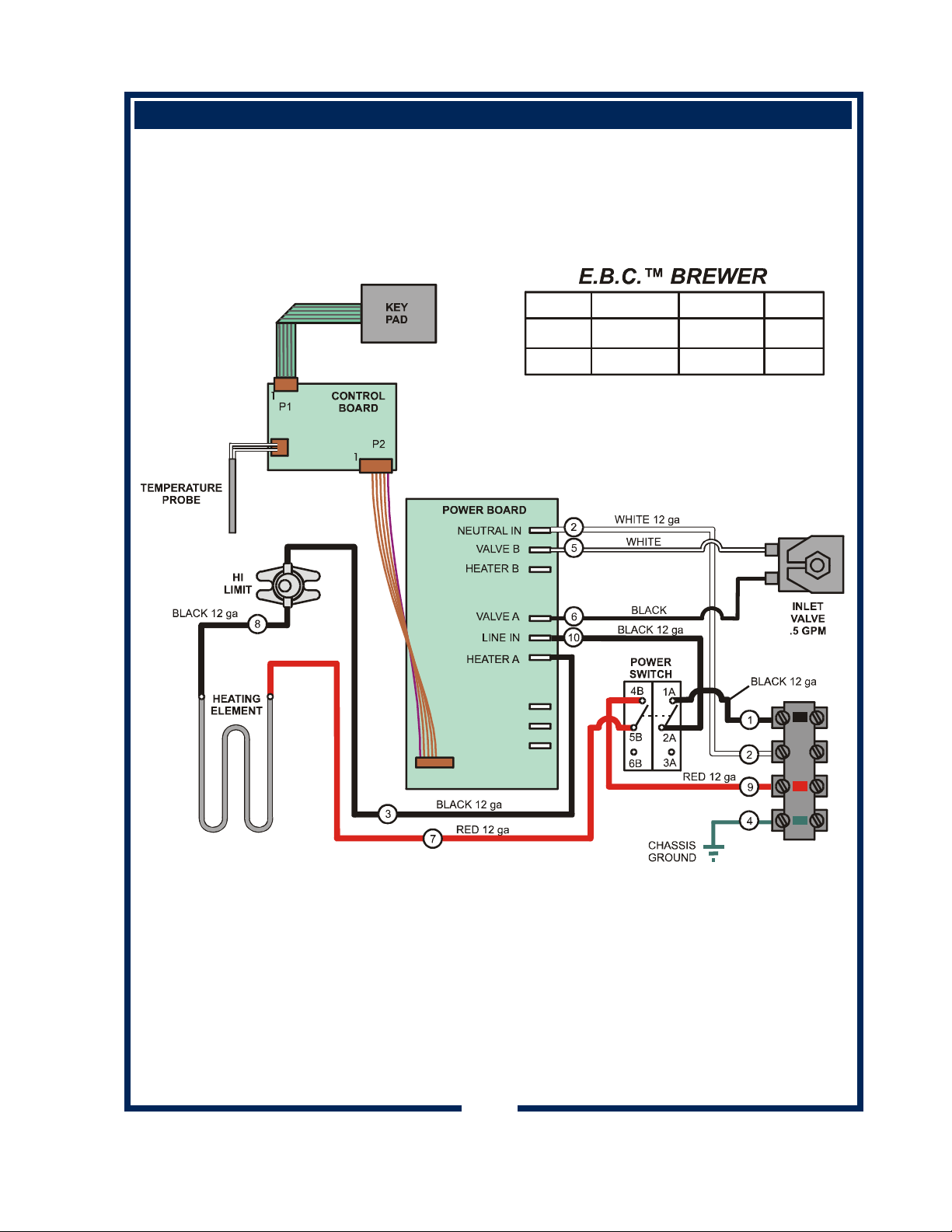

Fig. 5 Heat Control Diagram
Fig. 6 Water Flow Diagram
7
OPERATION (continued)
IMPORTANT:
DO NOT energize this brewer until the water tank has been filled. Dry firing will damage heating elements. See page 6.
Fig. 7 Turning Brewer
ON or OFF
Fig. 8 Initiate a Brew
Fig 9 Brew Cancel
ELECTRONIC FEATURES Energizing the Brewer
When electric power is applied to the unit, all the lights will flash four times and four beeps will sound. The unit will be
OFF.
Press the ON/OFF key. Four beeps will sound and all lights will flash once. The POWER indicator will remain
ON. If the water temperature
is more than 10ºF below the setpoint, the HEAT indicator will glow until water temperature reaches setpoint.
Press the ON/OFF key again to turn the brewer
OFF. Three beeps will
sound, the tank heater and all warmers will be switched off, and all indicator lights will go out.
Brew Settings
See pages 15 & 16 for setting Brew Time and Temperature.
ABS™ (Automatic Brew Start)
Start a brew by pressing BREW. A single beep will sound. The system will verify that the water in the tank is at the proper temperature. If it is, brew will start immediately. Otherwise, the BREW indicator will flash (Brew Waiting Mode) until the water reaches setpoint temperature, then the indicator will glow and brew will commence. If the main warmer is off, it will be energized automatically.
At the conclusion of the brew cycle, three beeps will sound. NOTE: To override Brew Waiting Mode, press and hold the BREW
key for 3 seconds while the BREW indicator is flashing. Brew will begin regardless of water temperature. To avoid under-temperature brews, this feature should only be used when setting brew volumes.
NOTE: Brew Waiting Mode (BREW indicator flashing) prevents multiple, unattended brews. While the BREW indicator is on or flashing, any additional strokes of the BREW key will be ignored (there will be a beep each time the key is pressed, however). Another brew cannot be initiated until the previous brew is complete.
The Brew Waiting Time, also called Dripout Time, (interval between when the brew is initiated and the audible signal sounds at the end of the brew) may be adjusted between 2 and 8 minutes at the Brew Signal Timer dial on the controller. See page 16.
Brew Cancel
To cancel a brew in progress or a brew in waiting, press the CANCEL key. Two beeps will sound and the BREW indicator will go out.
NOTE: If a brew in progress is cancelled, coffee will continue to flow until all water delivered has dripped through the brew chamber.
642 75872 Owners Manual E.B.C. Airpot /Thermal
8
OPERATION (continued)
Quality Timer
Coffee looses its freshness as it sits on a warmer. The Quality Timer flashes the warmer lights 30 minutes after the last brew to remind you that the coffee is nearing the end of its useful life.
After Hours™ Operation
During normal operation, the controller will maintain the precise brewing temperature. If, however, if the BREW key in not pressed for 3 hours, the brewer goes into After Hours™ mode; any warmer left on will be turned off; and, the temperature will only be maintained to within 20ºF. This feature prolongs component life and saves energy.
As soon as the BREW key is pressed, the brewer returns to normal operation, heating the water to the precise temperature before beginning the brew. The brewer will return to After Hours™ mode only if three hours pass without a brew being initiated.
Disable/Enable After Hours™ Feature
To disable After Hours™, press the ON/OFF key to turn the brewer Press and hold the CANCEL key until two beeps sound, and the HEAT indicator flashes twice. This feature is now disabled.
To re-enable After Hours™, press the ON/OFF key to turn the brewer
OFF. Press and hold the CANCEL key until three beeps sound, and the
POWER indicator flashes twice. This feature is now enabled, however, it will not be activated unless no brew is initiated for three hours.
Over-Temperature and Temperature Fault Protection
Should the water temperature exceed 214ºF (101ºC), or if the controller does not detect a 2ºF (1ºC) rise in temperature within four minutes of calling for heat, the brewer will go into Over Temperature Mode; the heating element is turned off, all warmers are disabled and all lights will flash.
Possible causes of Over Temperature condition:
Setpoint is in the boiling range.
Heating element or temperature probe has malfunctioned.
Excessive scale buildup is preventing the element from heating the
water.
Heating element relay fails in the “on” state.
No water in the tank.
Hi-limit safety tripped (must be manually reset)
To reset the brewer:
Determine the cause of the failure and take appropriate remedial
642 75872 Owners Manual E.B.C. Airpot /Thermal
action to rectify the problem.
Press and hold the CANCEL key for three seconds. Four beeps will sound and the brewer will resume normal operation.
OFF.
Quality Timer is normally set for 30 minutes. It can be set for 20 minutes by moving a jumper on the controller. See page 19.
After Hours™ is an energy saving feature. The brewer will enter After Hours™ mode if it is not used for three hours. Press the BREW key to immediately return the brewer to normal operation.
IMPORTANT:
If the original cause of the problem has not been addressed, the brewer will once again go into Over Temperature mode four minutes after being reset.
9
BREWING COFFEE
CAUTION: Burn Hazard
Exposed surfaces of the brewer, brew chamber and airpot or server may be HOT to the touch, and can cause serious burns.
CAUTION: Burn Hazard
To avoid splashing or over­flowing hot liquids, ALWAYS place an empty airpot or server under the brew chamber before starting the brew cycle. Failure to comply can cause serious burns.
CAUTION: Burn Hazard
After a brew cycle, brew chamber contents are HOT. Remove the brew chamber and dispose of used grounds with care. Failure to comply can cause serious burns.
NOTE: The brewer will not initiate a second automatic brew cycle until the current cycle plus the drip-out time is completed. The “BREW” light will flash indicating a brew in progress.
NOTE: Water for the hot water faucet is heated in a coil inside of the water tank. Use of the faucet will not affect the volume of water delivered for a brew. However, overuse of the faucet during a brew may lower the temperature of the brew water.
B. PREPARATION
Place one (1) genuine Bloomfield paper filter in the brew chamber.
PAPER FILTER
Add a pre-measured amount of fresh coffee grounds. Gently shake the brew chamber to level the bed of grounds. Slide the
BREW CHAMBER
brew chamber into place under the brew head.
Fig. 10 Brew Chamber
C. POUR-OVER OPERATION
NOTE: Any E..B.C™ brewer can be used in the pour-over mode. BE sure “HEAT” light is not lit. Place the appropriate EMPTY airpot or thermal server in place
under the brew chamber. Fill an airpot or server, identical to the one being used, with tap
water. Lift the pour-over cover and pour the entire contents of the container into the pour-over opening, which will fill the basin.
Water from the basin will displace a like amount of heated water from the tank. The hot water will be forced into the brew head where it will spray over the bed of grounds. Freshly brewed coffee will begin to fill the container under the brew chamber. When the flow and all dripping stops, the coffee is ready to serve.
Discard the contents of the brew chamber. Rinse the brew chamber in a sink. When the ”HEAT” light goes out, the brewer is ready for another brew cycle.
C. AUTOMATIC OPERATION BE sure “HEAT” light is not lit. Place the appropriate EMPTY airpot or thermal server in place
under the brew chamber. Press the “BREW” switch. The “BREW” light will glow and a beep
will sound. The solenoid will open for an amount of time determined by the timer setting, admitting a measured quantity of water into the basin.
Water from the basin will displace a like amount of heated water from the tank. The hot water will be forced into the brew head where it will spray over the bed of grounds. Freshly brewed coffee will begin to fill the container under the brew chamber. At the end of the brew cycle, plus an amount of time set to allow all water to drip out of the brew chamber, two beeps will sound. When the flow and all dripping stops, the coffee is ready to serve.
Discard the contents of the brew chamber and rinse it in a sink. When the ”READY TO BREW” light glows, the brewer is ready for another brew cycle.
642 75872 Owners Manual E.B.C. Airpot /Thermal
10
CLEANING INSTRUCTIONS
PROCEDURE: Clean Coffee Brewer
PRECAUTIONS: Disconn e ct br ewer from electric power. Allow brewer to cool.
FREQUENCY: Daily TOOLS: Mild Detergent, Clean Soft Cloth or Sponge
Bristle Brush.
1. Disconnect brewer from electric power. Allow brewer to cool before cleaning.
2. Remove and empty decanters.
3. Remove and empty brew chamber.
4. Remove the spray disk from the brew head (See figure 8): Press up on the spray disk ears, then turn the disk to the left to unlatch. Remove the gasket from inside the brew head.
5. Wipe inside of brew head and area around the brew head with a soft clean cloth or sponge moistened with clean water.
6. Wash the spray disk in a sink using warm water and a mild detergent. A bristle brush may be used to clear clogged spray holes. Rinse the spray disk with clean water and allow to air dry.
7. Wash the brew chamber in a sink using warm water and a mild detergent. A bristle brush may be used to clean the inside. Rinse with clean water and allow to air dry. For stainless steel brew chambers, be sure the wire rack is properly reinstalled.
8. Wipe the exterior of the brewer with a soft clean cloth or sponge moistened with clean water.
10. Reinstall the gasket INSIDE the brew head, then reinstall the spray disk.
11. Reinstall the brew chamber.
12. DO NOT submerge airpots or thermal servers in water. Clean airpots and thermal servers by f illing with warm soapy water. Scrub the inside with a bottle brush. Empty and rinse with clean water. Wipe the exterior with a soft clean cloth or sponge moistened with clean water. Invert and allow to air dry.
Procedure is complete
CAUTION: Burn Hazard
Brewing and serving temperatures of coffee are extremely hot. Hot coffee will cause serious skin burns.
CAUTION: Electric Shock Hazard
Do not submerge or immerse brewer in water.
IMPORTANT:
DO NOT use steel wool, sharp objects, or caustic, abrasive or chlorinated cleansers to clean the brewer.
Fig. 11 Cleaning
642 75872 Owners Manual E.B.C. Airpot /Thermal
11
TROUBLESHOOTING SUGGESTIONS
SYMPTOM
Water won’t heat
Coffee level too high or low Brew chamber overflows
Sprays water from brew head
No brew while faucet flows OK
No brew plus no flow from hot water faucet
No flow from hot water faucet
Poor coffee quality
POSSIBLE CAUSE
Brewer unplugged or circuit breaker tripped
Temperature adjusted too low or set to OFF
Hi-Limit thermostat tripped
Damaged internal component or wiring
Timer out of adjustment Too many filter papers or wrong
filter paper Brew chamber dispense hole
plugged Spray gasket improperly
installed Spray disk plugged Damaged internal component
or wiring
Water supply OFF Solenoid screen plugged Water line strainer (if used)
plugged Water filter (if used) plugged Faucet valve turned OFF Faucet plugged
Keep brewer, airpots and servers clean. Install a taste and odor filter in water supply, and replace cartridges regularly. Use a quality coffee with a consistent roast. Use proper grind and amount of coffee per brew.
SUGGESTED REMEDY
Check power supply cord Check / reset circuit breaker
Turn on and set for desired temperature. See page 15
Allow to cool (1012, 1040 or
1072), or allow to cool and reset hi-limit (1086, 1088)
Examine wiring & connectors, controller, power board and heating element Repair/replace as needed
Adjust controller. See page 16 Use one (1) genuine Bloomfield
filter per brew Thoroughly clean bre w c h amber
Check/reinstall gasket on INSIDE of brew head
Clean spray disk Check keypad, controller, power
board & solenoid Repair, replace as needed
Turn water supply ON Clean solenoid screen Clean strainer
Replace filter element Turn faucet valve ON Disassemble faucet, clean
642 75872 Owners Manual E.B.C. Airpot /Thermal
12
ERROR DETECTION
This brewer is designed to perform a continuous internal diagnosis, and to signal faults by flashing all the lights. In fault mode, warmers, heating element and water fill solenoid are turned “off”, and most keypad functions are disabled.
Error detection (all lights flashing) will occur under two conditions:
Anytime a temperature in excess of 214ºF is detected.
Temperature does not change by at least 2ºF within 4 minutes
of tank heater being energized (HEAT light on).
To reset the brewer after the fault has been corrected, press and hold the CANCEL key for 3 seconds, or disconnect the brewer from electrical power for three seconds.
WHAT TO CHECK DESCRIPTION CORRECTIVE ACTION
Has the water tank been properly filled?
Has hi-limit safety thermostat tripped off?
On initial startup, an attempt to heat a dry tank will be detected as too high a temperature or insufficient temp rise, or will trip the high limit.
Brewer may have been started without water in the tank, or the temp control thermostat may require adjustment.
Live electrical circuits may be exposed while performing these procedures. These procedures are to be performed by qualified technical personnel only.
Tank must be properly filled as detailed on page 6. Check hi-limit (see below)
Access hi-limit by removing front panel. Hi-limit is on the left side of the tank. Use an insulated tool to push the red button in until it “clicks” and stays. Reset per above.
CAUTION
ELECTRIC SHOCK HAZARD
Check control board and temp probe.
Check power board and heating element..
Is the brew
642 75872 Owners Manual E.B.C. Airpot /Thermal
temperature properly adjusted?
Brewer will go into error mode immediately if either the control board or temp probe is defective. Temp probe electrical resistance is approximately 30Kat room temp, and 2K at boiling. Replace temp probe if less than 1KΩ.
Brewer will go into error mode 4 minutes after energizing the heating element if insufficient heat rise is detected. The heating element is energized by an electronic power board, and protected by the hi-limit safety. Heating element should receive full line voltage (i.e. 120V, 208V or 240V). Be sure the hi-limit safety is reset.
The brewer may occasionally go into error mode if the brew temperature is set too high.
Reset by holding the CANCEL key for 3 seconds. If lights continue to flash: Disconnect temp probe from control board. a. If lights continue to flash, unplug brewer and replace control board. b. If lights stop flashing, unplug brewer and replace temp probe.
Reset by holding the CANCEL key for 3 seconds. If lights resume flashing after 4 minutes: Check the voltage across the heating element terminals: a. If no voltage is present, unplug brewer and replace power board. b. If proper voltage is present, unplug brewer and replace tank heating element.
See page 15 for temperature adjustment procedure.
13
SERVICING INSTRUCTIONS
CAUTION Electric Shock Hazard
Opening access panels or removing warmer plates on this brew may expose uninsulated electrical components. Disconnect brewer from electrical power before removing any panel or warmer plate.
ACCESS PANELS
TOP PANEL: Remove top panel to access hot water tank, thermo probe,
heating elements, brew circuit tubing, faucet valve and piping. Top panel is held by two screws at the rear and a retaining lip at
the front. FRONT PANEL:
Remove front panel to access controller, terminal block and solenoid.
Front panel is held by two screws at the bottom and a retaining lip at the top.
SOLENOID DOOR: Remove solenoid door to access solenoid plumbing connections. Solenoid door is held by two screws and a retainin g lip.
Fig. 12 Access Panels
642 75872 Owners Manual E.B.C. Airpot /Thermal
14
SERVICING INSTRUCTIONS (continued)
TEMPERATURE ADJUSTMENT
Unplug power cord or turn circuit breaker OFF. Remove top panel. Remove button plug from front panel.
Fig. 13 Checking and Adjusting Brew Temperature
Pull vent tube out of tank lid and insert a thermometer of known accuracy in vent hole. Reconnect brewer to electrical po wer. Place empty container under brew chamber. Energize brewer and pour one decanter (64 oz.) of cold water into pour-over opening. When HEAT light goes out, read the temperature displayed on thermometer.
Adjust WATER TEMP dial on controller; clockwise incr eases temperature. Refer to Table 1 below for proper brewing temperature based on altitude.
BOILING
0
0
0
5
,
6
POINT OF WATER
IDEAL BREWING TEMPERATURE RANGE
MAXIMUM TEMPERATURE SETTING
) F
º
(
.
P
200
M E T
210 205
195 190
0
0
0
0
5
0
0
5
0
,
,
1
1
0
0
0
0
0
,
2
0
0
0
5
,
2
0
0
5
,
,
3
3
0
0
0
0
0
0
5
,
,
4
4
0
0
0
0
0
0
5
0
,
,
,
6
5
5
ELEVATION (feet above seal level)
Table 1 Boiling Temperature by Altitude
Upon completion, remove thermometer and reinstall vent tube.
CAUTION Electric Shock Hazard
These procedures involve exposed electrical circuits. These procedures are to be performed by qualified technical personnel only.
NOTE: Optimum brewing temperature is 195ºF to 205ºF (90ºC to 96ºC). Maximum temperature setting should be no more than 205ºF (96ºC).
IMPORTANT:
An electronic temperature controller will maintain temperature within ±2ºF. To prevent boiling water in the brewer, controller should be adjusted to a maximum temperature equal to the local boiling temperature minus 2ºF, or 205ºF, whichever is less.
642 75872 Owners Manual E.B.C. Airpot /Thermal
15
SERVICING INSTRUCTIONS (continued)
IMPORTANT: Water pressure
must be between 20 p.s.i and 90 p.s.i. flowing pressure. If water pressure exceeds this value, or if water pressure varies greatly, a pressure regulator must be installed in the water supply line.
Fig. 14 Adjust BrewTime and Dripout Time
IMPORTANT: Before setting assembly into tank, make sure tank lid gasket is properly seated on flange of lid. DO NOT OVER-TIGHTEN.
IMPORTANT: When replacing temperature probe, be sure a new seal washer is in place around the probe. Tighten jamb lock nut only enough to ensure no water leakage. Excessive tightening is not necessary.
IMPORTANT: When replacing heating element, also replace seal gaskets.
BREW TIME ADJUSTMENT
The amount of water dispensed automatically during a brew cycle is controlled by the SOLENOID TIME dial of the controller.
Place empty decanter under brew chamber. Press BREW button. Brewer should dispense one full decanter of water. To adjust amount:
Remove brew chamber and button plug. On the controller, adjust SOLENOID TIME dial (BREW TIME); clockwise increases time. Run several cycles to check amount of water delivered.
DRIPOU T TI M E AD J U STMENT
Water delivered to the brew chamber will take a while to drip through as coffee. The time between the end of a brew and when a new brew can be initiated is controlled by the BREW SIGNAL TIMER. Adjust the BREW SIGNAL TIMER dial on the controller to account for the dripout time. Replace button plug.
REMOVE TANK LID ASSEMBLY
Unplug brewer or turn circuit breaker OFF. Turn OFF water supply. Remove top panel. Pull vent tube and inlet elbow out of basin pan.
On automatic models, pull water inlet tube out of basin pan. Remove basin pan.
On models with faucet, disconnect inlet pipe at faucet shut-off valve and outlet pipe at faucet.
Disconnect all wiring from hi-limit and heating element. Disconnect temperature probe from controller.
Loosen center screw on tank hold-down bracket. Remove hold-down bracket by sliding short slotted end off of locking stud and lifting it off. Remove cover assembly by lifting it straight up.
Reassemble in reverse order.
REPLACE TEMPERATURE PROBE
Unplug brewer or turn circuit breaker OFF. Remove top panel. Loosen and free jam nut from pass-thru fitting securing
temperature probe. Disconnect temperature probe wiring connector from controller. Lift out probe, jamb nut and gasket.
Reassemble in reverse order.
REPLACE HEATING ELEMENT
Remove tank lid assembly per above. Remove two hex nuts holding element to cover. Pull element
from mounting holes. Reassemble in reverse order.
642 75872 Owners Manual E.B.C. Airpot /Thermal
16
SERVICING INSTRUCTIONS (continued)
REPLACE SOLENOID
Unplug power cord. Turn OFF and disconnect water supply from brewer inlet fitting.
Remove front panel. Remove two screws holding access door in place. Remove access door and solenoid. Unscrew inlet fitting cap to release solenoid from door.
Remove wiring from solenoid. Large end of wrench 86660 can be used to hold solenoid inlet
fitting while disconnecting supply line.
REPLACE FAUCET SUPPLY HOSE
Unplug power cord. Turn OFF and disconnect water supply from brewer inlet fitting. Disconnect hose fitting from solenoid (See illustration at right).
Disconnect hose flare fitting from tank coil fitting.
REPLACE HOT WATER FAUCET COIL
(Symptom: Brewer drips continuously from brew head, except when faucet valve is turned OFF.) IMPORTANT: When replacing water faucet coil, also replace seal gaskets.
Remove tank lid assembly per above. Remove two hex nuts hot water coil to cover. Pull coil from
mounting holes.
REPAIR HOT WATER FAUCET
Remove top panel and turn faucet valve OFF. Unscrew aerator cap from faucet and remove handle retaining
clip. Do not let faucet body turn. Pull bonnet assembly from faucet body. Examine the interior of the faucet body and the surface of the
seat cup. Clean out any debris in the faucet body, using a stiff bristle brush if necessary.
NOTE: Any abrasion or roughness on the flat end of the seat cup will require replacing the seat cup:
Work the seat cup out of the bonnet and off of the end of the stem.
Install a new seat cup, making sure the knob on the stem is fully inserted into the pocket of the seat cup, and the skirt of the seat cup is fully inserted into the bonnet.
642 75872 Owners Manual E.B.C. Airpot /Thermal
Examine the aerator. Clean any debris from the screen or flow straightener, using a stiff bristle brush if necessary.
Fig. 15 Fill Solenoid
Fig. 16 86660 Solenoid Wrench
17
SERVICING INSTRUCTIONS (continued)
IMPORTANT: When replacing
water faucet coil, also replace seal gaskets.
NOTE: Any abrasion or roughness on the flat end of the seat cup will require replacing the seat cup:
Work the seat cup out of the bonnet and off of the end of the stem.
Install a new seat cup, making sure the knob on the stem is fully inserted into the pocket of the seat cup, and the skirt of the seat cup is fully inserted into the bonnet.
REPLACE HOT WATER FAUCET COIL
(Symptom: Brewer drips continuously from brew head, except when faucet valve is turned OFF.)
Remove tank lid assembly per above. Remove two hex nuts hot water coil to cover. Pull coil from
mounting holes. Reassemble in reverse order.
REPAIR HOT WATER FAUCET
Remove top panel and turn faucet valve OFF. Unscrew aerator cap from faucet and remove handle retaining
clip. Do not let faucet body turn. Pull bonnet assembly from faucet body. Examine the interior of the faucet body and the surface of the
seat cup. Clean out any debris in the faucet body, using a stiff bristle brush if necessary.
Examine the aerator. Clean any debris from the screen or flow straightener, using a stiff bristle brush if necessary.
Reassemble in reverse order.
RESET HI-LIMIT (Models 1086 & 1088)
Allow brewer to cool. Remove front panel. Press red button on hi-limit until it clicks and stays in. Reassemble in reverse order. Test for function and proper
operation.
REPLACE CONTROLLER
Unplug power cord or turn circuit breaker OFF. Remove front panel. Remove timer faceplate. Use needle nose
pliers to disengage three barbed fittings holding controller to bracket. Disconnect keypad ribbon cable (note position “1”), temperature probe and power board cable.
Set jumpers as described on page 19. Reassemble in reverse order. Adjust controller as described on pages 15 & 16.
642 75872 Owners Manual E.B.C. Airpot /Thermal
Fig. 17 Controller Hook-Up
18
SERVICING INSTRUCTIONS (continued)
SET CONTROLLER JUMPERS
Placing the jumper across Q1 sets Quality Time at 20 Minutes. Placing the jumper across Q2 sets Quality Time at 30 Minutes. Removing jumpers from both Q1 or Q2 disables Quality Timer. Placing the jumper across V1 sets Valve Time Range to
60 - 180 seconds. Removing jumper from V1 sets Valve Time Range to 10 - 80
seconds.
REPLACE KEYPAD
Unplug power cord or turn circuit breaker OFF. Shut off water supply valve. Remove top and front panels.
Remove faucet from basin body. Disconnect ribbon cable from controller. Pry faceplate/keypad
from basin body. Remove all adhesive residue. Remove protective backing from adhesive on new keypad. Note: There is a clear protective wrap on the ribbon cable to
provide abrasion resistance where the cable passes through the cabinet. Do NOT remove this protective sleeve.
Slide ribbon cable into slot on basin body from the outside, then carefull y apply keypad to face of basin body.
Ribbon cable connects to P2 on controller. Note locator marking “1” on connector and cable.
Reassemble in reverse order. Test new keypad for function and proper operation.
REPLACE POWER BOARD
Unplug power cord or turn circuit breaker OFF. Shut off water supply valve. Remove front panel. Remove water tank lid (see page 16), then pull tank from cabinet.
Note position of wires at power board, then remove wires. Suggestion: Marking these wires is highly recommended to ease reinstallation.
Remove screws holding power board to cabinet. Remove power board from cabinet.
Reassemble in reverse order. Test for function and proper operation.
Fig. 18 Controller Jumpers
Fig. 19Keypad Ribbon Cable Hook-Up
642 75872 Owners Manual E.B.C. Airpot /Thermal
Fig. 20 Power Board Hook-Up
19
SERVICING INSTRUCTIONS (continued)
CAUTION - CHEMICAL BURN HAZARD
Deliming chemicals are caustic. Wear appropriate pr ote ctive gloves and goggles during this procedure. Never siphon deliming chemicals or solutions by mouth.
This operation should only be performed by qualified and ex­perienced service personnel.
IMPORTANT: DO NOT spill, splash or pour water or deliming solution into or over any internal component other than the inside of the water tank.
IMPORTANT: DO NOT allow any internal components to come into contact with t he deliming solution. Take care to keep all internal components dry.
NOTE: Repeat steps 4 thru 5 as required to remove all scale and lime build-up.
PROCEDURE: Delime the Water Tank
PRECAUTIONS: Disconnect brewer from electric powe r. Allow brewer to cool.
FREQUENCY: As required (Brewer slow to heat) TOOLS: Deliming Solution
Protective Gloves, Goggles & Apron Mild Detergent, Clean Soft Cloth or Sponge Bristle Brush, Bottle Brush Large Sink (or other appropriate work area)
1. Disconnect brewer from the electrical supply. Turn off the water shut-off valve and disconnect the water supply line from the brewer inlet fitting.
2. Remove the tank lid assembly as described on page 16.
3. Remove the water tank from the brewer body by lifting straight up. Empty all water from the tank. Set the tank back into the brewer.
4. Mix 2 quarts of deliming solution according to the
manufacturer’s directions. Carefully pour th e deliming solution into the water tank. Lower the lid assembly back onto the tank. Allow to sit for 30 minutes, or as directed by the manufacturer.
5. At end of so ak ing peri od , re move lid assembly from tank.
Thoroughly rinse internal components of lid assembly with clear water. Using a stiff bristle brush, scrub the heating element (and faucet water coil on automatic brewers) to remove lime and calcium build-up. Rinse with clean water. Store lid assembly in a safe location .
6. Remove the tank from the brewer and empty. Using a stiff
bristle brush, scrub the interior of the water tank to remove lime and calcium build-up. Rinse with clean water.
642 75872 Owners Manual E.B.C. Airpot /Thermal
20
SERVICING INSTRUCTIONS (continued)
7. Set the tank back into the brewer. Reassemble the tank lid to the water tank. Make sure the gasket is properly in place, then reinstall the hold-down strap.
8. Reinstall wiring to heating element and thermostat. Reinstall the hi-limit thermostat (if removed). For automatic brewers, reassemble piping for the faucet. Verify that all internal components are dry, then reinstall the top panel.
10. Reconnect brewer to electrical supply and, for automatic brewers, reconnect water supply.
11. Install the brew chamber without filter paper or grounds.
Run at least three full brew cycles and d i scard all w ater generated.
12. Brewer is read y to use.
NOTE: Normally, silicone hoses do not need to be delimed. Should deliming hoses become necessary, Bloomfield recommends replacing the hoses.
642 75872 Owners Manual E.B.C. Airpot /Thermal
21
EXPLODED VIEW & PARTS LIST
HOT WATER TANK ASSEMBLY
HOT WATER TANK ASSEMBLY
ITEM PART NO. DESCRIPTION USED ON 13 8043-5 Hold Down Strap All
14 8043-506 Nut, 8-32 SS Acorn All 16 60366 Screw, 1/4-20 X 1-1/4 SS Cap Head All 17 69401 Nut, 1/4-20 SS All 50 83644 Temperature Probe All 52 83731 Seal Washer All 54 8043-12 Tank Cover Gasket All 56 8043-30 Seal Gasket All 58 8540-6 Hot Water Coil All 59 8043-8 Inlet Elbow All 60 8043-15 Vent Tube All 61 8043-11 Outlet Elbow All 62 8514-68 Tank Cover (Plate Only, 8-holes) All 63 8043-83 Hi-Limit Thermostat (120V) 1080, 1082 8552-50 Hi-Limit Thermostat (240V) 1086, 1088 64 8543-74 Nut, 4-40 SS All 65 8543-73 Screw, 4-40 x 1-1/2 All 66 8043-24 Water inlet Tube All 67 8043-14 Heating Element (120V, 1500W) 1080, 1082 8716-1 Heating Element (230V, 3500W) 1086, 1088 68 8043-10 Tank Body All
COMPLETE SPARE TANK COVER 8541 WF-300 Spare Cover Assembly (120V, 1500W 1080, 1082
With Coil - all parts mounted to cover) 8716-300 Spare Cover Assembly (230V, 3800W 1086, 1088
With Coil - all parts mounted to cover)
642 75872 Owners Manual E.B.C. Airpot /Thermal
22
EXPLODED VIEW & PARTS LIST (continued)
ELECTRICAL COMPONENTS
ITEM PART NO. DESCRIPTION USED ON
30 82936 Switch, Rocker 125/250V 1086, 1088 31 1080-10 Keypad All 36 6407-15 Cord & Cap Assembly 1080, 1082 36t 8552-18 Terminal Strip 1086, 1088 37 35-210 Strain Relief 1080, 1082 45 8541-120 Solenoid Valve (old-style) All 85753 Solenoid Valve (new-style) All 50 83644 Temperature Probe All 63a 8043-83 Hi-Limit Thermostat 1080, 1082 63b 8552-50 Hi-Limit Thermostat 1086, 1088 67 8043-14 Tank Heating Element 120V / 1500W 1080, 1082 8716-1 Tank Heating Element 240V / 3500W 1086, 1088 85 1080-226 Controller Board All 86 1080-40 Controller Dial All 87 1072-225 Power Board All
SOLENOID REPAIR KITS NEW-STYLE
85218 Inlet Fitting Kit (includes cap, fitting, gasket and strainer) 85219 Inlet Strainer
642 75872 Owners Manual E.B.C. Airpot /Thermal
23

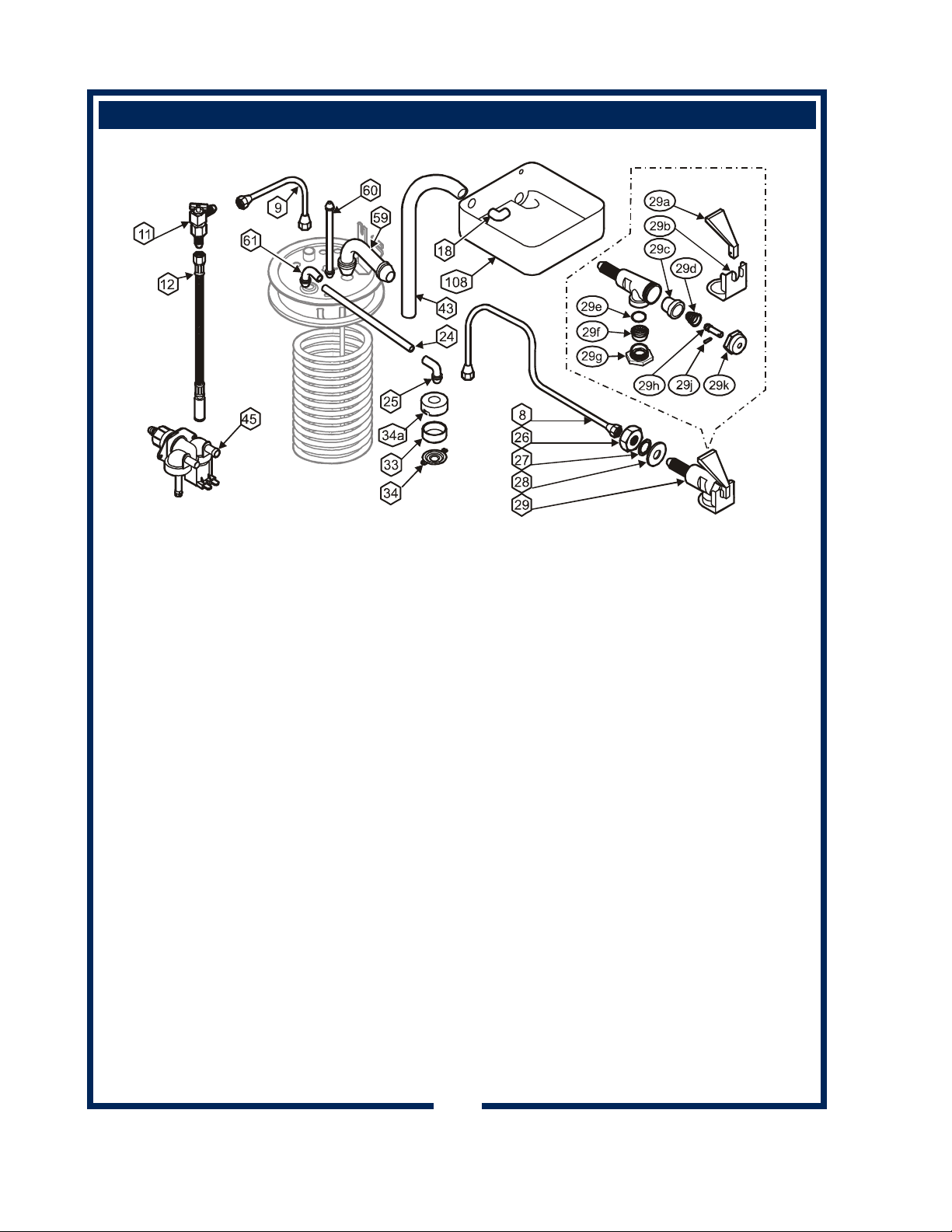

EXPLODED VIEW & PARTS LIST (continued)
INTERNAL PLUMBING COMPONENTS
ITEM PART NO. DESCRIPTION USED ON 8 8540-3 Faucet Outlet Tube Assembly All
9 8540-4 Formed Inlet Tube Assembly All 11 8572-26 Needle Valve (Faucet Shut-Off) Assy All 12 85681 Inlet Tube Assembly Braided All 18 8540-30 Elbow All 24 8043-26 Tube Outlet Water 4-3/4 SS All 25 8043-13 Sprayer Elbow All 26 82680 Nut, Jam 7/16-20 Ni All 27 8551-100B Washer, Lock 7/16 External SEMS All 28 82681 Washer Flat 15/32 x 1-1/8 SS All 29 82556 Faucet Assembly All 33 8543-42 Spray Head Gasket All 34 82727 Spray Disk All 34a 8543-45 Spray Head Retainer All 43 8043-24 Water Inlet Tube All 45 85753 Solenoid Valve All 59 8043-8 Inlet Elbow All 60 8043-15 Vent Tube All 61 8043-11 Outlet Elbow All 108 8541-21 Basin Pan All
FAUCET REPAIR COMPONENTS and KITS 29a 82573 Handle 29c 82575 Seat Cup 29b 82682 Retainer Clip 82576 Faucet Repair Kit (Includes 29a Handle, 29c Seat Cup, 29d Spring, 29h Stem, 29j Pin & 29k Bonnet) 84804 Aerator Replacement Kit (Includes 29e O-Ring, 29f Aerator Disk & 29g Aerator Cap) 84870 Aerator Repair Kit (Includes 29e O-Ring & 29f Aerator Disk)
642 75872 Owners Manual E.B.C. Airpot /Thermal
24

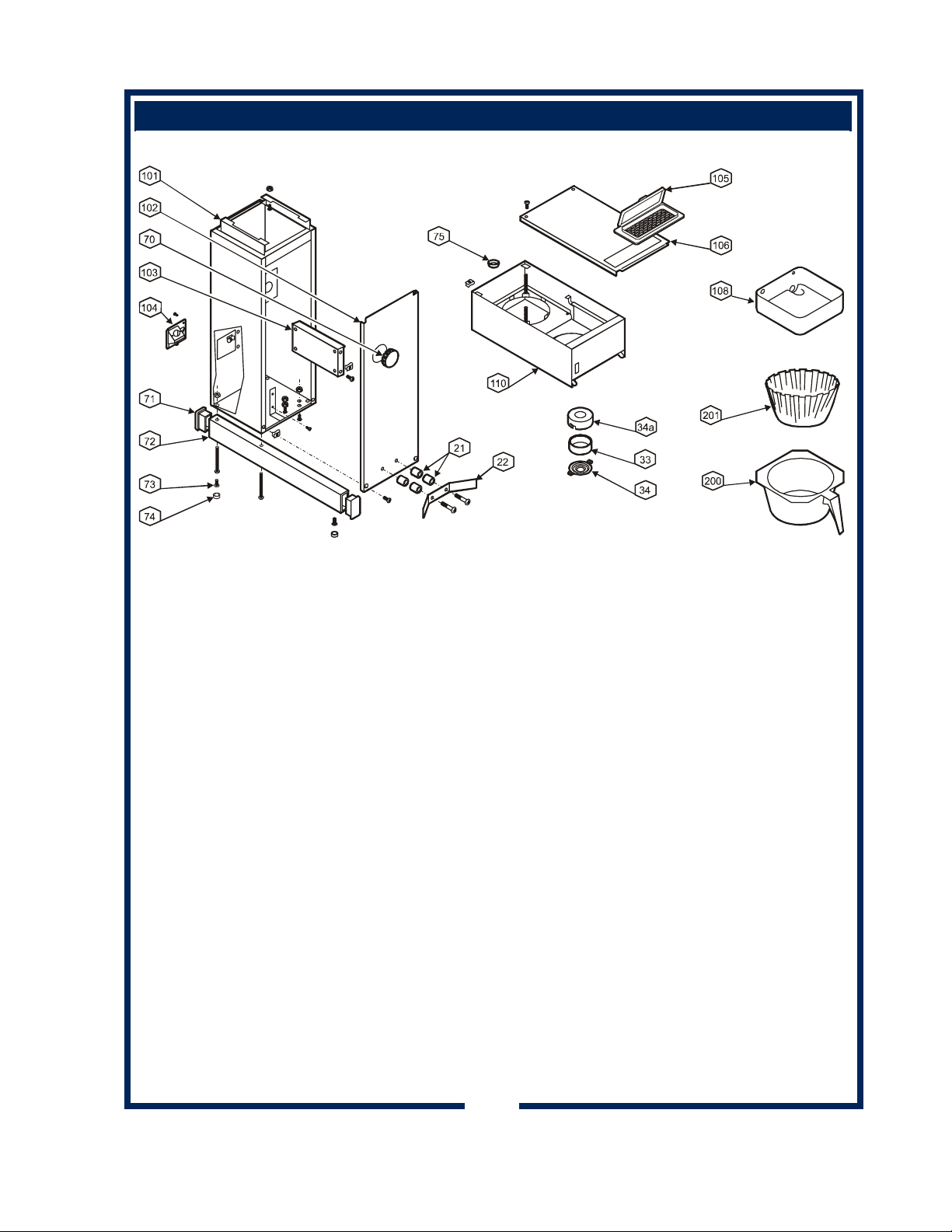

CABINET COMPONENTS
EXPLODED VIEW & PARTS LIST (continued)
642 75872 Owners Manual E.B.C. Airpot /Thermal
ITEM PART NO. DESCRIPTION USED ON
21 63201 Spacer .171 ID x .375 LG 1082XL 22 87192 Positioning Bracket 1082XL 33 8543-42 Spray Head Gasket All 34 82727 Spray Disk All 34a 8543-45 Spray Head Retainer All 70 8706-75 Button Plug (Timer) All 71 82159 Cap, Plastic, Lower Support 1” x 1-1/2” All (except 1082XL) 84792 Cap, Plastic, Lower Support 1” x 1” 1082XL 72 82160 Support, Lower 1” x 1-1/2” All (except 1082XL) 84791 Support, Lower 1” x 1” 1082XL 73 8033-55 Leveler, Adjustable Leg All 74 8033-56 Cap, Adjustable Leg All 81732 Adjustable Leg Assembly All 75 8543-69 Heyco Bushing All 101 Body, Welded Assy All 102 84811 Front Panel All (except 1082XL) 84793 Front Panel w/Mounting Provision for Bracket 1082XL 103 Mounting, Power Board All 104 Access Door, Solenoid All 105 8666 Pour-Over Assy All 106 8542-6 Top Panel All 108 8541-21 Basin Pan All 110 Basin Body, Welded Assy All 200 8942-6B Brew Chamber, Black All 8942-6 Brew Chamber, Brown All 8707-6 Brew Chamber, Stainless All 210 POF Bloomfield Paper Filter (pk 1000) All
25
WIRING DIAGRAM
V
KEY PAD
E.B.C.™ BREWER
MODEL VOLTS WATTS AMPS 1080 120 1800 15 1082 120 1800 15
TEMPERATURE
PROBE
HEATING
ELEMENT
BLACK
1
P1
5
HI
LIMIT
CONTROL
BOARD
P2
1
POWER BOARD
NEUTRAL IN
VALVE B
HEATER B
VALVE A
LINE IN
HEATER A
1
BLACK
4
WHITE
2
WHITE
BLACK
3
CHASSIS GROUND
INLET
ALVE
.5 GPM
a
a
g
g
4
4
1
1
K
E
C
T
I
A
H
L B
W
642 75872 Owners Manual E.B.C. Airpot /Thermal
26
WIRING DIAGRAM (continued)
MODEL VOL T S WATTS AMPS 1086 115/230 3500 15 1088 115/230 3500 15
642 75872 Owners Manual E.B.C. Airpot /Thermal
27
Bloomfield Industries proudly supports CFESA
Commercial Food Equipment Service Association
Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration
In US and Canada
Telephone: 775-689-5700 Fax: Fax:
888-492-2783 800-356-5142 ()
for orders only
website: www.wellsbloomfield.com
PRINTED IN UNITED STATES OF AMERICA
Loading...
