Blomberg GSS 1220 Instruction Manual

min 4cm

3/4

min 10

AQUASAFE+

max 110 cm

12cm

min 50 cm

AQUASAFE+ (depends on the model)

The Aquasafe+- system protects you from water damage which may be caused at the water inlet hose. Do not immerse the systems valve box into water; it contains electrical components. In case of damage, pull out the power supply plug. Do not shorten or lengthen the hose insert, since it contains electrical cables and components.

Water drainage

Connecting the drainage hose.

Take care to ensure that the water intake hose is not bent or squeezed. Check that the drainage hose is firmly seated in place.

Extension hoses

If a hose extension is required, a drainage hose of equal quality must be used The maximum length must not exceed 4m. Otherwise, the machines cleaning process is negatively influenced.

Siphon connection

The drainage height must be between 50 and 100 cm above the floor. Use hose clamps to fasten the drainage hose to the siphon.

Dear customer,

Before starting, it is essential that you read carefully right through the installation and operation instruction booklet before plugging in to the mains socket. The following instructions should prevent the risk of personal injury and/or damages to the machine.

Please keep these documents for later reference in a safe place.

This operating manual has been written for different machines and some of the features mentioned here may not apply to your specific machine.

01020 30 40 50 60 70 80 90 100 110

Electrical connection

Please refer to the type plate for information on current type, mains voltage, and fuse protection. The type plate is located on the inside of the door. The mains plug must be freely accessible after installation. Power cables and insulated cables must not be accessible after installation.

Service

If your machine ever experiences faults in operation, check the notes and advice in the operating manual.

If this does not fix the problem, our customer service staff is available to you.

17 2236 01 00-00-B1-GB

Table of contents

Installing your dishwasher

Introduction

Disposal

Recycling.............................................................3

Disposal of your old machine..............................3

Safety Instructions

Before installation................................................3

Before first use ....................................................3

Childrens safety..................................................4

For daily operation ..............................................4

In the case of problems.......................................4

Get to know your machine

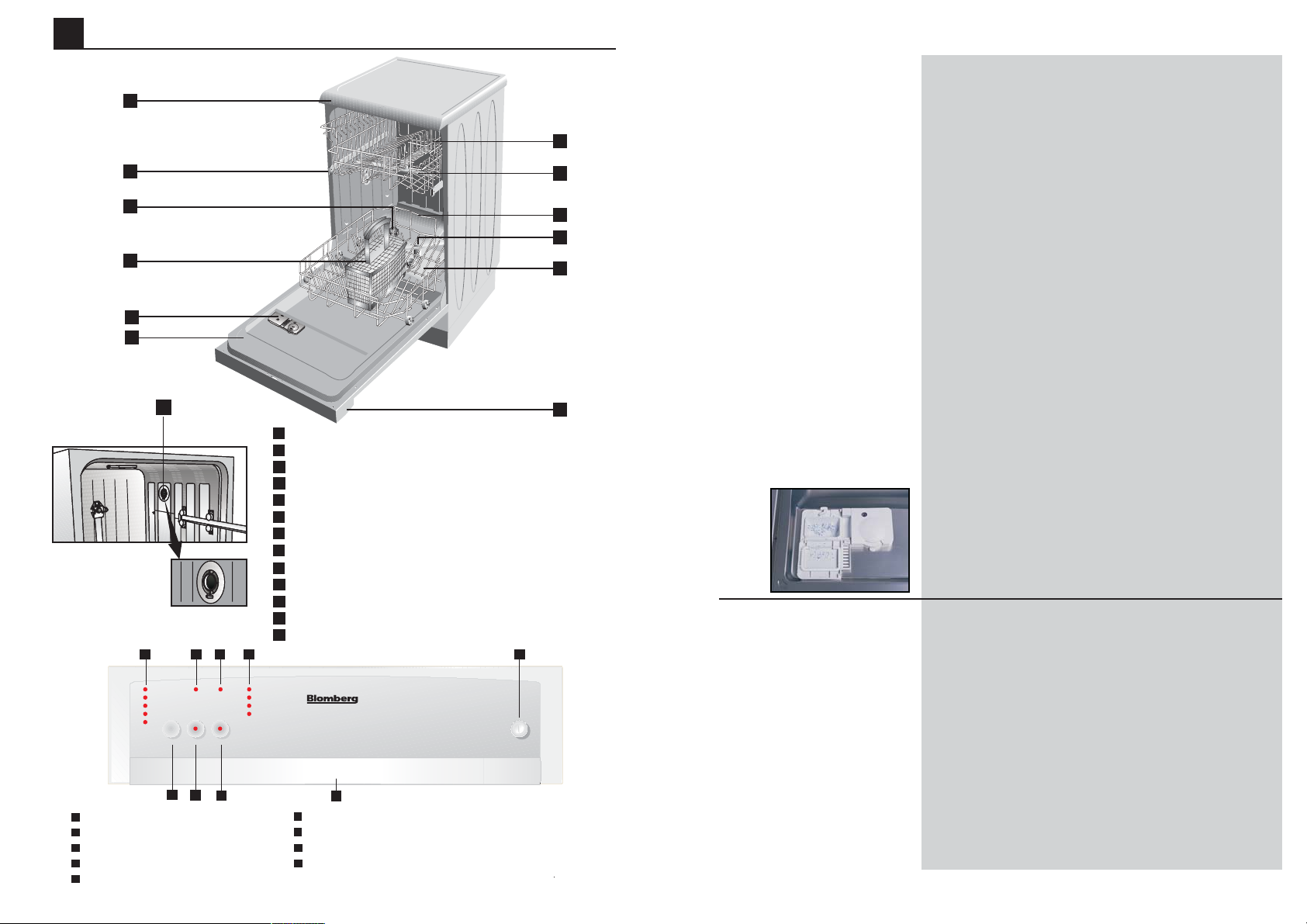

View of the machine............................................5

Control panel.......................................................5

How to use your dishwasher

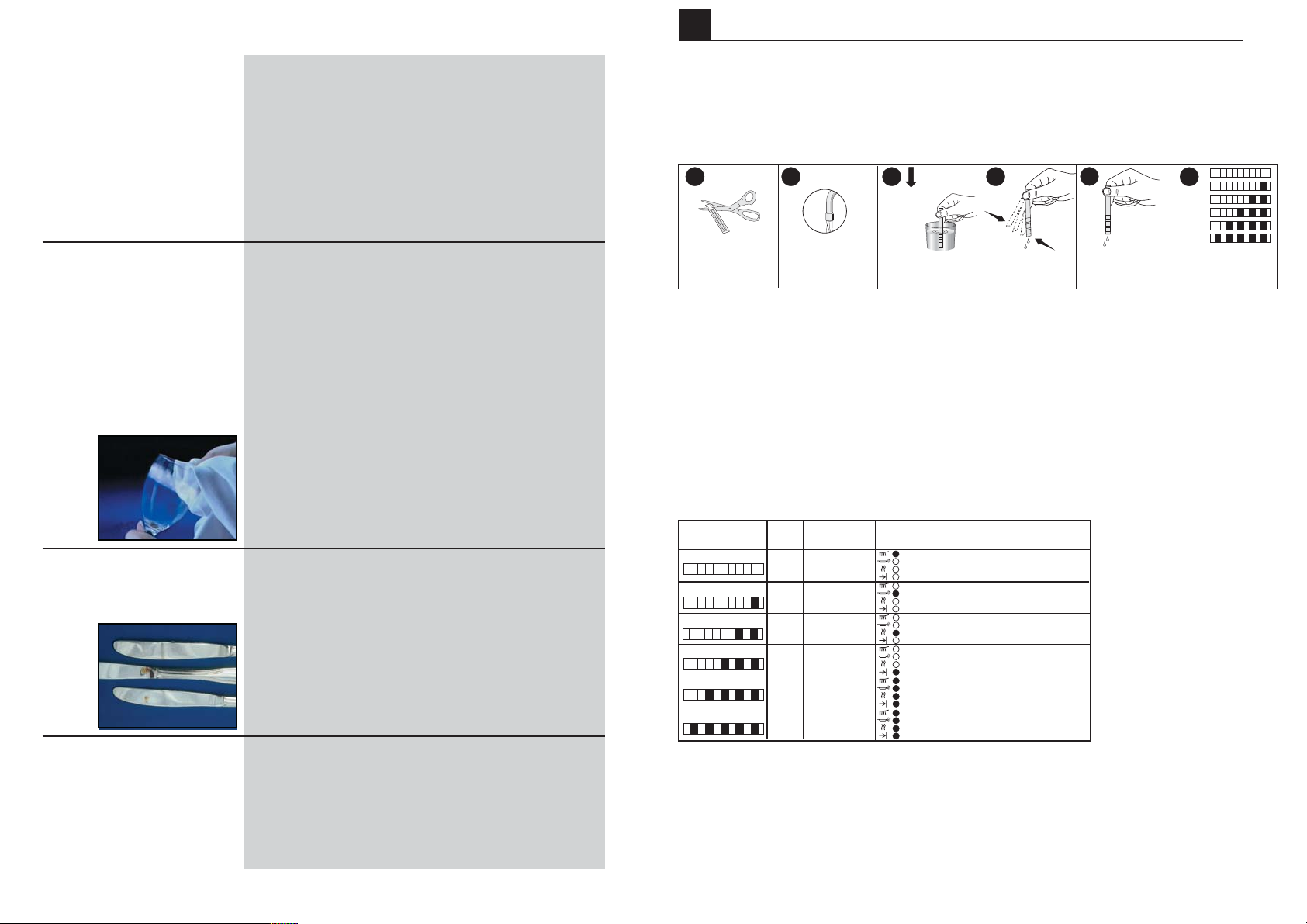

Softening water ...................................................6

Filling the dishwasher salt ...................................7

Filling the rinse aid dispenser .............................8

Filling the detergent dispenser............................8

Page 3

Page 5

Page 6

Choose a suitable location for your dishwasher. Take care to ensure that the machine is standing safely and levelly. Unevenness in the floor can be equalised by adjusting the screw feet. When the machine is standing correctly, the door can be closed without difficulties. Water inlet and drainage hoses must be placed so that they can move freely in order to avoid bending or squeezing them. The machine may not be hooked up in rooms with a temperature below 0° Celsius.

Water connection

The dishwasher may be connected to cold and warm water to a max. temperature of 60° Celsius. The dishwasher may not be connected to open warm water devices and flow-through water heaters.

Permissible water pressure:

Lowest permissible water pressure:

0,3 bar = 3 N/cm² = 30 kPa

Highest permissible water pressure:

10 bar = 100N/cm² = 1MPa

When the water pressure is below 1 bar, please contact your technician.

When the water pressure is above 10 bar, a pressure reduction valve must be installed (available in trade supply stores).

What should not be washed

in your dishwasher

Loading the dishwasher

General .............................................................10

Lower basket .....................................................11

Cutlery basket ...................................................11

Upper basket.....................................................12

Page 10

3/4

min 10

1/2

Connect water inlet hose

Take care to ensure that the water inlet hose is not bent or squeezed. Do not install a used hose set.

Use a screw-on hose connector to connect the water inlet hose to a water tap with an external thread with a measurement of 3/4 inches.

If required, use a filter inset to filter deposits from the pipes. Check that the connection does not leak.

Attention

For safety reasons, close the tap after every rinse process.

Technical features

How to clean your dishwasher

Seite 13

Load capacity 10 Permissible water pressure 0,3 10 bar (= 3  100 N/cm²

Electrical connection 230 Volt, 10 Amps

Total power 2000 W Heater power 1800 W

Because we continually strive to improve our products, we may change our specifications and designs without prior notice.

This device corresponds to the following EU Directives:

73/23/EC Low Voltage Directive 89/336/EC EMV directive 93/68/EC CE identification directive DIN EN 50242 Electric dishwasher for

Directions for assembly

= 0,01-1,0Mpa)

(see type plate)

domestic use Testing method for utilization properties

Safety notes for installation

Prior to installing and using your machine, please check it for possible transport damage. If the machine is damaged, please contact your supplier. Never install and use damaged machines.

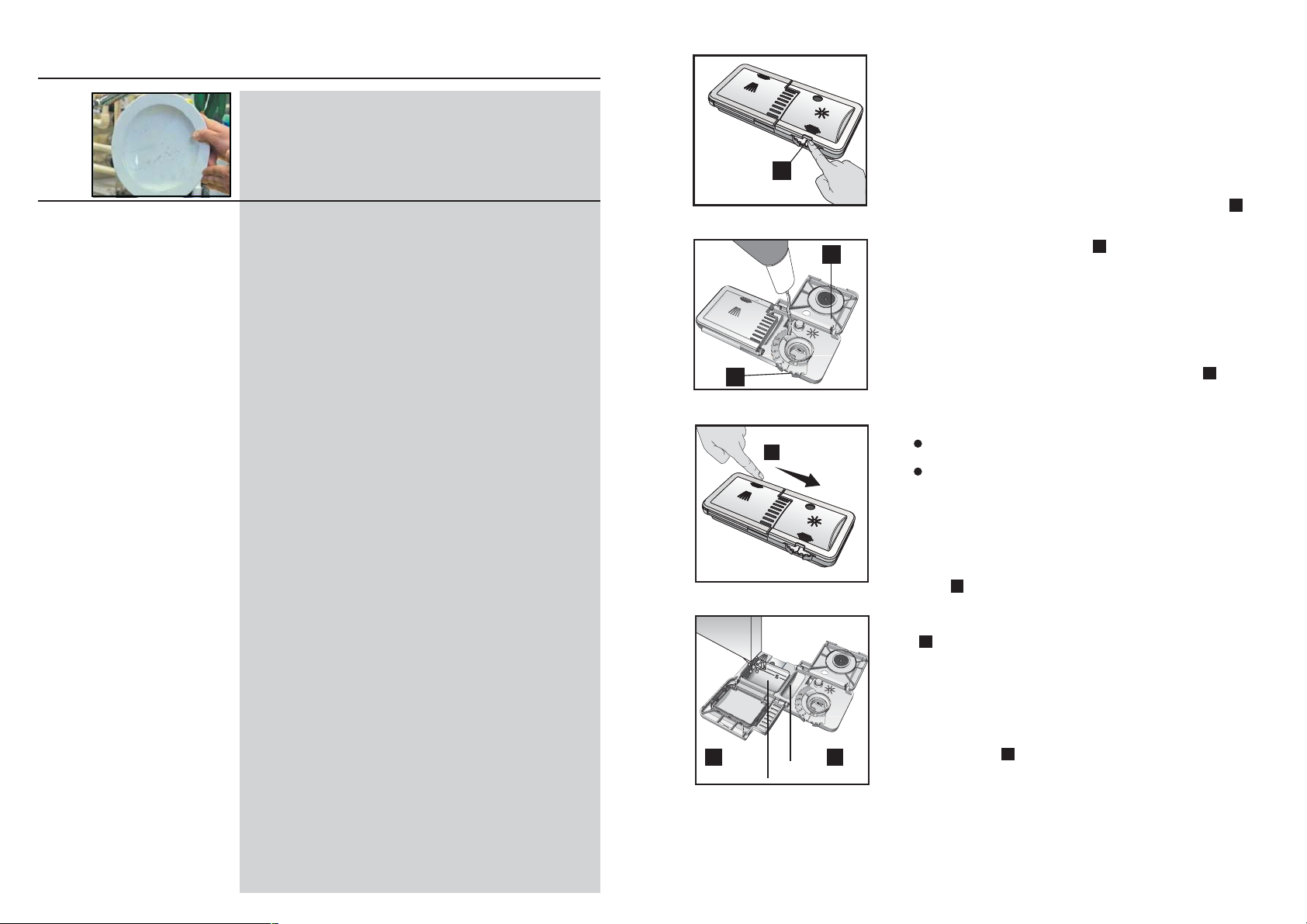

Cleaning the filters ............................................14

Cleaning the spray arms ...................................15

Cleaning the filter inset .....................................15

Trouble shooting What, if....

The dishwasher will not run ..............................14

The cleaning results are unsatisfactory ............15

Technical Data

Directions for assembly

Safety notes for installation

Installing your dishwasher.................................22

Water connection ..............................................22

Water drainage..................................................23

Electrical connection .........................................23

Service

...............................21

Seite 14

Seite 21

Seite 23

The following directions must be observed in order to connect the dishwasher properly.

Make sure that the data on the type plate correspond to the current and voltage of your power supply connections before putting the machine into operation. The connection of the machine may only be made using a properly grounded socket. Ensure that the grounding is in accordance with regulations. The grounded socket must be easily accessible and close to the machine. Do not use extension cables or multiple adapters. There is a possibility of fire hazard through overheating. Hardwiring may only be carried out by a qualified electrician. Check the power cable, the water inlet hose and the drainage hose. Damaged parts may only be exchanged by customer service personnel or by a qualified electrical service expert.

Disposal

Recycling

The packaging and some parts of your machine are made from recyclable materials. These materials are marked up with recycling symbol and material type information (PE, PS, POM). Remove the packaging material and dispose of it in accordance with regulations prior to taking the machine into operation.

Warning

Packaging materials may be dangerous to children. Reusable substances may be dropped off at the local disposal facilities. You may obtain further information from the authorities and disposal facilities.

Disposal of your old machine

Dispose of your old machine in accordance with the disposal guidelines which are in effect at the location where you reside. To avoid dangers, please make the machine unusable until the time of transport.

Pull out the mains plug and cut the power cable. Render the door lock unusable.

Safety Instructions

Before installation

Check the machine for transport damages. Never install and use damaged machines. If in doubt, contact your supplier.

Possible causes

- Improper loading

- Overloaded baskets

Possible causes

The dishes were pre-washed by hand with a large amount of dish detergent

Rinse aid has accidentally leaked into the machine

The cover of the rinse aid dispenser was not closed.

Dishes break

How to fix these problems

Load the dishwasher as suggested in the directions.

Do not overload the dish baskets. Dishes may hit against each other and break.

Foam

How to fix these problems

Dishes do not need to be pre-washed. Coarse dirt may be removed with a dishcloth, or you may hold the dishes under running water.

If rinse aid has been spilled during refilling, remove the agent using a paper cloth or sponge.

Always take care to ensure that the lid is closed after refilling the rinse aid dispenser.

Before first use

See Notes for Installation on page 22. Have the grounding system installed by a qualified

electrician. The manufacturer cannot be hold liable for any damages that are due to operating the machine without proper grounding. Before operating the system, please check that the data given on the type plate are in accordance with the data of your power supply. The dishwasher must be separated from the mains during installation.

Possible causes

Clogged filters

Drain hose bent. Relief hose blocked or bent.

Water remains inside the machine after the rinse cycle

How to fix these problems

Clean all strainers and filters as described in the manual

Ensure that the relief hose is properly placed.
