Blomberg GSN 9423 A User Manual
Dishwasher
Instruction Manual
Dear customer,
Please read carefully right through this instruction booklet before installing or
operating your dishwasher. The following instructions should prevent the risk of
personal injury and/or damage to the appliance.
Please keep these documents in a safe place for later reference.
This operating manual has been written for several different machines, and some
of the features mentioned here may not apply to your particular model.
Symbols and legend
Following symbols are included in the user manual:
Important information and tips about usage.
Warning for hazardous situations with respect to security of life and property.
Warning for electrical voltage and shock hazard.
TABLE OF CONTENTS
1 Getting To Know Your
Machine 3
View of the Machine 3
2 Safety Instructions 4
Before Installation 4
Before First Use 4
Child Safety 4
Technical Specifications 4
For daily operation 5
Problems 5
What should not be washed in your
dishwasher 5
3 Directions for Assembly 6
Safety notes for installation 6
Installing Your Dishwasher 6
Water connection 7
Connect water inlet hose 7
Water drainage 8
Electrical connection 8
Disposal 8
4 Using Your Dishwasher 9
Filling the dishwasher salt 9
When operating for the first time: 10
Filling the Rinse Aid Dispenser 11
Filling the Detergent Dispenser 11
Detergent 12
Multipurpose Detergents 13

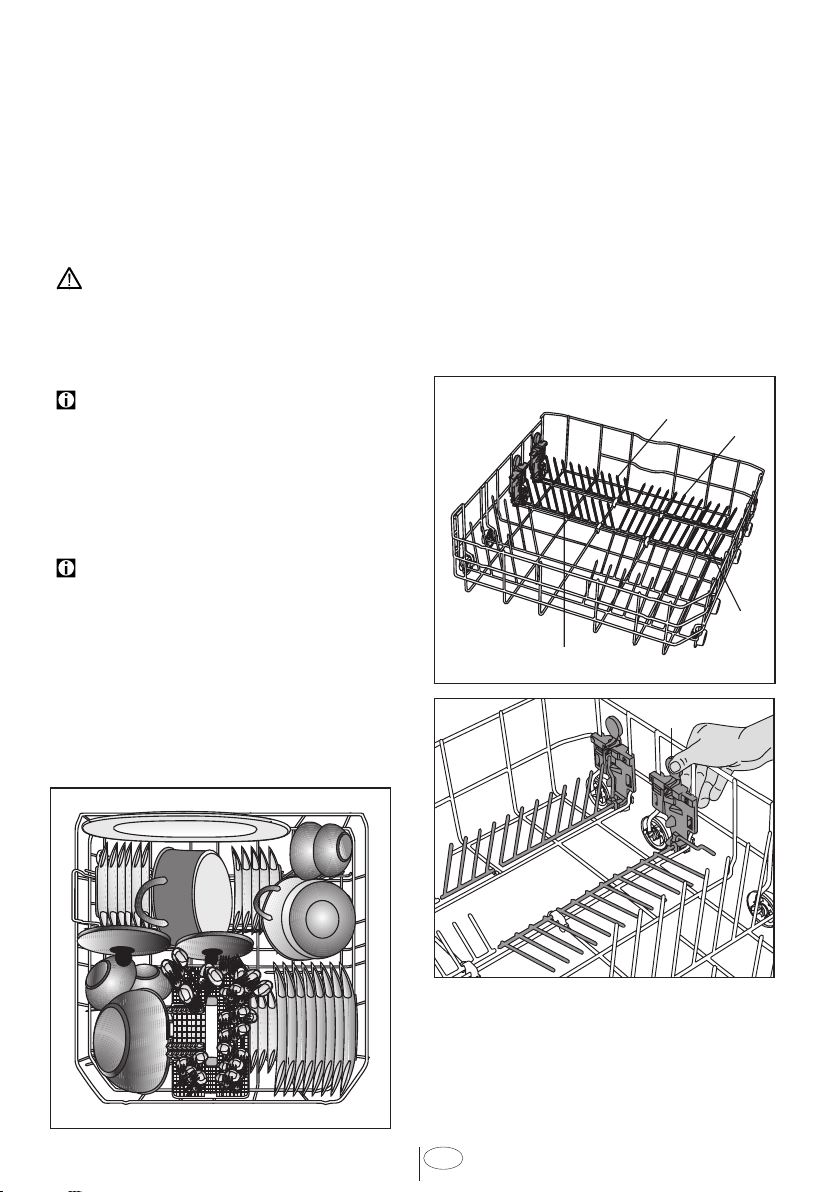

Loading the dishwasher 13
Suggestions for loading the
dishwasher 14
Loading suggestions 19
Removable 3rd basket 23
Adding Auxiliary Functions to the
Program 26
Changing a Program 28
Configuration of menus 28
Scheduling the washing time 31
Canceling a Program 31
Program Follow-up 32
Child (Key) Lock 32
Warning Messages 33
Salt Indicator 33
Rinse Agent Indicator 33
6 How to clean your
dishwasher 35
Cleaning the filters 35
Cleaning the spray arms 36
7 Troubleshooting: 37
What to do if the dishwasher
will not run 37
The cleaning results are
unsatisfactory 37
Service 43
5 Program Selection and
Operating Your Machine 24
Buttons 25
Auxiliary Functions 25
Starting Your Machine 25
Program Selection 26
1
Getting To Know Your Machine
View of the Machine
1. Upper dish basket with shelf
2. Guide rail for the upper dish basket
3. Salt container
4. Cutlery basket
5. Detergent dispenser
6. Door
7. Control panel
8. Filters
9. Lower sprayer arm
10. Lower basket
11. Upper sprayer arm
12. Housing (depends on the model)
13. Turbo fan heat drying system (depends on the model)
14. Removable 3rd basket
15. Additional upper spray arm
3
GB
4
GB
Technical Specifications
Permitted water pressure: 0,3 –10
bar (= 3 – 100 N/cm² = 0,01-1,0Mpa)
Electrical connection: 220-240 Volts,
10 Amps (see type plate)
Output: 1900-2200 W
Heat output: 1800 W
This device corresponds to
the following EU directives:
2006/95/EC: Low Voltage Directive
2004/108/EC: EMV Directive
DIN EN 50242: Electrical dishwasher
for home use Testing procedures for
practical service conditions
2
Safety Instructions
Because we continually strive to
improve our products, we may change
our specifications and designs without
prior notice.
Note for Testing Institutes
The necessary information for
performance testing will be provided
upon request. The request can be
done by e-mail through:
standard.test@blomberginternational.com
Please do not forget to write the model
code and stock code information of
the appliance besides your contact
information in the e-mail. The model
code and stock code information can
be found on the rating label, which is
placed on the side of the door.
Before Installation
Check the appliance for transit
damage. Never install or use damaged
machines. If in doubt, contact your
supplier.
Before First Use
See Notes for Installation on page •
6.
Have the grounding system •
installed by a qualified electrician.
The manufacturer cannot be held
liable for any damage caused by
operating the appliance without
proper grounding.
Before operating the system, •
please check that the information
on the type plate corresponds to
the information on your power
supply.
The dishwasher must be •
disconnected from the mains
during installation.
The appliance must not be •
connected to the mains using
an extension cable. Extension
cables do not provide the
necessary safety (e.g. danger of
overheating).
Always use the original plug •
delivered with the appliance.
The plug must be freely accessible •
after the appliance has been
installed.
Child Safety
Do not allow children to play with •
the appliance.
Dishwasher detergents are caustic •
and may cause injury to the eyes,
mouth and throat. Please note the
safety instructions provided by the
manufacturers of the detergents.
Never leave children unsupervised •
5
GB
while the appliance is open, as
the appliance may still contain
detergent leftovers.
The water in the dishwasher is not •
drinking water. Danger of caustic
injuries.
Always place long and sharp/•
pointed objects (e.g. serving forks,
bread knives) into the cutlery
basket with the pointed end down
or flat on the upper basket to avoid
possible injuries.
For daily operation
Use your appliance only for the •
following domestic uses: Washing
household dishes.
Do not use chemical solvents in •
the appliance; there is a danger of
explosion.
This appliance is not intended for •
use by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use
of the appliance by a person
responsible for their safety.
Do not sit or stand on the opened •
door or place other objects on it.
The appliance may tip over.
Do not open the door while the •
appliance is running, as hot water
or steam may escape.
Do not leave the door open – an •
open door can be a hazard.
If you need to move your •
appliance, do it in upright position
and hold from the rear side. Tilting
the appliance onto its front side
may cause the electronic parts in it
to get wet and damaged.
Problems
Repairs and modifications to the •
appliance may only be carried
out by qualified customer service
personel.
In the event of a problem, or before •
performing a repair, disconnect the
appliance from the mains supply:
- disconnect the appliance by
pulling out the mains plug
- shut off the power.
Do not pull on the cable – pull on •
the plug. Turn off the water supply
tap.
What should not be washed in
your dishwasher
Rust sensitive steel parts•
Cutlery with wooden or horn •
handles
Cutlery with mother of pearl or •
porcelain handles
Non heat resistant plastic parts•
No glued dish or cutlery parts•
No items made out of copper, tin or •
aluminium
Sensitive decorative glasses and •
porcelain parts
Lead crystal glasses•
Art and crafted articles•
Aluminium and silver tend to •
discolour
Glass and crystal articles may lose •
their shine over time
Sponges and dishcloths•
Do not wash items soiled with
cigarette ash, candle wax, varnish,
paints or chemicals.
Recommendation: When buying new
dishes, note whether they are suitable
for the dishwasher. (marked as
dishwasher proof)
6
GB
3
Directions for Assembly
Safety notes for installation
Prior to installing and using your
appliance, please check it for possible
transit damage.
If the appliance is damaged, please
contact your supplier.
Never install or use a damaged
appliance.
The following directions must be
followed to connect the dishwasher
properly.
Before operating your dishwasher,
please ensure that the information
on the type plate corresponds to the
current and voltage of your power
supply.
The appliance may only be
connected using a properly grounded
socket. Ensure that the appliance is
grounded according to regulations. The
grounded socket must be easily
accessible and close to the appliance.
Installing Your Dishwasher
• Choose a suitable location for your
dishwasher. Take care to ensure
that the appliance is stable on a
level surface.
• Unevenness in the floor can be
equalised by adjusting the screw
feet. When the appliance is
standing correctly, the door can be
closed without difficulty.
• Water inlet and drainage hoses
must be positioned so that they
can move freely without bending
or squeezing.
• The appliance may not be installed
in a room where the temperature
is below 0° Celsius.
Do not use extension cables or
multiple adapters, as this can lead to
overheating, which can be a fire
hazard.
Hardwiring may only be carried out
by a qualified electrician.
Check the power cable, the water
inlet hose and the drainage hose.
Damaged parts may only be replaced
by customer service personnel or by a
qualified electrical service expert.
7
GB
Water connection
• There are two different types of
water inlet hoses:
- Cold water inlet hose (up to
25°C)
- Hot water inlet hose (up to
60°C)please check which one is
applicable to your model.
If you are willing to connect
your machine to natural
energy resources or to the central
hot water supply, first check out
whether your water inlet hose
type is suitable by checking the
temperature values written on the
hose. If your hose is not suitable,
apply to your authorized service to
change the hose.
• The dishwasher may not be
connected to open warm water
devices or flow-through water
heaters.
Permitted water pressure:
Lowest permitted water pressure: 0.3
bars = 3 N/cm² = 30 kPa
When the water pressure is below 1
bar, please contact your technician.
Highest permitted water pressure: 10
bar = 100N/cm² = 1Mpa
When the water pressure is above 10
bars, a pressure reduction valve must
be installed (available in trade supply
stores).
tap with a ¾ inch external thread. If
required, use a filter insert to filter
deposits from the pipes.
Check that the connection does not
leak.
Important
For safety reasons, turn off the tap
after every rinse process.
1009
aquAvoid™ plus (some models)
The aquAvoid™ plus System protects
against water damage hich may be
caused at the water inlet hose.
Do not immerse the system’s valve
box into water; it contains electrical
components.
In case of damage, pull out the
power supply plug.
Do not shorten or lengthen the
hose insert as it contains electrical
cables and components.
Connect water inlet hose
Ensure that the water inlet hose is not
bent or squeezed. Do not install a used
hose set.
Use a screw-on hose connector to
connect the water inlet hose to a water
2550
8
GB
Water drainage
Connecting the drainage hose.
Take care to ensure that the drainage
hose is not bent or squeezed.
Check that the drainage hose is firmly
seated.
1011
Extension hoses
If a hose extension is required, a
drainage hose of equal quality must be
used.
The maximum length must not
exceed 4m. Using a longer hose will
produce poorer cleaning results.
Siphon connection
The drainage height must be
between 50 and 100cm above the
floor.
Use hose clamps to fasten the
drainage hose to the siphon.
Electrical connection
Please refer to the type plate for
information on current type, mains
voltage, and fuse protection.
The type plate is located on the inside
of the door.
The mains plug must be freely
accessible after installation.
Power cables and insulated cables
must not be accessible (exposed) after
installation.
Disposal
Packaging
The packaging and some parts of your
appliance are made from recyclable
materials. These materials are marked
with the recycling symbol and the
relevant material type (PE, PS, POM).
Before operating your appliance,
remove the packaging material and
dispose of it in accordance with
regulations.
9
GB
Packaging materials may be
dangerous to children. Reusable
substances may be dropped off at your
local disposal facilities. You may obtain
further information from your local
authorities and disposal facilities.
Materials used are recyclable
according to their labelling. Reuse,
recycling of materials and further
reutilization of used products are
important contributions to protect our
environment.
Used appliances –
Environmental notice
This product must not be
disposed of with your regular
household waste. Instead, you need
to dispose of the waste equipment
by handing it over to a designated
collection point for the recycling
of waste electrical and electronic
equipment. This is indicated by a
symbol to be found on the product, it’s
packaging or in the manual.
4
Using Your Dishwasher
The electricity and water
connections of the dishwater must be
in compliance with the instructions in
this booklet.
Filling the dishwasher salt
Only use special dishwasher salt in
your appliance.The manufacturer is not
liable for damage resulting from the
use of the wrong type of salt.
Please ask your local town council for
the nearest collection point.
To avoid possible dangers, disable
your waste appliance prior to
discarding it. Pull the mains plug and
cut the power cord. Disable any door
locks.
Use Diswasher salt only. Moderate or
coarse grained and easily soluble salts
are recommended. Don’t use table
salt, or any other type, these types of
salt do not dissolve in water easily and
will damage the softening device.
Remove the lower basket from the
appliance.
Open the screw-in cap of the salt
container by turning it counter
clockwise (fig. A,B).
10
GB
When operating for the first
time:
• Pour 1 litre of water into the salt
container (Fig. C).
• Pour the salt into the container
with the aid of the salt funnel
provided (Fig. D).
• Pour in enough salt to fill the
container. The container holds
approx. 2 kg.
• To speed up the rate of dissolution
of salt in water, stir it with a spoon.
• Close the cap tightly.
• Begin a washing program
immediately after filling the salt
container. The washing program
prevents damage to the appliance
which may be caused by any
spilled salt solution. After the
first washing cycle, the salt level
indicator light will go out.
1012
Depending on the particle sizes of
different salt brands in the market,
tablet properties and water hardness,
dissolution of the salt in water may take
a couple of hours.
So, the salt indicator continues lighting
for a while after filling salt into the
machine. (For models with a salt
indicator)
11
GB
Filling the Rinse Aid
Dispenser
Rinse aids allow washing water to
rinse off more cleanly and prevent
watermarks or streaks on the dishes.
Only use rinse aid designed for use in
dishwashers.
If you use “2 in 1” or “3 in 1“
detergents / tablets, you do not need
an additional rinse aid.

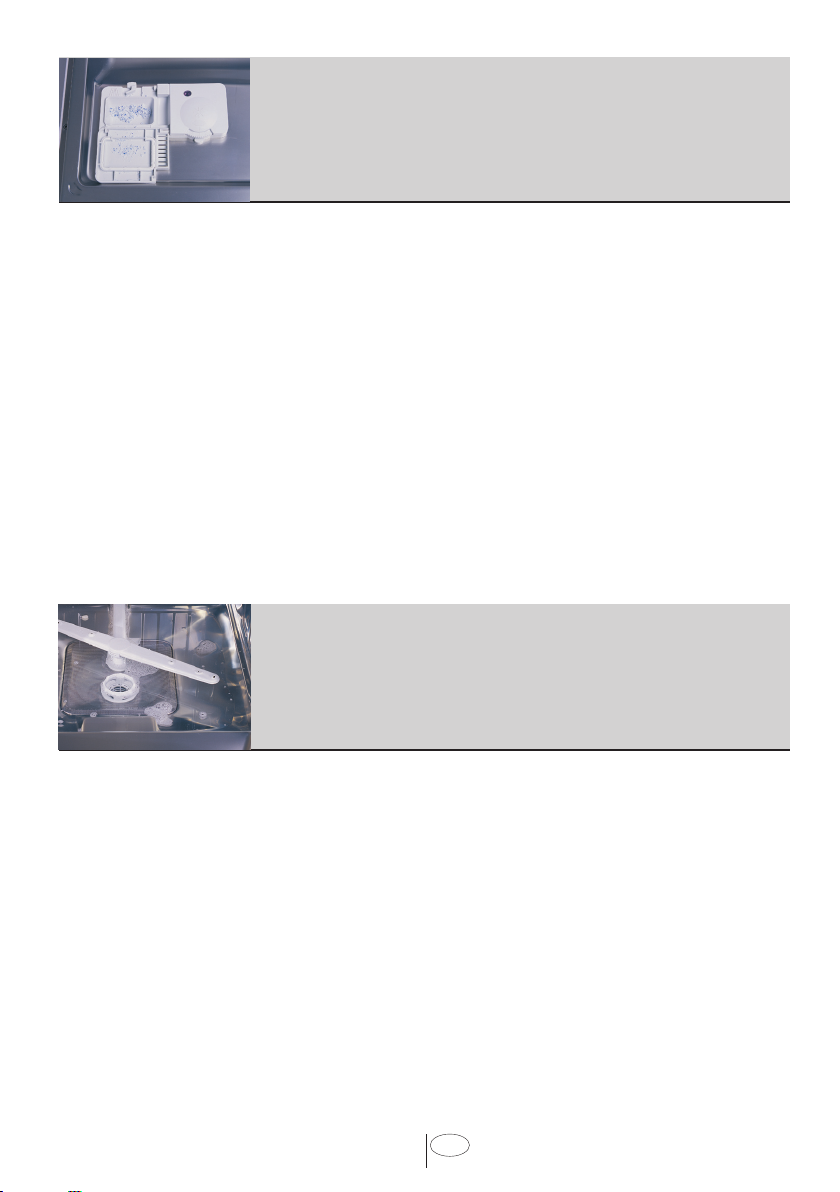

Open the rinse aid dispenser by
pressing the locking lever (B)
Carefully pour in rinse aid to the MAX
mark. Close the lid until it clicks (3).
Carefully wipe off spilled rinse aid.
Excessive rinse aid causes excessive
foam formation, which may hinder
cleaning.
Set the dose of rinse aid
The dose of rinse aid to be used can
be set by means of the dispenser
regulator (between levels 1 and 6) (4).
Your appliance is pre-set at the factory
to level 3.
Only change the setting if the following
applies after washing:
1013
Filling the Detergent
Dispenser
Only use detergents formulated for
use in dishwashers.
• Watermarks are visible on the
dishes: Set dosage higher
• Streaks are visible on the dishes:
Set dosage lower
Do not put solvents into the
washing compartment; there is the risk
of explosion!
Open the detergent container by
pushing the locking lever to the right
(A).
The lines on the inside of the detergent
container will help you measure the
correct amount of detergent.
12
GB
The detergent container holds a total of
40 cm³ of detergent (1).
When the dishwasher is fully loaded
and the dishes are very dirty, we
recommend filling the detergent
container up to the 25 cm³ mark. When
the dishes are less dirty, it is generally
sufficient to fill the detergent up to the
15 cm³ mark.
If your dishes have been in the
dishwasher for some time without
being washed, you should also fill the
small detergent container up to the line
(2).
The programme table shows the
amounts of detergent required for the
different wash programmes.
These may differ according to how dirty
the dishes are and the water hardness
in your location.
Detergent
Please use detergents produced
specially for the dishwashers in your
machine.
Keep the opened detergent
packages in a cool and dry place
where children can not reach.
We recommend you not to use
detergents that contain chlorine and
phosphate as they are harmful for the
environment. Detergents that contain
enzymes are effective in temperatures
below 50 °C and help to obtain the
same washing efficiency as obtained at
higher temperatures.
Put the detergent into the detergent
dispenser just before operating the
machine.
Please contact the manufacturer to
get detailed information about the
detergent you are using.
Always use powder detergents in
short programs without pre-washing.
1014
Fill in the powder detergent into the
compartment nr. 2 with a grid cover as
shown in the picture and close the
detergent box lid. When completely
full, this compartment will contain 6 g
of powder detergent.
Do not use tablet detergents in short
programs since the solubility of them
changes depending on the temperature
and time.
In programs with pre-washing and high
temperature, in which you may use
tablet detergents, make sure that the
detergent box lid is closed firmly.
13
GB
Excessive usage of powder detergents
can cause the detergent not dissolve
completely and can also cause
scratches on the glassware.
Contact the detergent producer if your
dishes are wet and/or if you notice lime
spots particularly on your glasses after
the washing program is over.
Multipurpose Detergents
The best washing results in
dishwashers is obtained by using
detergent, rinse aid and water
softening salt individually.
New products of the detergent
producers what they call as
“Multipurpose Detergent” can act as
water softening salt and/or rinse aid
in addition to acting as a detergent.
Some types of these detergents can
also contain special-purpose washing
chemicals such as glass and stainless
steel protectors.
Multipurpose detergents commonly
found in the market:
2in1: Those contain detergent, rinse
aid or water softening salt.
3in1: Those contain detergent, rinse
aid and water softening salt.
4in1: Those containing glass protectors
in addition to detergent, rinse aid and
water softening salt.
5in1: Those containing glass and
stainless steel protectors in addition
to detergent, rinse aid and water
softening salt.
Multipurpose detergents give satisfying
results only under certain usage
conditions. Observe the instructions
of the detergent manufacturer on the
package when using such detergents.
When you give up using such
detergents:
Make sure that salt and rinse aid
compartments are full.
Set the water hardness to its highest
degree and perform an empty run.
After the empty washing review the
user manual and readjust the water
hardness level so as to suit your water
supply.
Make the appropriate rinse aid
settings.
Depending on the model, salt indicator
and/or rinse aid indicator should be
enabled again if they are disabled
before.

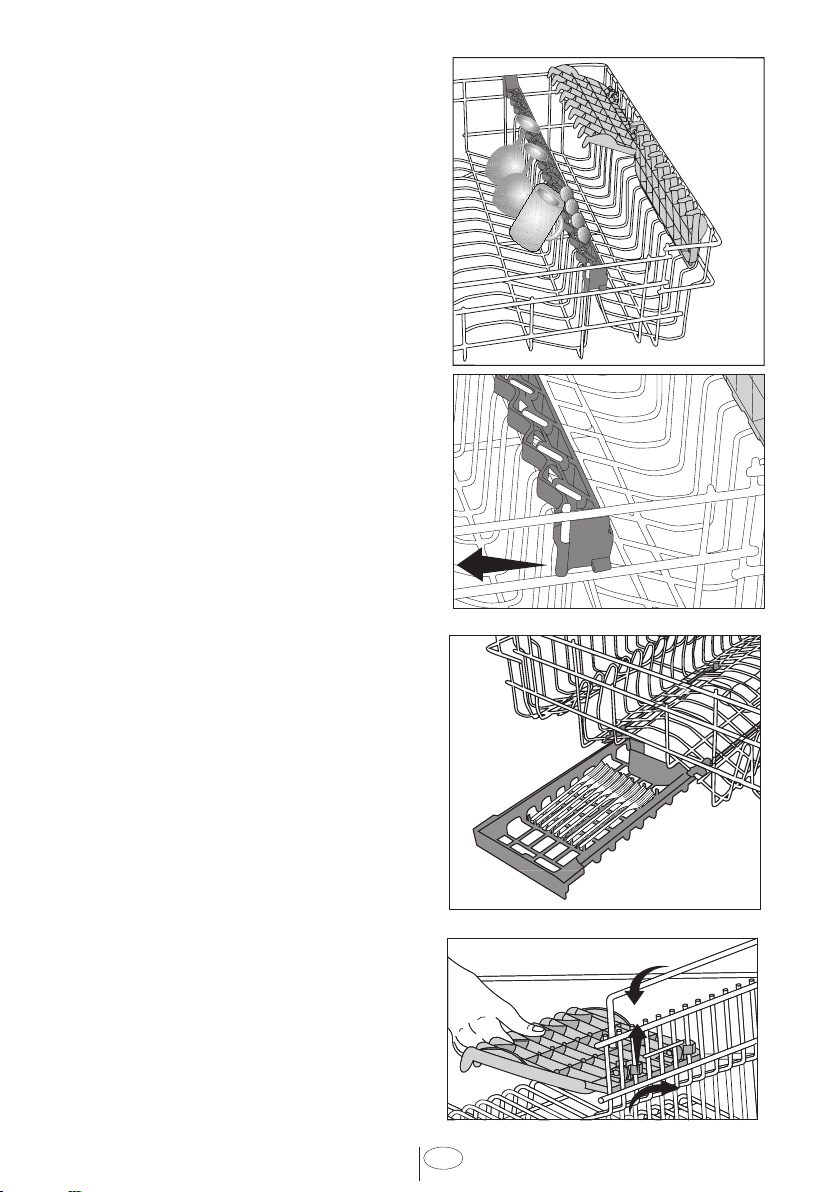

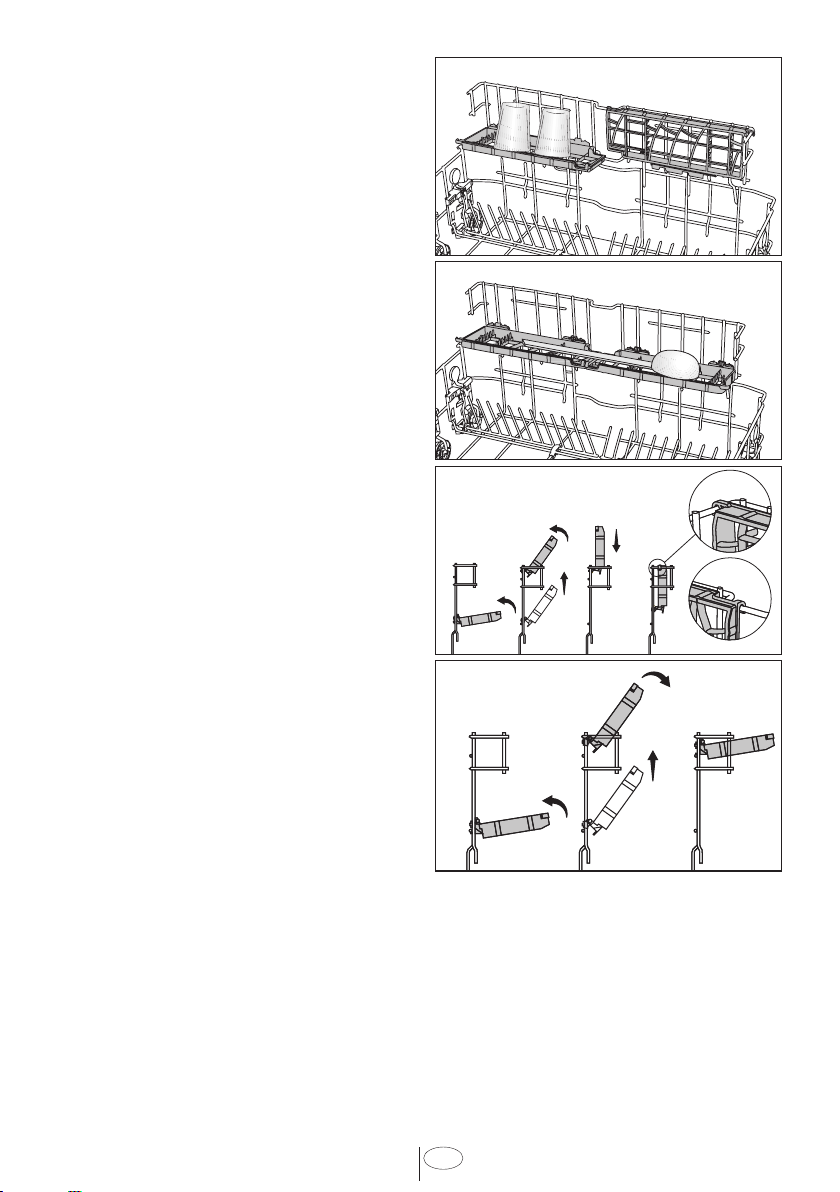

Loading the dishwasher
General:
Before you load the dishwasher with
dishes
• Remove coarse food leftovers
• Place all containers such as
cups, glasses and pots into the
machine with the opening facing
downwards (so that no water can
collect)
• Dishes and cutlery may not be
placed above each other
• Glasses may not touch
Loading...
