Blomberg GIN 9262 X User Manual

Dishwasher
Instruction Manual
Please read this user manual first!
Dear Customer, We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure. Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use. In case of transferring the product to someone else, give the manual as well.
The user manual will help you use your product in a fast and safe way.
• Read the user manual before installing and starting your product.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Read also the other documents supplied with the product. Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this User Manual the following symbols are used:
Important information or useful hints about usage
Warning for hazardous situations with regard to life and property Warning for electric shock
CONTENTS
Dishwasher 1. 3
Important2. safety instructions 5
General safety 5
Intended use 5 Children’s safety 6
Installation 3. 7
Appropriate installation location 7 Connecting water supply 7 Connection to the drain 8
Adjusting the feet 9 aquAvoid™ plus 9
Electrical connection 9 Initial use 9 Disposing of packaging material 10 Transportation of the product 10 Disposing of the old product 10
Prewashing 14. 1
Tips for energy saving 11 Water softening system 11 Adjusting the water softening system 11 Adding salt 12 Detergent 13 Adding detergent 13 Tablet detergents 14 Rinse aid 15 Silverware basket 18 Silverware basket piece 18 Movable silverware basket 18 Collapsable lower basket wires 19 (2 pieces) Collapsable lower basket wires 19 (4 pieces) Lower basket bottle wire 19 Lower basket multipurpose / height adjustable service rack 20 Upper basket height adjustable rack 20 Upper basket drawer 21 Upper basket glass support piece 21 Collapsable upper basket wires 21

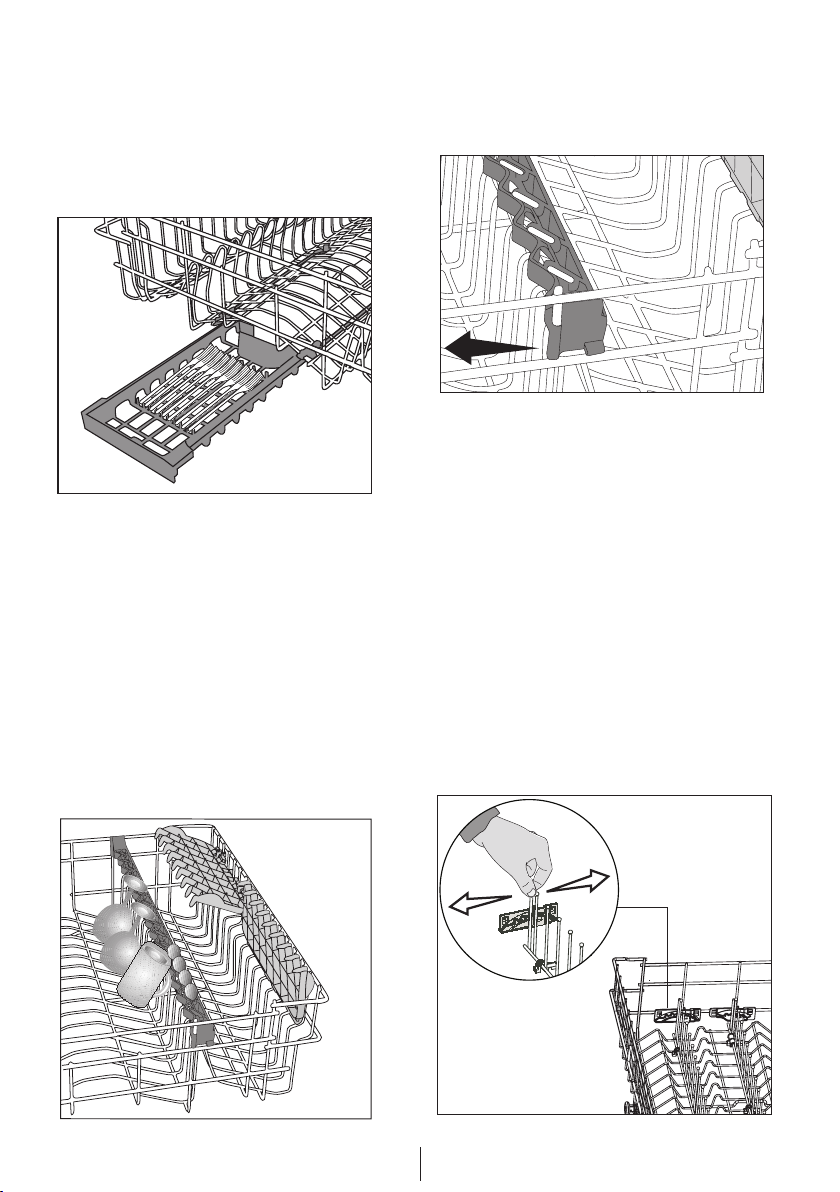

Collapsable upper basket wires 22 Adjusting the height of loaded upper basket 22 Adjusting the height of loaded upper basket 23 Adjusting the height of empty upper basket 24
Operating5. the product 25
Configuration of menus 26 Keys 26 Preparing the machine 26 Programme selection 26 Auxiliary functions 27 Programming the washing time 29 Starting the programme 29 Child (Key) Lock 30 Programme follow-up 30 Changing a programme 31 Canceling a programme 31 End of programme 31 Warning messages 33 Salt indicator 33 Rinse Aid Indicator 34

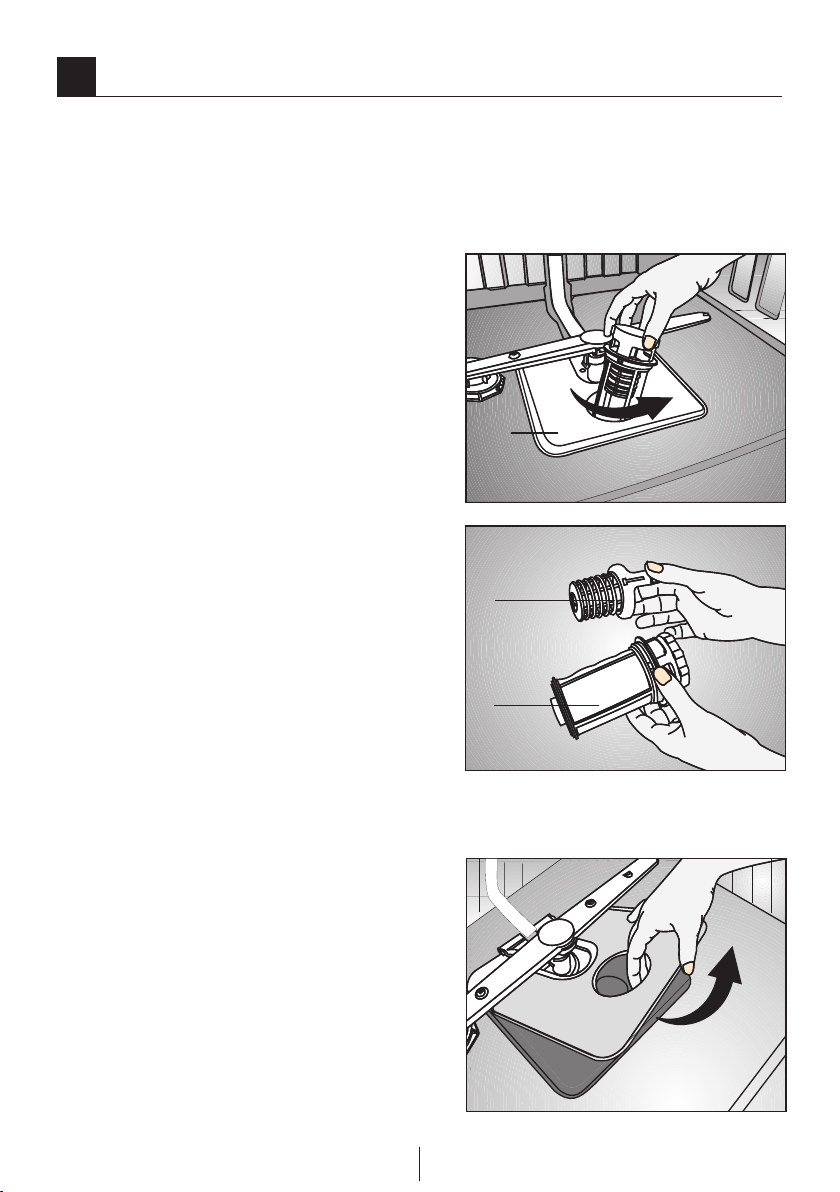

Maintenance6. and cleaning 36
Cleaning the outer surface of the product 36 Cleaning the interior of the machine 36 Cleaning the filters 36 Cleaning the hose filter 37 Cleaning the impellers 37
Troubleshooting 37. 9
1
 





Dishwasher
Overview
1.Tabletop (depends on the model)
2.Upper impeller
3.Lower basket
4.Lower impeller
5.Filters
6.Control panel
7.Door
8.Detergent dispenser
9.Lower impeller slot
10.Silverware basket
11.Salt reservoir lid
12.Upper basket rail
13.Upper basket with rack
14.Fan drying system (depends on the model)
3
EN
4
EN
Technical specifications
This product complies with the following EU directives:
Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations.
2006/95/EC, 2004/108/EC, 93/68/EC, IEC 60436, EN 50242
Power input 220-240 V, 50 Hz Total power consumption 1900-2200 W
Heater power consumption 1800 W Total current 10 A
Drain pump power consumption
Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.01-1.0 Mpa)
30 W
C Technical specifications may be changed without prior notice to improve the
quality of the product.
C Figures in this manual are schematic and may not match the product exactly. C Values stated on the product labels or in the documentation accompanying
it are obtained in laboratory conditions in accordance with the relevant standards. Depending on operational and environmental conditions of the product, these values may vary.
Note for test institutions:
Data required for performance tests shall be provided upon request. Requests
can be e-mailed to the following address:
standard.test@blomberginternational.com
Do not forget to provide the code, stock and serial numbers of the product to be tested in your request e-mail along with your contact information. Code, stock and serial numbers of the product is located on the type label attached to the side of the door.
5
EN
2
Important safety instructions
This section contains safety instructions that will help to get
protected from risk of personal injury
or property damage Failure to follow these instructions shall void all warranties.
General safety
Never place the product on a • carpet-covered floor; otherwise, lack of airflow beneath the product will cause electrical parts to overheat. This will cause problems with your product. Do not operate the product if the • power cable / plug is damaged!
Call the Authorised Service Agent.
Connect the product to a grounded • outlet protected by a fuse complying with the values in the “Technical specifications” table. Do not neglect to have the grounding installation made by a qualified electrician. Manufacturer shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations. The water supply and draining • hoses must be securely fastened and remain undamaged. Unplug the product when not in • use. Never wash the product by • spreading or pouring water onto it! There is the risk of electric shock! Never touch the plug with wet • hands! Never unplug by pulling on the cable, always pull out by grabbing the plug. The product must be unplugged • during installation, maintenance,
cleaning and repairing procedures.
Always have the installation and •
repairing procedures carried out
by the Authorised Service Agent.
Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Never use chemical solvents in the • product. They bring forth risk of
explosion.
When you pull the upper and lower • baskets out completely, the door of the product will bear all the weight of the baskets. Do not put other loads on the door; otherwise, the product may tilt. Never leave the door of the • product open apart from loading and unloading procedures. Do not to open the door of the • product when it is running unless necessary. Be careful for the rush of hot steam when you need to open the door.
Intended use
This product has been designed • for domestic use. It must be used to do the domestic • type dishes only. Only dishwasher safe detergents, • rinse aids and additives must be used. The manufacturer waives any • responsibility arisen from incorrect usage or transportation. The service life of your product • is 10 years. During this period, original spare parts will be available to operate the appliance properly.
6
EN
This product should not be • used by persons with physical, sensory or mental disorders or
unlearned or inexperienced people
(including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product.
Children’s safety
Electrical products are dangerous •
for the children. Keep children
away from the product when it is in use. Do not let them to tamper with the product. Do not forget to close the door of • the product when leaving the room where it is located. Store all detergents and additives • in a safe place away from the reach of the children.
7
EN
3
Installation
Refer to the nearest Authorised Service Agent for installation of your
product. To make the product ready for use, make sure that the electricity, tap water supply and water drainage systems are appropriate before calling
the Authorised Service Agent. If they
are not, call a qualified technician and plumber to have any necessary arrangements carried out.
C Preparation of the location and
electrical, tap water and waste water installations at the place of installation is under customer's responsibility.
B Installation and electrical
connections must be carried out
by the Authorised Service Agent.
Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.
B Prior to installation, visually check
if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.
A Make sure that the water inlet and
discharge hoses are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.
When placing the product, pay
attention not to damage the floor, walls, piping, etc. Do not hold the product from its door or panel to move it.
Appropriate installation location
Place the product on a solid and
flat floor that has sufficient load carrying capacity! The product must be installed on a flat surface in order for the door to be closed comfortably and securely.
Do not install the product at places
where temperature may fall below 0ºC.
Place the product at least 1 cm
away from the edges of other furniture.
Place the product on a rigid floor.
Do not place it on a long pile rug or similar surfaces.
B Do not place the product on the
power cable.
Make sure that you select a
location that will allow you to load and unload the dishes in a fast and comfortable manner.
Install the product in a place close
to the tap and the drain hole. Select the installation location by considering that it will not be changed after the connections are made.
Connecting water supply
C We recommend attaching a filter
on the house/apartment supply water inlet to protect the machine from damages that may arise from impurities (sand, dirt, rust, etc.) coming from the urban water supply system or from your own water system as well as to prevent complaints such as yellowing or sludge accumulation at the end of washing.
8
EN
         







Permitted water temperature: up to 25°C
The dishwasher may not be connected to open warm water devices or flow­through water heaters. Do not use old or used water inlet
hose on the new product. Use the new water inlet hose supplied with the product.
Connect the water inlet hose
directly to the water tap. Pressure coming from the tap should be
minimum 0.3 and maximum 10 bars. If the water pressure exceeds
10 bars, a pressure relief valve should be installed in between.
C Use a screw-on hose connector
to connect the water inlet hose to
a water tap with a ¾ inch external
thread. If required, use a filter insert to filter deposits from the pipes.
Connection to the drain
Water discharge hose can directly be connected to the drain hole or sink’s drainage. The length of this connection
must be min. 50 cm and max. 100 cm
from the floor.
1011
1009
Open the taps completely after
making the connections to check for water leaks.
A For your safety, close the water
inlet tap completely after the washing programme is over.
A discharge hose longer than 4 meters
causes dirty washing.
Attach the water discharge hose
to the drainpipe without bending it.
Tightly fix the water discharge hose to
the drainpipe in order to prevent any dislocation of the water discharge hose during operation of the product.
C Drainpipe must be connected to
the sewage system and it should not be connected to any surface water.
9
EN
Adjusting the feet


If the door of the product cannot be closed properly or if the product swings when you push it slightly, then you
need to adjust the feet of the product. Adjust the feet of the product as
illustrated in the installation manual supplied with the product.
AquAvoid™plus
(depends on the model)
Protect the AquAvoid™ plus system
against water leaks that may occur at hose inlet. Water contact with the valve
box of the system must be prevented.
Otherwise, electrical assembly will
get damaged. If the AquAvoid™ plus
system is damaged, unplug the product
and call the Authorised Service Agent.
A As the hose set contains electrical
connections and assemblies, never shorten or lengthen the hose with
extension hoses.
1010
Electrical connection
Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. Manufacturer shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations. Connection must comply with
national regulations.
Power cable plug must be within
easy reach after installation.
A Unplug the product after the
washing programme is over.
The voltage and allowed fuse or
breaker protection are specified in the “Technical specifications” section. If the current value of the fuse or breaker in the house is less
than 16 Amps, have a qualified electrician install a 16 Amp fuse.
The specified voltage must be
equal to your mains voltage.
Do not make connections via
extension cables or multi-plugs.
B Damaged power cables must be
replaced by the Authorised Service Agent.
B If the product has a failure, it
should not be operated unless it is
repaired by the Authorised Service Agent! There is the risk of electric
shock!
Initial use
Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections “Important safety instructions” and “Installation”. To prepare the product to do the
dishes, perform first operation in the shortest programme with
10
EN
detergent while the machine is empty. During the initial use, fill the salt reservoir with 1 litre of water prior to filling it with salt.
C Some water might have remained
in the product due to the quality control processes in the production. It is not harmful for the product.
Disposing of packaging material
Packaging materials are dangerous to
children. Keep packaging materials in
a safe place away from reach of the children. Packaging materials of the product are manufactured from recyclable materials. Dispose of them properly and sort in accordance with recycled waste instructions. Do not dispose of them with normal domestic waste.
Transportation of the product
A If you need to move the product, do
it in upright position and hold from the rear side. Slanting the product onto its front side may cause the electronic parts in it get wet and damaged.
1. Unplug the product before transporting it.
2. Remove water drainage and water
supply connections.
3. Drain the remaining water in the product completely.
Disposing of the old product
Dispose of the old product in an environmentally friendly manner. Some parts of the product are manufactured
from recyclable materials. Along
with a recycling symbol, information about its nature (PE, PS, POM, etc) is also provided on the material. These
materials should not be disposed as normal domestic wastes.
Refer to your local dealer or solid
waste collection centre in your area to learn how to dispose of your product.
A For children's safety, cut the
power cable and break the locking mechanism of the door so that it will be non-functional before disposing of the product.
11
EN
4
Prewashing
Tips for energy saving
Following information will help you use the product in an ecological and energy-efficient manner.
• Wipe away any coarse food
remnants on the dishes before putting them in the product.
• Operate the product after filling it
completely.
• When selecting a programme,
refer to the "Programme Table".
• Do not put more detergent than
suggested on the detergent package.
Water softening system
C The dishwasher requires soft
water. If the hardness of the water is above 6°dH, the water must be softened and descaled. Otherwise, ions that create the hardness will accumulate on the surfaces of the dishes and may adversely affect the washing, shining and drying performances of the product.
The product is equipped with a water softening system which reduces the hardness of incoming water. This system softens the supply water that enters into the product to a level that will allow washing the dishes with the required quality.
Adjusting the water softening system
Washing performance will increase when water softening system is
adjusted properly.
Use the test stripe supplied with the product to determine the supply water
hardness in order to adjust the system.
12
EN
Adding salt
Water softening system needs to be regenerated in order for the product operates with the same performance continuously. Dishwasher salt is used for this purpose.
C Use in your product only the
special softening salts produced particularly for use in dishwashers.
C We recommend using granular
or powder softening salts. Do not use salts containing insoluble substances such as table salt or common salt in the machine. Performance of water softening system may deteriorate in time.
C Salt reservoir will fill with water
when you start the product. Therefore, add the softening salt before starting the machine.
1. First take the lower basket out to add softening salt.
2. Turn the salt reservoir lid in counter
clockwise to open it (A, B).
C Before initial use, fill the water
softening system with 1 litre of water (C).
3. Fill the salt reservoir with salt by using salt funnel (D). To speed up dissolution rate of salt in water, stir it with a spoon.
C You can put about 2 kg of softening
salt into the salt reservoir.
4. Replace the lid and tighten it
securely when the reservoir is full.
1012
13
EN
5. If you will not start a washing
 

programme immediately after adding the salt, run the machine empty in the shortest programme to dissolve and wash away the scattered salt in the machine.
C Since different salt brands in the
market have different particle sizes and since the water hardness may vary, dissolution of the salt in water may take a couple of hours. Therefore, Salt Indicator remains on for a while after adding salt into the machine.
Detergent
You can use powder or tablet detergent in the machine.
C Only use in the machine the
detergents produced particularly for use with dishwashers. We recommend you not to use detergents that contain chlorine and phosphate as they are harmful for the environment.
C Contact the detergent producer if
the dishes are wet and/or if you notice limescale spots particularly on glasses after the washing programme is over.
Adding detergent
C Refer to the “Programme Table”
to determine the correct amount of detergent for the selected programme.
B Do not put solvents into the
detergent dispenser. There is the
risk of explosion!
Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Push the latch to right to open the
detergent dispenser lid (A).
1014
2. Put suggested amount of powder or tablet detergent in the dispenser.
C Inside the detergent dispenser,
there are level markings that help you use appropriate amount of detergent. When brimful, detergent dispenser will contain 40 cm³ of detergent. Fill detergent up to 15 cm³ or 25 cm³ level marks in the detergent dispenser according to fullness of the machine and/or soiling degree of the dishes (1).
1014
C If dishes have been waiting for a
long time and have dried residues, fill the 5 cm³ compartment too (5).
14
EN
3. Close the detergent dispenser lid
 

by pressing on it lightly. A "click"
will be heard when the lid is closed.
C In programmes with prewash and
at high temperature, in which you use tablet detergents, make sure that the detergent dispenser lid is closed firmly.
C Use powder detergent in short
programmes without prewash since the solubility of the tablet detergent changes depending on the temperature and time.
A Excessive usage of powder
detergents will cause the detergent not dissolve completely and will also cause scratches on the glassware.
Tablet detergents
Table detergents exhibit water
softening and / or rinse aid effect in addition to detergent effect. Some types of these detergents also contain special-purpose washing chemicals such as glass and stainless steel protectors.
2222
C Tablet detergents give satisfying
results only under certain usage conditions. The best washing performance in dishwashers is obtained by using detergent,
rinse aid and water softening salt individually.
C Information about suitable places
(detergent dispenser, basket etc.) in the dishwasher to place the tablet can be found amongst the usage instructions on the packages of the tablet detergents.
Tablet detergent types commonly found in the market: 2in1: Contains detergent, rinse aid or water softening salt 3in1: Contains detergent, rinse aid and water softening salt 4in1: Contains glass protectors in addition to detergent, rinse aid and water softening salt 5in1: Contains glass and stainless steel protectors in addition to detergent, rinse aid and water softening salt
C Observe the instructions of
the detergent manufacturer on the package when using tablet detergents.
When you switch to powder detergent from tablet detergent:
1. Make sure that salt and rinse aid reservoirs are full.
2. Set the water hardness to the highest level and perform an empty run.
3. After the empty washing cycle,
review the user manual and
readjust the water hardness level
so as to suit the water supply.
4. Make the appropriate rinse aid settings.
C Depending on the model, salt
indicator and/or rinse aid indicator must be enabled again if they were disabled before.
15
EN
Rinse aid
C The rinse aid used in dishwashers
is a special combination used to increase drying efficiency and prevent water or limescale stains on the washed items. For this reason, care must be paid to have rinse aid in the rinse aid reservoir and to use rinse aids produced specially for dishwashers only.
Check Rinse Aid Indicator to determine
whether it is necessary to add rinse aid or not (3 depends on the model). Having a dark light on the indicator shows that there is sufficient amount of rinse aid in the dispenser. If the colour of the indicator is light, add rinse aid.
1. Open the lid of the rinse aid reservoir by pressing its latch (B).
1013_redaksiyon
2. Fill the reservoir until “MAX” level.
3. Close the lid of the reservoir by pressing on it lightly.
C Wipe clean any spilled rinse aid
outside the reservoir. Rinse aid
that spilled accidentally will cause foaming and it will eventually decrease washing performance.
1013_redaksiyon
4. Turn the rinse aid amount
adjuster manually to a position
between 1 and 6 (4). If there are stains on tableware items after washing, level must be increased and if there is a blue trace after wiping them by hand, it must be decreased. This is set to position 4 as factory default.
Items not suitable for washing in the dishwasher
• Never wash dishes soiled by
cigarette ash, candle remnants, polish, dyestuff, chemicals, etc. in your dishwasher.
• Do not wash iron alloy items in the
dishwasher. It can get corroded or leave stains on other items.
• Do not wash silverware and
cutlery with wooden or bone stems, glued pieces, or pieces that are not resistant to heat, as well as copper and tin-plated containers in the dishwasher.
C Decorative prints of chinaware as
well as aluminum and silver items may get discoloured or tarnished after washing in the dishwasher
just as it happens in handwashing
as well. Some delicate glass types and crystals may become dull in
16
EN
time. We strongly recommend you to check if the tableware you are going to purchase is suitable for washing especially in the dishwasher.
Placing the dishes into the dishwasher
You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way.
• Wipe away any coarse food
remnants (bones, seeds, etc.) on the dishes before placing them in the dishwasher.
• Place thin, narrow pieces in the
middle sections of baskets if possible.
• There are two separate baskets in
which you can place your dishes in the dishwasher. Place the heavily soiled and bigger items in the lower basket and smaller, delicate and light items in the upper basket.
• Place the hollowed dishes such as
bowls, glasses and pans upside down in the dishwasher. Thus, accumulation of water in deep hollows is prevented.
A To prevent possible injuries, always
place the sharp and pointed dishes such as service fork, bread knife, etc. upside down so as their pointed ends will face down or they will lie horizontally on the dish baskets.
• Unload dishes in the lower basket
first and then the dishes in the upper basket.
17
EN
Suggestions for loading the dishwasher
Lower basket
Improper Loading Of Dishware
Upper basket
Improper Loading Of Dishware
18
EN
Silverware basket
(depends on the model)
Silverware basket is designed to wash your dishes such as fork, spoon and etc. in a cleaner manner.
1029_redaksiyon
Movable silverware basket
(depends on the model)
Since the cutlery basket can be moved
(A, B), you can create a wider space
while placing your dishes to the lower basket and free up space for your dishes in different sizes.
Silverware basket piece
(depends on the model)
You can place your forks, spoons and etc. to upper basket with the additional piece in the figure.
2555
4-3B Tall Tub cutlery basket
19
EN
Collapsable lower basket wires (2 pieces)
(depends on the model)
The two piece foldable wires located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. (1, 2).
1054
You can create larger spaces by folding each wire individually or all of them at once. Lay the foldable wires down by
pressing on the latch (A).
larger spaces by folding each wire individually or all of them at once. Lay the foldable wires down by pressing on
the latch (A).
1017
Collapsable lower basket wires (4 pieces)
(depends on the model)
The four piece foldable wires located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. (1, 2, 3, 4). You can create
Lower basket bottle wire
(depends on the model)
The bottle wire is designed for easier washing of long pieces with wide mouths. You may take out the bottle wire from the basket when not in use by pulling it out from both sides (H).
1020
20
EN
Lower basket multipurpose /
height adjustable service rack
(depends on the model)
This accessory located at the lower basket of the machine allows you
to easily wash pieces such as extra
glasses, long ladles and bread knives.
1019
To close the racks:
1. Fold the rack (A).
2. Slide the rack up (B).
3. Put the rack in vertical position (C).
4. Slide the rack down and lock it with the tabs (D).
Perform the same process in
reverse order to open the racks.
To adjust the height of the racks:
1. Fold the rack (E).
2. Slide the rack up (F).
3. Open the rack at the desired level (G).
Make sure that the impeller does
not touch the dishes you placed on the racks.
Upper basket height adjustable rack
(depends on the model)
Use the lower and upper parts of the
height adjustable racks in the upper
basket of the machine by sliding them down or up according to the heights of
the glasses, cups or etc. (A, B, C).
1023
21
EN
Upper basket drawer
(depends on the model)
You can easily place additional desert spoons, small forks and knives into the basket drawer installed to the upper basket of your machine.
1026
Upper basket glass support piece
(depends on the model)
When placing long stemmed glasses or wine glasses, do not lean them against other pieces but to the edge of the basket or to the rack (1). Do not lean long glasses against each other. They can move and get damaged during washing. If you wish to place large-volume pieces on the upper basket, release
the tab of the glass support piece from the upper basket wire it is hooked to. Thus, you can obtain a wider space.
1025
Collapsable upper basket wires
(depends on the model)
There are foldable wires on the upper basket of the machine that you can lay down when you need larger space for big dishes. To bring the collapsable wires into horizontal position, grab the first collapsable wire and push it in
direction (A) or (B). Place your larger
dishes into the area created. To bring
the wires back to vertical position, just
lift them up. Collapsable wires will click into the latch again.
1067
22
EN
Collapsable upper basket
wires
(depends on the model)
To bring the collapsable wires on the upper basket of the machine into horizontal position, press on the latch
of the loaded basket in up or down directions without removing it from the machine.
To raise the basket:
1. Grab one of the upper basket wires
(right or left) and lift it up (A).
1021 eps
(1). Place your larger dishes into the area created (2). To bring the wires
back to vertical position, just lift them
up.
4-9A Ust sepet Katlanan teller
Adjusting the height of loaded upper basket
(depends on the model)
Basket adjustment mechanism on
the upper basket of the machine is designed to allow you create wider areas in the upper or lover section of the machine based on your
requirements by adjusting the height
2. Repeat the same process to raise
the other side of the basket.
3. Make sure that both sides of
the basket height adjustment
mechanism are at the same level (down or up).
To lower the basket:
1. Press the latch on the basket
adjustment mechanism (right or
left) to lower the basket (B).
23
EN
2. Repeat the same process to lower
the other side of the basket.
3. Make sure that both sides of
the basket height adjustment
mechanism are at the same level (down or up).
Adjusting the height of loaded upper basket
(depends on the model)
Basket adjustment mechanism on
the upper basket of the machine is designed to allow you create wider areas in the upper or lover section of the machine based on your
requirements by adjusting the height
of the loaded basket in up or down directions without removing it from the machine.
To raise the basket:
1. Grab one of the upper basket wires
(right or left) and lift it up (A).
To lower the basket:
1. Press the latch on the basket
adjustment mechanism (right or
left) to lower the basket (B).
2. Repeat the same process to lower
the other side of the basket.
3. Make sure that both sides of
the basket height adjustment
mechanism are at the same level (down or up).
1065 eps
2. Repeat the same process to raise
the other side of the basket.
3. Make sure that both sides of
the basket height adjustment
mechanism are at the same level (down or up).
24
EN
Adjusting the height of empty
upper basket
(depends on the model)
You can adjust the height of the upper
basket according to the size of the dish to be washed. Use basket rollers to change the basket height.
1. Turn the stoppers on the ends of the upper basket rails by turning them
aside (A).
2. Take the basket out (B).
3. Change the position of the rollers, place the basket into the rail and close the stoppers (C).
1022 eps
25
EN
5









 


Operating the product
1. On/Off key
2. Start / Pause / Cancel key
3. Display
4. Programme Selection key
5. Half Load key
6. Express key
12. Start / Pause indicator
13. Time Delay indicator
14. Rinse Aid indicator
15. Half Load “ ” indicator
16. Express indicator
17. Tablet Detergent indicator
18. Salt indicator
7. Tablet Detergent key
8. Time Delay key
9. Handle
10. Programme indicator
11. Remaining Time / Delay Time
indicator
19. Child Lock indicator
20. Programme Steps Follow-up
a Washing Step indicator “
b Rinsing Step indicator “
c Drying Step indicator “
d End of Programme indicator “ ”
indicators
26
EN
Keys
On / Off key
It is used to turn on or off the machine. In On position, the machine switches on with the last programme in use. In Of position, indicators on the display will turn off. If the Half Load, Tablet Detergent, Child Lock and Time Delay functions were selected in the previous programme used, these functions will remain active when the machine is turned off and on again. If you want to disable these functions after turning the machine off and on again, you must press the relevant keys again.
Start / Pause / Cancel key
It is used to start, pause or cancel the selected programme or function. To press the Start / Pause / Cancel key, wait for two seconds after you turn on the machine by pressing the On
/ Off key. An image will be displayed
within this time.
Programme Selection key
It is used to choose the washing programme you selected in the “Table
of Programme Data and Average
Consumption Values”.
Half Load key
It is used to operate the machine without loading it completely.
1. Load your dishes in the machine as you like.
2. Press the On / Off key.
3. Select the desired programme and press the Half Load key. Half Load ( ) indicator will appear on the display.
4. Press Start / Pause / Cancel key to start the programme.
C With the Half Load function you
can save both water and power
while using the lower and upper baskets of the machine.
Tablet Detergent key
This function provides better drying performance with the multi-purpose detergents such as 2in1, 3in1, 4in1, 5in1, all in one, etc., depending on the hardness level of the supply water. Look at the “Table of Programme Data and
Average Consumption Values” to see
which programmes the Tablet Detergent function can be used with.
C Tablet Detergent Indicator lights
when the Tablet Detergent function is selected.
Time Delay key
It is used to select the Time Delay function. You can delay the start of the selected programme up to 24 hours with increments of 30 minutes thanks to the Time Delay function.
Express key
This option allows you to shorten the selected programme; the dishwasher then uses higher water pressure and consumes less energy and water.
Preparing the machine
1. Open the tap.
2. Plug in to the socket.
3. Open the door of the dishwasher.
4. Place the dishes in accordance with the instructions in the user manual.
5. Make sure that the upper and lower impellers rotate freely.
6. Put adequate amount of detergent into the detergent dispenser.
7. Check if the Salt and Rinse Aid
indicators light and add salt and/or rinse aid if needed.
8. Close the door of the dishwasher.
27
EN
Programme selection
1. Press On / Off key to turn on your machine.
2. Refer to “Table of Programme Data and Average Consumption Values”
to select a washing programme suitable for your dishes.
3. Press Programme Selection key repeatedly until the number of the selected programme appears on the Programme indicator . Programme number will increase by one each time you press the key.
C Number of the programmes on the
machine may change depending on the model you have purchased.
Adding an auxiliary function to the programme
Depending on your needs, you can add Half Load (1/2), Tablet Detergent,
Express and Time Delay functions to the
programme you have selected. Press the key of the function you wish to add. Indicator of the relevant function will appear on the display.
Setting Time Delay function
If an economical electricity tariff is applied in your region, you can use the Time Delay function to wash your dishes during appropriate hours.
1. Press the Time Delay function key after selecting the washing
programme and other auxiliary
functions. Time Delay indicator ( ) will start flashing on the display.
2. Press Time Delay key to set the time you wish. Time will increase with increments of 30 minutes up to 24 hours every time you press the key.
3. Press Start / Pause / Cancel key. Delay time will start countdown. Time Delay indicator ( ) and Start / Pause indicator will light continuously.
Remaining time will appear on the
Time Delay indicator. Programme will start automatically when the countdown is over.
Changing the settings during Time Delay
While the Time Delay function is activated, you can make changes in the washing programme, other
auxiliary functions or the delay time.
1. Press Start / Pause / Cancel key to switch the machine into Pause mode. Countdown will stop.
2. Select the new programme,
auxiliary functions and time as
described in the sections above.
3. Press Start / Pause / Cancel key. Countdown will resume or restart.
Canceling the Time Delay function
1. Press and hold Start / Pause / Cancel key for 3 seconds.
2. Release the key when the Start /
Pause indicator starts flashing. For a couple of minutes the machine will fulfill the necessary operations required to cancel the function. Once the Time Delay function is cancelled, “00:00” will appear on
the Remaining Time indicator.
C You can select and start a
new programme following the cancellation of Time Delay function.
C Time Delay function can not be set
after the programme starts.
28
EN
Starting the programme


To start your machine after selecting
the programme and auxiliary functions,
press Start / Pause / Cancel key. Once the programme starts to run,
Remaining Time indicator displays
the estimated time to the end of the programme. Start / Pause indicator starts lighting continuously.
C Your machine performs water
softening depending on the hardness level of the supply water.
Remaining time displayed towards
the end in some programmes can be different from the time indicated at the beginning due to this process. The total time can also change while the programme is running depending on the ambient temperature where your machine is installed, temperature of the supply water and amount of the dishes.
C Pay attention not to open the door
of the machine when it is running. Stop the machine by pressing Start / Pause / Cancel key if you have to open the door. Then, open the door of the machine. There may be a rush of vapour when you open the door of your machine; be careful. Close the door of your machine and press Start / Pause / Cancel key again. Programme will resume running.
Child Lock
You can prevent other people from interrupting and changing the programme cycle and delay time while the machine is running.
1. Press and hold the Programme Selection key and the Half Load key simultaneously for three seconds to activate the child lock. Child Lock indicator will appear
on the display. Repeat the same
procedure to disable the Child Lock.
C Child lock prevents the selected
programme or functions from being changed and disables the Start / Pause / Cancel key.
C Child Lock does not lock the door
of the machine.
Programme follow-up
You can follow-up the washing step in which the current programme is in from the Programme Steps Follow-up indicators on the display.
YM_program_
takibi
a Washing Step indicator
b Rinsing Step indicator
c Drying Step indicator
d End of Programme indicator
Indicators for Washing, Rinsing and
Drying will light respectively on the display while the selected programme is running. Only the End of Programme indicator lights up when the programme is over. “00:00” appears on
Remaining Time indicator.
Canceling a programme
1. Press and hold Start / Pause / Cancel key for 3 seconds while the programme is running.
2. Release the key when the Start /
Pause indicator starts flashing. For a couple of minutes the
29
EN
machine will fulfill the necessary operations required to cancel the programme. Once the Time Delay function is cancelled, “00:00” will
appear on the Remaining Time
indicator.
C You can select and operate a
new programme following the cancellation of the programme.
C There might be residues of
detergent or rinse aid left in the machine and/or on the pieces being washed depending on the step the previous programme was in at the time of such cancellation.
Changing a programme
1. Press Start / Pause / Cancel key to switch the machine into Pause mode.
2. Select the desired programme by pressing the Programme Selection key.
3. Press Start / Pause / Cancel key to start the new programme.
C The new programme will start from
the step where the previous one
has stopped. For example, if the
previous programme has remained in rinsing step, the new programme will start from the rinsing step as well. If you want to run the newly selected programme from the very beginning, you have to cancel the programme first and then select a new programme.
Salt indicator
Check the Salt indicator on the display to see whether there is enough softening salt in your machine or not. You need to refill the salt container whenever the Salt indicator lights.
C If the water hardness level is saved
as (r1), Salt indicator will never
come on even if the salt container
is empty. (Adjusting the water hardness level is explained in
Water Softening System section.)
Rinse Aid indicator
Check the Rinse Aid indicator on the
display to see whether there is enough softening rinse aid in your machine or not. You must refill the rinse aid
container when the Rinse Aid indicator
comes on.
C If the Rinse Aid indicator is set
to OFF, Rinse Aid indicator will
never come on even if the rinse aid container is empty.
Setting the Rinse Aid indicator
1. Turn on your machine by pressing On / Off key while pressing and holding the Half Load ( ) key when the machine is in off position.
Keep holding the keys pressed in
this stage.
2. Release On / Off (1) key while
pressing and holding the Half Load ( ) key.
3. Keep the Half Load ( ) key pressed for three seconds more.
4. Rinse Aid indicator lights up and the Rinse Aid indicator status
saved on your machine appears on the display as “ON” or “OFF”.
5. You can change the status of the indicator as “ON” or “OFF” by pressing the Start / Pause / Cancel key.
C If you switch off the machine with
“On/Off" key when the status is
"ON", then the Rinse Aid indicator
will come on when the rinse aid level in your machine becomes low while the machine is in use. If you switch off the machine by pressing On/Off key when the status is set
30
EN
to OFF, then the Rinse Aid indicator
will never come on.
End of programme
End of Programme indicator will light
up once the washing programme is over.
1. Press On / Off key to turn off your machine.
2. Close the tap.
3. Unplug the machine from the socket.
C Leave your dishes in the machine
for about 15 minutes to cool down after they are washed. Your dishes will dry in a shorter time if you
leave the door of your machine ajar
during this period. This process will increase the drying effectiveness of your machine.
31
EN
Programme Table
Auto Pre-wash
40-65°C
Eco A Express Intensive
40°C
Delicate
and amount of the
all types of dishes.
as the washing time
sets the temperature
washing water as well
Determines the soiling
degree of the dishes and
automatically. Suitable for
dishes, pots and pans.
Suitable for heavily soiled
fastest way.
dishes that are kept
which the medium soiled
Daily washing program at
waiting are cleaned in the
waiting.
Most economical
dishes that are kept
washing program for
the medium soiled daily
washed immediately.
Suitable for dishes that
are not pre-cleaned but
The programme
the amount of soiling
sequence is adjusted to
Hot Rinse ▼ Hot Rinse
Hot Rinse
Cold rinse
Cold rinse
Dry
Dry
End
Dry
Hot Rinse
Dry
Hot Rinse
Pre-wash
Cold rinse
Wash
Cold rinse
Wash
Pre-wash
Wash
Pre-wash
End
End
End
35°C 50°C 60°C 70°C
Mini 30'
Suitable for lightly soiled
1 2 3 4 Reference* 5**** 6 7
Programme number
-
Suitable for removing
Degree of Soiling
Programme name
Cleaning temperature
daily dishes that are
scraped or pre-cleaned.
the remnants on the
soiled dishes that will
be kept waiting in the
the bad odor buildup.
and thus, for preventing
machine for a few days,
Wash
Cold rinse
- Few Few Medium Medium High Medium to high
- A A A+B A+B A+B A
End
Pre-wash
Detergents
A=25 cm³/15 cm³ B=5 cm³
End
Hot Rinse
- 0,8 0,88 0,97 1,32 1,26 0,90-1,50
15 30 83 178 58 143 85-179
4,0 10,4 13,4 13 10,2 16,2 10,8-14,8
Water (I)
Energy (kWh)
(without options)
Programme sequence
Duration (min)
The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions.
* Reference programme for testing institutes The tests in accordance with EN 50242 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the test programme.
**** It should be tested under a load of 12 place setting. Consumption values are measured under a standard load of 12 place setting.
32
EN
6
Maintenance and cleaning
Service life of the product extends and
frequently faced problems decrease if it is cleaned at regular intervals.
A Unplug the product and turn off the
tap before attempting any cleaning procedures.
C Do not use abrasive substances for
cleaning.
C Clean the filters and impellers at
least once a week.
Cleaning the outer surface of the product
Clean the outer surface and door gaskets of the product gently with a mild cleaning material and damp cloth. Wipe the control panel only with a damp cloth.
Cleaning the interior of the machine
Clean the interior of the machine
and the tank by running a prewash programme without detergent or a long washing programme with detergent based on the degree of soiling.
If water has remained in the
machine, drain the water by performing the procedures under the topic "Canceling a programme". If the water cannot be discharged, clean any leftover deposits that have piled up in the bottom of the machine, blocking the water path.
Cleaning the filters
Clean the filters at least once a week in order for the machine operates efficiently. Check if food residues are left on the filters. If there are food residues on filters, take them out and clean well under running water.
1. Turn the micro filter (3) and coarse filter (2) assembly counter clockwise and pull it out from its
seating (A).
1031
2. Pull out the metal / plastic filter (1) (B).
33
EN
3. Press the two pawls on the coarse filter inwards and separate the coarse filter from the assembly (C).
4. Clean all three filters under tap water by means of a brush.
5. Replace the metal/plastic filter.
6. Place the coarse filter into the microfilter. Make sure that it is properly seated. Turn the coarse filter clockwise until a “click” sound is heard.
A Do not use the dishwasher without
filter.
C Incorrect placement of the filters will
reduce washing efficiency.
Cleaning the hose filter
Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary.
1. Turn off the tap and remove the hose.
2. After taking out the filter, clean it
under running tap water.
3. Place the cleaned filter back to its seat in the hose.
4. Install the hose to tap.
Cleaning the impellers
Clean the impellers at least once a week in order for the machine operates efficiently.
Lower impeller
Check if the holes on the lower impeller (1) are clogged. If they are clogged, remove and clean the impeller. Pull the
lower impeller up to remove it (A, B).

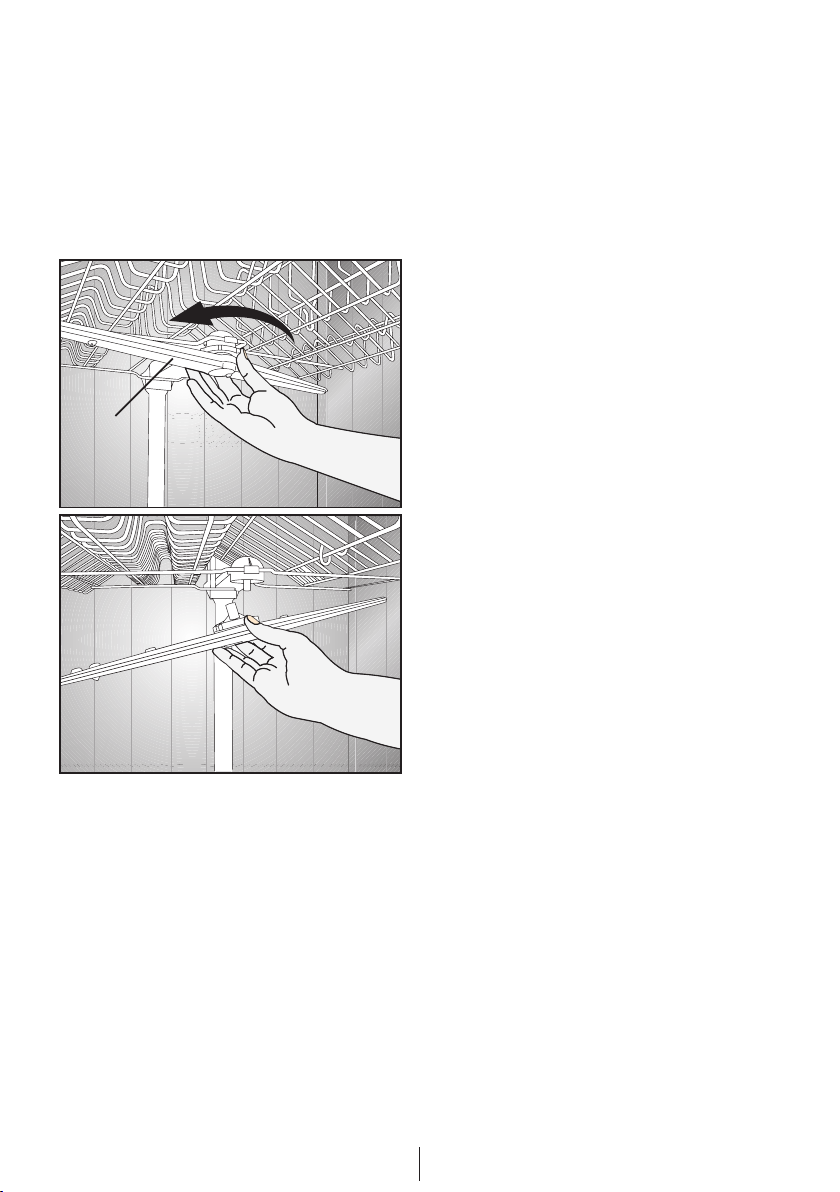

Upper impeller
Check if the holes on the upper impeller (2) are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to remove the upper impeller (C, D). Make sure that the nut is tightened well when installing the upper impeller.
1032
34
EN
7
Troubleshooting
Machine does not start.
Power cable is unplugged. >>> Check if the power cable is plugged in.
Fuse is blown. >>> Check the fuses in your house.
Water is cut. >>> Make sure that the water inlet tap is open.
Door of the machine is open. >>> Make sure that you have closed the door
of the machine.
On / Off button is not pressed. >>> Make sure that you have turned on the
machine by pressing the On / Off button.
Dishes are not washed clean
Dishes are not placed orderly in the machine. >>> Load the dishes as
described in the user manual.
Selected programme is unsuitable. >>> Select a programme with a higher
temperature and cycle time.
Impellers are stuck. >>> Prior to starting the programme, turn the lower and
upper impellers by hand to make sure that they rotate freely.
Impeller holes are clogged. >>> Lower and upper impeller holes might
be clogged with food remnants such as lemon pips. Clean the impellers regularly as illustrated in section "Cleaning and Care".
Filters are clogged. >>> Check if the filter system is clean. Clean the filter
system regularly as illustrated in section "Cleaning and Care".
Filters are installed incorrectly. >>> Check the filter system and make sure
that it is installed correctly.
Baskets are overloaded. >>> Do not overload the baskets in excess of their
capacity.
Detergent is stored under unsuitable conditions. >>> If you are using powder
detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.
Detergent is not sufficient. >>> If you are using powder detergent, adjust
the amount of detergent according to the soiling degree of your dishes and/ or programme definitions. We recommend you to use tablet detergents for optimum results.
Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse
aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
Detergent dispenser lid is left open. >>> Make sure that the detergent
dispenser lid is closed tightly after adding detergent.
35
EN
36
EN
Dishes are not dry at the end of cycle
Dishes are not placed orderly in the machine. >>> Place your dishes in a
way that no water will accumulate in them.
Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse
aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
Machine is unloaded right after the programme is over. >>> Do not unload
your machine right after washing process is completed. Slightly open the door and wait for evacuation of the steam inside for a while. Unload the dishes after the pieces cool down to a touchable level. Start unloading process from the lower basket. Thus, dropping of water remained on a piece at upper basket onto the pieces at lower basket is prevented.
Selected programme is unsuitable. >>> Since rinsing temperature is low at
programmes with short duration, drying performance will also be low. Select programmes with longer duration for a higher drying performance.
Surface quality of the kitchen utensils is deteriorated. >>> Desired washing
performance can not be obtained at kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well. Also, water can not flow easily on deteriorated surfaces. It is not recommended to wash such kitchen utensils in dishwasher.
C It is normal that drying complaints can be experienced with Teflon kitchen
utensils. It is associated with the structure of Teflon. Since the surface tensions of Teflon and water are different, water droplets will remain as beads on the Teflon surface.
Tea, cafe or lipstick stains remain on dishes.
Selected programme is unsuitable. >>> Select a programme with a higher
temperature and cycle time.
Surface quality of the kitchen utensils is deteriorated. >>> Tea and cafe
stains or other dye spots may not be cleaned in dishwasher when they have penetrated in deteriorated surfaces. Desired washing performance can not be obtained at kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well. It is not recommended to wash such kitchen utensils in dishwasher.
Detergent is stored under unsuitable conditions. >>> If you are using powder
detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.
37
EN
Lime traces remain on dishes and glassware gains a misty appearance
Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse
aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
Water hardness setting is low or salt level is insufficient >>> Measure the
hardness of the supply water appropriately and check the water hardness setting.
Salt leakage exists. >>> Pay attention not to spill salt around the salt filling
hole while adding salt. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme.
There is a different odour in the machine
C A new machine has a peculiar odour. It will fade out after a couple of
washing.
Filters are clogged. >>> Check if the filter system is clean. Clean the filter
system regularly as illustrated in section "Cleaning and Care".
Dirty dishes are kept in dishwasher for 2-3 days. >>> If you are not going
to start the machine right after you have put the dishes into it, remove the remnants on the dishes and run the Prewash programme without detergent every 2 days. In such cases, do not close the door of the machine completely in order to avoid odour build up in machine. You can also use commercially available odour removers or machine cleaners.
38
EN
Rust, discoloration or surface deterioration occurs on dishes
Salt leakage exists. >>> Salt may cause deterioration and oxidation on
metal surfaces. Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme.
Salty food remnants have remained on dishes for a long time. >>> If
silverware soiled with such foods will be kept waiting in machine, dirt must be removed by prewash or dishes must be washed without being kept waiting.
Electric installation is not grounded. >>>Check if your machine is connected
to the actual grounding line. Otherwise, the static electric created in the product causes arcs on the surfaces of metal items creating pores, removing the protective cover on the surface and causing discoloration.
Intensive cleansers such as bleaches are used. >>> Protective cover on
metal surfaces gets damaged and looses its efficiency in time when it gets in contact with cleansers such as bleach. Do not wash your dishes with bleach.
Metal items particularly such as knives are used for purposes other then their intended uses. >>> Protective cover on the edges of knives may get
damaged when they are used for purposes such as opening cans. Do not use metal kitchen utensils out of their intended uses.
Silverware are made of low quality stainless steel. >>> Corrosion on such items is inevitable; they should not be washed in dishwashers.
Kitchen utensils that are already corroded are washed in dishwasher. >>> Rust on a corroded item can migrate to other stainless steel surfaces
and cause corrosion on those surfaces as well. Such items should not be washed in dishwashers.
39
EN
Detergent remains in detergent dispenser.
Detergent dispenser was damp when adding detergent. >>> Make sure that the detergent dispenser is dried well prior to filling it with detergent.
Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing.
Opening of the detergent dispenser lid is prevented during washing. >>>
Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers.
Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.
Impeller holes are clogged. >>> Lower and upper impeller holes might be clogged with food remnants such as lemon pips. Clean the impellers regularly as illustrated in section "Cleaning and Care".
Decorations and ornaments on kitchen utensils are being erased.
C Decorated glasses and decorated luster porcelains are not suitable for
washing in the dishwasher. Manufacturers of glassware and porcelain tableware items do not recommend washing such kitchen utensils in the dishwashers either.
Dishes are scratched.
C Kitchen utensils that contains or are made of aluminum should not be
washed in dishwasher.
Salt leakage exists. >>> Pay attention not to spill salt around the salt filling hole while adding salt. Spilled salt can cause scratches. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme.
Water hardness setting is low or salt level is insufficient >>> Measure the hardness of the supply water appropriately and check the water hardness setting.
Dishes are not placed orderly in the machine. >>> When placing the glasses and other glassware into the basket lean them not against other dishes but the edges or racks of the basket or the glass support wire. Striking of the
glasses to each other or to other dishes due to the impact of water during washing can cause breaks, or scratches on their surfaces.
A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light.
Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
Corrosion has occurred on glass due to soft water. >>> Measure the hardness of the supply water appropriately and check the water hardness setting. If your supply water is soft (<5 dH), do not use salt. Choose programmes that wash in higher temperatures (e.g. 60-65°C). You can also use glass protective detergents that are commercially available.
Foam forms in the machine.
Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain
antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
Rinse aid has spilled into the machine when adding rinse aid. >>> Take care that rinse aid is not spilled in the machine when you are filling it. Clean any spilled rinse ait with the help of a tissue paper/towel.
Lid of the rinse aid reservoir is left open. >>> Make sure that the lid of the rinse aid reservoir is closed after adding rinse aid.
Kitchen utensils are broken.
Dishes are not placed orderly in the machine. >>> Load the dishes as described in the user manual.
Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.
Water remains in the dishwasher at the end of the programme.
Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section "Cleaning and Care".
Discharge hose is clogged/blocked. >>> Check the discharge hose. If necessary, remove the discharge hose, clear the blockage and insert is as illustrated in the user manual.
C If you cannot eliminate the problem although you follow the instructions in
this section, consult your dealer or the Authorised Service Agent. Never try to
repair a nonfunctional product yourself.
40
EN
EN
17 7743 01 00_AG
Loading...
