Blomberg G 30 TKF 8451, AG 30 TKF 8451 SGC 30 User Manual

TKF 8451 A 30 TKF 8451 G 30 TKF 8451 AG 30 TKF 8451 SGC 30

Dryer Kuivaaja

Please read this user manual first!

Dear Customer, We hope that you get the best results from the product which has been manufactured in state-of-the-art plants and passed through a strict quality control procedure. Therefore, please read the entire user manual carefully before using the product and keep it as a reference for future use. In case of transferring the product to someone else, give the manual as well.

The user manual will help you use your product in a fast and safe way.

• Read the user manual before installing and starting your product.

• Always follow the safety instructions.

• Keep this user manual within easy reach for future reference.

• Read also the other documents supplied with the product. Remember that this user manual is also applicable for several other models. Differences between models will be

identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Read the instructions.

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning for electric shock.

Warning for fire hazard.

Warning for hot surfaces.

2960310455_EN/221012.1439

This appliance’s packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. We thank you doing your part to protect the environment.

1 Important safety instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

General safety

• Never place the product on a carpet-covered floor;

otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. This will cause problems with your product.

• Do not operate the product if the power cable / plug is damaged. Call the Authorized Service Agent.

• Do not make any changes on the plug supplied

with the product. If it is not compatible with the socket, have a qualified electrician change the socket with a suitable one.

• Never touch the plug with wet hands! Never unplug

by pulling on the cable, always pull out by grabbing the plug.

• Connect the product to a grounded outlet protected

by a fuse of suitable capacity as stated in the technical specifications table.

• Power cable of this product is equipped with a

conductor and a grounding plug that allows for grounding the product. This plug must be inserted into a socket which is installed and grounded in accordance with the local laws and regulations. Grounding installation decreases the risk of electric shock by opening a path with low resistance for the electricity flow in case of a malfunction or failure. Do not neglect to have the grounding installation made by a qualified electrician. If you have any suspect about the grounding installation, have it checked by a qualified electrician or the

Authorized Service Agent. Our company shall not

be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• The product should not be plugged in during

installation, maintenance, cleaning and repair works.

• Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for

damages that may arise from procedures carried out by unauthorized persons.

• Do not use electrical devices in the product.

• Do not connect the air exit of the product to the

chimney holes which are used for the exhaust fumes of the devices operating with gas or other types of fuel.

• You must provide enough ventilation in order to

prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

• Items cleaned or washed with gasoil/fuel oil,

dry-laundry solvents and other combustible or explosive materials as well as the items that are contaminated or spotted with such materials should not be dried in the product since they emit flammable or explosive vapor.

• Do not dry the laundry cleaned with industrial

chemicals in the dryer.

• Underwear that contains metal reinforcements

should not be dried in the dryer. Dryer can get damaged if metal reinforcements come loose and break off during drying.

• Never attempt to repair the product yourself. Do

not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or

the published service manual. Otherwise, you will

be putting your life and others' lives in danger.

• For failures that you cannot remedy by applying

the procedures in safety instructions, turn off and

unplug the product and call the Authorized Service Agent.

• Do not reach into the machine when the drum is

spinning.

• Do not use extension cords, multi-plugs or

adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.

• Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!

The final step of the drying programme, namely

the cool-down step is performed without applying heat to ensure that the laundry items are kept at a temperature that will not damage them. If you open the loading door before the cool-down step

completes, hot vapour will come out.

Never stop the dryer before the programme

completes. If you must do this, remove all laundry quickly and lay them out to a suitable place to dissipate the heat.

• Always clean the lint filter before or after each

loading. Never operate the dryer without the lint filter installed.

• Clean inside and exhaust duct of the product

regularly. Do not allow fibre, dust and dirt accumulation around the exhaust exit and at adjacent areas.

• Power cable plug must be within easy reach after

installation.

• Do not dry unwashed items in the dryer.

• Items soiled with cooking oils, acetone, alcohol,

fuel oil, kerosene, stain removers, turpentine, paraffin and paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

• Garments or pillows bolstered with rubber foam

(latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads should not be dried in the dryer.

• Do not use fabric softeners and anti-static

products unless they are recommended by the manufacturers of the relevant product.

• Use softeners, anti-static products and etc.

in accordance with the instructions of their manufacturers.

• Do not install the product behind a door with a

lock, sliding door or a hinged door which can strike the product.

• Do not install or leave the dryer in places where it

will be exposed to outdoor conditions.

• Your product can be operated at temperatures

between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the product will be adversely affected and it can get damaged.

• Do not tamper with the controls.

• Unplug the product when it is not in use.

• Remove the loading door of the drying

compartment before decommissioning or disposing of the product.

• Check all garments before loading and make sure

that there is no any lighters, coins, metal pieces, needles, and etc. in their pockets or on them.

• Make sure that the pets do not enter into the

product. Check the drum of the product before using it.

• Make sure that original spare parts and

accessories are used during maintenance works.

• Do not lean on the loading door when it is open.

The product may tip over.

• When your machine is not in use or when you

unload the laundry after completion of drying

process, turn the machine off with the On/Off button. In cases where the On/Off button is in On

position (while the machine is energized), keep the loading door closed.

Intended use

• This product has been designed for domestic use.

It should not be used for other purposes.

• Product must only be used for drying of textiles

that are marked accordingly.

• Dry only those articles in your product that are

stated in this manual.

• This product is not intended to be used by persons

with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product.

Children's safety

• Electrical products are dangerous for the children. Keep children away from the product when it

is operating. Do not let them tamper with the product.

• Do not allow children sit/climb on or enter in the

product.

• Do not forget to close the loading door when

leaving the room where the product is located.

• Packaging materials are dangerous to children. Keep the packaging materials out of reach of

children or dispose them by classifying according to waste directives.

2 Installation

Refer to the nearest Authorized Service Agent for

installation of the product. To make the product ready for use, make sure that the electricity and water drainage

system are appropriate before calling the Authorized Service Agent. If they are not, call a qualified technician

and plumber to have any necessary arrangements carried out.

Preparation of the product's location as well as the

electrical and waste water installations is under customer's responsibility.

Installation and electrical connections of the

product must be carried out by the Authorized Service Agent. Manufacturer shall not be held

liable for damages that may arise from procedures carried out by unauthorized persons.

Prior to installation, visually check if the product

has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety. Let your dryer wait for 12 hours before starting to

use it.

Appropriate installation location

• Install the product on a stable and level surface.

• Dryer is heavy. Do not move it by yourself.

• Operate your product in a well ventilated, dust-free

environment.

• Do not block the air ducts in front of and under

the product with materials such as long pile rugs, wooden blocks and bands.

• Do not install the product behind a door with a

lock, sliding door or a hinged door which can strike the product.

• Once the product is installed, it should stay at

the same place where its connections have been made. When installing the product, make sure that the rear wall of it does not touch anywhere

(tap, socket, etc.). Also pay attention to select an

installation location which you will not be required to change afterwards.

• Place the product at least 1.5 cm away from the

edges of other furniture.

Do not place the product on the power cable.

Removing the transportation safety assembly

Remove the transportation safety assembly before

using the product for the first time.

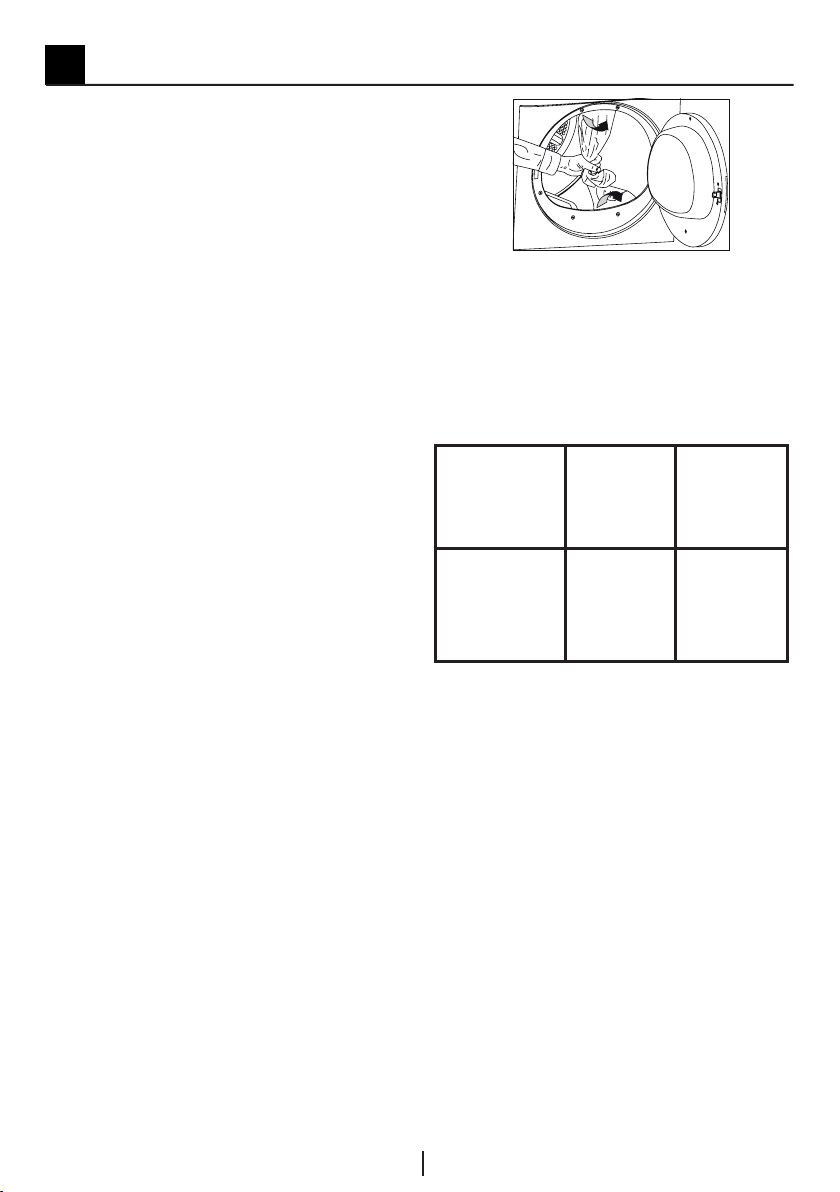

1. Open the loading door.

2. There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.

3. Pull the nylon towards yourself and remove the

transportation safety assembly.

Make sure that no part of the transportation safety

assembly remains inside the drum.

Under counter installation

• This product can be installed under a counter if the

height of the counter is sufficient. While using undercounter dryer, it should never be

operated without undercounter installation part.

Dryer Depth 60 cm 54 cm

Stock number

of under-bench installation part

• Leave at least 3 cm of space around the sides and

the rear wall of the product when installing it under a counter or in a cupboard.

2979700100 2973600100

Mounting over a washing machine

• A fixing device should be used between the two

machines when installing the dryer above a washing machine. The fixing device (2977200100 white/2977200400 grey) must be installed by the

Authorized Service Agent.

• Total weight of the washing machine and the

dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms.

Place the products on a solid floor that has sufficient load carrying capacity!

Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle. You can directly drain accumulated water through the

water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

1. Pull hose in the product by hand in order to

disconnect it from where it is connected. Do not use any tools to remove the hose.

2. Connect one end of the drain hose supplied separately with the product to the connection point from where you removed the hose of the product in previous step.

3. Connect the other end of the drain hose directly to the wastewater drain or to the washbasin. Hose must be fixed in every type of connection.

Your house will be flooded if the hose comes loose during water discharge.

Water drain hose should be attached to a height of

maximum 80 cm.

Make sure that the water drain hose is not stepped

on and it is not folded between the drain and the machine.

Adjusting the feet

In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Turn the feet to left or right until the machine stands level and firmly.

Never remove the adjustable feet from their

housings.

Electrical connection

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical

specifications" table. Our company shall not be liable

for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connection must comply with national regulations.

• Power cable plug must be within easy reach after

installation.

• The voltage and allowed fuse or breaker protection

are specified in the “Technical specifications” section. If the current value of the fuse or breaker

in the house is less than 10 Amps, have a qualified electrician install a 10 Amp fuse.

• The specified voltage must be equal to your mains

voltage.

• Do not make connections via extension cables or

multi-plugs.

• The main fuse and switches must have a contact

distance of minimum 3 mm.

Damaged power cable must be replaced by the

Authorized Service Agent.

If the product is faulty, it must not be operated

unless it is repaired! There is the risk of electric shock!

First use

Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections "Important safety instructions" and "Installation".

Disposing of packaging material

Packaging materials are dangerous to children. Keep

packaging materials in a safe place away from reach of the children.

Packaging materials of the product are manufactured

from recyclable materials. Dispose of them properly and sort in accordance with recycled waste instructions. Do not dispose of them with normal domestic waste.

Transportation of the product

1. Unplug the product before transporting it.

2. Remove the water drain (if any) and chimney

connections.

3. Drain the water in the product completely. We recommend carrying the product in upright

position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the

front. After the product is moved to its new place,

you should wait for 12 hours before starting it.

Disposing of the old product

Dispose of the old product in an environmentally friendly manner.

Refer to your local dealer or solid waste collection centre

in your area to learn how to dispose of your product. For children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be nonfunctional before disposing of the product.

Warnings about sounds

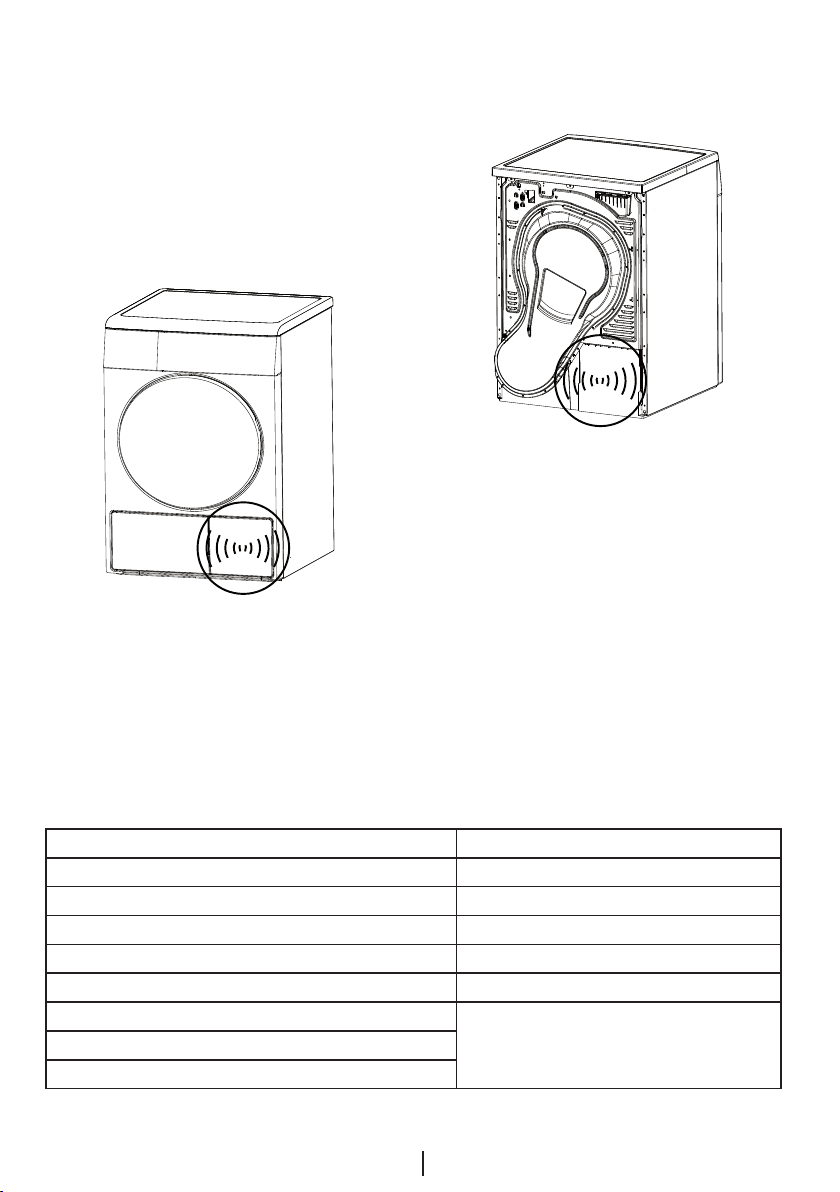

It is normal to hear metallic noise from the

compressor sometimes during operation.

Water collected during operation is pumped to

water tank. It is normal to hear pumping noise during this process.

Technical specifications

EN 2

Height (adjustable) 84,6 cm

Width 59,5 cm

Depth 59,8 cm

Capacity (max.) 8 kg

Net weight (plastic front door usage) 49 kg

Net weight (glass front door usage) 51,5 kg

Voltage

See type labelRated power input

Model code

Type label is located behind the loading door.

3 Preparations for drying

Things to be done for energy saving

Following information will help you use the product in an ecological and energy-efficient manner.

• Operate the product at a capacity suitable for the

program you have selected and pay attention not to overload.

• Spin your laundry at the highest speed possible

when washing them. Thus, the drying time is shortened and energy consumption is reduced.

• Dry the same type of laundry together.

• Follow the instructions in the user manual for

programme selection.

• Leave sufficient clearance at the front and rear

side of the dryer for air circulation. Do not block the ventilation grills at the front side of the product.

• Do not open the loading door of the machine

during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.

• Do not add new (wet) laundry during drying.

• Lint and fibres released from the laundry to the

air during the drying cycle are collected in the Lint Filter. Clean the lint filter before or after each drying cycle.

• Clean the filter drawer regularly either when the

Filter Drawer Cleaning warning symbol appears or after every 5 drying cycles

• Ventilate the room, where the dryer is located, well

during drying.

• For models with lamp, keep the door closed if the On/Off button is pressed (if the machine is

energized) when machine is not in use.

Laundry suitable for drying in the machine

Always obey the instructions given on the

garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

ABC

l mn

o p q

Laundry unsuitable for drying in the machine

• Laundry and items stated below are not suitable

for drying in a dryer:

• Laundry items with metal attachments such

as metal buttons, metal reinforcements or belt buckles.

• Woolen or silk garments, nylon stockings, delicate

embroidered fabrics and sleeping bags.

• Garments made of delicate and valuable fabrics.

• Tulle curtains.

• Items made of hermetic fibres such as pillows and

quilts.

• Very wet laundry items.

• Unwashed dirty laundry items.

• Laundry items containing rubber foam or rubber.

Items cleaned, washed or spotted with gasoil/fuel

oil, dry-laundry solvents, industrial chemicals or other combustible or explosive materials should not be dried in the dryer.

Items soiled with cooking oils, acetone, alcohol,

fuel oil, kerosene, stain removers, turpentine, paraffin and paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

Preparing laundry for drying

• Check all garments before loading and make sure

that there is no any lighters, coins, metal pieces, needles, and etc. in their pockets or on them.

• Laundry may be tangled after washing. Separate

the laundry items before placing them into the dryer.

• Sort the laundry according to their types and

thicknesses. Dry the same type of laundry together. For instance, thin kitchen towel and table cloths

get dry earlier than the thick bath towels.

Laundry must be spun at the highest spin speed

that the washing machine allows on basis of the fabric type.

Correct load capacity

Follow the instructions in the “Programme selection and

consumption table”. Do not load more than the capacity values stated in the table.

It is not recommended to load the dryer with

laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the

laundry can get damaged.

Following weights are given as examples.

Home articles

Cotton quit covers (double) 1500 Cotton quit covers (single) 1000 Bed sheets (double) 500 Bed sheets (single) 350

Large tablecloths 700 Small tablecloths 250

Tea napkins 100 Bath towels 700 Hand towels 350

Garments

Blouses 150 Cotton shirts 300 Shirts 200 Cotton dresses 500 Dresses 350 Jeans 700 Handkerchiefs (10 pieces) 100 T-Shirts 125

Approximate

weights (g)

Approximate

weights (g)

Loading the laundry

1. Open the loading door.

2. Place the laundry in the machine without

compressing.

3. Push the loading door to close.

Ensure that no items are caught in the door.

4 Selecting a Programme and Operating Your Machine

Control panel

2 3

9 6

1. Washing Machine Spin Speed / Timer Programme Selection

button

2. Display

3. Start / Pause / Cancel button

4. Programme Selection knob

5. On / Off button

6. Anti-creasing button

7. Dryness Level button

8. Cancel Audio Warning button

9. Time Delay buttons

Spin speed / Timer programs* Operation symbol

Pause symbol Water Tank warning symbol

Filter cleaning warning symbol Filter Drawer Cleaning warning symbol Remaining Time indicator**

Child-proof Lock warning symbol Time Delay mode Loading door open warning symbol Anti-creasing mode Audio Warning Level / Cancel Audio Warning Dryness Level Anti-creasing is activated

* Spin speed is used to show the remaining time more accurately. It does not

affect the performance of your machine.

** Time that appears on display indicates the remaining time until the end of the

programme and changes according to the dampness level of the laundry.

Cottons Synthetics Bedding

Shirt 30'

Jeans

Shirt Reset 3''

Timer

programs

Buzzer/

cancel

Ventilation

On/Off

Anti

Creasing

Start

pause

Iron Dry

Dryness

Level

Extra

Dry

Child-proof

lock

Cupboard

dry

Timer

Sport Spin Mixed

Delay

Preparing the machine

1. Plug in the machine.

2. Place the laundry in the machine.

3. Press the On / Off button.

Pressing the On / Off button does not necessarily

mean that the programme has started. Press Start / Pause / Cancel button to start the programme.

Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.

2. Select the desired programme with the Programme Selection knob.

Only the cotton laundry is dried at

normal temperature. Thick and multi

Extra Dry

layered laundry (towels, linens, jeans and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.

Normal laundry (tablecloths,

Cupboard Dry

underwear and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.

Iron Dry

For further programme details, see “Programme

selection and consumption table”.

Normal laundry (shirts, dresses and etc.) are dried ready to be ironed.

Main programmes

Depending on the fabric type, the following main programmes are available:

• Cottons

Dry durable laundry with this programme. Dries at normal temperature. It is recommended to use for

Wool

Refresh

Drying

Rack

Viscose Lingerie

your cotton items (bed sheets, quilt covers, towels, bathrobes, etc.).

• Synthetics

Dry less durable laundry with this programme.

Recommended for synthetics.

Additional programmes

For special cases, following additional programmes are available in the machine.

Additional programs may differ according to the

features of your machine.

• Bedding

Dry only fibre quilts with machine-dryable label. Make

sure you are loading the quilt in the correct way to avoid damages on the machine and the quilt. Take out the quilt cover before loading the quilt in the machine. Fold the quilt in two before loading.

- Do not load more than 1 double-size fibre quilt (200x200 cm). Do not dry items containing cotton such as quilts, pillows and etc.

-Do not dry items other than quilts such as carpets, rugs

or mats. Permanent damage may arise in your machine.

To obtain better results from your dryer, your

laundry must be washed at suitable programmes and spun at the recommended spin speeds in the washing machine.

• Shirt

This programme dries the shirts more sensitively and creases them less and thus, helps to iron them more easily.

There may be a little moisture on the shirts at the

end of the programme. We recommend you not to leave the shirts in the dryer.

• Jeans

Use this programme to dry your jeans that are spun at

high speeds in the washing machine.

• Mixed

Use this programme to dry non-pigmenting synthetic

and cotton laundry items together.

• Sport

Use this programme to dry together the synthetic and

cotton laundry items and the laundry items made of mixed fabrics.

• Wool refresh

Use this programme to ventilate and soften the woolen

laundry that can be washed in the washing machine. Do not use to dry the laundry completely. Take out and ventilate the laundry immediately after the programme is over.

• Shirt 30’

Use this programme to make 2 shirts ready for ironing

in 30 minutes.

• Lingerie

Use this programme to dry 100% synthetic and

synthetic blended satin underwear (nightgown, brassiere, underpants, pyjamas) that bear the “machinedryable” mark on its garment tag.

Level of dryness may change depending on

the blend of the garment, type of knitting and dampness level.

Garments that contain accessories such as lace,

tulle, gems, beads, scales, wire and etc., and garments with high silk content should not be dried in the machine.

Silk garments that contain cotton or has a satin

appearance may remain wet when they are dried with this programme.

• Viscose

Use this programme to dry viscon and modal mixed

laundry. Viscose-polyester, viscose-cotton blended products can be dried.

Level of dryness may change depending on

the blend of the garment, type of knitting and dampness level.

It is not recommended to dry garments and

evening gowns that contain accessories such as lace, tulle, gems, and etc..

• Ventilation

Only ventilation is performed for 10 minutes without

blowing hot air. You can air the clothes that have been kept at closed environments for a long time and deodourise unpleasant odours thanks to this programme.

• Timer programmes

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures.

With this programme, the machine dries for the

time selected regardless of the dryness level.

Programme selection and consumption table

EN 2

Programs

Cottons / Coloreds

Extra dry

Cupboard dry

Iron dry

Shirt 30’

Shirt

Jeans

Bedding

Mixed

Sport

Viscose

Lingerie

Wool Refresh

Synthetics

Cupboard dry

Iron dry

Energy consumption values

Programs

Cupboard dry for cottons*

Iron dry for cottons

Cupboard dry for synthetics

Capacity

(kg)

8 1000 % 60 190

8 1000 % 60 179

8 1000 % 60 150

0.5 1200 % 60 30

1.5 1200 % 50 50

4 1200 % 50 120

2.5 1000 % 40 150

4 1000 % 60 115

4 1000 % 60 105

1.5 600 %100 110

1 800 % 40 50

1.5 600 % 50 8

4 800 % 40 70

4 800 % 40 55

Capacity

(kg)

8 1000 % 60 2.47

8 1000 % 60 2.10

4 800 % 40 0.95

Spin speed in washing

machine (rpm)

Spin speed in washing

machine (rpm)

Approximate

amount of remaining

humidity

Approximate

amount of remaining

humidity

Drying time

(minutes)

Energy

consumption

value kWh

* : Energy Label standard programme (EN 61121:2005)

All values given in the table have been fixed according to EN 61121:2005 Standard. These values may deviate

from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

+ 33 hidden pages
