Front-Loading Dryer
Owner’s Guide &
Installation Instructions
DHP 24400 W
DHP 24412 W
Read this page first.
Dear Customer,
We hope that your product, which has been manufactured in modern facilities and passed
strict quality control procedures, will give you the best results. We also want to bu sure that
you use his dryer properly and safely. Read this entire manual before installing and operating
the dryer and keep this guide for future reference.
• Keep this operating manual handy. You may need it in the future. If you sell or transfer
the product to someone else, give them this manual.
• Please read all additional documentation supplied with this dryer.
• Please note that this operation manual may be applicable for several models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this Owner’s guide the following symbols are used:
Important information or useful
hints about usage.
C
Warning for hazardous situations
with regard to life and property.
A
Warning against electric shock.
B
Warning against hot surfaces.
Warning against fire hazard.
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard
them to the dedicated collection points designated by the local authorities.
TABLE OF CONTENTS
1 Your Dryer 4
1.1 Overview..............................................4
1.2 Package Contents ...............................5
2 Important Safety Instructions 6
3 Installation Instructions 10
3.1 Electrical connection..........................10
3.2 Grounding Instructions ......................11
3.3 Appropriate installation location .........12
3.4 Minimum Installation Clearances.......13
3.5 Use on top of a washer......................13
3.6 Adjusting the feet ...............................13
3.7 Destroying packaging material ..........13
3.8 Connecting to the drain .....................13
4 Preparation 15
4.1 Laundry suitable for drying in the
dryer ........................................................15
4.2 Laundry not suitable for drying in the
dryer ........................................................15
4.3 Preparing laundry for drying ..............15
4.4 Things to be done for energy saving .15
4.5 Correct load capacity .........................16
5 Maintenance and cleaning 17
5.1 Control panel .....................................17
5.2 Screen symbols .................................17
5.3 Preparing the dryer ............................18
5.4 Program selection..............................18
5.5 Main programs...................................18
5.6 Extra programs ..................................18
5.7 Program selection and consumption
table .........................................................20
5.8 Auxiliary functions .............................. 21
5.9 Warning symbols ...............................21
5.10 End duration ....................................21
5.11 Starting the program ........................22
5.12 Child Lock ........................................22
5.13 Changing the program after it is
started......................................................22
5.14 Canceling the program ....................23
5.15 Program end ....................................23
6 Technical Specifications 24
7 Maintenance and cleaning 25
7.1 Cleaning Lint Filter / Loading Door Inner
Surface ....................................................25
7.2 Cleaning the sensor...........................26
7.3 Cleaning the filter drawer...................26
7.4 Cleaning the evaporator ....................28
8 Troubleshooting 29
9 Warranty Statement 31
1 Your Dryer
1.1 Overview
10
9
8
7
1
2
3
4
5

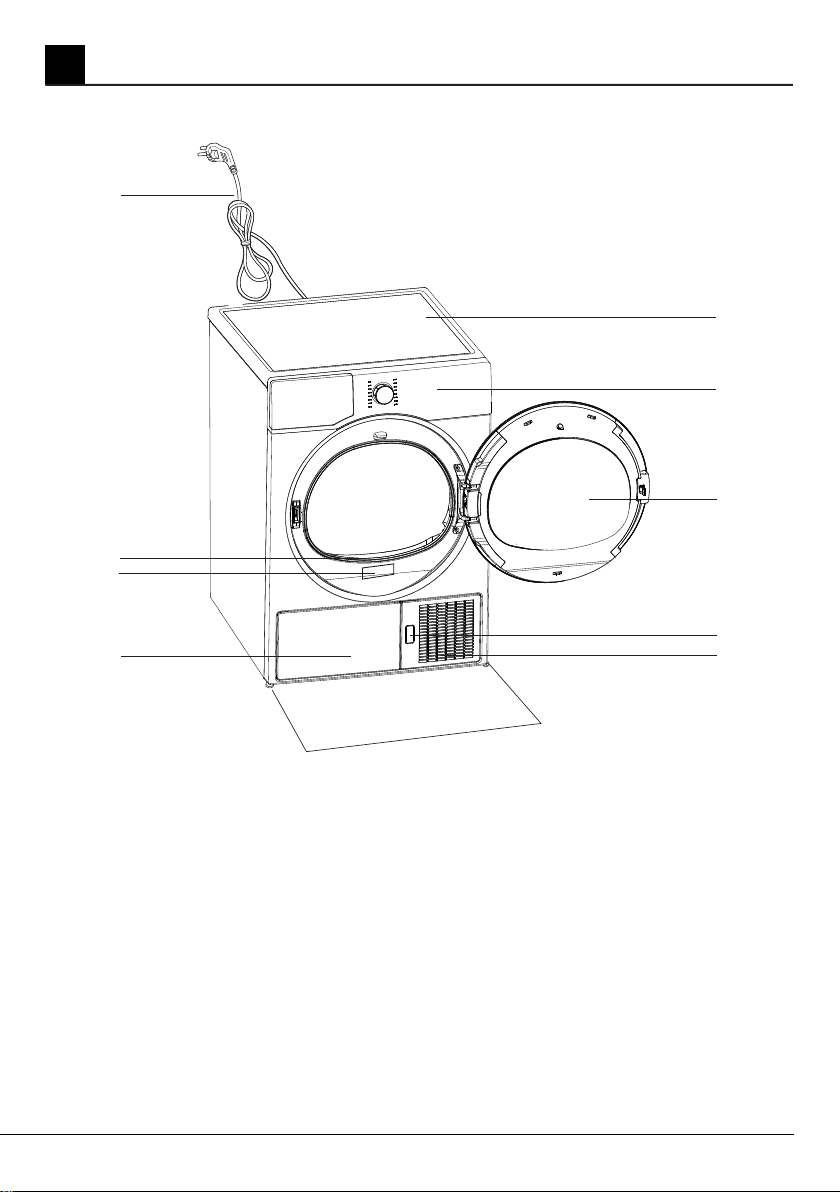

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening tab
5. Ventilation grids
6. Adjustable feet
7. Kick plate
8. Type label
9. Lint filter
10. Power cable
4 / EN
6
Dryer / User Manual
1.2 Package Contents
1
1. Water drain hose (2951261600)
2. Filter drawer spare sponge (2964840100)
3. User Manual (2960311018)
4. Drain connector (2828040100)
2 3
4
Dryer / User Manual
5 / EN
2 Important Safety Instructions
WARNING: To reduce the risk of fire or electric shock
resulting in serious injury or death when using this
A
• Read all instructions before using the appliance. Failure
to follow these instructions will increase the risk of fire or
electric shock and will void the warranty.
appliance, follow the basic precautions including the
following:
A
This product has been designed for home use only.
• The appliance must be operated at temperatures between
+5°C and +35°C. (41°F and +95°F)
• The appliance must not be installed behind a lockable
door, a sliding door or a door with the hinges on the
opposite side to that of the tumble dryer.
• Do not install or store this appliance where it will be
exposed to weather.
• Do not tamper with the controls.
• Do not repair or replace any part of the appliance or
attempt any servicing unless specifically recommended
in the user-maintenance instructions or in published userrepair instructions that you understand and have the skills to
carry out.
• Never wash the appliance with water.
• Never touch the plug with wet hands.
• Never pull from the cable to unplug the dryer.
• Do not operate the appliance if the power cord or plug is
damaged.
• For malfunctions that cannot be solved by information in
the operating manual: Turn off and unplug the appliance and
call an authorized service provider.
• This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance
6 / EN
Dryer / User Manual
for electric current. This appliance is equipped with a cord
having an equipment-grounding conductor and a grounded
plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with
all local codes and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric
B
• Power cord plug must be within easy reach after
installation.
• To reduce the risk of fire or electric shock, do not use
extension cords, multi-plugs or an adapter to connect the
dryer to electrical mains.
• Do not modify the plug provided with the appliance: if
it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
• If the power supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid an electrical hazard.
• The appliance must not be operated unless it is repaired!
• Ventilation openings in the base must not be obstructed
by carpets, etc.
• Exhaust air must not be discharged into a flue used for
exhausting fumes from appliances burning gas or other
fuels.
• Adequate ventilation must be provided to avoid the back
flow of gases into the room from appliances burning other
fuels, including open fires.
• Do not dry articles that have been previously cleaned in,
washed in, soaked in or spotted with gasoline, dry-cleaning
solvents or other flammable or explosive substances as they
give off vapors that could ignite or explode.
shock. Check with a qualified electrician or service
representative or personnel if you are in doubt as to
whether the appliance is properly grounded.
Dryer / User Manual
7 / EN
• Do not use the tumble dryer if industrial chemicals have
been used for cleaning what you want to dry.
• Do not dry unwashed items in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber-backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in
the tumble dryer.
• Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
• The appliance may only be used for the drying of textiles
that are marked accordingly.
• Undergarments that contain metal reinforcements should
not be placed in a tumble dryer. Damage to the tumble dryer
can result if any of the metal reinforcement come loose
during drying.
• Before loading check all garments for lighters, coins,
metal pieces, needles, etc.
• The use of fabric softener sheets is not recommended.
• Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire. To
reduce the risk of fire due to contaminated loads, the final
part of a tumble dryer cycle occurs without heat (cool down
period). Avoid stopping a tumble dryer before the end of
the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
WARNING: Never stop the tumble dryer before the
A
• Do not reach into the appliance if the drum is moving.
• Do not allow children to play on or in the appliance.Close
supervision of children is necessary when the appliance is
used near children.
8 / EN
end of the drying cycle unless all items are quickly
removed and spread out to dissipate heat.
Dryer / User Manual
• Keep pets away from the appliance during the drying
cycle.
• Before the appliance is removed from service or
discarded, remove the door to the drying compartment.
• Close the loading door when you leave the area where
the dryer is located.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they are supervised or have been given instructions
concerning the use of the appliance by a person responsible
for their safety.
• Clean lint filter before or after each load.
• Keep area around the exhaust vent and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
• The interior of the appliance and exhaust ductwork should
be cleaned periodically by qualified service personnel.
• Never use the dryer without the lint filter.
• When your dryer is not in use or after the laundry is taken
out following the completion of drying process, turn off by
using the On/Off button. In cases when the On/Off button
is in the On position while the dryer is plugged in, keep the
door of the dryer closed.
• For power saving in models with lamps, when your dryer
is not in use, keep the door closed if the On/Off button is in
the On position and the dryer is energized.
WARNING: This product can expose you to
chemicals including Nickel (Metallic) which is known
to the State of California to cause cancer.
A
SAVE THESE INSTRUCTIONS
Dryer / User Manual
For more information go to www.P65Warnings.ca.gov
Note : Nickel is a component in all stainless steel and
some other metal components.
9 / EN
3 Installation Instructions
Typical 3- Wire Dryer Cord 240V/30 amp
NEMA 10-30 Type SRDT
WARNING -
A
• The clothes dryer (“appliance‘)
• Install the appliance according to the
• Do not install a clothes dryer with
• To reduce the risk of severe injury
3.1 Electrical connection
Connect the appliance to a grounded outlet
protected by a fuse or circuit breaker of
suitable capacity.
Risk of fire
installation must be performed by a
qualified installer.
manufacturer’s instructions and local
codes.
flexible plastic venting materials. If
flexible metal (foil type) duct is installed,
it must be of a specific type identified by
the ap pliance manufacturer as suitable
for use with clothes dryers. Flexible
venting materials are known to collapse,
be easily crushed, and trap lint. These
conditions will obstruct the clothes
dryer’s airflow and increase the risk of
fire.
or death, follow all installation
instructions.
Neutral conecction is not used in
C
this product
Power Cable
3-Wire Electrical Connection
If your receptacle is a 3-wire receptacle
as shown below, you must obtain a 3-wire
dryer cord. A dryer cord can usually be found
at your local hardware supply, electrical
supply or home center. Cord should have
closed loop or upturned end wire terminating
connectors. The cord kit must be marked
“For Use with Clothes Dryers”.
Dryer shipped with cord to fit this
4-wire receptacle
(14 -30R)
3-wire receptacle
(10 -30R)
10 / EN
type 4 -wire receptacle
If yo u have 3-wir e receptacle, like
this , a 3-wire drye r cord mu st be
purchased locall y.
A
3- wire receptacle
( 10-30R)
If the dryer is installed in a
mobile home, recreational
vehicles, new branch-circuit
installations or in areas where
local codes do not permit
grounding through the neutral
conductor, only a 4-wire power
supply cord shall be used.
Dryer / User Manual
To change the cord:
1. Make sure that the dryer is not plugged
into any power outlet.
DO NOT plug end of dryer power
cord into a live receptacle before
B
B
2. Remove the screw from the cover of the
3. Remove the red, white and black wire
4. Remove the green ground wire from the
5. Loosen the strain relief clamp holding the
6. Thread the 4-wire cable out through the
7. Thread the new 3-wire dryer cord through
8. Attach the power cord Ground conductor
9. Attach the two remaining power cord outer
10. Tighten the strain relief so that the power
11. Replace the cover on the junction box
The dryer is now ready to be plugged into
the 3-wire receptacle of the proper rating.
The receptacle should be located so that the
plug and receptacle will be accessible with
the dryer in its installed position.
connecting dryer power cord
to dryer terminals and closing
junction/splitter box as described
below.
DO NOT repair old power
supply cords. Power cord must
be changed only by a qualified
person. There is a risk of electric
shock!
junction box located at the top rear of
the dryer.
from the terminal block.
ground terminal.
4-wire cable.
strain relief clamp.
the strain relief clamp.
(the center wire) to the terminal labeled
N. Connect the terminal labeled N and
the Ground terminal labeled G. Tighten
the terminals so that they securely hold
the conductors.
conductors to the 2 terminals labeled L.
Tighten both screws so that the power
conductors are securely held in place.
cord cannot be moved.
and fasten in place.
Power Cable
3.2 Grounding Instructions
This appliance must be grounded. In
the event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least resistance
for electric current. This appliance is
equipped with a cord having an equipmentgrounding conductor and a grounding
plug. The plug must be plugged into an
appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
• Power cord plug must be within easy
reach after installation.
• The voltage and the allowed fuse/
breaker protection are specified in the
section “Technical Specifications”.
• The stated voltage must match your
mains voltage.
• Connection via extension cords or multiplugs should not be made.
• The main fuse/breaker and switches
must have a contact distance of
minimum 3 mm.
A damaged power cable must
be replaced by a qualified
B
A
electrician.
WARNING – Improper
connection of the equipmentgrounding conductor can result
in a risk of electric shock. Check
with a qualified electrician
or service representative or
personnel if you are in doubt
as to whether the appliance
is properly grounded. Do not
modify the plug provided with
the appliance: if it will not
fit the outlet, have a proper
outlet installed by a qualified
electrician.
Dryer / User Manual
11 / EN
The appliance must not be
operated unless it is repaired!
B
3.3 Appropriate installation
location
•Install your appliance in environments that
have no risk of freezing and in a stable and
level position.
•Do not place your appliance on a long pile
rug or on similar surfaces.
•Operate your appliance in a well-ventilated,
dust-free environment.
•Do not block the air ducts in front of and
under the dryer.
There is the risk of electric
shock!
Make sure that your appliance is
not placed on the power cable.
B
Keep at least 0.6” (1.5 cm) from
A
the edges of other furniture.
12 / EN
Dryer / User Manual
A
B

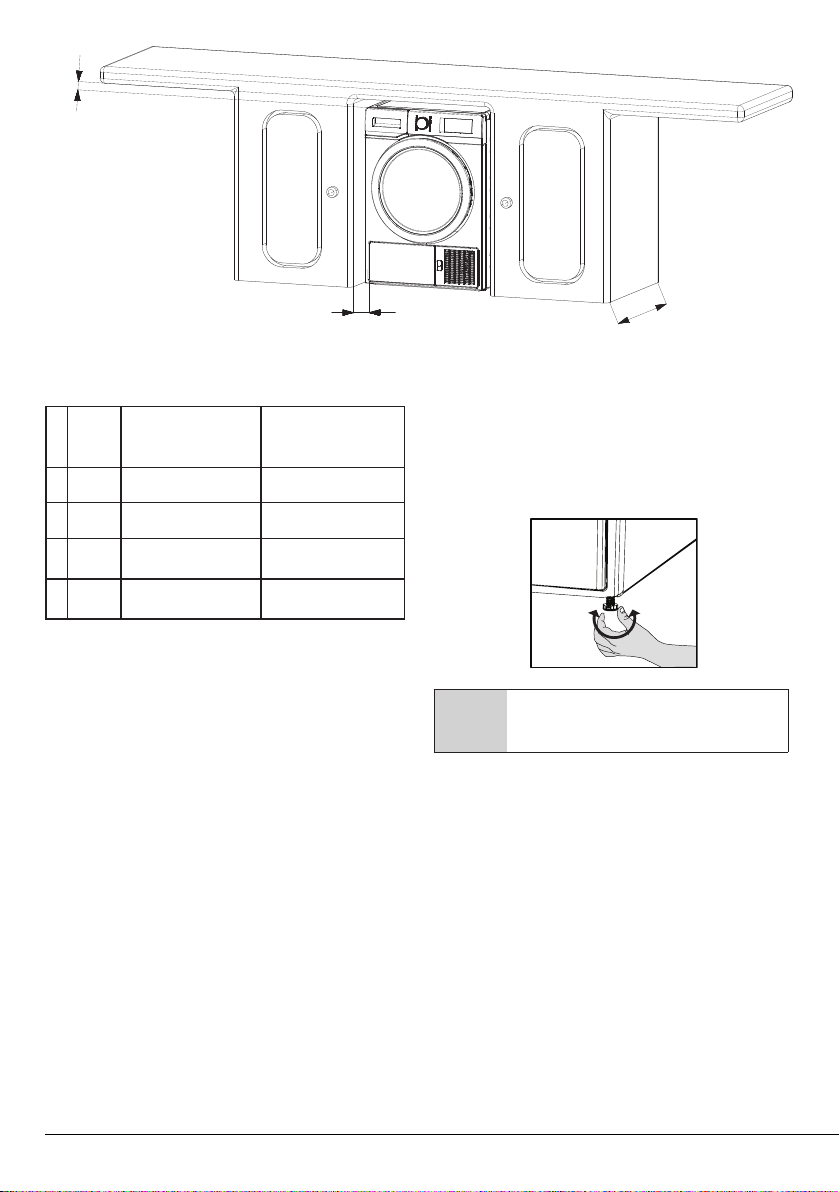

3.4 Minimum Installation
Clearances
Alcove or
Built-under
A Sides 0.5 in. (13 mm) 0.5 in. (13 mm)
B Top 1 in. (25 mm) 1 in. (25 mm)
C Rear 0.5 in. (13 mm) 0.5 in. (13 mm)
Front 0.20 in. (5 mm) 0.20 in. (5 mm)
Ventilation Requirements
Closet door must have 2 openings, one
located 3.2 inches (8 cm) from bottom of
door having a minimum area of 16 sq.
inches (103 cm2) and the other one located
3 inches (7.5 cm) from top of door having a
minimum area of 46 sq. inches (294 cm2).
Closet
3.5 Use on top of a washer
• A stacking-kit (Part no: 298 540 0200)
should be used between washer and
dryer for use on top of a washer. The
stacking-kit should be installed by the
Authorized Service provider.
• Place the appliance on a solid floor. If it
is to be placed on top of a washer, the
approximate weight together may reach
397 lbs (180 kg) when they are full.
Therefore, the floor must be capable of
carrying the load placed on it!
C
3.6 Adjusting the feet
• In order to ensure that the dryer
operates more silently and vibration-free,
it must stand level and balanced on its
feet. Balance the dryer by adjusting the
feet.
• Turn the feet to left or right until the dryer
stands level and firmly.
Never unscrew the adjustable
C
feet from their housings.
3.7 Destroying packaging
material
Packaging material can be dangerous to
children. Keep the packaging materials out
of the reach of children or dispose of them
accordingly. Do not dispose of them together
with normal domestic waste.
Packaging materials of your appliance are
manufactured from recyclable materials.
3.8 Connecting to the drain
In products equipped with condenser unit,
water accumulates in the water tank during
the drying cycle.
Dryer / User Manual
13 / EN
Connecting the water drain hose
1-2 Connect one end of the drain hose
supplied with the dryer to the connection
point from where you removed the hose
of the product in previous step.
3 Connect the other end of the drain hose
directly to the wastewater drain or to the
washbasin.
1
A
C
C
2
1
3
Hose connection should be made
in a safe manner. Your drain
house will be flooded if the hose
comes out of its housing during
water discharge.
Water drain hose should be
attached to a height of maximum
80 cm.
Make sure that the water drain
hose is not stepped on and it is
not folded between the drain and
the dryer.
14 / EN
Dryer / User Manual
4 Preparation
4.1 Laundry suitable for drying in the dryer
Always obey the instructions given on the garment tags. Dry only the laundry having a label
stating that they are suitable for drying in a dryer and make sure that you select the
appropriate programme.
LAUNDRY DRYING SYMBOLS
Drying
Symbols
Suitable for
dryer
No Iron
Sensitive /
Delicate dry
Do not dry
with dryer
Do not dry
Do not dry-
clean
Drying
Settings
At any temperature
At high temperature
At medium
temperature
Iron -
Dry or Steam
IRON
Maximum temperature
Iron at high
temperature
200 0C
0
F
392
4.2 Laundry not suitable for
drying in the dryer
Delicate embroidered fabrics,
woolen, silk garments, delicate
C
and valuable fabrics, airtight
items and tulle curtains are not
suitable for dryers.
4.3 Preparing laundry for
drying
• Laundry may be tangled with each other
after washing. Separate the laundry
items before placing them into the dryer.
• Dry garments having metal accessories
such as zippers, inside out.
• Fasten the zippers, hooks and buckles
and button sheets.
At low temperature
Without heating
Iron at medium
temperature
150
302
Hang to dry
temperature
0
C
0
F
Iron at low
0
110
C
0
F
230
Lay to dry
Hang wet to dry
Do not iron
4.4 Things to be done for
energy saving
Following information will help you use the
dryer in an ecological and energy-efficient
manner.
• Spin your laundry at the highest speed
possible when washing them. Thus, the
drying time is shortened and energy
consumption is reduced.
• Sort out the laundry depending on their
type and thickness. Dry the same type
of laundry together. For example thin
kitchen towels and table clothes dries
earlier than thick bathroom towels.
• Follow the instructions in the user
manual for programme selection.
• Do not open the loading door of the
dryer during drying unless necessary.
If you must certainly open the loading
door, do not to keep it open for a long
time.
Lay in shadow
to dry
Dry-cleanable
steam
Iron without
Dryer / User Manual
15 / EN
• Do not add wet laundry while the dryer is
in operation
• Clean the lint filter before or after each
drying cycle. (See 7. Maintenance and
cleaning)
• Clean the filter drawer regularly either
when the Filter Drawer Cleaning warning
symbol appears or after every 3 drying
cycles. (See 7. Maintenance and
cleaning)
• Ventilate the room, where the dryer is
located, well during drying.

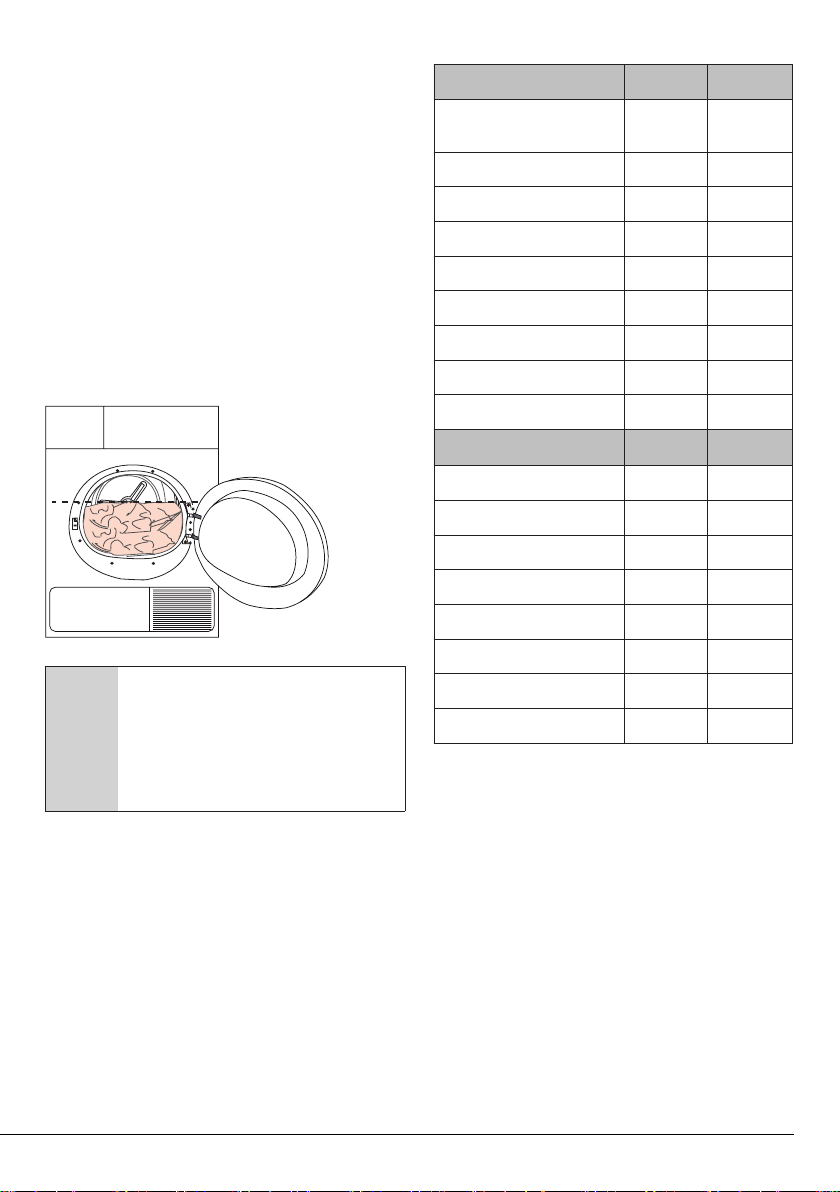

4.5 Correct load capacity
Follow the instructions in the “Programme
selection and consumption table”. Do not
load more than the capacity values stated in
the table.
Following weights are given as examples.
Home articles Weight (g)* Weight (lb)*
Cotton quit covers
(double)
Cotton quit covers (single) 1000 2 ¼
Bed sheets (double) 500 1 1/8
Bed sheets (single) 350 ¾
Large tablecloths 700 1 ½
Small tablecloths 250 ½
Tea napkins 100 ¼
Bath towels 700 1 ½
Hand towels 350 ¾
1500 3 ¼
C
It is not recommended to load the
dryer with laundry exceeding the
level indicated in the figure. Drying
performance will degrade when the
dryer is overloaded. Furthermore,
dryer and the laundry can get
damaged.
Garments
Blouses 150 3/8
Cotton shirts 300 5/8
Shirts 200 ½
Cotton dresses 500 1 1/8
Dresses 350 ¾
Jeans 700 1 ½
Handkerchiefs (10 pieces) 100 ¼
T-Shirts 125 ¼
*Dry laundry weight before washing.
Approximate weights of average home
laundry type.
Weight (g)* Weight (lb)*
16 / EN
Dryer / User Manual
5 Operating the product
5.1 Control panel
1 2
1. Program selection knob
2. Remaining duration indicator
3. On/Off button
4. Start/pause button
5. End duration button
6. Sound warning button
3
456
5.2 Screen symbols
Cleaning
the
Child-proof
lock
filter drawer
Dryer / User Manual
Filter
cleaning
Volume up
Mute
Anti
Creasing
17 / EN
5.3 Preparing the dryer
1. Plug in the dryer
2. Place laundry inside the dryer.
3. Press the On/Off button.
4. When your dryer turns on for the first
time, it turns on with the regular dry
program.
Pressing the On/Off button
C
doesn‘t mean the program starts.
Press the Start / Pause button to
start the program.
5.4 Program selection
1. Determine the appropriate program from
the chart below containing the drying
levels.
2. Select the program you desire using the
Program Selection knob.
Only cotton laundry is dried in
normal temperature.
Cottons
Extra Dry
Regular dry
Damp Dry
C
Thick and multi-layered
laundry (towels, sheets, jeans
etc.) are dried so that they
can be placed into wardrobe
without ironing.
Normal laundry (tablecloths,
underwear etc.) are dried so
that they can be placed into
wardrobe without ironing.
Normal laundry (shirts,
dresses etc) are dried ready
for ironing.
For detailed program information
see. „Program selection and
consumption table“..
5.5 Main programs
The main programs are given below based
on fabric type.
• Cotton
Dry durable laundry with this program. It
dries in normal temperature. Recommended
for use with your cotton laundry (sheets, bed
covers, towels, bathrobes etc.)
• Synthetic
Dry laundry that is not very durable with this
program. Recommended for use with your
synthetic laundry.
5.6 Extra programs
The following extra programs are available in
the dryer for special conditions.
In order to receive better results
C
• Jeans
Use to dry jeans that are wringed with high
rpm in washer.
• Jogging Wear
Use to dry laundry made from synthetic,
cotton or mixed fabrics.
• Sensor Drying 45
You can use this program to dry cotton
laundry that you had wringed in high rpm
in your washer. It dries 1 kg of your Cotton
laundry (3 shirts / 3 T-shirts) in 45 minutes.
• Wool
Use this programme to ventilate and soften
the woollen laundry that can be washed in
the washer. Do not use to dry the laundry
completely. Take out and ventilate the
laundry immediately after the programme is
over.
• Silent
In this programme the level of noise emitted
to the environment will be the lowest. Volume
level will be fifty percent lower with respect to
the ‘wardrobe dry for cottons’ programme.
• Baby Sanitize
Program used for baby clothing which can be
dried according to the label on the clothing.
• Bulky
Dry only fibre quilts with dryerable label.
Load the quilt in the correct way to avoid
damages on the dryer and the quilt. Take out
the quilt cover before loading the quilt in the
dryer. Fold the quilt in two before loading.
- Do not load more than 1 piece of
fiber duvet for two persons (200x200 cm).
Do not dry items containing cotton such as
quilts, pillows and etc.
- Do not dry items other than quilts such as
carpets, rugs or mats. Permanent damage
may arise in your dryer.
from dryer programs, your
laundry should be washed
with the appropriate program
in your washer and wringed
with recommended wringing
revolution..
18 / EN
Dryer / User Manual
• Quick Dry 30
Dries shirts more delicately and thus causes
less wrinkles for easy ironing.
Very little dampness might remain
C
• Delicates
You can dry your delicates suitable for drying
or laundry that is recommended to hand
wash (silk blouses, thin underwear etc.) in
low temperature.
C
• Air Fluff/No Heat
It only performs ventilation for 10 minutes
without blowing hot air. You can ventilate the
cotton and linen clothing that has remained
closed for a long duration and remove their
odor.
• Timed Dry
You can select one of the 10 min., 20 min.,
30 min., 40 min., 50 min., 60 min., 80 min.,
100 min., 120 min., 140 min. and 160 min.
timer programmes to achieve the desired
final drying level at low temperatures.
C
on the shirts after the program. It
is recommended that you do not
leave the shirts in the dryer.
It is recommended to dry your
delicates in laundry bag to
prevent wrinkles and damage.
When the program ends, take
your laundry out of the dryer
immediately and hang them to
prevent wrinkles.
On this program, the dries
as long as the set duration,
regardless of the drying level.
Dryer / User Manual
19 / EN
5.7 Program selection and consumption table
EN
Programs Weight (lb)
Cottons / Coloreds
Extra dry 18 Medium 150
A
Regular dry 18 Medium 145
A
Damp dry 18 Medium 100
A
Quick Dry 30 3 High 30
Jeans 9 High 100
Silent 18 Medium 220
Jogging Wear 9 Medium 80
Sensor Drying 45 2 High 45
Delicates
Baby Sanitize 7 Medium 65
Bulky 6 Medium 130
Wool 3 Low 120
Synthetics
Regular dry 4 Low 55
B
Damp dry 4 Low 45
B
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.
R134a / 0,490 kg
Spin speed in washing
machine (rpm)
4 Low 35
Drying time
(minutes)
Energy Saver
Cycle
Energy Saver Cycles provides the most energy savings.
20 / EN
Dryer / User Manual
5.8 Auxiliary functions
Sound warning cancel
Dryer makes sound warnings when the
program is completed. If you don’t want
sound notifications, press the “Sound
Notification” button.
When you press the sound notification button
it lights up, and program does not make
sound notifications when completed.
You can select this function
C
before or after the program starts.
5.9 Warning symbols
Warning symbols may vary
C
Fiber filter cleaning
When the program is completed, a warning
led lights up, which indicates that the filter
has to be cleaned.
C
Cleaning the filter drawer
When the program is completed, a warning
led lights up, which indicates that the filter
has to be cleaned.
C
Loading door open
Start/Pause led blinks when the loading door
of the dryer is open.
according to the specifications of
your dryer.
If the filter cleaning led blinks, see
the „Troubleshooting“ chapter.
If the filter cleaning led blinks, see
the „Troubleshooting“ chapter.
5.10 End duration
You can delay the end duration of the
program for up to 24 hours with the end
duration function.
1. Open the loading door and place your
laundry.
2. Select the drying program.
3. Press the end duration selection button
and set the delay duration you want.
End duration led lights up. (End duration
moves continuously when you keep
pressing the button).
4. Press the Start / Pause button. End
duration countdown begins. The “:”
sign in the middle of the displayed delay
duration blinks.
You can add or remove laundry
C
Changing the end duration
If you want to change the duration during the
countdown:
1. Cancel the program by pressing the On/
2. Select the program you desire using the
3. Repeat the end duration operation for
4. Start the program by pressing the Start /
Canceling the end duration function
If you want to cancel the end duration setting
countdown and start the program right away:
1. Cancel the program by pressing the On/
2. Select the program you desire using the
3. Start the program by pressing the Start /
for the duration of the end
duration. The duration displayed
on the screen is the sum of the
normal drying duration and the
end duration. At the end of the
countdown the end duration
led turns off, drying beings and
drying led lights up.
Off button. Turn on the dryer again by
pressing the On/Off button. When your
dryer turns on for the first time, it turns
on with the declaration (cotton wardrobe
dryness) program.
Program Selection knob.
the duration you want.
Pause button.
Off button. Turn on the dryer again by
pressing the On/Off button. When your
dryer turns on for the first time, it turns
on with the declaration (cotton wardrobe
dryness) program.
Program Selection knob.
Pause button.
Dryer / User Manual
21 / EN
5.11 Starting the program
Start the program by pressing the Start /
Pause button.
Start/Pause led and the Drying led light up,
indicating the program started. The “:” sign
in the middle of the remaining duration starts
to blink.
5.12 Child Lock
The dryer features a child lock which
prevents the dryer program flow from being
affected when buttons are pressed during
operation.
When the Child Lock is active, all buttons
except for the On/Off button are deactivated.
To activate the child lock, press the Sound
Notification button and End Duration button
simultaneously for 3 seconds.
The child lock should be deactivated to be
able to start a new program after the current
program ends or to be able to interfere with
the current program. Keep the same buttons
pressed for 3 seconds again to deactivate
the child lock.
The lock led on the screen
C
C
A warning sound is heard when any button
is pressed (except for On/Off button) or the
Program Selection knob is turned while the
child lock is active.
lights up when the Child Lock is
activated.
Child Lock deactivates when the
dryer is turned off and on again
using the On/Off button.
5.13 Changing the program
after it is started
After the dryer starts running, you can
change the program you selected to dry your
laundry with a different program.
1. For example, to select Extra Dry
program instead of the Iron Dryness,
stop the program by pressing the Start /
Pause button.
2. Turn the Program Selection knob to
select the Extra Dry program.
3. Start the program by pressing the Start /
Pause button.
Adding and removing laundry in
stand-by mode
If you want to add or remove laundry after
the drying program starts:
1. Press the Start/Pause button to take
the dryer into Stand-by mode. Drying
operation stops.
2. Open the loading door, add or remove
laundry and close the loading door.
3. Start the program by pressing the Start /
Pause button.
The laundry adding made after
C
C
C
the drying operation started may
cause the dried laundry inside the
dryer to mix with the wet laundry
and the laundry to remain damp
after the operation ends..
Laundry adding and removing
can be repeated as much as
desired during drying operation.
But this process would
continuously interrupt the
drying operation, and so would
cause the program duration
to lengthen and increase
energy consumption. Thus, it is
recommended to add laundry
before the program starts.
If a new program is selected
by changing the position of the
program selection knob while
your dryer is in stand-by mode,
the running program ends.
Do not contact the inner surface
of the drum when adding or
removing laundry during a
continuing program. The drum
surface is hot.
22 / EN
Dryer / User Manual
5.14 Canceling the program
If you want to cancel the program and end
the drying operation for any reason after the
dryer starts running, press the On/Off button.
As it will be extremely hot inside
A
the dryer when you cancel the
program while the dryer is in
operation; run the ventilation
program to cool it down.
5.15 Program end
When the program ends, the Final/Wrinkle
Prevention, Fiber Filter Cleaning and Water
Tank Warning leds on the program follow
up indicator light up. Loading door can be
opened and dryer becomes ready for a
second run.
Press the On/Off button to turn off the dryer.
In case the laundry is not
C
C
C
removed after the program is
completed, the wrinkle prevention
program that lasts 2 hours start in
order to prevent wrinkling of the
laundry that remains inside the
dryer.
Clean the fiber filter after each
drying. (See. „Fiber filter and
loading door inner surface“)
Empty the water tank after each
drying. (See. „Emptying the water
tank“)
Dryer / User Manual
23 / EN
6 Technical Specifications
Model Heat Pump Dryer with electronic sensor control
Height (in) 33 5/16
Width (in) 23 3/4
Depth (in) 24 1/2
Height adjustment of feet (in) 1/5
Net weight (lbs) 122
Voltage / Frequency 208-240V ~ 60 Hz
Connected load 900 W - 4 A
Dry Load Capacity 8kg / 18 lb
Capacity 4,1 cu-ft
24 / EN
Dryer / User Manual
7 Maintenance and cleaning
Service life of product extends and frequently
experienced problems will be reduced if it is
cleaned at regular intervals.
7.1 Cleaning Lint Filter /
Loading Door Inner Surface
Lint and fiber released from the laundry to
the air during the drying cycle are collected
in the Lint Filter.
Such fiber and lint are generally
formed during wearing and
C
A
C
To clean the lint filter:
• Open the loading door.
• Remove the lint filter by pulling it up and
• Clean lint, fiber, and cotton raveling by
• Close the lint filter and place it back into
washing.
WARNING: Always clean the lint
filter and the inner surfaces of the
loading door after each drying
process.
You can clean the lint filter
housing with a vacuum cleaner.
open the lint filter.
hand or with a soft piece of cloth.
its housing.
• A layer can build up on the filter pores
that can cause clogging of the filter
after using the dryer for a while. Wash
the lint filter with warm water to remove
the layer that builds up on the lint filter
surface. Dry the lint filter completely
before reinstalling it.
• Clean the entire inner surface of the
loading door and loading door gasket
with a soft damp cloth.
Dryer / User Manual
25 / EN
7.2 Cleaning the sensor
There are dampness sensors in the dryer
that detect whether the laundry is dry or not.
To clean the sensors:
• Open the loading doorof the dryer.
• Allow the dryer to cool down if it is still
hot due to the drying process.
• Wipe the metal surfaces of the sensor
with a soft cloth, dampened with vinegar
and dry them.
Clean metal surfaces of the
C
C
A
sensors 4 times a year.
Do not use metal tools when
cleaning metal surfaces of the
sensors.
WARNING: Never use solvents,
cleaning agents or similar
substances for cleaning due to
the risk of fire and explosion!
7.3 Cleaning the filter drawer
Lint and fiber that could not be captured by
the lint filter are blocked in the filter drawer
behind the kick plate. Filter Drawer Cleaning
warning light will light up maximum at every
3 drying cycles as a reminder.
There is a two-level filter in the filter drawer.
Te first level is the filter drawer sponge and
the second level is the filter cloth.

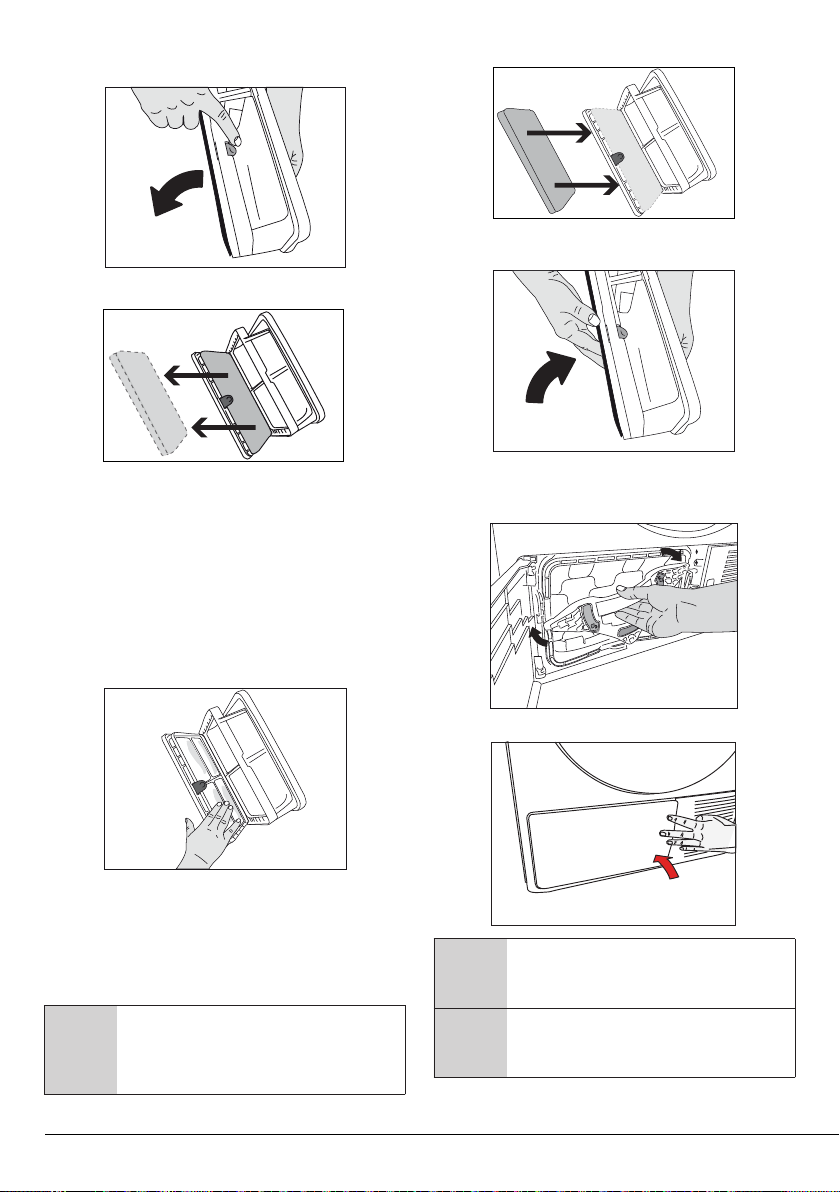

To clean the filter drawer:
• Press the kick plate button to open the
kick plate.
• Remove the filter drawer cover by
turning it in the direction of arrow.
26 / EN
• Pull out the filter drawer.
Dryer / User Manual
• Open the filter drawer by pressing the
red button.
• Take out the filter drawer sponge.
• Place the sponge back into its place.
• Close the filter drawer as to lock the red
button.
• Clean lint, fiber, and cotton raveling on
the filter cloth by hand or with a soft
piece of cloth.
• When you notice a layer that may lead
clogging on the filter cloth, please clean
the layer by washing in warm water.
Let the filter cloth dry thoroughly before
installing back the filter drawer.
• Wash the filter drawer sponge by hand
to remove the fiber and lint on the
surface. After washing the sponge,
squeeze it by hand and remove the
excess water. Well-dry the sponge
before storing it.
It is not necessary to clean
the sponge if lint and fiber
C
accumulation on it is not
significant.
• Place the filter drawer back into its
place, turn the filter drawer cover in the
arrow direction and close it securely.
• Close the kick plate cover.
NOTICE: Drying without the
filter drawer sponge in place will
A
C
damage the dryer!
A dirty lint filter and filter drawer
will cause longer drying periods
and higher energy consumption.
Dryer / User Manual
27 / EN
7.4 Cleaning the evaporator
Clean the lint accumulated on the fins of the
evaporator located behind the filter drawer
with a vacuum cleaner.
CAUTION: You can also clean
by hand provided that you
A
wear protective gloves. Do not
attempt to clean with bare hands.
Evaporator fins can harm your
hand.
28 / EN
Dryer / User Manual
8 Troubleshooting
Drying process takes too much time.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects
(if any) that block ventilation in front of the ventilation grids.
• Ventilation is not sufficient since the room where the machine is installed is very small.
>>> Open the door and window of the room to avoid the room temperature increase too
much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your
washing machine.
Laundry comes out wet at the end of drying.
C
After drying, the hot clothes feel damper than their actual dampness level.
• It is likely that the selected programme did not suit the laundry type.>>>Checking the
care labels on clothes, select appropriate programme for the laundry type or use timer
programmes in addition.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your
washing machine.
Dryer does not switch on or the programme does not start. Dryer does not start when it is
set.
• It is not plugged in. >>> Make sure that the machine is plugged in.
• The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause / Cancel button is not pressed. >>>
Make sure that the programme is selected and the machine is not in Pause mode.
• Childproof Lock is activated. >>> Deactivate the Childproof Lock.
Programme is interrupted without any cause.
• Loading door is ajar. >>> Make sure that the loading door is closed securely.
• There was a power failure. >>> Press Start / Pause / Cancel button to start the
programme.
Laundry has shrunk, become felted or deteriorated.
• A programme suitable for the laundry type is not used. >>> Check the garment tag and
select a programme suitable for the fabric type.
Drum lighting does not turn on. (On models with lamp)
• Dryer is not switched on with the On / Off button. >>> Make sure that the dryer is
switched on.
• Lamp is defective. >>> Call Authorized Service Agent to have the lamp replaced.
End/Anti-creasing symbol is on.
• Anti-creasing programme is activated in order to prevent laundry that has remained in
the machine from creasing. >>> Turn off the dryer and take out the laundry.
End symbol is on.
• Programme is over. Turn off the dryer and take out the laundry.
Dryer / User Manual
29 / EN
Lint Filter Cleaning symbol is on.
• Lint filter is not cleaned. >>> Clean the lint filter.
Lint Filter Cleaning symbol is flashing.
• Filter housing is clogged with lints. >>> Clean the lint filter housing.
• A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint
filter with warm water.
• Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.
Water leaks from the loading door
• Lint has accumulated on the inner surfaces of the loading door and on the surfaces
of the loading door gasket. >>> Clean the inner surfaces of the loading door and the
surfaces of the loading door gasket.
Loading door opens spontaneously.
• Loading door is ajar. >>> Push the loading door to close until you hear a locking sound.
Filter Drawer Cleaning warning symbol is flashing.
• Filter drawer is not cleaned. >>> Clean the sponge and the filter cloth in the filter
drawer.
CAUTION: If you cannot eliminate the problem although you follow the
A
instructions in this section, consult your dealer or the Authorized Service Agent.
Never try to repair a nonfunctional product yourself.
30 / EN
Dryer / User Manual
This product is fully tested and went through official
quality assurance inspections before leaving the
original manufacturing site. Warranty terms for this
Blomberg household appliance is not valid if the
product is altered, tampered, modifed, additional parts
assembled, fixed and re-packed by an authorized
distributor, servicer, a third party retailer, reseller or by
any other unauthorized person(s)
9 Warranty Statement
Dryer / User Manual
31 / EN
www.blomberginternational.com
info@blomberginternational.com
2960311018_EN/010319.1301
Loading...
