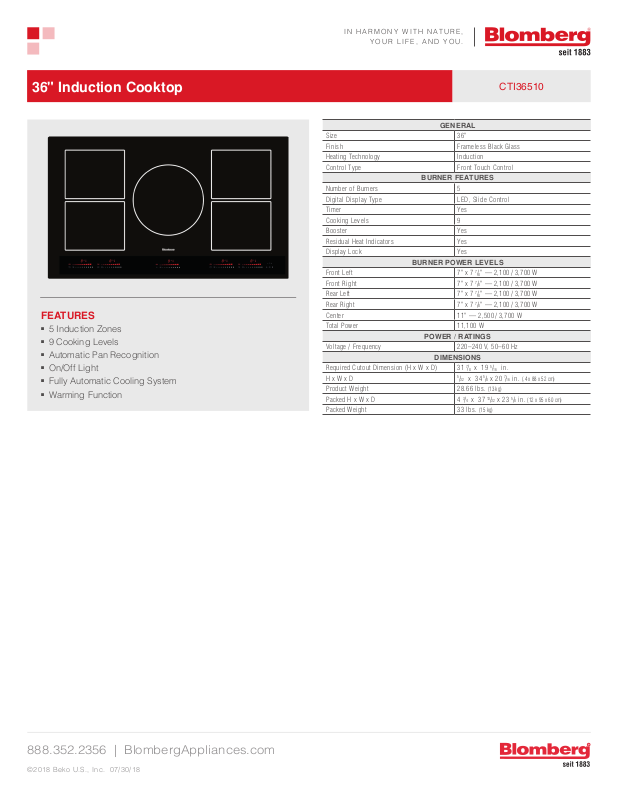

Blomberg CTI36510 Specifications
IN HARMONY WITH NATURE,
YOUR LIFE, AND YOU.
36" Induction Cooktop
FEATURES
5 Induction Zones
9 Cooking Levels
Automatic Pan Recognition
On/Off Light
Fully Automatic Cooling System
Warming Function
CTI36510
GENERAL
Size 36"
Finish Frameless Black Glass
Heating Technology Induction
Control Type Front Touch Control
BURNER FEATURES
Number of Burners 5
Digital Display Type LED, Slide Control
Timer Yes
Cooking Levels 9
Booster Yes
Residual Heat Indicators Yes
Display Lock Yes
BURNER POWER LEVELS
Front Left 7" x 7 7/8" — 2,100 / 3,700 W
Front Right 7" x 7 7/8" — 2,100 / 3,700 W
Rear Left 7" x 7 7/8" — 2,100 / 3,700 W
Rear Right 7" x 7 7/8" — 2,100 / 3,700 W
Center 11" — 2,500 / 3,700 W
Total Power 11,100 W
POWER / RATINGS
Voltage / Frequency 220–240 V, 50–60 Hz
DIMENSIONS
Required Cutout Dimension (H x W x D) 31 7/8 x 19 5/16 in.
H x W x D
Product Weight 28.66 lbs.
Packed H x W x D 4 3/4 x 37 13/32 x 23 5/8 in.
Packed Weight 33 lbs.
5
/32 x 34 5/8 x 20 7/16 in.
(13 kg)
(15 kg)
(.4 x 88 x 52 cm)
(12 x 95 x 60 cm)
888.352.2356 | BlombergAppliances.com
©2018 Beko U.S., Inc. 07/30/18
36" Induction Cooktop
Side – Side View
Top
CTI36510
" (519 mm)
16
/
7
20
Countertop Cutout
2" (51 mm) min.
34 5/8" (879.4 mm)
31 7/8'' (809.6 mm)
19
5
/
16
'' (491 mm)
" (3.9 mm)
32
/
5
Front – Side View
Cabinet Space
20 7/16" (519 mm)
34 5/8" (879.4 mm)
30'' (762 mm) min.
2" (51 mm) min.
1" (25.4 mm) min.
NOTE TO THE INSTALLER: All height, width, and depth dimensions are shown in inches (as well as metric). Beko U.S., Inc. reserves the absolute and unrestricted right to change product materials and
specications, at any time, without notice. Please visit our website at www.BlombergAppliances.com or call 888.352.2356 to verify the latest specications with nal dimensional data and other details prior
to installation and making a cutout. Applicable product limited warranty information may be found in accompanying product materials, or you may contact your account manager for further details. Proper
installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Limited Warranty.
