Blomberg BCHP30100SS Specifications
IN HARMONY WITH NATURE,
YOUR LIFE, AND YOU

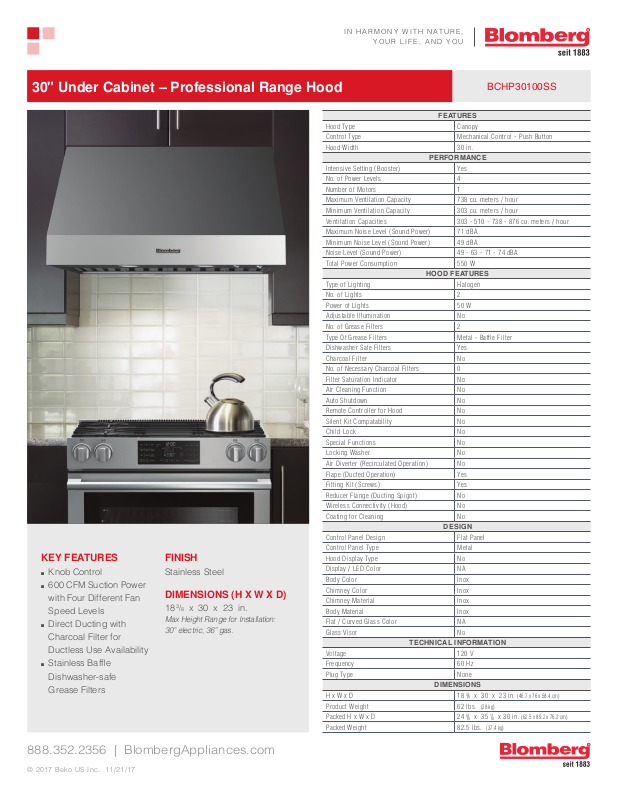

30" Under Cabinet – Professional Range Hood
Hood Type Canopy
Control Type Mechanical Control - Push Button
Hood Width 30 in.
Intensive Setting (Booster) Yes
No. of Power Levels 4
Number of Motors 1
Maximum Ventilation Capacity 738 cu. meters / hour
Minimum Ventilation Capacity 303 cu. meters / hour
Ventilation Capacities 303 - 510 - 738 - 876 cu. meters / hour
Maximum Noise Level (Sound Power) 71 dBA
Minimum Noise Level (Sound Power) 49 dBA
Noise Level (Sound Power) 49 - 63 - 71 - 74 dBA
Total Power Consumption 550 W
Type of Lighting Halogen
No. of Lights 2
Power of Lights 50 W
Adjustable Illumination No
No. of Grease Filters 2
Type Of Grease Filters Metal - Baffle Filter
Dishwasher Safe Filters Yes
Charcoal Filter No
No. of Necessary Charcoal Filters 0
Filter Saturation Indicator No
Air Cleaning Function No
Auto Shutdown No
Remote Controller for Hood No
Silent Kit Compatability No
Child Lock No
Special Functions No
Locking Washer No
Air Diverter (Recirculated Operation) No
Flape (Ducted Operation) Yes
Fitting Kit (Screws) Yes
Reducer Flange (Ducting Spigot) No
Wireless Connectivity (Hood) No
Coating for Cleaning No
Control Panel Design Flat Panel
Control Panel Type Metal
KEY FEATURES
Knob Control
600 CFM Suction Power
with Four Different Fan
Speed Levels
Direct Ducting with
Charcoal Filter for
Ductless Use Availability
Stainless Bafe
Dishwasher-safe
Grease Filters
FINISH
Stainless Steel
DIMENSIONS (H X W X D)
3
/
18
x 30 x 23 in.
8
Max Height Range for Installation:
30” electric, 36” gas.
Hood Display Type No
Display / LED Color NA
Body Color Inox
Chimney Color Inox
Chimney Material Inox
Body Material Inox
Flat / Curved Glass Color NA
Glass Visor No
Voltage 120 V
Frequency 60 Hz
Plug Type None
H x W x D 18
Product Weight 62 lbs.
Packed H x W x D 24 5/8 x 35 1/8 x 30 in.
Packed Weight 82.5 lbs.
BCHP30100SS
FEATURES
PERFORMANCE
HOOD FEATURES
DESIGN
TECHNICAL INFORMATION
DIMENSIONS
3
/8 x 30 x 23 in.
(28 kg)
(37.4 kg)
(46.7 x 76 x 58.4 cm)
(62.5 x 89.2 x 76.2 cm)
888.352.2356 | BlombergAppliances.com
© 2017 Beko US Inc. 11/21/17
30" Under Cabinet – Professional Range Hood
6"
(9.5 cm)
Line
BCHP30100SS
3
(15.25 cm)
Center
Line
9 1/16" (23 cm)
1
6
"
/
2
(16.5 cm)
12"
(30.5 cm)
3
/4"
18"
(45.7 cm)
30"
(76.2 cm)
25"
25”
(63.5 cm)
9 7/8"
(25 cm)
Top of Hood
8 13/32"
Wood
18"
18”
(45.7 cm)
Bottom of Hood
NOTE TO THE INSTALLER: All height, width and depth dimensions are shown in inches (as well as metric). Beko US Inc. reserves the absolute and unrestricted right to change product materials and
specications, at any time, without notice. Please visit our website www.beko.us or call 888 352 2356 to verify the latest specications with nal dimensional data and other details prior to installation and
making a cutout. Applicable product limited warranty information may be found in accompanying product materials or you may contact your account manager for further details. Proper installation is the
responsibility of the installer. Product failure due to improper installation is not covered under the Limited Warranty.
Support
Center
House
Wiring
Location
9 27/32"
(25 cm)
18”
(21.35 cm)
IN HARMONY WITH NATURE, YOUR LIFE, AND YOU
888.352.2356 | BlombergAppliances.com
© 2017 Beko US Inc. 11/21/17
