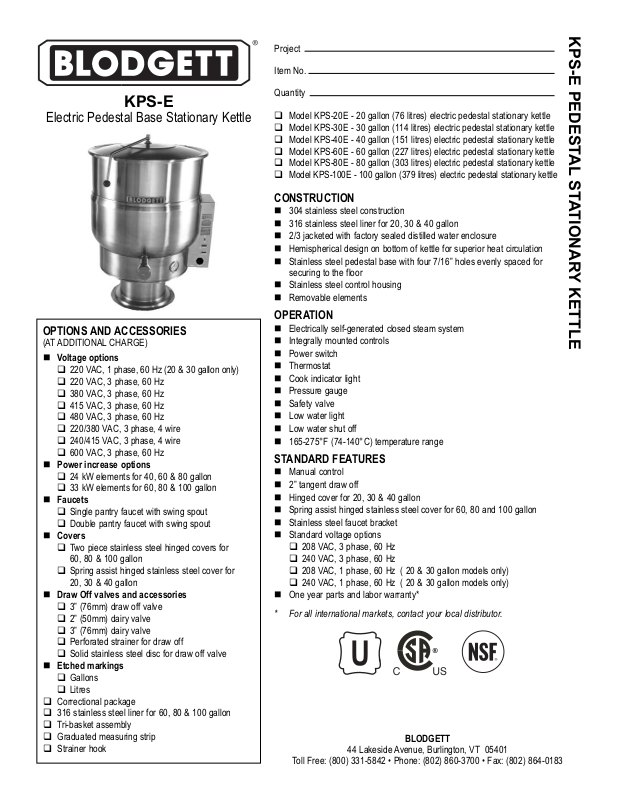

Blodgett KPS-20E, KPS-30E, KPS-40E, KPS-60E, KPS-80E General Manual
KPS-E
Electric Pedestal Base Stationary Kettle
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Voltage options
220 VAC, 1 phase, 60 Hz (20 & 30 gallon only)
220 VAC, 3 phase, 60 Hz
380 VAC, 3 phase, 60 Hz
415 VAC, 3 phase, 60 Hz
480 VAC, 3 phase, 60 Hz
220/380 VAC, 3 phase, 4 wire
240/415 VAC, 3 phase, 4 wire
600 VAC, 3 phase, 60 Hz
Power increase options
24 kW elements for 40, 60 & 80 gallon
33 kW elements for 60, 80 & 100 gallon
Faucets
Single pantry faucet with swing spout
Double pantry faucet with swing spout
Covers
Two piece stainless steel hinged covers for 60, 80 & 100 gallon
Spring assist hinged stainless steel cover for 20, 30 & 40 gallon
Draw Off valves and accessories
3” (76mm) draw off valve
2” (50mm) dairy valve
3” (76mm) dairy valve
Perforated strainer for draw off
Solid stainless steel disc for draw off valve
Etched markings
Gallons
Litres
Correctional package
316 stainless steel liner for 60, 80 & 100 gallon
Tri-basket assembly
Graduated measuring strip
Strainer hook
Project
Item No.
Quantity
Model KPS-20E - 20 gallon (76 litres) electric pedestal stationary kettle
Model KPS-30E - 30 gallon (114 litres) electric pedestal stationary kettle
Model KPS-40E - 40 gallon (151 litres) electric pedestal stationary kettle
Model KPS-60E - 60 gallon (227 litres) electric pedestal stationary kettle
Model KPS-80E - 80 gallon (303 litres) electric pedestal stationary kettle
Model KPS-100E - 100 gallon (379 litres) electric pedestal stationary kettle
CONSTRUCTION
304 stainless steel construction
316 stainless steel liner for 20, 30 & 40 gallon
2/3 jacketed with factory sealed distilled water enclosure
Hemispherical design on bottom of kettle for superior heat circulation
Stainless steel pedestal base with four 7/16” holes evenly spaced for securing to the floor
Stainless steel control housing
Removable elements
OPERATION
Electrically self-generated closed steam system
Integrally mounted controls
Power switch
Thermostat
Cook indicator light
Pressure gauge
Safety valve
Low water light
Low water shut off
165-275°F (74-140°C) temperature range
STANDARD FEATURES
Manual control
2” tangent draw off
Hinged cover for 20, 30 & 40 gallon
Spring assist hinged stainless steel cover for 60, 80 and 100 gallon
Stainless steel faucet bracket
Standard voltage options
208 VAC, 3 phase, 60 Hz
240 VAC, 3 phase, 60 Hz
208 VAC, 1 phase, 60 Hz ( 20 & 30 gallon models only)
240 VAC, 1 phase, 60 Hz ( 20 & 30 gallon models only)
One year parts and labor warranty*
*For all international markets, contact your local distributor.
BLODGETT
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
<![endif]>KETTLE STATIONARY PEDESTAL E-KPS
KPS-E PEDESTAL STATIONARY KETTLE
APPROVAL/STAMP
MODEL |
A |
B |
C |
D |
E |
F (2”) |
F (3”) |
G (2”) |
G (3”) |
H |
J |
K |
KPS-20E |
21[533] |
18[457] |
38[965] |
23.75[629] |
18.5[470] |
14.75[375] |
15.5[394] |
18[457] |
17.5[445] |
14[356] |
21[533] |
60.5[1537] |
KPS-30E |
24[610] |
20[508] |
38[965] |
27.75[705] |
20[508] |
16[406] |
16.5[419] |
15.75[400] |
15.25[387] |
12.5[318] |
19[483] |
63.5[1613] |
KPS-40E |
26[660] |
22.5[572] |
38[965] |
29.75[756] |
21[533] |
17[432] |
18[457] |
13.5[343] |
13[330] |
9[229] |
17[432] |
65[1651] |
KPS-60E |
29.5[749] |
26[660] |
42[1067] |
33.75[857] |
19[483] |
18[457] |
19.25[489] |
14[356] |
13.5[343] |
11[280] |
17.25[438] |
75[1905] |
KPS-80E |
33[838] |
28[711] |
45[1143] |
36.75[933] |
20.5[521] |
19.5[495] |
20.5[521] |
15[381] |
14.5[368] |
12.75[324] |
18[458] |
81[2058] |
KPS-100E |
35.5[902] |
30[762] |
48[1219] |
40[1016] |
22[559] |
21.5[546] |
22.5[572] |
15[381] |
14.5[368] |
13[330] |
20.5[521] |
87[2210] |
SHORT FORM SPECIFICATIONS
Provide Blodgett model KPS-20E (20 gallon), KPS-30E (30 gallon), KPS-40E (40 gallon), KPS-60E (60 gallon), KPS-80E (80 gallon) or KPS-100E (100 gallon) electrically heated pedestal base stationary kettle. The unit shall have a double wall interior to form a steam jacket around the lower 2/3 of the kettle. The jacket enclosure shall contain distilled water which is factory sealed. The bottom of the kettle shall be of hemispherical design for superior heat circulation. The kettle shall be supported on stainless steel pedestal base with four 7/16” holes evenly spaced for securing to the floor. Construction shall be of all welded #4 satin finish 304 stainless steel. The interior of 20 through 40 gallon models shall be standard stainless steel type 316 for high acid content cooking. The controls shall be integrally mounted and shall include a power switch, thermostat with range of 165-275°F (74-140°C), a cook indicator light, pressure gauge, safety valve, low water light and low water shut off. The elements shall be removable. Unit shall have a 2” draw off valve. 20, 30 and 40 gallon units shall have hinged, stainless steel domed cover. 60, 80 and 100 gallon units shall have a spring assist hinged stainless steel domed cover. Unit shall be ASME code stamped and National Board registered. Provide options and accessories as indicated.
AVAILABLE kW
MODEL |
STD |
OPT |
KPS-20E |
12 |
N/A |
KPS-30E |
15 |
N/A |
|
|
|
KPS-40E |
18 |
24 |
KPS-60E |
18 |
24, 33 |
KPS-80E |
18 |
24, 33 |
|
|
|
KPS-100E |
24 |
33 |
|
|
|
AMPS PER LINE
KW |
PHASE |
208V |
220V |
240V |
380V |
415V |
480V |
|
12 |
1 |
57.7 |
54.4 |
50.0 |
N/A |
N/A |
N/A |
|
3 |
33.3 |
31.5 |
28.9 |
18.2 |
16.7 |
14.4 |
||
|
||||||||
|
|
|
|
|
|
|
|
|
15 |
1 |
72.1 |
68.2 |
62.5 |
N/A |
N/A |
N/A |
|
3 |
41.6 |
39.4 |
36.1 |
22.8 |
20.9 |
18.0 |
||
|
||||||||
|
|
|
|
|
|
|
|
|
18 |
1 |
86.5 |
81.8 |
75.0 |
N/A |
N/A |
N/A |
|
|
|
|
|
|
|
|
||
3 |
50.0 |
47.2 |
43.3 |
27.3 |
25 |
21.7 |
||
|
||||||||
|
|
|
|
|
|
|
|
|
24 |
3 |
66.6 |
63.0 |
57.7 |
36.5 |
33.4 |
28.9 |
|
|
|
|
|
|
|
|
|
|
33 |
3 |
91.6 |
86.6 |
79.4 |
50.1 |
45.9 |
39.7 |
|
|
|
|
|
|
|
|
|
NOTE: The company reserves the right to make substitutions of components without prior notice.
POWER CONNECTION:
Refer to data plate.
MAXIMUM PRESSURE:
All models 50 PSI (345 kPa)
SHIPPING INFORMATION:
Approx. Weight: |
|
KPS-20E |
250 lbs. (113 kg) |
KPS-30E |
275 lbs. (125 kg) |
KPS-40E |
305 lbs. (138 kg) |
KPS-60E |
440 lbs. (200 kg) |
KPS-80E |
495 lbs. (225 kg) |
KPS-100E |
530 lbs. (240 kg) |
BLODGETT
www.blodgett.com 44 Lakeside Avenue, Burlington, VT 05401 Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
Printed in U.S.A. |
NOTE: FOR COMMERCIAL USE ONLY |
P/N S00026 Rev F (12/09) |
