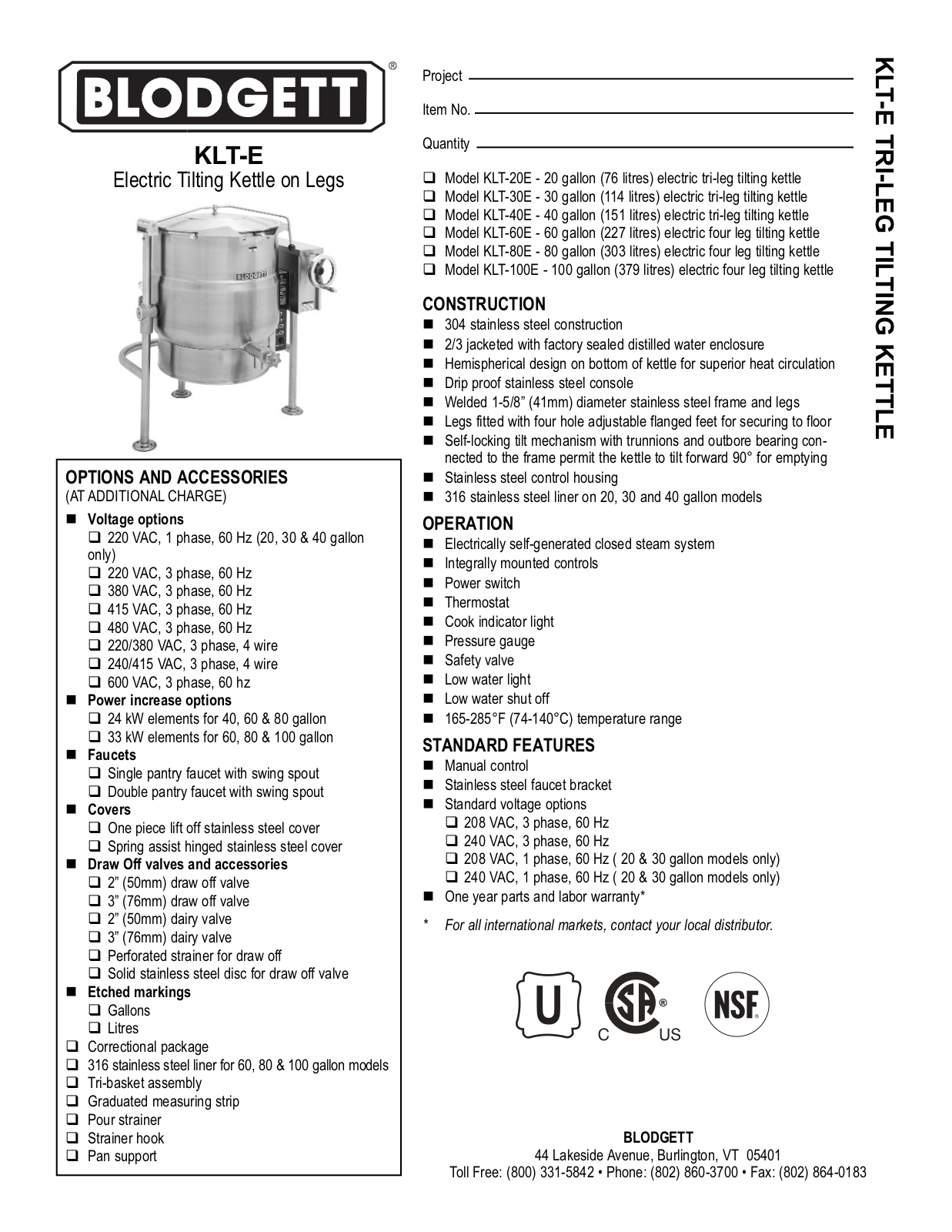

KLT-E

Electric Tilting Kettle on Legs

OPTIONS AND ACCESSORIES

(AT ADDITIONAL CHARGE)

Voltage options

220 VAC, 1 phase, 60 Hz (20, 30 & 40 gallon only)

220 VAC, 3 phase, 60 Hz

380 VAC, 3 phase, 60 Hz

415 VAC, 3 phase, 60 Hz

480 VAC, 3 phase, 60 Hz

220/380 VAC, 3 phase, 4 wire

240/415 VAC, 3 phase, 4 wire

600 VAC, 3 phase, 60 hz

Power increase options

24 kW elements for 40, 60 & 80 gallon

33 kW elements for 60, 80 & 100 gallon

Faucets

Single pantry faucet with swing spout

Double pantry faucet with swing spout

Covers

One piece lift off stainless steel cover

Spring assist hinged stainless steel cover

Draw Off valves and accessories

2” (50mm) draw off valve

3” (76mm) draw off valve

2” (50mm) dairy valve

3” (76mm) dairy valve

Perforated strainer for draw off

Solid stainless steel disc for draw off valve

Etched markings

Gallons

Litres

Correctional package

316 stainless steel liner for 60, 80 & 100 gallon models

Tri-basket assembly

Graduated measuring strip

Pour strainer

Strainer hook

Pan support

Project

Item No.

Quantity

Model KLT-20E - 20 gallon (76 litres) electric tri-leg tilting kettle

Model KLT-30E - 30 gallon (114 litres) electric tri-leg tilting kettle

Model KLT-40E - 40 gallon (151 litres) electric tri-leg tilting kettle

Model KLT-60E - 60 gallon (227 litres) electric four leg tilting kettle

Model KLT-80E - 80 gallon (303 litres) electric four leg tilting kettle

Model KLT-100E - 100 gallon (379 litres) electric four leg tilting kettle

CONSTRUCTION

304 stainless steel construction

2/3 jacketed with factory sealed distilled water enclosure

Hemispherical design on bottom of kettle for superior heat circulation

Drip proof stainless steel console

Welded 1-5/8” (41mm) diameter stainless steel frame and legs

Legs fitted with four hole adjustable flanged feet for securing to floor

Self-locking tilt mechanism with trunnions and outbore bearing connected to the frame permit the kettle to tilt forward 90° for emptying

Stainless steel control housing

316 stainless steel liner on 20, 30 and 40 gallon models

OPERATION

Electrically self-generated closed steam system

Integrally mounted controls

Power switch

Thermostat

Cook indicator light

Pressure gauge

Safety valve

Low water light

Low water shut off

165-285°F (74-140°C) temperature range

STANDARD FEATURES

Manual control

Stainless steel faucet bracket

Standard voltage options

208 VAC, 3 phase, 60 Hz

240 VAC, 3 phase, 60 Hz

208 VAC, 1 phase, 60 Hz ( 20 & 30 gallon models only)

240 VAC, 1 phase, 60 Hz ( 20 & 30 gallon models only)

One year parts and labor warranty*

*For all international markets, contact your local distributor.

BLODGETT

44 Lakeside Avenue, Burlington, VT 05401

Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183

KETTLE TILTING LEG-TRI E-KLT
