PARTS LIST
GAS TILTING SKILLETS
BLODGETT MODELS: BLT-30G
BLT-40G
Sept. 19, 2006
_
FIGURE 1
ITEM Part # DESCRIPTION 30 40
1. 40938 Micro switch 1 1
2. 41803 Square Head Set Screw, 3/8 - 16 x ½ 2 2
3. 40372 Actuator Collar (8-3087) 1 1
4. 41827 Electrical Box Cover 1 1
5. 41828 Electrical Box 1 1
6. 40166 Component Mounting Plate 1 1
7. 42643 Console Decal (9-3283) 1 1
8. 41883 Power Switch 1 1
9. 42415 Pilot Light, Temp. 125V (Red) 1 1
** 10. 40740 Dial (F) 1 1
40828 Dial (C) 1 1
11. 40994 Bezel 1 1
12. 40913 Pilot Light - Ignition, 125V 1 1
13. 40438 Potentiometer Spacer 1 1
14. 41127 Temperature Control Complete With Potentiometer, 120V 1 1
15. 41844 Fuse Holder 1 1
41861 Fuse 250V, 3 Amp. 1 1
16. 41093 Ignition Module 1 1
* 40871 Ignition Module Wire Harness 1 1
17. 40708 Terminal Block Section 3 3
18. 40707 End Section 1 1
19. 41057 Brass Tube C/W Thermocouple, High Limit Lead Wires 1
* 40735 Thermocouple Only 1
41058 Brass Tube C/W Thermocouple, High Limit Lead Wires 1
* 40736 Thermocouple Only 1
20. 42013 Earth ID Tag 1 1
21. 40840 Ground Lug 1 1
22. 41054 Hi Limit Cover Assembly 1 1
23. 40663 Cord Set, 120V 1 1
24. 41920 Hi Limit Switch 1 1
25. 41300 Trunnion Housing Assembly 1 1
ITEM Part # DESCRIPTION 30 40
43014 Hex Bolt, 3/16 - 18 x 5/8 4 4
26. 40887 Grease Fitting, 1/8 1 1
27. 40374 Limit Switch Bracket 1 1
28. 40858 Terminal Block Enclosure 1 1
29. 42270 Terminal Block 1 1
30. 42224 Strainer (2672-1) 1 1
31. 42211 Console Decal 1 1
32. 41130 Adjustable Foot 2 2
33. 40103 Bolt, 3/8 - 16 X 1 8 8
34. 43254 Adjustable Flanged Foot 2 2
35. 41095 Segment Gear and Worm Kit (Includes Items 36 to 42)
36. 40132 Lock Washer, 1/2 1 1
37. 40249 Hex Bolt, ½ - 13 x 2 1 1
38. 40126 Spring Clip 1 1
39. 40082 Set Screw, 1/4 - 20 x 1/2 1 1
40. 41564 Key 1 1
41. 40266 Roll Pin 1 1
42. 40113 Hex Nut, ½ - 13 1 1
43. 40258 Jam Nuts 2 2
44. 41554 Hand Wheel 1 1
41555 Spindle for Handwheel 1 1
45. 40101 Set Screw, 3/8 - 16 x ½ 1 1
46. 41235 Tilt Shaft 1 1
47. 41882 Shaft Seal 1 1
48. 41090 Thrust Bearing 2 2
49. 42635 Set Screw, 3/8 - 16 x 1-1/2 2 2
50. 40108 Hex Nut, 3/8 - 16 2 2
51. 41299 Trunnion Housing Assembly 1 1
43014 Hex Bolt, 3/16 - 18 x 5/8 4 4
** 52. 40363 Right Hand Console Cover 1 1
40361 Right Hand Console Cover for Faucet (Optional) 1 1
ITEM Part # DESCRIPTION 30 40
53. 41253 Flue Assembly 1
41252 Flue Assembly 1
54. 40889 Left Hand Console Cover 1 1
55. 40404 Washer 2 2
56. 42478 Spacer 2 2
57. 43262 Pan Cover Assembly 1
43263 Pan Cover Assembly 1
58. 42342 Tilt Label 1 1
* 59 40738 Thermocouple - 48" 1 1
** 60 40474 Transformer and Fuse Mounting Bracket 1 1
** 61 40991 Transformer, 220/240 - 120V 1 1
* 40980 Transformer, 208/415 - 120V 1 1
** 62 40726 Double Pantry Faucet - 18" Spout 1 1
**
**
**
40727 Double Pantry Faucet - 12" Spout 1 1
40729 Single Pantry Faucet - 18" Spout 1 1
40730 Single Pantry Faucet - 12" Spout 1 1
** 63 40860 Caster Complete With Brake 2 2
**
64. 41091 Washer, 3/4 ID x 1-1/4 OD 1 1
65. 41092 Cotter Pin S.S. 3/16 x 1 1 1
* 66. 41099 Label - Service Warning 1 1
* NOT SHOWN.
** SELECT AS REQUIRED.
40861 Caster Without Brake 2 2

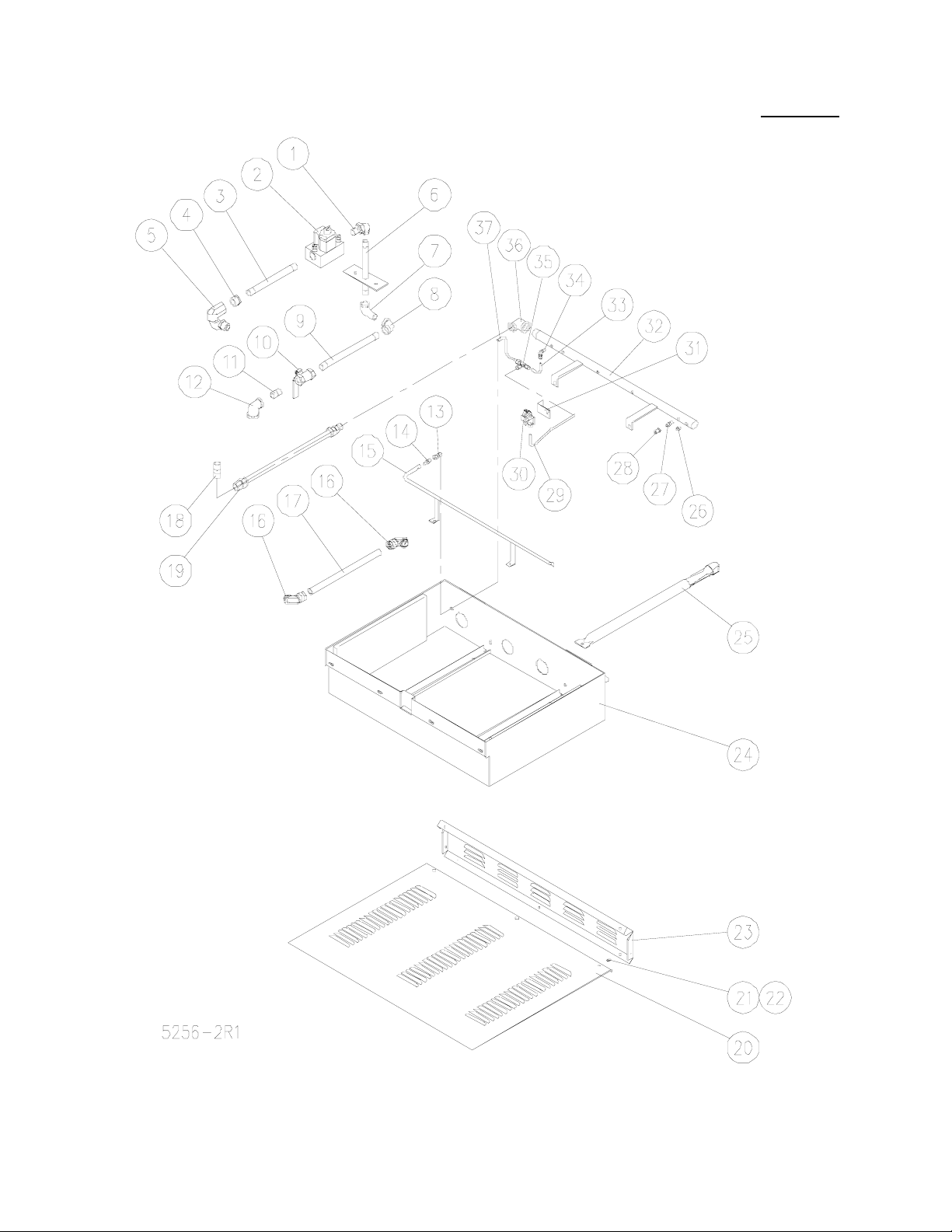

FIGURE 2
ITEM Part # DESCRIPTION 30 40
1. 40616 Union Elbow, ½” 1 1
** 2. 41045 Combination Gas Control, ½, Natural Gas 1 1
41046 Combination Gas Control, ½, LP Gas 1 1
3. 41778 Nipple, ½ x 8" 1 1
4. 41811 Reducing Bushing, 3/4 x ½ 1 1
5. 42268 Swivel Joint, 3/4 x 3/4 1 1
6. 43257 Gas Inlet Assembly, ½" 1 1
7. 41790
8. 41788
9. 41779 Nipple, ½ x 9-1/2 1 1
10. 41893 Gas Shut Off Valve, ½" 1 1
11. 41773 Close Nipple, ½ 1 1
12. 41796
13. 40414 Connector, 1/4 c x 1/8 FPT 1 1
** 14. 42281 Lighter Tube Orifice, #56, Natural Gas 1 1
42284 Lighter Tube Orifice, #72, LP Gas 1 1
15. 40172 Lighter Tube Assembly 1
40173 Lighter Tube Assembly 1
16. 42944 Liquid Tite Elbow, 3/8 2 2
17. 43258 Liquid Tite Conduit, 3/8 1 1
18. 41775 Nipple, ½ x 2 1 1
19. 42269 Gas Flex Hose 1 1
90E ST. Elbow, ½
90E Elbow, ½
90E Reducing Elbow, 3/4 x ½
11
11
11
20. 41255 Bottom Cover 1
41254 Bottom Cover 1
21. 43259 Speed Nut, 8-32 8 10
22. 43260 Screw, 8-32 x 1/4 8 10
23. 40177 Manifold Cover 1 -
40178 Manifold Cover - 1
24. 41352 Burner Box 1 -
41353 Burner Box - 1
ITEM Part # DESCRIPTION 30 40
25. 42550 Burner 4 6
26. 41813 Pipe Plug, 1/8 1 1
27. 43261 Orifice Nipple 4 6
** 28. 42299 Burner Orifice, Natural Gas #44 4
42307 Burner Orifice, LP Gas #55 4
42308 Burner Orifice, LP Gas #56 - 6
42300 Burner Orifice, Natural Gas #47 - 6
29. 41074 Burner Pilot Inlet Tube 1 1
** 30. 41041 Pilot Burner Complete With Ignitor (.018), Nat. Gas 1 1
41042 Pilot Burner Complete With Ignitor (.010), LP Gas 1 1
31. 41040 Pilot Mounting Bracket 1 1
32. 40174 Manifold Assembly 1 -
40176 Manifold Assembly - 1
33. 41072 Manifold Outlet Tube 1 1
34. 40441
35. 40408 Tee, 1/4 C 1 1
36. 41796 90E Reducing Elbow, 3/4 x ½ 1 1
37. 41073 Orifice Inlet Tube 1 1
* NOT SHOWN
** SELECT AS REQUIRED
90E Elbow, 1/4 c x 1/8 MPT
11
HINGE ASSEMBLY FIGURE 3
ITEM Part # DESCRIPTION 24 & 30 GAL. QUANTITY
42112 LARGE HINGE ASSEMBLY
1. 41543 Lock Pin 1
2. 41546 End Lock Plate 1
3. 43106 Stationary Disc 1
4. 41100 Core 1
5. 41526 Spring 1
6. 43107 Rotary Disc 1
7. 41520 End Stop Plate 1
8. 40098 Cap Screws 4
9. 40462 Base Plate 1
FIGURE 4
ITEM Part # DESCRIPTION QTY.
40553 1-1/2" DRAW-OFF VALVE ASSEMBLY
1. 41809 Acorn Nut 10-24 UNC 1
2. 40662 Handle, Stainless Steel 1
3. 40560 Bonnet 1
4. 40559 Gland Nut 1
5. 40562 “O” Ring 1
6. 40561 Stem Assembly 1
7. 43246 Valve Body 1
ITEM
1. 41809 Acorn Nut 10-24 UNC 1
2. 40662 Handle, Stainless Steel 1
3. 40564 Bonnet 1
4. 40563 Gland Nut 1
5. 40566 “O” Ring 1
6. 40565 Stem Assembly 1
7. 42481 Valve Body 1
ITEM
1. 40567 Acorn Nut, 7/16 - 14 UNC 1
2. 40568 Handle, Stainless Steel 1
3. 40570 Bonnet 1
4. 40569 Gland Nut 1
5. 40572 “O” Ring 1
6. 40571 Stem Assembly 1
Part # DESCRIPTION QTY.
40554 2" DRAW-OFF VALVE ASSEMBLY
Part # DESCRIPTION QTY.
40556 3" DRAW-OFF VALVE ASSEMBLY
7. 43248 Valve Body 1
