Blodgett BLT-30 Part Manual

PARTS LIST

ELECTRIC TILTING SKILLET MODELS: BLT-30, 40E

BLODGETT OVEN CO ▪ 44 lakeside Ave ▪ Burlington, VT 05446

Tel. [phone] ▪ Fax [phone] ▪ www.blodgett.com

1 2007-06-26

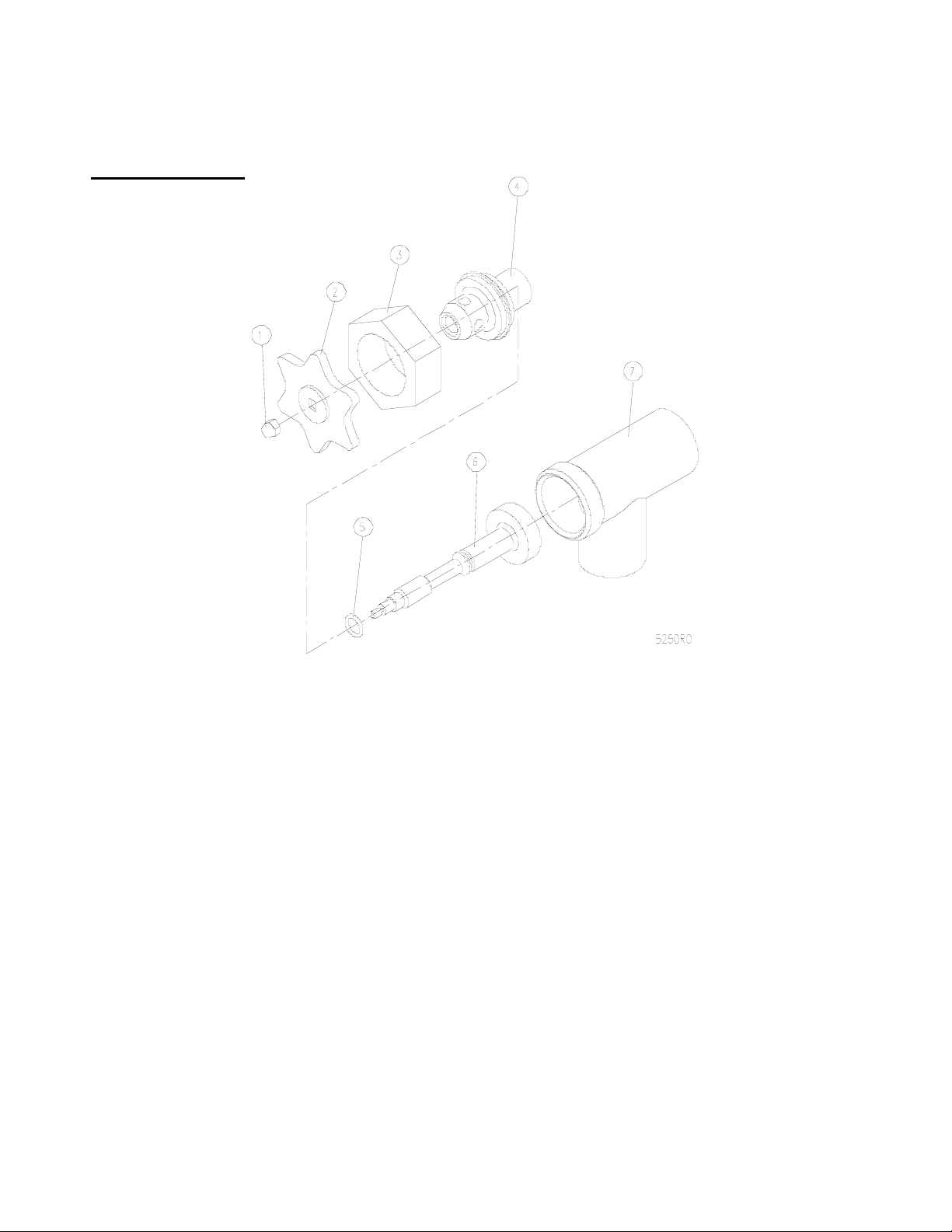

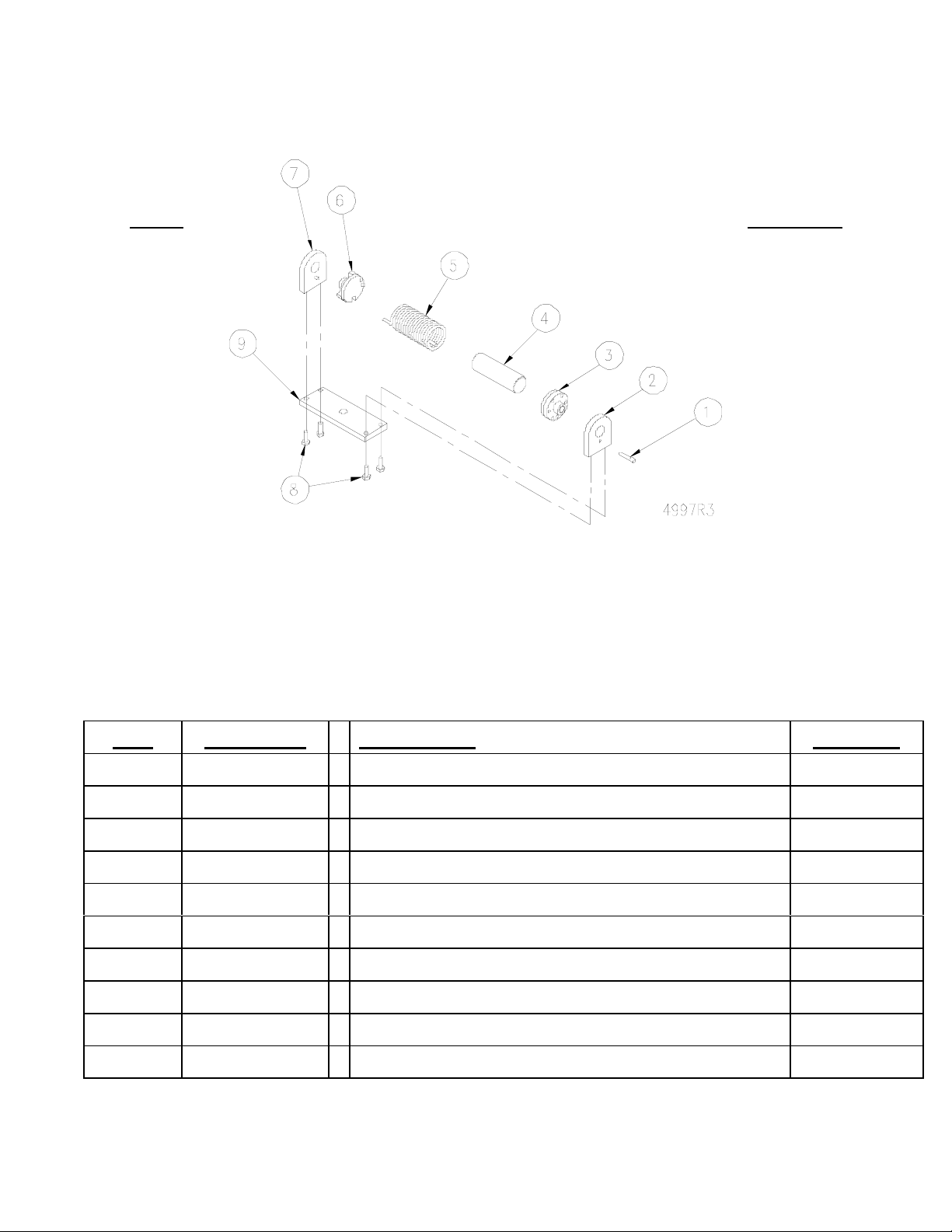

PARTS LIST - ELECTRIC TILTING SKILLETS

MODELS BLT-30E, BLT-40E

ITEM Part Number DESCRIPTION QUANTITY30QUANTITY

40

1 42224 Strainer 1 1

2 40889 Left Hand Console Cover 1 1

3 40887 Grease Nipple 2 2

4 41300 Trunnion Housing Assembly -LH 1 1

5 40342 Left Hand Console Decal 1 1

6 41883 Power Switch 1 1

7 40953 Pilot Light 1 1

** 8 40848

40849

9 40994 Bezel 1 1

10 41005 Thermostat 1 1

11 41171 Right Hand Console Decal 1 1

12 40103 Bolt 3/8 - 16 x 1 8 8

13 41130 Adjustable Foot 2 2

14 41474 Flanged Adjustable Foot 2 2

15 40206 Set Screw 3/8 - 16 x 1 3/4 2 2

16 40108 Nut 3/8 - 16 2 2

17 41299 Trunnion Housing Assembly 1 1

18 41554 Hand Wheel 1 1

19 41095 Segment Gear & Worm Gear Kit

20 40132 Lock Washer ½ 1 1

Dial (EF)

Dial (EC)

(Includes 20 to 26)

11

11

21 40249 Bolt ½ - 13 x 2 1 1

22 40123 Woodruff Key 1 1

23 40126 Retaining Clip 1 1

24 40113 Nut ½ -13 1 1

25 40082 Set Screw 1/4 - 20 x ½ 1 1

26 40266 Tension Pin 3/16 “ Diameter x 5/8" 1 1

3 2007-06-26
