Blodgett BC-20G Parts List

BC-20G

COMBI OVEN STEAMER

REPLACEMENT PARTS LIST

SERIAL NUMBERS WITH JP

EFFECTIVE MARCH 25, 2014

The Company reserves the right to make substitution in the event that items specied are not available.

ERRORS: Descriptive and/or typographic errors are subject to correction.

44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: [phone] Fax: [phone]

Superseding All Previous Parts Lists.

BLODGETT OVEN COMPANY

www.blodgett.com

P/N 53373 Rev J

Manual Control Components

(Before 5/1/2011)

12

13

12

14

16

10

9

10

11

15

2

1

3

4

9

5

7

6

8

Ref. Part
No. No. Description

1 R10353 LOGIC BOARD
2 R4623 MODE SWITCH
R8515 KNOB & SHAFT, MODE SWITCH
3 R6407 TEMPERATURE CONTROL, 150-500 DEG
4 R10338 POTENTIOMETER, STEAM ON DEMAND
5 R2666 TIMER, 120 MINUTE 230V
6 R2792 RELAY, 240V COIL
7 R5242 MEAT PROBE CONTROL
8 R9498 BUZZER, 240V
9 R1318 INDICATOR LIGHT, 250V GREEN
10 R0226 INDICATOR LIGHT, 250V CLEAR
11 R8595 PUSHBUTTON SWITCH
12 R8742 KNOB, LARGE
13 R8743 KNOB, SMALL
14 R10515 MEAT PROBE SWITCH
15 R5219 MEAT PROBE JACK
R5315 MEAT PROBE
16 R8594 FAN SWITCH, HI/LOW
R6003 CAVITY PROBE, 100K THERMISTOR

MARCH 25, 2014 2 BC-20G

Manual Control Components

(After 5/1/2011)

45

3

15

14

14

13

6

2

1

7

8

11

12

9

10

Ref. Part
No. No. Description

1 53912 MANUAL CONTROL
2 18234 POTENTIOMETER
3 52466 MODE SWITCH
4 53759 BUZZER
5 54380 INTERFACE BOARD
6 52948 TRANSFORMER
7 38604 RELAY
8 39343 JUMPER, BUSS BAR
9 51516 PROBE, 100 OHM
10 52946 POWER SUPPLY, 24VDC
11 53146 FAN CONTROL BOARD
12 39781 MEAT PROBE JACK
13 39782 MEAT PROBE JACK PLUG
56545 MEAT PROBE, 4", DUAL SENSOR
56546 MEAT PROBE, 6", DUAL SENSOR
14 36617 KNOB, W/OUT ARROW
15 36616 KNOB, WITH ARROW
R6928 CAVITY PROBE, RT ANGLE

MARCH 25, 2014 3 BC-20G

Digital Cook & Hold Control Components

8

1

2

9

14

8

10

13

11

12

Ref. Part
No. No. Description

1 R4623 MODE SWITCH
2 R7403 CONTROLLER, CH-136
3 R10338 POTENTIOMETER
4 R2792 RELAY, SPST 240V COIL
5 R5242 MEAT PROBE CONTROL
6 20350 BUZZER
R8724 BUZZER RESISTOR
7 R10353 LOGIC BOARD
8 R1318 INDICATOR LIGHT, 250V GREEN
9 R8595 PUSHBUTTON SWITCH
10 R5219 MEAT PROBE JACK
R5315 MEAT PROBE
11 R0226 INDICATOR LIGHT, 250V CLEAR
12 R8594 FAN SWITCH, HI/LOW
13 R10515 MEAT PROBE SWITCH
14 R8743 KNOB, SMALL
R8883 RESISTOR, LIGHT
R6003 CAVITY PROBE, 100K THERMISTOR

7

3

4

6

5

MARCH 25, 2014 4 BC-20G

12

MenuSelect Control Components

5

2

6

13

14

15

11

1

7

8

3

4

9

10

Ref. Part
No. No. Description

1 53377 MENUSELECT CONTROL
2 39122 BOARD, 3 BUTTON
3 52647 USB CABLE, 1M LONG
4 39781 MEAT PROBE JACK
5 54380 INTERFACE BOARD
6 52948 TRANSFORMER
7 38604 RELAY, 24 VDC
8 39343 JUMPER, BUSS BAR
9 51516 PROBE, 100 OHM
52946 POWER SUPPLY, 24VDC
50986 DECAL, "PRESS TO ENTER"
51372 KNOB
52161 USB COVER
39782 MEAT PROBE JACK PLUG
56545 MEAT PROBE, 4", DUAL SENSOR
56546 MEAT PROBE, 6", DUAL SENSOR
R6928 CAVITY PROBE, RT ANGLE

MARCH 25, 2014 5 BC-20G

Blower Motor & Control Components

1

5

2

4

3

DIGITAL COOK & HOLD OR MANUAL CONTROLS BEFORE 5/1/2011

5

2

6

MENUSELECT CONTROLS (ALL) OR MANUAL CONTROLS AFTER 5/1/2011

Ref. Part
No. No. Description

1 R5108 MOTOR, 1/2 HP
2 R5081 BLOWER WHEEL
3 31558 RELAY, DPST
4 R9309 SPEED CONTROL
R9386 MOTOR SPEED RESISTOR
5 R4244 MOTOR SHAFT SEAL
6 55301 MOTOR, 1/2 HP WITH KEY
7 53902 FILTER
8 53421 INVERTER DRIVE

7

8

MARCH 25, 2014 6 BC-20G

Interior/Exterior Components

2

4

8

9

1

5

6

12

16

10

11

7

13

3

14

Ref. Part
No. No. Description

1 R10848 HEAT EXCHANGER
2 R4423 HEAT EXCHANGER TOP GASKET
3 R10753 HEAT EXCHANGER BOTTOM GASKET
4 53576 TROLLEY GASKET
5 54423 PREHEAT PANEL KIT (INCLUDES ITEM #8)
6 R3760 GREASE FILTER
7 R11210 PRESSURE REGULATOR ASSEMBLY
8 R5392 HOSE HOOK
9 R5391 PROBE HOLDER
10 R7575 PRESSURE RELIEF SPRING
11 R2657 PRESSURE RELIEF GASKET
12 R2814 HOSE, 1 5/8" ID (BY THE FOOT)
13 R0376 CONNECTOR, 3 WAY
14 R10889 HOSE, 1/2" OD X 10'
15 53639 SPRAY NOZZLE
R10899 SPRAY HOSE ASSEMBLY (INCLUDES ITEMS 13, 14, AND 15)
16 55420 BAFFLE ASSY

15

MARCH 25, 2014 7 BC-20G

Steam Generator Components

Manual or Digital Cook & Hold Controls

12

3

14

1

13

4

2

5

6

7

8

15

10

Ref. Part
No. No. Description

1 R11217 BOILER ASSY, W/O BURNERS (ALSO INCLUDES ITEMS #2, 3, 4 AND 11)
2 50283 FLOAT SWITCH ASSEMBLY
50265 FLOAT
3 R10738 FLUE OUTLET
4 R8071 PROBE HOLDER, BEFORE 04-01-11
39436 PROBE FITTING, AFTER 04-01-11
5 R2630 HIGH LIMIT THERMOSTAT, BEFORE 04-01-11
51516 PROBE, AFTER 04-01-11
6 R8012 THERMOSTAT
7 R10745 FILL TUBE ASSEMBLY
8 R10252 OUTLET GASKET
9 R2726 DRAIN PUMP, 208/240V
R3555 DRAIN PUMP, 115V
10 51999 HOSE, 1.125 DIA. (1 FOOT PIECE)
11 R11045 BOILER INSULATION (NOT SHOWN)
12 R8984 FITTING, 3/8" X 3/8" COMPRESSION
13 R8952 FLEX TUBE, 3/8" X 6"
14 R4579 HOSE, 2 3/8" ID (BY THE FOOT0
15 R1088 HOSE, 7/8" ID (BY THE FOOT)

9

MARCH 25, 2014 8 BC-20G

Steam Generator Components

MenuSelect Controls

17

2

14

15

16

13

11

10

8

12

9

11

1

4

5

7

18

Ref. Part
No. No. Description

1 R10704 BOILER ASSY. W/O BURNERS (ALSO INCLUDES ITEMS 2 & 3)
2 R10738 FLUE OUTLET
3 R11045 BOILER INSULATION (NOT SHOWN)
4 39436 PROBE FITTING
5 51516 PROBE
6 R2726 DRAIN PUMP, 208/240V
7 51999 HOSE, 1.125 DIA. (1 FOOT PIECE)
8 R10252 OUTLET GASKET
9 R10745 FILL TUBE ASSEMBLY
10 50283 FLOAT SWITCH ASSEMBLY
50265 FLOAT
11 R8984 FITTING, 3/8" X 3/8" COMPRESSION
12 R8952 FLEX TUBE, 3/8" OD X 6"
13 52754 FITTING, BARBED
14 55513 CONTROL BOARD, WATER SENSING
15 52750 SENSOR, CAPACITIVE
16 52753 SILICONE TUBING (BY THE FOOT)
17 R4579 HOSE, 2 3/8" ID (BY THE FOOT)
18 R1088 HOSE, 7/8" ID (BY THE FOOT)

MARCH 25, 2014 9 BC-20G

6

Steam Burner and Valve Components

6 9

1 2

3

16

8

17

18

7

6

10

1

4

53

10

11

11

11

11

14

13

Ref. Part
No. No. Description

1 30005 VALVE, NATURAL GAS
30006 VALVE, PROPANE GAS
2 18570 FITTING, 1/2" NPT X 1/2" COMPRESSION
3 R8950 FLEX TUBE, 1/2" OD X 12"
4 R8756 FITTING, TEE 1/2" NPT X 1/2" COMP X
1/2" COMP
5 15660 FITTING, ELBOW 1/2" COMPRESSION
X 1/2" MALE NPT
6 R11163 FITTING, 3/8" COMP X 1/2" MALE NPT
7 R6330 FLEX TUBE, 3/8" OD X 36"
8 R8799 FLEX TUBE, 3/8" OD X 24"
9 R10679 FITTING, 1/4" PILOT TUBE
R8948 PILOT FLEX TUBE, 1/4" X 30"
10 R4287 INSHOT BURNER, 11 PLACES
11 57662 PILOT ASSEMBLY, NATURAL GAS
57663 PILOT ASSEMBLY, PROPANE GAS
12 R11157 ORIFICE, NATURAL GAS #58 MTD (.042")
11 PLACES

12

15

Ref. Part
No. No. Description

R11158 ORIFICE, PROPANE GAS #70 MTD (.028")
PLACES
13 R11351 FITTING, ELBOW 3/8" COMP X 1/2" MALE
NPT
14 R8928 COMPLETE BURNER ASSEMBLY, FRONT
NATURAL GAS
R11154 COMPLETE BURNER ASSEMBLY, FRONT
PROPANE GAS
15 R11339 COMPLETE BURNER ASSEMBLY, REAR
NATURAL GAS
R11340 COMPLETE BURNER ASSEMBLY, REAR
PROPANE GAS
16 20348 IGNITION CONTROL
17 52948 TRANSFORMER
18 R10043 RELAY, DPST
57272 IGNITION WIRE FROM CONTROL TO PILOT
ASSEMBLY AFTER 2/7/14

12

MARCH 25, 2014 10 BC-20G

Hot Air Burner and Valve Components

3

4

2

3

9

1

5

10

8

1

7

7

6

13

10

11

14

7

12

15

Ref. Part
No. No. Description

1 30005 VALVE, NATURAL GAS
30006 VALVE, PROPANE GAS
2 18570 FITTING, 1/2" NPT X 1/2" COMPRESSION
3 R8950 FLEX TUBE, 1/2" OD X 12"
4 R8756 FITTING, TEE 1/2" NPT X 1/2" COMP
X 1/2" COMP
5 15660 FITTING, ELBOW 1/2" COMPRESSION
X 1/2" MALE NPT
6 R6330 FLEX TUBE, 3/8" OD X 36"
7 R11163 FITTING, 3/8" COMP X 1/2" NPT
8 R10679 FITTING, 1/4" PILOT TUBE
52952 PILOT FLEX TUBE, 1/4" OD X 48"
9 R2953 INSHOT BURNER, 6 PLACES

MARCH 25, 2014 11 BC-20G

Ref. Part
No. No. Description

10 57658 PILOT ASSEMBLY, NATURAL GAS
57659 PILOT ASSEMBLY, PROPANE GAS
11 R11131 ORIFICE, 6 PLACES NATURAL GAS
R11132 ORIFICE, 6 PLACES PROPANE GAS
12 R11333 COMPLETE BURNER ASSEMBLY,
NATURAL GAS
R11334 COMPLETE BURNER ASSEMBLY,
PROPANE GAS
13 52948 TRANSFORMER
14 R10043 RELAY, DPST
15 20348 IGNITION CONTROL
55648 IGNITION WIRE, FROM CONTROL TO
PILOT ASSEMBLY (BEFORE 2/7/14)
57273 IGNITION WIRE, FROM CONTROL TO
PILOT ASSEMBLY (AFTER 2/7/14)

Misc. Electrical & Delime System Components

1

2

3

16

4

11

17

6

7

5

15

13

14

8

12

9

10

Ref. Part
No. No. Description

1 23034 COOLING FAN, 230V 4"
2 22718 FAN GUARD
3 R9213 TRANSFOMER, 115V TO 230V
4 36376 GAS SWITCH
5 R5075 WATER INLET SOLENOID
R7910 VARISTOR
6 R10398 DELIME PUMP
7 R3661 QUENCH THERMOSTAT
8 53641 FITTING, BARBED 1/4" X 3/8"
9 53752 FITTING, 3/4" GHT X 1/4" BARB
10 R10391 CLAMP, SNAP-GRIP
11 R10030 DELIME PORT
R11008 HOSE, 3/8" ID (5 FOOT PIECE)
12 R10039 DELIME PORT CAP
13 R10732 DELIME BOTTLE
14 R11164 DELIME BOTTLE WEIGHT
15 R10394 HOSE, 1/4" ID CLEAR (BY THE FOOT)
16 R4588 DOOR SWITCH, COMPLETE (INCLUDES ITEM 17)
17 16807 DOOR SWITCH
R11128 POWER CORD

MARCH 25, 2014 12 BC-20G

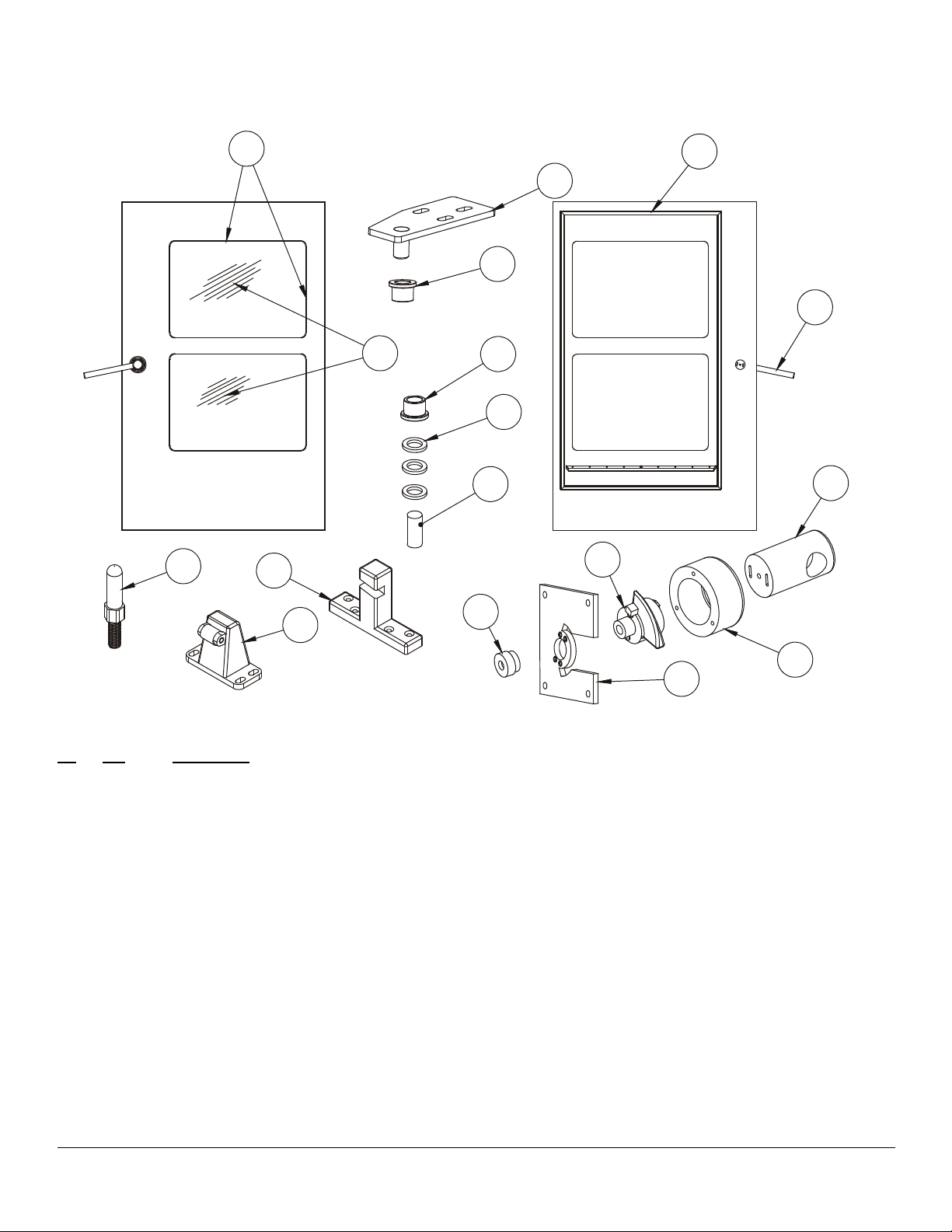

Door Components

15

5

7

1

2

8

6

2

3

9

14

4

11

16

13

12

Ref. Part
No. No. Description

1 R4130 TOP HINGE PLATE
2 15932 BUSHING
3 15933 SPACER
4 R3510 LOWER DOOR PIN
5 R2105 WINDOW GASKET (BY THE FOOT)
6 R5797 WINDOW GLASS
7 R4191 DOOR GASKET (FOR OVENS BUILT BEFORE 09-07-10)
53568 DOOR GASKET (FOR OVENS BUILT AFTER 09-07-10)
R3496 VERTICAL GASKET RETAINING STRIP (FOR OVENS BUILT BEFORE 09-07-10)
R3497 HORIZONTAL GASKET RETAINING STRIP (FOR OVENS BUILT BEFORE 09-07-10)
8 R11101 DOOR HANDLE
9 R7889 HANDLE SUPPORT
10 R11412 HANDLE BUSHING
11 R1082 DOOR HANDLE CAM
12 R7944 DOOR LATCH PLATE
13 R11102 BUSHING
R11106 COMPLETE HANDLE ASSEMBLY (INCLUDES ITEMS 8 THROUGH 13)
14 R0274 DOOR CAM CATCH
R1009 PLASTIC INSERT
15 R2844 DOOR SWITCH ACTIVATOR
16 R0922 ROLLER CATCH

10

MARCH 25, 2014 13 BC-20G

Accessories

1

6

8

2

10

7

9

5

4

Ref. Part
No. No. Description

1 R5792 TC-14 CART, COMPLETE (INCLUDES 4-ITEM #2 )
2 R4487 RACK GUIDE, STANDARD DESIGN FOR TC-14 CART (2 OR 4 PER CART) 13 POSITIONS
4 R5989 TC-10 CART, COMPLETE WITH NON-REMOVABLE UNIVERSAL (RACK OR PAN) GUIDES 10 POSITIONS
5 R5839 TC-20 CART, COMPLETE WITH NON-REMOVABLE STANDARD (RACK) GUIDES 20 POSITIONS
6 R5324 WIRE RACK, TC-14
R1013 WIRE RACK, TC-20
7 R11249 CASTERS (SET OF 4) TC-14, TC-10, TC-20, OR 96 PLATE BANQUET CART
R3492 LEG, STANDARD (EA)
R4803 LEG, SEISMIC (EA)
R6184 LEG, SEISMIC (SET OF 4)
8 52387 CHICKEN RACK
9 54247 MULTI-PURPOSE FRY RACK
10 R10955 SPRAY BOTTLE
21242 GAS HOSE, 48"
21826 GAS HOSE, 36"
R11534 96 PLATE BANQUET CART, COMPLETE
R11426 THERMAL COVER

MARCH 25, 2014 14 BC-20G
