Blodgett BC-20E Parts List

BC-20E

COMBI OVEN STEAMER

REPLACEMENT PARTS LIST

SERIAL NUMBERS WITH KG

EFFECTIVE FEBRUARY 7, 2014

The Company reserves the right to make substitution in the event that items specied are not available.

ERRORS: Descriptive and/or typographic errors are subject to correction.

44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: [phone] Fax: [phone]

Superseding All Previous Parts Lists.

BLODGETT OVEN COMPANY

www.blodgett.com

P/N 55354 Rev F

Manual Control Components

45

3

15

14

14

13

6

2

1

7

8

11

12

9

10

Ref. Part
No. No. Description

1 53913 MANUAL CONTROL
2 18234 POTENTIOMETER
3 52466 MODE SWITCH
4 53759 BUZZER
5 54380 INTERFACE BOARD
6 52948 TRANSFORMER
7 38604 RELAY
8 39343 JUMPER, BUSS BAR
9 51516 PROBE, 100 OHM
10 52946 POWER SUPPLY, 24VDC
11 53146 FAN CONTROL BOARD
12 39781 MEAT PROBE JACK

FEBRUARY 7, 2014 2 BC-20E

Ref. Part
No. No. Description

13 39782 MEAT PROBE JACK PLUG
56545 MEAT PROBE, 4", DUAL SENSOR
56546 MEAT PROBE, 6", DUAL SENSOR
57685 MEAT PROBE, 4", THIN
14 36617 KNOB, W/OUT ARROW
15 36616 KNOB, WITH ARROW
R6928 CAVITY PROBE, RT ANGLE
54075 COMMUNICATIONS CABLE

12

MenuSelect Control Components

5

2

6

13

14

11

1

7

8

3

4

9

10

Ref. Part
No. No. Description

1 53481 MENUSELECT CONTROL
2 39122 BOARD, 3 BUTTON
3 52647 USB CABLE, 1M LONG
4 39781 MEAT PROBE JACK
5 54380 INTERFACE BOARD
6 52948 TRANSFORMER
7 38604 RELAY, 24 VDC
8 39343 JUMPER, BUSS BAR
9 51516 PROBE, 100 OHM
10 52946 POWER SUPPLY, 24VDC

FEBRUARY 7, 2014 3 BC-20E

Ref. Part
No. No. Description

11 50986 DECAL, "PRESS TO ENTER"
12 51372 KNOB
13 52161 USB COVER
14 39782 MEAT PROBE JACK PLUG
56545 MEAT PROBE, 4", DUAL SENSOR
56546 MEAT PROBE, 6", DUAL SENSOR
57685 MEAT PROBE, 4", THIN
R6928 CAVITY PROBE, RT ANGLE
52926 FLASHDRIVE
54073 COMMUNICATIONS CABLE

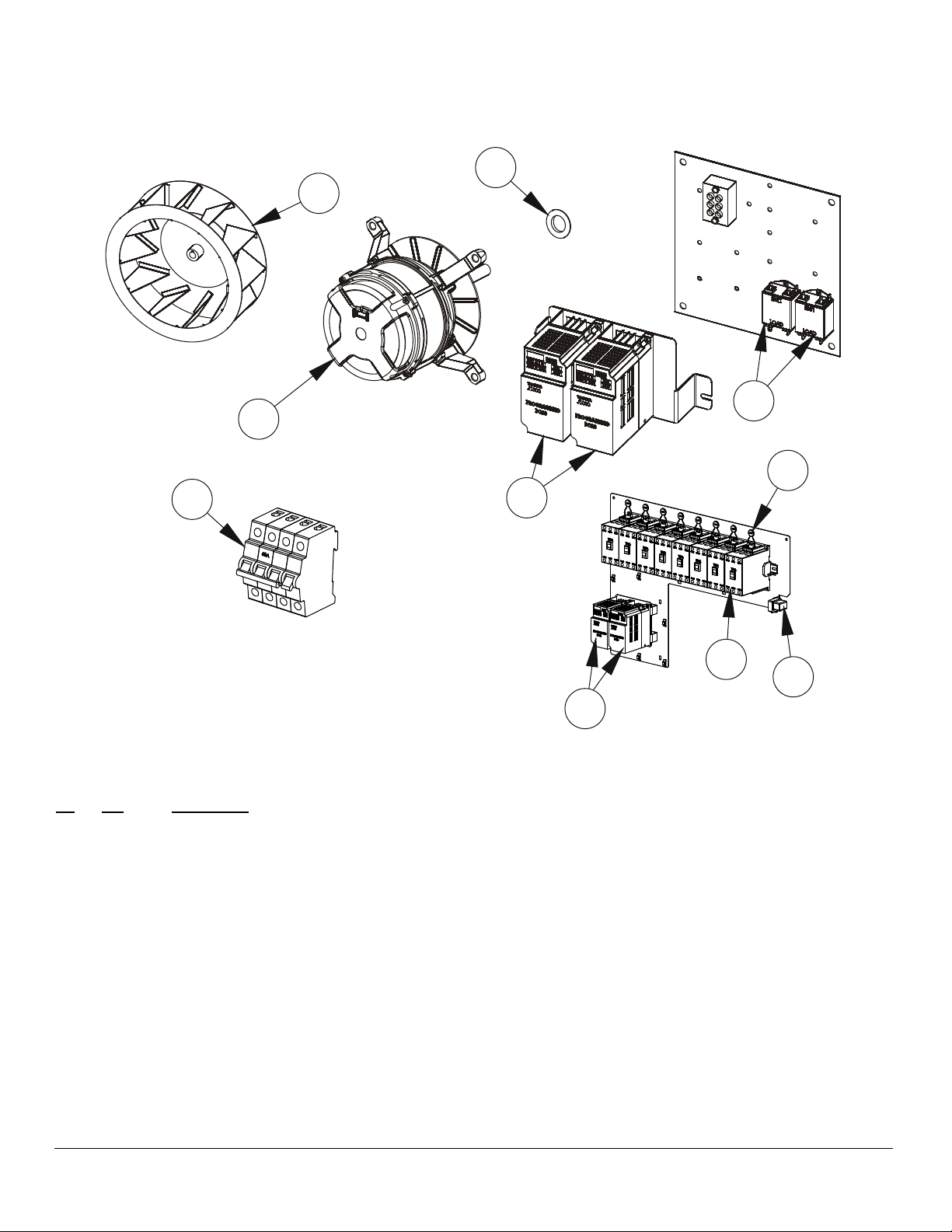

Blower Motor, Hot Air Elements, Circuit Breakers & Contactors

5

2

7

6

10

9

Ref. Part
No. No. Description

2 R5081 BLOWER WHEEL
5 R4244 MOTOR SHAFT SEAL
6 55301 MOTOR, 1/2 HP WITH KEY
7 53902 FILTER
8 53421 INVERTER DRIVE
R7189 HOT AIR ELEMENT, 208V
R7190 HOT AIR ELEMENT, 240V
R7192 HOT AIR ELEMENT, 480V
9 39804 CIRCUIT BREAKER, 63A, 208-240V MODELS
9 39113 CIRCUIT BREAKER, 480V MODELS
10 33904 MOV ASSEMBLY
11 36441 HIGH LIMIT
12 53431 CONTACTOR 208V MODELS
53432 CONTACTOR 240V OR 480V MODELS

8

12

11

8

FEBRUARY 7, 2014 4 BC-20E

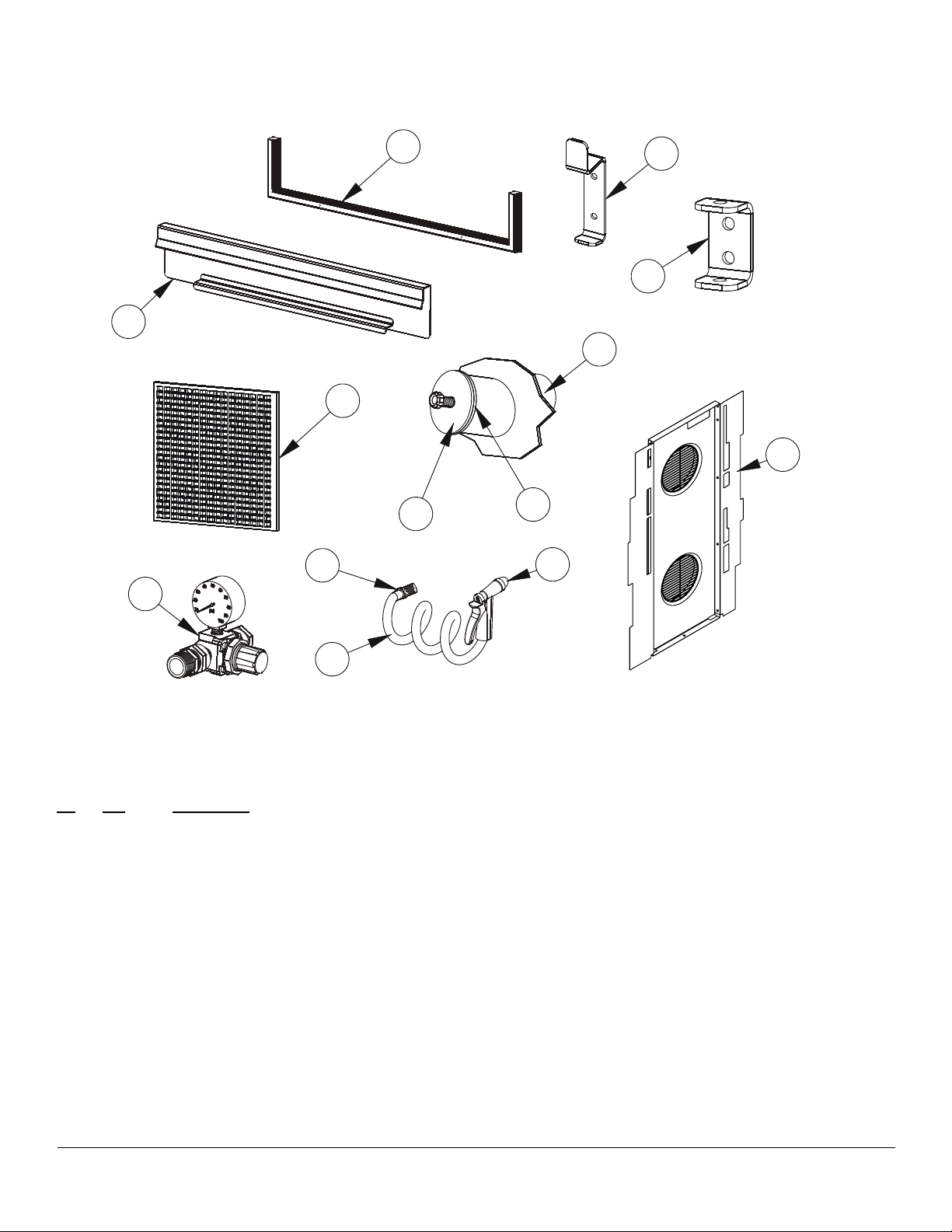

Interior/Exterior Components

4

8

9

5

12

6

16

10

13

11

15

7

14

Ref. Part
No. No. Description

4 53576 TROLLEY GASKET
5 54423 PREHEAT PANEL KIT (INCLUDES ITEM #8)
6 R3760 GREASE FILTER
7 R11210 PRESSURE REGULATOR ASSEMBLY
8 R5392 HOSE HOOK
9 R5391 PROBE HOLDER
10 R7575 PRESSURE RELIEF SPRING
11 R2657 PRESSURE RELIEF GASKET
12 R2814 HOSE, 1 5/8" ID (BY THE FOOT)
13 R0376 CONNECTOR, 3 WAY
14 R10889 HOSE, 1/2" OD X 10'
15 53639 SPRAY NOZZLE
R10899 SPRAY HOSE ASSEMBLY (INCLUDES ITEMS 13, 14, AND 15)
16 55415 BAFFLE ASSY

FEBRUARY 7, 2014 5 BC-20E

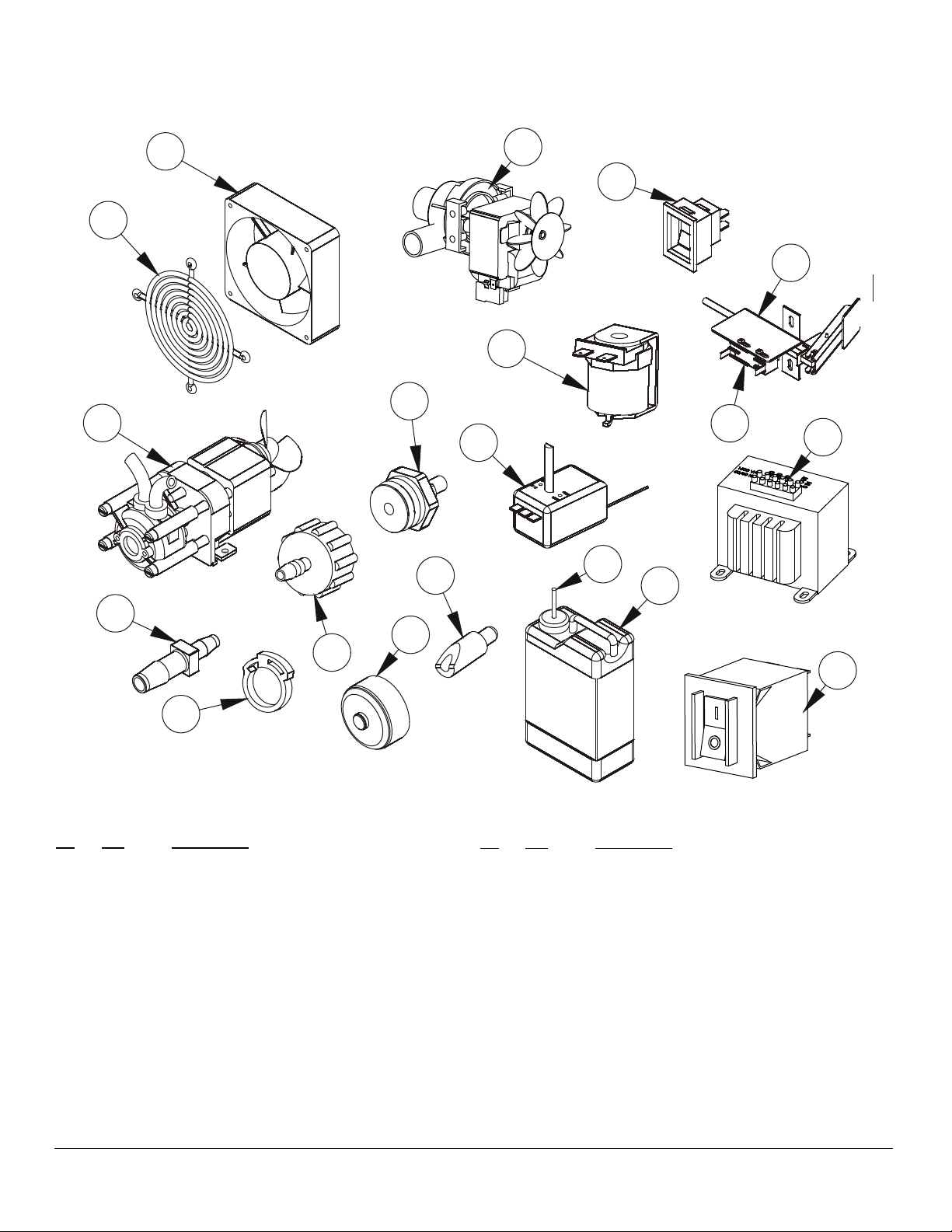

Misc. Electrical & Delime System Components

1

3

4

2

16

5

11

6

7

14

15

13

17

19

8

9

10

Ref. Part
No. No. Description

1 23034 COOLING FAN, 230V 4"
2 22718 FAN GUARD
3 R2726 DRAIN PUMP
4 36376 GAS SWITCH
5 R5075 WATER INLET SOLENOID
R7910 VARISTOR
6 R10398 DELIME PUMP
7 R3661 QUENCH THERMOSTAT
8 53641 FITTING, BARBED 1/4" X 3/8"
9 53752 FITTING, 3/4" GHT X 1/4" BARB

12

18

Ref. Part
No. No. Description

10 R10391 CLAMP, SNAP-GRIP
11 R10030 DELIME PORT
R11008 HOSE, 3/8" ID (5 FOOT PIECE)
12 R10039 DELIME PORT CAP
13 R10732 DELIME BOTTLE
14 R11164 DELIME BOTTLE WEIGHT
15 R10394 HOSE, 1/4" ID CLEAR (BY THE FOOT)
16 R4588 DOOR SWITCH, COMPLETE
(INCLUDES ITEM 17)
17 16807 DOOR SWITCH
18 39112 CIRCUIT BREAKER
19 51453 480V STEPDOWN TRANSFORMER

FEBRUARY 7, 2014 6 BC-20E

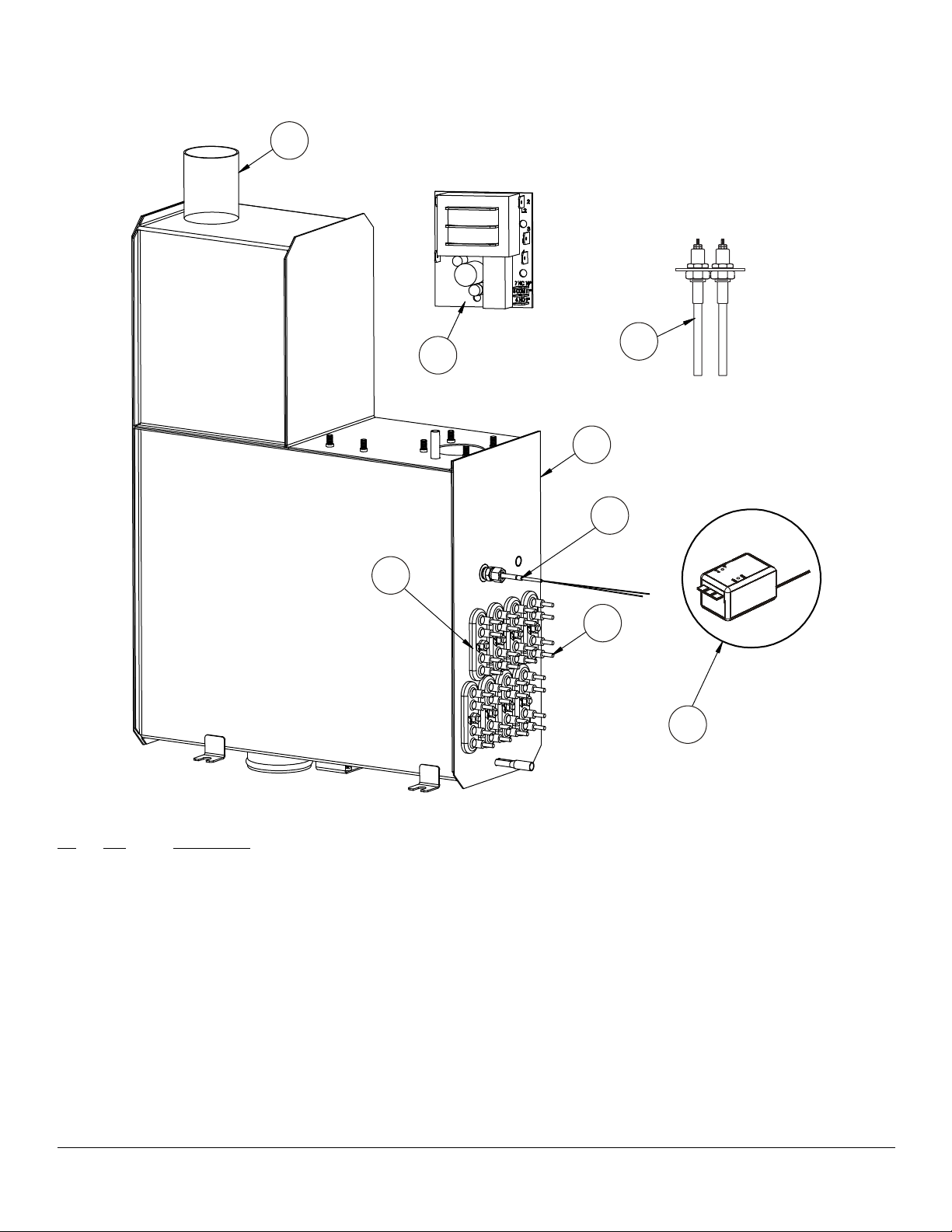

Boiler

5

4

3

1

2

7

8

6

Ref. Part
No. No. Description

1 53482 INSULATED BOILER, W/O ELEMENTS (INCLUDES ITEM #2)
2 39800 RTD PROBE, 1K
3 R6965 LEVEL PROBE ASSEMBLY
4 R5708 LEVEL CONTROL BOARD
5 R4579 HOSE, 2 3/8 ID (BY THE FOOT)
6 R2630 BOILER HIGH LIMIT
7 R2769 STEAM ELEMENT 208V 3KW
R2772 STEAM ELEMENT 240V 3KW
R4432 STEAM ELEMENT 480V 3KW
8 R2768 STEAM ELEMENT 208V 6KW
R2771 STEAM ELEMENT 240V 6KW
R2770 STEAM ELEMENT 480V 6KW
R2467 RUBBER DRAIN BOOT
R8175 HOSE, 1 1/4" ID (BY THE INCH)
R1088 HOSE, 7/8" ID (BY THE FOOT)

FEBRUARY 7, 2014 7 BC-20E

Door Components

15

5

7

1

2

8

6

2

3

9

14

4

11

16

13

12

Ref. Part
No. No. Description

1 R4130 TOP HINGE PLATE
2 15932 BUSHING
3 15933 SPACER
4 R3510 LOWER DOOR PIN
5 R2105 WINDOW GASKET (BY THE FOOT)
6 R5797 WINDOW GLASS
7 R4191 DOOR GASKET (FOR OVENS BUILT BEFORE 09-07-10)
53568 DOOR GASKET (FOR OVENS BUILT AFTER 09-07-10)
R3496 VERTICAL GASKET RETAINING STRIP (FOR OVENS BUILT BEFORE 09-07-10)
R3497 HORIZONTAL GASKET RETAINING STRIP (FOR OVENS BUILT BEFORE 09-07-10)
8 R11101 DOOR HANDLE
9 R7889 HANDLE SUPPORT
10 R11412 HANDLE BUSHING
11 R1082 DOOR HANDLE CAM
12 R7944 DOOR LATCH PLATE
13 R11102 BUSHING
R11106 COMPLETE HANDLE ASSEMBLY (INCLUDES ITEMS 8 THROUGH 13)
14 R0274 DOOR CAM CATCH
R1009 PLASTIC INSERT
15 R2844 DOOR SWITCH ACTIVATOR
16 R0922 ROLLER CATCH

10

FEBRUARY 7, 2014 8 BC-20E

Accessories

1

6

8

2

10

7

9

5

4

Ref. Part
No. No. Description

1 R5792 TC-14 CART, COMPLETE (INCLUDES 4-ITEM #2 )
2 R4487 RACK GUIDE, STANDARD DESIGN FOR TC-14 CART (2 OR 4 PER CART) 13 POSITIONS
4 R5989 TC-10 CART, COMPLETE WITH NON-REMOVABLE UNIVERSAL (RACK OR PAN) GUIDES 10 POSITIONS
5 R5839 TC-20 CART, COMPLETE WITH NON-REMOVABLE STANDARD (RACK) GUIDES 20 POSITIONS
6 R5324 WIRE RACK, TC-14
R1013 WIRE RACK, TC-20
7 R11249 CASTERS (SET OF 4) TC-14, TC-10, TC-20, OR 96 PLATE BANQUET CART
R3492 LEG, STANDARD (EA)
R4803 LEG, SEISMIC (EA)
R6184 LEG, SEISMIC (SET OF 4)
8 52387 CHICKEN RACK
9 54247 MULTI-PURPOSE FRY RACK
10 R10955 SPRAY BOTTLE
R11534 96 PLATE BANQUET CART, COMPLETE
R11426 THERMAL COVER

FEBRUARY 7, 2014 9 BC-20E
