BC14E & CNV-14E
Effective June 2, 2010
(Superseding all previous parts lists)
P/N 53532
The Company reserves the right to make substitutions
in the event that items specified are not available. www.blodgett.com
June 2, 2010 2 BC-14E & CNV-14E
Serial Numbers
Containing...
IU
IX
Example: 021896IU023S
IMPORTANT: When ordering parts, please provide the model,
gas type, voltage and serial number of the oven.
The identification plate is located on the left side of the
control compartment.
TO OBTAIN LITERATURE:
800-331-5842
Fax: 802-860-3755
Email: literature@blodgett.com
or
www.blodgett.com
The Blodgett Corporation
44 Lakeside Avenue, Burlington, Vermont, 05401
802-860-3700 800-331-5842 802-860-3732 (fax)
www.blodgett.com
June 2, 2010 3 BC-14E & CNV-14E
Table of Contents
Front View 4 - 13
Control Panel, Door, Exterior 4 - 5
Control Panel Exploded Views 6 - 9
Relay Module Assembly 10
Convection Motor Components 11
Plumbing Components 12 - 13
Control Module Assemblies 14 - 15
Steam Generator Components 16 - 17
Interior Components & Accessories 18
Schematics 19 - 20
June 2, 2010 4 BC-14E & CNV-14E
FRONT VIEW
Control Panel, Door & Exterior Components
June 2, 2010 5 BC-14E & CNV-14E
FRONT VIEW CONTINUED
Control Panel, Door & Exterior Components
Ref. No. Description Qty. Part No.
Trough, door drip 1 R9573
3 Door Assy 1 R8628
Nameplate, Blodgett 1 90086
Gasket, door perimeter 1 R3695
Retainer strip, gasket, horizontal 2 R3774
Retainer strip, gasket, vertical 2 R3775
Glass window, door 1 R5797
Gasket, window (per foot) 17 R2105
Switch, door 1 31485
Bracket assy, door switch 1 R8944
4 Hinge Assy, top and bottom (comprised of parts listed below) 2 R8482
5 Hinge, upper door assy 1 R8863
6 Hinge, lower door 1 R8478
9 Pin, hinge 1 R8479
Tape, .01 x .375 VHB (per foot) 1 R9615
Holder, fuse 3/2 20442
Fuse, 5 amp (qty 3 for 480V) 2 R5755
Guide, door 2 R4875
12 Kit, deliming port (service) (comprised of parts listed below) 1 R10062
Hose, deliming, 3/8” ID (5 foot piece) 2 R11008
13 Switch, toggle, deliming 1 R9400
15 Handle, door 1 R6313
Screws, door handle 3 R6314
Catch Assy, door (comprised of parts listed below) 1 R2296
16 Latch, door s/s 1 R2780
17 Catch, door s/s 1 R2781
18 Washer, flat #10 3 M1820
19 Washer, lock #10 3 R0726
20 Screw, machine 10-32 x 3/8 s/s head 1 R2825
21 Screw, machine M5x 8-16 s/s head (S/N’s prior to 1992) 2 R0031
June 2, 2010 6 BC-14E & CNV-14E
FRONT VIEW CONTINUED
Solid State Manual Control Panel
June 2, 2010 7 BC-14E & CNV-14E
FRONT VIEW CONTINUED
Solid State Manual Control Panel
Ref. No. Description Qty. Part No.
7 Switch, mode 1 R4623
8 Thermostat, hot air, P5 1 R6407
Probe, thermostat 1 R6003
9 Timer, 60 hz 1 R2666
Timer, 50 hz 1 R3942
10 Switch, flush/drain 1 R2715
11 Switch, fan high/low 1 R8594
12 Resistor assy 1 R8724
13 Switch, steam demand 1 R8595
14 Potentiometer, steam demand 1 R9384
15 Lamp, indication clear 1 R0226
Lamp, indication blue 2 R9567
19 Control, motor 1 R9309
20 Relay, 24V 1 R7689
21 Knob, large 2 R8742
22 Knob, small 1 R8743
32 Transformer 1 52948
33 Control, meat probe 1 R7692
34 Wir e, TC 1 R5325
37 Holder, fuse 1 M3167
38 Fuse, 2 amp, 24V 1 R7717
39 Connector, panel jack 1 R5219
Probe, meat 1 R5315
40 Switch, meat probe 1 R8740
June 2, 2010 8 BC-14E & CNV-14E
FRONT VIEW CONTINUED

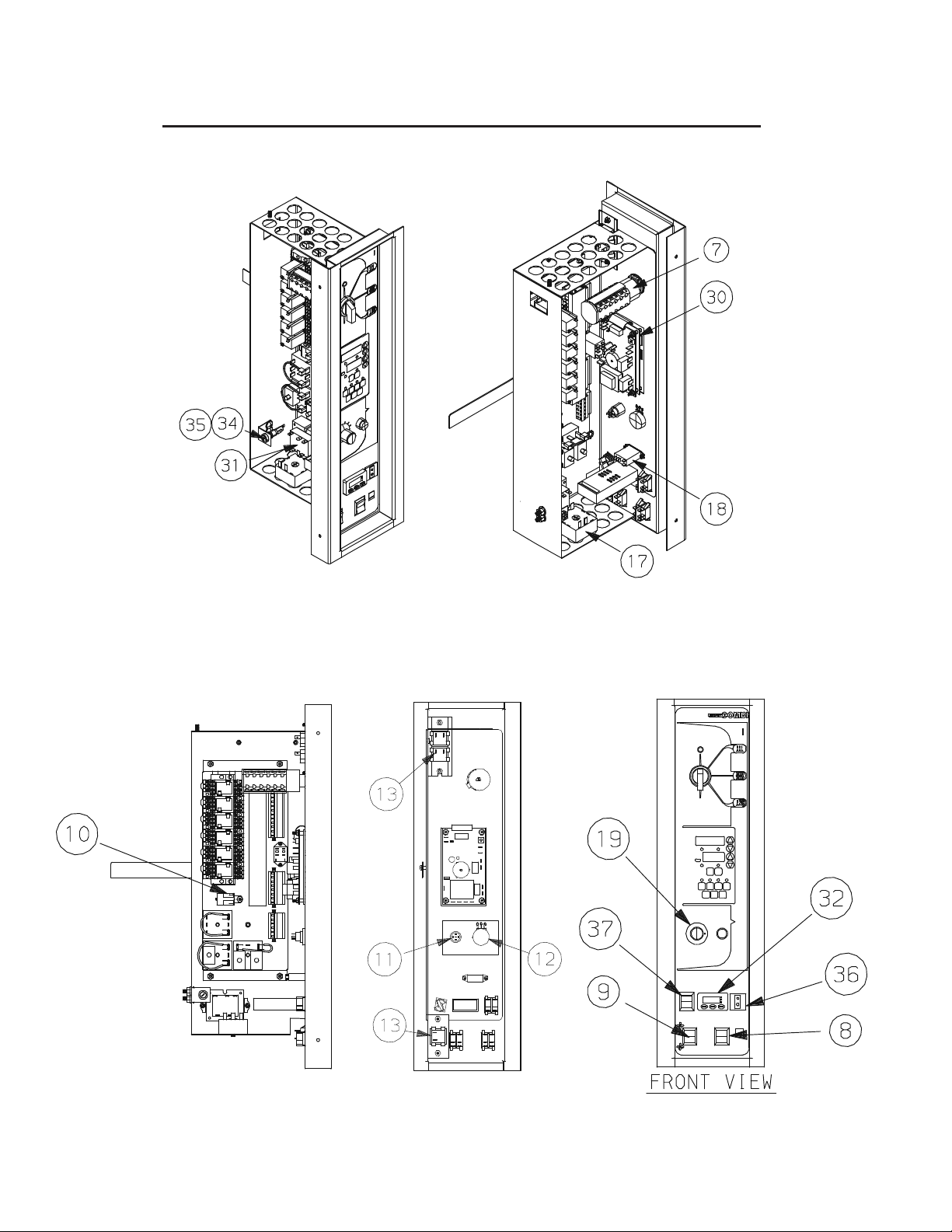

Digital Cook and Hold Control Panel
June 2, 2010 9 BC-14E & CNV-14E
FRONT VIEW CONTINUED
Digital Cook and Hold Control Panel
Ref. No. Description Qty. Part No.
3 Decal, solid state Cook and Hold 1 R9388
7 Switch, mode 5 position 1 R4623
8 Switch, flush/drain 1 R2715
9 Switch, fan high/low 1 R8594
10 Resistor assy 1 R8724
11 Switch, steam demand 1 R8595
12 Potentiometer, steam demand 1 R9384
13 Lamp, indication clear 1 R0226
Lamp, indication blue 2 R9567
17 Control, motor 1 R9309
18 Relay, 24V 1 R7689
19 Knob, small 1 R8743
Resistor, motor speed 200K(n/s) 1 R9386
30 Controller, CH-136 1 R7403
Probe, control Cook and Hold 1 R6928
31 Transformer 1 52948
32 Control, meat probe 1 R7692
Wire, TC (n/s) 1 R5325
34 Holder, fuse 1 M3167
35 Fuse, 2 amp, 24V 1 R7717
36 Connector, panel jack 1 R5219
37 Switch, meat probe 1 R8740
Probe, meat 1 R5315
June 2, 2010 10 BC-14E & CNV-14E
FRONT VIEW CONTINUED

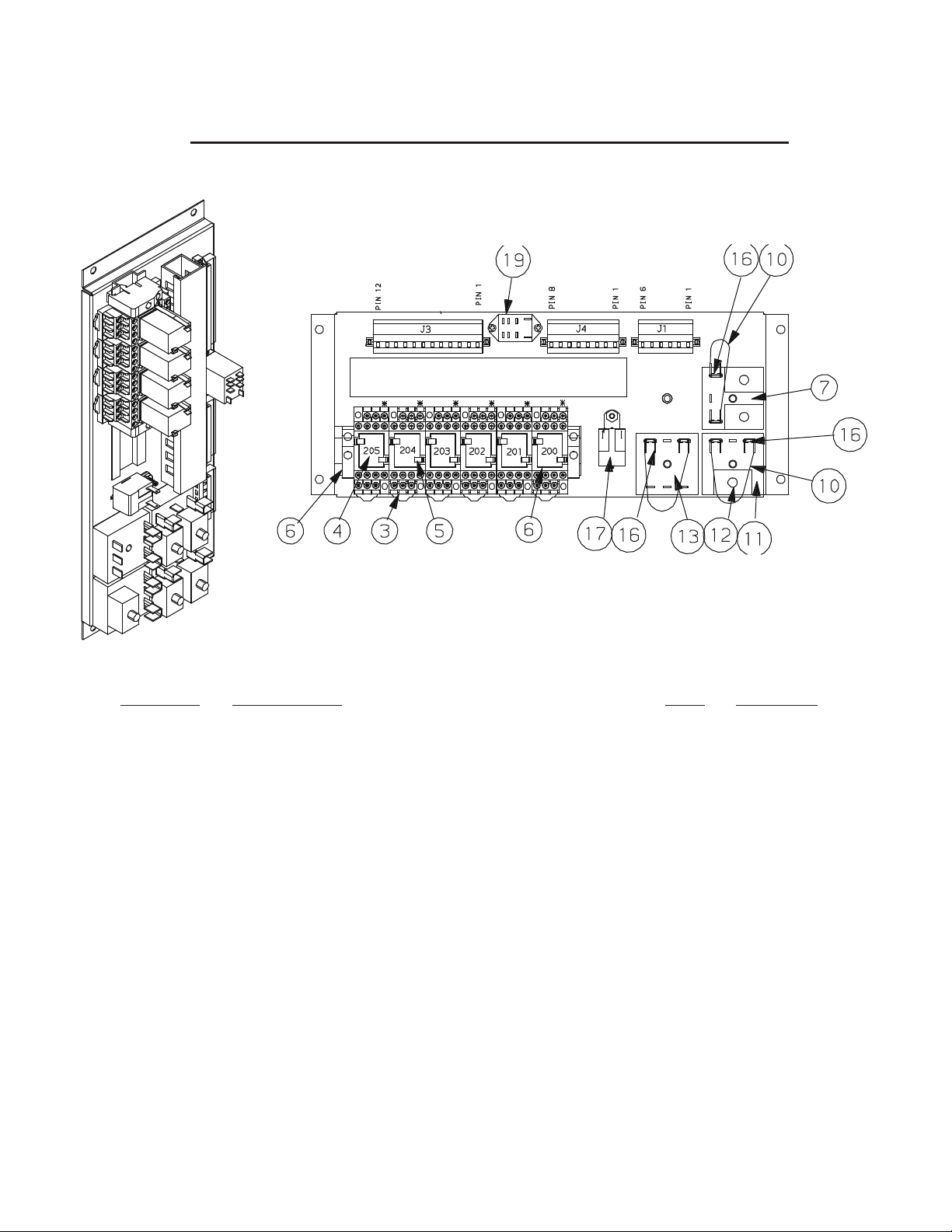

Relay Module Assembly
Ref. No. Description Qty. Part No.
3 Socket, relay 6 33922
4 Relay, logic 6 33902
5 Clips, hold down 12 33923
6 Stop, end 2 R1580
7 Solid state timer, 230V combi 1 R8592
3 Potentiometer, 0.1 to 4.0 minutes 2 R8592
10 Resistor assy 3 R8883
11 Solid state timer, 230V flush 1 R8586
12 Potentiometer, 0.1 to 6.0 minutes 1 R8593
13 Solid state timer, 230V steam demand 1 R8584
16 Piggy back 6 15937
17 Buzzer, 230V 1 35886
19 Relay, DPST 240V 1 R2792
June 2, 2010 11 BC-14E & CNV-14E
REAR VIEW

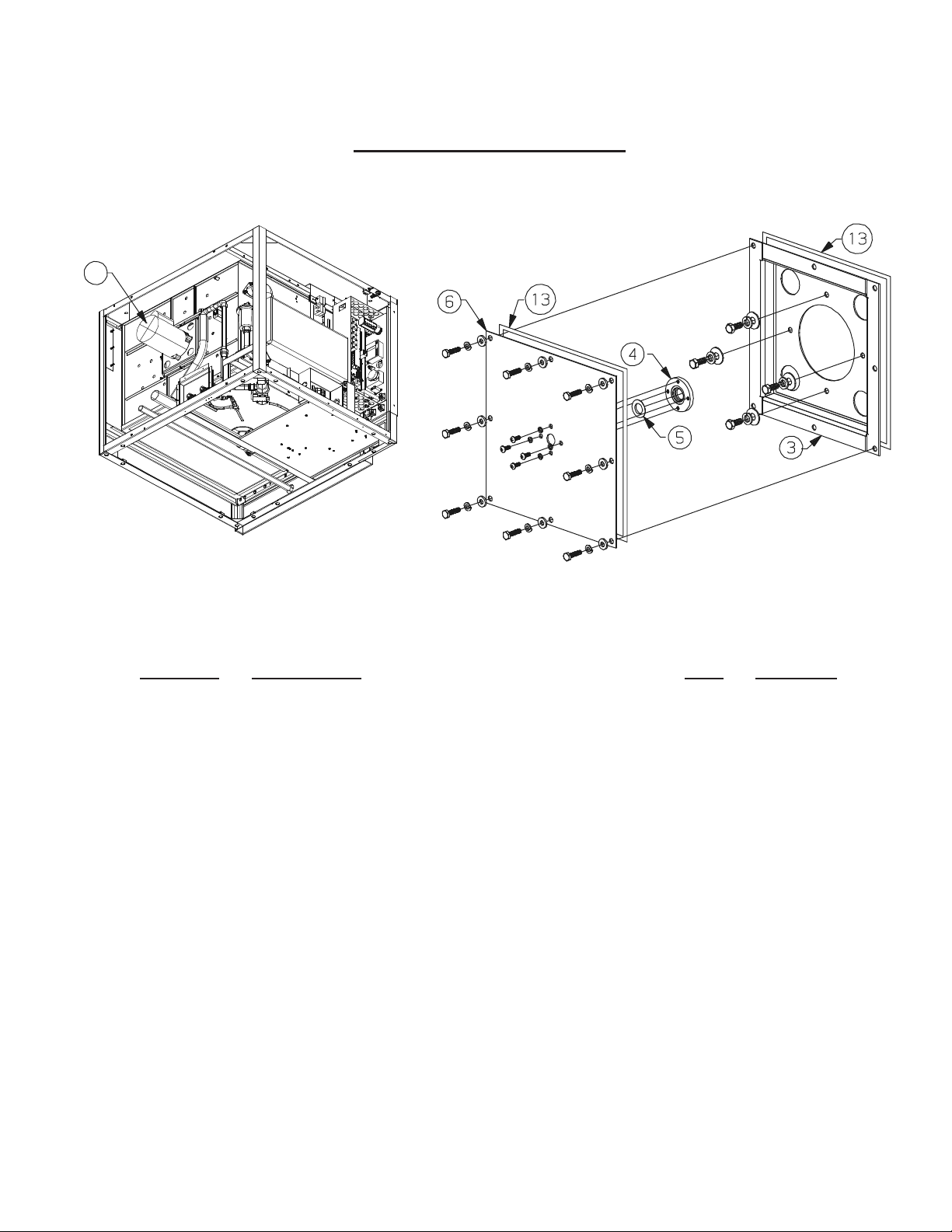

Convection Motor Assembly
2
Ref. No. Description Qty. Part No.
2 Motor, 115/230V 1/2 hp 1 R5108
3 Bracket, motor mount 1 R8154
4 Retainer, seal 1 R8955
5 Seal, motor shaft 1 R4244
6 Plate, insulation cover 1 R8205
13 Sealant, 1/4 x 3/16 gore tex (per foot) 9 R8423
June 2, 2010 12 BC-14E & CNV-14E
REAR VIEW CONTINUED

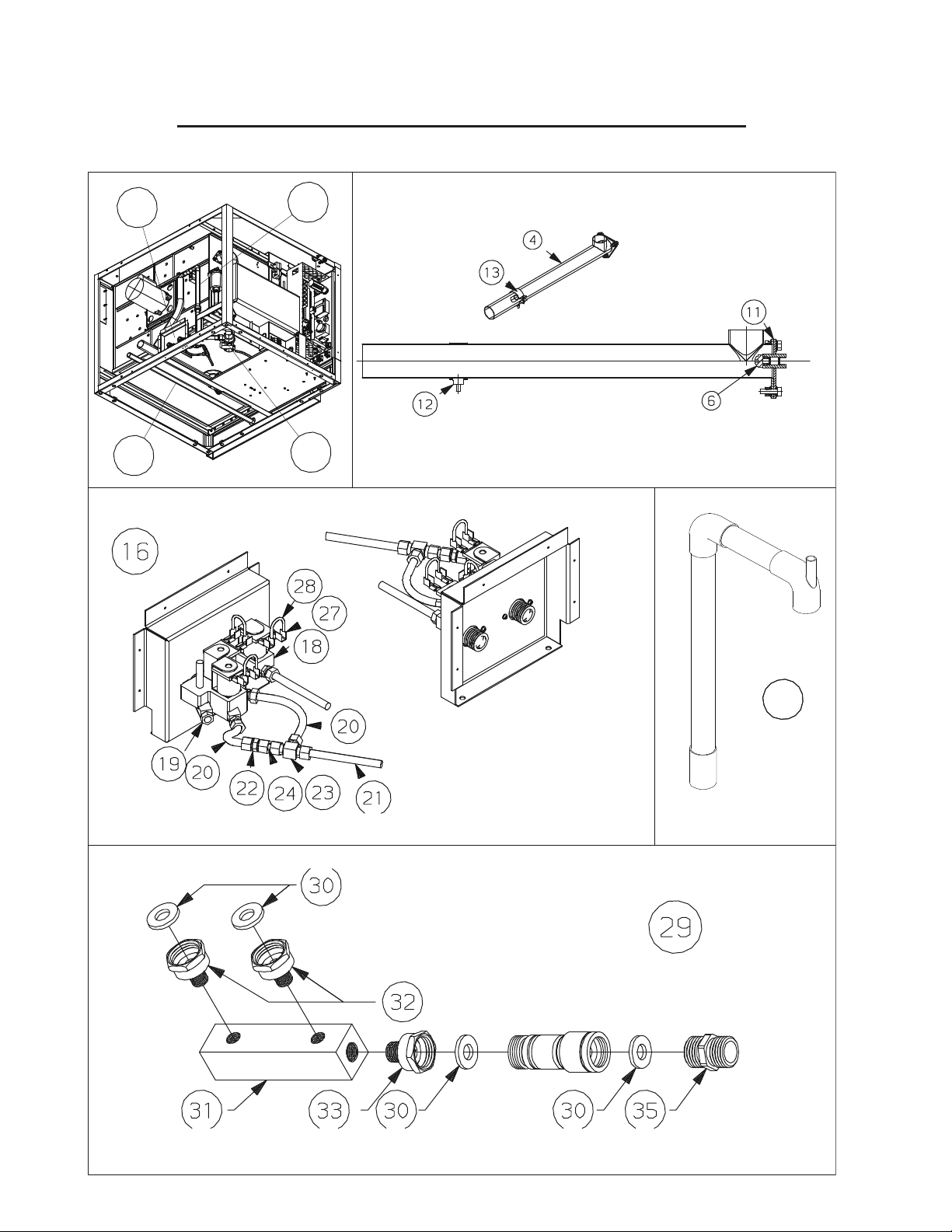

Plumbing Components
16
2
36
1
3636
June 2, 2010 13 BC-14E & CNV-14E
REAR VIEW CONTINUED
Plumbing Components
Ref. No. Description Qty. Part No.
1 Drain pump 60 hz 1 R2726
Drain pump 50 hz 1 R7563
Hose, flex 1/4” x 48” (pump to drain) 1 R8949
2 Tube, drain drip pan 1 R8872
Clamp, band 1 R0254
4 Drain tube 1 R8194
6 Nozzle, brass spray 2.5 gpm @ 40 psi 1 R8198
11 Gasket, 3/16 x 3/16 gore tex (per foot) 1 R8420
12 Thermostat, drain P4 1 R8596
13 Strap, drain thermostat 1 R9339
16 Solenoid assy 1 R9382
18 Solenoid valve 1 R5078
19 Solenoid valve 1 R6894
20 Hose, 3/8 x 6” s/s flex 2 R8952
21 Hose, 3/8 x 36” s/s flex 1 R6330
22 Fitting, compression 3/8 x 3/8 straight 1 R8984
23 Fitting, compression 3/8 x 3/8 x 3/8 tee 1 R8985
24 Reducer, slow fill 1 R9324
27 Piggyback 6 15937
28 Suppressor assy, arc 3 R7910
29 Manifold assy, water inlet 1 R9592
30 Washer, garden hose 4 R7750
31 Manifold, inlet water 1 R9591
32 Fitting, 1/4 NPT to GHT brass 2 R9580
33 Fitting, 3/8 NPT to GHT brass 1 R9581
35 Fitting, 3/4 garden hose male thread 1 R7978
36 Tube, trap 1 R9852
Conversion kit, hot water 1 R9604
June 2, 2010 14 BC-14E & CNV-14E
,
CONTROL MODULE ASSEMBLIES
Contactors, Fuses, Terminal Blocks
COLD PLATE ASSEMBLY
480V
ONLY
MODULE ASSEMBLY
208240V, 50/60 HZ, 1 PH
MODULE ASSEMBLY
380/415V WYE
3 PH
MODULE ASSEMBLY
60 HZ, 3 PH
June 2, 2010 15 BC-14E & CNV-14E
CONTROL MODULE ASSEMBLIES
Contactors, Fuses, Terminal Blocks
Ref. No. Description Qty. Part No.
Harness, steam (1 phase) 1 R9350
Harness, steam (3 phase) 1 R8790
8 Terminal block 3 R1586
9 Terminal block stop 1 R1580
12 Hose, 3/8 x 24 flex s/s 1 R8799
Hose, 3/8 x 18 flex s/s 1 R6328
17 Contactor, solid state 4 R9932
18 Screw, 10-32 x 1 1/2 socket head cap 8 R8262
20 Nut, 10-32 hex head nylon s/s 16 R8891
22 Fitting, 3/8 compression x 1/4 NPT 2 R4245
24 Thermostat, cold plate water flow P12 1 R8015
25 Thermostat, cold plate no water/failsafe P13 1 R8012
27 Fuse, time delay 4 R8728
28 Transformer 1 17223
June 2, 2010 16 BC-14E & CNV-14E
STEAM GENERATOR COMPONENTS
Steam Generator, Float Switch, Elements
31
30
1
23
22
24
June 2, 2010 17 BC-14E & CNV-14E
STEAM GENERATOR COMPONENTS
Steam Generator, Float Switch, Elements
Ref. No. Description Qty. Part No.
1 Steam generator (service kit) 1 R10474
3 Insulation 1 R8173
4 Holder,thermostat 1 R8071
5 Plug, 1/4 NPT brass 1 R8183
6 Bracket, sensor mounting P11 1 R9259
13 Hose, 1.125 ID x 1.5” (1 ft. piece) 1 51999
14 Clamp, hose 2 R0254
15 Thermostat, flush/drain P11 1 R8012
16 Drain pump 208/240V 1 R2726
17 Element, steam 208V 3 R2768
Element, steam 240V 3 R2771
Element, steam 220/380 V 3 R7187
Element , steam 240/415 V 3 R2771
Element, steam 480V 3 R2770
18 Tape, foil (per foot) 1 T102698
19 Tube, pump connection 1 R8074
20 Gasket, goretex .25w x .18h (per foot) 1 R8423
21 Switch assy, float (comprised of parts listed below) 1 R10056
22 Coupling, half 1/8 NPT s/s 1 R10057
23 Switch, float 2 50265
24 Extension, float switch 1 R8780
Gasket, goretex .18 x .18 (per foot) 1 R8420
30 Tube, steam outlet assy 1 R8065
Gasket, steam outlet tube, goretex .25w x .18h (per foot) 1 R8423
31 Thermostat, steam generator high limit F6 1 R2630
Thermostat, cooking compartment high limit F3 1 36441
June 2, 2010 18 BC-14E & CNV-14E

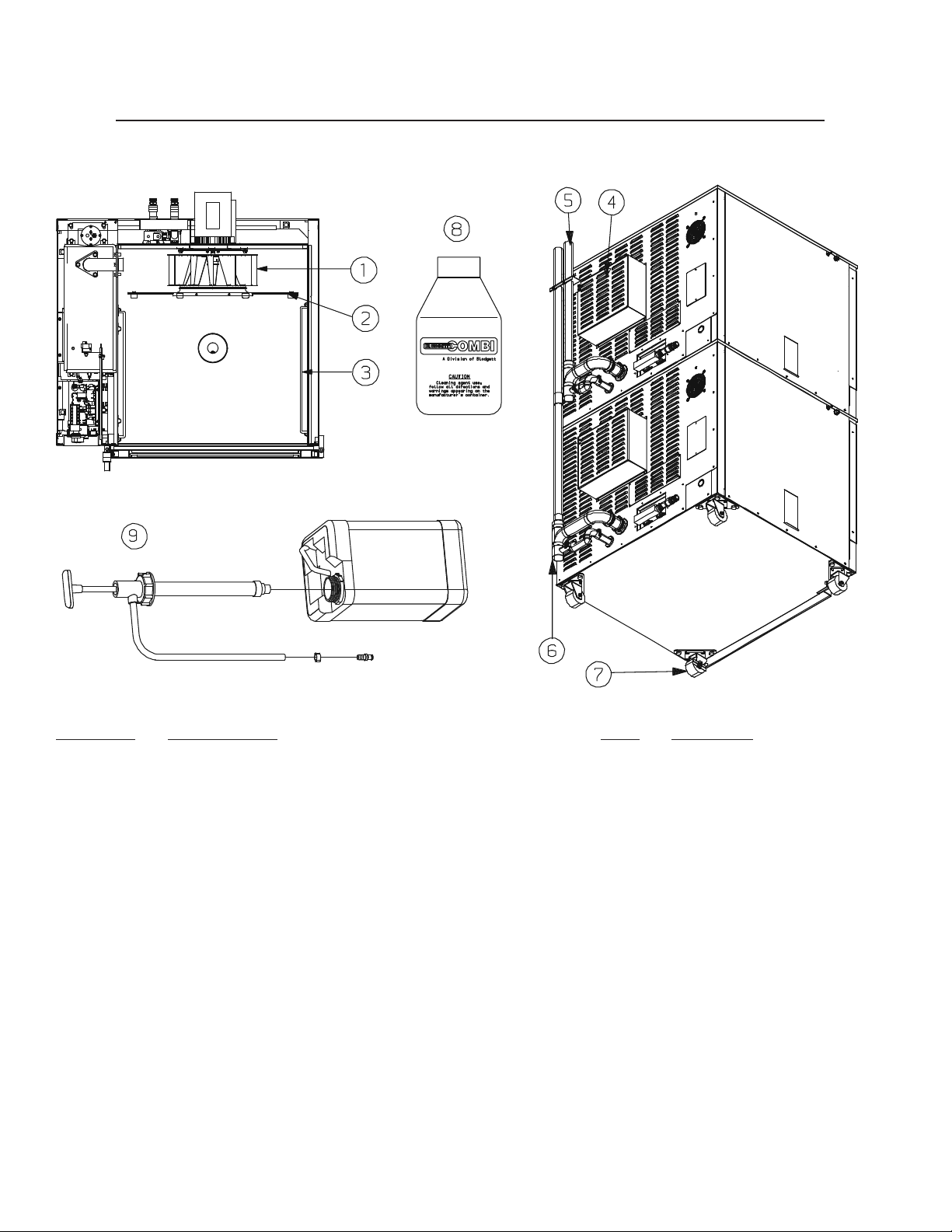

INTERIOR COMPONENTS & ACCESSORIES
Hot Air Elements, Baffle, Filter
Top Vi ew
Ref. No. Description Qty. Part No.
1 Blower wheel 1 R5081
2 Baffle, air 1 R9270
Filter, grease 1 R3760
3 Rack guides 2 R4409
Racks, wire shelves s/s 5 R3664
Element assy, hot air 208V 1.5kw 1 2 R9472
Element assy, hot air 230V 1.5kw 12 R9473
4 Cover, motor ALCT 1 R9365
Cover, motor s/s 1 R9366
5 Steam vent assy, single section 1 R9251
6 Steam vent assy, stacked unit 1 R9252
Hose, flex drain, 10” Drip pan to main drain 1 R9308
Hose, flex drain, 46” Drain pump to main drain 1 R9307
Clamp, hose 2 R0254
7 Caster kit, set of 4 1 R6308
8 Pressure spray bottle 1 R0006
Repair kit, pressure spray bottle 1 R6332
9 Deliming bottle assy 1 R8859
Hose and nozzle assy, cleaning 10 ft, single sections 1 R10899
Coupling, Fernco 1 R7835
June 2, 2010 19 BC-14E & CNV-14E
WIRING SCHEMATIC
North American R8013
June 2, 2010 20 BC-14E & CNV-14E
WIRING SCHEMATIC
CE R8877
