Blodgett AC-500 XCEL Parts Diagram

AC-500 XCEL

DIRECT FIRED GAS CONVECTION OVEN

REPLACEMENT PARTS LIST

EFFECTIVE JUNE 13, 2005

BLODGETT OVEN COMPANY, 44 Lakeside Avenue, Burlington, Vermont 05401 USA

Telephone: [phone] [phone] Fax: [phone]

www.blodgett.com

Superseding All Previous Parts Lists.
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.

www.blodgett.com

JUNE 13, 2005 2 AC500 XCEL

SERIAL NUMBER LOCATION / KEY:

IMPORTANT: When ordering parts, please provide the model, gas
type and serial number of the oven. The identification plate is located
in the bottom of the motor compartment on the right hand side and,
also, above the control panel under the ledge.

SERIAL NUMBER IDENTIFICATION CODE:

RJ = AC500 XCEL

SERIAL NUMBER EXAMPLES

030104RJ001T (NEW STYLE)

03/01/04 = DATE

RJ = LETTER CODE FOR AC500 XCEL

001 = FACTORY SEQUENCE

T = TOP OVEN

TO OBTAIN LITERATURE:

Blodgett Literature Department

800-331-5842, x6157

Fax: [phone]

Email: [e-mail]

or

www.blodgett.com

JUNE 13, 2005 3 AC500 XCEL

TABLE OF CONTENTS

 Doors Are Not Returnable

SOLID STATE MANUAL CONTROLS .................................................. PAGE 4

SOLID STATE DIGITAL CONTROLS ................................................... PAGE 5

CH102 FAST CONTROLS ..................................................................... PAGE 6

BURNER ASSY AND GAS VALVE COMPONENTS ............................ PAGE 7

INTERIOR VIEW .................................................................................... PAGE 8

DOOR COMPONENTS .......................................................................... PAGE 9

LOWER DOOR SUPPORT COMPONENTS ......................................... PAGE 10

EXTERIOR COMPONENTS ................................................................... PAGE 11

ACCESSORIES ...................................................................................... PAGE 12

JUNE 13, 2005 4 AC500 XCEL

SOLID STATE MANUAL CONTROLS

11

10

3

8

4

7

3

1

3

6

Ref. Part
No. No. Description

1 18578 Controller, Temperature

30712 Probe, Temperature
2 18234 Potentiometer, Remote
3 24684 Knob, for Temperature, Mode Selector, Timer

31839 Bracket, Temperature Control Mounting
4 21068 Mode Selector Switch, 4 Position
5 36121 Buzzer, 120V
6 18225 Timer, 60 Minute, 120V, 60 HZ
7 30662 Momentary Light Switch Kit
8 18265 Indicator Light, 28V, Red, Round
9 31274 Transformer, 120V to 24V
10 33910 Relay Assy

31846 Harness, Wiring Control
11 31841 Decal, Lexan Control (Manual)
12 36432 Spark Box

30503 Terminal Block

22301 Axial Fan Assy

36580 Harness, Rear Connecting

9

12

5

NOTE:

Buzzer is located

here, however not

visible in this

drawing.

FOR UNITS BUILT AFTER 10/22/03- THESE

PARTS WERE ADDED/CHANGED DUE TO A

Ref. Part
No. No. Description

37520 Probe, temperature
1 20355 Transformer, 115V to 24V
2 37317 Timer, 60 Min 24V
3 37315 Buzzer 24V
4 37090 Harness, control
5 36376 Switch, Gas on/off
6 36432 Spark Box
7 36546 Controller, Temperature
8 R8740 Switch, Rate
9 37058 Relay. 24 VAC
10 36616 Knob, Control

37334 Harness, infinite add-in
11 R3984 Relay, DPST 24V

37324 Module Assy-

10

CHANGE IN VOLTAGE.

includes everything pictured

below.

7

2

11

4

9

4

1

8

5

3

6

JUNE 13, 2005 5 AC500 XCEL

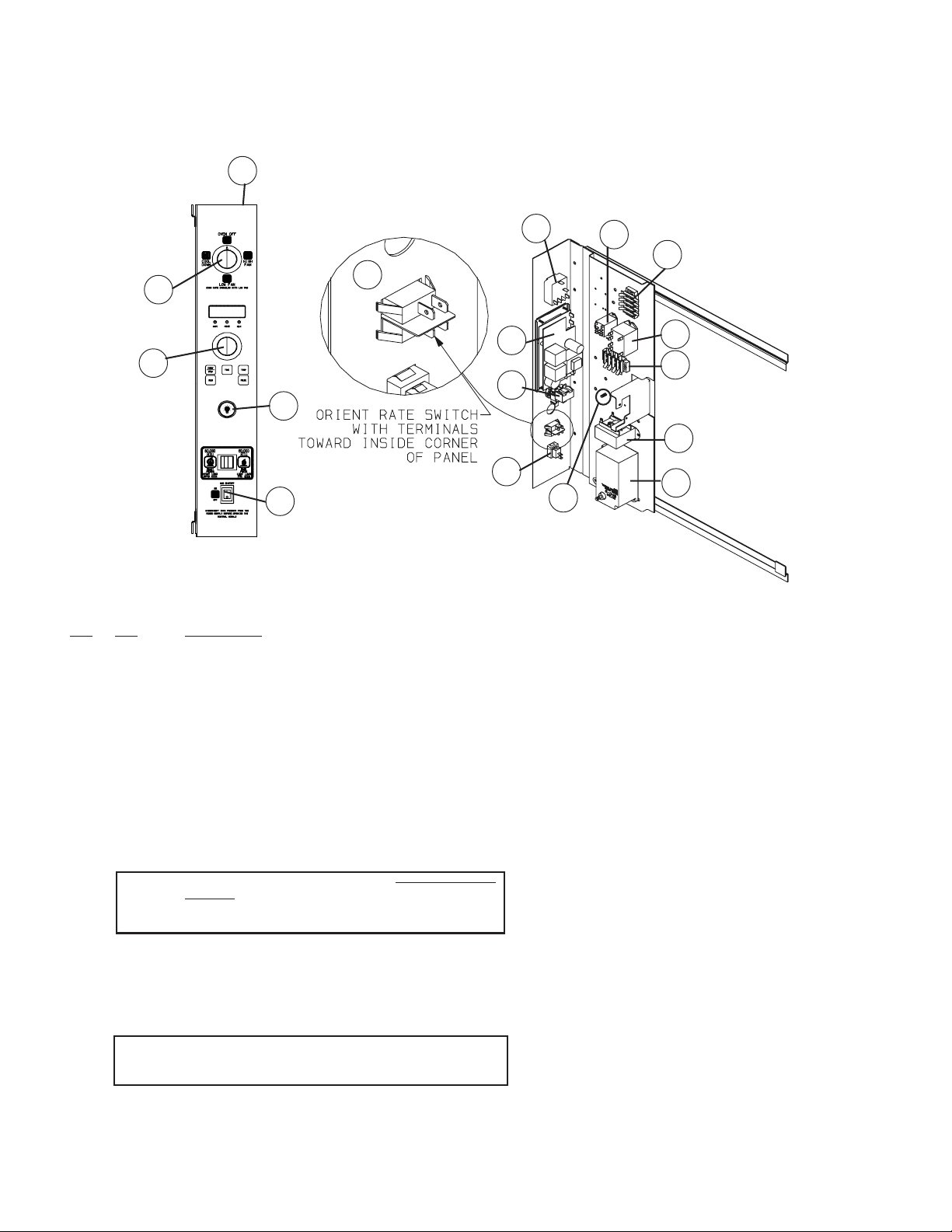

SOLID STATE DIGITAL CONTROLS

5 KEY

11

4

6

2

5

13

Ref. Part
No. No. Description

1 30658 Controller, Time & Temperature Qty 1

37520 Probe, Temperature Qty 1
2 36617 Knob, Adjust Temperature Qty 1
3 21068 Mode Selector Switch, 4 Position Qty 1
4 36616 Knob, Mode Selector Qty 1
5 30662 Momentary Light Switch Kit
6 R8740 Rate Switch
7 20355 Transformer, 120V to 24V
8 90588 Grounding Lug

37099 MOV Assy (not shown)

NOTE: The MOV Assy attaches to the terminal block

of the control harness.

9 37090 Harness, Control (not shown complete)

NOTE: The two terminal blocks shown are included with the

harness and are shown plugged into the module.
The wires of the harness have been eliminated from
the picture.

10 37058 Relay Assy Qty 1
11 37983 Control Panel & Decal Assy Qty 1
12 36432 Spark Box
13 36376 Gas Switch, On/Off
14 R3984 Relay, DPST, 24V

R7514 MOV Assy (not shown)

NOTE: The MOV Assy R7514 attaches to the coil of the

Relay R3984. They do not come as a kit and must
be purchased as separate items.

30503 Terminal Block

22301 Axial Fan Assy

36580 Harness, Rear Connecting

37306 Module Assy-

includes everything pictured above

13

3

14

9

1

10

9

5

7

12

8

JUNE 13, 2005 6 AC500 XCEL

CH102 FAST CONTROLS

14 KEY

9

2

1

3

5

4

12

7

8

7

4

5

11

Ref. Part
No. No. Description

1 37087 Controller, CH102 (14 Key)

37519 Probe, RTD 1000 ohm
2 21068 Mode Selector Switch, 4 Position Qty 1
3 36616 Knob, Mode Selector Qty 1
4 30662 Momentary Light Switch Kit
5 R8740 Rate Switch
6 20355 Transformer, 120V to 24V
7 37090 Harness, Control (not shown complete)

NOTE: The two terminal blocks shown are included with the

harness and are shown plugged into the module.
The wires of the harness have been eliminated from
the picture.

8 37058 Relay Assy Qty 1
9 XXXXX Control Panel & Decal Assy Qty 1
10 36432 Spark Box
11 36376 Gas Switch, On/Off
12 R3984 Relay, DPST, 24V

R7514 MOV Assy (not shown)

NOTE: The MOV Assy R7514 attaches to the coil of the

Relay R3984. They do not come as a kit and must
be purchased as separate items.

30503 Terminal Block

22301 Axial Fan Assy

36580 Harness, Rear Connecting

6

11

10

JUNE 13, 2005 7 AC500 XCEL

BURNER ASSEMBLY & GAS VALVE

6

3

5

5

3

5

6

4

10

7

2

8

9

Ref. Part
No. No. Description

1 37290 Burner Assy, NAT
1 37391 Burner Assy, LP
2 37286 Burner Bracket
3 38453 Ignitor Upgrade Kit

Consists of Flame Sensor Probe and Ignitor Rod
3 38521 Ignitor, Spark Rod Qty 2
4 38521 Manifold
5 36415 Orifice, Blank Qty 3
6 4872 Plug, pipe Qty 2
7 17874 Elbow, Reducing 3/4" - 1/2"
8 1949 Nipple, Close 1/2" NPT
9 33249 Flex Hose
10 37709 Spark Shroud

36608 Gas Valve, NAT & LP

1

JUNE 13, 2005 8 AC500 XCEL

INTERIOR VIEW

4

3

2

Ref. Part
No. No. Description

37022 Motor, 2SP, 3/4 HP

30988 Retainer, Probe Wire (Qty 2)
1 30677 Rack Support (Qty 2- sold individually)
2 30676 Rack, Wire (27-3/8" x 23-5/16") (Each)
3 30649 Blower Wheel (Qty 1)
4 30695 Baffle Assy., Interior Porcelain (Qty 1)

30694 Support Assy., Baffle (Qty 4)

31741 Bulb, Light 25W, 120V, (Qty 2)

31836 Socket Assy., Light (Qty 2)

31837 Reflector Assy., Light (Qty 2)

31763 Lens, Cover Light (Qty 2)

22301 Axial Fan, 115V 106 CFM 4"

22718 Fan Guard and Hardware

22718 Cord set and nuts

30503 Terminal Block

31595 Power Cord assy

36580 Rear Harness

36305 Switch Kit, Thermal

1

JUNE 13, 2005 9 AC500 XCEL

DOOR COMPONENTS

9

5

1

3

Ref. Part
No. No. Description

8

2

7

4

6

1  37265 Door Assy, LH Glass (Qty 1)
2  37264 Door Assy, RH Glass (Qty 1)

 37663 Door Assy, LH Solid (Qty 1)
 37662 Door Assy, RH Solid (Qty 1)

3 37510 Door Arm Assy, LH
4 37511 Door Arm Assy, RH
5 9036 Window Assy
6 37282 Combustion Compt. Cover
7 37268 Pressure Lock (helps with latching)
8 37269 Door Trim, Center (covers gap between doors)

37392 Microswitch Assy, double door
31772 Cam Assy, Switch
37586 Handle Assy
37588 Plate, door handle (top)

9 16470 Nameplate "BLODGETT"

31919 Gasket Assy, Perimeter
37304 Gasket Assy, Center

JUNE 13, 2005 10 AC500 XCEL

LOWER DOOR SUPPORT COMPONENTS

4

3

1

Ref. Part
No. No. Description

1 37273 Lower Door Support Assy

NOTE: Lower Door Support Assy includes the hinge pins, arms,

chain & turnbuckles, sprocket assys, cam assy, and microswitch.

37392 Microswitch Assy (not visible)
2 37514 Actautor, for Microswitch
3 37511 Arm Assy, RH
4 37510 Arm A ssy, LH

2

JUNE `3, 2005 11 AC500 XCEL

EXTERIOR COMPONENTS

4

3

2

1

5

Ref. Part
No. No. Description

31919 Gasket Assy, Perimeter
1 37282 Cover Assy, Combustion Compartment
2 37261 Body Side, "Removeable Access Panel" RH S/S
3 37279 Body Side, LH S/S
4 37280 Body Top S/S

37258 Body Back, S/S

33887 Panel, Front Trim Sgl Door Option
5 37262 Cover, Control (next to door)

JUNE 13, 2005 12 AC500 XCEL

ACCESSORIES

2

3

6

7

8

1

5

4

9

Ref. Part
No. No. Description

1 7839 Drafthood, Direct Venting, S/S Qty 1
2 8709 Draft Diverter, Canopy Venting, S/S Qty 1
3 36686 Flue Box, Sgl Oven Qty 1
4 37598 Vent Assy, Complete

21826 Installation Hose, 36"
21242 Installation Hose, 48"

31595 Cord Set Assy, 6 Feet Qty 1
5 31679 Backpipe Assy, Qty 1, Dbl Oven
6 33193 Legs, 25" w/ Bolts, S/S Set of 4

37639 Open Stand w/ Feet, S/S

37788 Open Stand w/ Casters, S/S

16002 Casters, Set of 4, Sgl Oven

33199 Casters, Plate 5" All locking, Set of 4, Dbl Oven

19528 Casters, Low Profile, Set of 4, Dbl Oven
7 31013 Casters, HD, Low Profile, Set of 4, Dbl Oven
8 33425 Casters & Leg Plates, Adjustable 3" Locking, Set of 4, Dbl Oven
9 5779 Casters, Plate 5" 2 Locking/2 Non-locking, Set of 4, Dbl Oven
