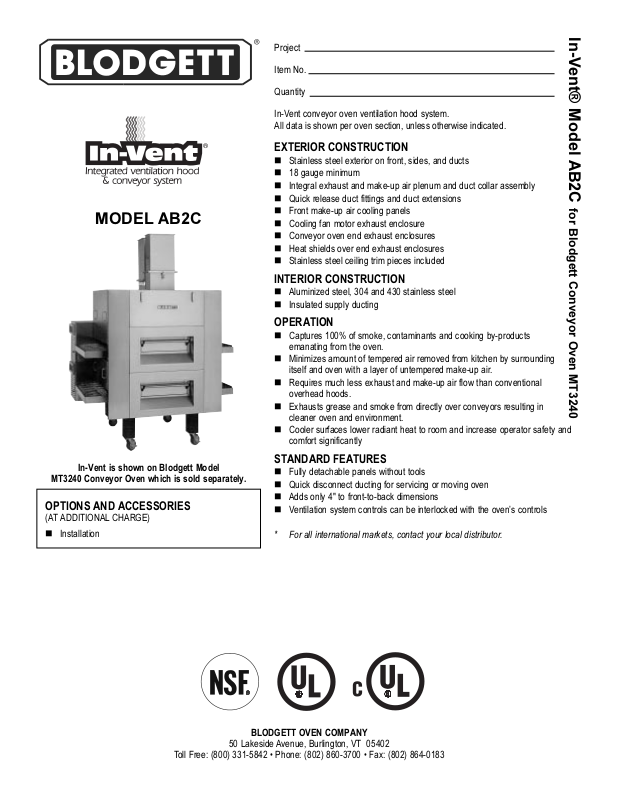

Blodgett AB2C User Manual

BLODGETT OVEN COMPANY

50 Lakeside Avenue, Burlington, VT 05402

Toll Free: [phone]  Phone: [phone]  Fax: [phone]

Project

Item No.

Quantity

In-Vent conveyor oven ventilation hood system.
All data is shown per oven section, unless otherwise indicated.

EXTERIOR CONSTRUCTION

n Stainless steel exterior on front, sides, and ducts
n 18 gauge minimum
n Integral exhaust and make-up air plenum and duct collar assembly
n Quick release duct fittings and duct extensions
n Front make-up air cooling panels
n Cooling fan motor exhaust enclosure
n Conveyor oven end exhaust enclosures
n Heat shields over end exhaust enclosures
n Stainless steel ceiling trim pieces included

INTERIOR CONSTRUCTION

n Aluminized steel, 304 and 430 stainless steel
n Insulated supply ducting

OPERATION

n Captures 100% of smoke, contaminants and cooking by-products

emanating from the oven.

n Minimizes amount of tempered air removed from kitchen by surrounding

itself and oven with a layer of untempered make-up air.

n Requires much less exhaust and make-up air flow than conventional

overhead hoods.

n Exhausts grease and smoke from directly over conveyors resulting in

cleaner oven and environment.

n Cooler surfaces lower radiant heat to room and increase operator safety and

comfort significantly

STANDARD FEATURES

n Fully detachable panels without tools
n Quick disconnect ducting for servicing or moving oven
n Adds only 4" to front-to-back dimensions
n Ventilation system controls can be interlocked with the ovens controls

* For all international markets, contact your local distributor.

OPTIONS AND ACCESSORIES

(AT ADDITIONAL CHARGE)

n Installation

MODEL AB2C

In-Vent® Model AB2C for Blodgett Conveyor Oven MT3240

In-Vent is shown on Blodgett Model

MT3240 Conveyor Oven which is sold separately.

BLODGETT OVEN COMPANY

50 Lakeside Avenue, Burlington, VT 05402

Toll Free: [phone]  Phone: [phone]  Fax: [phone]

MODEL AB2C

DIMENSIONS:

Floor space MT3240 72" (1829mm) W x 58.1" (1476mm) D

AIRFLOW REQUIREMENTS:

MT3240 Supply Exhaust
CFM: 900 CFM 1300 CFM
Duct Size: 12" x 8" (305mm x 203mm) 8" x 12" (203mm x 305mm)
Static Pressure: 0.40" W.C. (.108 kPa) 1.00" W.C. (.270 kPa)

MINIMUM ENTRY CLEARANCE:

Largest uncrated component
70-1/8" x 46-1/4" x 16" (1781mm x 1175mm x 406mm)

SHIPPING INFORMATION:

Weight: 1000 lbs (453.6 kg)
Crate size:
81-1/2" x 97" x 43" (2070mm x 2464mm x 1092mm)

Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY

NOTE: The company reserves the right to make substitutions of components without prior notice

29”

APPROVAL/STAMP

P/N M10021 Rev B (1/00)

Provide Blodgett InVent® ventilation system, engineered for Blodgett model MT3240 conveyor oven. Exterior shall be
minimum 18 gauge stainless steel on front sides and ducts. Interior shall be of aluminized steel. Baffle grease filters shall
be of galvanized steel construction. All exterior panels removable without the use of tools for access to mechanicals and
cleaning. Integral exhaust and make-up air plenums connected to stainless steel duct collars with quick disconnect
assemblies. Ventilation system shall comply with ANSI/NSF-2 and UL-710. Provide factory authorized assembly and
installation at additional cost, per ANSI/NFPA-96. Ductwork between extension duct collars and rooftop equipment, and
rooftop equipment not included.

Universal specification, based on specification sheet for spe­cific system with specific oven model.

SYSTEM OVEN MODEL

AB2C MT3240 E/G

SHORT FORM SPECIFICATIONS

(737mm)

18”

(457mm)

72” (1829mm)

40” (1016mm)

oven only

GAS
INPUT

EXHAUST

2” (51mm)

CLEARANCE

FROM WALL

58.1”

(1476mm)

34.6”

(878mm)

17”

(432mm)

8.95”

(227mm)

99” (2515mm)*

20”

(508mm)

73.1” (1855mm)

oven only

57.3” (1455mm)

46.3” (1176mm)

37.3” (947mm)

26.3” (668mm)

SUPPLY

53-1/2” (1361mm)

TOP VIEW

*Ductwork should be terminated 2” (51mm) above the ceiling. All other connections will be supplied with the hood.

FRONT VIEW

17.25” (438mm)

0” (0mm)
