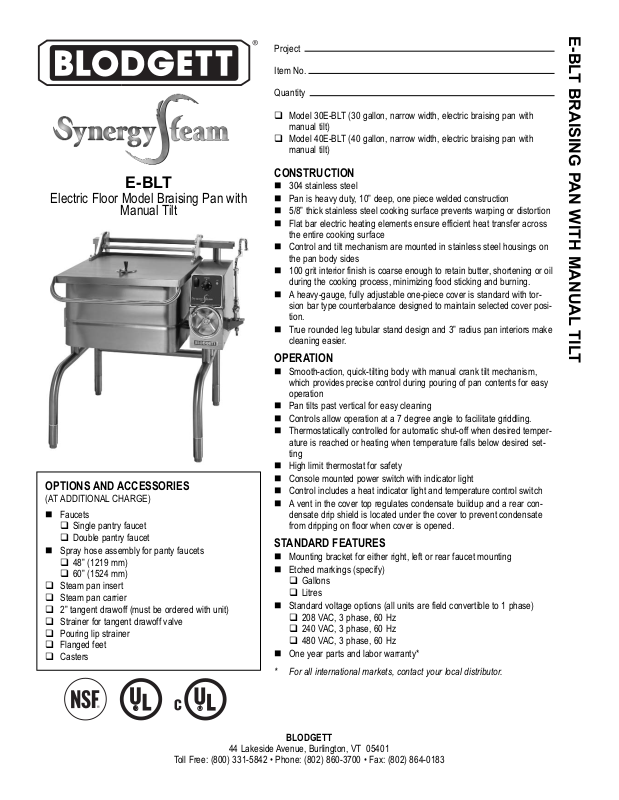

Blodgett 30E-BLT User Manual

Project

Item No.

Quantity

 Model 30E-BLT (30 gallon, narrow width, electric braising pan with

manual tilt)

 Model 40E-BLT (40 gallon, narrow width, electric braising pan with

manual tilt)

CONSTRUCTION

 304 stainless steel
 Pan is heavy duty, 10” deep, one piece welded construction
 5/8” thick stainless steel cooking surface prevents warping or distortion
 Flat bar electric heating elements ensure efficient heat transfer across

the entire cooking surface

 Control and tilt mechanism are mounted in stainless steel housings on

the pan body sides

 100 grit interior finish is coarse enough to retain butter, shortening or oil

during the cooking process, minimizing food sticking and burning.

 A heavy-gauge, fully adjustable one-piece cover is standard with tor-

sion bar type counterbalance designed to maintain selected cover posi­tion.

 True rounded leg tubular stand design and 3” radius pan interiors make

cleaning easier.

OPERATION

 Smooth-action, quick-tilting body with manual crank tilt mechanism,

which provides precise control during pouring of pan contents for easy
operation

 Pan tilts past vertical for easy cleaning
 Controls allow operation at a 7 degree angle to facilitate griddling.
 Thermostatically controlled for automatic shut-off when desired temper-

ature is reached or heating when temperature falls below desired set­ting

 High limit thermostat for safety
 Console mounted power switch with indicator light
 Control includes a heat indicator light and temperature control switch
 A vent in the cover top regulates condensate buildup and a rear con-

densate drip shield is located under the cover to prevent condensate
from dripping on floor when cover is opened.

STANDARD FEATURES

 Mounting bracket for either right, left or rear faucet mounting
 Etched markings (specify)

 Gallons
 Litres

 Standard voltage options (all units are field convertible to 1 phase)

 208 VAC, 3 phase, 60 Hz
 240 VAC, 3 phase, 60 Hz
 480 VAC, 3 phase, 60 Hz

 One year parts and labor warranty*

* For all international markets, contact your local distributor.

BLODGETT

44 Lakeside Avenue, Burlington, VT 05401

Toll Free: [phone] • Phone: [phone] • Fax: [phone]

OPTIONS AND ACCESSORIES

(AT ADDITIONAL CHARGE)

 Faucets

 Single pantry faucet
 Double pantry faucet

 Spray hose assembly for panty faucets

 48” (1219 mm)

 60” (1524 mm)
 Steam pan insert
 Steam pan carrier
 2” tangent drawoff (must be ordered with unit)
 Strainer for tangent drawoff valve
 Pouring lip strainer
 Flanged feet
 Casters

E-BLT

Electric Floor Model Braising Pan with

Manual Tilt

E-BLT BRAISING PAN WITH MANUAL TILT

BLODGETT

44 Lakeside Avenue, Burlington, VT 05401 Toll Free: [phone] • Phone: [phone] • Fax: [phone]

E-BLT ELECTRIC BRAISING PAN

WITH MANUAL TILT

SHORT FORM SPECIFICATIONS

Provide Blodgett model 30E-BLT, 30 gallon (114 litre) or 40E-BLT (152 litre) electrical braising pan. Unit shall be stainless steel, electric-heated, thermostatically controlled, on a rounded
tubular leg stand. Heavy 5/8” thick stainless steel clad pan bottom with clamped-on flat bar-type electric heating elements. 30 gallon pan is 39” wide and 40 gallon pan is 48” wide both
with a 10” deep pan. Smooth- action quick tilting pan body with manual crank tilt mechanism, heavy-duty fully adjustable counterbalanced cover with condensate drip shield and cover
vent. Single electric connection required; specify voltage (208, 240 or 480 Volt). UL- and NSF- listed. Made in USA. One year parts and labor warranty. Provide options and accessories
as indicated.

POWER CONNECTION:

Refer to data plate.

SHIPPING INFORMATION:

Approx. Weight:

30E-BLT 463 lbs. (210 kg)
40E-BLT 535 lbs. (243 kg)

Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY

NOTE: The company reserves the right to make substitutions of components without prior notice.

Finished
Floor

FRONT VIEW

Adjustable Feet

10.00 [254]

Inside Pan Depth

43.3

[1100]

37

[940]

26.28
[668]

B

5.42

[138]

NOTES:

1. Dimensions are in Inches [mm]

2. Casters or flanged feet available at an extra cost.

3. Electrical Connection: 0.1.75" dia. [44] hole

4. Other voltages and phases are available.

5. Faucet bracket may be installed on left or right side.

6. Faucet may be installed on faucet bracket or on rear as shown.

TOP VIEW BRAISING PANTOP VIEW BRAISING PAN

Pouring

Lip

Location of Optional
2" Tangent Drawoff

11

[279]

8 [203]

D

C

L

Faucet

Cover

Vent

TOP VIEW

3

5

21.5

[546]

39.75

[1010]

3.4 [86]

C

A

Pan I.D.

3.4

[86]

5.25 [133]
Electrical
Connection

Faucet Optional Location
(2 places)

Pour
Path

Cover Open

Access Panel

RIGHT SIDE VIEW

Full Tilt

Position

3

28.25 [718]
Pan I.D.

31.90
[810]

9.9

[250]

70.3

[1786]

.75 [19] Min.

2.0 [51] Max.

Pour Path Max.

46.0 [660]

Pour Path Min.

25.0 [635]

34.38 [873]

1.8 [46]

25.7 [653]
Electrical

Connection

APPROVAL/STAMP

P/N S00110 Rev B (4/11)

MODEL A B C D

30E-BLT 26.25 (667) 32 (813) 38.5 (984) 8.75 (222)

40E-BLT 35.75 (908) 41.5 (1054) 48 (1226) 13.5 (343)

AMPS PER LINE

Model kW Phase 208V 240V 480V

30E-BLT 11.5 kW

1 55 48 n/a
3 32 28 14

40E-BLT 15.3 kW

1 74 64 n/a
3 43 37 19
