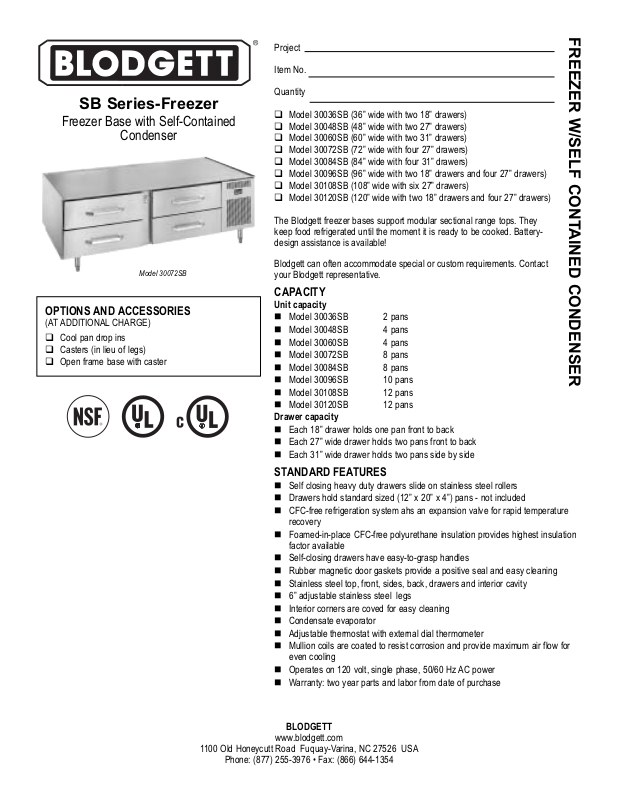

Blodgett 30084SB, 30048SB, 30096SB, 30036SB, 30108SB User Manual
...
BLODGETT
www.blodgett.com
1100 Old Honeycutt Road Fuquay-Varina, NC 27526 USA
Phone: (877) 255-3976 • Fax: (866) 644-1354
Blodgett can often accommodate special or custom requirements. Contact
your Blodgett representative.
CAPACITY
Unit capacity
Model 30036SB 2 pans
Model 30048SB 4 pans
Model 30060SB 4 pans
Model 30072SB 8 pans
Model 30084SB 8 pans
Model 30096SB 10 pans
Model 30108SB 12 pans
Model 30120SB 12 pans
Drawer capacity
Each 18” drawer holds one pan front to back
Each 27” wide drawer holds two pans front to back
Each 31” wide drawer holds two pans side by side
STANDARD FEATURES
Self closing heavy duty drawers slide on stainless steel rollers
Drawers hold standard sized (12” x 20” x 4”) pans - not included
CFC-free refrigeration system ahs an expansion valve for rapid temperature
recovery
Foamed-in-place CFC-free polyurethane insulation provides highest insulation
factor available
Self-closing drawers have easy-to-grasp handles
Rubber magnetic door gaskets provide a positive seal and easy cleaning
Stainless steel top, front, sides, back, drawers and interior cavity
6” adjustable stainless steel legs
Interior corners are coved for easy cleaning
Condensate evaporator
Adjustable thermostat with external dial thermometer
Mullion coils are coated to resist corrosion and provide maximum air flow for
even cooling
Operates on 120 volt, single phase, 50/60 Hz AC power
Warranty: two year parts and labor from date of purchase
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Cool pan drop ins
Casters (in lieu of legs)
Open frame base with caster
SB Series-Freezer
Freezer Base with Self-Contained
Condenser
FREEZER W/SELF CONTAINED CONDENSER
Project
Item No.
Quantity
Model 30036SB (36” wide with two 18” drawers)
Model 30048SB (48” wide with two 27” drawers)
Model 30060SB (60” wide with two 31” drawers)
Model 30072SB (72” wide with four 27” drawers)
Model 30084SB (84” wide with four 31” drawers)
Model 30096SB (96” wide with two 18” drawers and four 27” drawers)
Model 30108SB (108” wide with six 27” drawers)
Model 30120SB (120” wide with two 18” drawers and four 27” drawers)
The Blodgett freezer bases support modular sectional range tops. They
keep food refrigerated until the moment it is ready to be cooked. Batterydesign assistance is available!
Model 30072SB
BLODGETT
www.blodgett.com
1100 Old Honeycutt Road Fuquay-Varina, NC 27526 USA • Phone: (877) 255-3976 • Fax: (866) 644-1354
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
APPROVAL/STAMP
P/N BR00040 Rev A (1/08)
FREEZER W/SELF-CONTAINED
CONDENSER
SHORT FORM SPECIFICATIONS
The item shall be freezer base-section for a sectional range. Unit shall a have 430 stainless steel #3 polish top, front, sides, back, drawers and interior cavity. The item shall have drawers that hold standard sized (12” x 20” x 4”) pans (not included). The drawer assemblies shall be removable for cleaning. The unit shall include a 6’ (152cm) power cord with grounded
plug to receive 50 or 60hz, single phase, 120VAC electric power. The unit shall have a self contained condenser. The unit shall be at most 32-1/2” deep and shall be 26” high including
adjustable 6” legs. Refrigerant is CFC-free R-404a. Provide options and accessories as indicated.
NOTE: The company reserves the right to make substitutions of components without prior notice
SHIPPING INFORMATION
Approximate weight:
30036SB 340 lbs (154 kg)
30048SB 410 lbs (186 kg)
30060SB 550 lbs (249 kg)
30072SB 650 lbs (295 kg)
30084SB 745 lbs (338 kg)
30096SB 855 lbs (388 kg)
30108SB 960 lbs (435 kg)
30120SB 1075 lbs (488 kg)
OTHER TECHNICAL INFORMATION
Avoid locating where the temperature will drop below 55°F
(13°C) or rise above 90°F (32°C).
Check local codes for fire and sanitary regulations.
Model Width
Cooled Volume
ft
3 (m3
)
Cooling Capacity
BTU/hr
Electricity
120V amps
Recommended
Compressor
30036SB 36” 4 (0.11) 1450 8 1/3 H.P.
30048SB 48” 6.7 (0.19) 1670 8 1/3 H.P.
30060SB 60” 10 (0.28) 1802 8 1/3 H.P.
30072SB 72” 13 (0.37) 1875 10.1 1/2 H.P.
30084SB 84” 16 (0.45) 1920 10.1 1/2 H.P.
30096SB 96” 18 (0.51) 1955 20 3/4 H.P.
30108SB 108” 22 (0.62) 1955 20 3/4 H.P.
30120SB 120” 25.5 (0.72) 2000 20 3/4 H.P.
TECHNICAL INFORMATION
36 (914)
Model 30036SB
60 (1524)
Model 30060SB
Model 30084SB
84 (2134)
108 (2743)
48 (1219)
Model 30048SB
DIMENSIONS ARE IN INCHES (MM).
72 (1829)
Model 30072SB
Model 30096SB
96 (2438)
32-1/2 (826)*
Power
Cord
26
(660)
6 (152)
RIGHT SIDE REAR VIEW
Minimum clearance on all sides is 3” (76mm). However, modular
range-top sections can be mounted directly on top using an
insulated base adapter. Also, these refrigerated bases can be
part of a sectional battery provided that the adjoining base
sections are insulated (or do not produce heat).
120 (3048)
Condensate
Drain Tube
Model 30108SB
Model 30120SB
