Page 1
BLOCK Reactor
Series
- LR3 -
Line Reactors
User Manual
© by BLOCK USA Inc. Manual: LR3 – Rev. 0
2016-11-01
Page 2
Line Reactor Series LR3
Important Information
- Please read carefully before use -
BLOCK Line Reactor Series LR3 is designed for extended and improved
reliability of variable speed drives and may other type of power conversion
equipment. In addition of harmonic mitigation, BLOCK´s LR3 Series
provides limited protection of connected loads. BLOCK Line Reactors are
available for a wide current and selected impedance ranges. The suitability
of a line reactor for a specific application must be ultimately determined
by the end-customer. The BLOCK Group will never assume any
responsibility or liability for any direct or indirect (consequential) damages
resulting from the use or application of a BLOCK Line Reactor. In addition
the BLOCK Group won´t assume patent liability with respect to the use of
any information, circuits and description in this manual.
Page 2 of 17 Manual: LR3 – Rev. 0
Subject to change without notice!
Page 3
Line Reactor Series LR3
Table of Contents
Important Information ................................................................................ 2
IMPORTANT SAFETY INFORMATION .............................................................. 4
Introduction .............................................................................................. 5
Nomenclature Breakdown ............................................................................ 6
Product Specification .................................................................................. 6
Dimensional Data ....................................................................................... 7
240V – Version........................................................................................ 9
480V – Version...................................................................................... 12
600V – Version...................................................................................... 15
Page 3 of 17 Manual: LR3 – Rev. 0
Subject to change without notice!
Page 4
Line Reactor Series LR3
Installation of Line Reactors by qualified
electrician only!
Line Reactors are to be operated under High Voltage.
Stay away and avoid any contact with High Voltage
when operating, installing or servicing the equipment
used with Line Reactors.
When branch circuit protection has operated to shut
down the application or system, a fault current may
have been occurred and tripped the overcurrent
protection. In order to avoid any risk of fire or
electrical shock, Line Reactors shall be examined and
replaced if damaged.
The installation and use of a Line Reactor shall be in
compliance with the National Electrical Code (NEC).
To make sure, that no hazardous voltage is fed back
to the Line Reactor from the connected inverter or
drive, the power-conversion equipment
manufacturer´s safety instruction manual must be
followed.
INJURY OR DEATH MAY RESULT IF THE SAFETY
INSTRUCTIONS ARE NOT OBERSERVED!
Dead metal parts of the Line Reactor (core) shall be
properly connected to protective earth.
Do not use spare parts other than manufactured by
BLOCK only. Please contact your regional sales person
or a BLOCK authorized distributor.
IMPORTANT SAFETY INFORMATION
Subject to change without notice!
Page 4 of 17 Manual: LR3 – Rev. 0
Page 5
Line Reactor Series LR3
Introduction
The use of this manual should be used for support the end-user during design
and installation of BLOCK Line Reactors. Please contact BLOCK USA (+1 847
260-9050) for any clarification of installation and operation of BLOCK Line
Reactors, if any other questions occur.
This safety and instruction manual is intended for professional and experienced
personal only. This personal needs to be trained in installing, operating and
servicing power conversion and similar types of equipment. Any safety
precautions need to be practiced as potential dangers can be present. Personnel
shall read and understand this manual before installing BLOCK Line Reactors.
After receiving a reactor, a visible inspection shall be performed to make sure, no
transportation damages happened to it. In case of damage, please contact and
file a claim with the logistic carrier involved immediately.
When stocking a BLOCK Line Reactor for a longer period, please make sure, that
the location stays dry and clean all the time. Please make sure, that no
condensation may has been accumulated before putting it into operation.
BLOCK USA Inc.
10632 W. Grand Ave
Franklin Park, IL 60131
Phone: +1 847 260-9050
Fax: +1 847 260-9079
Page 5 of 17 Manual: LR3 – Rev. 0
Subject to change without notice!
Page 6
Line Reactor Series LR3
LR3
- /
Series-Name
Rated
Voltage
24 = 240V
48 = 480V
60 = 600V
Impedance
Value
e.g.
3 = 3%
Rated
Current
e.g.
100 = 100A
Nomenclature Breakdown
Product Specification
Standard Impedance Value: 3% - 10%
Impedance Base: nominal current rating
Service Factor: 125%
Overload Rating: 150% for 30 min
Max. Voltage: 240V, 480V, 600V (UL), 690V (IEC)
Insulation System: Class H (180C)
Max. Temp. Rise: 115C
Ambient: 40C (maximum)
Altitude (max.) 2000m
Frequency: 50-60Hz
Linearity: 100% at 150% of rated current
Impedance Tolerance: +/- 10% (typical)
Approvals: UL508 listed (E219022)
UL5085-1 recognized (E103521)
European Compliance: CE compliant with LV-Directive
2014/35/EU
Clearance @ max Ambient or less: min. 76mm / 3 inches to all sides
Page 6 of 17 Manual: LR3 – Rev. 0
Subject to change without notice!
Page 7
Line Reactor Series LR3

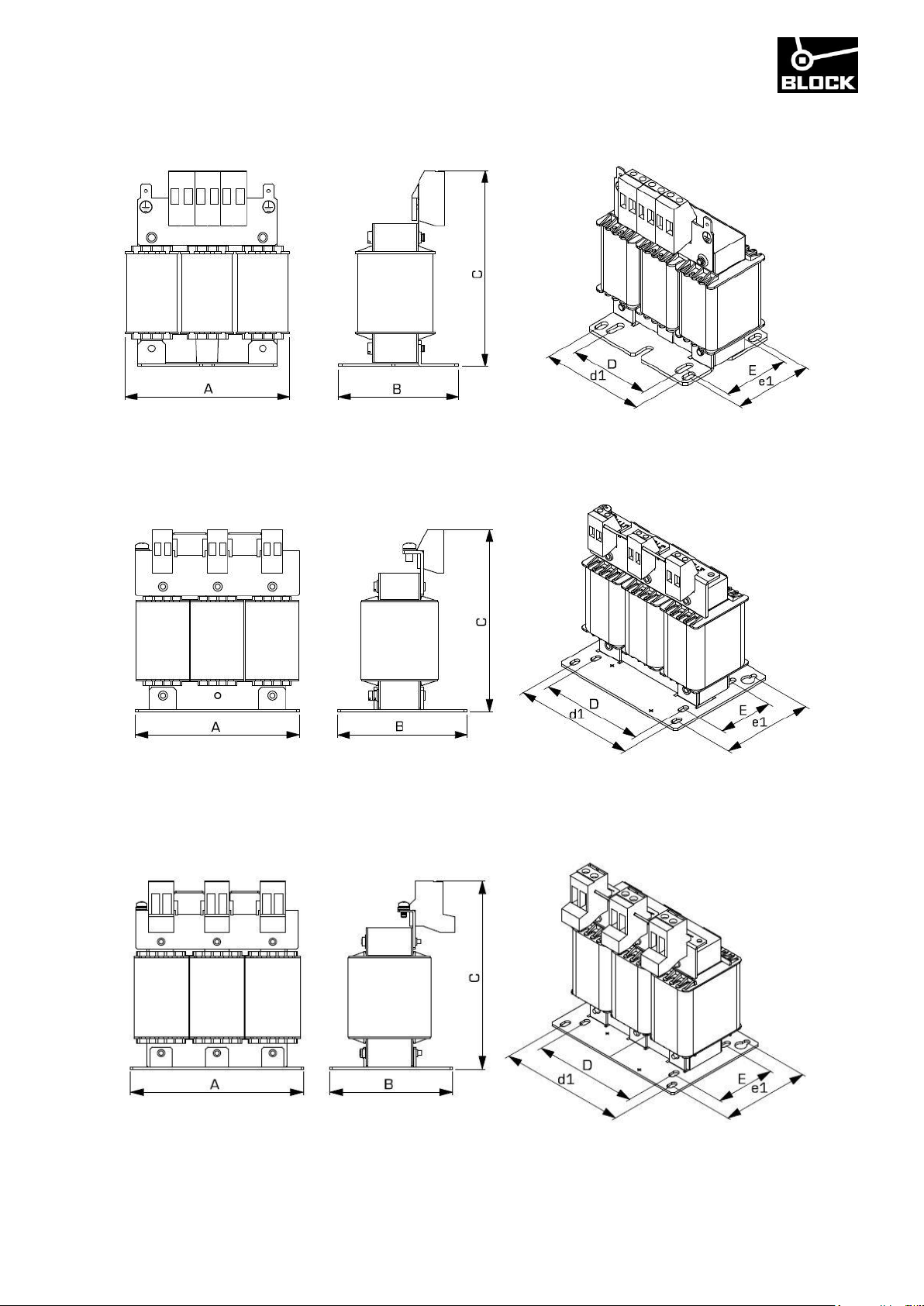

Dimensional Data
LR3 Line Reactor 2 – 8A
LR3 Line Reactor 10 – 25A
LR3 Line Reactor 30 – 45A
Page 7 of 17 Manual: LR3 – Rev. 0
Subject to change without notice!
Page 8
Line Reactor Series LR3

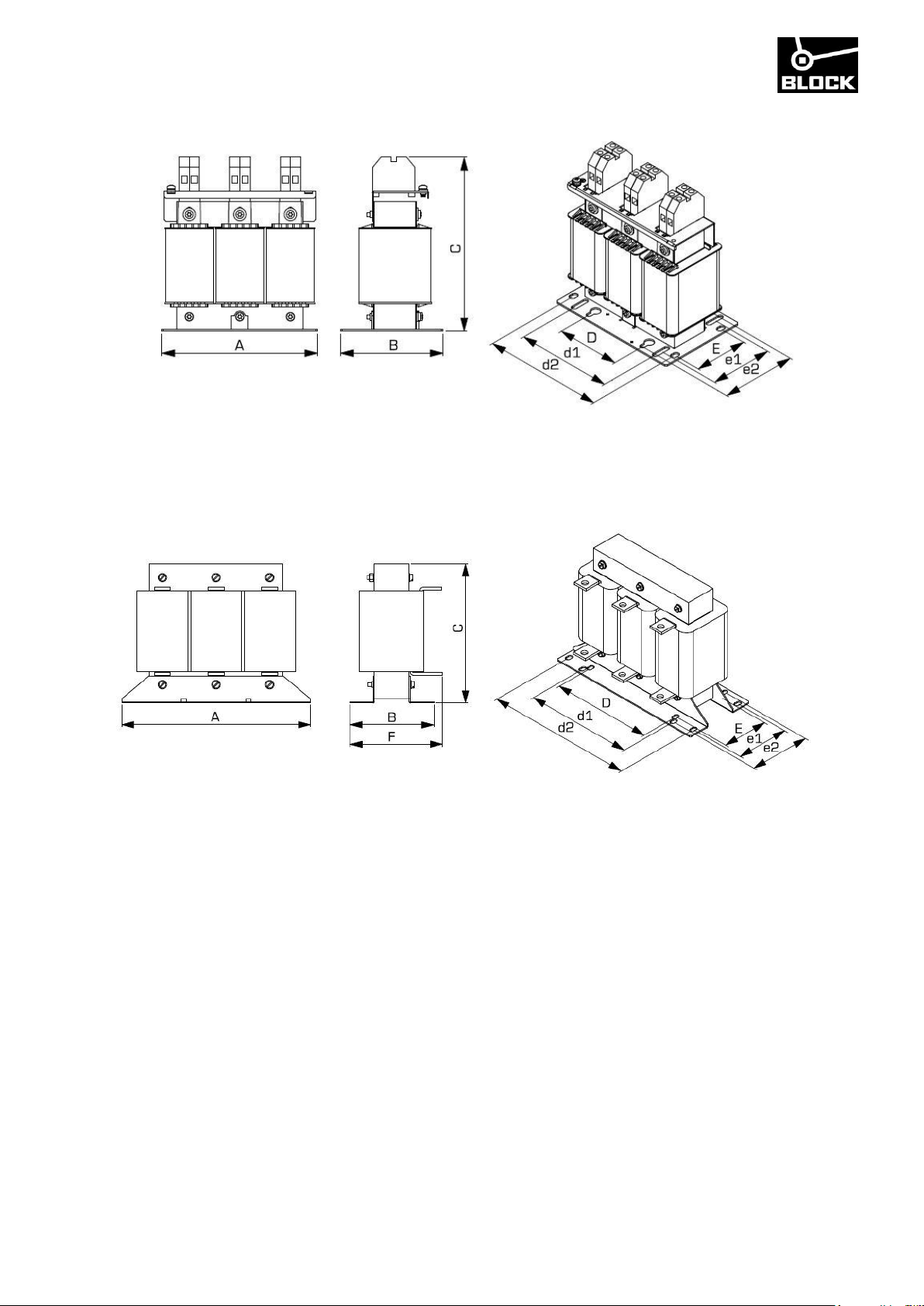

LR3 Line Reactor 50 – 80A
LR3 Line Reactor 90 – 1,600A
Page 8 of 17 Manual: LR3 – Rev. 0
Subject to change without notice!
Page 9
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 24-6/2
74
56
116
2.91
2.20
4.57
0.48
1.1
LR3 24-6/4
74
63
98
2.91
2.48
3.86
0.75
1.7
LR3 24-6/6
80
60
116
3.15
2.36
4.57
0.73
1.6
LR3 24-6/8
80
69
117
3.15
2.72
4.61
0.99
2.2
LR3 24-6/10
120
85
135
4.72
3.35
5.31
1.90
4.2
LR3 24-6/16
120
95
135
4.72
3.74
5.31
2.64
5.8
LR3 24-6/20
155
95
162
6.10
3.74
6.38
3.70
8.2
LR3 24-6/25
155
95
166
6.10
3.74
6.54
3.97
8.7
LR3 24-6/30
155
110
167
6.10
4.33
6.57
5.70
12.6
LR3 24-6/35
155
110
167
6.10
4.33
6.57
5.83
12.9
LR3 24-6/40
185
102
195
7.28
4.02
7.68
6.41
14.1
LR3 24-6/45
185
102
195
7.28
4.02
7.68
6.74
14.9
LR3 24-6/50
185
102
209
7.28
4.02
8.23
6.88
15.2
LR3 24-6/63
185
112
207
7.28
4.41
8.15
8.07
17.8
LR3 24-6/70
185
122
207
7.28
4.80
8.15
9.95
21.9
LR3 24-6/80
210
117
241
8.27
4.61
9.49
10.45
23.0
LR3 24-6/90
210
105
180
8.27
4.13
7.09
13.10
28.9
LR3 24-6/100
267
115
201
10.51
4.53
7.91
13.85
30.5
LR3 24-6/115
267
139
201
10.51
5.47
7.91
21.38
47.1
LR3 24-6/125
267
139
202
10.51
5.47
7.95
21.27
46.9
LR3 24-6/160
291
129
212
11.46
5.08
8.35
20.86
46.0
LR3 24-6/180
291
149
210
11.46
5.87
8.27
27.73
61.1
LR3 24-6/200
316
164
232
12.44
6.46
9.13
29.88
65.9
LR3 24-6/250
352
144
264
13.86
5.67
10.39
32.34
71.3
LR3 24-6/300
352
144
264
13.86
5.67
10.39
33.66
74.2
LR3 24-6/400
352
158
265
13.86
6.22
10.43
42.48
93.7
LR3 24-6/500
352
183
266
13.86
7.20
10.47
54.37
119.9
LR3 24-6/630
412
172
317
16.22
6.77
12.48
70.20
154.8
LR3 24-6/710
412
188
317
16.22
7.40
12.48
76.63
168.9
LR3 24-6/800
480
186
377
18.90
7.32
14.84
63.79
140.6
LR3 24-6/1000
480
200
376
18.90
7.87
14.80
68.94
152.0
LR3 24-6/1200
552
217
419
21.73
8.54
16.50
121.23
267.3
LR3 24-6/1400
552
244
419
21.73
9.61
16.50
152.16
335.5
LR3 24-6/1600
552
274
420
21.73
10.79
16.54
179.56
395.9
240V – Version
Subject to change without notice!
Page 9 of 17 Manual: LR3 – Rev. 0
Page 10
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 24-8/2
74
56
116
2.91
2.20
4.57
0.53
1.17
LR3 24-8/4
80
60
116
3.15
2.36
4.57
1.31
2.89
LR3 24-8/6
80
69
117
3.15
2.72
4.61
1.45
3.20
LR3 24-8/8
120
85
135
4.72
3.35
5.31
1.90
4.19
LR3 24-8/10
120
85
135
4.72
3.35
5.31
2.00
4.41
LR3 24-8/16
120
95
135
4.72
3.74
5.31
2.70
5.95
LR3 24-8/20
155
95
162
6.10
3.74
6.38
3.80
8.38
LR3 24-8/25
155
110
167
6.10
4.33
6.57
5.80
12.79
LR3 24-8/30
155
110
167
6.10
4.33
6.57
5.85
12.90
LR3 24-8/35
155
110
166
6.10
4.33
6.54
5.95
13.12
LR3 24-8/40
185
102
195
7.28
4.02
7.68
6.80
14.99
LR3 24-8/45
185
112
196
7.28
4.41
7.72
8.25
18.19
LR3 24-8/50
185
112
207
7.28
4.41
8.15
8.35
18.41
LR3 24-8/63
185
122
207
7.28
4.80
8.15
9.65
21.27
LR3 24-8/70
210
117
241
8.27
4.61
9.49
10.80
23.81
LR3 24-8/80
210
125
238
8.27
4.92
9.37
12.50
27.56
LR3 24-8/90
267
114.5
201
10.51
4.51
7.91
16.00
35.27
LR3 24-8/100
267
138.5
201
10.51
5.45
7.91
19.00
41.89
LR3 24-8/115
291
139
212
11.46
5.47
8.35
21.00
46.30
LR3 24-8/125
291
139
211
11.46
5.47
8.31
22.00
48.50
LR3 24-8/160
291
149
210
11.46
5.87
8.27
25.50
56.22
LR3 24-8/180
291
153
212
11.46
6.02
8.35
28.00
61.73
LR3 24-8/200
352
144
264
13.86
5.67
10.39
32.00
70.55
LR3 24-8/250
352
158
265
13.86
6.22
10.43
41.00
90.39
LR3 24-8/300
352
168
265
13.86
6.61
10.43
48.00
105.82
LR3 24-8/400
352
183
266
13.86
7.20
10.47
56.00
123.46
LR3 24-8/500
352
195
266
13.86
7.68
10.47
62.00
136.69
LR3 24-8/630
412
188
317
16.22
7.40
12.48
75.50
166.45
LR3 24-8/710
480
186
372
18.90
7.32
14.65
102.00
224.87
LR3 24-8/800
480
200
371
18.90
7.87
14.61
115.00
253.53
LR3 24-8/1000
480
245
376
18.90
9.65
14.80
145.00
319.67
LR3 24-8/1200
552
244
419
21.73
9.61
16.50
160.00
352.74
LR3 24-8/1400
552
274
420
21.73
10.79
16.54
186.00
410.06
LR3 24-8/1600
552
294
416
21.73
11.57
16.38
201.00
443.13
Subject to change without notice!
Page 10 of 17 Manual: LR3 – Rev. 0
Page 11
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 24-10/2
74
56
100
2.9
2.2
3.9
0.54
1.20
LR3 24-10/4
80
60
114
3.1
2.4
4.5
0.76
1.68
LR3 24-10/6
80
69
117
3.1
2.7
4.6
1.07
2.35
LR3 24-10/8
120
85
136
4.7
3.3
5.4
2.07
4.56
LR3 24-10/10
120
95
138
4.7
3.7
5.4
2.84
6.26
LR3 24-10/16
155
95
163
6.1
3.7
6.4
3.77
8.31
LR3 24-10/20
155
110
162
6.1
4.3
6.4
5.60
12.34
LR3 24-10/25
155
110
166
6.1
4.3
6.5
5.70
12.56
LR3 24-10/30
185
102
198
7.3
4.0
7.8
6.55
14.43
LR3 24-10/35
185
112
197
7.3
4.4
7.8
8.61
18.99
LR3 24-10/40
185
112
197
7.3
4.4
7.8
8.68
19.13
LR3 24-10/45
185
122
207
7.3
4.8
8.1
10.71
23.61
LR3 24-10/50
210
117
239
8.3
4.6
9.4
10.88
23.98
LR3 24-10/63
210
125
237
8.3
4.9
9.3
12.77
28.16
LR3 24-10/70
210
135
240
8.3
5.3
9.4
15.06
33.21
LR3 24-10/80
230
149
260
9.1
5.9
10.2
19.53
43.05
LR3 24-10/90
267
139
201
10.5
5.5
7.9
22.70
50.04
LR3 24-10/100
291
139
212
11.5
5.5
8.3
24.29
53.56
LR3 24-10/115
219
132
233
8.6
5.2
9.2
32.19
70.96
LR3 24-10/125
219
132
234
8.6
5.2
9.2
32.52
71.69
LR3 24-10/160
352
144
264
13.9
5.7
10.4
36.19
79.78
LR3 24-10/180
352
168
265
13.9
6.6
10.4
50.58
111.51
LR3 24-10/200
352
168
265
13.9
6.6
10.4
51.24
112.96
LR3 24-10/250
352
183
266
13.9
7.2
10.5
58.00
127.88
LR3 24-10/300
352
195
266
13.9
7.7
10.5
62.07
136.84
LR3 24-10/400
412
172
318
16.2
6.8
12.5
75.15
165.67
LR3 24-10/500
412
172
318
16.2
6.8
12.5
77.90
171.73
LR3 24-10/630
480
155
372
18.9
6.1
14.6
89.84
198.06
LR3 24-10/710
480
165
372
18.9
6.5
14.6
103.39
227.94
LR3 24-10/800
552
217
419
21.7
8.5
16.5
150.93
332.75
LR3 24-10/1000
552
217
419
21.7
8.5
16.5
134.43
296.37
LR3 24-10/1200
552
274
420
21.7
10.8
16.5
195.07
430.05
LR3 24-10/1400
540
270
465
21.3
10.6
18.3
211.75
466.83
LR3 24-10/1600
540
270
465
21.3
10.6
18.3
344.52
759.54
Subject to change without notice!
Page 11 of 17 Manual: LR3 – Rev. 0
Page 12
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 48-3/2
74
56
116
2.91
2.20
4.57
0.48
1.1
LR3 48-3/4
74
63
98
2.91
2.48
3.86
0.75
1.7
LR3 48-3/6
80
60
116
3.15
2.36
4.57
0.73
1.6
LR3 48-3/8
80
69
117
3.15
2.72
4.61
0.99
2.2
LR3 48-3/10
120
85
135
4.72
3.35
5.31
1.90
4.2
LR3 48-3/16
120
95
135
4.72
3.74
5.31
2.64
5.8
LR3 48-3/20
155
95
162
6.10
3.74
6.38
3.70
8.2
LR3 48-3/25
155
95
166
6.10
3.74
6.54
3.97
8.7
LR3 48-3/30
155
110
167
6.10
4.33
6.57
5.70
12.6
LR3 48-3/35
155
110
167
6.10
4.33
6.57
5.83
12.9
LR3 48-3/40
185
102
195
7.28
4.02
7.68
6.41
14.1
LR3 48-3/45
185
102
195
7.28
4.02
7.68
6.74
14.9
LR3 48-3/50
185
102
209
7.28
4.02
8.23
6.88
15.2
LR3 48-3/63
185
112
207
7.28
4.41
8.15
8.07
17.8
LR3 48-3/70
185
122
207
7.28
4.80
8.15
9.95
21.9
LR3 48-3/80
210
117
241
8.27
4.61
9.49
10.45
23.0
LR3 48-3/90
210
105
180
8.27
4.13
7.09
13.10
28.9
LR3 48-3/100
267
115
201
10.51
4.53
7.91
13.85
30.5
LR3 48-3/115
267
139
201
10.51
5.47
7.91
21.38
47.1
LR3 48-3/125
267
139
202
10.51
5.47
7.95
21.27
46.9
LR3 48-3/160
291
129
212
11.46
5.08
8.35
20.86
46.0
LR3 48-3/180
291
149
210
11.46
5.87
8.27
27.73
61.1
LR3 48-3/200
316
164
232
12.44
6.46
9.13
29.88
65.9
LR3 48-3/250
352
144
264
13.86
5.67
10.39
32.34
71.3
LR3 48-3/300
352
144
264
13.86
5.67
10.39
33.66
74.2
LR3 48-3/400
352
158
265
13.86
6.22
10.43
42.48
93.7
LR3 48-3/500
352
183
266
13.86
7.20
10.47
54.37
119.9
LR3 48-3/630
412
172
317
16.22
6.77
12.48
70.20
154.8
LR3 48-3/710
412
188
317
16.22
7.40
12.48
76.63
168.9
LR3 48-3/800
480
186
377
18.90
7.32
14.84
63.79
140.6
LR3 48-3/1000
480
200
376
18.90
7.87
14.80
68.94
152.0
LR3 48-3/1200
552
217
419
21.73
8.54
16.50
121.23
267.3
LR3 48-3/1400
552
244
419
21.73
9.61
16.50
152.16
335.5
LR3 48-3/1600
552
274
420
21.73
10.79
16.54
179.56
395.9
480V – Version
Subject to change without notice!
Page 12 of 17 Manual: LR3 – Rev. 0
Page 13
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 48-4/2
74
56
116
2.91
2.20
4.57
0.53
1.17
LR3 48-4/4
80
60
116
3.15
2.36
4.57
1.31
2.89
LR3 48-4/6
80
69
117
3.15
2.72
4.61
1.45
3.20
LR3 48-4/8
120
85
135
4.72
3.35
5.31
1.90
4.19
LR3 48-4/10
120
85
135
4.72
3.35
5.31
2.00
4.41
LR3 48-4/16
120
95
135
4.72
3.74
5.31
2.70
5.95
LR3 48-4/20
155
95
162
6.10
3.74
6.38
3.80
8.38
LR3 48-4/25
155
110
167
6.10
4.33
6.57
5.80
12.79
LR3 48-4/30
155
110
167
6.10
4.33
6.57
5.85
12.90
LR3 48-4/35
155
110
166
6.10
4.33
6.54
5.95
13.12
LR3 48-4/40
185
102
195
7.28
4.02
7.68
6.80
14.99
LR3 48-4/45
185
112
196
7.28
4.41
7.72
8.25
18.19
LR3 48-4/50
185
112
207
7.28
4.41
8.15
8.35
18.41
LR3 48-4/63
185
122
207
7.28
4.80
8.15
9.65
21.27
LR3 48-4/70
210
117
241
8.27
4.61
9.49
10.80
23.81
LR3 48-4/80
210
125
238
8.27
4.92
9.37
12.50
27.56
LR3 48-4/90
267
114.5
201
10.51
4.51
7.91
16.00
35.27
LR3 48-4/100
267
138.5
201
10.51
5.45
7.91
19.00
41.89
LR3 48-4/115
291
139
212
11.46
5.47
8.35
21.00
46.30
LR3 48-4/125
291
139
211
11.46
5.47
8.31
22.00
48.50
LR3 48-4/160
291
149
210
11.46
5.87
8.27
25.50
56.22
LR3 48-4/180
291
153
212
11.46
6.02
8.35
28.00
61.73
LR3 48-4/200
352
144
264
13.86
5.67
10.39
32.00
70.55
LR3 48-4/250
352
158
265
13.86
6.22
10.43
41.00
90.39
LR3 48-4/300
352
168
265
13.86
6.61
10.43
48.00
105.82
LR3 48-4/400
352
183
266
13.86
7.20
10.47
56.00
123.46
LR3 48-4/500
352
195
266
13.86
7.68
10.47
62.00
136.69
LR3 48-4/630
412
188
317
16.22
7.40
12.48
75.50
166.45
LR3 48-4/710
480
186
372
18.90
7.32
14.65
102.00
224.87
LR3 48-4/800
480
200
371
18.90
7.87
14.61
115.00
253.53
LR3 48-4/1000
480
245
376
18.90
9.65
14.80
145.00
319.67
LR3 48-4/1200
552
244
419
21.73
9.61
16.50
160.00
352.74
LR3 48-4/1400
552
274
420
21.73
10.79
16.54
186.00
410.06
LR3 48-4/1600
552
294
416
21.73
11.57
16.38
201.00
443.13
Subject to change without notice!
Page 13 of 17 Manual: LR3 – Rev. 0
Page 14
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 48-5/2
74
56
100
2.9
2.2
3.9
0.54
1.20
LR3 48-5/4
80
60
114
3.1
2.4
4.5
0.76
1.68
LR3 48-5/6
80
69
117
3.1
2.7
4.6
1.07
2.35
LR3 48-5/8
120
85
136
4.7
3.3
5.4
2.07
4.56
LR3 48-5/10
120
95
138
4.7
3.7
5.4
2.84
6.26
LR3 48-5/16
155
95
163
6.1
3.7
6.4
3.77
8.31
LR3 48-5/20
155
110
162
6.1
4.3
6.4
5.60
12.34
LR3 48-5/25
155
110
166
6.1
4.3
6.5
5.70
12.56
LR3 48-5/30
185
102
198
7.3
4.0
7.8
6.55
14.43
LR3 48-5/35
185
112
197
7.3
4.4
7.8
8.61
18.99
LR3 48-5/40
185
112
197
7.3
4.4
7.8
8.68
19.13
LR3 48-5/45
185
122
207
7.3
4.8
8.1
10.71
23.61
LR3 48-5/50
210
117
239
8.3
4.6
9.4
10.88
23.98
LR3 48-5/63
210
125
237
8.3
4.9
9.3
12.77
28.16
LR3 48-5/70
210
135
240
8.3
5.3
9.4
15.06
33.21
LR3 48-5/80
230
149
260
9.1
5.9
10.2
19.53
43.05
LR3 48-5/90
267
139
201
10.5
5.5
7.9
22.70
50.04
LR3 48-5/100
291
139
212
11.5
5.5
8.3
24.29
53.56
LR3 48-5/115
219
132
233
8.6
5.2
9.2
32.19
70.96
LR3 48-5/125
219
132
234
8.6
5.2
9.2
32.52
71.69
LR3 48-5/160
352
144
264
13.9
5.7
10.4
36.19
79.78
LR3 48-5/180
352
168
265
13.9
6.6
10.4
50.58
111.51
LR3 48-5/200
352
168
265
13.9
6.6
10.4
51.24
112.96
LR3 48-5/250
352
183
266
13.9
7.2
10.5
58.00
127.88
LR3 48-5/300
352
195
266
13.9
7.7
10.5
62.07
136.84
LR3 48-5/400
412
172
318
16.2
6.8
12.5
75.15
165.67
LR3 48-5/500
412
172
318
16.2
6.8
12.5
77.90
171.73
LR3 48-5/630
480
155
372
18.9
6.1
14.6
89.84
198.06
LR3 48-5/710
480
165
372
18.9
6.5
14.6
103.39
227.94
LR3 48-5/800
552
217
419
21.7
8.5
16.5
150.93
332.75
LR3 48-5/1000
552
217
419
21.7
8.5
16.5
134.43
296.37
LR3 48-5/1200
552
274
420
21.7
10.8
16.5
195.07
430.05
LR3 48-5/1400
540
270
465
21.3
10.6
18.3
211.75
466.83
LR3 48-5/1600
540
270
465
21.3
10.6
18.3
344.52
759.54
Subject to change without notice!
Page 14 of 17 Manual: LR3 – Rev. 0
Page 15
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 60-2/2
74
56
116
2.91
2.20
4.57
0.48
1.1
LR3 60-2/4
74
63
98
2.91
2.48
3.86
0.75
1.7
LR3 60-2/6
80
60
116
3.15
2.36
4.57
0.73
1.6
LR3 60-2/8
80
69
117
3.15
2.72
4.61
0.99
2.2
LR3 60-2/10
120
85
135
4.72
3.35
5.31
1.90
4.2
LR3 60-2/16
120
95
135
4.72
3.74
5.31
2.64
5.8
LR3 60-2/20
155
95
162
6.10
3.74
6.38
3.70
8.2
LR3 60-2/25
155
95
166
6.10
3.74
6.54
3.97
8.7
LR3 60-2/30
155
110
167
6.10
4.33
6.57
5.70
12.6
LR3 60-2/35
155
110
167
6.10
4.33
6.57
5.83
12.9
LR3 60-2/40
185
102
195
7.28
4.02
7.68
6.41
14.1
LR3 60-2/45
185
102
195
7.28
4.02
7.68
6.74
14.9
LR3 60-2/50
185
102
209
7.28
4.02
8.23
6.88
15.2
LR3 60-2/63
185
112
207
7.28
4.41
8.15
8.07
17.8
LR3 60-2/70
185
122
207
7.28
4.80
8.15
9.95
21.9
LR3 60-2/80
210
117
241
8.27
4.61
9.49
10.45
23.0
LR3 60-2/90
210
105
180
8.27
4.13
7.09
13.10
28.9
LR3 60-2/100
267
115
201
10.51
4.53
7.91
13.85
30.5
LR3 60-2/115
267
139
201
10.51
5.47
7.91
21.38
47.1
LR3 60-2/125
267
139
202
10.51
5.47
7.95
21.27
46.9
LR3 60-2/160
291
129
212
11.46
5.08
8.35
20.86
46.0
LR3 60-2/180
291
149
210
11.46
5.87
8.27
27.73
61.1
LR3 60-2/200
316
164
232
12.44
6.46
9.13
29.88
65.9
LR3 60-2/250
352
144
264
13.86
5.67
10.39
32.34
71.3
LR3 60-2/300
352
144
264
13.86
5.67
10.39
33.66
74.2
LR3 60-2/400
352
158
265
13.86
6.22
10.43
42.48
93.7
LR3 60-2/500
352
183
266
13.86
7.20
10.47
54.37
119.9
LR3 60-2/630
412
172
317
16.22
6.77
12.48
70.20
154.8
LR3 60-2/710
412
188
317
16.22
7.40
12.48
76.63
168.9
LR3 60-2/800
480
186
377
18.90
7.32
14.84
63.79
140.6
LR3 60-2/1000
480
200
376
18.90
7.87
14.80
68.94
152.0
LR3 60-2/1200
552
217
419
21.73
8.54
16.50
121.23
267.3
LR3 60-2/1400
552
244
419
21.73
9.61
16.50
152.16
335.5
LR3 60-2/1600
552
274
420
21.73
10.79
16.54
179.56
395.9
600V – Version
Subject to change without notice!
Page 15 of 17 Manual: LR3 – Rev. 0
Page 16
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 60-3/2
74
56
116
2.91
2.20
4.57
0.53
1.17
LR3 60-3/4
80
60
116
3.15
2.36
4.57
1.31
2.89
LR3 60-3/6
80
69
117
3.15
2.72
4.61
1.45
3.20
LR3 60-3/8
120
85
135
4.72
3.35
5.31
1.90
4.19
LR3 60-3/10
120
85
135
4.72
3.35
5.31
2.00
4.41
LR3 60-3/16
120
95
135
4.72
3.74
5.31
2.70
5.95
LR3 60-3/20
155
95
162
6.10
3.74
6.38
3.80
8.38
LR3 60-3/25
155
110
167
6.10
4.33
6.57
5.80
12.79
LR3 60-3/30
155
110
167
6.10
4.33
6.57
5.85
12.90
LR3 60-3/35
155
110
166
6.10
4.33
6.54
5.95
13.12
LR3 60-3/40
185
102
195
7.28
4.02
7.68
6.80
14.99
LR3 60-3/45
185
112
196
7.28
4.41
7.72
8.25
18.19
LR3 60-3/50
185
112
207
7.28
4.41
8.15
8.35
18.41
LR3 60-3/63
185
122
207
7.28
4.80
8.15
9.65
21.27
LR3 60-3/70
210
117
241
8.27
4.61
9.49
10.80
23.81
LR3 60-3/80
210
125
238
8.27
4.92
9.37
12.50
27.56
LR3 60-3/90
267
114.5
201
10.51
4.51
7.91
16.00
35.27
LR3 60-3/100
267
138.5
201
10.51
5.45
7.91
19.00
41.89
LR3 60-3/115
291
139
212
11.46
5.47
8.35
21.00
46.30
LR3 60-3/125
291
139
211
11.46
5.47
8.31
22.00
48.50
LR3 60-3/160
291
149
210
11.46
5.87
8.27
25.50
56.22
LR3 60-3/180
291
153
212
11.46
6.02
8.35
28.00
61.73
LR3 60-3/200
352
144
264
13.86
5.67
10.39
32.00
70.55
LR3 60-3/250
352
158
265
13.86
6.22
10.43
41.00
90.39
LR3 60-3/300
352
168
265
13.86
6.61
10.43
48.00
105.82
LR3 60-3/400
352
183
266
13.86
7.20
10.47
56.00
123.46
LR3 60-3/500
352
195
266
13.86
7.68
10.47
62.00
136.69
LR3 60-3/630
412
188
317
16.22
7.40
12.48
75.50
166.45
LR3 60-3/710
480
186
372
18.90
7.32
14.65
102.00
224.87
LR3 60-3/800
480
200
371
18.90
7.87
14.61
115.00
253.53
LR3 60-3/1000
480
245
376
18.90
9.65
14.80
145.00
319.67
LR3 60-3/1200
552
244
419
21.73
9.61
16.50
160.00
352.74
LR3 60-3/1400
552
274
420
21.73
10.79
16.54
186.00
410.06
LR3 60-3/1600
552
294
416
21.73
11.57
16.38
201.00
443.13
Subject to change without notice!
Page 16 of 17 Manual: LR3 – Rev. 0
Page 17
Line Reactor Series LR3
Item
A B C A B
C
Weight
Weight
[mm]
[mm]
[mm]
[inch]
[inch]
[inch]
[kg]
[lbs]
LR3 60-4/2
74
56
100
2.9
2.2
3.9
0.54
1.20
LR3 60-4/4
80
60
114
3.1
2.4
4.5
0.76
1.68
LR3 60-4/6
80
69
117
3.1
2.7
4.6
1.07
2.35
LR3 60-4/8
120
85
136
4.7
3.3
5.4
2.07
4.56
LR3 60-4/10
120
95
138
4.7
3.7
5.4
2.84
6.26
LR3 60-4/16
155
95
163
6.1
3.7
6.4
3.77
8.31
LR3 60-4/20
155
110
162
6.1
4.3
6.4
5.60
12.34
LR3 60-4/25
155
110
166
6.1
4.3
6.5
5.70
12.56
LR3 60-4/30
185
102
198
7.3
4.0
7.8
6.55
14.43
LR3 60-4/35
185
112
197
7.3
4.4
7.8
8.61
18.99
LR3 60-4/40
185
112
197
7.3
4.4
7.8
8.68
19.13
LR3 60-4/45
185
122
207
7.3
4.8
8.1
10.71
23.61
LR3 60-4/50
210
117
239
8.3
4.6
9.4
10.88
23.98
LR3 60-4/63
210
125
237
8.3
4.9
9.3
12.77
28.16
LR3 60-4/70
210
135
240
8.3
5.3
9.4
15.06
33.21
LR3 60-4/80
230
149
260
9.1
5.9
10.2
19.53
43.05
LR3 60-4/90
267
139
201
10.5
5.5
7.9
22.70
50.04
LR3 60-4/100
291
139
212
11.5
5.5
8.3
24.29
53.56
LR3 60-4/115
219
132
233
8.6
5.2
9.2
32.19
70.96
LR3 60-4/125
219
132
234
8.6
5.2
9.2
32.52
71.69
LR3 60-4/160
352
144
264
13.9
5.7
10.4
36.19
79.78
LR3 60-4/180
352
168
265
13.9
6.6
10.4
50.58
111.51
LR3 60-4/200
352
168
265
13.9
6.6
10.4
51.24
112.96
LR3 60-4/250
352
183
266
13.9
7.2
10.5
58.00
127.88
LR3 60-4/300
352
195
266
13.9
7.7
10.5
62.07
136.84
LR3 60-4/400
412
172
318
16.2
6.8
12.5
75.15
165.67
LR3 60-4/500
412
172
318
16.2
6.8
12.5
77.90
171.73
LR3 60-4/630
480
155
372
18.9
6.1
14.6
89.84
198.06
LR3 60-4/710
480
165
372
18.9
6.5
14.6
103.39
227.94
LR3 60-4/800
552
217
419
21.7
8.5
16.5
150.93
332.75
LR3 60-4/1000
552
217
419
21.7
8.5
16.5
134.43
296.37
LR3 60-4/1200
552
274
420
21.7
10.8
16.5
195.07
430.05
LR3 60-4/1400
540
270
465
21.3
10.6
18.3
211.75
466.83
LR3 60-4/1600
540
270
465
21.3
10.6
18.3
344.52
759.54
Subject to change without notice!
Page 17 of 17 Manual: LR3 – Rev. 0
Loading...
