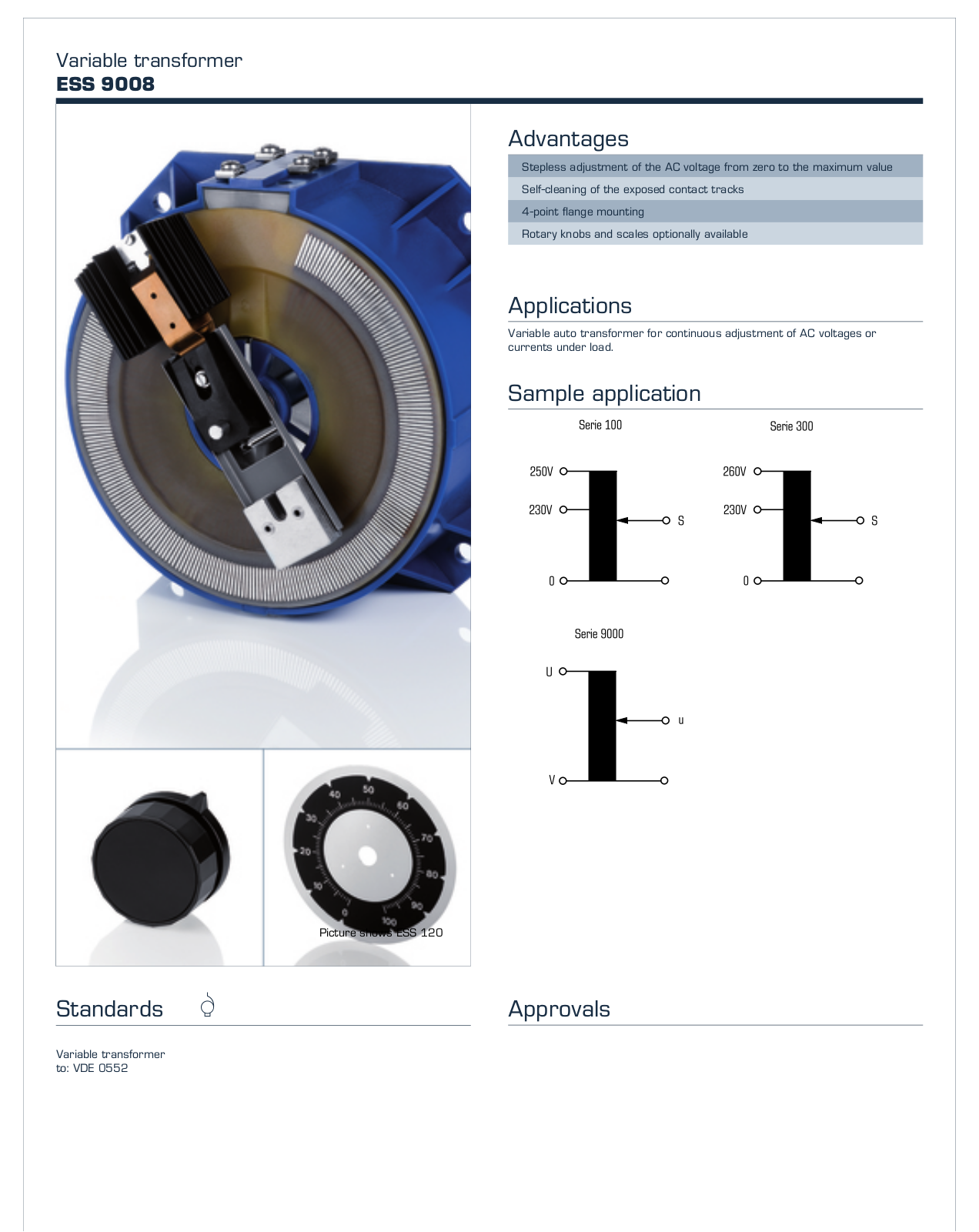

Variable transformer

ESS 9008

Advantages

Stepless adjustment of the AC voltage from zero to the maximum value

Self-cleaning of the exposed contact tracks

4-point flange mounting

Rotary knobs and scales optionally available

Applications

Variable auto transformer for continuous adjustment of AC voltages or
currents under load.

Sample application

Standards t Z

Variable transformer
to: VDE 0552

Picture shows ESS 120

Approvals Z

Variable transformer

+

-

30

ESS 9008

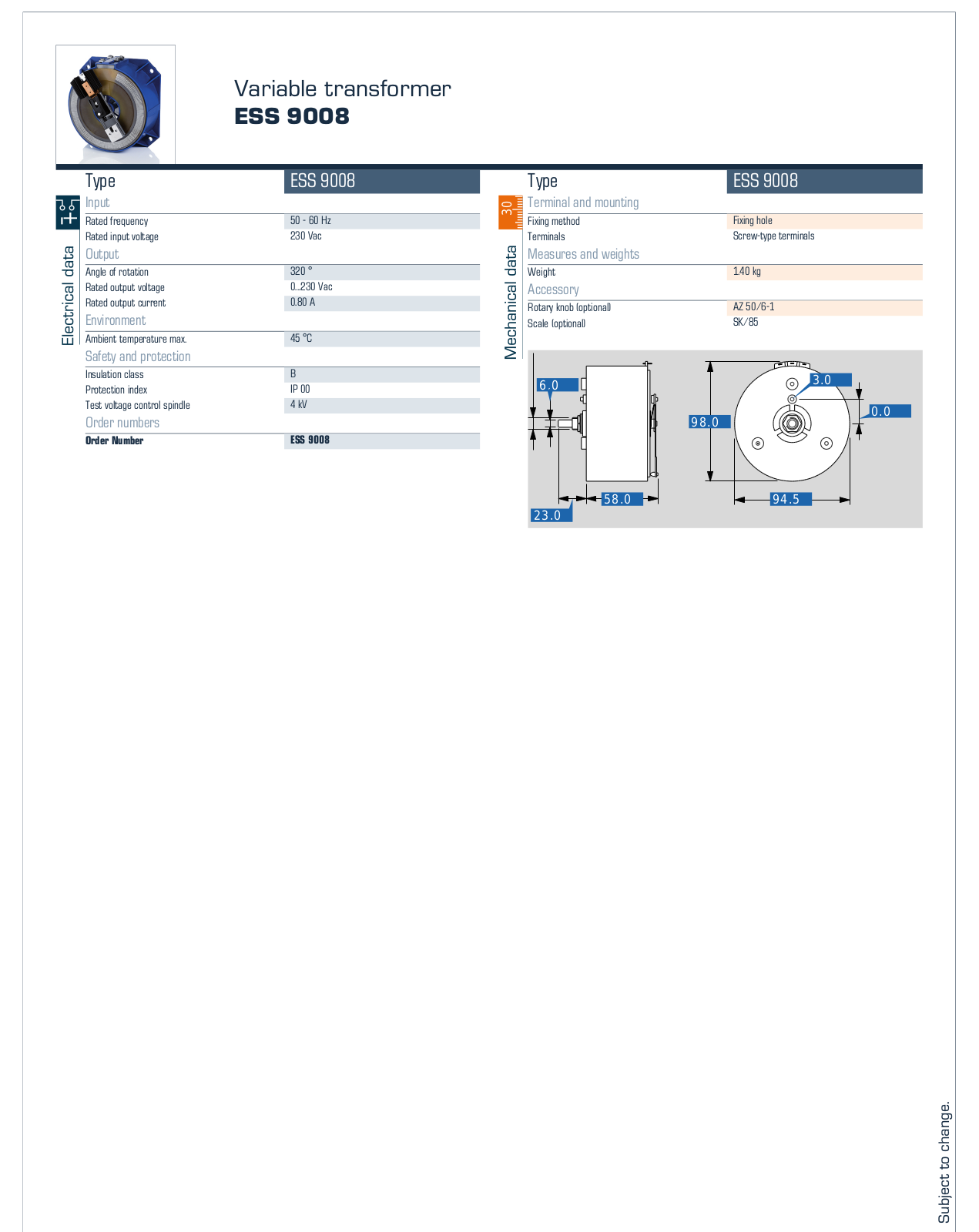

Type ESS 9008

Input

Rated frequency
Rated input voltage

Output

Angle of rotation
Rated output voltage
Rated output current

Environment

Ambient temperature max.

Safety and protection

Insulation class
Protection index
Test voltage control spindle

Order numbers

Order Number

50 - 60 Hz
230 Vac

320 °

0...230 Vac

0.80 A

45 °C

B
IP 00
4 kV

ESS 9008

Type ESS 9008

Terminal and mounting

Fixing method
Terminals

Measures and weights

Weight

Accessory

Rotary knob (optional)
Scale (optional)

6.0

Fixing hole
Screw-type terminals

1.40 kg

AZ 50/6-1
SK/85

98.0

3.0

0.0

23.0

58.0

94.5

Subject to change.
