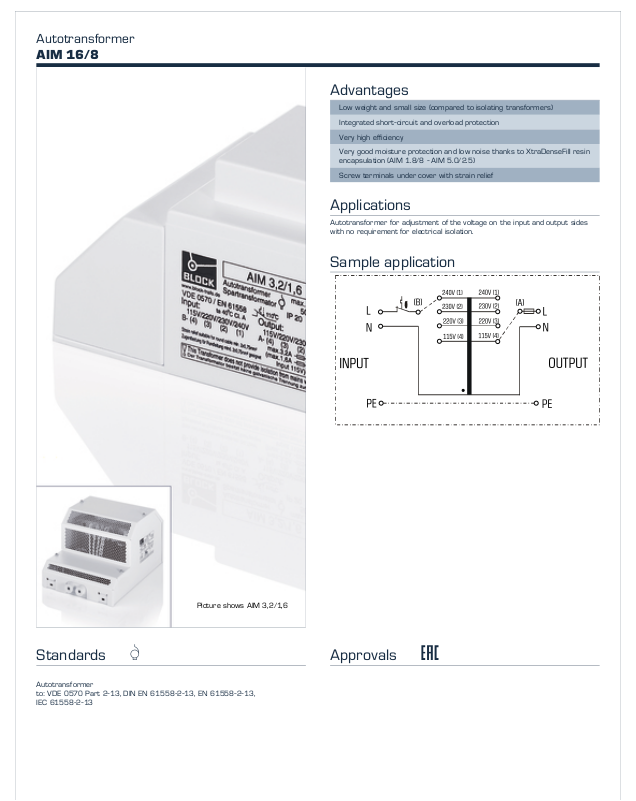

Block AIM16/8 Catalog Page

Autotransformer

AIM 16/8

Advantages

Low weight and small size (compared to isolating transformers)

Integrated short-circuit and overload protection

Very high efficiency

Very good moisture protection and low noise thanks to XtraDenseFill resin
encapsulation (AIM 1.8/8 - AIM 5.0/2.5)

Screw terminals under cover with strain relief

Applications

Autotransformer for adjustment of the voltage on the input and output sides
with no requirement for electrical isolation.

Sample application

Picture shows AIM 3,2/1,6

Standards t Z

Autotransformer
to: VDE 0570 Part 2-13, DIN EN 61558-2-13, EN 61558-2-13,
IEC 61558-2-13

Approvals J Z

Autotransformer

+

-

30

AIM 16/8

Type AIM 16/8

Input

Rated input voltage
Rated frequency

Output

Rated output voltage

Rated output current

No-load loss (typ.)

Environment

Ambient temperature max.

Safety and protection

Type
Insulation class
Protection index
Safety class
Short circuit strength

Order numbers

Order Number

115 Vac/220 Vac 230 Vac/240 Vac
50 - 60 Hz

115 Vac/220 Vac 230 Vac/240 Vac

8.00
(PRI 115 /
SEC 220, 230, 240);

16.00
(PRI 115 / SEC 115);

16.00
(PRI 220, 230, 240 /
SEC 115, 220, 230, 240)

21.00 W

40 °C

Enclosed
B
IP 20
I
non-inherently short-circuit proof

AIM 16/8

Type AIM 16/8

Terminal and mounting

Fixing method
Terminals

Measures and weights

Weight

283.0

165.0

Fixing holes in the housing
Screw-type terminal

16.5 kg

245.0

148.0

200.0

Subject to change.
