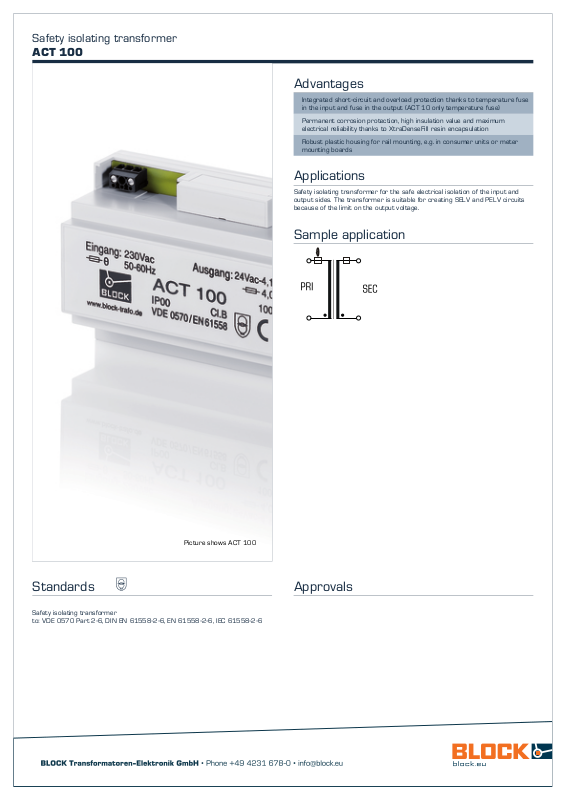

Block ACT100 Catalog Page

Safety isolating transformer

ACT 100

Advantages

Integrated short-circuit and overload protection thanks to temperature fuse
in the input and fuse in the output (ACT 10 only temperature fuse)

Permanent corrosion protection, high insulation value and maximum
electrical reliability thanks to XtraDenseFill resin encapsulation

Robust plastic housing for rail mounting, e.g. in consumer units or meter
mounting boards

Applications

Safety isolating transformer for the safe electrical isolation of the input and
output sides. The transformer is suitable for creating SELV and PELV circuits
because of the limit on the output voltage.

Sample application

Picture shows ACT 100

Standards 1 Z

Safety isolating transformer
to: VDE 0570 Part 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6

Approvals Z

Safety isolating transformer

159.0

94.0

63.0

+

-

30

ACT 100

Type ACT 100

Input

Rated input voltage
Rated frequency

Output

Rated output voltage
Rated Power

Environment

Ambient temperature max.
Type of cooling

Safety and protection

Type
Insulation class
Protection index
Safety class (prepared)
Short circuit strength
Test voltage

Order numbers

Order Number

230 Vac
50 - 60 Hz

24 Vac
100 VA

25 °C
self-cooling

Resin encapsulated transformer
B
IP 00
II
non-inherently short-circuit proof
3750 Vac, 50 Hz

ACT 100

Type ACT 100

Terminal and mounting

Fixing method
Terminals

Measures and weights

Weight
Dimension (W x H x D)

Panel installation on mounting rails
Screw-type terminal

1.93 kg
94 x 63 x 159 mm

Subject to change.
