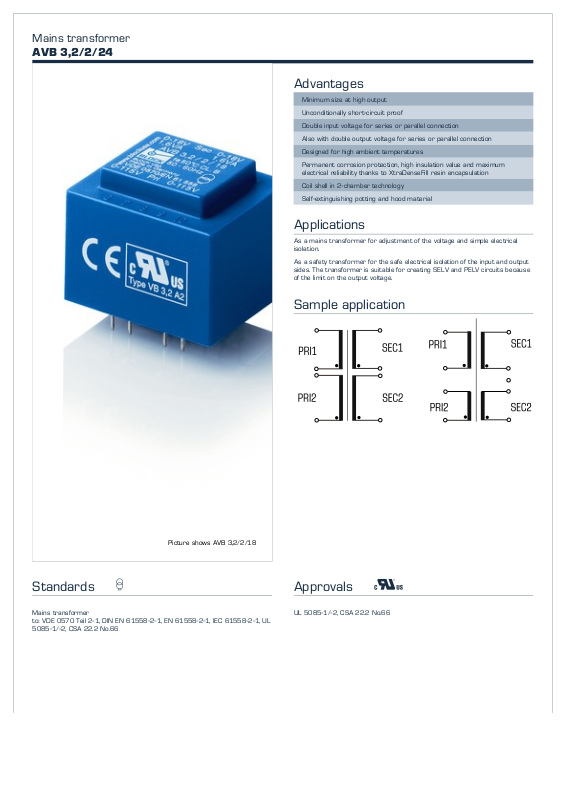

Block AVB3, 2/2/24 Catalog Page

Mains transformer

AVB 3,2/2/24

Advantages

Minimum size at high output

Unconditionally short-circuit proof

Double input voltage for series or parallel connection

Also with double output voltage for series or parallel connection

Designed for high ambient temperatures

Permanent corrosion protection, high insulation value and maximum
electrical reliability thanks to XtraDenseFill resin encapsulation

Coil shell in 2-chamber technology

Self-extinguishing potting and hood material

Applications

As a mains transformer for adjustment of the voltage and simple electrical
isolation.

As a safety transformer for the safe electrical isolation of the input and output
sides. The transformer is suitable for creating SELV and PELV circuits because
of the limit on the output voltage.

Sample application

Picture shows AVB 3,2/2/18

Standards & Z

Mains transformer
to: VDE 0570 Teil 2-1, DIN EN 61558-2-1, EN 61558-2-1, IEC 61558-2-1, UL
5085-1/-2, CSA 22.2 No.66

Approvals W Z

UL 5085-1/-2, CSA 22.2 No.66

Mains transformer

nc

PRI

SEC

5. 0

41 .0

35 .0

25 .0

10 .0

20 .0

30 .8

5. 0

+

-

30

AVB 3,2/2/24

Type AVB 3,2/2/24

Input

Rated input voltage
Rated frequency

Output

Rated output voltage
Rated Power
No-load voltage (app. x factor)
No-load loss (typ.)
Efficiency

Standards

Classification

Approvals

Approvals

Environment

Ambient temperature max.

Safety and protection

Type
Class of Insulation System
Protection index
Safety class (prepared)
Short circuit strength

Order numbers

Order Number

2 x 115 Vac
50 - 60 Hz

2 x 24 Vac

3.20 VA

1.57

1.00 W
58 %

Mains transformer

cURus

50 °C

Encapsulated
VDE=B, UL=class 105
IP 00
II
inherently short-circuit proof

AVB 3,2/2/24

Type AVB 3,2/2/24

Terminal and mounting

Terminals
Pin (ø)

Measures and weights

Core type
Weight

Quick connect terminals

0.6 x 0.8

EI 38/16,5

0.17 kg
