Blizzard Lighting Motif Fresco User Manual

TABLE OF CONTENTS

Motif Fresco™ 1

1. Getting Started 3

What’s In The Box? 3 Getting It Out Of The Box 3 Powering Up! 3 Getting A Hold Of Us 3 Safety Instructions (Don’t run with scissors!) 4

2. Meet The Motif Fresco™ 5

Features 5 DMX Quick Reference 5 The Motif Fresco™ Pin-up Picture 6

3. Setup 7

Connecting A Bunch Of Motif Fresco™ Fixtures 7 Data/DMX Cables 7 Cable Connectors 8 3-Pin??? 5-Pin??? Huh? 8 Take It To The Next Level: Setting up DMX Control 8 Fixture Linking (Master/Slave Mode) 9 Mounting/Rigging 9

4. Operating Adjustments 10

Navigating The Control Panel 10 Control Panel Menu Structure 11 DMX Mode 11 Setting the DMX Address 11 Setting the DMX Channel Mode 11 Slave Mode 11 Dimming Mode Settings 12 Custom Programs 12 Auto Mode and Auto Speed 12 Color Calibration Settings 13 Custom Static Colors 13 Fixture Reset Functions 13 Data Sync Feature 13 Using the IR Remote Control 14 DMX Channel Values In-Depth 15 Dimensional Drawings 15

5. Appendix 16

A Quick DMX Lesson 16 Troubleshooting 16 Keeping Your Motif Fresco™ As Good As New 17 Returns (Gasp!) 17 Shipping Issues 17 Tech Specs 18

Page 2

1. GETTING STARTED

What’s In The Box?

• 1 x Motif Fresco™ LED Fixture

• 1 x DMX Signal Cable

• 1 x IP Rated AC Power Cord with Cable Cap

• This Lovely User Manual

Getting It Out Of The Box

Congratulations on purchasing one of the brightest, cutest little outdoor rated xtures

anywhere! Now that you’ve got your Motif Fresco™ (or hopefully, Fresco’s!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again, please save the carton

and all packing materials. If a xture must be returned to the factory, it is important that the xture be returned in the original factory box and packing.

Powering Up!

All xtures must be powered directly o a switched circuit and cannot be run o a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the xture you receive is suitable for your local power supply. See the label on the xture or refer to the xture’s specications chart for more information. A xture’s listed current rating is its average current draw under normal conditions. Check the xture or device

carefully to make sure that if a voltage selection switch exists that it is set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied does not match the voltage indicated on the voltage selector switch. All xtures must

be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something happens goes wrong, please visit www.blizzardlighting.com/ support and open a support ticket. We’ll be happy to help, honest.

Disclaimer: The information and specications contained in this document are subject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www. blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 12/9/2013 J. Thomas 9/27/2016

Page 3

SAFETY INSTRUCTIONS

• Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the de-

cal or rear panel of the xture.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.

• ALWAYS secure xture using a safety chain. NEVER carry the xture by its

cord. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www. blizzardlighting.com/support.

Page 4

2. MEET THE MOTIF FRESCO™ FIXTURE

MAIN FEATURES

• Exceptional color mixing via 14x 3W 3-in-1 LEDs

• Advanced heat sink design for zero fan noise

• IP65, outdoor rated

• User adjustable program speed & fade times

• 0-100% variable electronic dimmer

• User selectable 32-bit dimming

• Variable electronic strobe

• Tempered glass lens and watertight internal gaskets

• 10 custom color, and 3 custom program banks

• Flicker-free constant-current LED driver

• Custom global color calibration settings

• Easy to use OLED control panel /w touch sensitive buttons

• Sync custom settings between xtures via DMX

ADDITIONAL FEATURES

• USITT DMX-512 (3/5/7-channel modes)

• IP rated power and DMX connections

• Durable cast aluminum housing and mounting brackets

• Optional IR remote control (sold separately)

DMX Quick Reference (3-Channel Mode)

Channel What is does...

1 Red Intensity (0 <--> 100%) 2 Green Intensity (0 <--> 100%) 3 Blue Intensity (0 <--> 100%)

DMX Quick Reference (5-Channel Mode)

Channel What is does...

1 Master Dimmer (0 <--> 100%) 2 Red Intensity (0 <--> 100%) 3 Green Intensity (0 <--> 100%) 4 Blue Intensity (0 <--> 100%) 5 Strobe (Slow <--> Fast)

DMX Quick Reference (7-Channel Mode)

Channel What is does...

1 Master Dimmer (0 <--> 100%) 2 Red Intensity (0 <--> 100%) 3 Green Intensity (0 <--> 100%) 4 Blue Intensity (0 <--> 100%) 5 Built-In Programs 6 Auto Speed (Slow <--> Fast) 7 Strobe (Slow <--> Fast)

Page 5

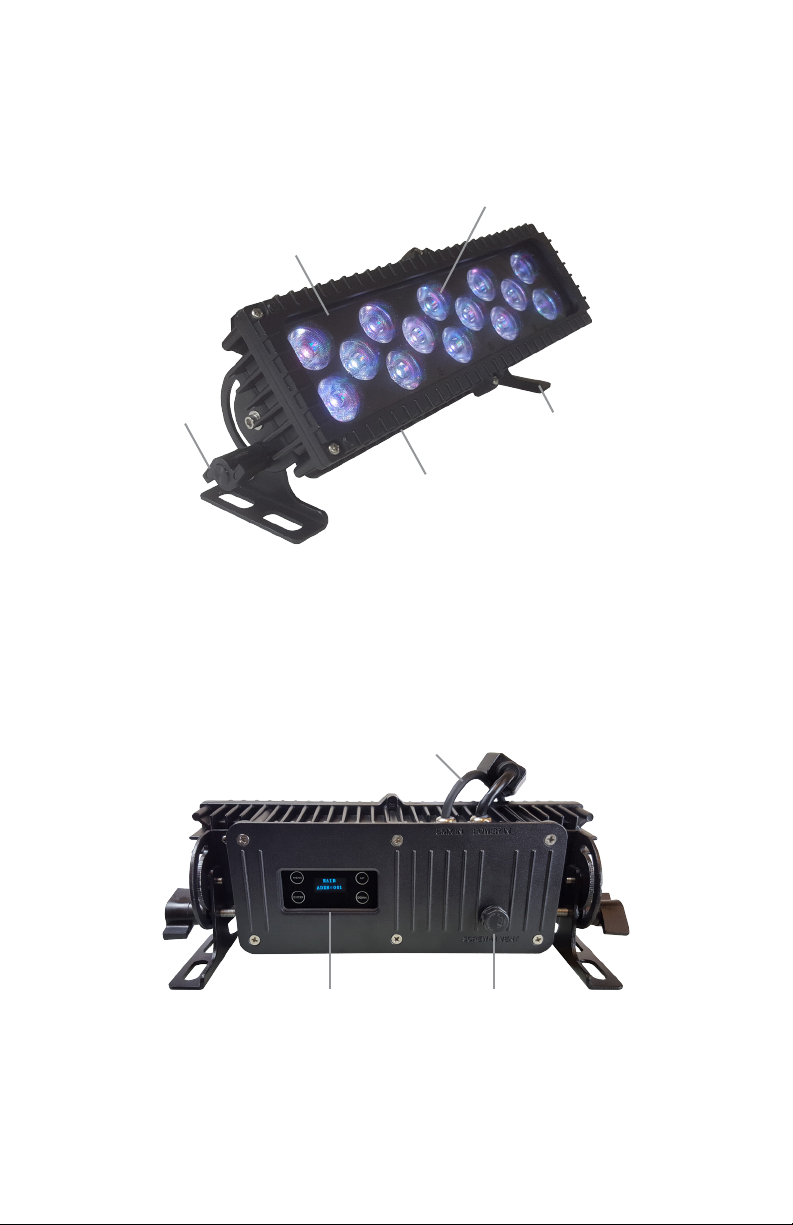

Figure 1: The Motif Fresco™ Pin-Up Picture

14* 3W

3-in-1 RGB LEDs

Watertight Tempered

Glass Lens

Locking

Knob

Natural Convection

Cooled Housing

Figure 2: The Rear Connections

Dual Mounting

Brackets

Extended Power and DMX

In/Out Connections

4-Button Control

Panel with

OLED Display

Page 6

Screw-In

Vent

3. SETUP

Fuse Replacement

CAUTION! The Motif Fresco™ utilizes a high-output switch-mode power

supply with an internal fuse. Under normal operating conditions, the fuse

should not require replacement. The fuse is eld replaceable, however it is an advanced procedure suited to qualied individuals. Should your xture

require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service.

Connecting A Bunch of Motif Fresco™ Fixtures

You will need a serial data link to run light shows using a DMX-512 control-

ler or to run shows on two or more xtures set to sync in master/slave

operating mode. The combined number of channels required by all the

xtures on a serial data link determines the number of xtures the data

link can support.

Fixtures on a serial data link must be daisy chained in one single line. Also,

connecting more than 32 xtures on one serial data link without the use

of a DMX optically-isolated splitter may result in deterioration of the digital DMX signal. The maximum recommended cable-run distance is 500 meters

(1640 ft). The maximum recommended number of xtures on a serial data link is 32 xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

For instance, Belden© 9841 meets the specications for EIA RS-485 applications. Standard microphone cables will “probably” be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms

Page 7

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the

xture’s chassis ground. Grounding the common can cause a ground loop, and your xture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5-pin DMX output connector, it’s no problem! you can simply use the in-

stalled 5-pin DMX input and/or output connections found on the back of your xture(s).

Conductor 3-Pin Female (Output) 5-Pin Male (Input)

Ground/Shield Pin 1 Pin 1

Data 1- (Primary Data Link) Pin 2 Pin 2

Data 1+ (Primary Data Link) Pin 3 Pin 3

Data 2- (Optional Secondary Data Link) Pin 4 Pin 4

Data 2+ (Optional Secondary Data Link) Pin 5 Pin 5

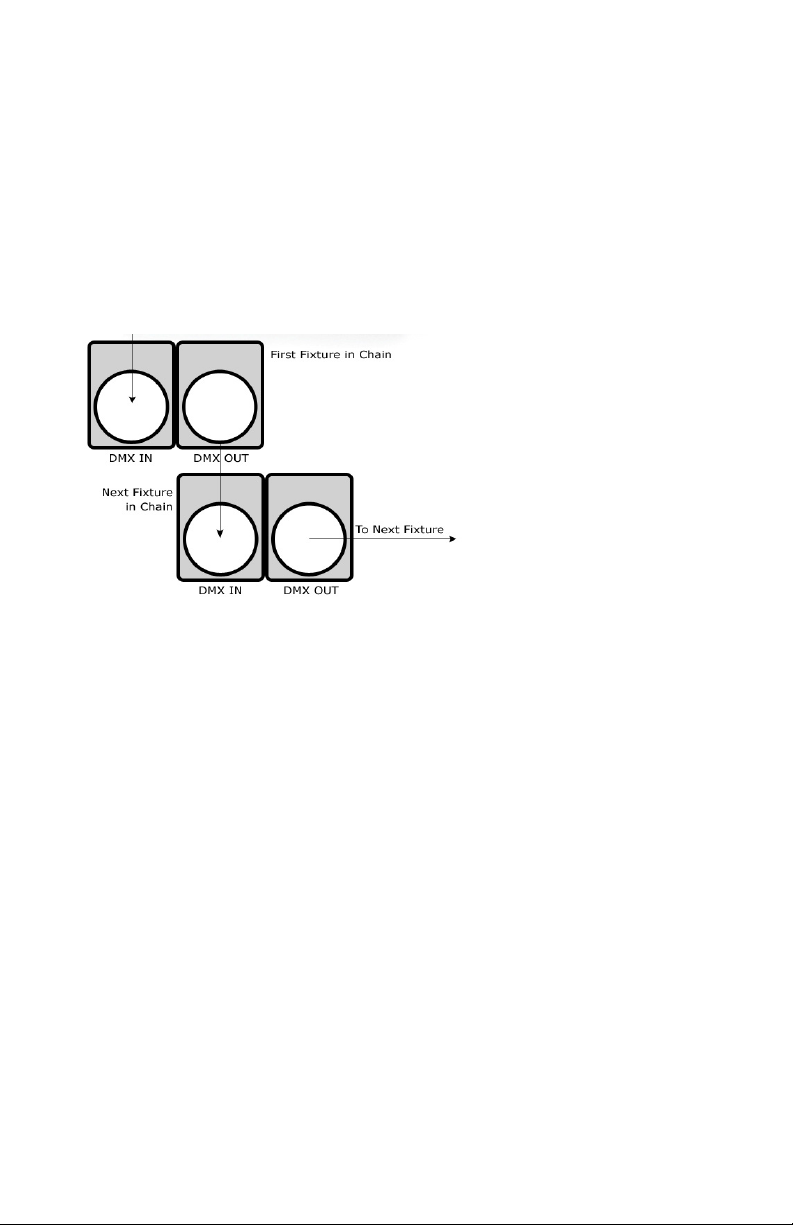

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the DMX cable to the female connector (output) on

the controller.

Step 2: Connect the female connector of the

DMX cable to the rst xture’s male connector

(input). Note: It doesn’t matter which

xture address is the rst one connected. We recommend connecting the xtures in terms

of their proximity to the controller, rather than

connecting the lowest xture number rst, and

so on.

Step 3: Connect other xtures in the chain

from output to input as above. Place a DMX

terminator on the output of the nal xture to

ensure best communication.

Page 8

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3-pin connector side of the DMX cable to the output (female) 3-pin connector of

the rst xture.

2. Connect the end of the cable coming from

the rst xture which will have a (female) 3-pin connector to the input connector of the next xture

consisting of a (male) 3-pin connector. Then, proceed to connect from the output as stated above

to the input of the following xture and so on.

A quick note: Often, the setup for MasterSlave and Standalone operation requires that

the rst xture in the

chain be initialized for this purpose via either settings in the control panel or DIP-switches.

Secondarily, the xtures

that follow may also require a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conguration.

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xture using a suitable “C” or “O” type clamp. The clamp should be rated to hold at least 10x the xture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting xtures overhead.

Adjust the angle of the xture by loosening both knobs and tilting the xture. After nding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

Page 9

4. OPERATING ADJUSTMENTS

The Control Panel

All the goodies and dierent modes possible with the Motif Fresco™ are accessed by using the control panel on the rear of the xture.

There are 4 control buttons which allow you to navigate through the various control panel menus.

<MENU>

Is used to navigate to the previous higher-level menu item.

<ENTER>

Is used to select and conrm/store the current selection.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

The control panel display shows the menu items you select from the menu map on page #11. When a menu function is selected, the dis-

play will show immediately the rst available option for the selected

menu function. To select a menu item, press <ENTER>.

Use the <UP> and <DOWN> buttons to navigate the menu options. Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button.

Page 10

Control Panel Menu Structure

ADDRESS 001-512 To choose the DMX address STATIC R Red intensity (0% <--> 100%)

SET CAL <ENTER> To set global intensity levels of each color + USE: YES/NO

CUSTOM CT01-CT10 <ENTER> R/G/B adjustments for custom color banks 01-10 AUTO AT01-AT05 <ENTER> Auto programs 1-5

PROGRAM CHS1-CHS3

INFO SOFT <ENTER> Software version information

LOAD ST L Restore factory settings

SEND YES/NO Sync settings between xtures via DMX

G Green intensity (0% <--> 100%) B Blue intensity (0% <--> 100%) SHUT Flash/strobe speed (0-255)

CHMD 7CH To run in 7-channel mode

DIM (dimming)

LOCK <ENTER> YES/NO, Unlock: <MENU>, <UP>, <DOWN>, <ENTER>, (3x)

ATSP <ENTER> Auto Speed

CHS1 <ENTER> Custom program 1 CHS2 <ENTER> Custom program 2 CHS3 <ENTER> Custom program 3

Custom programs 1-3.

POW <ENTER> Current automated overheat protection level (100%/80%/50%)

PR L Restore factory program settings

5CH To run in 5-channel mode 3CH To run in 3-channel mode LIN Linear dimming curve

SQR Square law curve

ISQR Inverse square law curve

SCUR S-curve

LIN. Linear dimming curve (smooth) SQR. Square law curve (smooth) ISQR. Inverse square law curve (smooth) SCUR. S-curve (smooth)

SC01-SC25 25 scenes for each custom program.

R (0-255) SHUT (strobe, 0-255) G (0-255) AUTO (None, AT01-AT05) B (0-255)

ATSP (speed, 0-255)

TIME (duration, 0-255)

WAIT (before fade, 0-255)

USE (use scene, YES/NO)

DMX Mode

Allows the unit to be controlled by any universal DMX controller.

Setting the DMX Address:

1.) The default mode for the xture is DMX, which appears as 001 on the LED readout. To select a dierent DMX address, using the <MENU> button, select ADDRESS, then hit

<ENTER>. Use the <UP/DOWN> buttons to select the correct address, then hit <ENTER>

to conrm.

Setting the DMX Channel Mode:

1.) To select a DMX channel mode, press the <MENU> button, then use the <UP/DOWN> buttons until the display reads SET and press the <ENTER> button. Then use the <UP/

DOWN> buttons until the display reaches CHMD, and press <ENTER>. Now press the <UP/ DOWN> buttons again to highlight your desired DMX channel mode, and press the <ENTER>

button to conrm.

Slave Mode:

1.) Daisy chain the xtures DMX in/out, having the controller at the beginning of the line.

2.) There is nothing else to it! The rst xture in the DMX chain is the master xture, and the following xtures will follow the master.

Page 11

Dimming Mode Settings:

Allows users to set the xture to use 1 of 4 (x2) dimming curve settings for smoother (and slower)

dimming capabilities. In the control panel menu, there are two settings for each curve that are distinguishable from one another by the trailing dot.

Linear Curve Square Law Inverse Square Law S-Curve

(LIN, LIN.) (SQR, SQR.) (ISQR, ISQR.) (SCUR, SCUR.)

Output

DMX% DMX% DMX% DMX%

*The curve settings with the trailing dot adds a bit more delay to the curve for a smoother eect.

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>, then <UP/DOWN> buttons again to scroll to DIM, and press the <ENTER> button.

2.) Now use the <UP/DOWN> buttons to highlight either LIN (Linear), SQR (Square), ISQR (Inverse Square), SCUR (S-Curve), LIN. (Smooth Linear), SQR. (Smooth Square), ISQR. (Smooth Inverse Square), or SCUR. (Smooth S-Curve), then hit <ENTER>.

Output

Custom Programs:

Allows users to create up to 3 customizable, 20 scene programs.

Creating A Custom Program:

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to PROGRAM, and press <ENTER>.

2.) Now use the <UP/DOWN> buttons to highlight your choice of either CHS1, CHS2, or CHS3 and press <ENTER>.

3.) Start with editing scene 1 (SC01), customizing it to your liking by using the choices outlined in the table below. You can insert any of its 5 built-in auto programs (AT01-AT05), and adjust its speed (ATSP 0-255), and also set the duration (in seconds) before moving on to the next scene (TIME 0-255). You can also add a fade in eect to the start of this scene (WAIT 0-255), and/or strobe (SHUT 0-255). Finally, if you want to use this scene in your program, be sure to enable it (USE: YES/NO).

4.) Repeat the above process to create up to 20 scenes in each of the 3 customizable programs.

R (0-255) - Red Intensity AUTO (AT01-AT05) - Auto Programs

G (0-255) - Green Intensity ATSP (0-255) - Auto Speed (fast - slow)

B (0-255) - Blue Intensity TIME (0-255) - Scene Time (seconds)

UV (0-255) - UV Intensity WAIT (0-255) - Fade In (fast - slow)

SHUT (0-255) - Strobe (slow - fast) USE (YES/NO) Use Scene in Program?

Running A Custom Program:

1.) To view your newly created lighting masterpiece, use the <MENU> and <UP/DOWN> buttons to navigate to AUTO, and press <ENTER>.

2.) Use the <UP/DOWN> buttons to highlight your choice of either CHS1, CHS2, or CHS3 and press <ENTER>.

IMPORTANT:

If USE is set to NO, or TIME is set

to 0, the scene will not run!

Auto Mode and Auto Speed:

Set single or Master/Slaved units to run in sound active or auto mode at user selectable speeds.

Auto Mode:

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to navigate to AUTO, and press the <ENTER> button.

2.) Now use the <UP/DOWN> buttons to highlight any program ranging from AT01-AT05, and press <ENTER>.

Page 12

Auto Speed:

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to AUTO and press <ENTER>, then with the <UP/DOWN> buttons navigate to ATSP, and press the <ENTER> button.

2.) Make a selection from 0-255, and press <ENTER> to choose a speed (slow <--> fast).

Color Calibration Settings:

Allows the user to setup and save 1 customized R/G/B color balance setting and save it for future use. This

custom setting is global, and it will eect all modes.

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>, then on while CAL, push <ENTER> again.

2.) Use the <UP/DOWN> buttons to highlight either R (Red Level), G (Green Level), or B, then hit <ENTER>.

3.) Now using the <UP/DOWN> buttons, select the maximum level for each color between

000-255 (000=o), and hit <ENTER> to conrm your choice.

4.) You have now just setup and saved a custom global color calibration setting that you can use

at you convenience. To use your custom setting now (or later), press the <UP/DOWN> buttons to reach USE, and press <ENTER>. Then choose either YES or NO and press <ENTER>. When you select YES, it enables this custom color calibration globally, and when choosing NO the

xture will continue to use the default color calibration settings. Your customized settings will be saved for later use even after powering o the xture. It can be altered to your liking at any

time. Just remember to return to this setting to either enable or disable it when needed.

Custom Static Colors:

Allows the user to create and save custom static colors for use in standalone or DMX mode.

Static Color Mixing (single)

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to STATIC and press <ENTER>, then <UP/DOWN> buttons to select R/G/B, and push <ENTER> to conrm your selection. Then in adjust the values (0-255) to your liking and press <ENTER> to save.

2.) In the same manner, you can select SHUT to add a strobe eect.

Mix and Save Custom Color Banks (1-10)

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to CUSTOM and press <ENTER>, then <UP/DOWN> buttons to select a color bank from CT01-CT10, and push <ENTER> to conrm your selection.

2.) Now use the <UP/DOWN> buttons to highlight either R (Red Level), G (Green Level), or B (Blue Level), then hit <ENTER>.

3.) Finally, using the <UP/DOWN> buttons, select the maximum level for each color between

000-255 (000=o), and hit <ENTER> to conrm your choice(s).

4.) These 10 custom colors can be accessed and edited to your liking at any time, and will be

saved even after powering o the xture.

Fixture Reset Functions:

Allows users to reset the xture to factory default settings, without loosing customized settings, or reset

the custom programs exclusively.

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to LOAD and press <ENTER>, then use the <UP/DOWN> buttons to highlight ST L or PR L, and press <ENTER>.

2.) Use the <UP/DOWN> buttons to highlight either YES or NO, then press <ENTER>.

3.) The ST L reset function will reset all default values with the exception of those in ADDRESS, CUSTOM (custom colors), and PROGRAM (custom scenes and programs).

4.) The PR L reset function will only reset all customized program settings found in the PROG settings (custom scenes and programs).

Data Sync Feature:

Users can transfer their custom settings from one xture to another via DMX.

1.) Disconnect xtures from any DMX controllers, and link them together via DMX in/out.

2.) On the sending xture (DMX out), navigate the main menu using the <UP/DOWN> buttons

to reach SEND, and press the <ENTER> button.

3.) Select YES, and press the <ENTER> button to begin the transfer.

4.) Information for ADDRESS, or CAL (global intensity) will not be sent.

5.) After the data has been transferred, the receiving xture will be automatically be reset.

Page 13

Using the IR Remote Control (sold separately)

All the goodies and dierent modes possible with the Motif Fresco™ can be accessed by using the IR

remote control (sold separately).

The IR remote control is simple to use. It oers the same

functionality of the LED control panel, with the addition of quick

access shortcut buttons.

<MENU>

Used to navigate to the previous higher-level menu item.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

<ENTER>

Is used to select and conrm/store the current selection.

Shortcut keys used to access the color settings for Red, Green,

and Blue.

Shortcut key used to access strobe settings. After pressing this button you can use the <UP/DOWN>

and <ENTER> buttons to modify the strobe (slow <--> fast).

<AUTO>

Shortcut key used to access auto mode settings. After pressing this button you can use the <UP/DOWN>

and <ENTER> buttons to access its built-in auto programs.

<SOUND>

Shortcut key used to access sound active mode.

<SPEED>

Shortcut key used to access speed settings. After pressing this button you can use the <UP/DOWN> and

then the <ENTER> button to select a speed value (fast <--> slow).

<CLEAR>

This will clear the modied values of <R1>, <G1>, <B1>, <STROBE>, and reset the xture.

*Some of the buttons on this remote are reserved for future use.

Page 14

DMX Values In-Depth (3/5/7-Channel Modes)

3CH 5CH 7CH Value What It Does

-- 1 1 000 <--> 255 Dimmer (0% <--> 100%)

1 2 2 000 <--> 255 Red Intensity (0% <--> 100%)

2 3 3 000 <--> 255 Green Intensity (0% <--> 100%)

3 4 4 000 <--> 255 Blue Intensity (0% <--> 100%)

-- 5

-- -- 6 000 <--> 255 Auto Speed (slow <--> fast)

-- 5 7

000 <--> 029 030 <--> 059 060 <--> 089 090 <--> 119 120 <--> 149 150 <--> 179 180 <--> 209 210 <--> 255

000 <--> 005 006 <--> 115 116 <--> 130 131 <--> 170 171 <--> 210 211 <--> 250 251 <--> 255

Built-In Programs

No Function Auto 1 - R, G, B, RG, RB, GB Auto 2 - R↑, R↓, G↑, G↓, B↑, B↓ Auto 3 - R↑G↑, R↓G↓, R↑B↑, R↓B↓, B↓G↓, B↑G↑ Auto 4 - RGB↑, RGB↓ Auto 5 - B, BG↑, BG, B↓G, G, GR↑, GR, G↓R, R, RB↑, RB, R↓B Chase 1 Chase 2

Strobe

No function Normal strobe (slow <--> fast) Random strobe (slow <--> fast) Electronic sine wave (slow <--> fast) Opening pulse (slow <--> fast) Closing pulse (slow <--> fast) No function

Dimensional Drawings

4.9” (124.5 mm)

3.6” (91.1 mm)

11.6” (301.1 mm)

Page 15

5. APPENDIX

A Quick Lesson On DMX

DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common communications standard used by lighting and related stage equipment.

DMX provides up to 512 control “channels” per data link. Each of these channels was originally intended to control lamp dimmer levels. You can think of it as 512 faders on a lighting console, connected to 512 light bulbs. Each slider’s position is sent over the data link as an 8-bit number having a value between 0 and 255. The value 0 corresponds to the

light bulb being completely o while 255 corresponds to the light bulb being fully on.

DMX data is transmitted at 250,000 bits per second using the RS-485 transmission standard over two wires. As with microphone cables, a grounded cable shield is used to prevent interference with other signals.

There are ve pins on a DMX connector: a wire for ground (cable shield), two wires for

“Primary” communication which goes from a DMX source to a DMX receiver, and two wires for a “Secondary” communication which goes from a DMX receiver back to a DMX

source. Generally, the “Secondary” channel is not used so data ows only from sources

to receivers. Hence, most of us are most familiar with DMX-512 as being employer over

typical 3-pin “mic cables,” although this does not conform to the dened standard.

DMX is connected using a daisy-chain conguration where the source connects to the input of the rst device, the output of the rst device connects to the input of the next device,

and so on. The standard allows for up to 32 devices on a single DMX link.

Each receiving device typically has a means for setting the “starting channel number” that

it will respond to. For example, if two 6-channel xtures are used, the rst xture might

be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next

xture would be set to start at channel 7 so it would respond to channels 7 through 12.

Troubleshooting

Symptom Solution

Fixture Auto-

Shut O

Beam is Dim Check optical system and clean excess dust/grime. Also ensure that

No Light Output Check to ensure xture is operating under correct mode, IE sound

Chase Speed Too Fast/Slow

No Power Check fuse, AC cord and circuit for malfunction.

No Response to Audio

Fixture Not Responding / Responding Erratically

Check the fan in the xture. If it is stopped or moving slower than normal, the unit may have shut itself o due to high heat. This is to protect the xture from overheating. Clear the fan of obstructions,

or return the unit for service.

the 220V/110V switch is in the correct position, if applicable.

active/auto/DMX/Etc., if applicable. Contact service for more information.

Check to ensure proper setup of speed adjustment.

Verify that the xture is in “Sound Active” mode. Adjust Audio Sensitivity, If Applicable.

Make sure all connectors are seated properly and securely. Use Only DMX Cables. Install a Terminator. Check all cables for defects.

Reset xture(s).

Page 16

Keeping Your Motif Fresco™ As Good As New

The xture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.

You should absolutely keep the xture clean, especially if you are using it in an

environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled drinks.

Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output. Keeping the fans free of dust and debris will keep

the xture running cool and prevent damage from overheating.

In transit, keep the xtures in cases. You wouldn’t throw a prized guitar,

drumset, or other piece of expensive gear into a gear trailer without a case, and similarly, you shouldn’t even think about doing it with your shiny new light

xtures.

Common sense and taking care of your xtures will be the single biggest thing

you can do to keep them running at peak performance and let you worry about designing a great light show, putting on a great concert, or maximizing your client’s satisfaction and “wow factor.” That’s what it’s all about, after all!

Returns (Gasp!)

We’ve taken a lot of precautions to make sure you never even have to worry about sending a defective unit back, or sending a unit in for service. But, like any complex piece of equipment designed and built by humans, once in a while,

something doesn’t go as planned. If you nd yourself with a xture that isn’t behaving like a good little xture should, you’ll need to obtain a Return Authori-

zation (RA).

Don’t worry, this is easy. Just open a support ticket at www.blizzardlighting. com/support, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable, pre-paid freight method. We suggest using USPS Priority

or UPS. Make sure you carefully pack the xture for transit, and whenever possible, use the original box & packing for shipping.

When returning your xture for service, be sure to include the following:

1.) Your contact information (Name, Address, Phone Number, Email address).

2.) The RA# issued to you

3.) A brief description of the problem/symptoms.

We will, at our discretion, repair or replace the xture. Please remember that

any shipping damage which occurs in transit to us is the customer’s responsibility, so pack it well!

Shipping Issues

Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.

Page 17

Tech Specs!

Weight & Dimensions

Width 11.6 inches (301.1 mm)

Depth 3.6 inches (91.1 mm)

Height 4.9 inches (124.5 mm)

Weight 6.3 lbs (2.86 kg)

Power

Operating Voltage 100-264VAC, 47-63Hertz

Power Consumption 44W, .68A

Light Source

LED 14x 3-watt TRI-color LEDs, 100,000 hours.

Optical

Beam Angle 28 degrees

Luminous Intensity

Lux/meter

2m 515 820 900 2,010

Thermal

Max. Operating Temp. 104 degrees F (40 degrees C) ambient

Red Green Blue All

Control

Protocol USITT DMX-512

DMX Channels 3/5/7-channel

Input 3-pin XLR Male

Output 3-pin XLR Female

Other Operating Modes Standalone, Master/Slave

Coolness Factor

Muy Fresco

2-year limited warranty, does not cover malfunc-

Warranty

tion caused by damage to LED’s.

Page 18

This page intentionally left blank.

Page 19

Blizzard Lighting Motif Fresco User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
