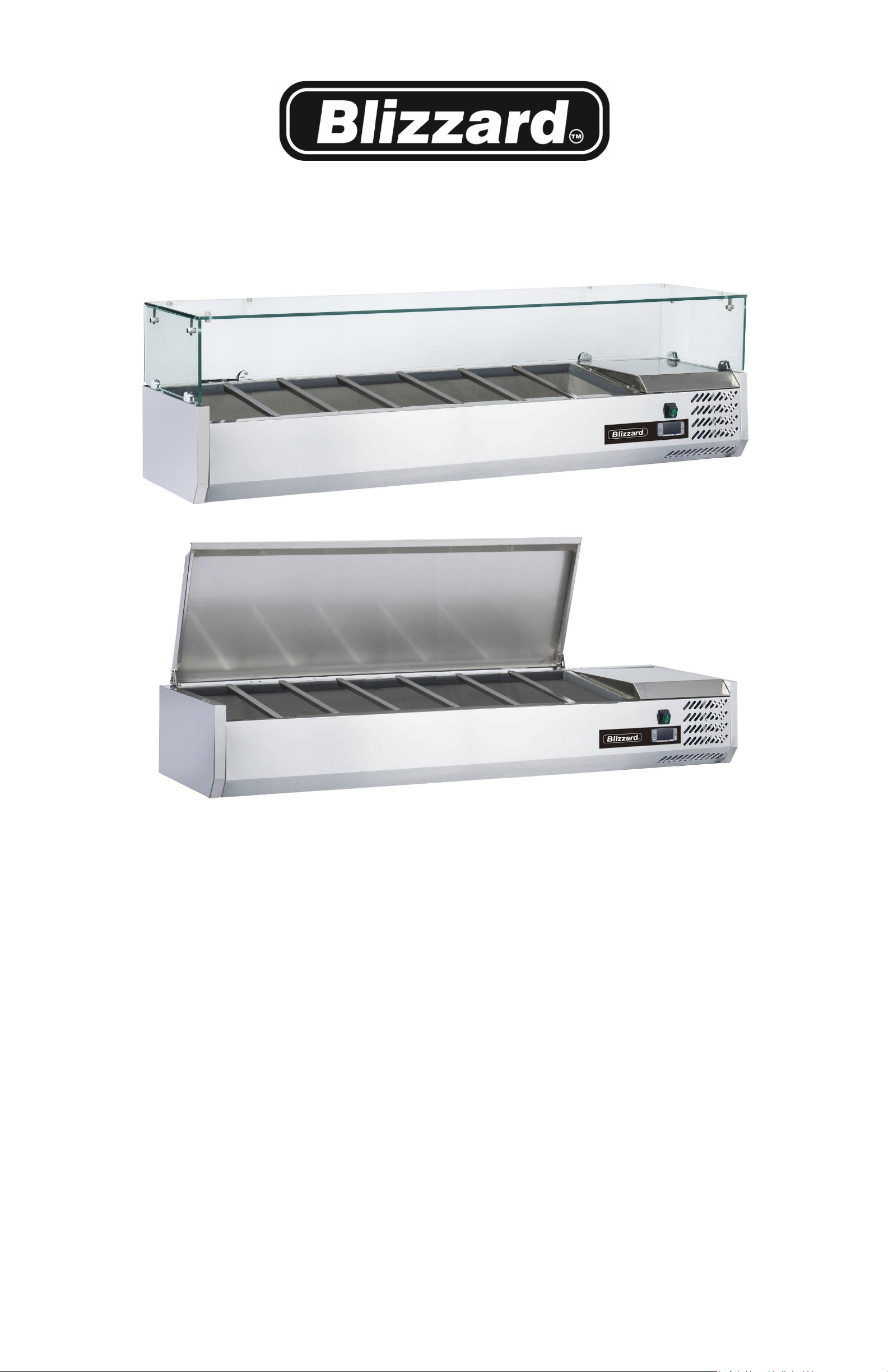

Refrigerated Counter-Top Prep
Installation, Operation & Maintenance Manual
(HC Gas R600a used)
Page 2
Page 3
Table of Contents
Safety Tips………………………………………………………………………..1
Introduction………………………………………………………………………1
Installation…………………………………………………………………………1
Fit Glass Panels…………………………………………………………….1
Operation………………………………..…………………………………………2
Storing Food………………………………..…………………………………….2
Turn On………………………………………………………………………………2
Cleaning, Care & Maintenance……………………………………………2
Cleaning the Condenser………………………………………………………2
Troubleshooting………………………………………………………………….2
Technical Specifications……………………………………………………….3
Electrical Wiring…………………………………………………………………..3
Disposal……………………………………………………………………………….3
Compliance………………………………………………………………………….3
Page 4
1
Safety Tips
⚫ Position on a flat, stable surface.
⚫ A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove
any components or service panels on this product.
⚫ Consult Local and National Standards to comply with
The following:
·Health and Safety at Work Legislation
·BS EN Codes of Practice
·Fire Precautions
·IEE Wiring Regulations
·Building Regulations
⚫ DO NOT use jet/pressure washers to clean the appliance.
⚫ DO NOT use the appliance outside.
⚫ DO NOT use this appliance to store medical supplies.
⚫ DO NOT use electrical appliances inside the appliance.
(e.g. heaters, ice-cream makers etc.)
⚫ Always carry, store and handle the appliance in a
vertical position and move by holding the base of the
appliance.
⚫ Always switch off and disconnect the power supply to
the unit before cleaning.
⚫ Keep all packing away from children. Dispose of the
packaging in accordance with the regulations of local
authorities.
⚫ If the power cord is damaged, it must be replaced by
an agent or a recommended qualified technician in
order to avoid a hazard.
Introduction
Please take a few moments to carefully read through this
manual. Correct maintenance and operation of this
machine will provide the best possible performance from
your product.
We pride ourselves on quality and service, ensuring that at
the time of packing the contents are supplied fully functional
and free of damage.
Should you find any damage as a result of transit, please contact
your dealer immediately.
Installation
Note: If the unit has not been stored or moved in an upright position,
let it stand upright for approximately 12 hours before operation. If in
doubt allow the appliance to stand.
1. Remove the appliance from the packaging. Make
sure, that all protective plastic film and coatings
are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between
the unit and walls or other objects for ventilation.
Increase this distance if the obstacle is a heat source.
3. Ensure the ambient temperature is within the design
range of the cabinet, avoid locations below 15 degrees C.
Beware of enclosed rooms with other refrigeration
equipment as additional ventilation may be required.
Note: Before using the appliance for the first time,
clean the shelves and interior with soapy water. Thoroughly dry
afterwards
3. Level the appliance by adjusting the screw feet.

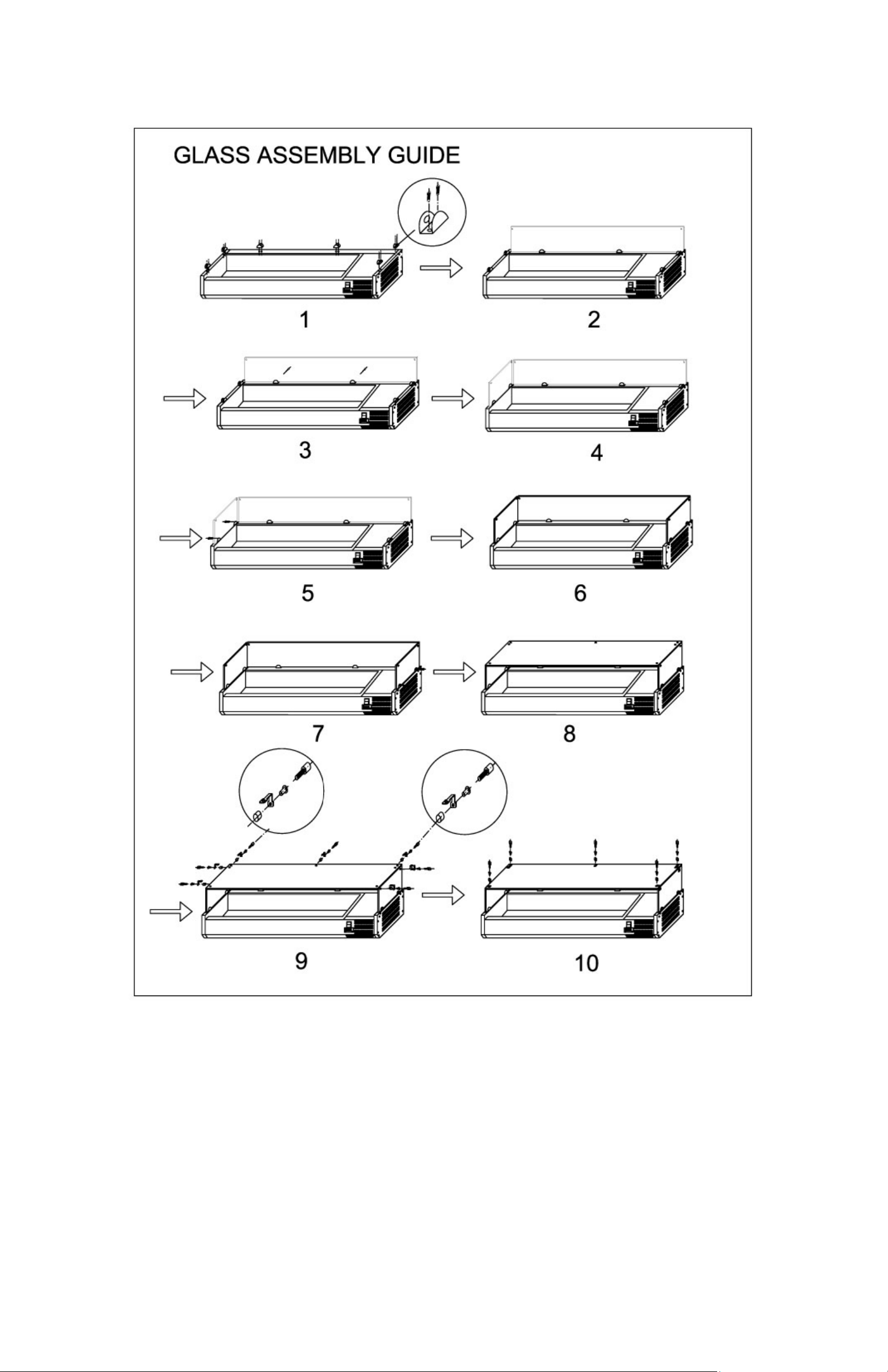

Fit Glass Panels(optional)
1. Screw the collars to the rim of the appliance.
Note: Ensure the hole in the collar for the grub screw face
Inwards.
2. Slot the two side panels into the collars, with the holes in
The glass at the top.
Note: Ensure the screw hole furthest from the edge of the panel
goes to the back of the appliance.
3. Screw a grub screw into each collar to secure the panels.
Note: Ensure the soft end of the grub screw is the end making
contact with the glass.
4. Slot the rear panel into the collars, with the holes in the glass
at the top.
5. Screw a grub screw into each collar to secure the panel.
6. Slot the plastic plugs into each of the holes.

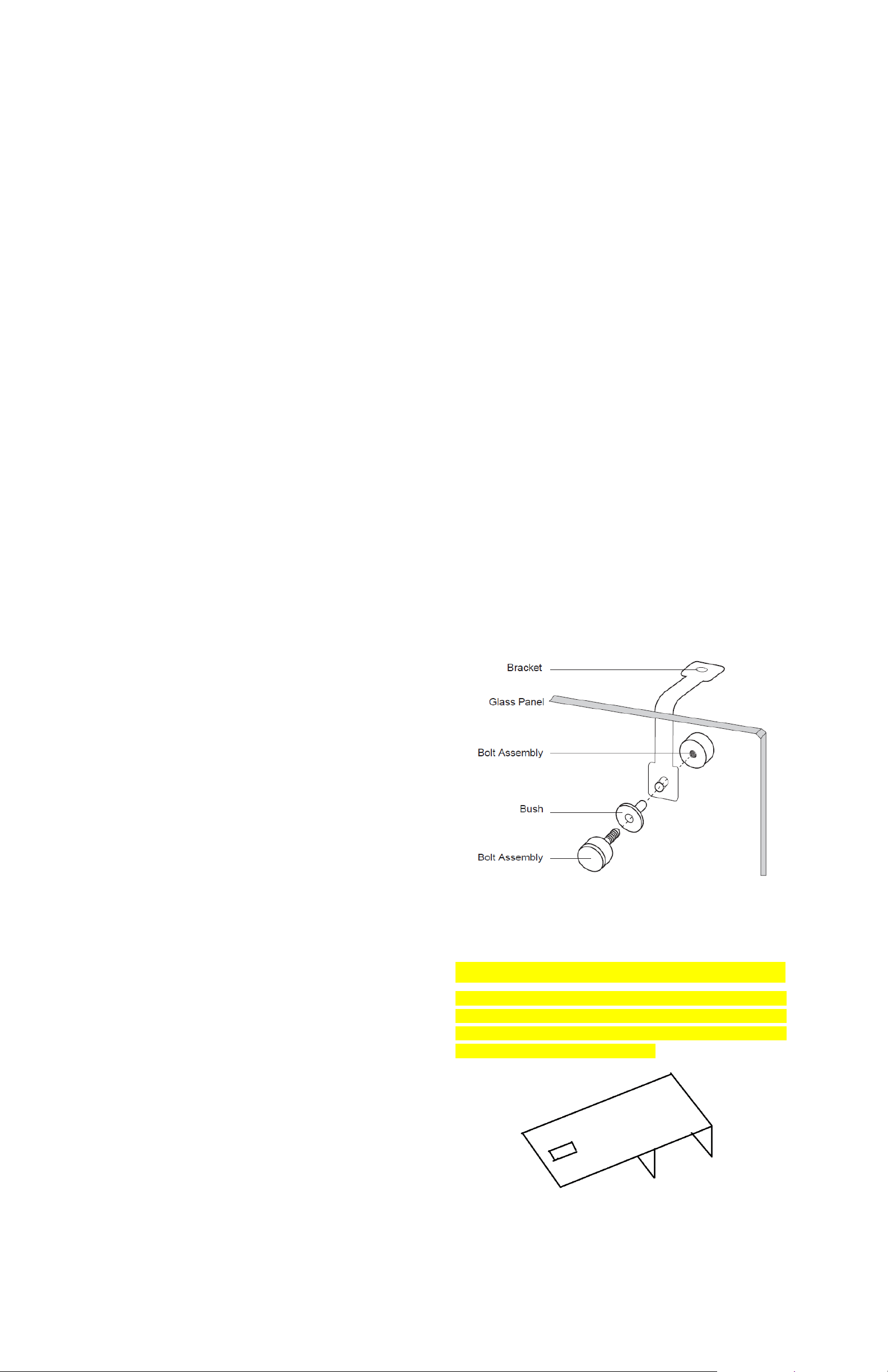

7. Screw the brackets to the inside of each pane using the bolt
assemblies.
Note: Ensure the short end of the bolt assembly is on the outside
of the panels.
8. Place the top panel onto the brackets, ensuring all holes line up.
9. Insert the plugs and attach the top panel to brackets with the bolt
assemblies.
Fitting unit on a Marble pizza counter(optional)
If the topping unit has been supplied to sit on top of a marble pizza
counter, the additional brackets supplied inside the base unit should
be fitted under the toppings unit to secure the sides and front edge to
the marble in order to prevent movement
Page 5
1
Operation
Storing Food
To get the best result from your appliance, follow these instructions:
1. Only store foodstuffs in the appliance when it has reached the correct operating temperature.
2. Do not place uncovered hot food or liquid inside the appliance.
3. Do not obstruct the fans inside the appliance.
Turn on
1. Close the door(s) of the appliance.
2. Ensure the power switch is set to [O] and turn on at the socket.
3. Switch on the power [l]. The current temperature within the appliance is displayed.
Adjusting the Set Temperature
1. Press and hold the set button for 3 seconds till the C led starts blinking with the current set temperature shown
2. Use the arrow keys to adjust to the required set temperature setting.
3. Press the set key to store, then leave for approx. 5 secs till the display shows the cabinet temperature, the cabinet will then cool down to
the new set temperature.
NOTE! The temperature shown on the display will fluctuate during normal use as the unit regulates the cabinet temperature.
Cleaning, Care & Maintenance
·Switch off and disconnect from the power supply before cleaning.
·Clean the interior of the appliance as often as possible.
·Do not use abrasive cleaning agents. These can leave harmful residues.
·Clean the door seal with warm water with a mild detergent only.
·Always wipe dry after cleaning. Stainless steel cleaner can be applied to exterior surfaces to preserve the finish.
·Take care when cleaning the rear of the appliance. Sharp edges can cut.
An agent or qualified technician must carry out repairs if required.
Cleaning the Condenser
Periodically cleaning the condenser is mandatory and failure to do so will void the warranty.
We recommend that our agent or qualified technician clean the condenser.
Troubleshooting
If your appliance develops a fault, please check the following table before making a call to your dealer.
Fault
Probable Cause
Action
The appliance is not working
The unit is not switch on
Check the unit is plugged in correctly and switched on
Plug and lead are damaged
Call your agent or qualified technician
Fuse in the plug has blown
Replace the fuse
Power supply
Check power supply
Internal wiring fault
Call your agent or qualified technician
The appliance turns on, but
the temperature is too
high/low
Too much ice on the evaporator
Defrost the appliance
Condenser blocked with dust
Call your agent or qualified technician
Doors are not shut properly
Check doors are shut and seals are not damaged
Appliance is located near a heat source
or air flow to the condenser is being
interrupted
Move the refrigerator to a more suitable location
Ambient temperature is too high
Increase ventilation or move appliance to a cooler position
Unsuitable foodstuffs are being stored in
the appliance
Remove any excessive hot foodstuffs or blockages to the fan
Appliance is overloaded
Reduce the amount of food stored in the appliance
The discharge outside is blocked
Clear the discharge outlet
Movement of water to the drain is
obstructed
Clear the floor of the appliance (if applicable)
The water container is damaged
Call your agent or qualified technician
The drip tray is over flowing
Empty the drip tray (if applicable)
Page 6
2
The appliance is unusually
loud
Loose nut/screw
Check and tighten all nuts and screws
The appliance has not been installed in a
level or stable position
Check installation position and change if necessary
Technical Specifications (R600a)
Model
Voltage
Power
(W)
Current
(A)
Temperature
Range
Capacity
Container
Dimensions
HxWxD(mm)
Weight
(kg)
BZ-TOP1200CRXX
220～240V/50Hz
110
0.8
2～10℃
3xGN1/3+
1xGN1/2
435x1200x395
41
BZ-TOP1500CRXX
220～240V/50Hz
110
0.8
2～10℃
5xGN1/3+
1xGN1/2
435x1500x395
48
BZ-TOP2000CRXX
220～240V/50Hz
110
0.8
2～10℃
9xGN1/3
435x2000x395
60
BZ-TOP1200ENXX
220～240V/50Hz
110
0.8
2～10℃
3xGN1/3+
1xGN1/2
435x1200x395
41
BZ-TOP1500ENXX
220～240V/50Hz
110
0.8
2～10℃
5xGN1/3+
1xGN1/2
435x1500x395
48
BZ-TOP2000ENXX
220～240V/50Hz
110
0.8
2～10℃
9xGN1/3
435x2000x395
60
Electrical Wiring
Appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be
connected to a suitable mains socket. Appliances are wired as follows:
•Live wire (coloured brown) to terminal marked L
•Neutral wire (coloured blue) to terminal marked N
•Earth wire (coloured green) to terminal marked E
All appliances must be earthed, using a dedicated earthing circuit.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being
required they must be readily accessible.
Pentland Wholesale Ltd, Blizzard house, Unit17 Walker Park Industrial Estate, Walker Road, Blackburn,
Lancs, BB1 2QE. Tel: 01254 614444, www.pentlandwholesale.co.uk
Page 7
3
R600a refrigerant is used for this equipment.
Caution!
Consult repair manual/owner’s guide before attempting to install or service this product. All safety precautions must be followed. Dispose of
properly in accordance with federal or local regulations. Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully.
Danger!
Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Do not use mechanical devices to defrost
refrigerator. Do not puncture refrigerant tubing.
Disposal
EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all glasses,
metal and plastic components.
Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to
dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.
All packaging materials should be disposed of in an environmentally friendly way.
The cardboard may be used as scrap paper. The protective foil and the foam cushions are CFC-free.
Do not allow children to play with the packaging and destroy plastic gags safely.
Environmental protection
Discarded electric appliances are recyclable and should not be discarded in the domestic waste! Please actively support us in
conserving resources and protecting the environment by returning this appliance to the collection centers (if available).
Compliance
Parts have undergone strict product testing in order to comply with regulatory standards and specification set by
international, independent, and federal authorities.
Products have been approved to carry the following symbol:
