Serve Over Counters
User Manual
(ZETA & SIGMA)
Page 2
Pentland Wholesale: 01254 614444 Email: [email protected]
1. INTRODUCTION
2. GUARANTEE
3. INSTALLATION & ASSEMBLY
1.INTRODUCTION
We would like to thank you for your confidence in us for having purchased this refrigerated unit. This manual has been
prepared in order to safeguard the security of the user and ensure the correct use and maintenance of the refrigerated
units. Please read it carefully before starting up your unit.
This manual is considered to be an integral part of the refrigerated unit and as such, should be kept in a safe place and
should be available for reference.
Before carrying out any operation, whether as an installation technician or as the user of the unit, you should be aware
of the points explained in this manual.
The manufacturer considers that both the installation technician and the user of the unit must have the most basic
training in order to understand the contents of this manual, as well as an awareness of standard hygiene and safety
principal.
If required, this unit must be repaired exclusively by qualified technical personnel.
In the event of any doubt over the content of this manual, please contact the distributor or the manufacturer.
The user will be responsible for the following items:
• Suitability of the premises to the requirements of the purchased unit.
• Electricity supply in accordance with the current standards and sufficient for the consumption and safety of the unit.
• Material necessary to clean the unit.
• Water point or drainage outlet as necessary for the installation of the refrigerated unit.
The manufacturer disclaims all liability in the following situations:
• Inappropriate use of the purchased unit.
• Possible damage to person of property caused by improper installation.
• Installation not carried out following the procedures described in this manual.
• Defects in the electricity supply.
• Unauthorised modifications or interventions.
• Use of spares not specific to the model.
• Total or partial non-compliance with the instructions.
• Incidents caused by transportations company or movement of the unit to its place of installation.
• All ventilation grilles should be kept clear of obstruction and not covered by secondary decorative panelling.
Page 3
Pentland Wholesale: 01254 614444 Email: [email protected]
• In High humidity periods it may be necessary to perform additional defrosts by pressing the manual defrost button on
the controller, it is recommended to switch off the unit AT LEAST once a month to thoroughly clean the cabinet interior
and allow any ice build up to be fully defrosted.
• Avoid locations where excessive air movement can be directed into the refrigerated area of the cabinet, special
attention to the location of air conditioners and oscillating fans.
1. GUARANTEE
The guarantee for the unit and the parts that comprise it are guaranteed for three years starting from the date of
sale and consists of the replacement of the detective component or component, provided that it is not as a result of
the misuse of the same.
The guarantee will not cover breakdown or breakage of components, even when the same occurs within the
established period, arising from subjecting the unit to working conditions other than those established in this manual
and the details of each model contained in the catalogue (failure in the power supply, high ambient temperatures,
windows, lighting, etc…).
The manufacturers guarantee excludes consequential loss arising from any component failure.
2. INSTALLATION AND ASSEMBLY
The unit must not be moved from its standard vertical position, however as necessary, some appliances may be
placed face down only as indicated on the packaging.
You are advised to unpack the unit standing on a solid, flat, and stable surface. In order to transfer it to the
installation location, a trolley or fork-lift may be of help. It should not be dragged along the ground and always watch
out to ensure it is not off-balance.
Next, remove the packaging to leave the unit completely free of all coverings and packing material, whilst avoiding
knocks to the appliance, scratching it, or unscrewing the feet.

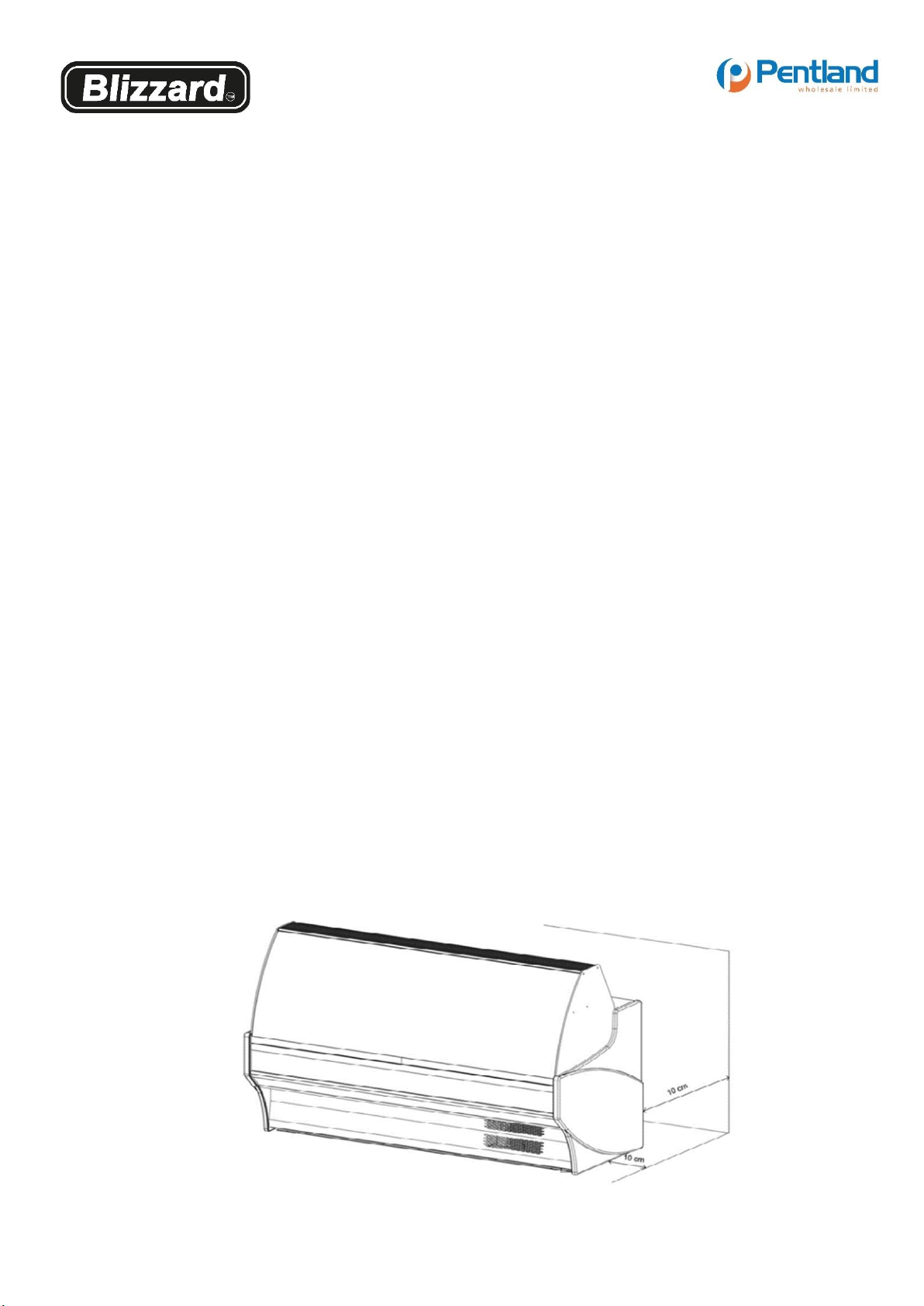

Once place in its final location, it should be pulled away from the wall so that there is a space of 10 cm at the back
and a minimum of 10 cm to the sides.
Page 4
Pentland Wholesale: 01254 614444 Email: [email protected]
The unit is equipped with drain cleaning, we recommend connecting it directly to the appropriate device or a
receptacle should be positioned in order to collect the water.
FIRST CLEANING
First of all, remove the protective film from stainless steel using any non-sharp object. Remove also possible glue
remains using alcohol.
Avoid completely the use of tools or elements that may be able to scratch or damage the unit. Once cleaned and dry,
assemble accessories on correspondent places.
We recommend a regular cleaning of the stainless steel with some neutral soap, warm water, and sponge, drying it
afterwards. DO NOT USE ANY DETERGENTS, ANY PRODUCT CONTAINING CHLORIDE, SULPHIDE OR ANY OTHER
ABRASIVE AGENTS. ALWAYS KEEP ELECTRIC PARTS AWAY FROM WATER.
ATTENTION Please do not use iron, nickel sponges to clean STAINLESS STEEL or leave them lying on the surface as
the iron deposits can stick and cause the formation of rust contamination, thus jeopardising the hygiene of the
surface.
Page 5
Pentland Wholesale: 01254 614444 Email: [email protected]
Instructions for use
1. SAFETY & INSPECTION
2. GENERAL CONNECTIONS
3. IDENTIFICATION OF TH EUNIT
4. START-UP
5. USE AND LIMITS
6. RECOMMENDATIONS
7. PRECAUTIONS
8. MAINTENANCE
GAS CONDENSER
EVAPORATORS
AUTOMATIC EVAPORATION TRAY
DOOR SEALS
9. OPERATIONAL TESTS
CHECKS IN THE EVENT OF OPERATIONAL FAILURE
NOISE TESTS
10. MANUFACTURING ELEMENTS
REFRIGERANT
COMPOSITION OF THE THERMAL INSULATION
Page 6
Pentland Wholesale: 01254 614444 Email: [email protected]
1. SAFETY AND INSPECTION
In order to inspect the unit before starting it up, the following check should be taken into account:
• Do not modify the specifications plate or instructions issued by the manufacturer.
• Do not remove or modify the safety elements.
• Do not ouch the unit with wet or damp hands and feet.
• Do not touch the unit when barefoot.
• Do not pull the cable to unplug the unit.
• Before carrying out any cleaning or maintenance operation, unplug the unit from the electricity
supply, first turning off the main switch and then unplugging the unit.
• The unit should not be used in threatening atmospheric or fire risk conditions.
• Do not use adapters, extension leads or multiple plugs.
• The unit must not be used by children, persons whose mental, sensory, or physical capacities are
impaired. Persons who lack experience or knowledge must be supervised or given instructions for
use.
• Check that the voltage and power line frequency coincide with those indicated on the specification
of the appliance.
• Check that there are no defects on the unit resulting from its transportation. The manufacturer will
not be liable for damage suffered during transportation or arising from incorrect storage.
• Check the operation of the moving components of the unit.
• Check the safety of the controller, electrical cables, and connections.
• Check that the interior and additional accessories are present.
2. GENERAL CONNECTIONS
• Be sure the power cable is not damaged.
• If the power cable is damaged it must be replaced. This repair must be performed by qualified
personnel.
• It is essential that the electrical installation to which the unit is going to be connected has an
EARTH LEAD, as well as the necessary thermal and differential magnetic protection.
• The power supply must have the suitable section for the consumption of the appliance.
• If various units are installed in a row, each one must be connected independently to the power
supply, avoiding the use of extension leads or multiple plugs.
• The manufacture disclaims all liability in the event that any of the above points are not followed.
Page 7
Pentland Wholesale: 01254 614444 Email: [email protected]

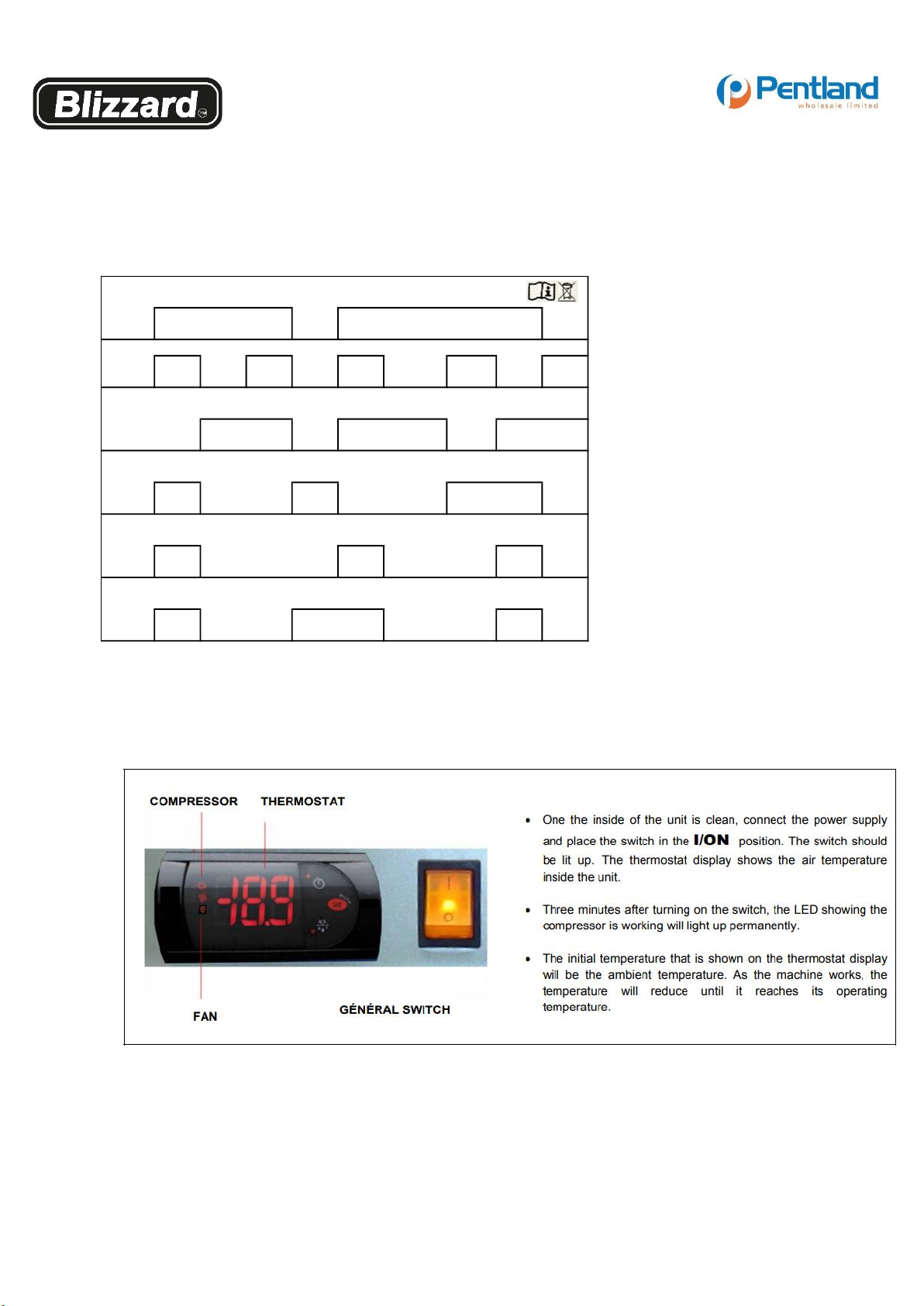

3. IDENTIFICATION OF THE UNIT
REGISTRATION
4. START-UP
It is important that the unit runs until it reaches its operating temperature before proceeding to load it with
products.
relating to the refrigerant gas and electrical voltage to
which the unit must be connected is also displayed
Equipment
Refrigerant
Refrigerant Weight gr.
or on the data sheet that appears on all the products
The unit, model and serial number are identified by
means of the information displayed on the registration
Apart from the indentifying data on the unit, information
Pentland Wholesale Ltd.
Blizzard House, Unit 17, Walker Industrial Estate, Walker Road, Blackburn
Heater W
Climate Class
Temperature °C
Weight Kg
Max. Weight Shelves Kg
Condensation
Voltage V
Hz
Ph
Absorption A
Date
Refrig Capacity W
Lamp W
Defrost W
Serial No.
Model

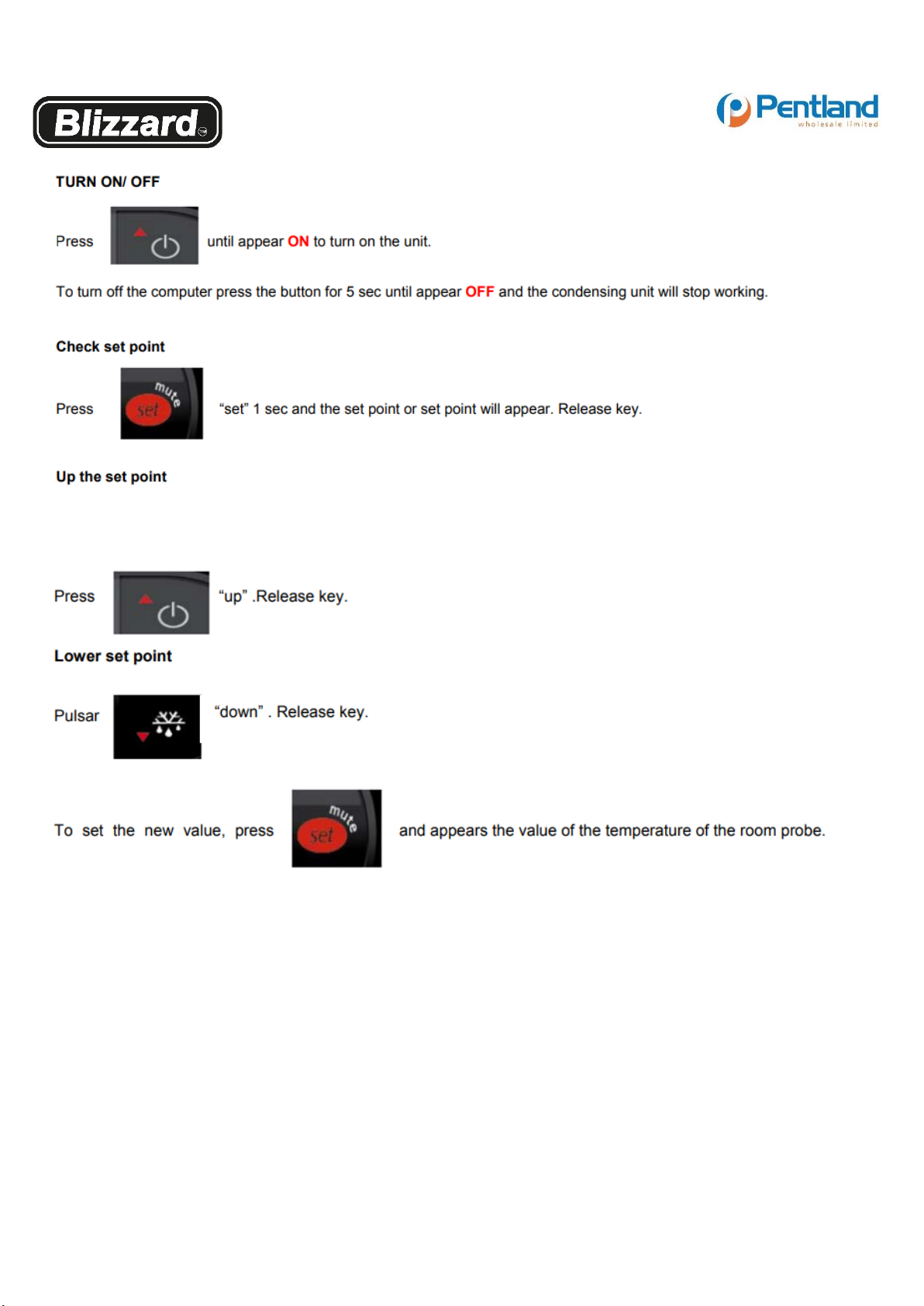

Page 8
Pentland Wholesale: 01254 614444 Email: [email protected]
Page 9
Pentland Wholesale: 01254 614444 Email: [email protected]
5.USE AND LIMITS
Each unit is designed for a determined range of temperatures.
The serve over counters are prepared to conserve fresh products or pre-cooked, foods, as well as the
refrigeration of drinks. The temperature must be selected considering the following points:
• Type of product for refrigeration or conservation
• Ambient temperature
• Frequency of which the doors are opened.
Although it is possible to select or reprogram the temperature by manipulating the thermostat, it is not
advisable, as this may cause the improper operation of the unit, changing the purpose for which it was
programmed, and for this reason such manipulation should never be done.
The user of this unit will be responsible for the damage caused to it through non-compliance with the
observation described in the above point.

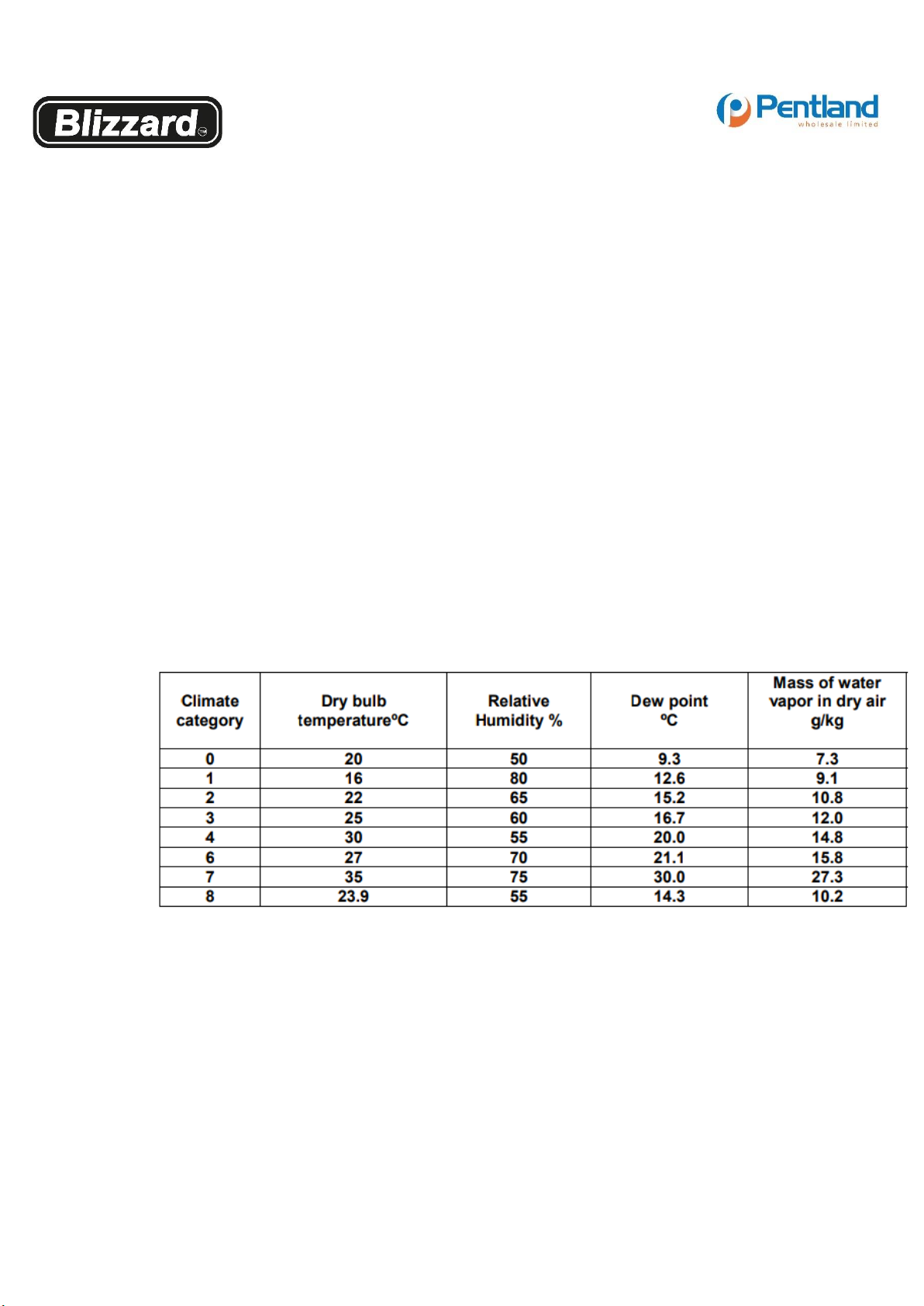

The units designed for the storage of frozen foods are suitable for the conservation of frozen foods and not
for freezing the product. The environmental operational limits established for the units are shown by
climatic category:
6.RECOMMENDATIONS
• You are recommended to wait until the chamber reaches its operational temperature before introducing
any product.
• In order to obtain better performance, avoid the introduction of hot foods as well as drinks that are not in
sealed packages.
• Protect foods and their odours by using some hermetic closing system, placing them in the unit in such a
way that allows for a good circulation of air, respecting the maximum load indicated on the inside of the
unit.
• Avoid as far as possible the frequent opening of doors and above all, do not leave the doors open.
• Avoid placing sheets of cardboard or paper on the perforated shelves as these will obstruct the circulation
of air.
• The maximum weight for the glass shelf is 8 kg/m, distributed evenly and 60kg/m for shelf exposure.
Page 10
Pentland Wholesale: 01254 614444 Email: [email protected]
7. PRECAUTIONS
• The stability of the unit is guaranteed, even when the doors are open, however leaning on the doors is
completely prohibited.
• Do not modify the specifications plate or instructions issued by the manufacturer. • Do not touch the unit
with wet or damp hands and feet.
• Do not touch the unit when barefoot.
• Do not pull the cable to unplug the unit.
• Avoid the use of adapters, extension leads or multiple plugs.
• Before carrying out any cleaning or maintenance operation, unplug the unit from the electricity supply,
first turning off the main switch and then unplugging the unit.
• The unit must not be used by children, persons whose mental, sensory or physical capacities are impaired.
Persons who lack experience or knowledge must be supervised or given instructions for use.
8. MAINTENANCE
Before carrying out any cleaning operation, disconnect the unit from the power supply and place the main
switch in the OFF position.
The units are equipped with a drainage outlet to make cleaning easier, as well as allowing for the eventual
seepage of liquids from the foods. During cleaning, the drainage outlet cover has to be removed and cleaned
in order to avoid being blocked by solid elements being pulled into it.
The good operation and performance of the unit will largely depend on its correct maintenance, carried out
periodically.
The manufacturer is exempt from all liability arising from non-compliance with the procedures contained in
this manual.

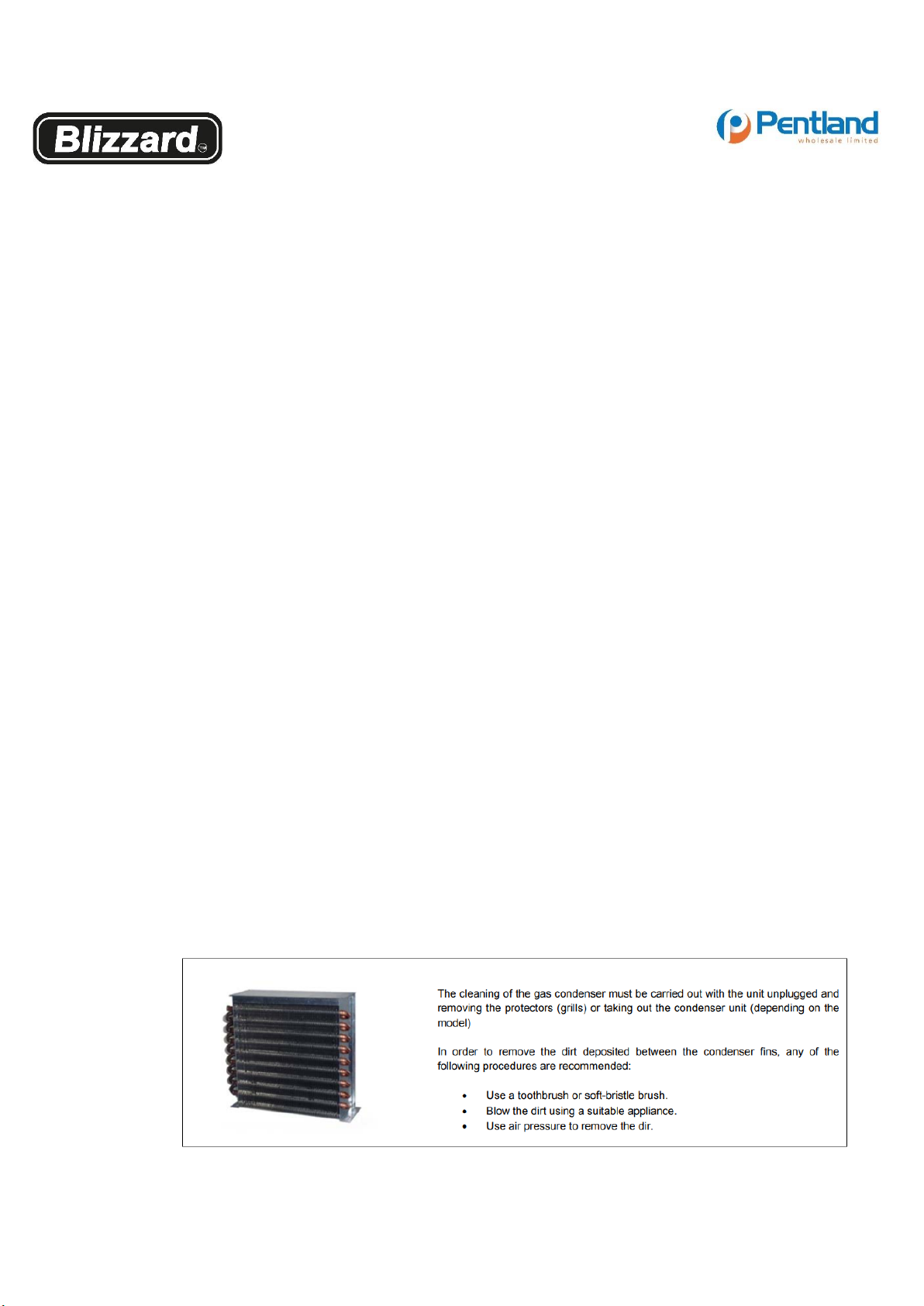

• CONDENSER
The incorrect maintenance and lack of cleaning of the gas condenser of the refrigerated unit can
considerably reduce the performance of the unit as well as shortening the life of the compressor motor.
The cleaner the unit, especially the condenser fins, the greater the energy saving.
In any event, it is recommended that this task is carried out by a service technician. In the case of any
doubt, please contact your distributor.
We recommend that this operation is carried out at least once every three months and at the start of
every summer.
Page 11
Pentland Wholesale: 01254 614444 Email: [email protected]
• EVAPORATORS
Only for specialist personnel
The only maintenance the evaporators require is proper cleaning. This has to be done with the machine
stopped and once the ice that may be present on the fins has melted or once defrosting has been done by
operating the controls. This process may be accelerated by using warm water, NEVER using hard or sharp
objects.
In order to clean the coil or the casing, DO NOT use chemical de-greasers with acid compounds or bleach,
chlorine, ammonia or salts as all these products aggressively attack copper and aluminium. Only water with
well-diluted neutral detergents should be used or products especially designed for cleaning the evaporators
of refrigerated units. The cleaner the unit, the greater the energy saving.
• AUTOMATIC EVAPORATION TRAY
Only for specialist personnel
The majority of the units are equipped with an automatic evaporation tray for the situations where an external
outlet is not available to collect the defrosted water from the evaporators. If this tray is not included, the
drainage tubes have to be connected directly to the appropriate device or a receptacle should be positioned
in order to collect the water.
The defrost water can also cause breakdowns as the piping that brings the heat necessary for the water to
evaporate can be punctured or the electrical resistance can deteriorate.
The duration and number of defrosts the refrigerating equipment is regulated at the factory. The user should
not change this regulation.
Attention should be given to this tray and regular cleaning is recommended.
• DOOR SEALS
The rubber door seals are designed to ensure the closure of the doors to the cold chambers and to guarantee
the sealing of the doors against external elements.
A magnetic strip is housed on the inside of the rubber seal, which adheres it to the frame of the unit. Over
time granular particles can become stuck in the seal due to the effect of the magnet and these can rust and
cause stains.
It is recommended that these door seals are kept free from foreign bodies that can cause rust, as well as fatty
deposits which, over a long period of time, can affect the rubber of the door seal.
Clean them with water, using neutral soap and a damp cloth. DO NOT USE DETERGENTS OR ABRASIVE
PRODUCTS.
Page 12
Pentland Wholesale: 01254 614444 Email: [email protected]
9. OPERATIONAL TEST
• CHECKS IN THE EVENT OPERATIONAL FAILURE In some situations, operational failure can arise due to
simple causes that users themselves can solve, which is why prior to requesting the intervention of a
specialised technician, we recommend that you carry out the following checks.
The appliance does not work:
- Check that it is correctly plugged in.
- Check that electricity reaches the power outlet.
- Check that general switch is in the I/ON position.
The internal temperature is too high:
- Check that there is no heat source nearby.
- Check that the grill is not obstructed. - Check the Set-point.
- Check that the product loaded is perfectly distributed, without blocking the interior air ventilation exits and
that the time elapsed since loading has been sufficient to chill the products.
- Check if the evaporator has ice.
- Check that the condenser is not obstructed.
- Check that the appliance is functioning normally.
In the event of strange or excessive noises:
- Check the levelling of the unit as this may cause vibrations.
- Check that there is no object rubbing against any movable element of the refrigerated unit.
• NOISE TESTING
- The noise tests were performed in a room without any noise absorption elements and without any large
item placed near to the refrigerated unit.
- The noise levels registered in the acoustic test have been carried out in accordance with the ISO 230 to 235
standards.
Leq (continuous level) is less than 70 db. (A)
Lp (acoustic pressure level) is less than 130 db. (C)
10. MANUFACTURING ELEMENTS
The entire chamber where the foodstuffs are deposited is made from non-toxic material.
All the accessories and protectors comply with the regulations, including all fastenings, nuts, and bolts, which
are made with stainless or zinc-based steel.
The refrigerate unit is designed to be operated using ecological refrigerant gas, approved by the current EC
standards.
• Refrigerant
- R290
• COMPOSITION IF THERMAL INSULATION
- The thermal insulation is made from expanded polyurethane 40 kg/m3, with expansive agent
C4H5F5.
Page 13
Pentland Wholesale: 01254 614444 Email: [email protected]
Page 14
Pentland Wholesale: 01254 614444 Email: [email protected]
Loading...
