Page 1
Heated display case
BZ-HOTT1 BZ-HOTT2

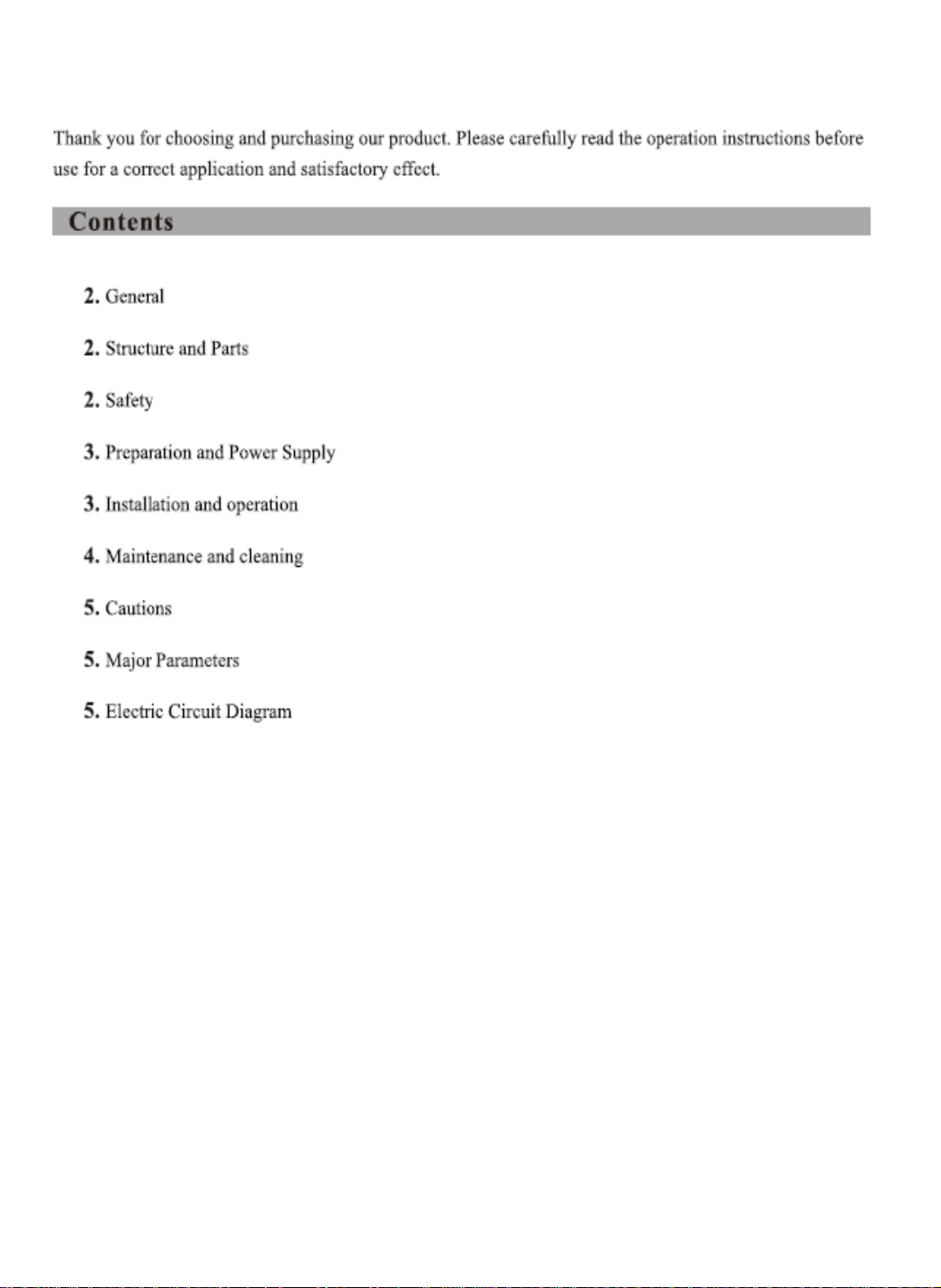

Page 2
1
Page 3
Glass
door-------
Shelf Bracket
Shelf
General
1. This instruction manual contains information about the installation, operation and maintenance of the
device and shouldbe consulted as an important source of information and reference guide.
2. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and
correct use of the device.
Structure and Parts
Safety
*
The appliance is not to be used by persons (including children) with reduced physical, sensory
or mental capabilities , or lack of experience and knowledge , unless they have been given
supervision or instruction
*
Children being supervised not to play with the appliance.
*
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved
*
Children shall not play with the appliance
*
Cleaning and user maintenance shall not be made by children without supervision
*
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
*
Don't use any kind of pressure water jet for cleaning the device.
* To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that
are not explicitly approved by the manufacturer may be undertaken.
This device may only be operated in technically proper and safe condition.
* The device should be never left unattended during operation. Keep away children.
* Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be
handed over along with the device.
* Every person using the device must act in accordance to the manuals and under consideration of the
safety advice.
* The device is to be used indoors only.
* Any technical interventions, as well as assembly and maintenance are to be made by a qualified
customer service only.
2

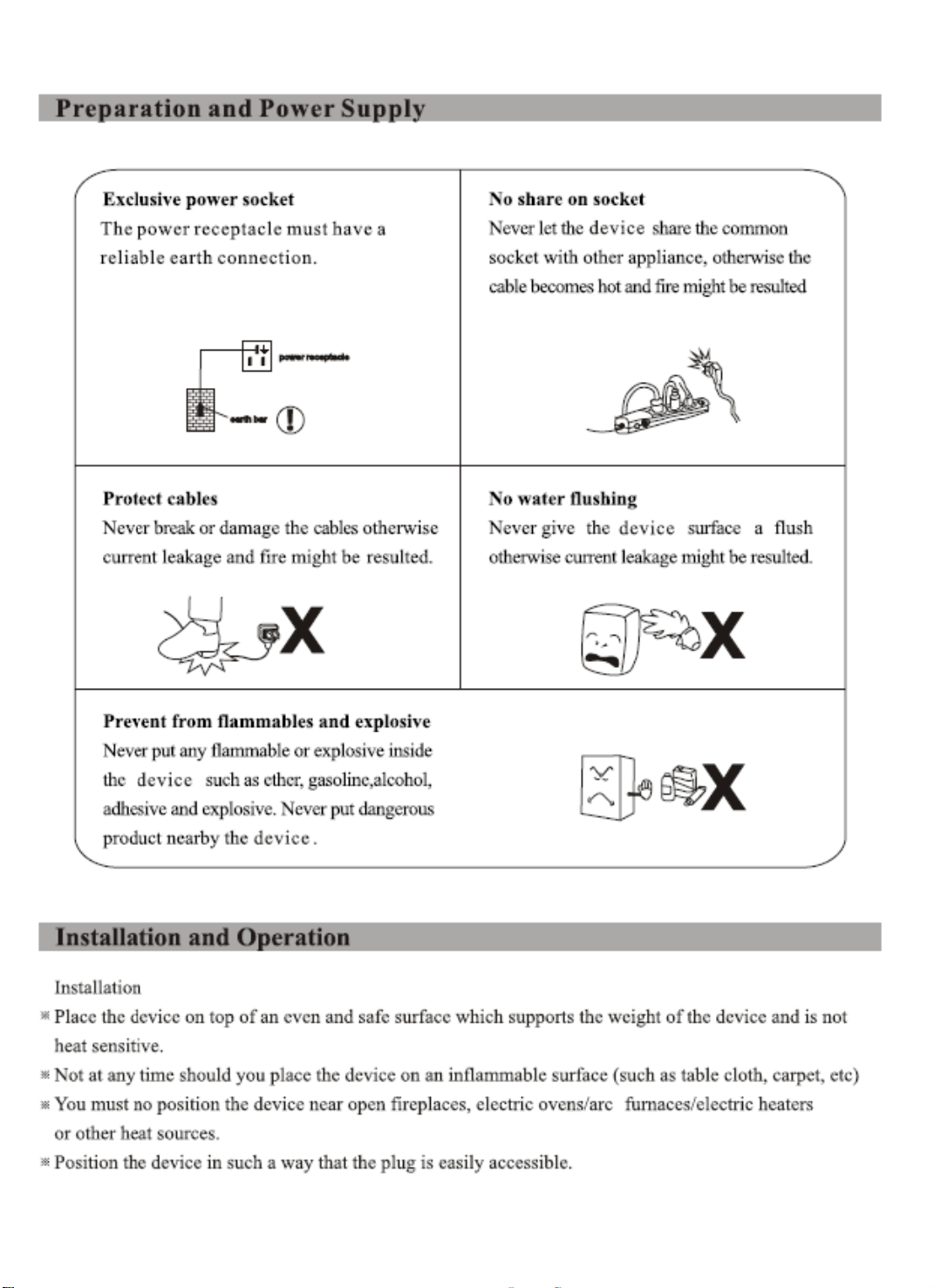

Page 4
3

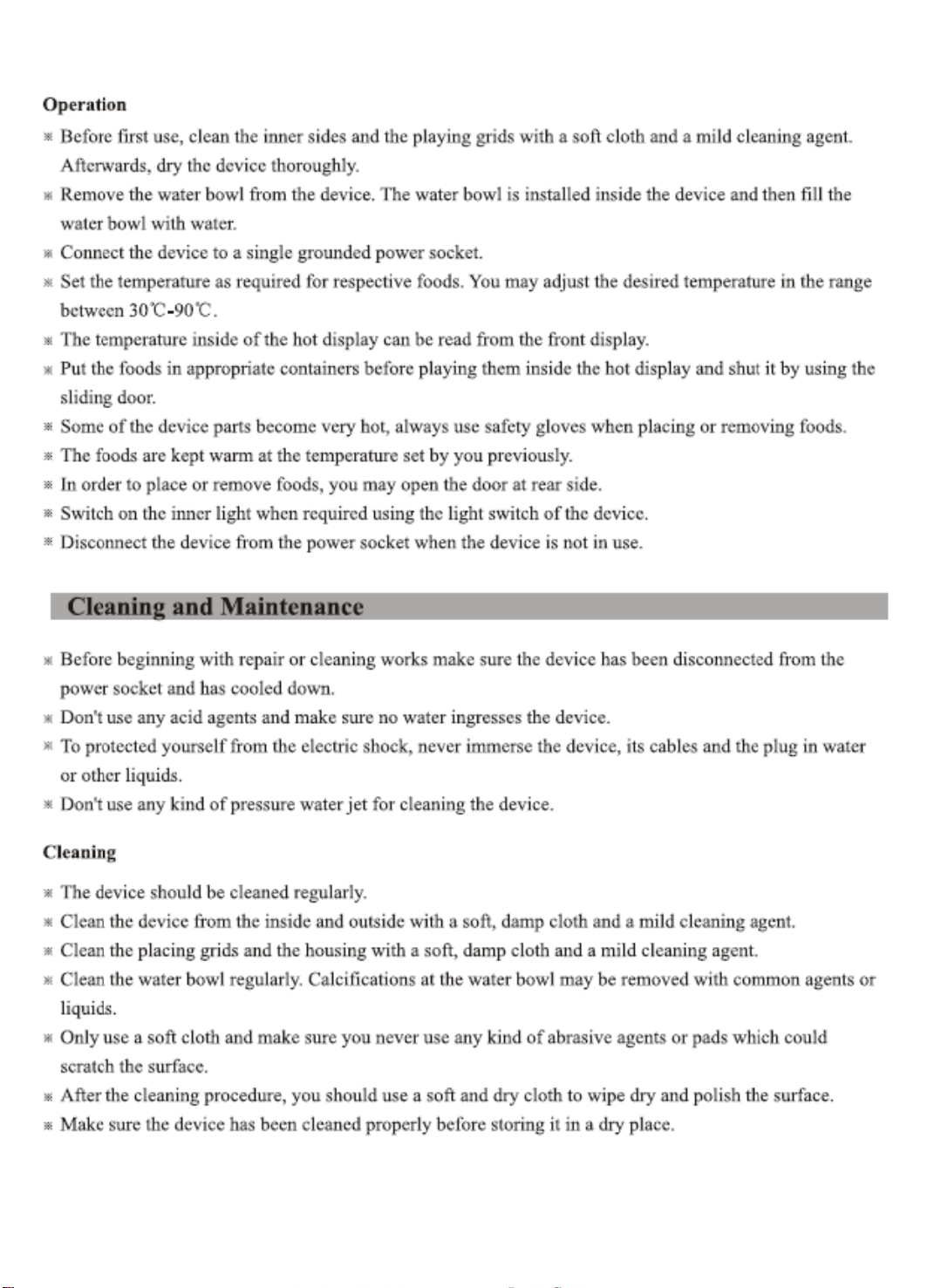

Page 5
4
Page 6
Maintenance
*
Check the mains lead from time to time to ensure it is not damaged in any way. Never use the device if
the lead is damaged.
If
the lead is damaged, it must be replaced by a qualified electrician.
*
Only a qualified technician should carry out repairs and maintenance of the device. Do not attempt to
repair the device by yourself.
*
Appliances must be disconnected from their power supply during cleaning or maintenance and
when replacing parts.
Cautions
Children should be supervised to ensure that they do not play with the appliance.
- If
the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Pa
BZ-HOTT1
BZ-HOTT2
Temperature range(°C)
30-90 30-90 General Rated Input Power0N)
1100 1500 Rated Current (A)
4.75 6.3 Rated Voltage(V)
220-240-
220-240-
Rated Frequency(Hz)
50 50
Storage Volume(L)
130
160 Net Weight(kg)
47 52
Grade of Waterproof
IPX4 IPX4 Overall Dimension(mm)
678x578x698
857x578x698
Package Dimension(mm)
749x627x731
928x627x731
Lamp power(W)
2(LED)
2.5(LED)
Circuit Diagram
Switch Thermostat
220-240V-
50Hz
5
Self-resetting
thermal cut-out
Indicator Lamp
::c
ro
=
m
i
Non self-resetting
thermal cut-out
Page 7
Note
1.
The electric circuit diagram and parameters on the product name plate are final ones if they have been
changed.
2.
The design might be improved without notice.
Caution!
HOT SURFACE! Do not put food in direct contact with the shelf
Consult repair manual/owner’s guide before attempting to install or service this product. All safety precautions must be
followed. Dispose of properly in accordance with federal or local regulations.
Disposal
EU regulations require refrigeration product to be disposed of by specialist companies who remove or
recycle all gasses,
metal and plastic components.
Consult your local waste collection authority regarding disposal of your appliance. Local authorities
are not obliged to
dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of
the equipment locally.
All packaging materials should be disposed of in an environmentally friendly way.
The cardboard may be used as scrap paper. The protective foil and the foam cushions are CFC-free.
Do not allow children to play with the packaging and destroy plastic gags safely.
Environmental protection
Discarded electric appliances are recyclable and should not be discarded in the domestic
waste! Please actively support us in conserving resources and protecting the environment by
returning this appliance to the collection centers (if available).
Compliance
Parts have undergone strict product testing in order to comply with regulatory standards and specification set
by international, independent, and federal authorities.
Products have been approved to carry the following symbols:
Pentland Wholesale Ltd, Blizzard House, Unit17 Walker Ind Est, Walker Road, Blackburn, BB1 2QE
Tel: 01254 614444 Website: www.pentlandwholesale.co.uk
6
