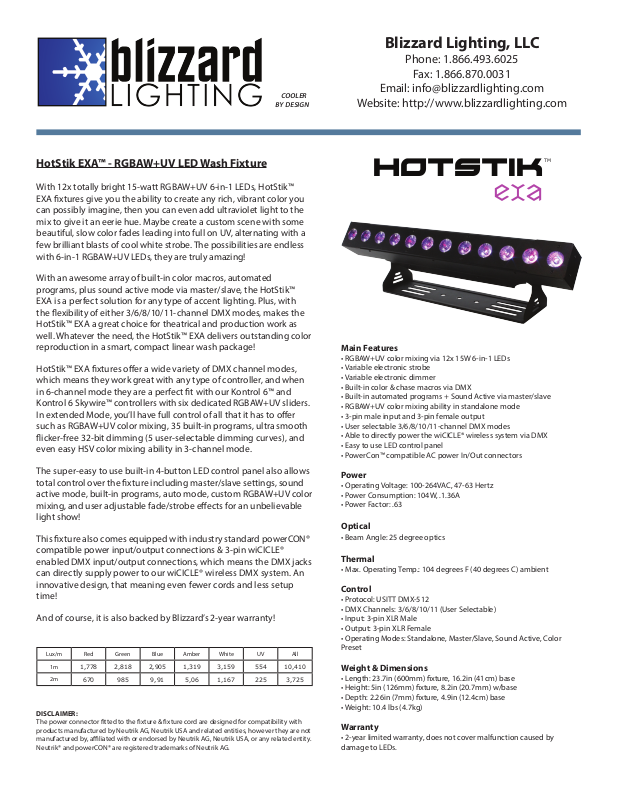

Blizzard HotStik EXA Datasheet

COOLER

BY DESIGN

Blizzard Lighting, LLC

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.blizzardlighting.com

HotStik EXA™ - RGBAW+UV LED Wash Fixture

With 12x totally bright 15-watt RGBAW+UV 6-in-1 LEDs, HotStik™
EXA xtures give you the ability to create any rich, vibrant color you
can possibly imagine, then you can even add ultraviolet light to the
mix to give it an eerie hue. Maybe create a custom scene with some
beautiful, slow color fades leading into full on UV, alternating with a
few brilliant blasts of cool white strobe. The possibilities are endless
with 6-in-1 RGBAW+UV LEDs, they are truly amazing!

With an awesome array of built-in color macros, automated
programs, plus sound active mode via master/slave, the HotStik™
EXA is a perfect solution for any type of accent lighting. Plus, with
the exibility of either 3/6/8/10/11-channel DMX modes, makes the
HotStik™ EXA a great choice for theatrical and production work as
well. Whatever the need, the HotStik™ EXA delivers outstanding color
reproduction in a smart, compact linear wash package!

HotStik™ EXA xtures oer a wide variety of DMX channel modes,
which means they work great with any type of controller, and when
in 6-channel mode they are a perfect t with our Kontrol 6™ and
Kontrol 6 Skywire™ controllers with six dedicated RGBAW+UV sliders.
In extended Mode, you’ll have full control of all that it has to oer
such as RGBAW+UV color mixing, 35 built-in programs, ultra smooth
icker-free 32-bit dimming (5 user-selectable dimming curves), and
even easy HSV color mixing ability in 3-channel mode.

The super-easy to use built-in 4-button LED control panel also allows
total control over the xture including master/slave settings, sound
active mode, built-in programs, auto mode, custom RGBAW+UV color
mixing, and user adjustable fade/strobe eects for an unbelievable
light show!

This xture also comes equipped with industry standard powerCON®
compatible power input/output connections & 3-pin wiCICLE®
enabled DMX input/output connections, which means the DMX jacks
can directly supply power to our wiCICLE® wireless DMX system. An
innovative design, that meaning even fewer cords and less setup
time!

And of course, it is also backed by Blizzard’s 2-year warranty!

Lux/m Red Green Blue Amber White UV All

1m

1,778 2,818 2,905 1,319 3,159 554 10,410

2m

DISCLAIMER:

The power connector tted to the xture & xture cord are designed for compatibility with
products manufactured by Neutrik AG, Neutrik USA and related entities, however they are not
manufactured by, aliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity.
Neutrik® and powerCON® are registered trademarks of Neutrik AG.

670 985 9,91 5,06 1,167 225 3,725

TM

hotstik

exa

Main Features

• RGBAW+UV color mixing via 12x 15W 6-in-1 LEDs

• Variable electronic strobe

• Variable electronic dimmer

• Built-in color & chase macros via DMX

• Built-in automated programs + Sound Active via master/slave

• RGBAW+UV color mixing ability in standalone mode

• 3-pin male input and 3-pin female output

• User selectable 3/6/8/10/11-channel DMX modes

• Able to directly power the wiCICLE® wireless system via DMX

• Easy to use LED control panel

• PowerCon™ compatible AC power In/Out connectors

Power

• Operating Voltage: 100-264VAC, 47-63 Hertz

• Power Consumption: 104W, .1.36A

• Power Factor: .63

Optical

• Beam Angle: 25 degree optics

Thermal

• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control

• Protocol: USITT DMX-512

• DMX Channels: 3/6/8/10/11 (User Selectable)

• Input: 3-pin XLR Male

• Output: 3-pin XLR Female

• Operating Modes: Standalone, Master/Slave, Sound Active, Color
Preset

Weight & Dimensions

• Length: 23.7in (600mm) xture, 16.2in (41cm) base

• Height: 5in (126mm) xture, 8.2in (20.7mm) w/base

• Depth: 2.26in (7mm) xture, 4.9in (12.4cm) base

• Weight: 10.4 lbs (4.7kg)

Warranty

• 2-year limited warranty, does not cover malfunction caused by
damage to LEDs.
