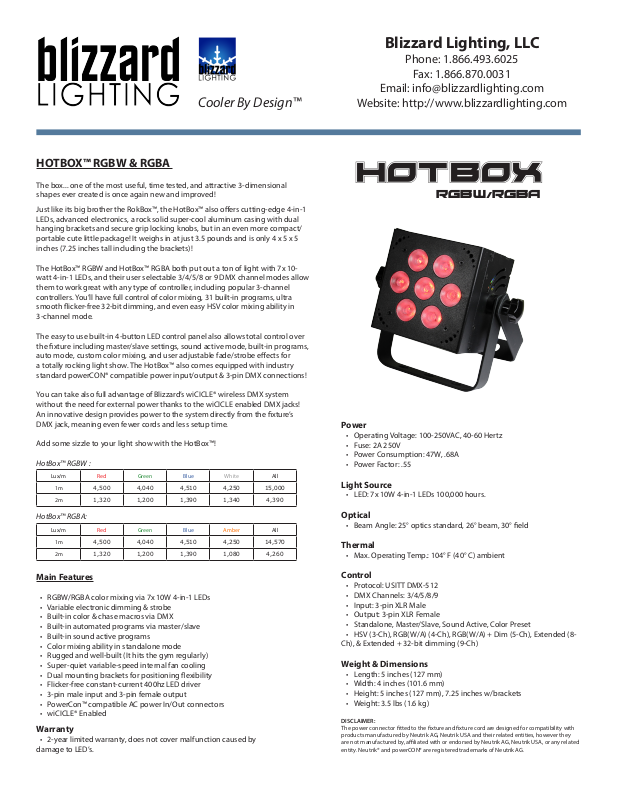

Blizzard HotBox RGBA Datasheet

Cooler By Design™

HOTBOX™ RGBW & RGBA

The box... one of the most useful, time tested, and attractive 3-dimensional
shapes ever created is once again new and improved!

Just like its big brother the RokBox™, the HotBox™ also oers cutting-edge 4-in-1
LEDs, advanced electronics, a rock solid super-cool aluminum casing with dual
hanging brackets and secure grip locking knobs, but in an even more compact/
portable cute little package! It weighs in at just 3.5 pounds and is only 4 x 5 x 5
inches (7.25 inches tall including the brackets)!

The HotBox™ RGBW and HotBox™ RGBA both put out a ton of light with 7x 10­watt 4-in-1 LEDs, and their user selectable 3/4/5/8 or 9 DMX channel modes allow
them to work great with any type of controller, including popular 3-channel
controllers. You’ll have full control of color mixing, 31 built-in programs, ultra
smooth icker-free 32-bit dimming, and even easy HSV color mixing ability in
3-channel mode.

The easy to use built-in 4-button LED control panel also allows total control over
the xture including master/slave settings, sound active mode, built-in programs,
auto mode, custom color mixing, and user adjustable fade/strobe eects for
a totally rocking light show. The HotBox™ also comes equipped with industry
standard powerCON® compatible power input/output & 3-pin DMX connections!

Blizzard Lighting, LLC

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.blizzardlighting.com

HOTBOX

RGBW/RGBA

You can take also full advantage of Blizzard’s wiCICLE® wireless DMX system
without the need for external power thanks to the wiCICLE enabled DMX jacks!
An innovative design provides power to the system directly from the xture’s
DMX jack, meaning even fewer cords and less setup time.

Add some sizzle to your light show with the HotBox™!

HotBox™ RGBW :

Lux/m Red Green Blue White All

1m

2m

HotBox™ RGBA:

Lux/m Red Green Blue Amber All

1m

2m

4,500 4,040 4,510 4,250 15,000

1,320 1,200 1,390 1,340 4,390

4,500 4,040 4,510 4,250 14,570

1,320 1,200 1,390 1,080 4,260

Main Features

• RGBW/RGBA color mixing via 7x 10W 4-in-1 LEDs

• Variable electronic dimming & strobe

• Built-in color & chase macros via DMX

• Built-in automated programs via master/slave

• Built-in sound active programs

• Color mixing ability in standalone mode

• Rugged and well-built (It hits the gym regularly)

• Super-quiet variable-speed internal fan cooling

• Dual mounting brackets for positioning exibility

• Flicker-free constant-current 400hz LED driver

• 3-pin male input and 3-pin female output

• PowerCon™ compatible AC power In/Out connectors

• wiCICLE® Enabled

Warranty

• 2-year limited warranty, does not cover malfunction caused by
damage to LED’s.

Power

• Operating Voltage: 100-250VAC, 40-60 Hertz

• Fuse: 2A 250V

• Power Consumption: 47W, .68A

• Power Factor: .55

Light Source

• LED: 7x 10W 4-in-1 LEDs 100,000 hours.

Optical

• Beam Angle: 25° optics standard, 26° beam, 30° eld

Thermal

• Max. Operating Temp.: 104° F (40° C) ambient

Control

• Protocol: USITT DMX-512

• DMX Channels: 3/4/5/8/9

• Input: 3-pin XLR Male

• Output: 3-pin XLR Female

• Standalone, Master/Slave, Sound Active, Color Preset

• HSV (3-Ch), RGB(W/A) (4-Ch), RGB( W/A) + Dim (5-Ch), Extended (8­Ch), & Extended + 32-bit dimming (9-Ch)

Weight & Dimensions

• Length: 5 inches (127 mm)

• Width: 4 inches (101.6 mm)

• Height: 5 inches (127 mm), 7.25 inches w/brackets

• Weight: 3.5 lbs (1.6 kg)

DISCLAIMER:

The power connector tted to the xture and xture cord are designed for compatibility with
products manufactured by Neutrik AG, Neutrik USA and their related entities, however they
are not manufactured by, aliated with or endorsed by Neutrik AG, Neutrik USA, or any related
entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.
