Cooler By Design™

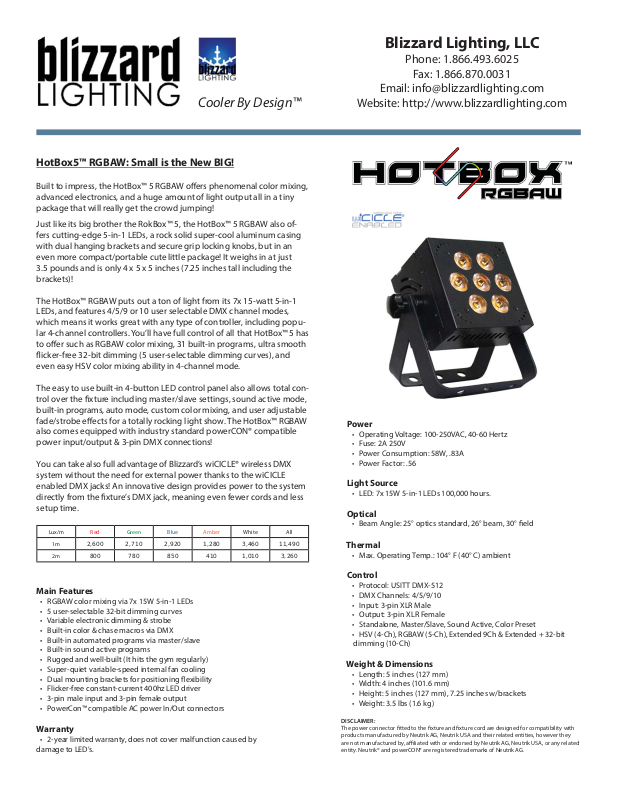

HotBox5™ RGBAW: Small is the New BIG!
Built to impress, the HotBox™ 5 RGBAW o ers phenomenal color mixing,
advanced electronics, and a huge amount of light output all in a tiny
package that will really get the crowd jumping!
Just like its big brother the RokBox™ 5, the HotBox™ 5 RGBAW also offers cutting-edge 5-in-1 LEDs, a rock solid super-cool aluminum casing
with dual hanging brackets and secure grip locking knobs, but in an
even more compact/portable cute little package! It weighs in at just
3.5 pounds and is only 4 x 5 x 5 inches (7.25 inches tall including the
brackets)!
The HotBox™ RGBAW puts out a ton of light from its 7x 15-watt 5-in-1
LEDs, and features 4/5/9 or 10 user selectable DMX channel modes,
which means it works great with any type of controller, including popular 4-channel controllers. You’ll have full control of all that HotBox™ 5 has
to o er such as RGBAW color mixing, 31 built-in programs, ultra smooth
icker-free 32-bit dimming (5 user-selectable dimming curves), and
even easy HSV color mixing ability in 4-channel mode.
Blizzard Lighting, LLC
Phone: 1.866.493.6025
Fax: 1.866.870.0031
Email: info@blizzardlighting.com
Website: http://www.blizzardlighting.com
The easy to use built-in 4-button LED control panel also allows total control over the xture including master/slave settings, sound active mode,
built-in programs, auto mode, custom color mixing, and user adjustable
fade/strobe e ects for a totally rocking light show. The HotBox™ RGBAW
also comes equipped with industry standard powerCON® compatible
power input/output & 3-pin DMX connections!
You can take also full advantage of Blizzard’s wiCICLE® wireless DMX
system without the need for external power thanks to the wiCICLE
enabled DMX jacks! An innovative design provides power to the system
directly from the xture’s DMX jack, meaning even fewer cords and less
setup time.
Lux/m Red Green Blue Amber White All
1m
2m
2,600 2,710 2,920 1,280 3,460 11,490
800 780 850 410 1,010 3,260
Main Features
• RGBAW color mixing via 7x 15W 5-in-1 LEDs
• 5 user-selectable 32-bit dimming curves
• Variable electronic dimming & strobe
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Built-in sound active programs
• Rugged and well-built (It hits the gym regularly)
• Super-quiet variable-speed internal fan cooling
• Dual mounting brackets for positioning exibility
• Flicker-free constant-current 400hz LED driver
• 3-pin male input and 3-pin female output
• PowerCon™ compatible AC power In/Out connectors
Warranty
• 2-year limited warranty, does not cover malfunction caused by
damage to LED’s.
Power
• Operating Voltage: 100-250VAC, 40-60 Hertz
• Fuse: 2A 250V
• Power Consumption: 58W, .83A
• Power Factor: .56
Light Source
• LED: 7x 15W 5-in-1 LEDs 100,000 hours.
Optical
• Beam Angle: 25° optics standard, 26° beam, 30° eld
Thermal
• Max. Operating Temp.: 104° F (40° C) ambient
Control
• Protocol: USITT DMX-512
• DMX Channels: 4/5/9/10
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• Standalone, Master/Slave, Sound Active, Color Preset
• HSV (4-Ch), RGBAW (5-Ch), Extended 9Ch & Extended + 32-bit
dimming (10-Ch)
Weight & Dimensions
• Length: 5 inches (127 mm)
• Width: 4 inches (101.6 mm)
• Height: 5 inches (127 mm), 7.25 inches w/brackets
• Weight: 3.5 lbs (1.6 kg)
DISCLAIMER:
The power connector tted to the xture and xture cord are designed for compatibility with
products manufactured by Neutrik AG, Neutrik USA and their related entities, however they
are not manufactured by, a liated with or endorsed by Neutrik AG, Neutrik USA, or any related
entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.
