Blizzard G-Mix 200 Users Manual

Download

Page 1

Blizzard Lighting, LLC

http://www.blizzardpro.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

G-Mix™ 200 Moving Head 1

1. Getting Started 3

What’s In The Box? 3 Getting It Out Of The Box 3 Powering Up! 3 Getting A Hold Of Us 3 Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4

2. Meet The G-Mix™ 200 5

Main Features 5 DMX Quick Reference 5 G-Mix™ 200 Pin-up Picture 6 Rear Connections 6

3. Setup 7

Fuse Replacement 7 Connecting A Bunch Of G-Mix™ 200 Fixtures 7 Data/DMX Cables 7 Cable Connectors 8 3-Pin??? 5-Pin??? Huh? 8 Take It To The Next Level: Setting up DMX Control 8 Fixture Linking (Master/Slave Mode) 9 Mounting & Rigging 9 Mounting Points 10 Clamp Mounting 11 Securing the Fixture 11

4. Operating Adjustments 12

The Control Panel 12 Control Panel Menu Structure 13 DMX Values In-Depth 14 Gobo Replacement 16 Static Gobos 16 Rotating Gobos 16

5. Appendix 17

Keeping Your G-Mix™ 200 As Good As New 17 Returns (Gasp!) 17 Shipping Issues 17 Tech Specs 18 Troubleshooting 18 Dimensional Drawings 19 Photometric Data 19

Page 2

Page 3

1. GETTING STARTED

What’s In The Box?

• 1 x G-Mix™ 200

• An Ever-So-Handy Power Cord

• 1 x Set of Mounting Brackets

• This Lovely User Manual

Getting It Out Of The Box

Congratulations on your purchase of the G-Mix™ 200! Now that you’ve got your G-Mix™ 200 (or hopefully more) ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for

inspection. Again, please save the carton and all packing materials. If a xture must be returned to the factory, it is important that the xture be returned in the original factory

box and packing.

Powering Up!

All xtures must be powered directly o a switched circuit and cannot be run o a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.

See the label on the xture or refer to the xture’s specications for more information. The listed current rating is its average current draw under normal conditions. All xtures

must be connected to circuits with a suitable Ground (Earthing).

DISCLAIMER:

The power connector tted to the xture and xture cord are designed for compatibility

with products manufactured by Neutrik AG, Neutrik USA and their related entities, however

they are not manufactured by, aliated with or endorsed by Neutrik AG, Neutrik USA, or

any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.

, you should carefully unpack the box and check the contents to

Getting A Hold Of Us

If something is wrong, please just visit our website at www.blizzardlighting.com/ support and open a support ticket. We’ll be happy to help, honest.

Note: The information and specications contained in this document are subject to change

without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www. blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 7/7/2017 J. Thomas 3/15/2019

Page 3

Page 4

SAFETY INSTRUCTIONS

Please read these instructions carefully. They include

important information about the installation, usage and

• Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the

decal or rear panel of the xture.

• This product is intended for indoor use only.

• To prevent risk of re or shock, do not expose xture to rain or moisture.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.

maintenance of this product.

• ALWAYS secure xture using a safety chain. NEVER carry the xture by its

head. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www. blizzardlighting.com/support.

Page 4

Page 5

2. MEET THE G-MIX™ 200

MAIN FEATURES

• 200W OSRAM® white LED light engine

• Pan: 540°/Tilt: 270° (8-16 bit resolution)

• CMY color mixing system

• 9 dichroic color lters + open

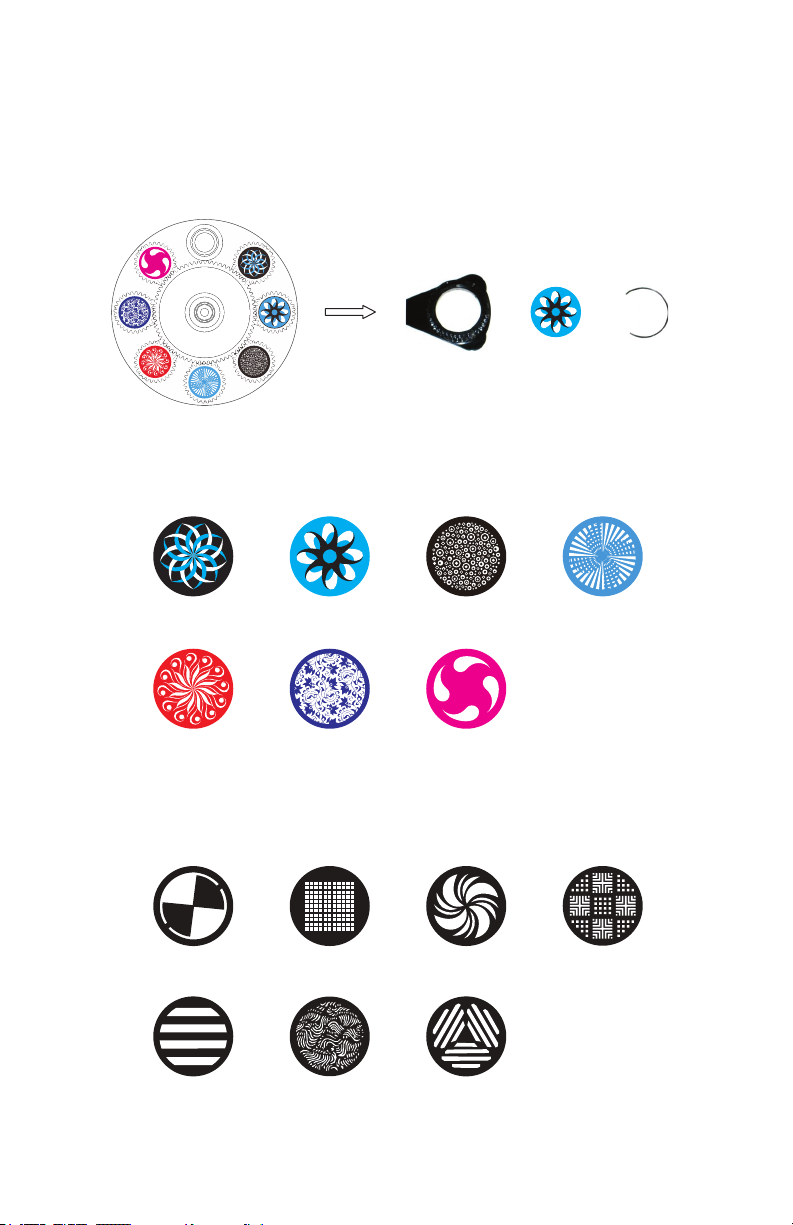

• 7 rotating, indexable and replaceable slot-n-lock glass gobos + open

• Static gobo wheel: 7 metal gobos + open

• Linear motorized zoom (5°- 42°)

• 3/8-facet bidirectional rotating prism

• Motorized linear iris and frost

• Color temperature: 6500K, CRI=80

• Linear electronic focus + auto focus

• Strobe eect with variable speed (max.15 ashes/sec.)

• Smooth dimmer from 0 - 100%

• 3/5-pin XLR male and female DMX In/Out

CONTROL:

• Protocol: USITT DMX-512

• DMX channels: 25/30-channel

• 5-button LCD control panel menu

• Operating modes: standalone, master/slave, auto

DMX Quick Reference (25/30-Channel Modes)

Channel Standard Mode (25ch) Channel Extended Mode (30ch)

1 Pan (0-540°) 1 Pan (0-540°) 2 Fine Pan (16-bit) 2 Fine Pan (16-bit) 3 Tilt (0-270°) 3 Tilt (0-270°) 4 Fine Tilt (16-bit) 4 Fine Tilt (16-bit) 5 Pan & Tilt Speed (fast <--> slow) 5 Pan & Tilt Speed (fast <--> slow) 6 Dimmer 6 Dimmer 7 Strobe/Shutter 7 Dimmer Fine 8 Cyan Intensity (0% <--> 100%) 8 Strobe/Shutter 9 Magenta Intensity (0% <--> 100%) 9 Cyan Intensity (0% <--> 100%) 10 Yellow Intensity (0% <--> 100%) 10 Magenta Intensity (0% <--> 100%) 11 Color 1 (0% <--> 100%) 11 Yellow Intensity (0% <--> 100%) 12 Color 2 (0% <--> 100%) 12 Color 1 (0% <--> 100%) 13 Color 3 (0% <--> 100%) 13 Color 2 (0% <--> 100%) 14 Static Gobo Wheel 14 Color 3 (0% <--> 100%) 15 Rotating Gobo Wheel 15 Static Gobo Wheel 16 Gobo Rotation 16 Rotating Gobo Wheel 17 Focus (0% <--> 100%) 17 Gobo Rotation 18 Zoom (0% <--> 100%) 18 Gobo Rotation Fine (0% <--> 100%) 19 Prism 1 (3-facet) 19 Focus (0% <--> 100%) 20 Prism 1 Rotate 20 Focus Fine (0% <--> 100%) 21 Prism 2 (8-facet) 21 Auto Focus 22 Prism 2 Rotate 22 Zoom (0% <--> 100%) 23 Iris 23 Zoom Fine (0% <--> 100%) 24 Frost (0% <--> 100%) 24 Prism 1 (3-facet) 25 Reset 25 Prism 1 Rotate

-- -- 26 Prism 2 (8-facet)

-- -- 27 Prism 2 Rotate

-- -- 28 Iris

-- -- 29 Frost (0% <--> 100%)

-- -- 30 Reset

Page 5

Page 6

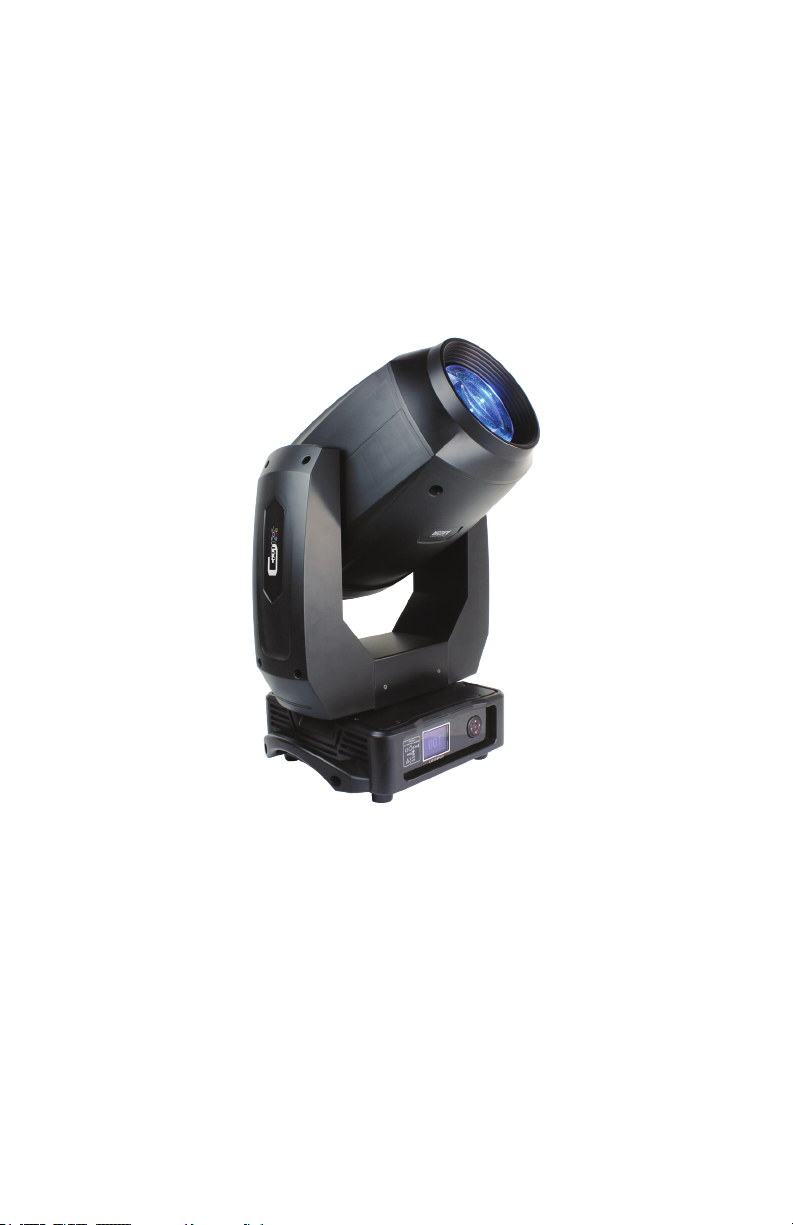

Figure 1: G-Mix™ 200 Pin-Up Picture

200W White LED

Light Engine

LCD

Display

Control

Buttons

Figure 2: Rear Connections

Head/Arms

Carry

Handle

Fuse

Holder

Power

Switch

Power

Input

Power

Output

Page 6

3/5-Pin

DMX Input

3/5-Pin

DMX Output

Page 7

3. SETUP

Before replacing the fuse, disconnect the power cord.

ALWAYS replace it with the same type and rating.

Fuse Replacement

Remove the fuse holder from of its housing. Then take out the damaged fuse from its holder and replace with exact same type of fuse. Reattach the fuse holder, and then reconnect power.

Connecting A Bunch of G-Mix™ 200 Fixtures

You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more xtures set to sync in master/slave operating mode. The combined number of channels required by all the xtures on a serial data link determines the number of xtures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also, connecting more than 32 xtures on one serial data link without

the use of a DMX optically-isolated splitter may result in deterioration of the digital DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft). The maximum recommended number

of xtures on a serial data link is 32 xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

For instance, Belden© 9841 meets the specications for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms

Page 7

Page 8

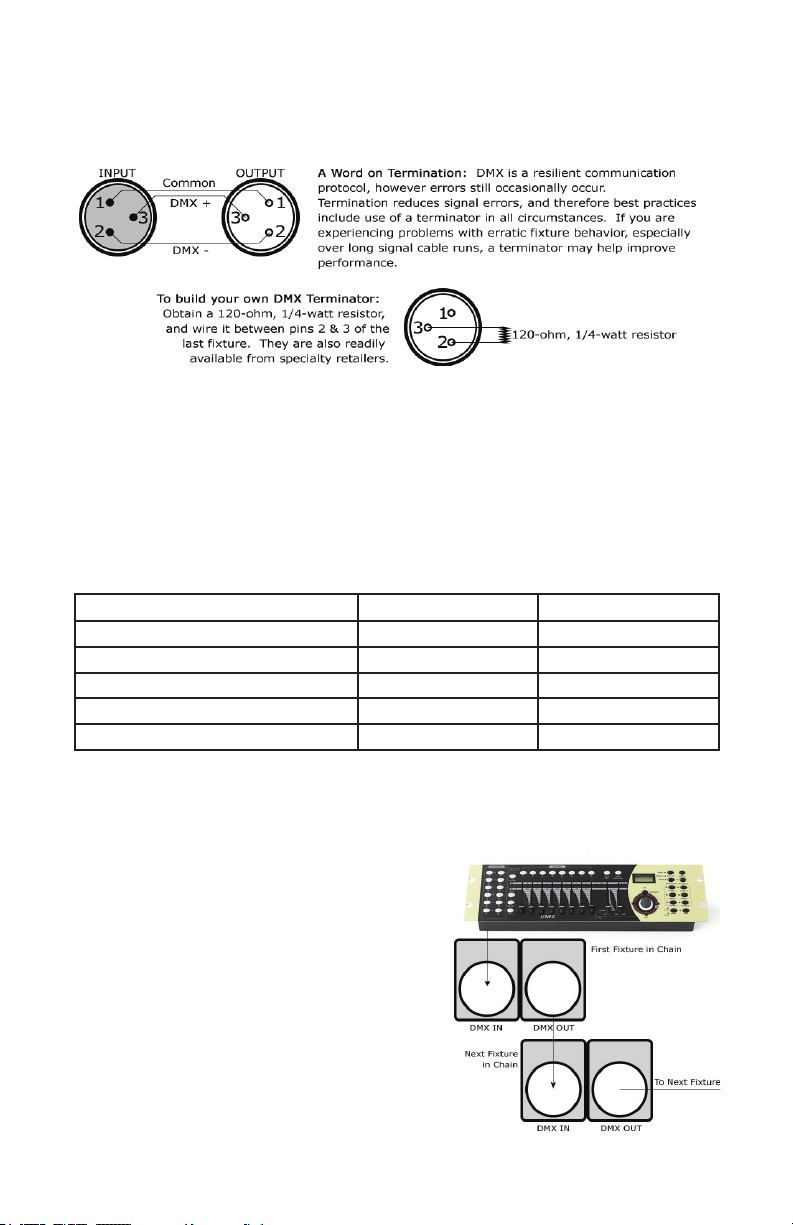

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the

xture’s chassis ground. Grounding the common can cause a ground loop, and your xture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5-pin DMX output connector, it’s no problem! You can simply use the in-

stalled 5-pin DMX input and/or output connections found on the back of your xture(s).

Conductor 3-Pin Female (Output) 5-Pin Male (Input)

Ground/Shield Pin 1 Pin 1

Data 1- (Primary Data Link) Pin 2 Pin 2

Data 1+ (Primary Data Link) Pin 3 Pin 3

Data 2- (Optional Secondary Data Link) Pin 4 Pin 4

Data 2+ (Optional Secondary Data Link) Pin 5 Pin 5

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the DMX cable to the female connector (output) on

the controller.

Step 2: Connect the female connector of the

DMX cable to the rst xture’s male connector

(input). Note: It doesn’t matter which

xture address is the rst one connected. We recommend connecting the xtures in terms

of their proximity to the controller, rather than

connecting the lowest xture number rst, and

so on.

Step 3: Connect other xtures in the chain

from output to input as above. Place a DMX

terminator on the output of the nal xture to

ensure best communication.

Page 8

Page 9

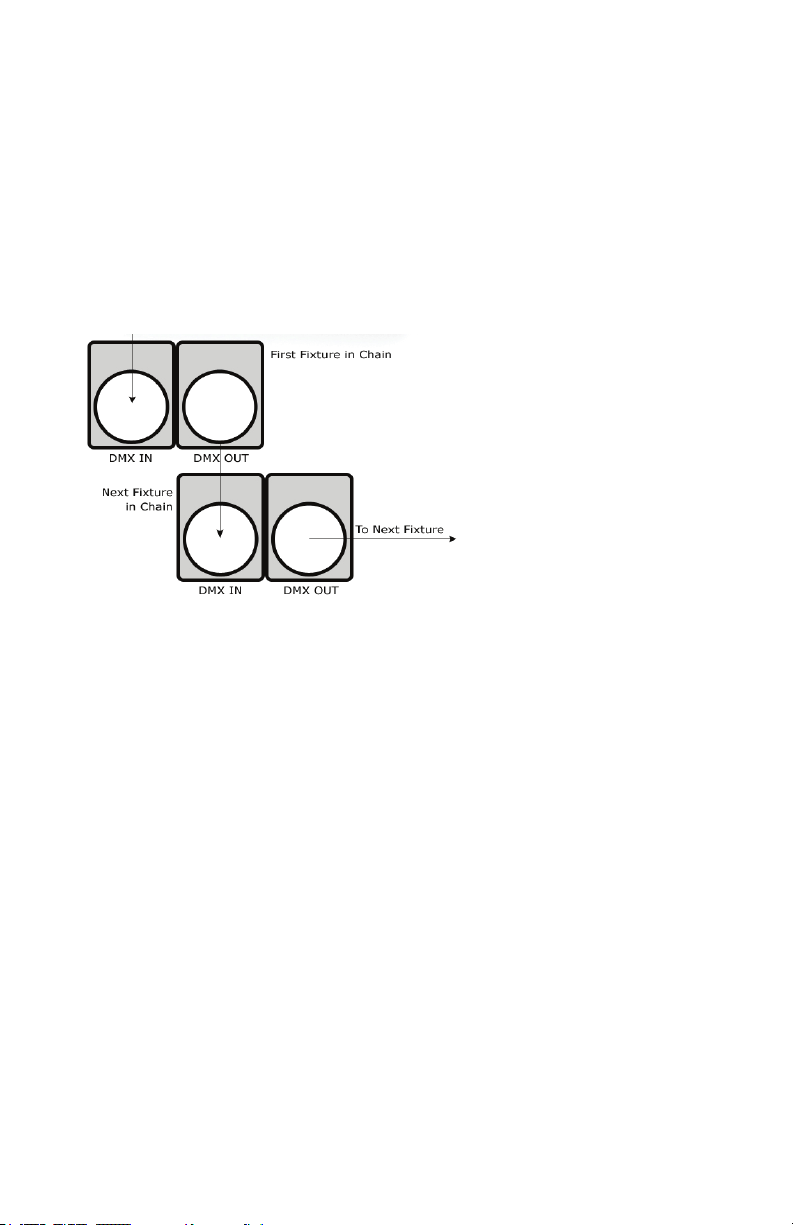

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3/5-pin connector side of the DMX cable to the output (female) 3/5-pin connector

of the rst xture.

2. Connect the end of the cable coming from the

rst xture which will have a (female) 3/5-pin connector to the input connector of the next xture

consisting of a (male) 3/5-pin connector. Then, proceed to connect from the output as stated above

to the input of the following xture and so on.

A quick note: Often, the setup for MasterSlave and Standalone operation requires that

the rst xture in the

chain be initialized for this purpose via either settings in the control panel or DIP-switches.

Secondarily, the xtures

that follow may also require a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conguration.

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xture using a suitable “C” or “O” type clamp. The clamp should be rated to hold at least 10x the xture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting xtures overhead.

Adjust the angle of the xture by loosening both knobs and tilting the xture. After nding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the xture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Page 9

Page 10

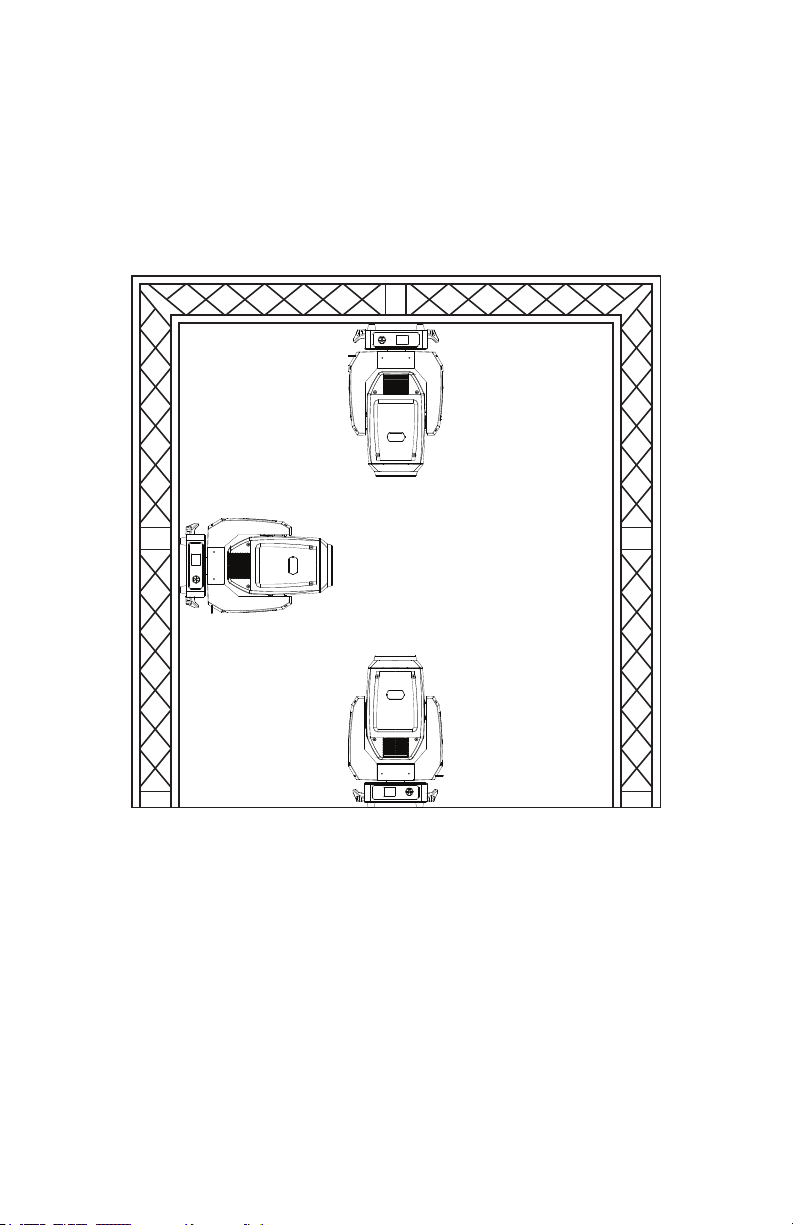

Mounting Points

Overhead mounting requires extensive experience, which includes calculating working load limits, knowledge of the installation material being used, and periodic safety inspection of all installation material

and the xture. If you lack these qualications, do not attempt the installation yourself. Improper installation can result in bodily injury.

Caution!

Please be aware, you should have a qualied electrician performing all

of your electrical connection needs.

Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.

Page 10

Page 11

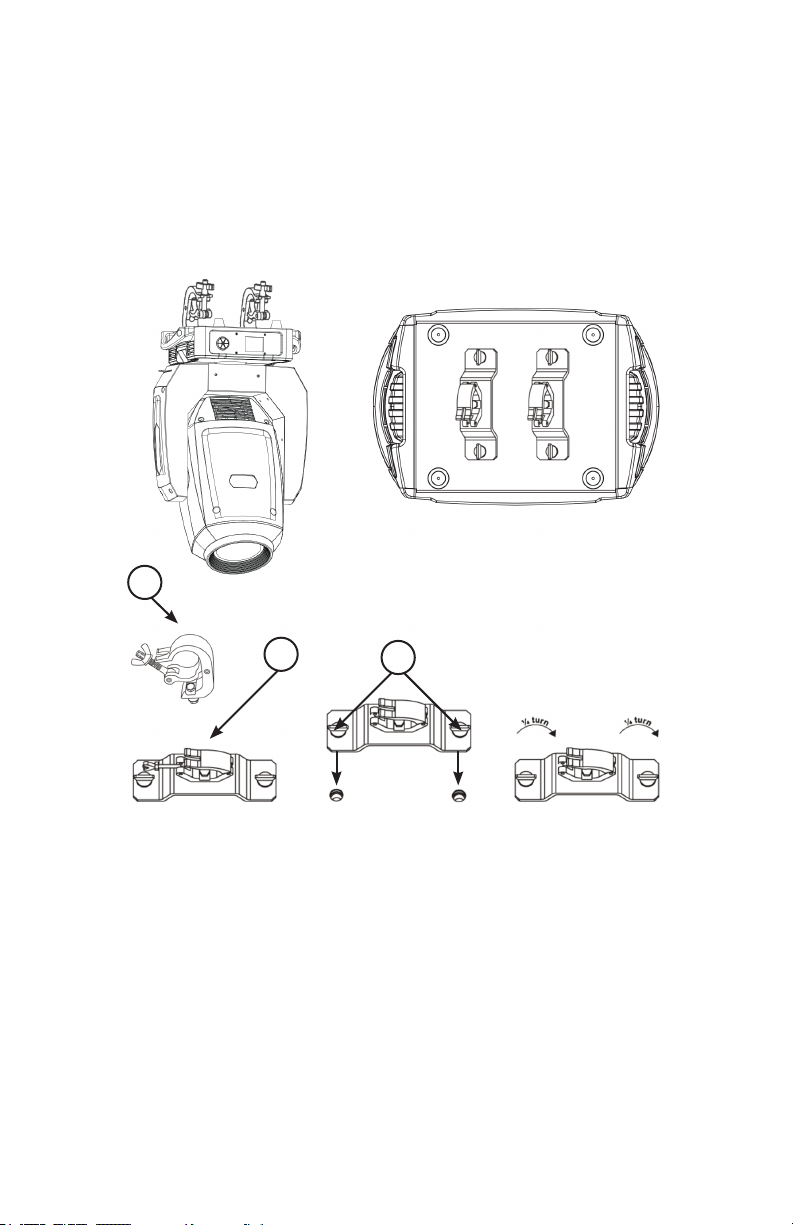

Clamp Mounting

This xture provides a mounting bracket assembly that secures the

bottom of the base, the “Omega Brackets,” and the safety cable

rigging point together. When mounting this xture to truss, be sure to

secure an appropriately rated clamp to the omega bracket using an

M12 screw tted through the center hole of the “omega bracket”.

1.) Clamp

2.) Omega Bracket

3.) ¼ Turn Quick Lock Fasteners

Securing the Fixture

Regardless of the rigging option you choose for your xtures always be sure to secure your xture with a safety cable. Be sure to only use the

designated rigging point found on the underside of the base assembly for the safety cable.

Page 11

Page 12

4. OPERATING ADJUSTMENTS

The Control Panel

All the goodies and dierent modes possible with the G-Mix™ 200 are accessed by using the control panel on the front of the xture.

There are 5 control buttons next to the LCD display which allow you to navigate through the various control panel menus.

<ENTER>

Is used to navigate to a higher-level menu item.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

<OK>

Is used to save any changes made to a menu setting.

ENTERMENU

<MENU>

To return to the previous option or menu without changing the value.

Access control panel functions using the ve panel buttons located

directly to the right of the LCD display.

The control panel LCD display shows the menu items you select from the menu map on page #13. When a menu function is selected, the

display will show immediately the rst available option for the selected

menu function. To select a menu item, press <ENTER>.

Use the <UP>, <DOWN>, and <ENTER> buttons to navigate the menu map and menu options. Press the <OK> button to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button.

Page 12

Page 13

Control Panel Menu Structure

Address 001-512 Set DMX Address Fixture Channel Mode Extended 30-channel mode

Pan/Tilt Invert Pan O/On

Curve Curve 1 - Exp-Curve (exponential)

Reset Head Reset

Calibration

Hidden by default. To enter calibration, you must be in the "Fixture" submenu, then press and hold down the <UP> and <DOWN> buttons together for 1 second.

Manual Pan 0-255

Run Mode Stop

System Language Chinese

Tilt 0-255 Dimmer 0-255 Strobe 0-255 Cyan 0-255 Magenta 0-255 Yellow 0-255 Color 1 0-255 Color 2 0-255 Color 3 0-255 Fixed-Gobo 0-255 Rot-Gobo 0-255 Rot-Gobo Rot 0-255 Iris 0-255 Prism 1 (3-facet) 0-255 Prism 1 Rot 0-255 Prism 2 (8-facet) 0-255 Prism 2 Rot 0-255 Frost 0-255 Focus 0-255 Zoom 0-255

Auto program 1 Auto program 2 Auto program 3

Backlight setting Auto

Display Normal

Standard 25-channel mode

Invert Tilt O/On Swap Pan-Tilt O/On

Curve 2 - Linear Curve 3 - Log-Curve (logarithmic) Curve 4 - S-Curve

Pan/Tilt All Reset Pan 0-127 Tilt 0-127 Cyan 0-127 Magenta 0-127 Yellow 0-127 Fixed Gobo 0-127 Rot-Gobo 0-127 Rot-Gobo-Rot 0-127 Iris 0-127 Prism1 0-127 Prism1-Rot 0-127 Prism2 0-127 Prism2-Rot 0-127 Frost 0-127 Focus 0-127 Zoom 0-127

English

Keep on

Invert

Page 13

Page 14

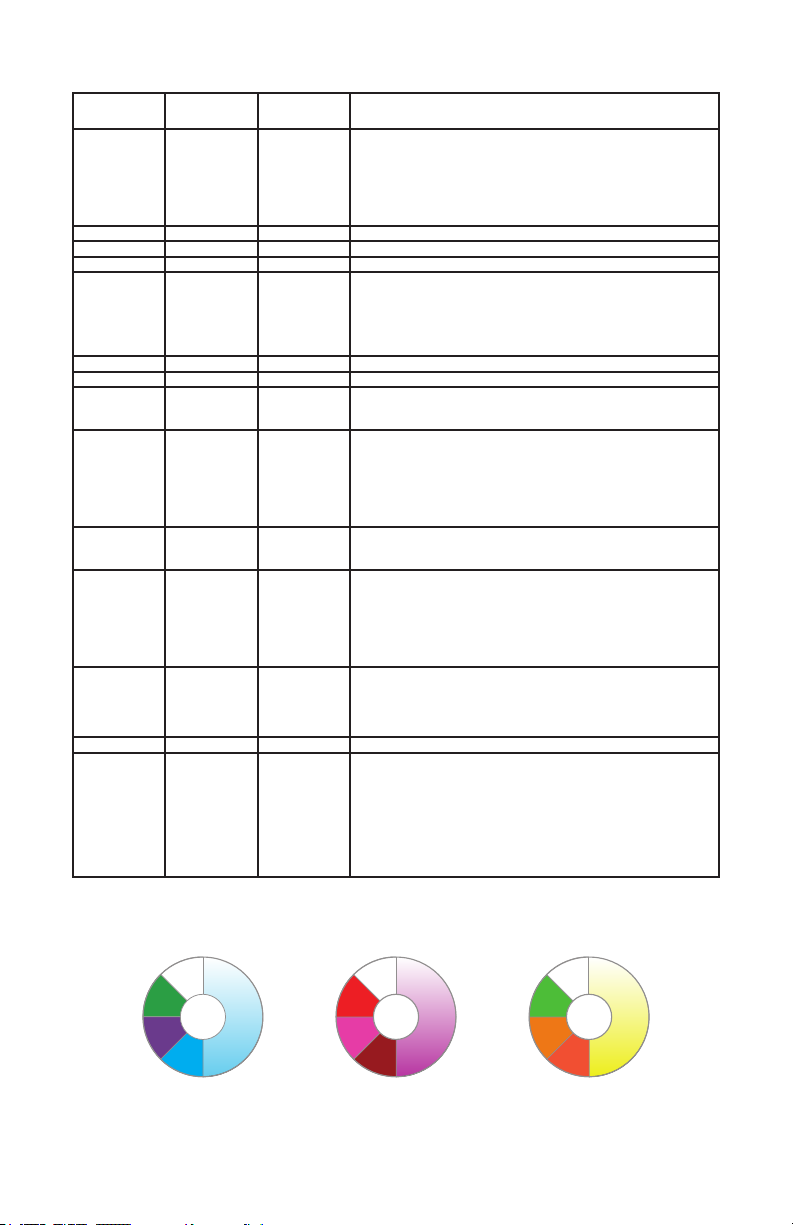

DMX Values In-Depth (25/30-Channel Modes)

Standard 25CH

1 1 000 <-> 255 Pan (0-540°) 2 2 000 <-> 255 Fine Pan (16-bit) 3 3 000 <-> 255 Tilt (0-270°) 4 4 000 <-> 255 Fine Tilt (16-bit) 5 5 000 <-> 255 Pan & Tilt Speed (fast <--> slow) 6 6 000 <-> 255 Dimmer

-- 7 000 <-> 255 Dimmer Fine

7 8

8 9 000 <-> 255 Cyan Intensity (0% <--> 100%) 9 10 000 <-> 255 Magenta Intensity (0% <--> 100%) 10 11 000 <-> 255 Yellow Intensity (0% <--> 100%) 11 12 000 <-> 255 Color 1 (3 colors, linear adjustment) 12 13 000 <-> 255 Color 2 (3 colors, linear adjustment) 13 14 000 <-> 255 Color 3 (3 colors, linear adjustment)

14 15

15 16

Extended 30CH

Value What it does

Strobe/Shutter

000 <-> 003 004 <-> 103 104 <-> 107 108 <-> 207 208 <-> 212 213 <-> 251 252 <-> 255

000 <-> 009 010 <-> 019 020 <-> 029 030 <-> 039 040 <-> 049 050 <-> 059 060 <-> 069 070 <-> 079 080 <-> 089 090 <-> 099 100 <-> 109 110 <-> 119 120 <-> 129 130 <-> 139 140 <-> 149 150 <-> 151 152 <-> 199 200 <-> 201 202 <-> 253 254 <-> 255

Close Strobe (slow <--> fast) Open Pulse (slow <--> fast) Open Random Open

Static Gobo Wheel

Open (white) Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 1 Shake (slow <--> fast) Gobo 2 Shake (slow <--> fast) Gobo 3 Shake (slow <--> fast) Gobo 4 Shake (slow <--> fast) Gobo 5 Shake (slow <--> fast) Gobo 6 Shake (slow <--> fast) Gobo 7 Shake (slow <--> fast) Stop Clockwise Rotation (fast <-> slow) Stop Counter-Clockwise Rotation (slow <-> fast) Stop

Rotating Gobo Wheel

Page 14

Page 15

DMX Values In-Depth (25/30-Channel Modes), continued

Standard 25CH

16 17

-- 18 000 <-> 255 Gobo Rotation Fine (0% <--> 100%) 17 19 000 <-> 255 Focus (0% <--> 100%)

-- 20 000 <-> 255 Focus Fine (0% <--> 100%)

-- 21

18 22 000 <-> 255 Zoom (0% <--> 100%)

-- 23 000 <-> 255 Zoom Fine (0% <--> 100%)

19 24 000 <-> 127

20 25

21 26 000 <-> 127

22 27

23 28

24 29 000 <-> 255 Frost (0% <--> 100%)

25 30

Extended 30CH

Value What it does

Gobo Rotation

000 <-> 127 128 <-> 129 200 <-> 189 190 <-> 191 192 <-> 253 254 <-> 255

000 <-> 055 056 <-> 105 106 <-> 155 156 <-> 205 206 <-> 255

128 <-> 255

000 <-> 127 128 <-> 129 130 <-> 189 190 <-> 191 192 <-> 253 254 <-> 255

128 <-> 255

000 <-> 127 128 <-> 129 130 <-> 189 190 <-> 191 192 <-> 253 254 <-> 255

000 <-> 005 006 <-> 128 129 <-> 191 192 <-> 255

000 <-> 031 032 <-> 063 064 <-> 095 096 <-> 127 128 <-> 159 160 <-> 191 192 <-> 223 224 <-> 255

Gobo Position Stop Clockwise Rotation (fast <-> slow) Stop (no rotation) Counter-Clockwise Rotation (slow <-> fast) Stop

Auto Focus

Disabled 3m Auto Focus 5m Auto Focus 10m Auto Focus 15m Auto Focus

Prism 1 (3-facet)

Prism Out Prism In

Prism 1 Rotate

Rotate (0% <--> 100%) Stop Clockwise Rotation (slow <--> fast) Stop Counter-Clockwise Rotation (slow <--> fast) Stop

Prism 2 (8-facet)

Prism Out Prism In

Prism 2 Rotate

Rotate (0% <--> 100%) Stop Clockwise Rotation (slow <-> fast) Stop Counter-Clockwise Rotation (slow <-> fast) Stop

Iris

Open Open <--> Closed Snap Open (slow <-> fast) Snap Closed (fast <-> slow)

Reset

No Function Pan/Tilt Reset Head Reset Complete Reset Exp-Curve Linear Log-Curve S-Curve

Color Wheel 1 Color Wheel 2 Color Wheel 3

Cyan

Page 15

Magenta

Yellow

Page 16

Gobo Replacement

1) Remove the gobo cover by removing the four screws on the top of the xture head.

2) Remove the slot-n-lock gobo from the gobo wheel by lifting up slightly and sliding it out.

3) Using a small tool, pry the tension ring from the gobo holder.

4) Remove the old gobo, insert the new gobo, and replace in the reverse steps of removal.

Gobo holder Gobo Tension ring

Rotating Gobos

1 2 3 4

5 6 7

Static Gobos

1 2 3 4

5 6 7

Page 16

Page 17

5. APPENDIX

Keeping Your G-Mix™ 200 As Good As New

The xture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.

You should absolutely keep the xture clean, especially if you are using it in an

environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled drinks.

Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output. Keeping the fans free of dust and debris will keep

the xture running cool and prevent damage from overheating.

In transit, keep the xtures in cases. You wouldn’t throw a prized guitar,

drumset, or other piece of expensive gear into a gear trailer without a case, and similarly, you shouldn’t even think about doing it with your shiny new light

xtures.

Common sense and taking care of your xtures will be the single biggest thing

you can do to keep them running at peak performance and let you worry about designing a great light show, putting on a great concert, or maximizing your client’s satisfaction and “wow factor.” That’s what it’s all about, after all!

Returns (Gasp!)

We’ve taken a lot of precautions to make sure you never even have to worry about sending a defective unit back, or sending a unit in for service. But, like any complex piece of equipment designed and built by humans, once in a while,

something doesn’t go as planned. If you nd yourself with a xture that isn’t behaving like a good little xture should, you’ll need to obtain a Return Authori-

zation (RA).

Don’t worry, this is easy. Just go to our website and open a support ticket at www.blizzardlighting.com/support, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable, pre-paid freight method. We suggest

using USPS Priority or UPS. Make sure you carefully pack the xture for transit,

and whenever possible, use the original box & packing for shipping.

When returning your xture for service, be sure to include the following:

1.) Your contact information (Name, Address, Phone Number, Email address).

2.) The RA# issued to you

3.) A brief description of the problem/symptoms.

We will, at our discretion, repair or replace the xture. Please remember that

any shipping damage which occurs in transit to us is the customer’s responsibility, so pack it well!

Shipping Issues

Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.

Page 17

Page 18

Tech Specs!

Weight & Dimensions

Width 16.4 inches (417 mm) Depth 11.4 inches (288.6 mm) Height 25.5 inches (648.3 mm) Weight 41.9 lbs. (19 kg)

Power

Operating Voltage 100V-240VAC, 50-60Hz Power Consumption 334W, 2.7A, PF: .99 Fuse 8A, 250V (5mm x20mm)

Light Source

LED 200W OSRAM® white LED light engine Color Temperature 6500K, CRI=80

Optical

Beam Angle 5°- 42° beam angle Gobo Size 22.9mm outer, 20mm image, 2.2mm max thickness

Thermal

Max. Operating Temp. 104 degrees F (40 degrees C) ambient

Movement Range

Pan 540 degree (8-16 bit resolution) Tilt 270 degree (8-16 bit resolution)

Control

Protocol USITT DMX-512 DMX Channels 25/30-channel DMX Modes Data 3/5-pin XLR In/Out Other Operating Modes Standalone, Master/Slave, Auto

Warranty

2-year limited warranty, does not cover malfunction caused by damage to LEDs.

Troubleshooting

Symptom Solution

Fixture Auto-Shut O Check the fan in the xture. If it is stopped or moving slower

Beam is Dim Check optical system and clean excess dust/grime. No Power Check fuse, AC cord and circuit for malfunction. Blown Fuse Check AC cord and circuit for damage, verify that moving parts

Slow Movement Check that speed channels are set appropriately. Fixture Not Respond-

ing / Responding Erratically

than normal, the unit may have shut itself o due to high heat. This is to protect the xture from overheating. Clear the fan of

obstructions, or return the unit for service.

are not restricted and that unit’s ventilation is not obstructed

Make sure all connectors are seated properly and securely. Use Only DMX Cables. Install a Terminator. Check all cables for defects.

Reset xture(s).

Page 18

Page 19

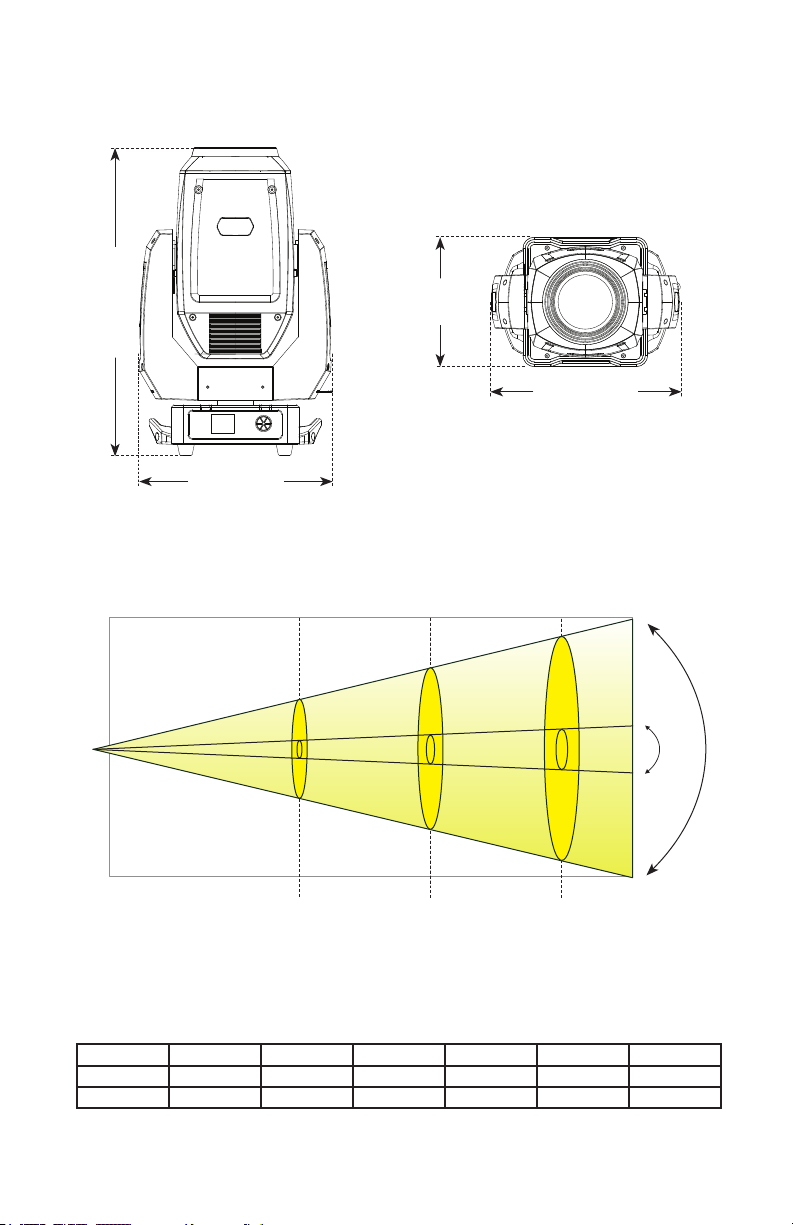

Dimensional Drawings

25.5” (648.3 mm)

16.4” (417 mm)

Photometric Data

11.4”

(288.6 mm)

16.5” (419.5 mm)

5°

Distance:

5° beam diameter

Luminous Intensity:

Beam 3m lux 3m fc 5m lux 5m fc 10m lux 10m fc

5° 122,613 11,391.1 48,988 4,551.2 11,200 1,040.6

42° 2,472 229.7 849 78.9 245 22.7

.9' (27 cm)

7.6' (230 cm)

1.5' (45 cm)

12.4' (378 cm)

Page 19

10m

2.9' (90 cm)

24.8' (756 cm)42° beam diameter

42°

Page 20

Enjoy your product!

Our sincerest thanks for your purchase!

--The team @ Blizzard Lighting

Blizzard G-Mix 200 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
