1. GETTING STARTED

What’s In The Box?

• G-Max™ 200 Fixture

• An Ever-So-Handy Power Cord

• 2 x Mounting Brackets

• 1 x DMX Cable

• 1 x Safety Cable

• This Lovely User Manual

Getting It Out Of The Box

Congratulations on purchasing the G-Max™ 200 professional LED moving head xture!

Now that you’ve got your G-Max™ 200, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material

for inspection. Again, please save the carton and all packing materials. If a xture must be returned to the factory, it is important that the xture be returned in the original factory

box and packing.

Powering Up!

All xtures must be powered directly o a switched circuit and cannot be run o a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the xture you receive is suitable for your local power supply. See the label on the xture or refer to the xture’s specications chart for more information. A xture’s listed current rating is its average current draw under normal conditions. Check the xture or device

carefully to make sure that if a voltage selection switch exists that it is set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied does not match the voltage indicated on the voltage selector switch. All xtures must

be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something happens goes wrong, please visit www.blizzardpro.com/support and open a support ticket. We’ll be happy to help, honest.

Disclaimer: The information and specications contained in this document are subject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www. blizzardpro.com.

Author: Date: Last Edited: Date:

J. Thomas 11/5/2019 J. Thomas 11/5/2019

Page 3

SAFETY INSTRUCTIONS

Please read these instructions carefully. They include

important information about the installation, usage and

• Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the de-

cal or rear panel of the xture.

• This product is intended for indoor use only.

• To prevent risk of re or shock, do not expose xture to rain or moisture.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.

maintenance of this product.

• ALWAYS secure xture using a safety chain. NEVER carry the xture by its

head. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www. blizzardpro.com/support.

Page 4

2. MEET THE G-MAX™ 200

MAIN FEATURES

• 200W white LED light engine, 60,000 hours

• Fast and precise zoomable beam angle (13°- 27°)

• 8-16 bit smooth pan and tilt resolution

• Pan/Tilt: 540/230° with 3-phase motors

• 8 colors + open color wheel

• 7 metal gobos + open

• 7 rotating, indexable and replaceable gobos + open

• Smooth dimmer from 0 - 100%

• 6 linear + 8-facet prisms with variable speed and direction

• Motorized linear iris, focus, and frost

• Linear electronic focus

• Dual omega brackets with 1/4-turn fasteners

CONTROL:

• Protocols: DMX-512

• DMX channels: 16/19-channel modes

• Easy-to-use 5-button control panel with LCD color display

• Operating modes: DMX512, master/slave, auto mode

DMX Quick Reference (16/19-Channel Modes)

16CH 19CH What It Does

1 1 Pan

-- 2 Fine Pan (16-bit) 2 3 Tilt

-- 4 Fine Tilt (16-bit)

-- 5 Pan/Tilt Speed (fast <-> slow) 3 6 Dimmer (0% <-> 100%) 4 7 Strobe 5 8 Color Wheel 6 9 Gobo Wheel #1 (Static) 7 10 Gobo Wheel #2 (Rotating) 8 11 Gobo Rotation 9 12 Iris 10 13 Frost 11 14 Prism Select 12 15 Prism 1 Rotation 13 16 Prism 2 Rotation 14 17 Zoom (narrow <-> wide) 15 18 Focus 16 19 Reset Fixture

Page 5

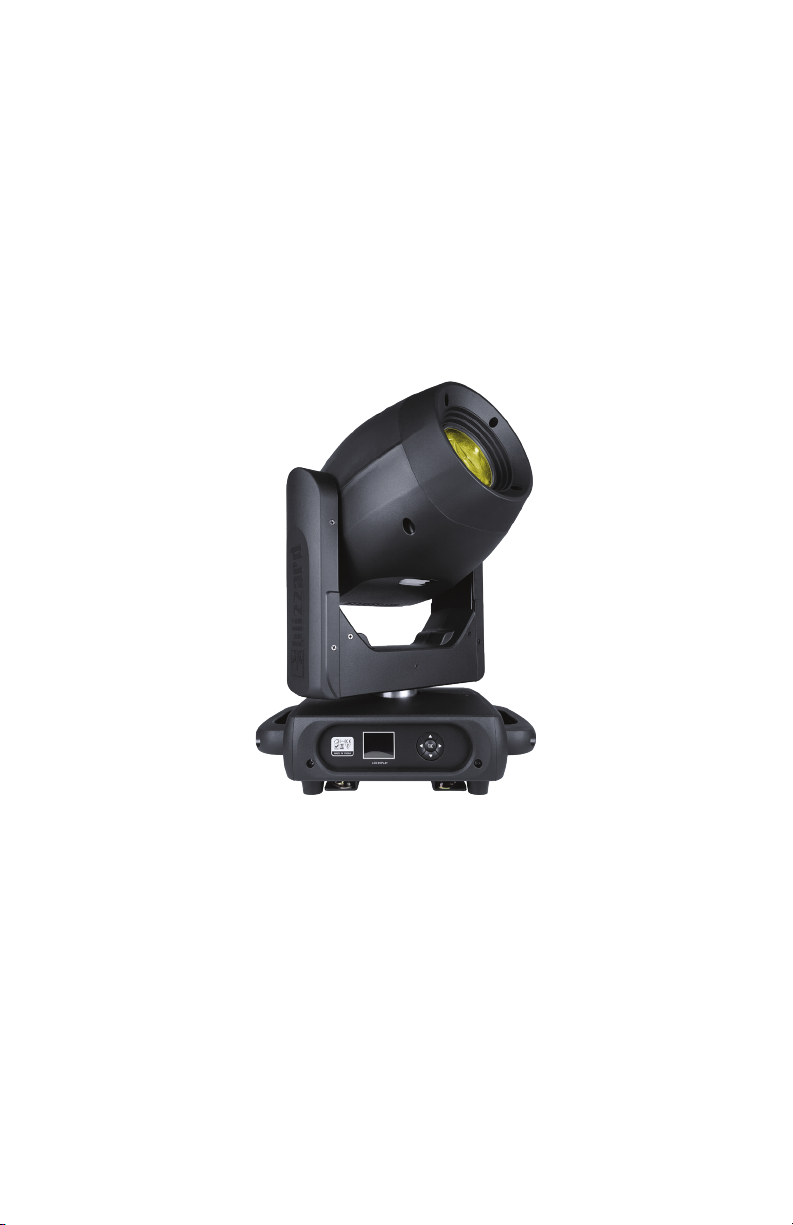

Figure 1: The G-Max™ 200 Pin-Up Picture

200W White LED

Light Source

5-Button

Control Panel

Menu with

LCD Display

Figure 2: The Rear Connections

Head/Arms

Power InputDMX Inputs

DMX Outputs Power Output Fuse

Page 6

3. SETUP

Before replacing the fuse, disconnect the power cord.

ALWAYS replace it with the same type and rating.

Fuse Replacement

Remove the fuse holder from of its housing. Then take out the damaged fuse from its holder and replace with exact same type of fuse. Reattach the fuse holder, and then reconnect power.

Connecting A Bunch of G-Max™ 200 Fixtures

You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more xtures set to sync in master/slave operating mode. The combined number of channels required by all the xtures on a serial data link determines the number of xtures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also, connecting more than 32 xtures on one serial data link without

the use of a DMX optically-isolated splitter may result in deterioration of the digital DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft). The maximum recommended number

of xtures on a serial data link is 32 xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

For instance, Belden© 9841 meets the specications for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms

Page 7

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the xture’s chassis ground. Grounding the common can cause a ground loop, and your xture may

perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

3-pin??? 5-Pin??? Huh?!?

This xture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The

sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3-pin

or 5-pin XLR plugs and connectors in order to connect the controller with the xture or the xture

with another.

Conductor 3-Pin Input/Output 5-Pin Input/Output

Ground/Shield Pin 1 Pin 1

Data 1- (Primary Data Link) Pin 2 Pin 2

Data 1+ (Primary Data Link) Pin 3 Pin 3

Data 2- (Optional Secondary Data Link) Pin 4 - N/A Pin 4 - Not Connected

Data 2+ (Optional Secondary Data Link) Pin 5 - N/A Pin 5 - Not Connected

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the DMX cable to the female connector

(output) on the controller.

Step 2: Connect the female connector

of the DMX cable to the rst xture’s

male connector (input). Note: It doesn’t

matter which xture address is the rst one connected. We recommend connecting the xtures in terms of their

proximity to the controller, rather than

connecting the lowest xture number rst, and so on.

Step 3: Connect other xtures in the

chain from output to input as above Place a DMX terminator on the output

of the nal xture to ensure best

communication.

Page 8

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3/5-pin connector side of the DMX cable to the output (female) 3/5-pin connector

of the rst xture.

2. Connect the end of the cable coming from the

rst xture which will have a (female) 3/5-pin connector to the input connector of the next xture

consisting of a (male) 3/5-pin connector. Then, proceed to connect from the output as stated above to

the input of the following xture and so on.

A quick note: Often, the setup for MasterSlave and Standalone operation requires that

the rst xture in the

chain be initialized for this purpose via either settings in the control panel or DIP-switches.

Secondarily, the xtures

that follow may also require a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conguration.

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xture using a suitable “C” or “O” type clamp. The clamp should be rated to hold at least 10x the xture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting xtures overhead.

Adjust the angle of the xture by loosening both knobs and tilting the xture. After nding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the xture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Page 9

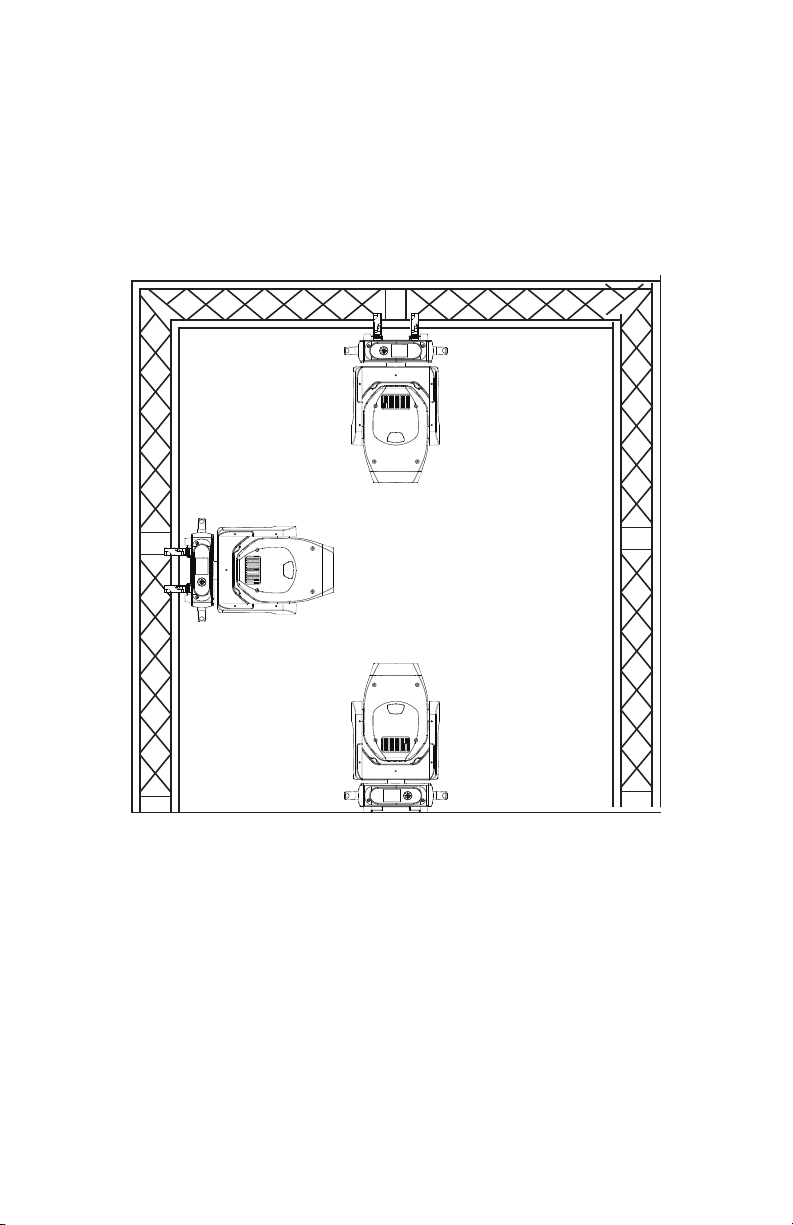

Mounting Points

Overhead mounting requires extensive experience, which includes calculating working load limits, knowledge of the installation material being used, and periodic safety inspection of all installation material

and the xture. If you lack these qualications, do not attempt the installation yourself. Improper installation can result in bodily injury.

Caution!

Please be aware, you should have a qualied electrician performing all

of your electrical connection needs.

Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.

Page 10

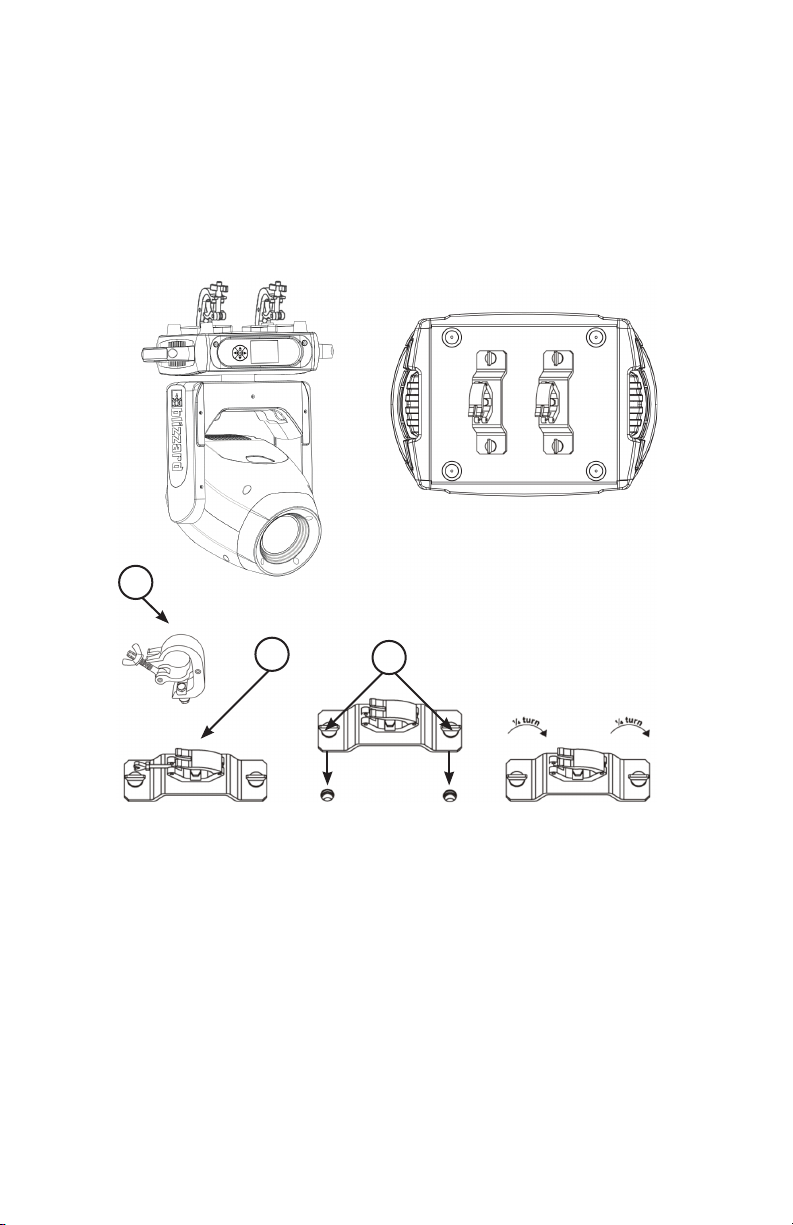

Clamp Mounting

This xture provides a mounting bracket assembly that secures the

bottom of the base, omega brackets, and the safety cable rigging

point together. When mounting this xture to truss, be sure to secure appropriately rated clamps to the brackets, tted through the center

bracket holes.

1.) Clamp

2.) Omega Bracket

3.) ¼ Turn Quick Lock Fasteners

Securing the Fixture

Regardless of the rigging option you choose for your xtures always be sure to secure your xture with a safety cable. Be sure to only use the

designated rigging point found on the underside of the base assembly for the safety cable.

Page 11

4. OPERATING ADJUSTMENTS

The Control Panel

All the goodies and dierent modes possible with the G-Max™ 200 are accessed by using the control panel on the front of the xture. There

are 5 control buttons next to the LCD display which allow you to navigate through the various control panel menus.

<RIGHT>

Is used to navigate to a higher-level menu item.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

<OK>

Is used to save any changes made to a menu setting.

<LEFT>

To return to the previous option or menu without changing the value.

Access control panel functions using the ve panel buttons located

directly to the right of the LCD display.

The control panel LCD display shows the menu items you select from the menu map on page #13. When a menu function is selected, the

display will show immediately the rst available option for the selected

menu function. To select a menu item, press <ENTER>.

Use the <UP>, <DOWN>, and <RIGHT> buttons to navigate the menu map and menu options. Press the <OK> button to enable a menu option. To return to the previous option or menu without changing the value, press the <LEFT> button.

Page 12

Control Panel Menu Structure

Address 001-512 Set the starting address from 001-512 Display

Customize the display features.

Feature

Customize the operating features.

Info

View xture status

information.

Control Channel -- 000-255 Individual control of each channel

Service

To enable the

"Oset", change

the calibration value to 001.

View DMX Channel -- 000-255 View current DMX channel values

Reset <OK> Reset xture

Direction Invert Rotate display by 180°

Normal Normal

Light 01 MIN Display turns o after 1m of inactivity

05 MIN Display turns o after 5m of inactivity 08 MIN Display turns o after 8m of inactivity On Display is always on

Menu Ret 01 MIN Return to main screen after 1m

05 MIN Return to main screen after 5m 08 MIN Return to main screen after 8m

O Menu return is o

Flashing O O

On Menu will blink without a DMX signal Return <OK> Return to Main Menu PT Setup Invert P O

On (pan invert)

Invert T O

On (tilt invert)

SenCheck O

On (automatic pan/tilt correction)

Return Return to Main Menu Shortcut O Shortcuts o

Open Use shortest distance to colors/gobos Mode Basic 16-channel DMX Mode

Standard 19-channel DMX Mode DMX (receive

mode)

Auto N/A

(not applicable)

DMX Signal received via DMX Run Mode Auto Run built-in programs

Slve Set unit as a slave xture

O O

Sigclear (N/A) No O

Yes N/A

(not applicable)

DMX Reset No O

Yes Enables reset via DMX control channel Return <OK> Return to Main Menu PWR On 0000-9999 Shows total hours powered on Lamp On 0000-9999 Shows lamp total hours Lamp Temp xxx °C Lamp temperature (celsius) Version HM02 Operating software version Return <OK> Return to Main Menu

Return <OK> Return to Main Menu Factory N/A Not applicable Defaults N/A Not applicable Oset 000-255 Adjust home position of channel functions Built-in N/A Not applicable Checksum 000-255 Calibration (01-10) Return <OK> Return to Main Menu

Return <OK> Return to Main Menu

Page 13

DMX Values In-Depth (16/19-Channel Modes)

16CH Basic

1 1 000 <-> 255 Pan (0-540°)

-- 2 000 <-> 255 Fine Pan (16-bit) 2 3 000 <-> 255 Tilt (0-230°)

-- 4 000 <-> 255 Fine Tilt (16-bit)

-- 5 000 <-> 255 Pan/Tilt Speed (fast <-> slow) 3 6 000 <-> 255 Dimmer 4 7

5 8

6 9

19CH Standard Value What It Does

000 <-> 002 003 <-> 103 104 <-> 107 208 <-> 212 213 <-> 238 239 <-> 251 252 <-> 255

000 <-> 003 004 <-> 127 128 <-> 128 129 <-> 131 132 <-> 135 136 <-> 138 139 <-> 142 143 <-> 146 147 <-> 150 151 <-> 154 155 <-> 158 159 <-> 207 208 <-> 255

000 <-> 007 008 <-> 015 016 <-> 023 024 <-> 031 032 <-> 039 040 <-> 047 048 <-> 055 056 <-> 063 064 <-> 070 071 <-> 077 078 <-> 084 085 <-> 091 092 <-> 099 100 <-> 107 108 <-> 114 115 <-> 185 186 <-> 255

Strobe

Open Strobe Open Pulse Strobe 1 (slow <-> fast) Random Strobe 1 Pulse Strobe 2 (slow <-> fast) Random Strobe 2 (slow <-> fast)

Color Wheel

Open Index Rotation (0-360º) Open 3200K CTO Red Orange Yellow Green Teal Magenta Blue Forward Spin (fast <-> slow) Backwards Spin (slow <-> fast)

Gobo Wheel #1 (Static)

Open Gobo 1 - Plus Gobo 2 - 4 Dots Gobo 3 - 3 Dots (linear) Gobo 4 - Rounded Dash Gobo 5 - Abstract Shape Gobo 6 - Louvered Lines Gobo 7 - Lace Diamond Gobo 7 Shake - Lace Diamond Gobo 6 Shake - Louvered Lines Gobo 5 Shake - Abstract Shape Gobo 4 Shake - Rounded Dash Gobo 3 Shake - 3 Dots (linear) Gobo 2 Shake - 4 Dots Gobo 1 Shake - Plus Wheel Spin Forward (fast <-> slow) Wheel Spin Reverse (slow <-> fast)

Page 14

DMX Values In-Depth (16/19-Channel Modes)

16CH Basic

7 10

8 11

9 12

10 13

11 14

12 15

13 16

14 17 000 <-> 255 Zoom (narrow <-> wide) 15 18 000 <-> 255 Focus 16 19

19CH Standard Value What It Does

000 <-> 127 128 <-> 187 188 <-> 194 195 <-> 255

005 <-> 128 129 <-> 212 213 <-> 255

000 <-> 127 128 <-> 255

000 <-> 010 011 <-> 128 129 <-> 255

000 <-> 128 129 <-> 187 188 <-> 195 196 <-> 255

000 <-> 127 128 <-> 255

Gobo Wheel #2 (Rotating)

Open Gobo 1 - Red Gatling Gun Gobo 2 - Flower Gobo 3 - Green Dashed Wheels Gobo 4 - Dots Gobo 5 - Blue Waves

Gobo 6 - Oset Magenta Circles

Gobo 7 - Dash Gobo 7 Shake - Dash

Gobo 6 Shake - Oset Magenta Circles

Gobo 5 Shake - Blue Waves Gobo 4 Shake - Dots Gobo 3 Shake - Green Dashed Wheels Gobo 2 Shake - Flower Gobo 1 Shake - Red Gatling Gun Wheel Spin Forward (fast <-> slow) Wheel Spin Reverse (slow <-> fast)

Gobo Rotation

Gobo Index Forward Rotate (fast <-> slow) Stop Backward Rotate (slow <-> fast)

Iris

Open <-> Close Open/Close (slow <-> fast) Pulse Closed (slow <-> fast)

Frost

No Function Frost

Prism Select

No Function Prism 1 (8-facet circular) Prism 2 (6-facet linear)

Prism 1 Rotation

Index Backward Rotate (slow <-> fast) Stop Forward Rotate (fast <-> slow)

Prism 2 Rotation

Index Backward Rotate (slow <-> fast) Stop Forward Rotate (fast <-> slow)

Reset

(can be enabled or disabled in menu)

No Function Reset

Page 15

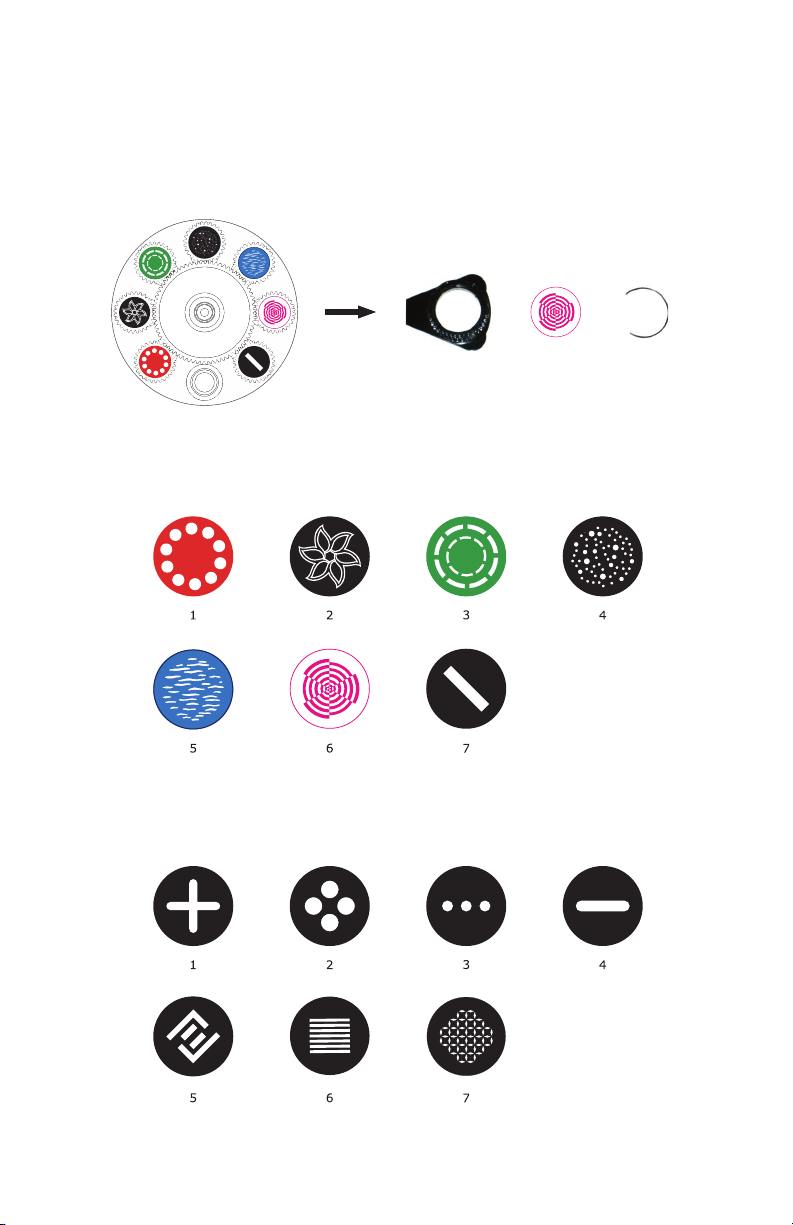

Gobo Replacement

1) Remove the gobo cover by removing the four screws on the top of the xture head.

2) Remove the slot-n-lock gobo from the gobo wheel by lifting up slightly and sliding it out.

3) Using a small tool, pry the tension ring from the gobo holder.

4) Remove the old gobo, insert the new gobo, and replace in the reverse steps of removal.

Gobo holder Gobo Tension ring

Rotating Gobos

Static Gobos

Page 16

5. APPENDIX

Keeping Your G-Max™ 200 As Good As New

The xture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.

You should absolutely keep the xture clean, especially if you are using it in an

environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled drinks.

Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output. Keeping the fans free of dust and debris will keep

the xture running cool and prevent damage from overheating.

In transit, keep the xtures in cases. You wouldn’t throw a prized guitar,

drumset, or other piece of expensive gear into a gear trailer without a case, and similarly, you shouldn’t even think about doing it with your shiny new light

xtures.

Common sense and taking care of your xtures will be the single biggest thing

you can do to keep them running at peak performance and let you worry about designing a great light show, putting on a great concert, or maximizing your client’s satisfaction and “wow factor.” That’s what it’s all about, after all!

Returns (Gasp!)

We’ve taken a lot of precautions to make sure you never even have to worry about sending a defective unit back, or sending a unit in for service. But, like any complex piece of equipment designed and built by humans, once in a while,

something doesn’t go as planned. If you nd yourself with a xture that isn’t behaving like a good little xture should, you’ll need to obtain a Return Authori-

zation (RA).

Don’t worry, this is easy. Just go to our website and open a support ticket at www.blizzardpro.com/support, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable, pre-paid freight method. We suggest us-

ing USPS Priority or UPS. Make sure you carefully pack the xture for transit,

and whenever possible, use the original box & packing for shipping.

When returning your xture for service, be sure to include the following:

1.) Your contact information (Name, Address, Phone Number, Email address).

2.) The RA# issued to you

3.) A brief description of the problem/symptoms.

We will, at our discretion, repair or replace the xture. Please remember that

any shipping damage which occurs in transit to us is the customer’s responsibility, so pack it well!

Shipping Issues

Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.

Page 17

Tech Specs!

Weight & Dimensions

Width 14.96 inches (380 mm) Depth 9.8 inches (247 mm) Height 21.7 inches (550 mm) Weight 48.5 Lbs. (22kg)

Power

Operating Voltage 90-250V, 50/60Hz Power Consumption 283W, 2.49A, PF: .99 Fuse 5A, 250V

Light Source

LED 200W white LED light engine, 60,000 hours Color Temperature 6500K

Optical

Beam Angle 13°- 27° beam angle Gobo Size 22.9mm outer, 18mm inner, 2mm max thickness

Thermal

Max. Operating Temp. 104 degrees F (40 degrees C) ambient

Movement Range

Pan 540 degree (8-16 bit resolution) Tilt 230 degree (8-16 bit resolution)

Control

Protocol USITT DMX-512 DMX Channels 16/19-channel DMX Modes Data 3/5-pin XLR In/Out Other Operating Modes Standalone, Master/Slave, Auto Mode

Warranty

2-year limited warranty, does not cover malfunction caused by damage to LEDs. Visit www.blizzardpro.com/warranty.

Troubleshooting

Symptom Solution

Fixture Auto-Shut O Check the fan in the xture. If it is stopped or moving slower

Beam is Dim Check optical system and clean excess dust/grime. No Power Check fuse, AC cord and circuit for malfunction. Blown Fuse Check AC cord and circuit for damage, verify that moving parts

Slow Movement Check that speed channels are set appropriately. Fixture Not Respond-

ing / Responding Erratically

than normal, the unit may have shut itself o due to high heat. This is to protect the xture from overheating. Clear the fan of

obstructions, or return the unit for service.

are not restricted and that unit’s ventilation is not obstructed

Make sure all connectors are seated properly and securely. Use Only DMX Cables. Install a Terminator. Check all cables for defects.

Reset xture(s).

Page 18

Dimensional Drawings

21.7” (550 mm)

14.96” (380 mm)

Photometric Data

9.8”

(247 mm)

14.96” (380 mm)

27°

13°

Distance:

13° beam diameter

Luminous Intensity:

Beam 2.5m lux 2.5m fc 5m lux 5m fc 7.5m lux 7.5m fc 10m lux 10m fc

13° 38,405 3,567.9 9,937 923.2 4,668 433.7 2,746 255.1

27° 13,058 1,213.2 3,241 301.1 1,543 143.4 916 85.1

2.31' (70.2 cm)

4.79' (145.8 cm)

Page 19

3.84' (117 cm)

7.98' (243 cm)

10m

7.68' (234 cm)

15.95' (486 cm)27° beam diameter

Enjoy your product!

Our sincerest thanks for your purchase!

--The team @ Blizzard Lighting

Blizzard G-Max 200 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
