Planetary Mixer
Instruction Manual
Page 2
Pack Contents
The following is included:
• Food Mixer •Spiral Dough Hook •Whisk
• Mixing Bowl •Beater • Instruction Manual
General Description
This is a kind of changing speed gear mixer. With its planetary stirring design, it has a
compact structure, high efficiency, power saving and easy operation. It provides as an
ideal assistant to you for bread and cake making.
Technical Parameters
Name
Power
(KW)
Weight
(KG)
Speed of Stirring Shaft (r/min)
Overall Dimensions
(mm)
1st Speed
2nd Speed
3rd Speed
10L
0.55/0.75
45
108
195
355
505 x 475 x 710
20L with hub
1.1
108
108
195
355
630 x 590 x 890
30L with hub
1.5
180
91
166
282
710 x 670x 1270
Page 3

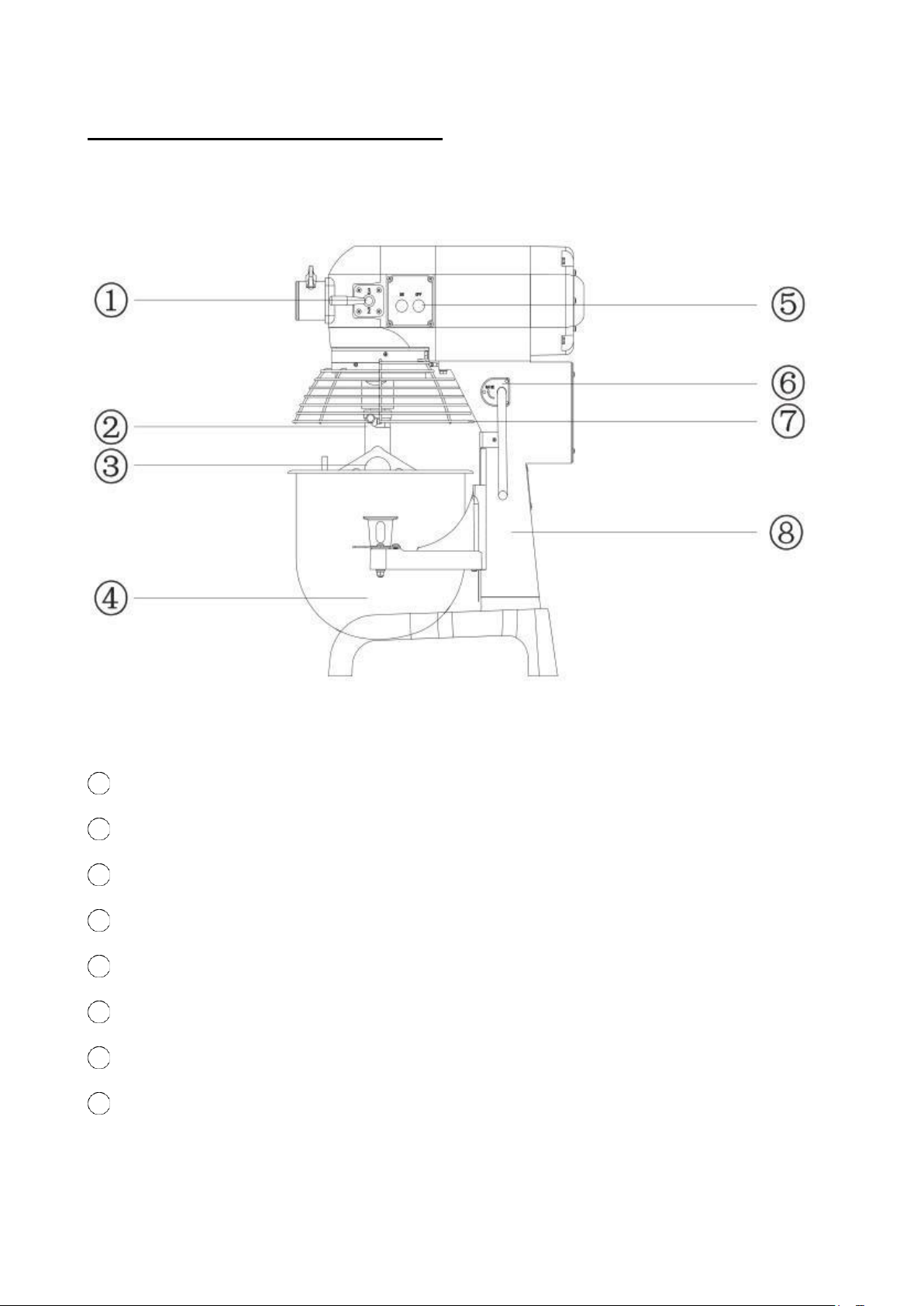

Main External Parts of Mixer
Gear change hand lever
Stirring shaft
Mixer
Stainless barrel
Power switch
Bent lever
Safety guard ( may choose the fitting)
Support
1 2 3
4
5
6 7 8
Page 4
Operation Instruction
Standard power supply 230v/50 HzAc. (Please use a plug with 3 wide
contacts and good grounding.)
Installation of mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in clockwise
direction.
Starting procedures: Pull the hand lever 6 to raise the bowl and close the safety grille
7 to the closed position. Select the speed required by moving the gear change hand
lever 1 before starting, then turn on the power switch 5. Run the mixer for a
maximum of 30 minutes of constant run.
Speed transformation: If you want to change speed, please turn off the power switch
5 firstly, and then pull the gear change hand lever 1 to the position required.
Shutting down: when the operation is complete, turn off the power switch 5 firstly,
then pull the gear change hand lever 1 to position 1, and pull back the hand lever 6
to the lowest point and finally disconnect power supply.
Accessories and Functions
Whisk: Used for stirring of liquid material, such as cream and egg. Recommended
speed: mid or high speed.
Beater: Used for stirring of paste, powder and fragmental material, such as stuffing
and cake dough. Recommended speed: start with low-speed, end with a mid-speed.
Spiral dough hook: Used for stirring of sticky material, such as dough.
Recommended speed: low speed.
1 2 3
4
5
1
2
3
Page 5
Notes
The power socket must be provided with a good ground wire to guarantee the
mixer’s good grounding through it. There will be an electric shock if no ground
wire or an improper grounding mounted. The ground wire can never be connected
with gas pipe, water pipe, lightning rod or telephone line. Electric leakage should
be checked after installation. Once the power line damaged, the user must replace
them in the special maintain service company.
Don’t put your hands into the stirring barrel during operation. Power supply
should be disconnected before the mixer is going to be installed.
Don’t operate the mixer beyond the time limit to prevent reduction of its service
life.
The mixer should be mounted on a stable and clean place. Keep it away from
overheated or over-wet places and away from equipment which has strong
electromagnet or can produce strong electromagnet.
Keep the machine clean constantly. Disconnect power supply before
maintenance. Clean it with a piece of soft and a bit wet cloth. Don’t clean it with
liquid or spraying detergent.
Maintenance
Clean the bowl and stirrer daily or after use to maintain hygiene standard.
The transmission gear box is greased in factory. Check the greasing each 6 months. To
assess or refill grease, open the top cover, then fill grease from aperture or replace the
grease directly.
1
2
3 4 5
Page 6
Trouble Shooting
Problems
Causes
Solutions
Tool shaft does not
rotate after starting the
machine
Loosen electric wiring
Check electric wiring, tighten
those loose connects
Oil leakage
The seal rings are worn out
Replace seal rings
Motor temperature
raised while reduced
output speed
Too low voltage
Check the power supply
Overloaded
Reduce load
The sped of mixing is too
high or using a wrong
stirrer
Select a suitable speed and
stirrer
The mixing knocks
with the bowl
The stirrer or bowl is
deformed
Repair or replace the stirrer
or bowl
Abnormal noise and
high temperature from
gearbox
Insufficient lubrication
Add or replace the grease
Accessories canno0t
be removed from
motor
Debris (flour)stuck in the
spigot / attachment
Clean the attachment and
spigot with warm water, push
upwards and turn to
disengage fitting, pull down
to withdraw attachment
Warning!
If the equipment is out of function, please make sure that it is serviced by professional
person or please turn to special service point.
Page 7

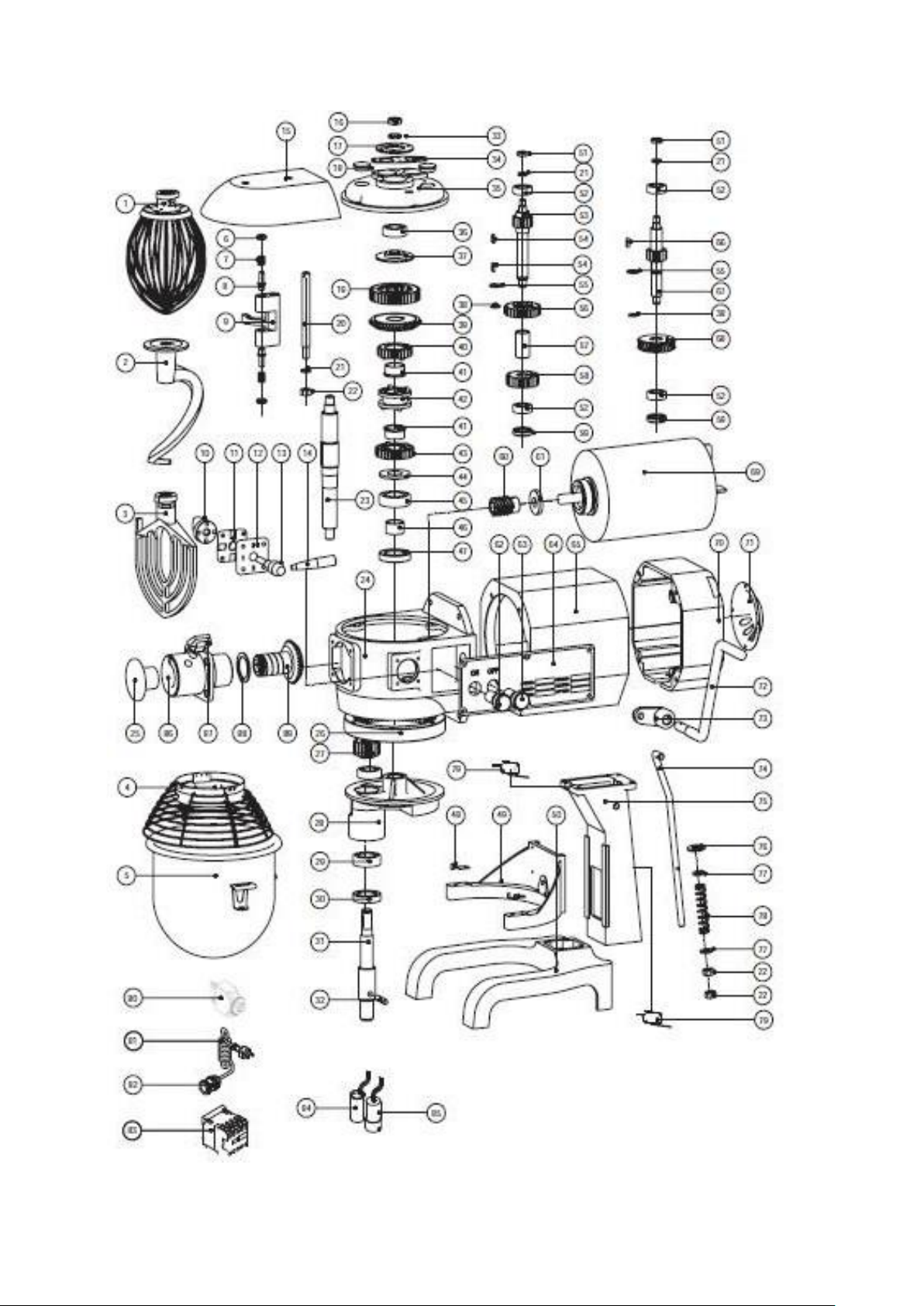

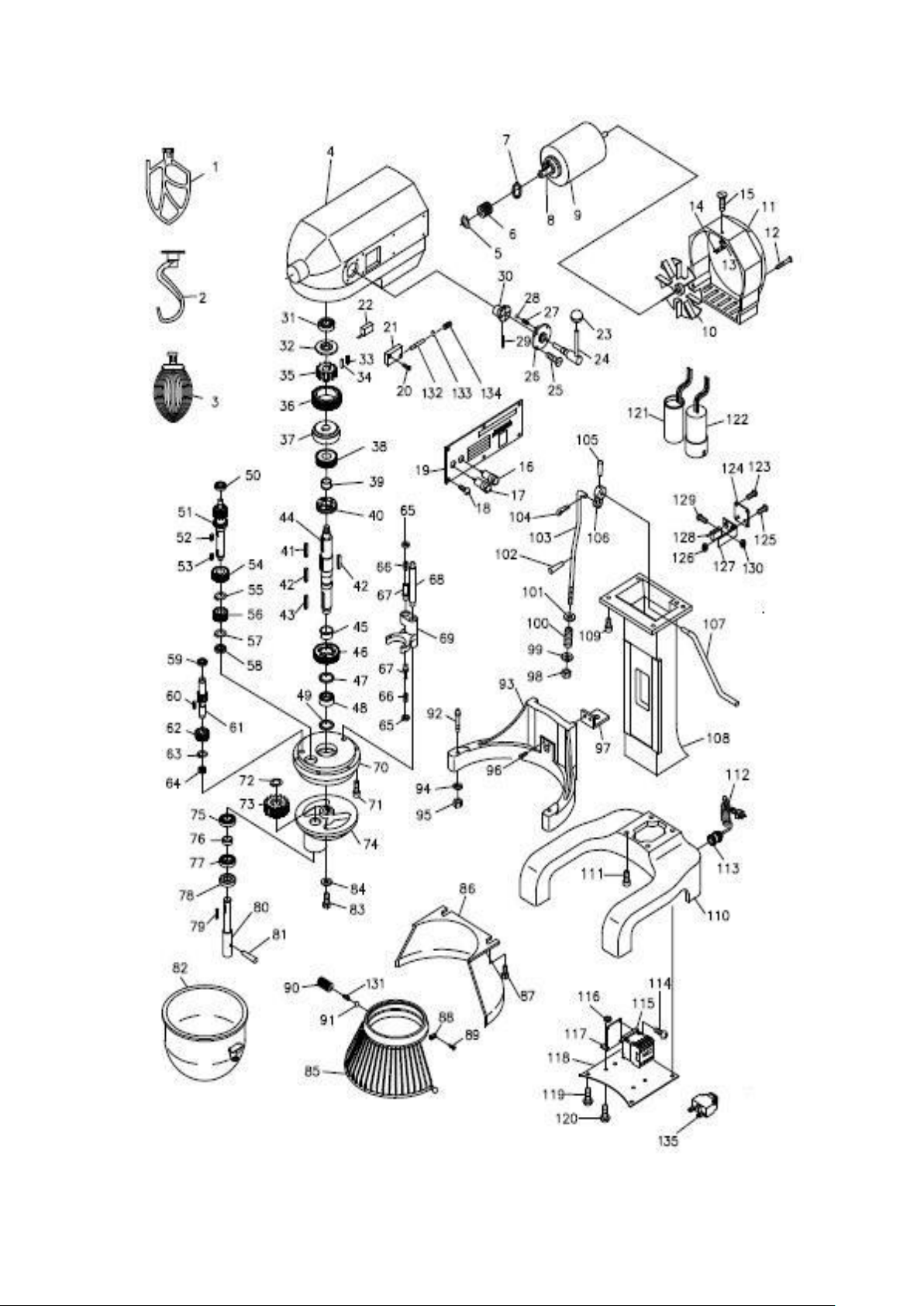

Parts of 10L
SER.NO.
PART.NO. PART NAME
SER.NO.
PART.NO.
PART NAME
1
10-1
Flat Beater
69
10-69
Shifting yoke
2
10-2
Hook
70
10-70
Inner gear
3
10-3
Wire whip
71
10-71
hexagon socket cap screws
4
10-4
Gear box
72
10-72
Circlips for shaft
5
10-5
Circlips for shaft
73
10-73
Planet gear
6
10-6
Worm pole
74
10-74
Operating shelf
7
10-7
Oil seal
75
30-76
Bearing
8
10-8
Key
76
10-76
Running shaft support
9
10-9
Motor
77
30-76
Bearing
10
10-10
fan
78
10-78
Oil seal
11
10-11
Back cover
79
10-79
Key ：5X20
12
10-12
Nut:M5X60
80
10-80
running spindle
13
10-13
Spring washer
81
10-81
Retainer-spring
14
10-14
Connector
82
10-82
Bowl
15
10-15
Nut:M4X8
83
10-83
cross recess pan head screw
16
10-16
Red button
84
10-84
Moving frame clamp
17
10-17
Green button
85
10-85
front shield
18
10-18
Nut:M4X8
86
10-86
back shield
19
10-19
Brand
87
10-87
hexagonal head bolt
20
10-20
Nut:M4X20
88
10-88
Bump pin block
21
10-21
The micro switch installation
89
10-89
cross recessed countersunk head screw
22
10-22
Distance switch
90
10-90
Allen flat end set screws
23
10-23
Nob
91
10-91
steel ball
24
10-24
Speed handle
92
10-92
Taper pin column
25
10-25
Nut:M4X8
93
10-93
Support
26
10-26
fix seat
94
10-94
Spring washer
27
10-27
Spring
95
10-95
Type 1 hexagonal nut
28
10-28
steel ball
96
10-96
cross recessed countersunk head screw
29
10-29
Retainer-spring
97
10-97
Support lifting climbing
30
10-30
nob
98
10-98
hexagon lock nut
31
10-31
deep groove ball bearing
99
10-99
flat washer
32
10-32
Plug
100
10-100
compression spring
33
10-33
Spring
101
10-101
flat washer
34
10-34
Roller：6X10
102
10-102
elastic cylindrical pin
35
10-35
Gear
103
10-103
Connecting rod
36
10-36
Super machine parts
104
10-104
cotter
37
10-37
ring gasket
105
10-105
Retainer-spring
38
10-38
Combination of gear
106
10-106
Crank lever
39
10-39
Gear shaft sleeve
107
10-107
Handle
40
10-40
Claw-type clutch
108
10-108
Stud
41
10-41
Key ：5X25
109
10-109
hexagonal head bolt
42
10-42
Key ：5X30
110
10-110
foundation
43
10-43
Key ：5X30
111
10-111
hexagonal head bolt
44
10-44
Main shaft
112
10-112
Power cord
45
10-45
Gear shaft sleeve
113
10-113
Power supply is waterproof connectors
46
10-46
Gear
114
10-114
cross recess pan head screw
47
10-47
Spring washer
115
10-115
Contact switch
48
30-36
Bearing
116
10-116
Type 1 hexagonal nut
49
10-49
Oil seal
117
10-117
Ac contactor stents
50
10-50
Bearing
118
10-118
shied
51
10-51
Gear shaft
119
10-119
cross recess pan head screw
52
10-52
Key ：5X10
120
10-120
cross recess pan head screw
53
10-53
Key ：5X10
121
10-121
Capacitor
54
10-54
Combination of gear
122
10-122
Capacitor
55
10-55
Circlips for shaft：55
123
10-123
cross recess pan head screw
56
10-56
Gear
124
10-124
Travel switch fixed plate
57
10-57
Circlips for shaft
125
10-125
cross recess pan head screw
58
10-58
Bearing
126
10-126
Type 1 hexagonal nut
59
10-59
Bearing
127
10-127
Travel switch bracket
60
10-60
Key ：5X14
128
10-128
Distance switch
61
10-61
Shaft worm gear
129
10-129
cross recess pan head screw
62
10-62
Worm gear
130
10-130
Type 1 hexagonal nut
63
10-63
Circlips for shaft
131
10-131
Shield compression spring
64
10-64
Bearing
132
10-132
Switch shaft pin
65
30-7
Control nut
133
10-133
split washer
66
10-66
Spring
134
10-134
Switch shaft pin compression spring
67
10-67
Fork pin
135
10-135-
Version 4
overload switch
68
10-68
declutch shift shaft
Page 8
Page 9

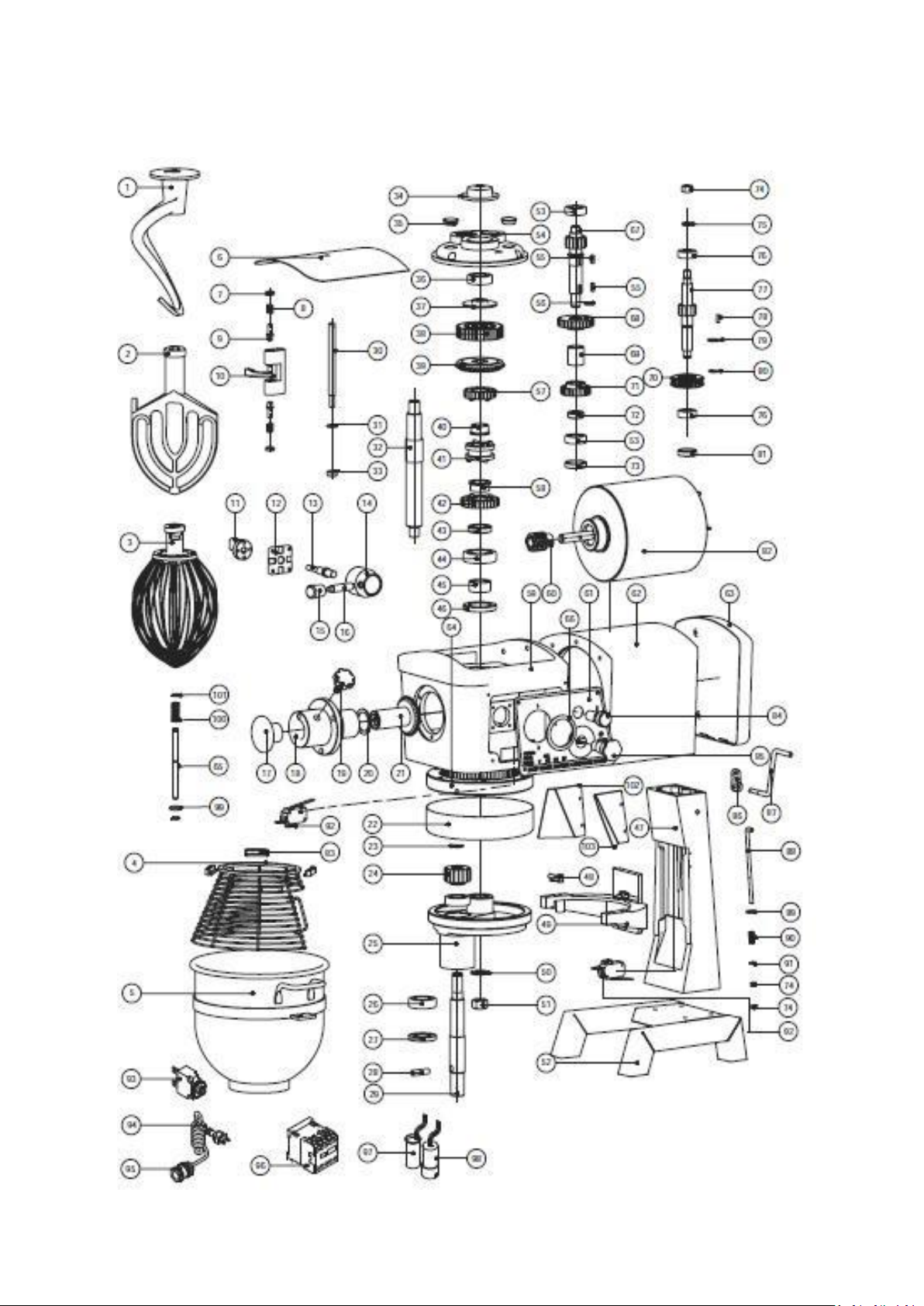

Parts of 20L with hub
SER.NO.
PART.NO.
PART NAME
SER.NO.
PART.NO.
PART NAME
1
20-1
Wire whip
46
20-46
Bushing
2
20-2
Spiral dough hook
47
20-47
Oil seal
3
20-3
Flat Beater
48
20-48
Fore lump
4
20-4
Safety guard
49
20-49
Support
5
20-5
Bowl assembly
50
20-50
Case
6
30-7
Plunger-shifter yoke
51
20-51
Nut
7
30-8
Spring
52
20-52
Bearing
8
30-9
Pin shaft
53
20-53
Mid-gear wheel
9
20-9
Shifting yoke
54
20-54
Key
10
30-11
Cam-gear shifter
55
20-55
Circlips for shaft
11
30-12
Plate-shifter index
56
20-56
Gear
12
20-12
Handle-shifter cover
57
20-57
Bushing
13
20-13
Handle-shifter
58
20-58
Gear
14
20-14
Speed handle
59
20-59
Plug cover
15
20-15
Gear case gland
60
20-60
Worm wheel
16
20-16
Nut
61
20-61
Oil seal
17
20-17
Pressing plate
62
30-84
Green button
18
30-35
Plug cover
63
20-63
Red button
19
20-19
Super machine parts
64
20-64
Brand
20
20-20
Declutch shift shaft
65
20-65
Motor box
21
20-21
Ring
66
20-66
Key
22
20-22
Nut
67
20-67
Shaft worm gear
23
20-23
Main shaft
68
20-68
Gear
24
20-24
Gear box
69
20-69
110V/50HZ Motor(with tool)
25
20-25
Plug attachment hub
70
20-70
Back housing
26
20-26
Internal gear
71
20-71
Back Cover
27
20-27
Gear
72
20-72
Handle-shifter
28
20-28
Operating shalf
73
20-73
Crank lever
29
30-36
Bearing
74
20-74
Connecting rod
30
20-30
Oil seal
75
20-75
Stud
31
20-31
Working shaft
76
20-76
Clamp plate
32
20-32
Retainer-pin
77
20-77
Clamp plate
33
20-33
Spring
78
20-78
Spring
34
20-34
Pressing plate
79
30-92
Distance switch
35
20-35
Transmission shaft support
80
20-80
Overload switch
36
30-53
Bearing
81
20-81
Power cord
37
20-37
Spacer-lower
82
20-82
Power supply is waterproof
connectors
38
20-38
Circlips for shaft
39
20-39
Ring gasket
83
20-83
Contact switch
40
20-40
Gear
84
20-84
Capacitor
41
30-40
Bushing
85
20-85
Capacitor
42
20-42
Sleeve
86
20-86
Attachment hub
43
20-43
Claw type gear wheel
87
20-87
Spring
44
20-44
Ring
88
20-88
Circlips
45
30-26
Bearing
89
20-89
Gear
Page 10
Page 11
Parts of 30L with hub
SER.NO.
PART.NO.
PART NAME
SER.NO.
PART.NO.
PART NAME
1
30-1
Hook
51
30-51
Nut 2 30-2
Beater
52
30-52
Base 3 30-3
Wire Whip
53
30-53
Bearing
4
30-4
Safety guard
54
30-54
Transmission shaft support
5
30-5
Bowl
55
30-55
Key
6
30-6
Top cover
56
30-56
Circlips for shaft
7
30-7
Screw
57
30-57
Gear
8
30-8
Spring
58
30-58
Bushing 9 30-9
Pin shaft
59
30-59
Front housing
10
30-10
Shifting yoke
60
30-60
Worm wheel
11
30-11
Cam-gear shifter
61
30-61
MARK
12
30-12
Plate-shifter index
62
30-62
Case
13
30-13
Handle-shifter
63
30-63
Back cover
14
30-14
Handle set
64
30-64
Internal gear
15
30-15
Turnset
65
30-65-version 3
switch axle
16
30-16
Speed handle
66
30-66
Seal up ring
17
30-17
Plug attachment hub
67
30-67
Gear shaft
18
30-18
Attachment hub
68
30-68
Gear
19
30-19
Spring
69
30-69
Bushing
20
30-20
Circlips
70
30-70
Gear
21
30-21
Gear
71
30-71
Gear
22
30-22
Hood ring
72
30-72
Plate
23
30-23
Circlips for shaft
73
30-73
Plug 1
24
30-24
Planet gear
74
30-74
Nut
25
30-25
Operating shelf
75
30-75
Spring plate
26
30-26
Bearing
76
30-76
Bearing
27
30-27
Oil seal
77
30-77
Shaft worm gear
28
30-28
Pin
78
30-78
Key
29
30-29
Working shaft
79
30-79
Circlips for shaft
30
30-30
Declutch shift shaft
80
30-80
Circlips for shaft
31
30-31
Plate
81
30-81
Plug 2
32
30-32
Main shaft
82
30-82
110V/50HZ Motor(with tool)
33
30-33
Nut
83
30-83-version 3
stop block
34
30-34
Top batter valve cap
84
30-84
Green button
35
30-35
Flat valve cap
85
30-85
Red button
36
30-36
Bearing
86
30-86
Crank lever
37
30-37
Spacer-lower
87
30-87
Handle-shifter
38
30-38
Super machine parts
88
30-88
Connecting rod
38-1
30-38-1
Super machine parts
89
30-89
Spring
38-2
30-38-2
Gear
90
30-90
Spring plate
38-3
30-38-3
Roller
91
30-91
Clamp plate
38-4
30-38-4
Spring
92
30-92
Distance switch
39
30-39
Gear
93
93
overload switch
40
30-40
Bushing
94
94
Power cord
41
30-41
Sleeve
95
95
Power supply is waterproof
connectors
42
30-42
Gear
96
96
Contact switch
43
30-43
Clamp plate
97
97
Capacitor
44
30-44
Bearing
98
98
Capacitor
45
30-45
Bushing
99
99-version 3
switch mounting collar
46
30-46
Oil seal
100
100-version 3
Switch compression spring
47
30-47
Body housing
101
101-version 3
split washer
48
30-48
Bowl hold kits
102
102-version 3
The left guard
49
30-49
Support
103
103-version 3
The right guard
50
30-50
Clamp plate
Page 12

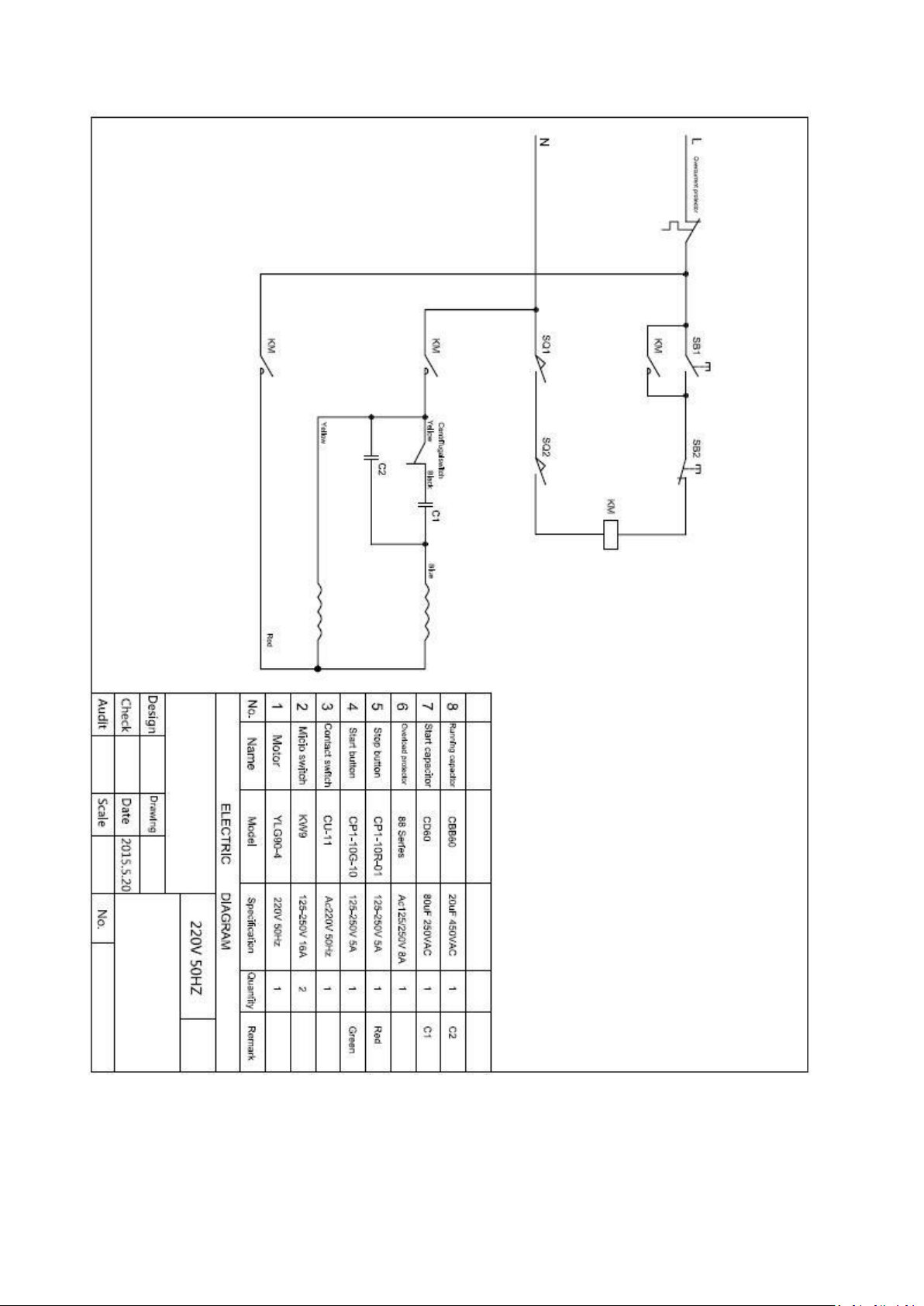

Page 13
Page 14
Disposal
EU regulations require product to be disposed of by specialist companies who remove or recycle all
gasses,
metal and plastic components.
Consult your local waste collection authority regarding disposal of your appliance. Local authorities
are not obliged to
dispose of commercial equipment but may be able to offer advice on how to dispose of the equipment
locally.
All packaging materials should be disposed of in an environmentally friendly way.
Environmental protection
Discarded electric appliances are recyclable and should not be discarded in the domestic waste!
Please actively support us in conserving resources and protecting the environment by returning this
appliance to the collection centers (if available).
Compliance
Parts have undergone strict product testing in order to comply with regulatory standards and
specification set by
international, independent, and federal authorities.
Products have been approved to carry the following symbol:
Pentland Wholesale Ltd, Blizzard House, Unit 17 Walker Industrial Estate, Walker Road, Blackburn,
Lancashire, BB1 2QE.
Tel: 01254 614444 www.pentlandwholesale.co.uk
Loading...
