Page 1

Universal Wireless DMX

Blizzard Lighting, LLC

www.blizzardlighting.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

Colorise™ Quadra 1

1. Getting Started 3

What’s In The Box? 3 Getting It Out Of The Box 3 Powering Up! 3 Getting A Hold Of Us 3 Safety Instructions (Don’t run with scissors!) 4

2. Meet The Colorise™ Quadra LED Par 5

Main Features 5 DMX Quick Reference 5 The Colorise™ Quadra Pin-up Picture 6

3. Setup 7

Connecting A Bunch Of Colorise™ Quadra Fixtures 7 Data/DMX Cables 7 Setting the DMX Input Connector as the Active DMX Input 7 Cable Connectors 8 3-Pin??? 5-Pin??? Huh? 8 Take It To The Next Level: Setting up DMX Control 8 Fixture Linking (Master/Slave Mode) 9 Mounting/Rigging 9 Using the AnyFi™ Wireless DMX Receiver 10 Setting the Fixture to Receive Wireless Signal 10 Resetting The Wireless 10 Select W-DMX™ or Standard 2.4GHz Receiver 10 Successful W-DMX™ Connections 11 Standard 2.4GHz Mode: Selecting the Channel Group 11

4. Operating Adjustments 12

Navigating The Control Panel 12 Control Panel Menu Structure 13 DMX Mode 14 Set the Starting DMX Address 14 Setting the DMX Channel Mode 14 Slave Mode 14 Dimming Mode Settings 14 LED Display On/Off and Menu Lock 14 Custom Programs 15 Auto, Speed, and Sound Active Modes 15 Color Calibration Settings 16 Custom Static Colors & Preset Colors 16 Fixture Reset Functions 17 Data Sync Feature 17 Fixture Information 17 DMX Value In-Depth Reference Guide 18 DMX In-Depth Reference 19

5. Appendix 20

A Quick DMX Lesson 20 Troubleshooting 20 Keeping Your Colorise™ Quadra As Good As New 21 Returns (Gasp!) 21 Shipping Issues 21 Tech Specs 22 Dimensional Drawings 23

Page 2

Page 3

1. GETTING STARTED

What’s In The Box?

• 1 x Colorise™ Quadra Professional LED PAR Fixture

• An Ever-So-Handy Power Cord

• This Lovely User Manual

Getting It Out Of The Box

Congratulations on the purchase of your new totally sweet Colorise™ Quadra LED par

xture. She’s a real stunner alright, denitely the cat’s pajamas! Now that you’ve got

your Colorise™ Quadra (or hopefully, Colorises!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again, please save the carton and all packing

materials. If a xture must be returned to the factory, it is important that the xture be

returned in the original factory box and packing.

Powering Up!

All xtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the xture you receive is suitable for your local power supply. See the label on the xture or refer to the xture’s specications chart for more information. A xture’s

listed current rating is its average current draw under normal conditions. Check the

xture or device carefully to make sure that if a voltage selection switch exists that it is

set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied

does not match the voltage indicated on the voltage selector switch. All

xtures must be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, just give us a call. We’ll be happy to help, honest.

Blizzard Lighting N16 W23390 Stoneridge Dr. Ste E Waukesha, WI 53188 USA www.blizzardlighting.com 414-395-8365

Disclaimer: The information and specications contained in this document are subject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 8/20/2015 J. Thomas 8/26/2015

Page 3

Page 4

SAFETY INSTRUCTIONS

• Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the

decal or rear panel of the xture.

• This product is intended for indoor use only.

• To prevent risk of re or shock, do not expose xture to rain or moisture.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.

• ALWAYS secure xture using a safety chain. NEVER carry the xture by its

cord. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside this unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please visit http://www.blizzardlighting.com/support.

Page 4

Page 5

2. MEET THE COLORISE™ QUADRA LED PAR

MAIN FEATURES

• 12x 10W 4-in-1 RGBW LEDs, 100,000 hours

• Built-in AnyFi™ wireless DMX receiver (2.4GHz or W-DMX™)

• Natural convection cooled, totally silent operation

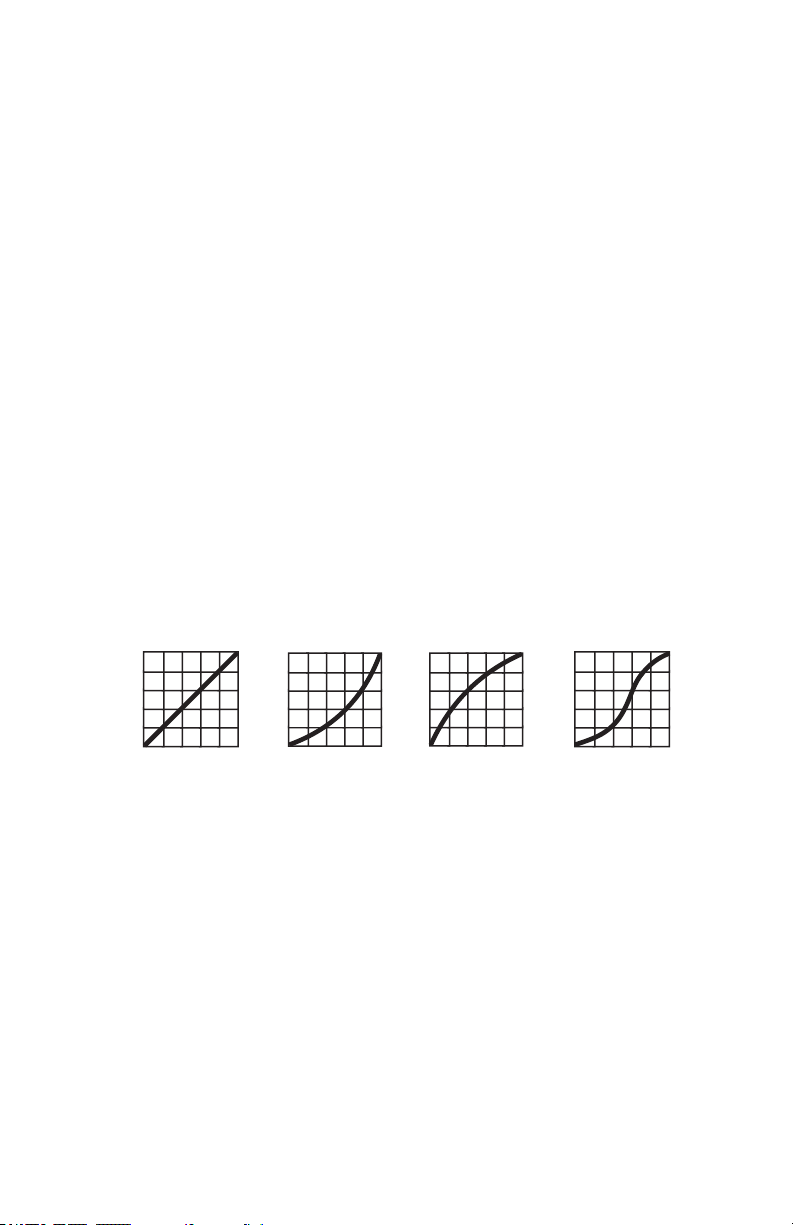

• User selectable 32-bit dimming curves

• Variable electronic dimmer strobe

• Built-in color & chase macros via DMX

• Built-in auto programs & sound active in standalone and M/S

• Color mixing ability in standalone mode

• 25 degree beam angle

• User selectable 3/4/5/7 or 10-channel DMX modes

• Flicker-free constant-current LED driver

• LED control panel with 4* touch sensitive buttons

• 3-pin male input and 3-pin female output

• PowerCon™ compatible AC power In/Out connectors

DMX Quick Reference - 10/7/5-Channel Modes

Channel 10-Channel 7-Channel 5-Channel

1 Dimmer Dimmer Dimmer

2 Red Intensity Red Intensity Red Intensity

3 Green Intensity Green Intensity Green Intensity

4 Blue Intensity Blue Intensity Blue Intensity

5 White Intensity White Intensity White Intensity

6 Strobe Strobe ---

7 Custom Colors + Auto 32-bit Dimming ---

8 Auto Speed --- ---

9 Virtual Color Wheel --- ---

10 32-bit Dimming --- ---

DMX Quick Reference - 4/3-Channel Modes

Channel 4-Channel 3-Channel

1 Red Intensity Dimmer

2 Green Intensity White Intensity

3 Blue Intensity Virtual Color Wheel

4 White Intensity ---

Page 5

Page 6

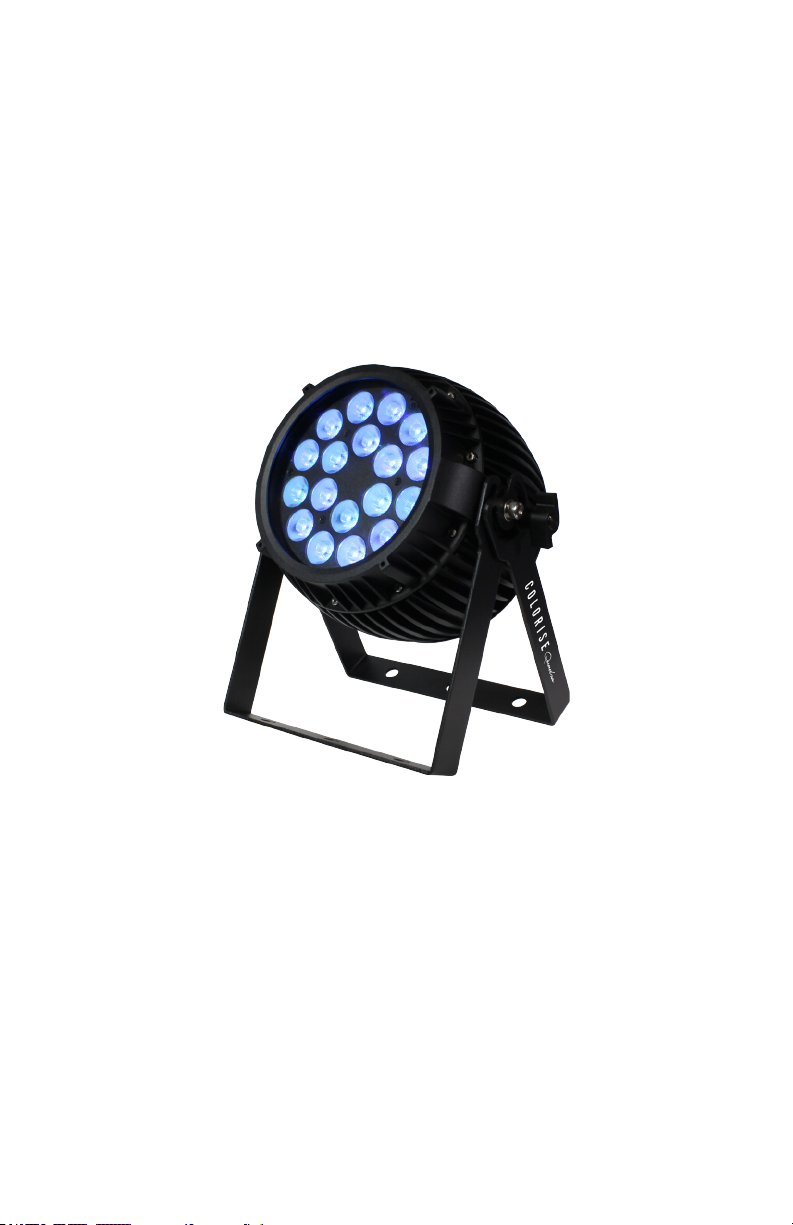

Figure 1: The Colorise™ Quadra Pin-Up Picture

Heavy-Duty Cast

Aluminum Enclosure

Locking

Adjustment

Knobs

Figure 2: The Rear Connections

DMX In DMX Out

High Power 10W 4-in-1

RGBW LEDs

Dual

Mounting

Yokes

AC Power In

Antenna

Wireless LED

Indicator

Page 6

AC Power Out

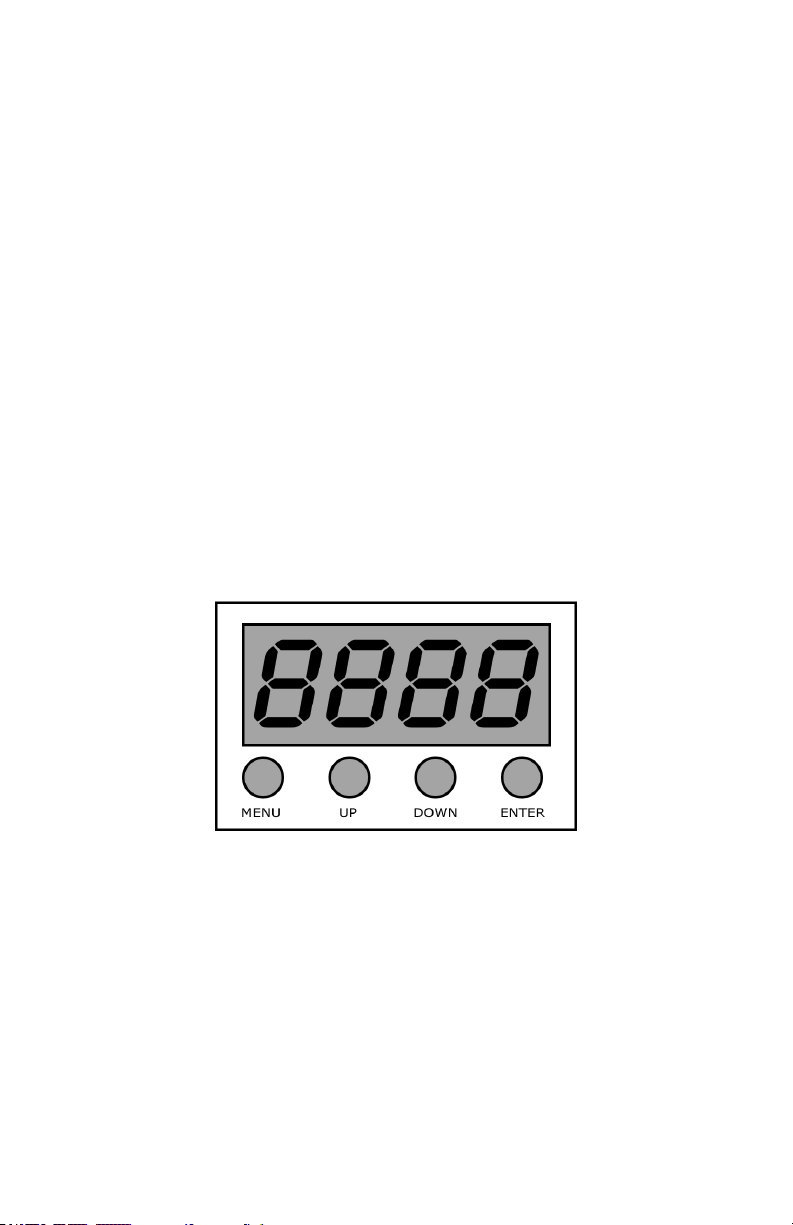

4-Character LED

Control Panel

Page 7

3. SETUP

Fuse Replacement

CAUTION! The Colorise™ Quadra utilizes a high-output switch-mode power

supply with an internal fuse. Under normal operating conditions, the fuse

should not require replacement. The fuse is eld replaceable, however it is an advanced procedure suited to qualied individuals. Should your xture require

replacement, please contact Blizzard Lighting for instructions, or to return your unit for service.

Connecting A Bunch of Colorise™ Quadra Fixtures

You will need a serial data link to run light shows using a DMX-512 controller

or to run shows on two or more xtures set to sync in master/slave operating mode. The combined number of channels required by all the xtures on a serial data link determines the number of xtures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line. Also, con-

necting more than 32 xtures on one serial data link without the use of a DMX

optically-isolated splitter may result in deterioration of the digital DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft). The

maximum recommended number of xtures on a serial data link is 32 xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-grade

cables that can carry a high quality signal and are less prone to electromagnetic interference.

For instance, Belden© 9841 meets the specications for EIA RS-485 applications. Standard microphone cables will “probably” be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms

Setting the DMX Input Connector as the Active DMX Input

Navigate the main menu to reach SET, press <ENTER>, then use the <UP/ DOWN> buttons until SIGN is displayed, then press <ENTER> again. Now use the <UP/DOWN> buttons to highlight CABL (cable mode), and press <ENTER> to conrm.

Page 7

Page 8

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the

xture’s chassis ground. Grounding the common can cause a ground loop, and your xture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. They are widely available over the internet and from specialty retailers If you’d like to build your own, the chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output)

5-Pin Male (Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

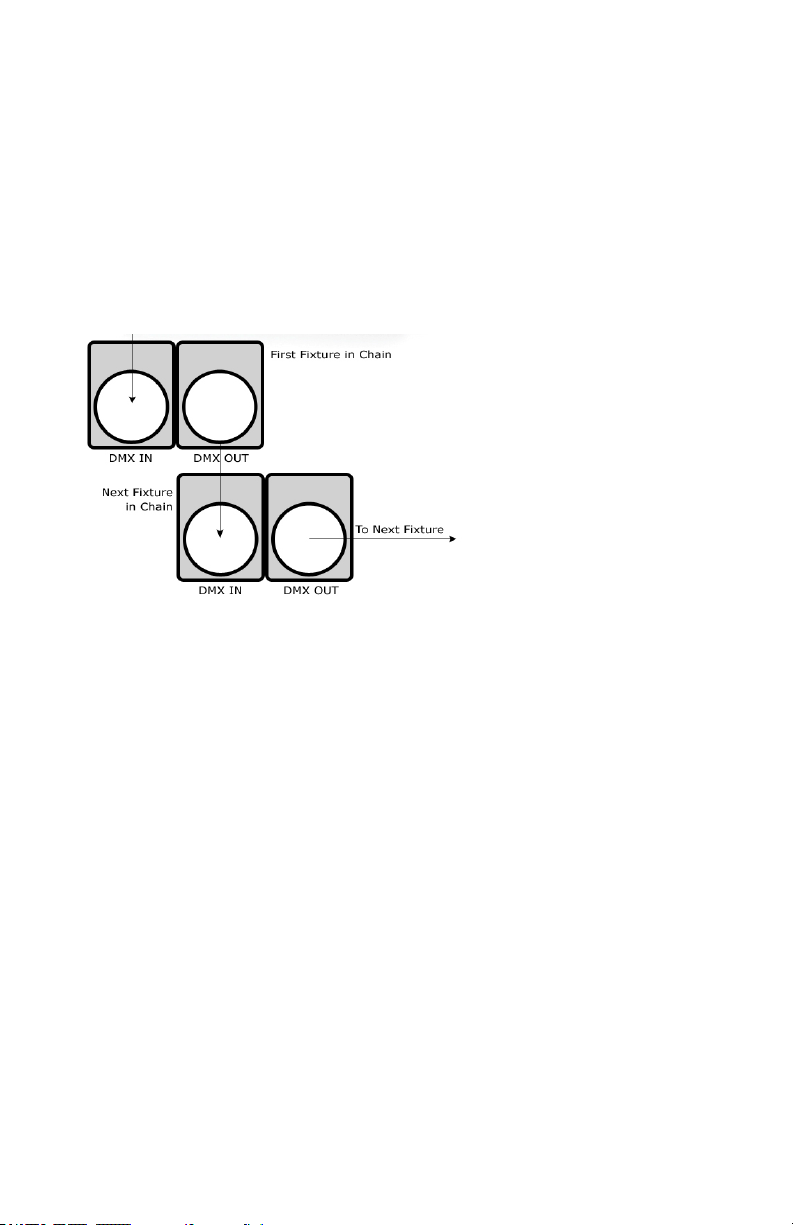

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output) on the controller.

Step 2: Connect the female connector of the

DMX cable to the rst xture’s male connector

(input). Note: It doesn’t matter which

xture address is the rst one connected. We recommend connecting the xtures in terms

of their proximity to the controller, rather than

connecting the lowest xture number rst, and

so on.

Step 3: Connect other xtures in the chain

from output to input as above. Place a DMX

terminator on the output of the nal xture to

ensure best communication.

Page 8

Page 9

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of

the rst xture.

2. Connect the end of the cable coming from

the rst xture which will have a (female) 3 pin connector to the input connector of the next xture

consisting of a (male) 3 pin connector. Then, proceed to connect from the output as stated above

to the input of the following xture and so on.

A quick note: Often, the setup for MasterSlave and Standalone operation requires that

the rst xture in the

chain be initialized for this purpose via either settings in the control panel or DIP-switches.

Secondarily, the xtures

that follow may also require a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conguration.

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xture using a suitable “C” or “O” type clamp. The clamp should be rated to hold at least 10x the xture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting xtures overhead.

Adjust the angle of the xture by loosening both knobs and tilting the xture. After nding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the xture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Page 9

Page 10

Using the AnyFi™ Wireless DMX Receiver

In addition to the unbridled thrill you already received the rst time you turned on your xture, you’ll be delighted to know that your Colorise™ Quadra is equipped to work

seamlessly with our own Skywire™ 2.4GHz wireless DMX products, as well as W-DMX™ wireless products. W-DMX™ is a two-time award winning wireless DMX technology, created and owned by Wireless Solution Sweden AB.

Skywire™ wireless DMX products feature 512 auto-assigning frequencies in 7 groups allowing up to 7 systems to run simultaneously in the same space, completely free of interference, with reliable wireless communication for over 1000 feet line-ofsight! Using W-DMX™ wireless, you can expect an outstanding wireless range of up to 500 meters (line-of-sight), very easy setup, and leave any worries behind concerning loss of signal due to its built-in FHSS technology (Frequency Hopping Spread Spectrum).

So rst, if you would like to use Standard 2.4GHz wireless DMX, you will need a Blizzard

wiCICLE® transmitter, Lightcaster™ transceiver, or any Blizzard Lighting controller that has this type of built-in wireless transmitter, like our Kontrol 6 Skywire™ to act as a transmitter. And if you plan on using W-DMX™ 2.4GHz wireless for your setup, you will need a W-DMX™ transceiver to broadcast the signal from your controller, such as our Lightcaster W-DMX™.

Universal Wireless DMX

Ready to move on? Well alrighty!

1.) IMPORTANT - Set the Fixture to Receive Wireless Signal in the Control Panel

a.) Navigate the main menu to reach SET, press <ENTER>, then use the <UP/ DOWN> buttons until SIGN is displayed, then press <ENTER> again. Now use the <UP/DOWN> buttons to highlight 2.4G (wireless mode), and press <ENTER> to

conrm.

2.) Resetting The Wireless

a.) Navigate the main menu to reach SET, press <ENTER>, then use the <UP/ DOWN> buttons until WIRE is displayed, then press <ENTER> again. b.) From here, you can use the <UP/DOWN> buttons to highlight REST and press <ENTER>, select YES, then <ENTER> to reset the wireless setup.

3.) Select W-DMX™ or Standard 2.4GHz Receiver

a.) Make sure the device you are using to transmit signal with is powered on. b.) Navigate the main menu to reach SET, press <ENTER>, then use the <UP/ DOWN> buttons until WIRE is displayed, then press <ENTER> again. c.) Now use the <UP/DOWN> buttons to highlight KEY in the menu, and press <ENTER>. d.) At this point, please note that every time you touch the <ENTER> button, the wireless LED status indicator changes between 4 colors (but only 2 are functional):

• GREEN: W-DMX™ 2.4 GHz Mode

• YELLOW: Standard 2.4 GHz Mode (wiCICLE™ & LightCaster Compatible)

*Note: RED and BLUE currently have no function during this selection process.

e.) While the LED indicator is illuminated in GREEN (for W-DMX) or YELLOW (for Standard 2.4GHz), press and hold the <ENTER> button for 3 seconds to make your

chosen wireless type the active wireless DMX signal type.

For W-DMX™ connections, you should be done. The xture will detect the signal!

*For Standard 2.4GHz connections, please continue to Step 5 on the next page.

Page 10

Page 11

4.) Successful W-DMX™ Connections

The LED status indicator will blink, then turn white if searching for a signal. When a

signal connection is established, the LED on the xture will be solid GREEN, if signal is lost the LED will ash RED.

W-DMX™ Setup Examples:

1.) One transceiver with multiple receiver setups:

a.) Power on all units.

b.) On the receiving W-DMX xtures, follow the previous instructions to pair them

with the transmitting unit.

2.) Multiple transceiver setups, with multiple receivers; e.g. 3 groups consisting of a transceiver & receiver(s) named A, B, and C:

a.) Turn power off of all units. b.) Group “A” gets powered on, then follow step 1 above. c.) Group “B” gets powered on, then follow step 1 above. d.) Group “C” gets powered on, then follow step 1 above.

5.) Standard 2.4GHz Mode: Selecting the Channel Group

1. After selecting Standard 2.4GHz Mode in Step 3 on the previous page, the xture is ready and waiting for your input to select the frequency group to match that of your transmitting source.

a.) Tap the <ENTER> button repeatedly to scroll through the 7 color group frequencies:

• GROUP 1: RED

• GROUP 2: GREEN

• GROUP 3: YELLOW

• GROUP 4: BLUE

• GROUP 5: VIOLET

• GROUP 6: CYAN

• GROUP 7: WHITE

NOTE: “GROUP” number also corresponds to the “GROUP” setting on our LightCaster™ wireless DMX transceiver, wiCICLE™ transmitter, and all Blizzard Skywire™ wireless controllers.

b.) While your chosen group number/color is illuminated on the status LED, press and hold the <ENTER> button for 3 seconds.

2. The LED on the transmitter will blink RED slowly until communication is established with

the receiver. The status LED on the receiving xtures will be illuminated in the color of the

group that it is set on until communication is established.

3. Once the clearest channel is auto-selected, the status LEDs will blink quickly on both the transmitter and receiver. NOTE: The color of the status LED DURING operation does not indicate channel group, instead it indicates whether the unit is transmitting or receiving.

That’s It!

Page 11

Page 12

4. OPERATING ADJUSTMENTS

The Control Panel

All the goodies and different modes possible with the Colorise™Quadra are ac-

cessed by using the control panel on the rear of the xture. There are 4 control

buttons below the LED display which allow you to navigate through the various control panel menus.

<MENU>

Is used to navigate to the previous higher-level menu item.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

<ENTER>

Is used to select and conrm/store the current selection.

The control panel LED display shows the menu items you select from the menu map on page #13. When a menu function is selected, the display will show im-

mediately the rst available option for the selected menu function. To select a

menu item, press <ENTER>.

Use the <UP> and <DOWN> buttons to navigate the menu options. Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button.

Page 12

Page 13

Control Panel Menu Structure

ADDR 001-512 To choose the DMX address

STAT R Red intensity (0% <--> 100%)

G Green intensity (0% <--> 100%)

B Blue intensity (0% <--> 100%)

W White intensity (0% <--> 100%)

SHUT Flash / strobe speed (0-255)

PRSC (preset colors) NONE, R, G, B, W, RGW, RGB, YELLOW, PINK, CYAN, ORANGE, VIOLET,

SET CAL To set global intensity levels of each color + USE: YES/NO

CHMD 10CH To run in 10-channel mode

7CH To run in 7-channel mode

5CH To run in 5-channel mode

4CH To run in 4-channel mode

3CH To run in 3-channel mode

DIM (dimming)

DISY ON LED menu display is on continually

LOCK YES/NO Menu locks after 2min. Hold any key 10 seconds to unlock.

SIGN <ENTER> Choose the signal type: 2.4G (wireless) or CABL (cable)

WIRE <ENTER> Wireless Reset: REST, or KEY desired wireless mode (color coded LED)

CTST CT01-CT10 <ENTER> R/G/B/W adjustments for custom color banks 01-10

AUTO AT01-AT05 <ENTER> Auto programs 1-5

ATSP <ENTER> Auto Speed

CHS1 <ENTER> Custom program 1

CHS2 <ENTER> Custom program 2

CHS3 <ENTER> Custom program 3

SOU1 <ENTER> Sound Active Mode 1 (color changing)

SOU2 <ENTER> Sound Active Mode 2 (white strobe)

PROG CHS1-CHS3

Custom programs 1-3.

INFO SOFT Vx.x Software version information

LOAD ST L Restore factory settings

PR L Restore factory program settings

SEND YES/NO Sync settings between xtures via DMX

LIN Linear dimming curve

SQR Square law curve

ISQR Inverse square law curve

SCUR S-curve

LIN. Linear dimming curve (smooth)

SQR. Square law curve (smooth)

ISQR. Inverse square law curve (smooth)

SCUR. S-curve (smooth)

2MIN LED menu display shuts off after 2 minutes of inactivity

SC01-SC20 20 scenes for each custom program.

POW Current automated overheat protection level (100%/80%/50%)

GOLDEN, 2700K, 3200K, 4000K, 5500K, 6500K, RGBW

R (0-255) SHUT (strobe, 0-255)

G (0-255) AUTO (None, AT01-AT05)

B (0-255) ATSP (speed, 0-255)

W(0-255) TIME (duration, 0-255)

WAIT (before fade, 0-255)

USE (use scene, YES/NO)

Page 13

Page 14

DMX Mode

Allows the unit to be controlled by any universal DMX controller.

Setting the DMX Address:

1.) The default mode for the xture is DMX, which appears as 001 on the LED readout. To

select a different DMX address, using the <MENU> button, select ADDR, then hit <ENTER>.

Use the <UP/DOWN> buttons to select the correct address, then hit <ENTER> to conrm.

Setting the DMX Channel Mode:

1.) To select a DMX channel mode, press the <MENU> button, then use the <UP/DOWN>

buttons until the display reads SET and press the <ENTER> button. Then use the <UP/

DOWN> buttons until the display reaches CHMD, and press <ENTER>. Now press the <UP/

DOWN> buttons again to highlight your desired DMX channel mode, and press the <ENTER>

button to conrm.

Slave Mode:

1.) Daisy chain the xtures DMX in/out, having the controller at the beginning of the line.

2.) There is nothing else to it! The rst xture in the DMX chain is the master xture, and the

following xtures will follow the master.

Dimming Mode Settings:

Allows users to set the xture to use 1 of 4 (x2) dimming curve settings for smoother (and slower)

dimming capabilities. In the control panel menu, there are two settings for each curve that are

distinguishable from one another by the trailing dot.

Linear Curve Square Law Inverse Square Law S-Curve

(LIN, LIN.) (SQR, SQR.) (ISQR, ISQR.) (SCUR, SCUR.)

Output

DMX% DMX% DMX% DMX%

*The curve settings with the trailing dot adds a bit more delay to the curve for a smoother effect.

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>,

then <UP/DOWN> buttons again to scroll to DIM, and press the <ENTER> button.

2.) Now use the <UP/DOWN> buttons to highlight either LIN (Linear), SQR (Square), ISQR

(Inverse Square), SCUR (S-Curve), LIN. (Smooth Linear), SQR. (Smooth Square), ISQR.

(Smooth Inverse Square), or SCUR. (Smooth S-Curve), then hit <ENTER>.

Output

LED Display On/Off and Menu Lock:

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>,

then navigate to DISY, and press the <ENTER> button.

2.) In DISY, you can set the LED menu display to be continually on, or shut off after 2 minutes

of inactivity. In LOCK which is in the main (top) menu, you can select either YES or NO, and

press <ENTER> to save. Enabling key lock will disable the functionality of the buttons after 2

minutes. To exit this locked setting, press and hold any button for 10 seconds.

Page 14

Page 15

Custom Programs:

Allows users to create up to 3 customizable, 20 scene programs that are directly accessible via the control

panel and also in DMX mode.

Creating A Custom Program:

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to PROG, and press <ENTER>.

2.) Now use the <UP/DOWN> buttons to highlight your choice of either CHS1, CHS2, or

CHS3 and press <ENTER>.

3.) Start with editing scene 1 (SC01), customizing it to your liking by using the choices outlined

in the table below. You can insert any of its 5 built-in auto programs (AT01-AT05), and adjust

its speed (ATSP 0-255), and also set the duration (in seconds) before moving on to the next

scene (TIME 0-255). You can also add a fade in effect to the start of this scene (WAIT 0-255),

and/or strobe (SHUT 0-255). Finally, if you want to use this scene in your program, be sure to

enable it (USE: YES/NO).

4.) Repeat the above process to create up to 20 scenes in each of the 3 customizable programs.

R (0-255) - Red Intensity SHUT (0-255) - Strobe (slow - fast) WAIT (0-255) - Fade In (fast - slow)

G (0-255) - Green Intensity AUTO (AT01-AT05) - Auto Programs USE (YES/NO) Use Scene in Program?

B (0-255) - Blue Intensity ATSP (0-255) - Auto Speed (fast - slow) IMPORTANT:

Running A Custom Program:

1.) To view your newly created lighting masterpiece, use the <MENU> and <UP/DOWN>

buttons to navigate to AUTO, and press <ENTER>.

2.) Use the <UP/DOWN> buttons to highlight your choice of either CHS1, CHS2, or CHS3 and

press <ENTER>. These are also directly accessible from the Effect Channel in DMX mode.

If USE is set to NO, or TIME is set

to 0, the scene will not run!W (0-255) - White Intensity TIME (0-255) - Scene Time (seconds)

Auto, Speed, and Sound Active Modes:

Set single or Master/Slaved units to run in sound active or auto mode at user selectable speeds.

Sound Active Mode:

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to AUTO and press <ENTER>,

then with the <UP/DOWN> buttons navigate to SOU1 (color change), or SOU2 (white strobe

only), and press the <ENTER> button.

Auto Mode:

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to navigate to AUTO, and press

the <ENTER> button.

2.) Now use the <UP/DOWN> buttons to highlight any program ranging from AT01-AT05,

and press <ENTER>.

Auto Speed:

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to AUTO and press <ENTER>,

then with the <UP/DOWN> buttons navigate to ATSP, and press the <ENTER> button.

2.) Make a selection from 0-255, and press <ENTER> to choose a speed (slow <--> fast).

Page 15

Page 16

Color Calibration Settings:

Allows the user to setup and save 1 customized R/G/B/W color balance setting and save it for future use.

This custom setting is global, and it will effect all modes.

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>,

then on while CAL, push <ENTER> again.

2.) Use the <UP/DOWN> buttons to highlight either R (Red Level), G (Green Level), B (Blue

Level), or W (White Level), then hit <ENTER>.

3.) Now using the <UP/DOWN> buttons, select the maximum level for each color between

000-255 (000=off), and hit <ENTER> to conrm your choice.

4.) You have now just setup and saved a custom global color calibration setting that you can use

at you convenience. To use your custom setting now (or later), press the <UP/DOWN> buttons

to reach USE, and press <ENTER>. Then choose either YES or NO and press <ENTER>. When

you select YES, it enables this custom color calibration globally, and when choosing NO the

xture will continue to use the default color calibration settings. Your customized settings will

be saved for later use even after powering off the xture. It can be altered to your liking at any

time. Just remember to return to this setting to either enable or disable it when needed.

Custom Static Colors & Preset Colors:

Allows the user to create and save up to 10 custom static colors for use in standalone or DMX mode.

Custom Mixing and Preset Mixed Colors

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to STAT and press <ENTER>,

then <UP/DOWN> buttons to select R/G/B/W, and push <ENTER> to conrm your selection.

Then in the same manner, you can select SHUT to add s strobe effect.

2.) You can also select <PRSC> and use the <UP/DOWN> buttons to scroll through and

quickly use any of the xtures built-in preset colors.

Mix and Save Custom Colors (1-10)

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to CTST and press <ENTER>,

then <UP/DOWN> buttons to select a color bank from CT01-CT10, and push <ENTER> to

conrm your selection.

2.) Now use the <UP/DOWN> buttons to highlight either R (Red Level), G (Green Level), B

(Blue Level), or W (White Level), then hit <ENTER>.

3.) Finally, using the <UP/DOWN> buttons, select the maximum level for each color between

000-255 (000=off), and hit <ENTER> to conrm your choice(s).

4.) These 10 custom colors can be accessed and edited to your liking at any time, and will be

saved even after powering off the xture.

5.) Your custom static colors are directly accessible from the Effect Channel in DMX mode.

Page 16

Page 17

Fixture Reset Functions:

Allows users to reset the xture to factory default settings, without loosing customized settings, or reset

the custom programs exclusively.

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to LOAD and press <ENTER>,

then use the <UP/DOWN> buttons to highlight ST L or PR L, and press <ENTER>.

2.) Use the <UP/DOWN> buttons to highlight either YES or NO, then press <ENTER>.

3.) The ST L reset function will reset all default values with the exception of those in ADDR

(address), CTST (10 custom colors), and PROG (custom scenes and programs).

4.) The PR L reset function will only reset all customized program settings found in the PROG

settings (custom scenes and programs).

Data Sync Feature:

Users can transfer their custom settings from one xture to another via DMX.

1.) Disconnect xtures from any DMX controllers, and link them together via DMX in/out.

2.) On the sending xture (DMX out), navigate the main menu using the <UP/DOWN> buttons

to reach SEND, and press the <ENTER> button.

3.) Select YES, and press the <ENTER> button to begin the transfer.

4.) Information for ADDR (address), or CAL (global intensity) will not be sent.

5.) After the data has been transferred, the receiving xture will be automatically be reset.

Fixture Information:

These are not editable features, they are for informational purposes only.

1.) Use the <MENU> and <UP/DOWN> buttons to navigate to INFO and press <ENTER>,

then use the <UP/DOWN> buttons to highlight SOFT or POW, and press <ENTER>.

2.) The SOFT information simply displays the current software version installed on the xture,

and POW displays the xtures current power level setting. Under normal conditions, it will be

at 100%... but this xture has built-in overheat protection that may automatically reduce the

output level to 80%, or 50% in high temperature situations.

Page 17

Page 18

DMX Value In-Depth Reference Guide

Function Value What It Does

Dimmer 000 <--> 255 (0% <--> 100%)

Red Intensity 000 <--> 255 (0% <--> 100%)

Green Intensity 000 <--> 255 (0% <--> 100%)

Blue Intensity 000 <--> 255 (0% <--> 100%)

White Intensity 000 <--> 255 (0% <--> 100%)

Strobe 000 <--> 005

Effect 000 <--> 010

006 <--> 020 021 <--> 060 061 <--> 100 101 <--> 140 141 <--> 180 181 <--> 220 221 <--> 255

011 <--> 015 016 <--> 020 021 <--> 025 026 <--> 030 031 <--> 035 036 <--> 040 041 <--> 045 046 <--> 050 051 <--> 055 056 <--> 060 061 <--> 065 066 <--> 070 071 <--> 075 076 <--> 080 081 <--> 085 086 <--> 090 091 <--> 095 096 <--> 100 101 <--> 105 106 <--> 110 111 <--> 115 116 <--> 120 121 <--> 125 126 <--> 130 131 <--> 135 136 <--> 140 141 <--> 145 146 <--> 150 151 <--> 155 156 <--> 160 161 <--> 165 166 <--> 170 171 <--> 175 176 <--> 180 181 <--> 185 186 <--> 190 191 <--> 195 196 <--> 200 201 <--> 255

No strobe Non-synchronous strobe (slow <--> fast) Synchronous strobe (slow <--> fast) Electronic sine wave (slow <--> fast) Random strobe (slow <--> fast) Opening pulse (slow <--> fast) Closing pulse (slow <--> fast) Electronic square wave (slow <--> fast)

No Function Custom color 1 (CT01 in menu settings) Custom color 2 (CT02 in menu settings) Custom color 3 (CT03 in menu settings) Custom color 4 (CT04 in menu settings) Custom color 5 (CT05 in menu settings) Custom color 6 (CT06 in menu settings) Custom color 7 (CT07 in menu settings) Custom color 8 (CT08 in menu settings) Custom color 9 (CT09 in menu settings) Custom color 10 (CT10 in menu settings) Auto 1 - (R, G, B, W, RG, RB, GB, RGBW) Auto 2 - R↑, R↓, G↑, G↓, B↑, B↓, W↑, W↓ Auto 3 - (R↑G↑, R↓G↓, R↑B↑, R↓B↓, B↓G↓, B↑G↑) Auto 4 - RGBW↑, RGBW↓ Auto 5 - B, BG↑, BG, B↓G, G, GR↑, GR, G↓R, R, RB↑, RB, R↓B Custom program 1 (CH01 in menu settings) Custom program 2 (CH02 in menu settings) Custom program 3 (CH03 in menu settings) Sound active mode 1 (color change) Sound active mode 2 (white strobe) Red Green Blue White R+G+W R+G+B Yellow Pink Cyan Orange Violet Golden 2700K White 3200K White 4000K White 5500K White 6500K White Red+Green+Blue+White No Function

Page 18

Page 19

DMX Value In-Depth Reference Guide (continued)

Function Value What It Does

Speed (Auto 1-5) 000 <--> 255 (fast <--> slow)

Virtual Color Wheel 000 <--> 010

Dimming Mode 000 <--> 010

011 012 <--> 050 051 052 <--> 090 091 092 <--> 130 131 132 <--> 170 171 172 <--> 210 211 212 <--> 250 251 <--> 255

011 <--> 020 021 <--> 030 031 <--> 040 041 <--> 050 051 <--> 060 061 <--> 070 071 <--> 080 081 <--> 090 091 <--> 255

No Function Blue Blue (+ green) Teal Teal (- blue) Green Green (+ red) Yellow Yellow (- green) Red Red (+ blue) Magenta Magenta (- red) Blue

Default (as set in the LED menu) Linear curve Square law curve Inverse square law curve S-curve Linear curve (smooth) Square law curve (smooth) Inverse square law curve (smooth) S-curve (smooth) Default (as set in the LED menu)

DMX In-Depth Reference: 10/7-Channel Modes

10-Channel Name 7-Channel Name

1 Dimmer (0%<--> 100%) 1 Dimmer (0%<--> 100%)

2 Red Intensity (0%<--> 100%) 2 Red Intensity (0%<--> 100%)

3 Green Intensity (0%<--> 100%) 3 Green Intensity (0%<--> 100%)

4 Blue Intensity (0%<--> 100%) 4 Blue Intensity (0%<--> 100%)

5 White Intensity (0%<--> 100%) 5 White Intensity (0%<--> 100%)

6 Strobe 6 Strobe

7 Effect 7 32-Bit Dimming Mode

8 Auto Speed (fast <--> slow) --- ---

9 Virtual Color Wheel --- ---

10 32-Bit Dimming Mode --- ---

DMX In-Depth Reference: 5/4-Channel Modes

5-Channel Name 4-Channel Name

1 Dimmer (0%<--> 100%) 1 Red Intensity (0%<--> 100%)

2 Red Intensity (0%<--> 100%) 2 Green Intensity (0%<--> 100%)

3 Green Intensity (0%<--> 100%) 3 Blue Intensity (0%<--> 100%)

4 Blue Intensity (0%<--> 100%) 4 White Intensity (0%<--> 100%)

5 White Intensity (0%<--> 100%) --- ---

DMX In-Depth Reference: 3-Channel Modes

3-Channel Name

1 Dimmer (0%<--> 100%)

2 White Intensity (0%<--> 100%)

3 Virtual Color Wheel

Page 19

Page 20

5. APPENDIX

A Quick Lesson On DMX

DMX (aka DMX-512) was created in 1986 by the United States Institute for Theatre Technology (USITT) as a standardized method for connecting lighting consoles to lighting

dimmer modules. It was revised in 1990 and again in 2000 to allow more exibility. The

Entertainment Services and Technology Association (ESTA) has since assumed control over the DMX512 standard. It has also been approved and recognized for ANSI standard clas-

sication.

DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common communications standard used by lighting and related stage equipment.

DMX provides up to 512 control “channels” per data link. Each of these channels was originally intended to control lamp dimmer levels. You can think of it as 512 faders on a lighting console, connected to 512 light bulbs. Each slider’s position is sent over the data link as an 8-bit number having a value between 0 and 255. The value 0 corresponds to the light bulb being completely off while 255 corresponds to the light bulb being fully on.

DMX data is transmitted at 250,000 bits per second using the RS-485 transmission standard over two wires. As with microphone cables, a grounded cable shield is used to prevent interference with other signals.

There are ve pins on a DMX connector: a wire for ground (cable shield), two wires for

“Primary” communication which goes from a DMX source to a DMX receiver, and two wires for a “Secondary” communication which goes from a DMX receiver back to a DMX source. Generally, the “Secondary” channel is not used so data ows only from sources to receivers. Hence, most of us are most familiar with DMX-512 as being employer over typical

3-pin “mic cables,” although this does not conform to the dened standard.

DMX is connected using a daisy-chain conguration where the source connects to the input of the rst device, the output of the rst device connects to the input of the next device,

and so on. The standard allows for up to 32 devices on a single DMX link.

Troubleshooting

Symptom Solution

Fixture Auto-Shut Off

No Light Output Check to ensure xture is operating under correct mode, IE sound

Chase Speed Too Fast/Slow

No Power Check fuse, AC cord and circuit for malfunction.

Blown Fuse Check AC cord and circuit for damage, verify that moving parts are

No Response to Audio

Fixture Not Responding / Responding Erratically

Check the fan in the xture. If it is stopped or moving slower than

normal, the unit may have shut itself off due to high heat. This is to

protect the xture from overheating. Clear the fan of obstructions,

or return the unit for service.

active/auto/DMX/Etc., if applicable.

Check to ensure proper setup of speed adjustment.

not restricted and that unit’s ventilation is not obstructed

Verify that the xture is in “Sound Active” mode. Adjust Audio Sensitivity, If Applicable.

Make sure all connectors are seated properly and securely. Use Only DMX Cables and/or check cables for defects Install a Terminator.

Reset xture(s).

Page 20

Page 21

Keeping Your Colorise™ Quadra As Good As New

The xture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.

You should absolutely keep the xture clean, especially if you are using it in an

environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled drinks.

Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output. Keeping the fans free of dust and debris will keep

the xture running cool and prevent damage from overheating.

In transit, keep the xtures in cases. You wouldn’t throw a prized guitar,

drumset, or other piece of expensive gear into a gear trailer without a case, and similarly, you shouldn’t even think about doing it with your shiny new light

xtures.

Common sense and taking care of your xtures will be the single biggest thing

you can do to keep them running at peak performance and let you worry about designing a great light show, putting on a great concert, or maximizing your client’s satisfaction and “wow factor.” That’s what it’s all about, after all!

Returns (Gasp!)

We’ve taken a lot of precautions to make sure you never even have to worry about sending a defective unit back, or sending a unit in for service. But, like any complex piece of equipment designed and built by humans, once in a while,

something doesn’t go as planned. If you nd yourself with a xture that isn’t behaving like a good little xture should, you’ll need to obtain a Return Authori-

zation (RA).

Don’t worry, this is easy. Just send an email to support@blizzardlighting.com, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable, pre-paid freight method. We suggest using USPS Priority or UPS.

Make sure you carefully pack the xture for transit, and whenever possible, use

the original box & packing for shipping.

When returning your xture for service, be sure to include the following:

1.) Your contact information (Name, Address, Phone Number, Email address).

2.) The RA# issued to you

3.) A brief description of the problem/symptoms.

We will, at our discretion, repair or replace the xture. Please remember that

any shipping damage which occurs in transit to us is the customer’s responsibility, so pack it well!

Shipping Issues

Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.

Page 21

Page 22

Tech Specs!

Weight & Dimensions

Width 10.7 inches (272.1 mm)

Depth 5.6 inches (141.4 mm)

Height 12.1 inches (307.9 mm)

Weight 11.5 lbs. (5.2 kg)

Power

Operating Voltage 100-264VAC, 47-63 Hertz

Power Consumption 131W, 1.65A, PF: .67

Light Source

LED 12x 10w 4-in-1 RGBW LEDs, 100,000 hours

Optical

Beam Angle 25 degree optics standard

Luminous Intensity 26,970 Lux @ 1m | 7,920 Lux @ 2m

AnyFi™ Wireless Receiver

W-DMX™ Frequency Hopping W-DMX™ Protocol

Standard 2.4GHz 2.4GHz ISM (2.402-2.48Ghz), 512ch, 7 frequency groups

Latency Less Than 5ms

Receiver Sensitivity -94dBm

Thermal

Max. Operating Temp. 104 degrees F (40 degrees C) ambient

Control

Protocol USITT DMX-512

DMX Channels 3/4/5/7 or 10-channels

Input 3-pin XLR Male

Output 3-pin XLR Female

Other Operating Modes Standalone, Master/Slave, Sound Active, Color Preset

Other Information

I’m surprised there aren’t more old people who opt for fangs in their dentures.

Warranty

DISCLAIMER:

The power connector tted to the xture and xture cord are designed for compatibility with products

manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, afliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.

2-year limited warranty, does not cover malfunction caused by damage to LEDs.

Page 22

Page 23

Dimensional Drawings

8.6 in (218.1 mm)

12.1 in (307.9 mm)

10.7 in (270.1 mm)

6.5 in (164.6 mm)

5.6 in (141.4 mm)

Page 23

Page 24

Enjoy your product!

Our sincerest thanks for your purchase!

--The team @ Blizzard Lighting

Blizzard Colorise Quadra Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
