Modular Ice Maker User Manual for Installation and Maintenance
Table of Contents
Important Information ............................................................................................................................................................. 1
Warning and safety instruction.............................................................................................................................................. 2
General ..................................................................................................................................................................................... 3
Installation ................................................................................................................................................................................ 3
Location for Installation .................................................................................................................................................. 3
Schematic Diagram of Installation ................................................................................................................................ 4
Installation Steps ............................................................................................................................................................. 4
Startup and Operation .................................................................................................................................................... 5
Operation Instruction .............................................................................................................................................................. 5

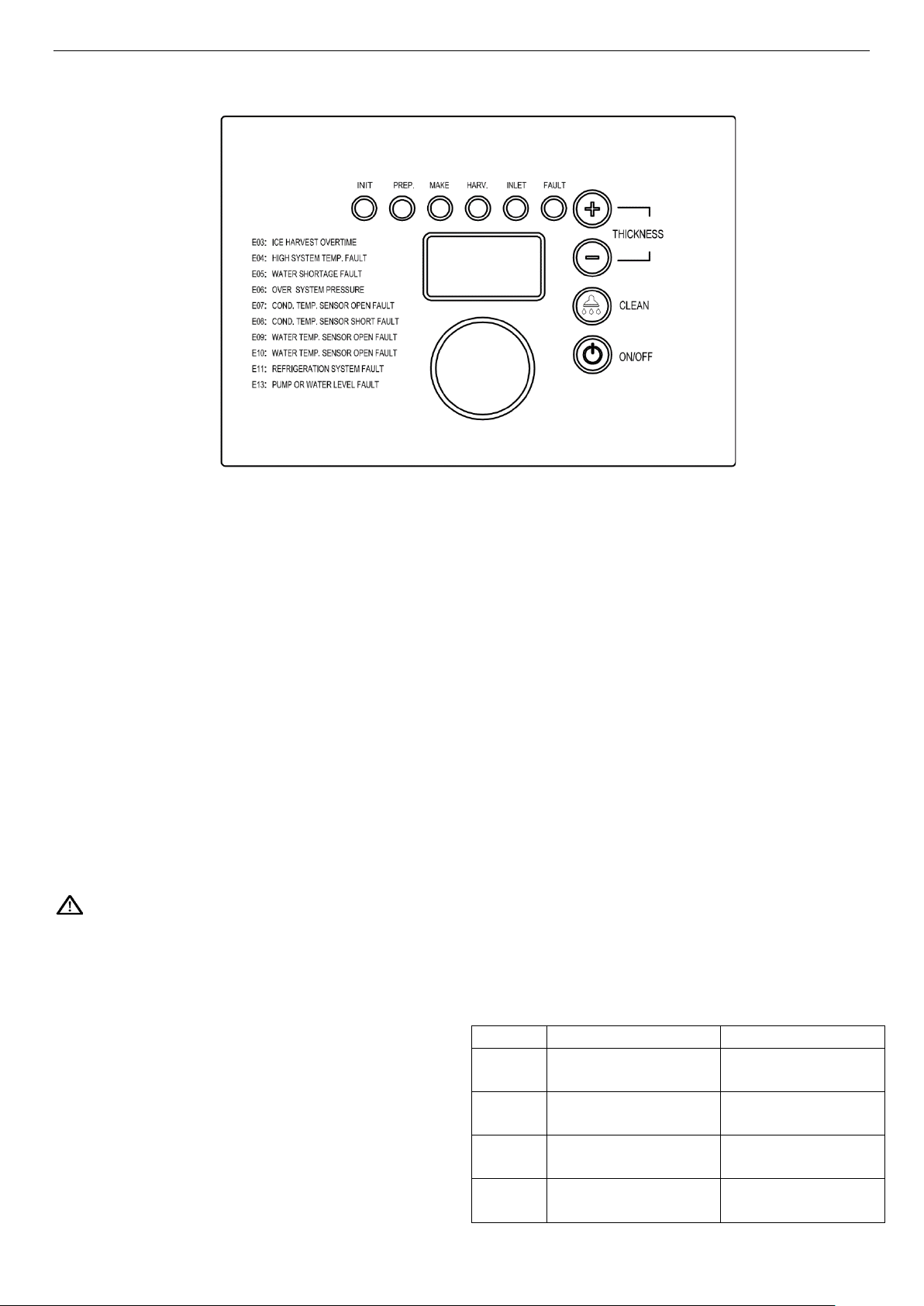

Instruction of Control Panel ................................................................................................................................................... 6
Maintenance ............................................................................................................................................................................ 7
Clean Function ........................................................................................................................................................................ 8
Common Faults and Troubleshooting .................................................................................................................................. 9
Warranty ................................................................................................................................................................................. 10
Note: please keep this manual in a place accessible to users at any time.
Page 4
Page 5
Modular Ice Maker User Manual for Installation and Maintenance
1

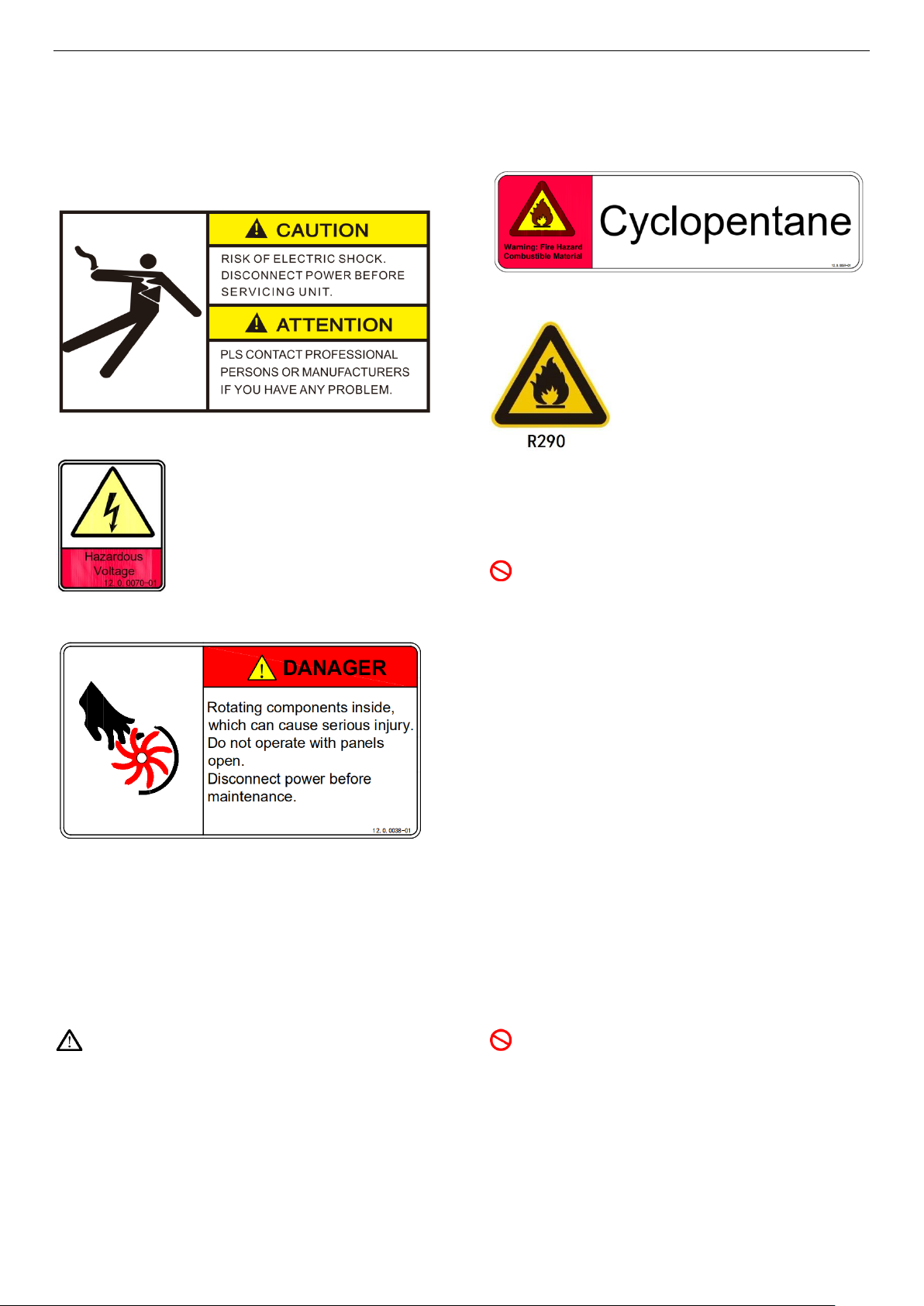

Important Information
Please pay attention to the following warning
labels on the ice maker
The label indicates a hazardous voltage.
There is a risk of electric shock.
The label indicates a hazardous voltage.
There is a risk of electric shock.
The label indicates rotating components inside.
There is a risk of serious mechanical injury.
The label indicates a flammable foaming agent
“Cyclopentane” used. There is a risk of fire.
The label indicates a flammable refrigerant
“R290” used. There is a risk of fire.
The ice making water inlet of ice
maker can only be connected with drinking
water, and groundwater or other non drinking
water sources can not be used.
Alert sign: indicating the item requiring
particular attention.
Warning sign: special attention is required
and operation is prohibited.
Page 6
Modular Ice Maker User Manual for Installation and Maintenance
2
Warning and safety instruction
The installation, repair or maintenance of
this ice machine must be carried out by
professional and qualified personnel, or
electric shock, fire, personal injury may
cause from incorrect operation.
After the ice machine is delivered, please
keep the machine still upright for more
than 24 hours, to have the lubricant be
fully precipitated before startup, otherwise
the compressor may be damaged.
When the power cord of the ice maker is
damaged, in order to avoid electric shock,
fire or personal injury, it must be replaced
by the manufacturer or professional and
qualified personnel.
The water pipe assembly in the accessory
box of the ice maker must be used. In
order to ensure food safety, the water pipe
assembly removed from the old machine
should not be used.
When handling, keep the cabinet upright,
with the inclination not exceeding 45
degrees. Do not invert the machine or lay
it horizontally.
This ice machine should not be placed in
wet or easily splashed area.
The grounding of this ice machine cannot
be connected to gas pipe, water pipe,
telephone line or lightning rods, etc.
There are rotating components in this ice
machine. Do not insert slim objects into
ventilation or exhaust ports, or serious
mechanical injury may occur.
Do not store volatile or flammable
substances in this ice machine, or it may
result in explosion or fire.
Do not store anor freeze any
food in the storage bin. Keep the ice scoop
clean.
The ice machine must be placed on the
floor sufficient to supports its weight.
Insufficient base may cause the
equipment fall over and cause injury.
There should be sufficient ventilation
space around the ice machine. Keep good
ventilation.
Only the power supply specified on the
machine nameplate can be used with this
ice machine.
This ice machine cannot be connected to
hot water.
Socket for this ice maker must be reliably
grounded and with leakage protection.
The ice machine must be disconnected
from power before manual cleaning,
repairing and maintenance.
Before cleaning, repairing and
maintenance, the remaining ice in the ice
bin should be removed from the ice
machine to avoid contamination to ice.
Do not splash water directly onto the
surface of the ice machine during the
cleaning process; otherwise it may cause
short circuit, leakage or other faults.
Flammable foaming agent is used during
the foaming process. The ice maker
should be disposed of and recycled by
qualified personnel and institutions.
The ice machine should be properly
managed to ensure that children will not
play with the machine.
When the ice machine malfunctions, turn
off the power and contact professional
personnel for repairing
Page 7
Modular Ice Maker User Manual for Installation and Maintenance
3

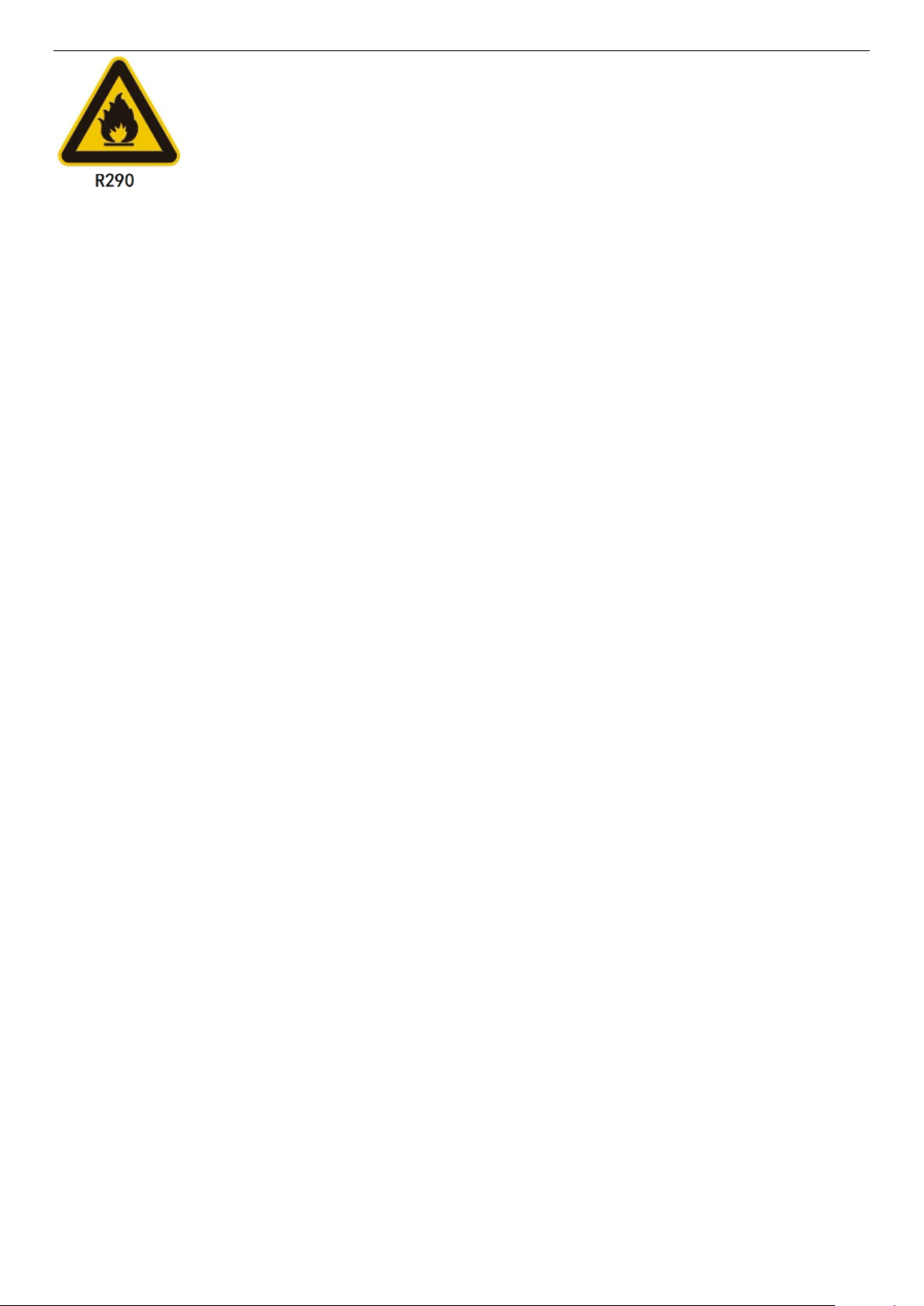

DANGER – RISK OF FIRE OR
EXPLOSION. FLAMMABLE
REFRIGERANT USED. MUST BE
ENOUGH VENTILATION SPACE
AROUND THE ICE MAKER TO KEEP
THE VENTILATION SMOOTH.
DANGER – RISK OF FIRE OR
EXPLOSION. FLAMMABLE
REFRIGERANT USED. DO NOT USE
MECHANICAL DEVICES TO DEFROST
REFRIGERATOR. DO NOT PUNCTURE
REFRIGERANT TUBING.
DANGER – RISK OF FIRE OR
EXPLOSION. FLAMMABLE
REFRIGERANT USED. TO BE
REPAIRED ONLY BY TRAINED
SERVICE PERSONNEL. DO NOT
PUNCTURE REFRIGERANT TUBING.
DANGER – RISK OF FIRE OR
EXPLOSION. FLAMMABLE
REFRIGERANT USED.DO NOT USE
ANY ELECTRICAL APPLIANCES IN THE
ICE STORAGE BIN OF THE ICE MAKER.
CAUTION – RISK OF FIRE OR
EXPLOSION. FLAMMABLE
REFRIGERANT USED. CONSULT
REPAIR MANUAL/OWNER'S GUIDE
BEFORE ATTEMPTING TO SERVICE
THIS PRODUCT. ALL SAFETY
PRECAUTIONS MUST BE FOLLOWED.
CAUTION – RISK OF FIRE OR
EXPLOSION. DISPOSE OF PROPERLY
IN ACCORDANCE WITH FEDERAL OR
LOCAL REGULATIONS. FLAMMABLE
REFRIGERANT USED.
CAUTION – RISK OF FIRE OR
EXPLOSION DUE TO PUNCTURE OF
REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS
CAREFULLY. FLAMMABLE
REFRIGERANT USED.
General
The ice machine is fully automatic. With proper
installation and connection to potable water
and power source, the ice making will start
properly. When the ice cubes fill up the storage
bin, the machine will automatically stop. The
ice machine is generally used in the following
and similar occasions:
The kitchen area of a store, office or other
workplace;
Farm, hotel, car hotel and restaurant;
Catering and similar non-retail occasions;
This ice machine is not intended for used
at home.
Installation
The ice machine should be installed in a
proper location meeting the following
conditions:
Indoor, not more than 2,000 meters above
sea level;
Ambient temperature: 5-40°C;
Power supply: the rated voltage indicated
on the machine nameplate ±6%;
Water source: potable water, with water
pressure from 0.13MPa to 0.55MPa; water
temperature: 5-35°C;
The ice machine should be kept away from
heat sources, and should be strictly
forbidden to use at extremely high
temperature or low temperature
environment, and should avoid direct
sunlight.
There should be sufficient ventilation
space around the ice machine and keep
good ventilation; the distance from the ice
maker to the wall should be no less than
30 cm for the front, 15cm for the sides, and
20 cm for the rear.
The ice machine must be placed on a floor
sufficient to support its weight;
Socket for the ice maker must be reliably
grounded and with leakage protection;
Proper floor drainage must be provided
near the installation location of the ice
machine.
Page 8
Modular Ice Maker User Manual for Installation and Maintenance
4
1. Check if the ice machine is in good
condition and the accessories are
complete; check the machine model and
the machine nameplate.
2. Clean the ice storage bin and the food
area inside with a sponge soaked in warm
water and soda. Then wash and dry it with
potable water.
3. Place the ice machine in the operation
area; ensure that the machine is placed on
a leveled floor. So as to ensure the water
flows evenly on the evaporator.
4. The compressor chamber is located at the
back. The compressor and condenser are
installed in it. For air cooled unit, it requires
good ventilation. Therefore, the front and
rear of the ice maker must have ventilation
space of more than 20-30 cm.
5. The bottom of the ice machine is equipped
with adjustable legs for level adjustment
and floor cleaning.

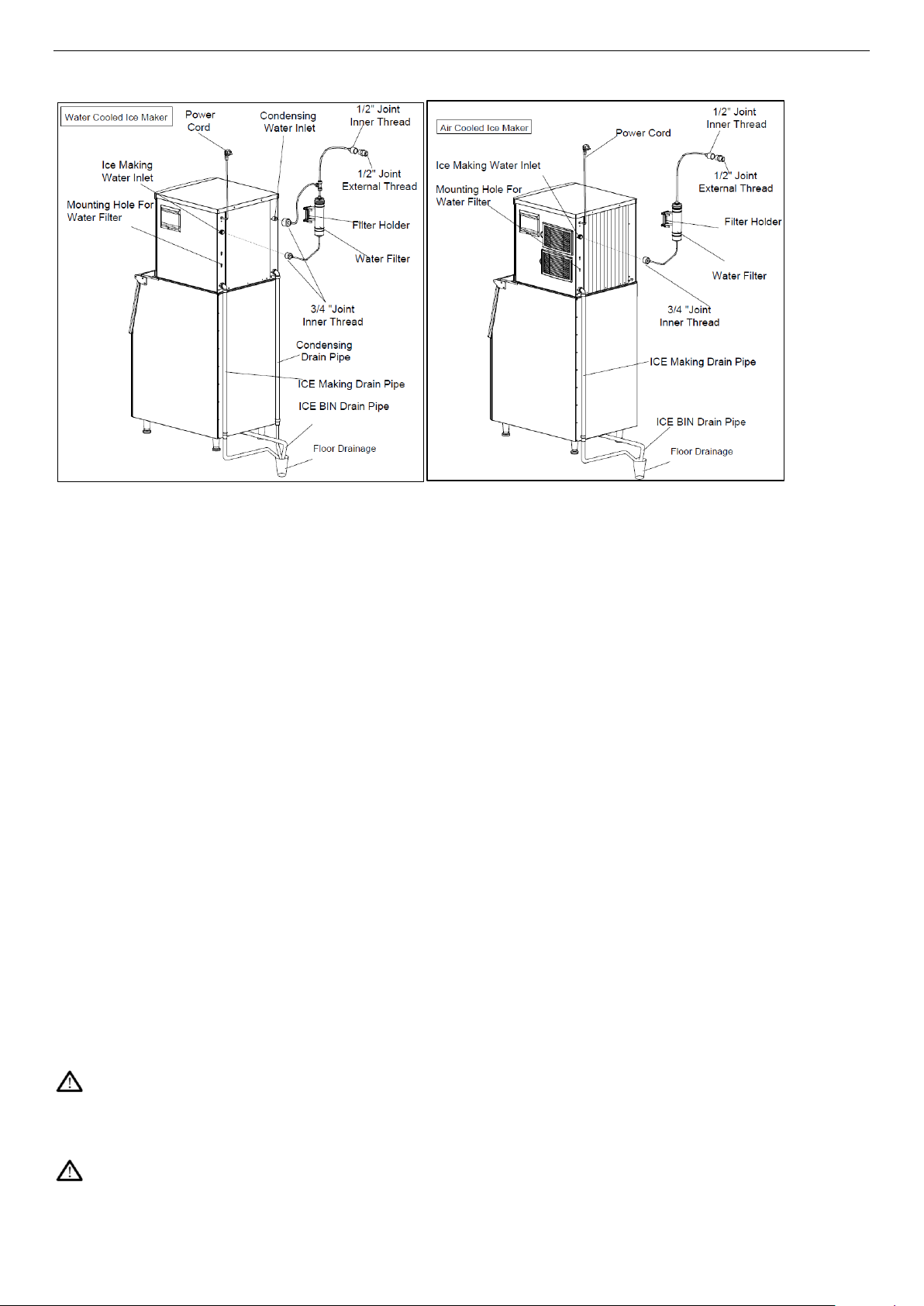

6. Connect the machine's inlet water filter
and water pipe referring to the schematic
diagram of installation.
7. Connect the machine to the water supply
using the 3/4" inlet pipe supplied with the
machine. It is recommended to install a
water valve (not supplied with this
machine) on the water supply line.
8. Connect the drain pipe to the drain
connection. In order to meet a good
draining, it is recommended that the drain
pipe should have a difference of level
more than 3cm per meter; and confirm that
the drain pipe is not blocked. It is
recommended that the drain pipe be
connected to an open drainage port.
9. Any joint in the drain pipe must not be
higher than the machine drainage port;
any joint in the drain pipe cannot be higher
than the previous joint.
10. Confirm the power requirements stated in
the machine nameplate; ensure that the
power supply meets the requirements.
11. A circuit breaker or switch with leakage
protector and reliably grounding is
required.
12. Turn off the switch on the power line and
connect the machine to the power source.
Page 9
Modular Ice Maker User Manual for Installation and Maintenance
5
1. Before you start up the machine, please
check and confirm:
That the packaging tape inside the ice
machine has been removed;
The accessories or items in the ice bin
have been taken out;
The ice machine has been adjusted to a
leveled state;
The water pipe has been connected and
the water valve is open;
The plug has been connected to the power
supply and the power switch is off.
The ambient temperature, water
temperature, and pressure of the water
supply meet the above requirements.
2. Start up: turn on the power switch. After
power-on, the machine begins to make ice
automatically.
3. For normal operation, please confirm:
✓ There is water in the water trough and no
overflow occurs;
✓ The pump is working properly and water is
flowing evenly on the evaporator;
✓ The compressor is running normally, the
temperature of the evaporator and the ice
making water is gradually decreasing;
✓ For air cooled machine, check the fan is
running normally, and there is stable air
flow in the inlet and outlet of the ice
machine;
✓ The ice machine has no abnormal noise;
✓ The ice machine has no abnormal
vibration;
✓ It takes about 10 to 20 minutes to make
one batch ice, depending on the ambient
temperature and the temperature of the
water. The higher the temperature is, the
longer the ice making will take;
✓ Ice cube can be properly defrosted from
the machine.
Operation Instruction
after proper installation, connect
the water source and turn on the power
supply, the machine will start working.
Please confirm that the machine is
operating normally when you turn it on for
the first time.
with power on for the first time,
the ice maker will do self-check and pump
out remaining water.
after the ice machine is
energized, the inlet valve opens and the
inlet water will flow in until it reaches the
set level; then the ice maker will do
defrosting one time.
after pre-cooling for 30
seconds, the water pump starts, the water
flows through the evaporator smoothly and
evenly, the ice cubes are gradually formed
in the ice cube tray.
: after the ice making process,
the water pump is turned off, the
defrosting valve is turned on, and after the
hot gas enters into the evaporator for
about 1-2 minutes, the ice cubes slides
from the evaporator into the storage bin.
The ice maker will stop
working when you click the “on/off” button
on the panel during running process.
in the running state, with the
storage bin filled to a certain height, the ice
sliding board cannot be rebounded or
reset because of the block of the freshly
produced ice cubes, the ice maker will
stop in 40 seconds.
when the ice cubes
on the ice sliding board are taken away,
the ice maker will back to ice making
process in a few seconds.
Page 10
Modular Ice Maker User Manual for Installation and Maintenance
6
Instruction of Control Panel
1. LED Display:
Self-check： Display “ini” code.
Preparing： Counting seconds positively.
Ice making: Counting seconds positively
prior the water reaching 0 degree C.
Counting seconds down to 0 s after.
Ice Harvest: Counting seconds positively.
Clean: Display “CLE” during cleaning and
sterilizing;Display “rin” during rinsing.
2. LED Lamps: Lights on during the related
process.
3. Ice cube thickness adjustment: During the
ice making process, if you are not satisfied
with the ice thickness, press the Ice cube
“–” button for 3 seconds, then click the
button “+” or “-” on the panel to adjust the
thickness of ice cube.
4. Cleaning: During the normal operation,
hold the cleaning button for 3 seconds to
enter the cleaning process. During the
entire cleaning process, cleaning agents
and disinfectants need to be put into the
water trough. When the clean process is
finished, the ice maker will go to ice
making process.
5. Switch: When the device is powered, click
the “Switch” button to switch OFF/ON the
device.
6. Voice function (only for machines with
voice function): The machine with voice
announcement prompts will provide voice
prompts for related operations.
7. Please open and close the storage bin
door gently. Do not slam the door. After
taken the ice cubes, please close the door.
8. If the ice maker is not in use for a long time,
it should be energized and run for 2 to 4
hours every 2 months.
If the ice machine has not detected ice
cube falling off in three cycles, it will shut
down for safety protection. The ice maker
needs to be checked.
The ice machine detects that the ambient
temperature is too high and will stop for
safety protection.
If the water-cooled ice machine detects an
abnormity in water supply, it will stop for
safety protection.
The fault code and its comments are
displayed as follows:
Code
Comments
Machine action
E01
Sliding board fails
Protective
shutdown
E03
Overtime of ice
making
Protective
shutdown
E04
High temperature
Protective
shutdown
E05
Water shortage
Protective
shutdown
Page 11
Modular Ice Maker User Manual for Installation and Maintenance
7
E06
High pressure
Protective
shutdown
E07
Condensation
sensor open circuit
Not stop
E08
Condensation
Not stop
sensor short circuit
E09
Water temp.
sensor open circuit
Not stop
E10
Water temp.
sensor short circuit
Not stop
Maintenance
Frequently clean the environment around the
ice machine to keep it clean. Do not block the
vents.
The outer enclosure should be cleaned with
a mild detergent and then wiped clean. If
necessary, use commercial stainless steel
cleaners and polishes.
The filter element should be inspected
regularly. It is recommended to replace filter
element every month to every 3 months.
The inside of the ice storage bin can be
washed directly with water pipes.

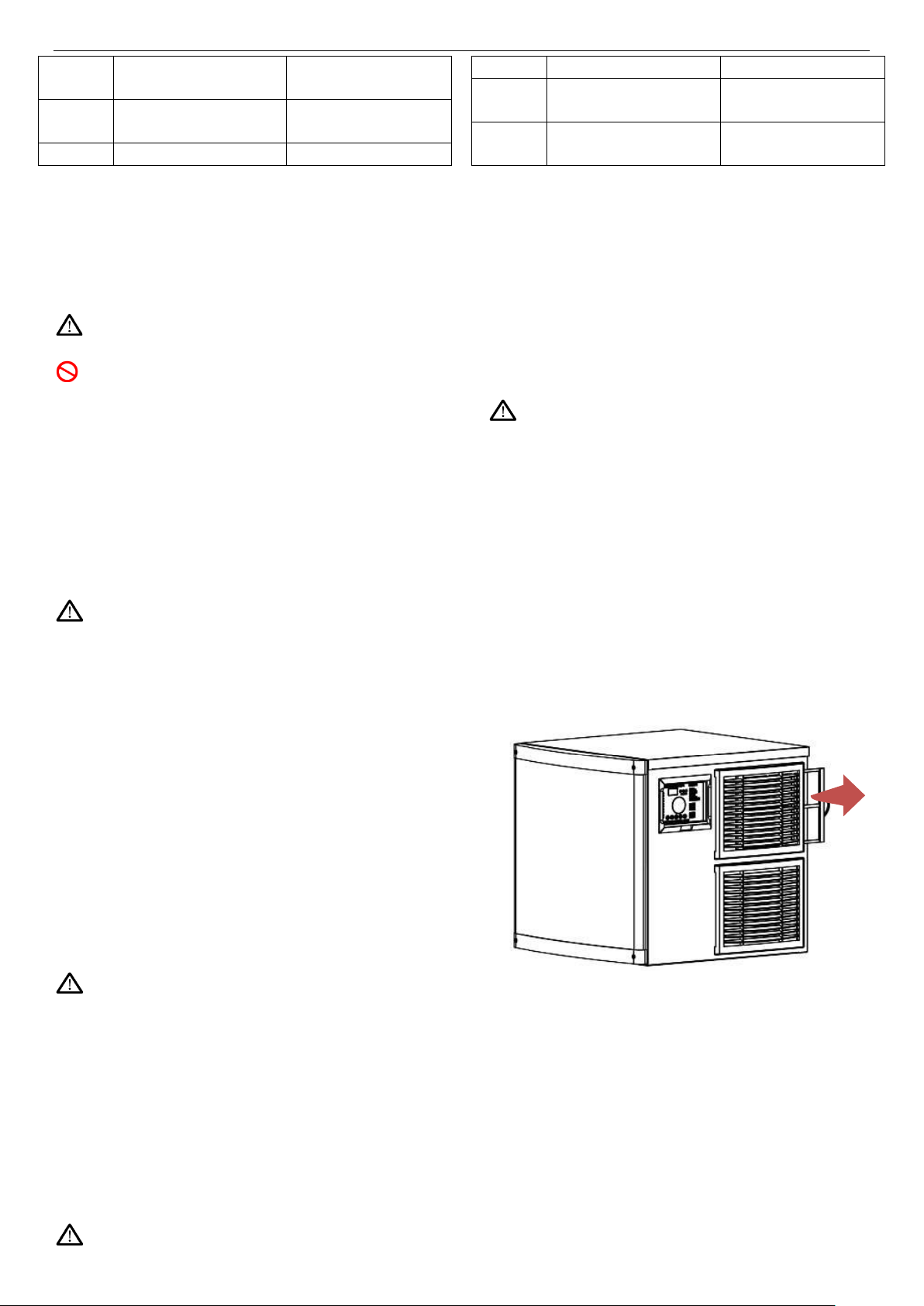

For the air-cooled ice maker, the condenser
should be cleaned every three weeks. Use a
soft brush or a vacuum cleaner with a brush
to brush it up and down along the fin direction,
to avoid damage to the fins and further
affecting the cooling effect.
The condenser filter should be cleaned every
2 weeks.
In order to ensure food safety, the water pipe
of the ice machine should be cleaned
regularly.
Turn off the water and power supply, drain
the residual water from the water trough, inlet
pipe and drain pipe.
Page 12
Modular Ice Maker User Manual for Installation and Maintenance
8
Clean Function
Turn on the ice maker; push “clean” button
for 3 seconds, the ice maker will get into
clean process. Put in proper amount of
clean solution manually followed by the
clean and sterilizing process instruction.
Push “clean” button. The ice maker will do
auto clean for about 15 minutes. Please do
spray cleaning to the evaporator at the
mean time to insure a complete clean.
When finished, the led display flashes
“Clean” slowly again.
Put in proper amount of sterilizing solution
manually followed by the clean and
sterilizing process instruction. Push the
“clean” button again, the ice maker will do
auto sterilizing for about 15 minutes.
Please do spray sterilizing to the
evaporator at the mean time to insure a
complete sterilizing. When finished, the
ice maker will get into rinsing process, the
process will take about 5 minutes， and
do 5 cycles rinsing.
The ice maker will get back to do ice
making as soon as the clean process end.
Please throw away the next 5 batches ice
in case of cleaner remained.
If the ice machine works abnormally, please
confirm below before making a service call:
1. Check the water supply
✓ whether there is water in the water trough;
✓ whether the water pressure for the ice
machine is 0.13MPa to 0.55MPa; the
water temperature is 5-35 °C;
✓ whether the water valve is open;
✓ whether there is no water leakage;
2. Check the power
✓ whether the indicator on the display panel
is ON;
✓ whether the panel display does not display
the OFF standby state;
✓ If the LED on the display panel is not ON,
check whether the plug and socket are
normal, and whether the power supply
switch is ON.
3. Check nameplate and series number
✓ Check the nameplate located on the side
or back of the ice machine and record the
model and series number of the ice
machine.
Page 13
Modular Ice Maker User Manual for Installation and Maintenance
9
Common Faults and Troubleshooting
Not working
Indicator is OFF
Power switch not turned on
Plug is loose
Turn on the power switch
Check plug and socket
Shutdown every 3
minutes after startup;
the display shows E04
high temperature
The display shows E06
high pressure
protection
The ambient temperature is
too high
Condenser is dirty and
blocked
High pressure switch wires
fallen off
Fan does not start
Normal working temperature range of
5-40 °C
Clean the condenser
Check and correct high pressure
switch wires
Check and correct the fan
Ice defrost abnormal
Ambient temperature too low
Defrost valve does not start
normally
Ice thickness too thin or too
thick
Normal working temperature range of
5-40 °C
Check and correct the defrosting valve
Check and correct ice thickness
setting
Poor transparency of
ice cubes; ice cubes
too thin or incomplete
Ice thickness too thin
Water pressure too low
Water temperature too high
Inlet water valve does not
work
Inlet water valve is dirty and
blocked
Water leaking
Inlet water filter has not been
replaced for a long time
Check and correct ice thickness
setting
Check that the water supply pressure
is 0.13MPa to 0.55MPa
Water temperature of 5-35 °C
Check and correct the inlet water valve
Check whether water leaks and correct
Check and correct the inlet water filter
Too slow in ice making
The condenser or air filter is
dirty
High ambient temperature
Poor ventilation
Water temperature is too high
Clean the condenser and filter screen
Normal working temperature range of
5-40 °C
Check the environment around the ice
machine
Check the water supply temperature
of 5-35 °C
Too much noise
The ice machine is not placed
in a leveled foundation or the
ice maker is not leveled.
Level the ice machine
Page 14
Modular Ice Maker User Manual for Installation and Maintenance
10
Warranty
The following circumstances are not covered
by the warranty:
Normal cleaning or maintenance;
Unauthorized modification of the ice
machine or use of non-native parts;
Damage caused by improper power
supply, water supply and drainage;
Damage caused by installing, cleaning or
maintaining of the ice machine not in
accordance with the instructions of this
manual;
Artificial damage.
Note: this Manual is subject to any technical change without further notice. Please refer to the
nameplate on the product for exact information.
Page 15
Page 16
Loading...
