Page 1
Bain Marie
User Manual
Page 2

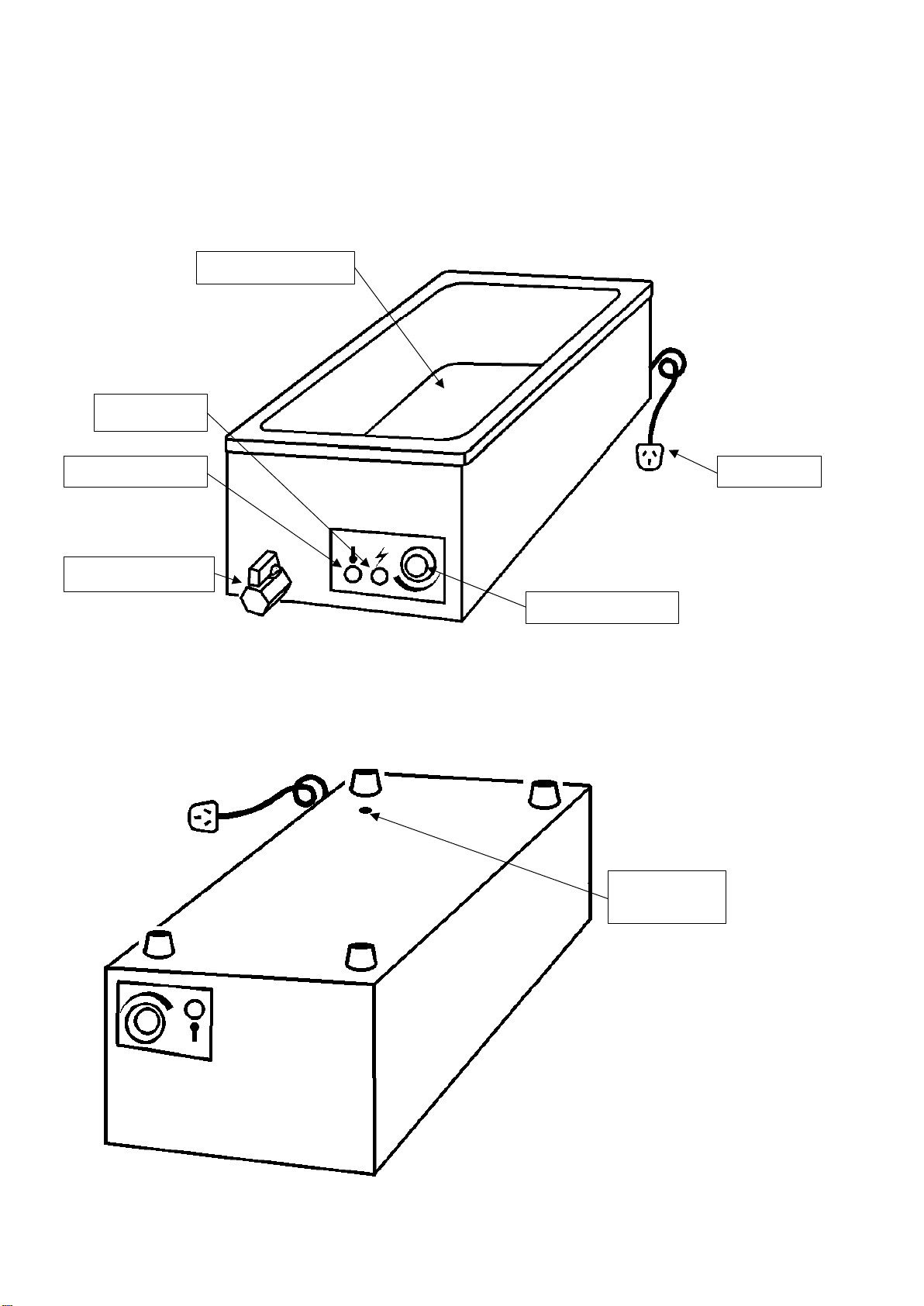

1. Structure name
1.1 STRUCTURE
Wet well water tank
Power light
Temperature light
Ball valve (Drain)
Control Thermostat
Power cable
Safety control
reset switch
Page 3
2. Points for attention

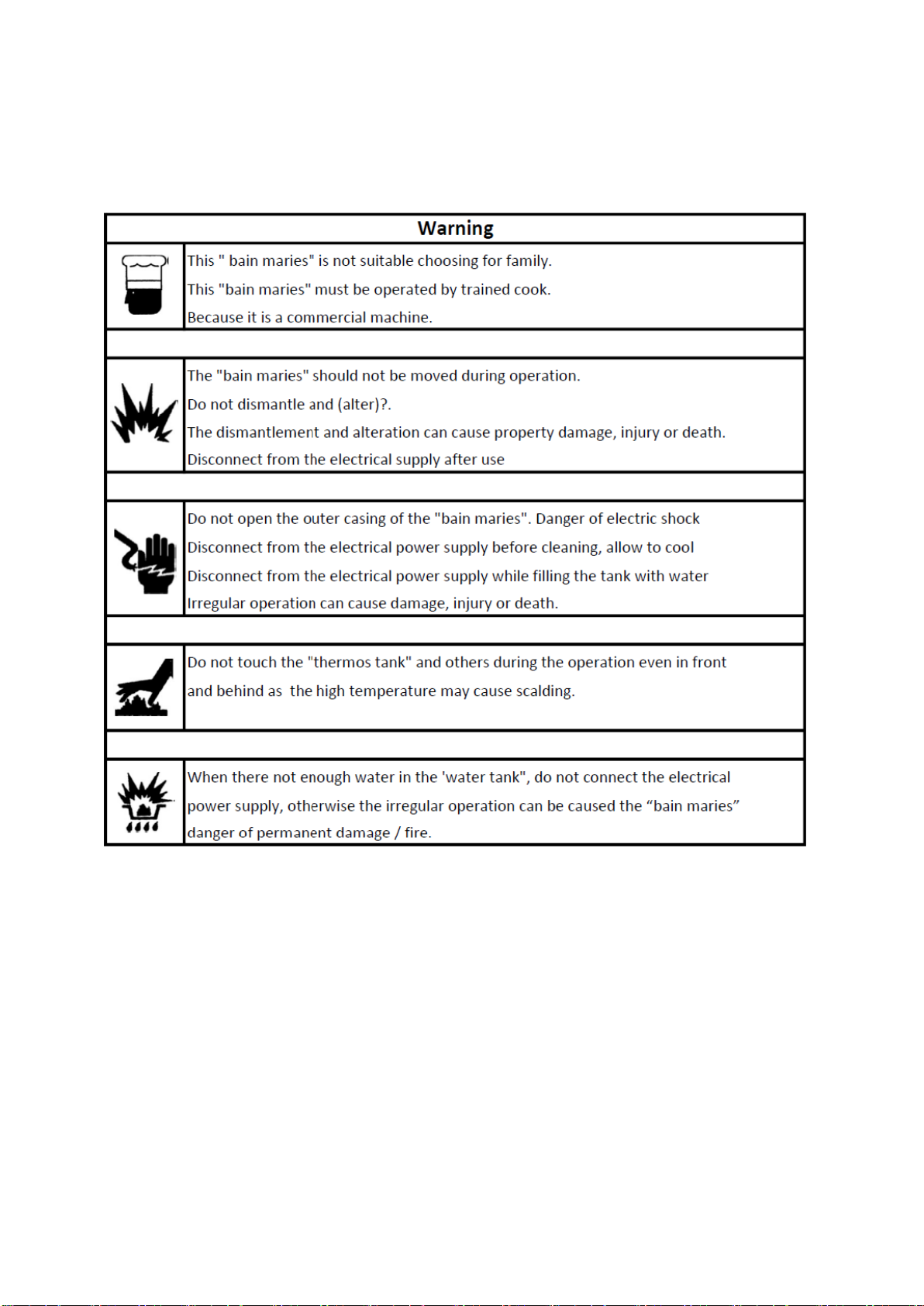

2.1 Points for special attention
2.2 Safety device
The temperature limiting control (max 105℃) can safeguard the " thermos tank " for suitable
temperature. The control will cut out resulting in no heat being created. Tripping can occur if
the water level falls too low or the base becomes covered with limescale.
2.3 Close the electricity switch after use
After the using, the control thermostat must be against the clockwise to turn off in closing
position.
Then the plug must be pulled out. And the electricity supply must be cut off.
Page 4
3 Operation instruction
3.1 Place the "bain marie"
The "bain marie" should be placed on a solid level surface. The control thermostat of the "bain
marie" should be in the minimum / off position.
3.2 Fill the empty "thermos tank" to the water-level.
The Water-level of the “bain marie” has to do with the height of pan. Ensure the water level
touches the bottom on the G/N pans being used, the water-level line of the “bain marie” as
about 25mm after loading food.
3.3 Put the food into the pan then put into the “thermos tank” together.
3.4 Switch on the electrical supply switch and rotate thermostat knob to the required
temperature.
The power light will illuminate to indicate the power is switched on. Turn the control
thermostat clockwise to the required temperature, the temperature light will illuminate to
indicate the water is heating. The temperature light will go out when the water is at the required
temperature.
3.5 The end of concluding operation
The “control thermostat" must be turned anti-clockwise to turn off in closing position.
Switch off he power supply and pull out the plug, to cut off the electricity supply.
Allow to cool then open the drain valve to drain the water from "thermos tank"
The "thermos tank" should be cleaned and dried with cotton cloth for using again. Do not clean
when it is hot (high temperature! Do not touch the "thermos tank" directly.)
4. Routine inspection
WARNING
The routine inspection must be carried out day by
day.
The routine inspection can avoid accidents.
1) Check wiring, plug socket control panel for signs of
distress
2) Check to ensure no object is touching the sides or
rear of the unit which may be damaged by heat
3) Check for water leakage / peculiar smells when
being used
STOP USE IF ANY DEFECTS ARE FOUND AND
DISCONNECT FROM THE POWER SUPPLY
5. Troubleshooting guide
Problem
Probable Cause and corrective action
Temperature
light does not
illuminate
Check the power supply is switched on and fuse is okay
Check the thermostat is switched to a warm setting.
Check that the overheat cutout has not tripped
Water is not hot
Check all the above for electrical power
Adjust the thermostat to a warmer setting.
Check base and descale if necessary
Water is boiling
Check the thermostat setting, reduce temperature set point
The above is for reference only, abnormal operation or safety device cutting out or problems with
the wiring, stop use and consult an authorized service technician to carry out repairs.
Page 5
6. Specifications
Model: BBM1
Size: Length 370mm Width 570mm Height 230mm
Voltage: AC220V-240V 50-60HZ
Material In/Out : Stainless Steel
Leg support: Rubber
7 Installation instruction
7.1 The points for instruction before installation
The place should be smooth and steady. Avoid the fall and leak of gas.
Do not store or use any flammable vapors or liquids in vicinity of "bain maries".
The limit for ambient temperature : From 0℃to35℃.
Ambient humidity: 80% max.
Check the accessories of "bain maries" whether they are completed.
Check the cabinet and cable for any signs of damage.
7.2 Connected the electricity supply
Connect the unit to a fixed socket outlet appropriate for its use. The socket should be protected
for earth leakage by the use of an RCD protected socket outlet. DO NOT USE EXTENSION
LEADS.
Caution:
1) Do not plug with wet hands in order to avoid getting electric shock.
2) Do not plug into a socket where several other appliances are plugged in.
3) Do not use if the power cord is damaged or the plug does not fit the socket safely.
4) Do not place on unstable surfaces.
5) Use the unit with sufficient space around it. Keep the front side and either right or left side of
the unit clear.
6) Do not use the unit on carpet or tablecloth (vinyl) or any other low-heat-resistant article.

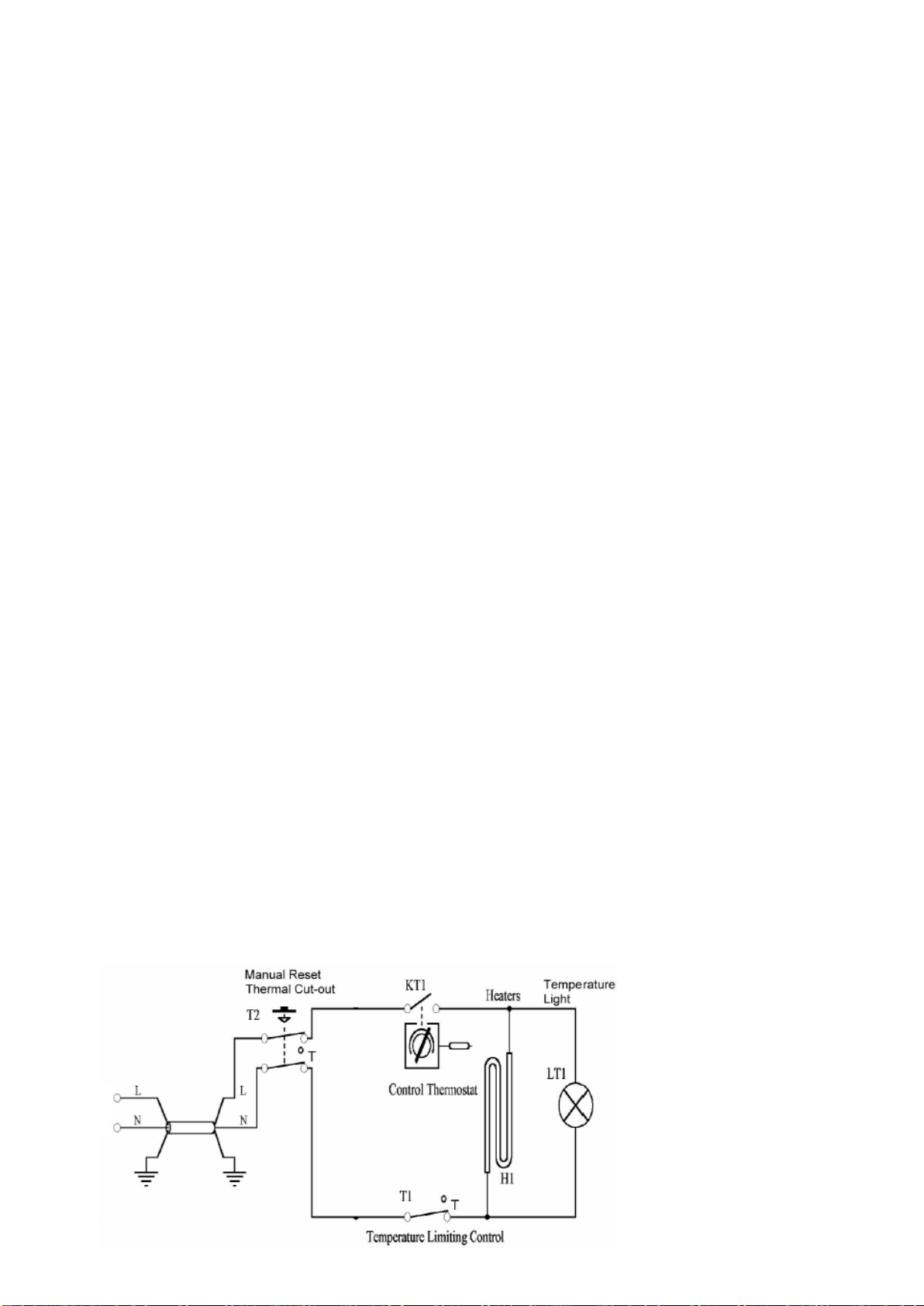

8. Circuit diagram
Lt1 Temperature light
Kt1 Control thermostat
T1 Temperature limiting
control
T2 Manual reset cutout
H1 Heater
Page 6
Disposal
EU regulations require products to be disposed of by specialist
companies who remove or recycle products, including electronic,
metal and plastic components.
Consult your local waste collection authority regarding disposal of
your appliance. Local authorities are not obliged to dispose of
commercial equipment but may be able to offer advice on how to
dispose of the equipment locally.
All packaging materials should be disposed of in an environmentally friendly way.
The cardboard may be used as scrap paper. The protective foil and the foam
cushions are CFC-free.
Do not allow children to play with the packaging and destroy plastic bags safely.
Environmental protection
Discarded electric appliances are recyclable and should not be
discarded in the domestic waste! Please actively support us in
conserving resources and protecting the environment by returning
this appliance to the collection centres (if available).
Compliance
Parts have undergone strict product testing in order to comply with regulatory
standards and specification set by international, independent, and federal
authorities.
Products have been approved to carry the following symbol:
Pentland Wholesale Ltd. Unit17 Walker Park Industrial Estate Walker Rd.,
Blackburn, BB1 2QE.
TEL: 01254614444 www.pentlandwholesale.co.uk
