BELOŠEVAC BB , 14000 VALJEVO, SRBIJA
Model name
Dimension
Nominal
Power
Weight
Flue
coupling
diameter
Minimum distance
from surrounding
combustible materials
width/length/height
[mm]
[KW]
[kg]
[mm]
sides/rear/front [cm]
EKONOMIK lm
330x360x930
6,5
36
118
40/50/80
EKONOMIK
330x460x900
6,5
39
118
40/50/80
EKONOMIK LUX lm
330x360x930
6,5
37
118
75/55/80
EKONOMIK LUX
400x460x900
6,5
48
118
75/55/80
ZAR
480x460x930
7,5
61
118
70/55/80
OGANJ LM
490x460x930
8,5
58
118
70/75/80
OGANJ
490x460x930
8,5
66
118
70/75/80
BLIST B1
465x390x800
8
54
118
65/50/80
BLIST B10
465x390x970
8
57
118
65/50/80
BLIST B2
465x460x910
9
62
118
60/70/90
BLIST B22
510x500x910
11
73
118
60/70/100
BLIST BR
510x480x1060
11,5
94
118
60/70/100
BLIST BRM
580x560x1060
12
122
118
60/70/100
KONZUL LM
490x460x930
8
64
118
50/75/80
KONZUL
490x460x930
8
75
118
50/75/80
AMBASADOR LM
490x460x1040
9,5
82
118
65/75/80
AMBASADOR
490x460x1040
9,5
95
118
65/75/80
AMBASADOR LM R
490x460x1160
9,5
102
118
65/75/80
AMBASADOR R
490x460x1160
9,5
122
118
65/75/80
DIPLOMAT
480x450x1000
10
62
118
60/70/80
DIPLOMAT LUX
480x450x1000
10
68
118
60/70/80
B MAX 1
520x440x810
11
90
150
60/70/100
B MAX 2
665x440x810
14
116
150
60/70/110
USAGE AND MAINTENANCE MANUAL FOR A SOLID FUEL STOVE
DEAR CUSTOMER,
Congratulations on your purchase of “BLIST” solid fuel stove. Please make installation
and use the stove in accordance with this manual, this will ensure safe operation and
long life of your stove.
Table 1. Technical specification:
1
1. Description and purpose of the stove:
BLIST solid fuel stoves are designed in a way to enable efficient combustion of solid fuels with the
possibility of adjusting and regulating the amount of input air required for the combustion process.
The stove consists of parts from steel, with doors and top plate made of cast iron or steel (depending
on the model of the stove), and the grate in the combustion chamber made of cast iron. All stoves are
plated inside with schamotte bricks, which provides long-term heat accumulation. The stoves are
painted with special heat resistant paint. The glass on the door is the first class heat resistant ceramic
glass.
The stoves are designed for space heating of a wide spectrum such as living rooms, offices, restaurants,
schools, garages, warehouses, etc. ..
- Models: KONZUL, KONZUL LM, AMBASADOR, AMBASADOR LM , DIPLOMAT LUX,
AMBASADOR R and AMBASADOR LM R have sides coated with ceramic tiles which gives unique
atmosphere to your room.
- Models: BLIST BR, BLIST BRM, AMBASADOR R and AMBASADOR LM R have oven with
built-in thermometer. Thus, alongside with heating of space, these stove models can be used for
baking also (of different kind of bread, pies, meat, etc..)
2. Installation:
- all local regulations including those refering to national and European standards needs to be complied
with when installing the appliance.
- Place of installation must be horizontal and must have adequate carrying capacity, otherwise must
be taken appropriate actions to fulfill these conditions.
- the stove must not be placed near combustible materials (such as wooden, textile or plastic furniture
parts, etc..) nor near cooling devices. Minimum distance between the stove and such materials must be
provided according to data from Table 1.
- if the stove is placed on the floor made from combustible materials (wood, itison, floor plastic, etc.)
it is necessary to protect the floor with metal sheet of min.30cm width from the sides of the stove, and
min. 50cm from the front side of the stove. Flue pipes must be away from combustible objects min.
40cm.
- When connecting the stove to the chimney you should consult a local competent institution. The
stove should be attached to a chimney with inner radius of at least 120mm and height of 6m. If multiple
stoves are attached to a single chimney, the attachment distance should be at least 2m. The chimney
should extend beyond the top of the roof min. 50cm. You should also pay attention that connection pipe
to the chimney does not stand out in the cross-section of the chimney, as well as the connection point of
flue pipe to the chimney must be tightly sealed. (see the Figure No.1) If two chimneys are going
parallel one to each other, they must have separate openings for cleaning, and cavities between the
chimneys also may not exist. Opening for cleaning the chimney must be tightly closed and sealed when
using the stove (while the fire runs in the stove). ). If the chimney is a newly built the fireplace must
not be constantly fired at full capacity until the chimney is completely dry.
- on the place of installation of the stove there must be provided free access for cleaning of the stove,
the flue connectors and the chimney itself.
- In order that stove work properly the necessary flue draught must be 12 ÷ 14 Pa. Check of the airflow
can be carried out by using a candle also, as shown in Figure no. 2
2
- Fresh air is necessary for combustion of the fuel and proper functioning of the stove, and you must
provide that in the room where the stove is installed always be enough (fresh) air. Extractor fans,
cooker hoods and similar devices which extracts air from the room should not be placed in the same
room where the stove is installed. If this is the case or if the doors and windows are sealed, then if
necessary you must find a way to lead fresh air from outside for proper combustion. In this case, before
installing the stove, it is necessary to consult with a competent engineer/organization. If you do not
provide a sufficient amount of air for combustion, the fuel in the stove will not burn completely and the
room where the stove is placed can become contaminated with unhealthy and dangerous gases!

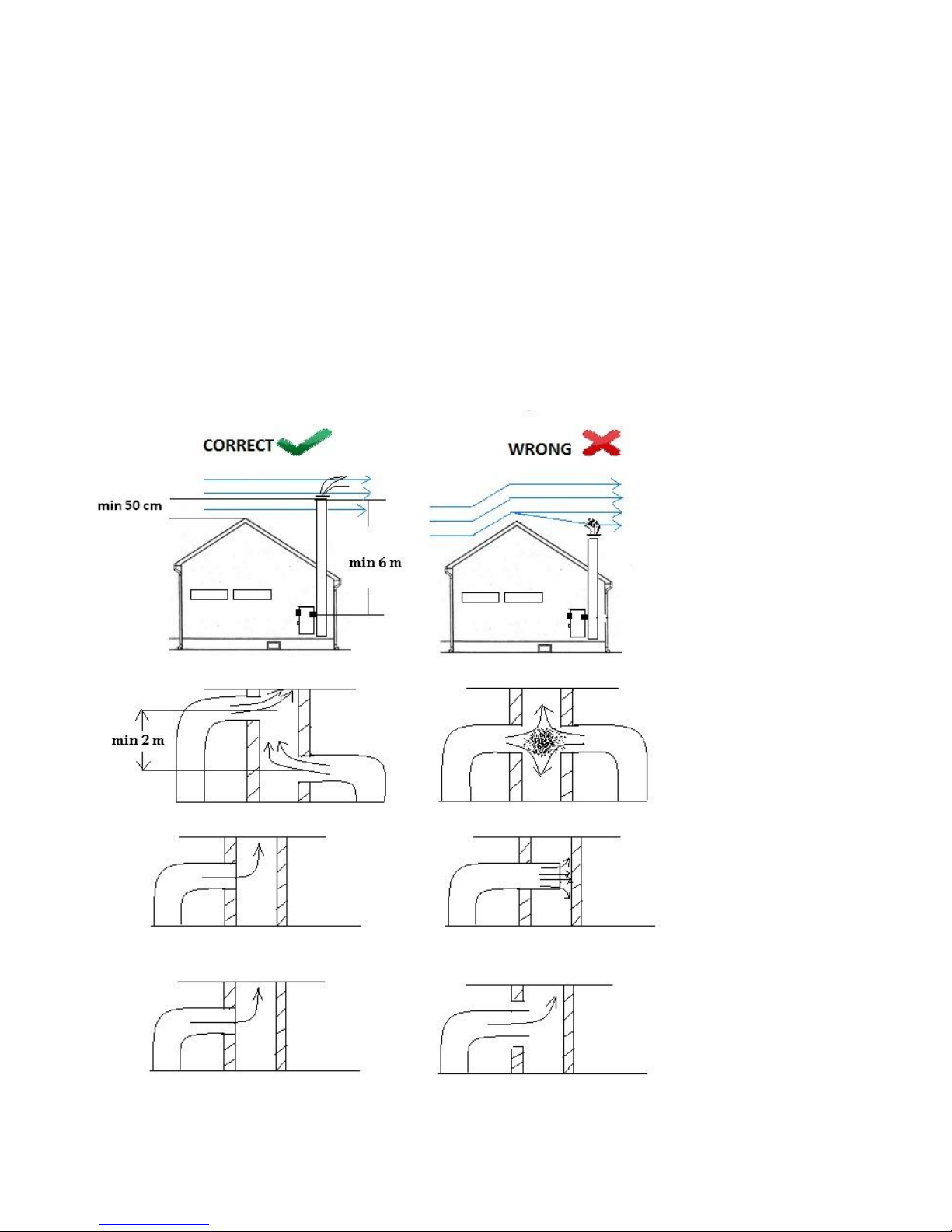

Figure No. 1 INSTALLATION OF THE STOVE
3

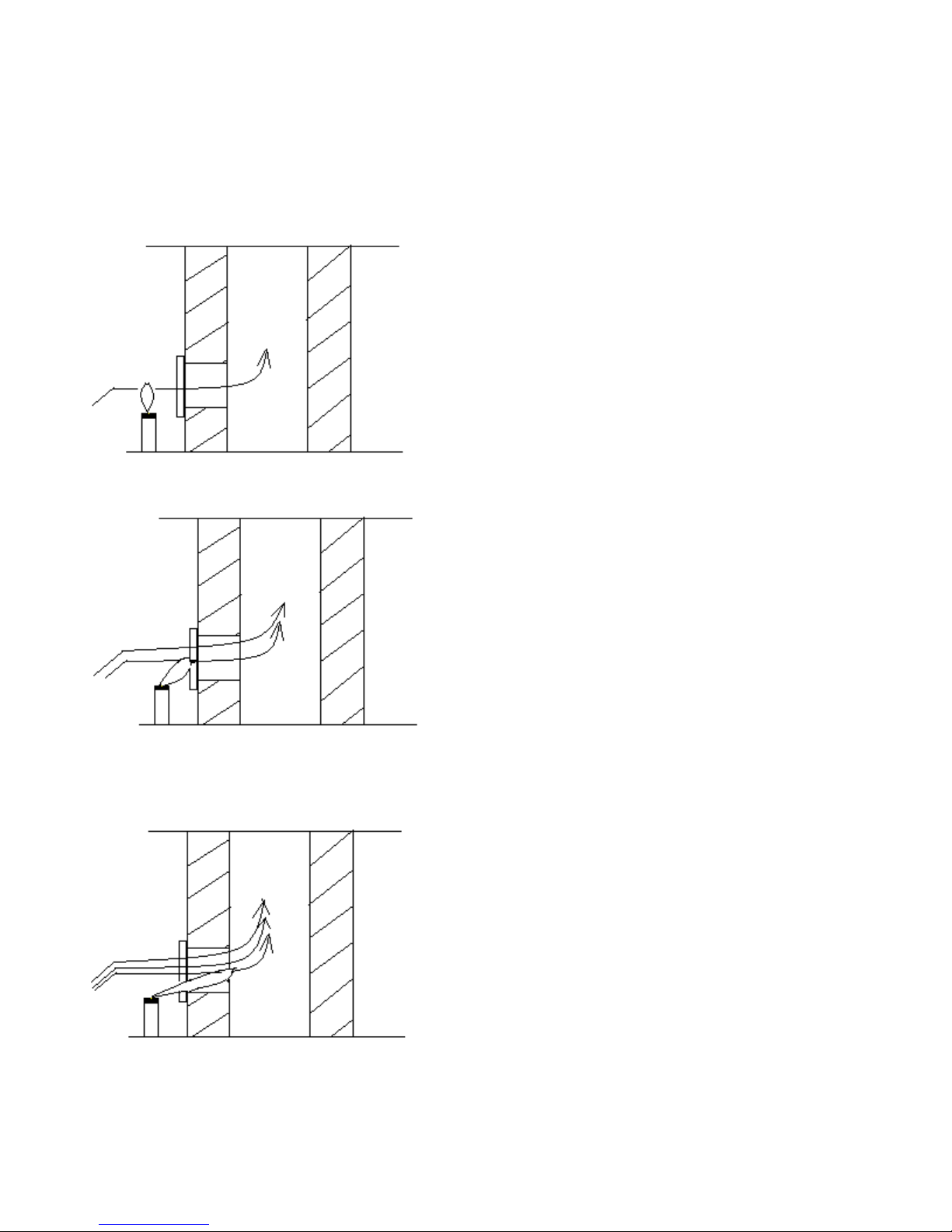

Figure No. 2 CHECKING OF THE FLUE DRAUGHT
weak air-flow
good air-flow
too strong air-flow
4
3. Usage:
- all local regulations including those refering to national and European standards needs to be complied
with when installing the appliance.
- recommended fuel: wood logs (beech wood, poplar wood, etc..), coal with less calories (brown coal)
The heating strength depends on the type and quality of fuel used.
- the initial heating of the stove should be gradual to avoid sudden stresses on the material. Do not use
the stove with full capacity during the first 8-10 hours of firing (1-2 days). Thermo-resistant paint on
the stove will be fully formed (harden) after first 2-3 hours of the firing the stove. During this time,
please do not touch the paint and do not put anything on the stove, in order to avoid damage of the
paint. During first 15-30 min. of firing the stove can emit unpleasant smell and smoke. During this
period small children and pregnant women should not be in the same room with the stove, and
windows of the room should be opened widely.
Starting and maintaining the fire:
- the combustion intensity is regulated with the primary air regulator located at the front of the stove
by turning it left-right, and with stack valve regulator (on models which possess it) located at the
chimney spout by rotating it.
When handle of input air regulator is in most right position it is in closed position (no air flow into the
burning chamber), and when in most left position it is fully opened (maximum flow of air into the
burning chamber). Between these two, gradually can be set medium positions.
When handle of stack valve regulator is in most left or most right position, it is in closed position
(mimimum output flow of combustion gases.. When handle of stack valve regulator is in upper
position, it is in fully opened position (maximum output flow of combustion gases). Between closed
and fully opened positions are medium positions.
- do not use gasoline, lighter fluid, Kerosene or other flammable liquids to start or rekindle the fire, for
the safety reasons. When starting the fire, make sure that air regulator and stack valve regulator (on
models which possess it) are in fully opened positions. Build a fire directly on the grate with crumpled
newspaper, kindling wood and commercialy available “firelighters”. Do not allow single pieces of
paper to float up the chimney especially alight. This is a common cause of chimney fire and can cause
structural damages to the property. When the kindling is burning well you can add larger pieces of
wood to gradually increase the size of fire
- when you want to refuel the stove, first put the input air regulator in closed position and after that
open the door slowly and carefully refuel the stove. Do not open the door abruptly as this may cause
the appearance of smoke in the room. Maximum filling height in the burning chamber should not be
more than 2/3 of the height of the chamber. Optimal filling height in the burning chamber is 1/2 of the
height of the chamber. It is advisable to wait for the fire to be reduced to hot embers before re-loading.
Do not let the congestion of grate in the combustion chamber with ash and non-burned fuel. Clean the
grate regularly.
- The stove is constructed and designed for continuous operation with the closed door of the
combustion chamber, except during refueling the stove. Do not open the door when the stove is in use
without the need.
- de-ash the ash pan regularly - do not allow a bed of ash to build up above the level of the sides of the
ash pan. Wood will burn better with the slight build up of ash in the ash pan.
- it is forbidden to use the stove for burning of organic and inorganic waste (animals, plastic, textiles,
oiled wood, etc..). During combustion of such materials can be released many harmful and toxic
supstances.
5
4. Maintenance:
- ash pan must be emptied regularly
- burning chamber and all surfaces which are in contact with smoke gases should be cleaned and
emptied periodically from the ash and other types of fuel waste. Clean interior surfaces inside the stove
guarantee economical operation of the stove. It is recommended to clean the stove once a month or
more frequently in the case of larger soiling and fuel waste.
- after each heating season the stove, pipes and the chimney must be thoroughly cleaned from the
soot. During the period of non-use the stove, leave the input air regulator and stack valve regulator in
maximum opened position to allow natural air flow through the stove, in order to avoid aggregation of
condensate inside the stove.
- clean the glass regularly with soft cloth. Clean the outside of the stove with soft cloth, but do not use
abrasive and other aggressive chemical cleaners as they could remove the paint from the stove. Do
cleaning only when the stove is cold.
- if there is a need for changing some part or repairing the stove you must call competent enginner to
do this maintenance
5. SAFETY – CAUTION !
- the glass must not be cleaned with wet cloth nor sprinkled with water when is hot. Otherwise, the
glass may crack.
- very cold objects should not be placed on the top plate when is hot. Otherwise the top plate may
crack.
- do not use alcohol, petrol or any other liquid fuel!
- some parts of the stove can reach very high temperatures during operation the stove, thus it is required
adequate precaution while using the stove. Do not allow children to handle and play near the stove.
- It is not allowed to make any structural changes on the stove without the approval of the
manufacturer.
6
